APC Back-UPS BK500EI 500VA, 300W, IEC

Accessories included -
ACoutletsquantity - 4 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 300 W
Apparent power - 500 VA
ARTIKEL1 - BACK-UPS 500CS 500VA
ARTIKEL2 - 300W IN
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 3.8 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery capacity - 7 Ah
Battery - Battery capacity - 83 VAh
Battery - Battery life (max) - 6 year(s)
Battery - Battery recharge time - 8 h
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Typical backup time at full load - 3.8 min
Battery - Typical backup time at half load - 13.8 min
Batterycapacity - 7 Ah
Battery recharge time, h - 8
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage - 12 V
Brand - APC
BrandPartCode - BK500EI
Cable length, m - 1.83
Cablesincluded - Phone (RJ-11), USB cable
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Category_1 - Power
Category_2 - UPS
Certificates - Certification - C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
Certificates - Compliance certificates - RoHS
Certification - C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE
Charging time - 8 h
Chassis type - Tower
Code - BK500EI
Connections - RJ-45
Connections - Serial (RS-232)
Connections - USB
Data line protection - RJ45 Analog phone line for phone/fax/modem/DSL
Depth - 284 mm
Depth, mm - 284
Description - APC BACK-UPS CS 500VA 230V USB/SERIAL
Description - Back-UPSAPC Back-UPS 500, 230V
APC Back-UPS,300 Watts /500 VA, output 230V /input 230V, Interface Port Optional Simple Signalling RS232 cable, USB
Design -
Design - Cable length - 1.83 m
Design - Form factor - Tower
Design - LED indicators - Battery replacement
Design - Product colour - Beige
Designation - CE+WEEE
dimension depth - 415 mm
dimension height - 240 mm
Dimensions - - Width: 90 mm
- Height: 170 mm
- Depth: 280 mm
dimension weight - 6695 g
dimension width - 190 mm
Displaytype -
EAN - 731304016359
ean - 731304016359
EAN - 0731304016359
EANCode - 0731304016359
Eans - 0731304016359
EAN_code - 0731304016359
Efficiency - 99%
Environment requirements - - Operating environment: 0 - 40 ° C
- Operating relative humidity 0 - 95%
- Height above sea level Operating: 0-3000 meters
- Temperature (storage): -15 - 45 ° C
- Relative humidity (storage): 0 - 95%
- Height above sea level (storage): 0-15000 meters
Features -
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Low battery alarm, Overload alarm
Features - Efficiency - 99%
Features - Hold time (max) - 10 ms
Features - Hold time (min) - 6 ms
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 40 dB
Features - Output frequency regulation - 47 - 63 Hz
Features - Output power - 300 W
Features - Output power capacity - 0.5 kVA
Features - Power protection features - Overload
Features - Surge energy rating - 310 J
Features - Surge protection - Yes
Features - Surge protection features - Digital Subscriber Line (DSL), Fax, Modem, Telephone
Features - UPS topology - Standby (Offline)
Features - Waveform - Sine
Formfactor - Tower
Form factor - Tower
Frequency range, Hz - 47 - 63
Gewicht - 6.51
Gross Weight Kg - 7,3
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
GTIN - 731304016359
GTIN - 0731304016359
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 165 mm
Height - 234.000000
Height, mm - 165
HERSTELLER - APC
HighLights -
Hold-up time (maks) - 8 ms
Hotswapbattery -
HSTNUMMER - BK500EI
Input connection - IEC-320-C14
Input current, A - 7
Inputfrequency - 50/60 Hz
Input frequency, Hz - 50/60 +/- 3
Inputoperationvoltagemax - 300 V
Inputoperationvoltagemin - 160 V
Input voltage, V - 180 - 266 (160 - 300)
Length - 187.000000
Link - https://www.se.com/lt/lt/product/BK500EI/apc-backups-500va-300w-tower-230v-4x-iec-c13-outlets-user-replaceable-battery/
Logistics data - Harmonized System (HS) code - 85078000
Logistics data - Products per master (outer) case - 1 pc(s)
Logistics data - Products per pallet - 48 pc(s)
LongDesc - APC Back-UPS CS, 300 Watts / 500 VA,Input 230V / Output 230V, Interface Port DB-9 RS-232, USB
LongDesc - This product is part of the Back-UPS range. The BK550EI features a total of 6 power outlets, 3 of which are UPS battery backup and 3 that are surge only. Its runtime at 100W is 24 minutes 20 seconds It provides data line protection with a RJ45 analog phone line for phone or fax or modem or DSL. Its dimensions are 16.5 x 9.1 x 28.4 cm and 6.32kg. The BK550EI ensures office systems and their valuable data are protected from dangerous power surges, spikes and blackouts.
LongProductName - Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
LongSummaryDescription - APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery. UPS topology: Standby (Offline), Output power capacity: 0.5 kVA, Output power: 300 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery capacity: 83 VAh. Form factor: Tower, Product colour: Beige, Cable length: 1.83 m. Compliance certificates: RoHS, Certification: C-tick, CE, EN 50091-1, EN 50091-2, GOST, VDE, REACH
Manufacturer - APC
Manufacturer Code - BK500EI
Manufacturer Name - APC by Schneider Electric
ManufacturerPartNumber - BK500EI
Manufacturer_code - BK500EI
ManufDatasheet - https://www.tdbaltic.ee/leaflets/APC/BK500EI.pdf
Maximum power, W - 300
MPN - BK500EI
Name - APC Back-UPS 500 Tower BK500EI 500VA 300W
Name - APC Back-UPS CS 500VA black500EI ++
Name - APC Back BK500EI
name - BK500EI APC Back-UPS 500, 230V
Name - Schneider Electric APC Back-UPS | BK500EI | 500 VA | 300 W
Networkcardslot -
Noiselevel - 40 dB
Noise level, dB - 40
Nominal input voltage, V - 230
Nominal output voltage, V - 230
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH - 0 - 95%
Operating relative humidity range, % - 0 - 95
Operating temperature range (T-T), °C - 0 - 40
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Non-operating altitude - 0 - 15000 m
Operational conditions - Operating altitude - 0 - 3000 m
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 95%
Operational conditions - Storage temperature (T-T) - -15 - 45 °C
Other features -
Other features - Filtering - Yes
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V
Other features - Packaging content - Detachable 1.2m IEC power cord
Detachable 1.8 m IEC power cord
Other features > Special features - Data line protection ensures complete protection of your equipment against surges; LED display allows easy reading of device status and power conditions
Outputfrequency -

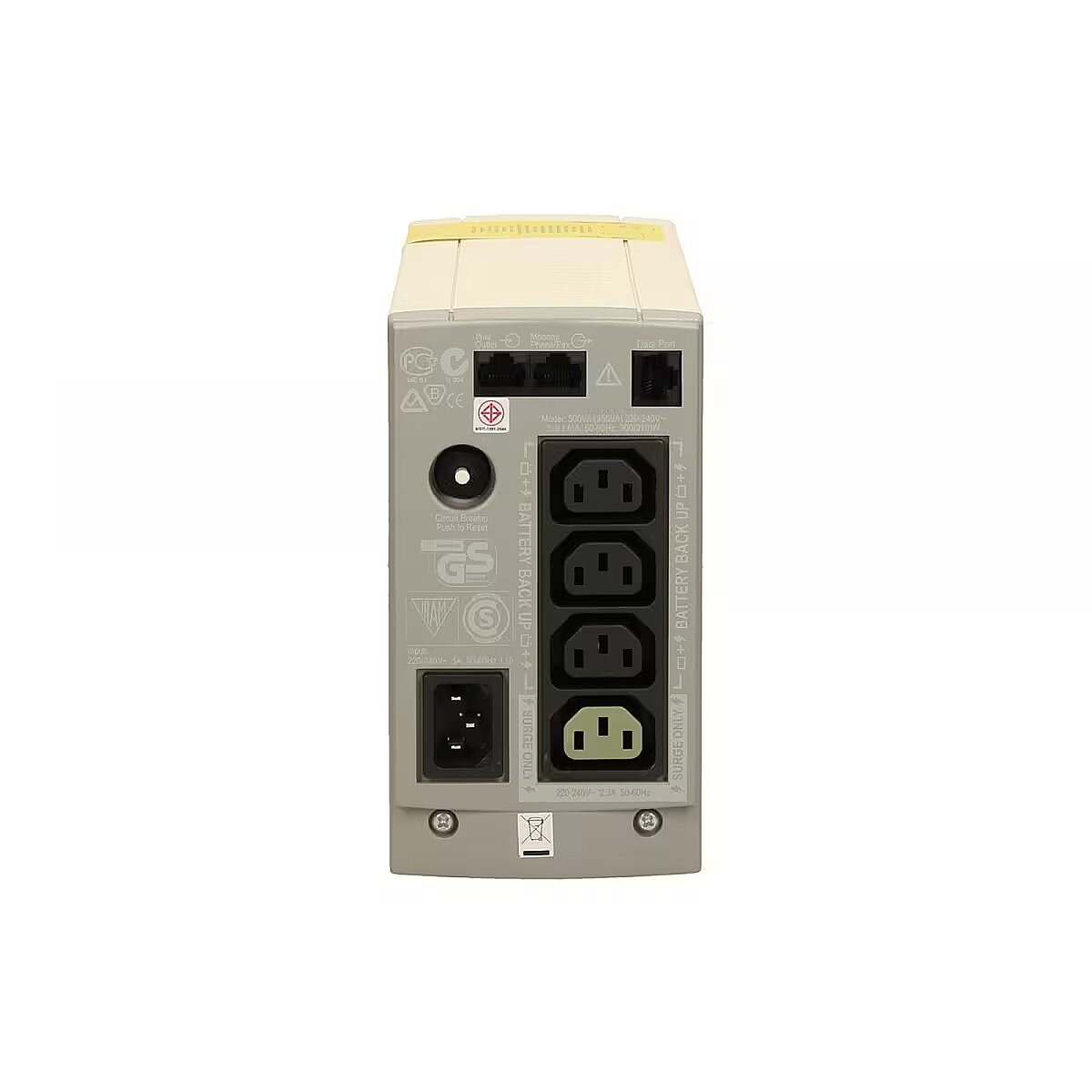

Output interface - 1 x IEC 320 C13 (Surge Protection), 3 x IEC 320 C13 (Battery Backup), 2 x IEC Jumpers (Battery Backup)
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 300 W
Output power, W - 300
Outputpowercapacity - 0.5 kVA
Output power capacity (VA) - 500
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 178.00 mm
Package features > Gross height (mm) - 241.00 mm
Package features > Gross width (mm) - 368.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 109 pc(s)
Package features > Paper/Pasteboard - 584.00 g
Package features > Plastic (No PET) - 146.00 g
Package features > Tare weight (kg) - 0.73 kg
Package features > TI weight (kg) - 2.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.02 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Packaging content - Cables included - Phone (RJ-11), USB cable
Packaging content - Quick installation guide - Yes
Packaging data - Bundled software - PowerChute Personal Edition
Packaging data - Package depth - 368 mm
Packaging data - Package height - 178 mm
Packaging data - Package weight - 7.05 kg
Packaging data - Package width - 241 mm
Packaging data - Software CD - Yes
Packaging data - Warranty card - Yes
Performance > Capacity - 500 VA
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 4 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 2
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - APC Back-UPS CS/500VA Offline
producer - APC
Producer - APC
ProducerCode - BK500EI
Productcolour - Beige
Productcondition - Original
ProductHighLights -

• Standby (Offline)
• 0.5 kVA 300 W
• Waveform: Sine
• 4 AC outlet(s)
• Sealed Lead Acid (VRLA) 12 V 7 Ah
• Tower Beige

ProductName - Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
ProductPicture - https://www.tdbaltic.ee/images/products/APC/BK500EI_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/APC/BK500EI_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/APC/BK500EI_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/APC/BK500EI_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/APC/BK500EI_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/APC/BK500EI_6.jpg
Quickinstallationguide - Yes
Rackmountkit -
RS232ports -
Runtime - 4 min (full load) / 14 min (half load)
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
Short description - APC Back-UPS CS 500 VA BK500EI
ShortSummaryDescription - APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery, Standby (Offline), 0.5 kVA, 300 W, Sine, 160 V, 300 V
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 84
Storage temperature range (T-T), °C - 0 - 40
Storno - Y
Surge energy rating, J - 310
Sustainability - Sustainability certificates - ENERGY STAR, Green Premium
Technical details > Capacity - 300 W
Technical details > Gross weight - 7.05 kg
Technical details > Net weight - 6.32 kg
Technical details > Producer - Schneider Electric
Technical details > Producer product family - APC Back-UPS
Technical details > Producer product name - BK500EI
Technical_details - The re-invention of the most relied upon desktop UPS in history: the Back-UPS!
The Back-UPS CS provides professional-grade power protection for office and home office systems. Battery powered & surge protected power outlets, built-in phone/fax/modem line (DSL compatible) protection, safe system shutdown software with sophisticated power management Featuress and pro-active audio-visual status indicators ensure office systems and their valuable data are protected from dangerous power surges, spikes and blackouts. Serial or USB connectivity gives users more flexibility making installation quicker and easier. Easy access to a hot-swappable, user-replaceable battery also makes servicing the Back-UPS CS hassle-free. These Featuress along with its classic styling make the Back-UPS CS a perfect choice for protecting your important office and home office systems. Key Featuress:
- Audible alarms - Automatic restart of loads after UPS shutdown - Automatic self-test - Battery replacement without tools - Battery-protected and surge-only outlets - Dataline Surge Protection - Hot-swappable batteries - LED status indicators - Power conditioning - Resettable circuit breakers - Safety-agency approved - Transformer-block spaced outlets - User-replaceable batteries Colour beige Device Type Standalone UPS Power Rating 500 VA / 300 Watt Input Voltage 196-264 V Buffering Time Full Load: 2.4 minute(s) Half Load: 13.9 minute(s) Ports / Interfaces serial: 1x USB: 1x Outputs Type 1 3x IEC 320 (C13) connected to Battery Yes Type 2 1x IEC 320 (C13) connected to Battery No Protection Line Protection: 1x RJ-11/RJ-45 Alert Messages optical: LED-Status-Anzeige von operating, Batterieoperating, changing the battery and overload Operating Temperature Storage Temperature -5 - 45 °C Charging time to 95% (at half load) 6 hour(s) Output V 230 VAC Operating via Battery: 230 VAC Product dimensions 92x165x285 mm Weight 6.3 kg
Title - APC Back-UPS, 500VA/300W, Tower, 230V, 4x IEC C13 Outlets , User Replaceable Battery
Typicalbackuptimeathalfload - 13.8 min
UPS devices and accessories - Yes
UPStopology - Standby (Offline)
URL - https://www.apc.com/
USBport - Yes
USBporttype -
vendpn - BK500EI
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Warrantyandmisc -
WarrantyInfo - 2 years
Waveform - Sine
Weight - 6,50
Weight - 6.5
Weight - 6.32 kg
Weight - 6.32 kg
Weight - 6.770000
Weight & dimensions - Depth - 284 mm
Weight & dimensions - Height - 165 mm
Weight & dimensions - Weight - 6.32 kg
Weight & dimensions - Width - 91 mm
Weight, kg - 6.32
Weightdimensions -
Width - 91 mm
Width - 416.000000
Width, mm - 91
