Digitus WIRELESS COLLAB. SYSTEM HDMI 2X TX 1X RX

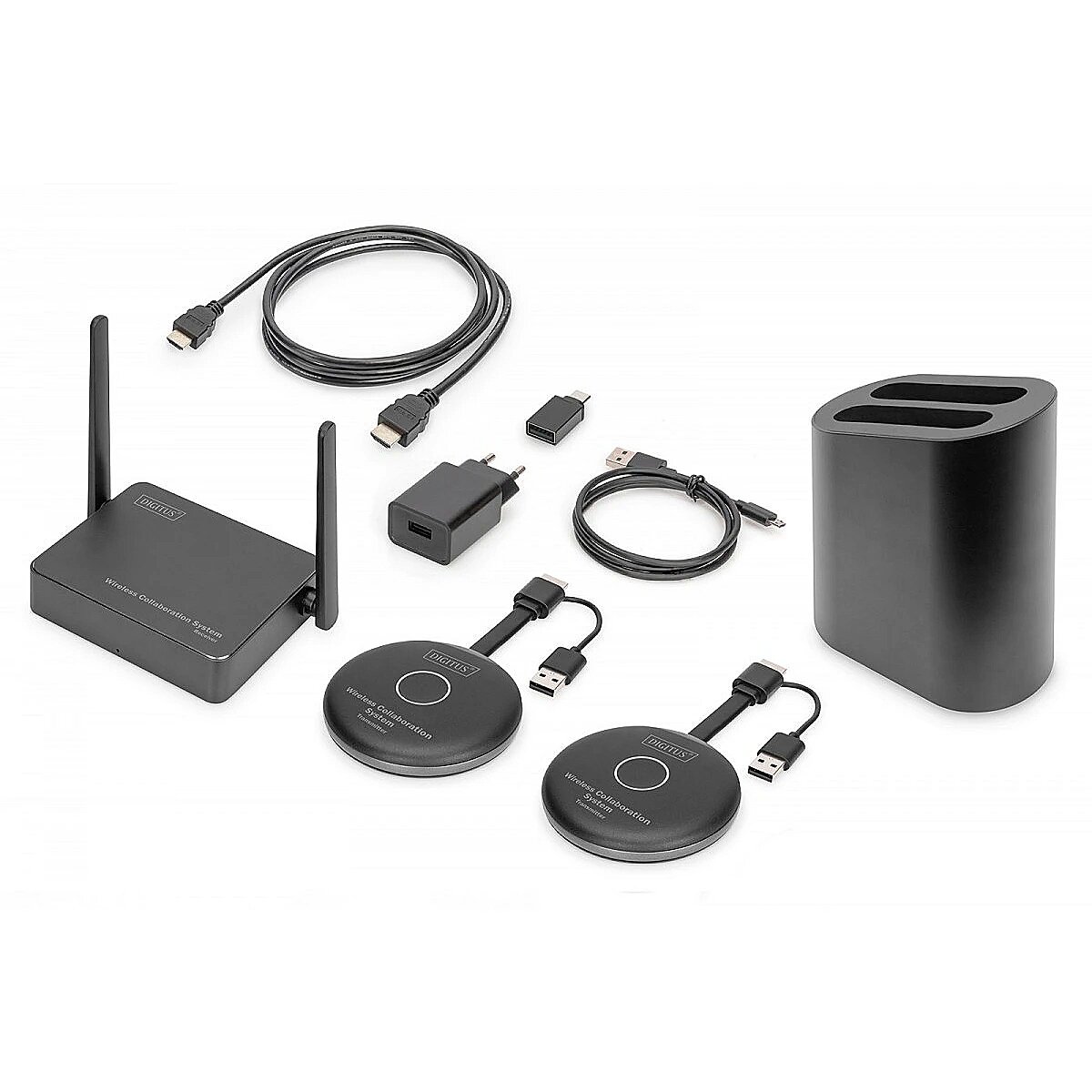

Accessories included - 1 x jednostka odbiornika 2 x transmiter HDMI 1 x ładowarka USB (10 W, 5 V / 2 A) 1 x podkładka do przechowywania transmitera HDMI 2x karta graficzna (HDMI - USB-C) 1 x kabel USB, 1,5 m 1 x kabel HDMI, 1,15 m 2 x adapter USB (USB-A, gniazdo USB-C, wtyczka) 1 x instrukcja obsługi
ARTIKEL1 - WIRELESS COLLAB. SYSTEM HDMI
ARTIKEL2 - 2X TX 1X RX
Breite - 0
Category 1 - Audio & Video
Category 2 - Konferenzsysteme
Code - DS-55317
Color - Black

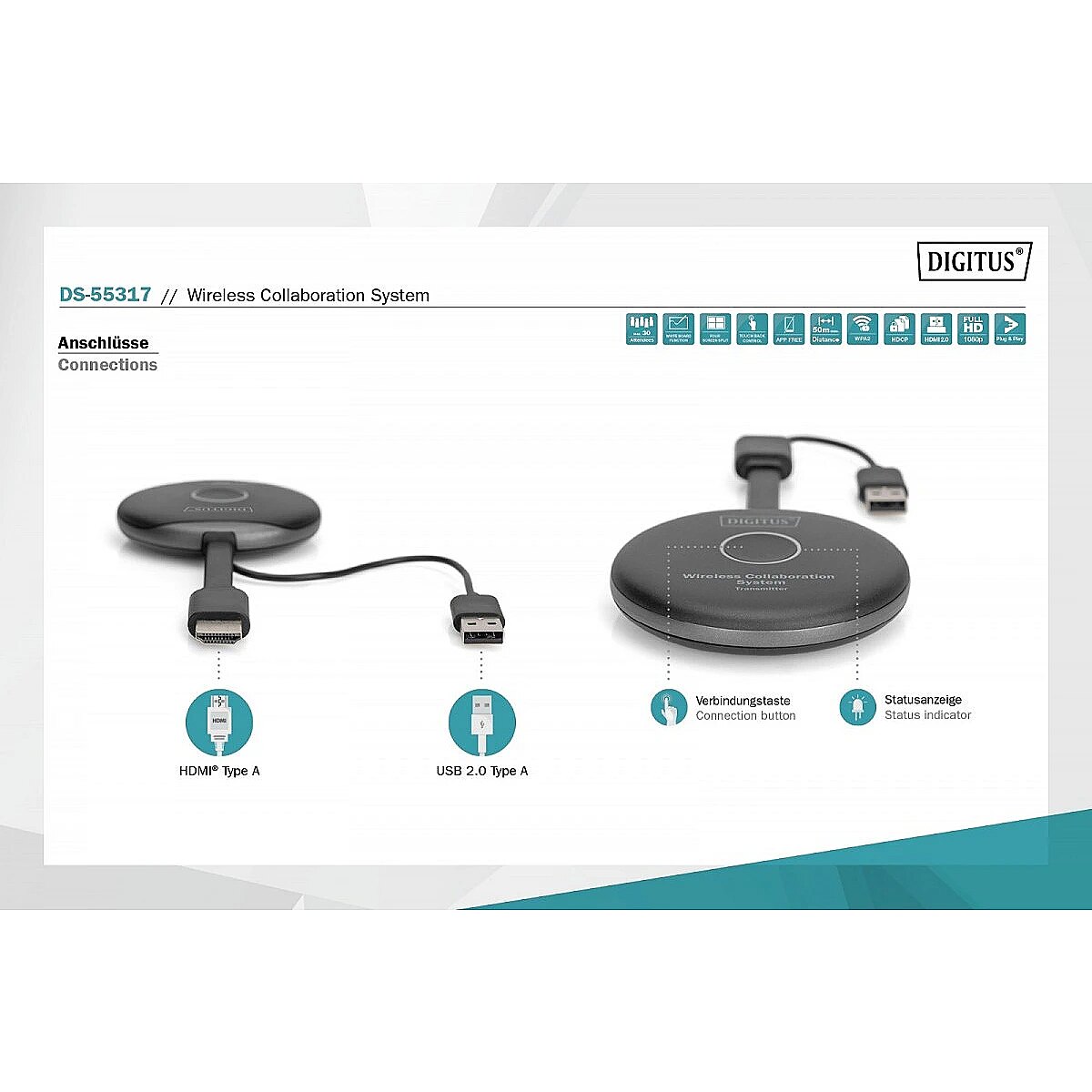

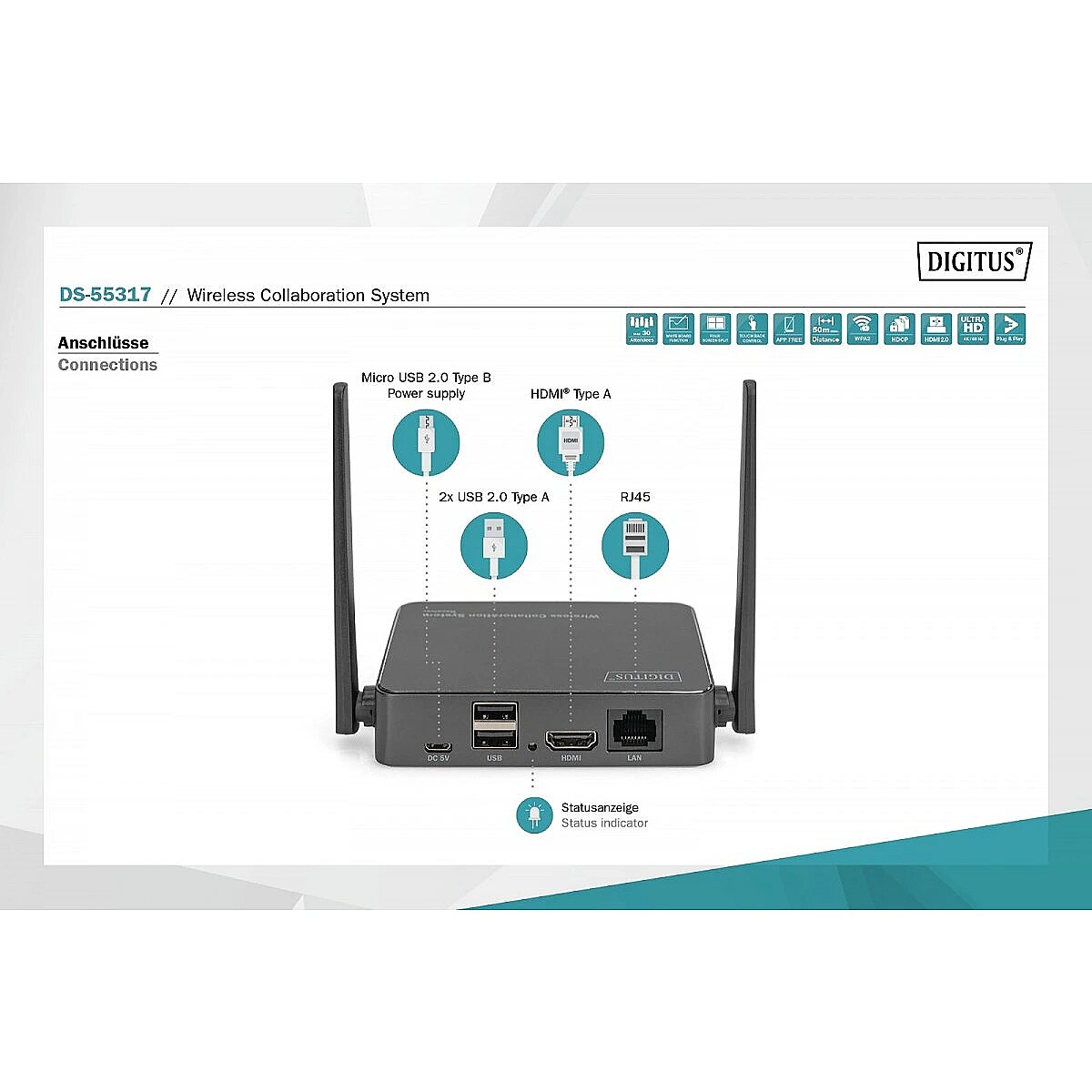

Connectors #1 - HDMI Type A Male
Connectors #2 - HDMI Type A Female
Connectors #2 - RJ45 Female
Connectors #2 - USB Type A Female x2

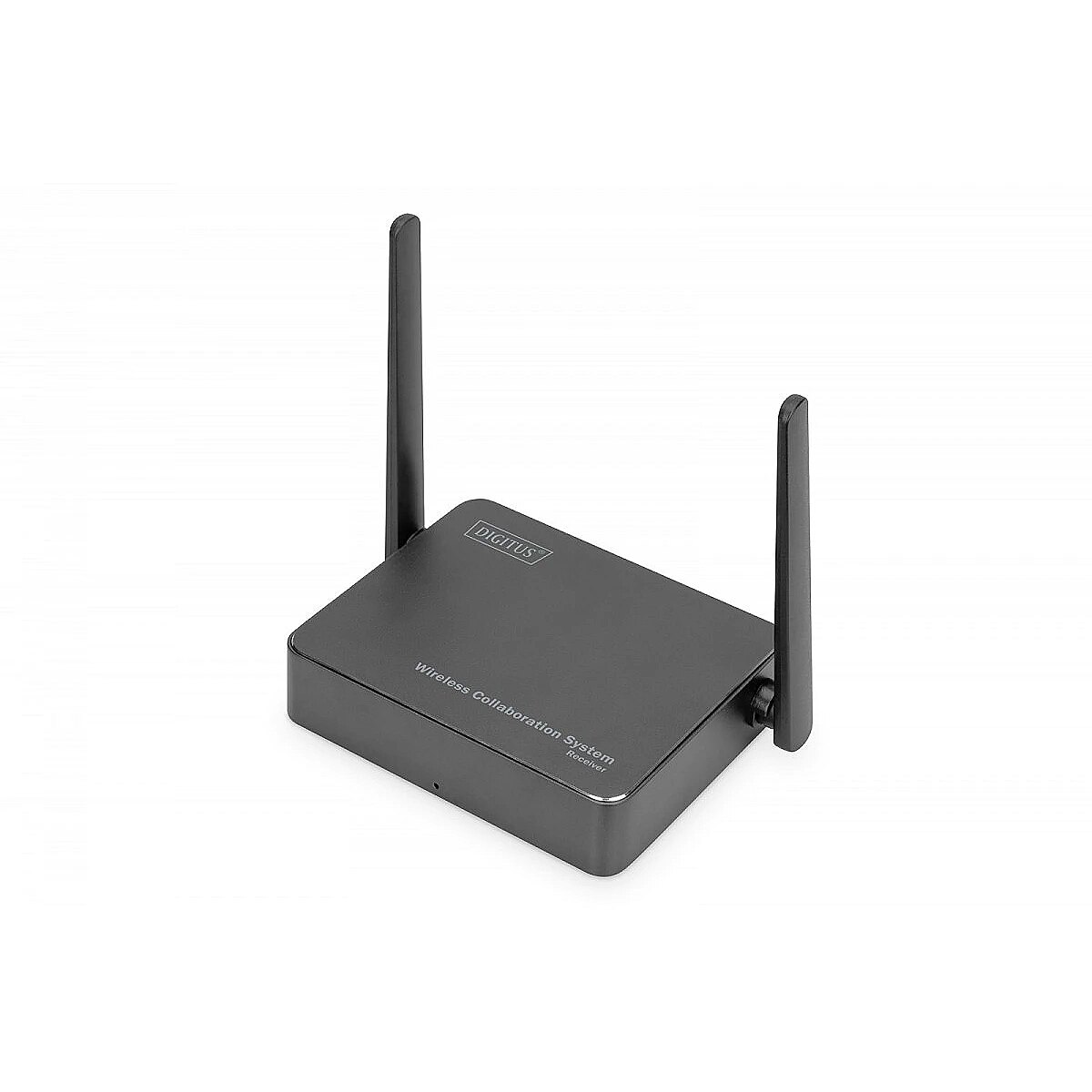

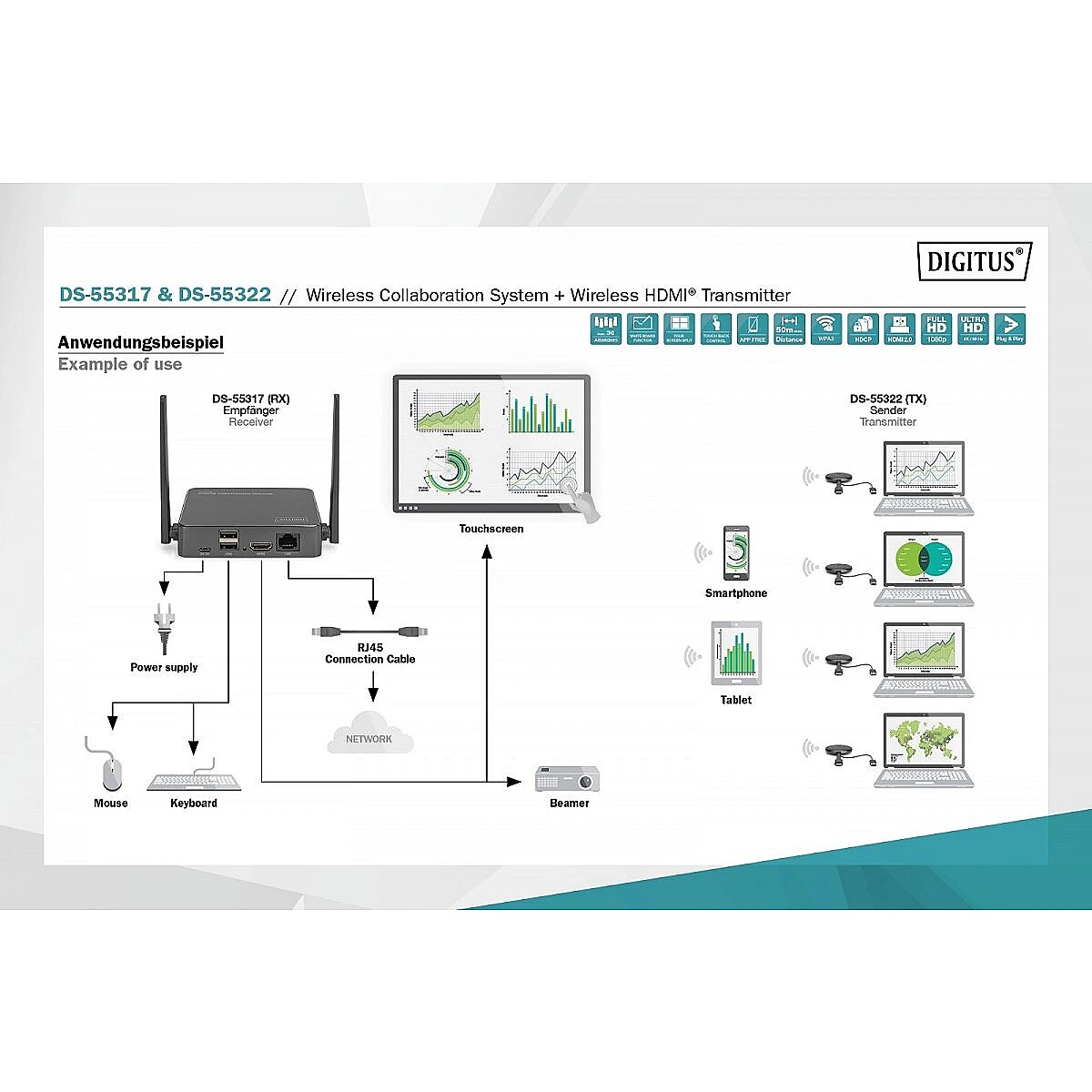

Description - The Wireless Collaboration and Presentation System enables you to make presentations using a notebook, tablet or smartphone The DIGITUS Wireless Collaboration System connects all your devices (notebook, tablet, smartphone) together and provides a hardware-based presentation solution. It enables wireless transmission of content from the screen to the meeting rooms. Up to 30 participants can connect to the receiver. Possibility for up to 4 participants to present / collaborate simultaneously on a split screen. Notebooks can be connected via HDMI transmitter, and the entire set can be extended with additional transmitters (DS-55322). Content from a tablet/smartphone can be easily shared using the Sharing/Cast function (for iOS, iPadOS/Android) of the mobile device. To do this, the mobile device must first be connected to the receiver (SSID) via WLAN. Configuration of the system has been simplified to the maximum in this case, no additional software/applications are required. The solution makes conferencing more efficient, saves time and optimises the results. Sharing and presentation teamwork. Enables content sharing, presentations and teamwork: The wireless presentation and team collaboration system allows you to connect your notebook or mobile device wirelessly to a screen or projector. No need to install any software or applications: You can share the image from your computer via the HDMI transmitter module (transmitter) / connect your tablet and smartphone via WLAN and share the image by synchronising the screen of the mobile device Split screen mode: Up to four participants can simultaneously transfer an image from their screen and display it on the main monitor (compatible with HDMI adapter, Windows, macOS, iOS) Touch Panel Back Control: As an alternative to using a mouse and keyboard, a touchscreen can be connected to the receiver module via USB to directly operate connected notebooks using touch panel gesture control Integrated whiteboard: The whiteboard mode turns any touchscreen display into a digital whiteboard, allowing you to write notes and drawings directly on the screen User interface: For configuration and administration, the collaboration system has a user-friendly user interface with an integrated overview of participants and tips on how to make a connection successfully Multi-user mode support: Up to 30 participants can simultaneously connect to the receiver and alternately start video transmission (additional HDMI transmitter modules are available separately DS-55322) Multicast and group mode: Several systems can run in parallel on the same network without problems / alternatively, the transmitter can transmit the video signal to two or more receivers simultaneously Application examples: Business applications (meeting and conference room, meeting room, office, trade show booth, boardroom) / Education applications (schools, colleges, universities, classroom, seminar room) Device requirements: All devices with HDMI interface / PC operating systems (compatible with: Windows, macOS) / smartphone and tablet (compatible with: Android 5.0 or later, iPhone and iPad with iOS 9 / iPadOS 13 or later)
Designation - CE+WEEE
dimension depth - 105 mm
dimension height - 190 mm
Dimensions - Transmitter: L 8.0 x W 8.0 x H 1.4 cm Receiver: L 8.5 x W 10.4 x H 2.3 cm
dimension weight - 1400 g
dimension width - 295 mm
EAN - 4016032478492
ean - 4016032478492
EANCode - 4016032478492
Gewicht - 1.5
GRUPPE1 - Network
GRUPPE2 - Kvm Switch Entry Hig
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DS-55317
Laenge - 0
Link - https://de.assmann.shop/en/Video-and-Audio/Video-Extenders/Wireless/Click-Present-Pro-Wireless-Collaboration-System.html
Manufacturer - Digitus
MPN - DS-55317
Name - Digitus Click & Present Pro - Wireless Collaboration System
Name - Digitus | Click and Present Pro - Wireless Collaboration System | DS-55317
name - Wireless HDMI system DS-55317

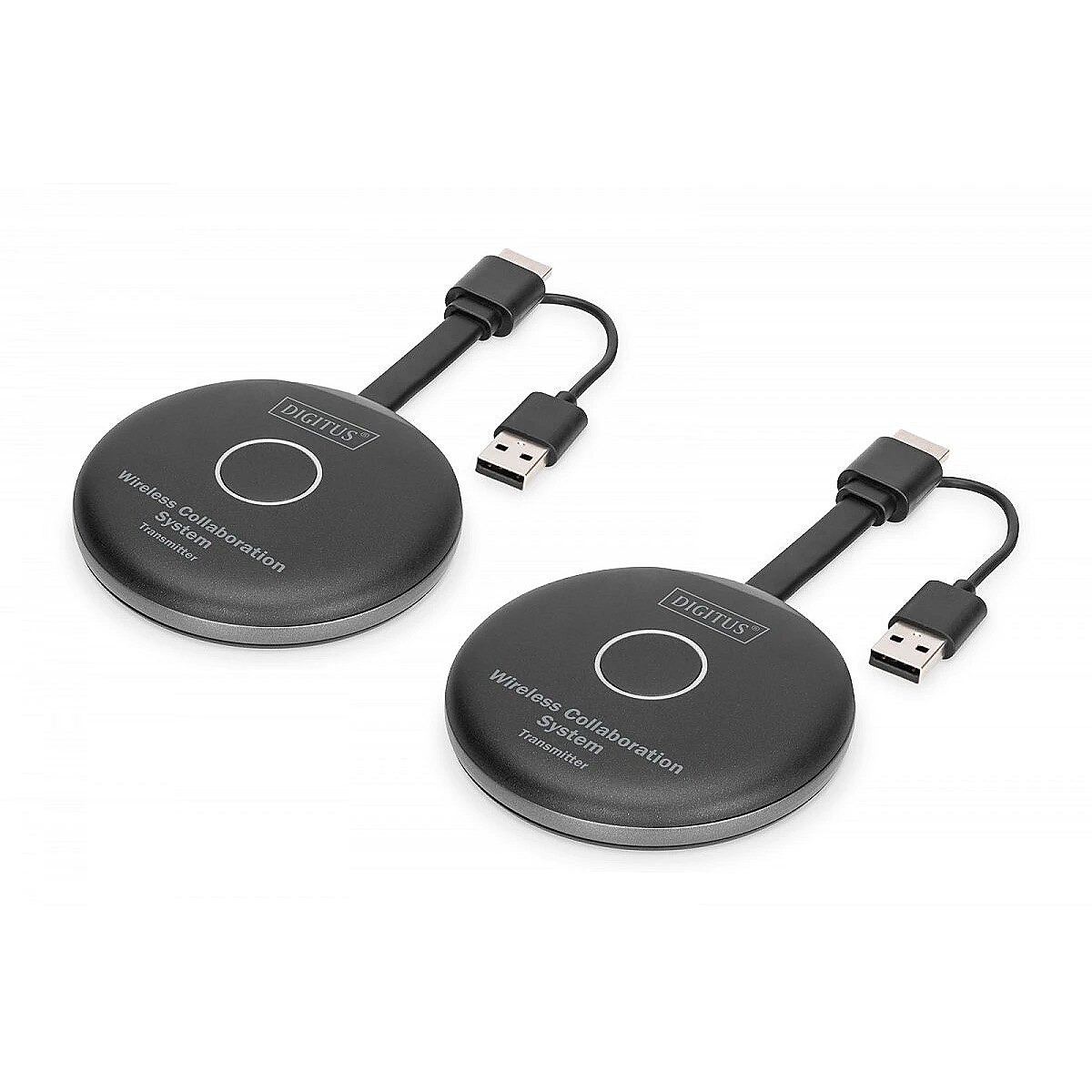

Other features - You can share content, give presentations and collaborate using a notebook, tablet or smartphone Easy installation, no software or app required Transmission range: up to 50 m (with no physical obstacles) Up to 4 participants can present on a split screen Up to 30 participants (simultaneous connection to the receiver) Sharing your notebook image via HDMI adapter (transmitter) or via wireless display (Windows)/screen sync (macOS) Sharing from a tablet/smartphone using screen sync (iOS, iPadOS/Android) on a mobile device Touch Pad Feedback - The receiver unit's touch pad feedback feature allows gestures/controls to be wirelessly sent to a Windows PC using your finger on the large touch screen Integrated whiteboard - there is a whiteboard function in the main menu of the receiver, which in combination with the touch screen allows you to quickly take notes during the meeting, as well as display presentations directly on the screen UHD 4K / 60 Hz (3840 x 2160p) receiver side for connecting 4K displays Support Windows, macOS, iOS, iPadOS, Android HDR (High Dynamic Range) video support BYOD-System Bring Your Own Device The set includes: 2 x TX (transmitter) and 1 x RX (receiver) Expandable with additional HDMI transmitters (transmitters) DS-55322 Transmitter (transmitter) connectors: 1 x HDMI plug (Full HD, 1080p) for connecting to a notebook, video output, cable length: 5 cm 1 x USB-A, notebook plug, for power supply, cable length: 12 cm 1 x Call button for easy sharing 1 x LED status indicator Receiver unit connectors (receiving signal): 1 x HDMI, socket (UHD, 4K and 2K / 60 Hz) for connection to the display 1 x RJ45 socket (Fast Ethernet, 10/100 Mbps) for network/internet connection 2 x USB-A, socket (USB 2.0) for mouse and keyboard / touchscreen connection 1 x USB-C, gniazdo do zasilania (10 W, 5 V / 2 A) 1 x LED status indicator 2 x radio communication antenna Wireless transmission standard: IEEE 802.11 b/g/n/ac, 2.4G/5GHz, 2T2R AES 128 bit encryption Authentication using WPA2/WPA-PSK/WPA2-PSK Delay level: approx. 100 ms Housing: ABS plastic transmitter / aluminum receiver Tips: In the case of limited visibility, the transmission range cannot be clearly defined and depends on local conditions Walls, windows, etc. shorten the signal range or cause signal loss
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 190 mm
Package features > Gross height (mm) - 110 mm
Package features > Gross width (mm) - 290 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 143 pc(s)
Package features > Paper/Pasteboard - 250 g
Package features > Plastic (No PET) - 50 g
Package features > Tare weight (kg) - 0.3 kg
Package features > Volume (m3) - 0.006061 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
System Requirements -
Technical details > Gross weight - 1.91 kg
Technical details > Net weight - 1.61 kg
Technical details > Producer - Digitus
Technical details > Producer product family - Click and Present Pro - Wireless Collaboration System
Technical details > Producer product name - DS-55317
Type - Extension cord
Usage - Audio
Usage - Computer
Usage - Video
vendpn - DS-55317
Warranty - 24
Warranty - 24 month(s)
Weight - 1.62
