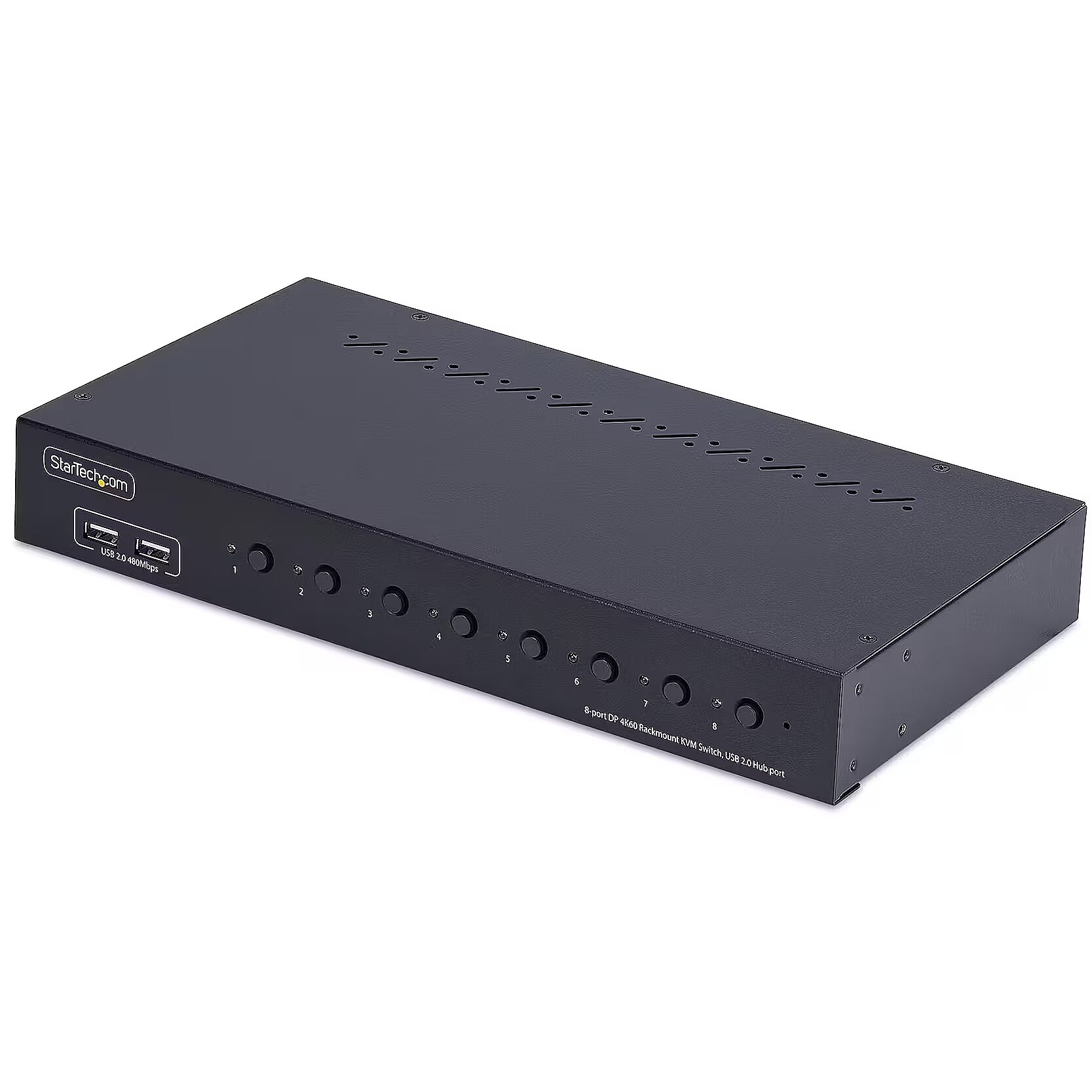

Startech 8-PORT DISPLAYPORT KVM SWITCH DISPLAYPORT 1.2 KVM 4K 60HZ

ARTIKEL1 - 8-PORT DISPLAYPORT KVM SWITCH
ARTIKEL2 - DISPLAYPORT 1.2 KVM 4K 60HZ
Brand - StarTech.com
BrandPartCode - R8AD122-KVM-SWITCH
Breite - 0
Category - KVM Switches
Design - Hot keys - Yes
Design - Housing material - Zinc
Design - LED indicators - Yes
Design - Mean time between failures (MTBF) - 73003 h
Design - Product colour - Black

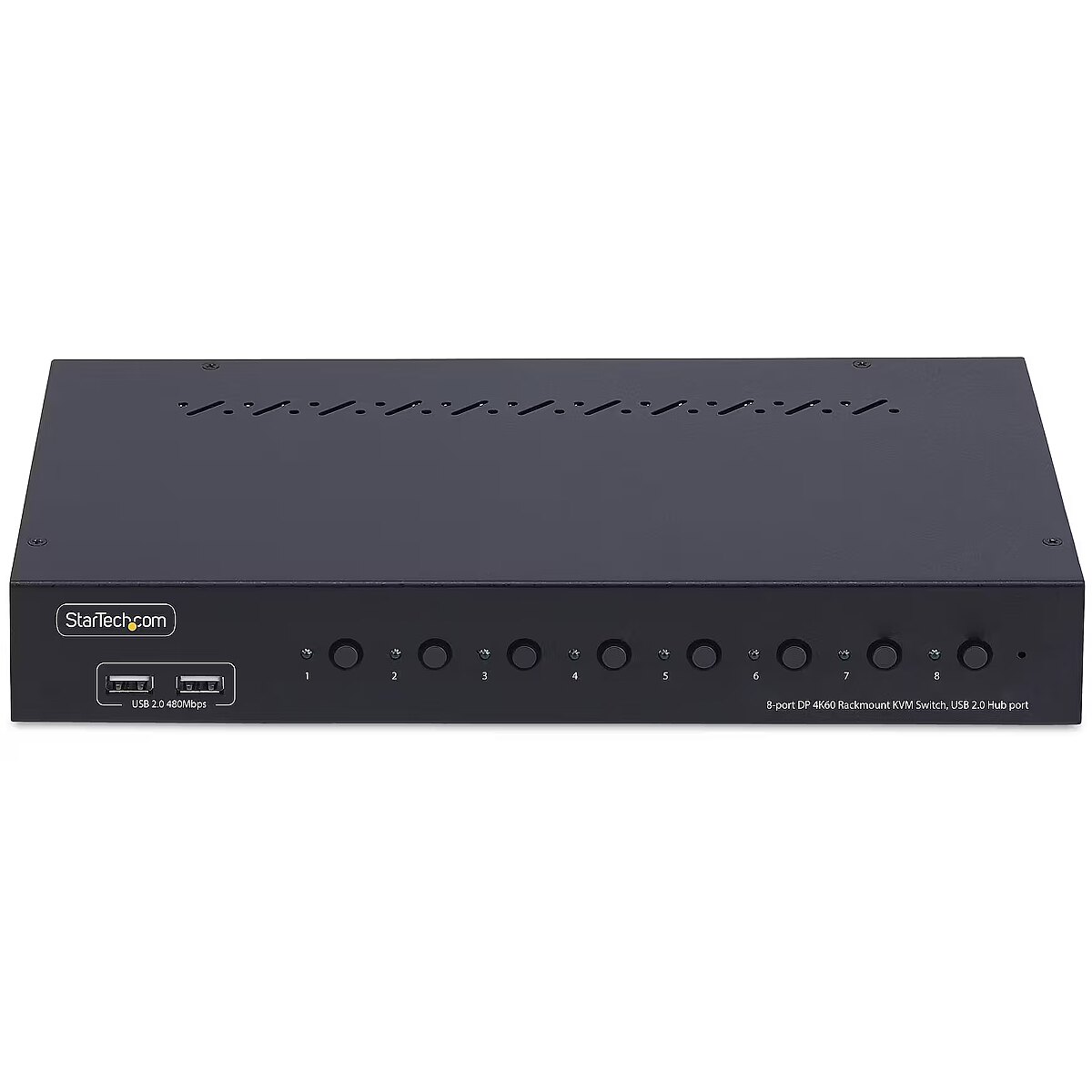

Design - Push button - Yes
Design - Rack capacity - 1U
Design - Rack mounting - Yes
Display - Built-in display - No
Display - On Screen Display (OSD) - No
EANCode - 0065030907224
GRUPPE1 - Network
GRUPPE2 - KVM Switch Entry Level
GTIN - 0065030907224
GTIN - 065030907224
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - R8AD122-KVM-SWITCH
Laenge - 0
Logistics data - Master (outer) case height - 316 mm
Logistics data - Master (outer) case length - 390 mm
Logistics data - Master (outer) case width - 466 mm
Logistics data - Products per master (outer) case - 5 pc(s)

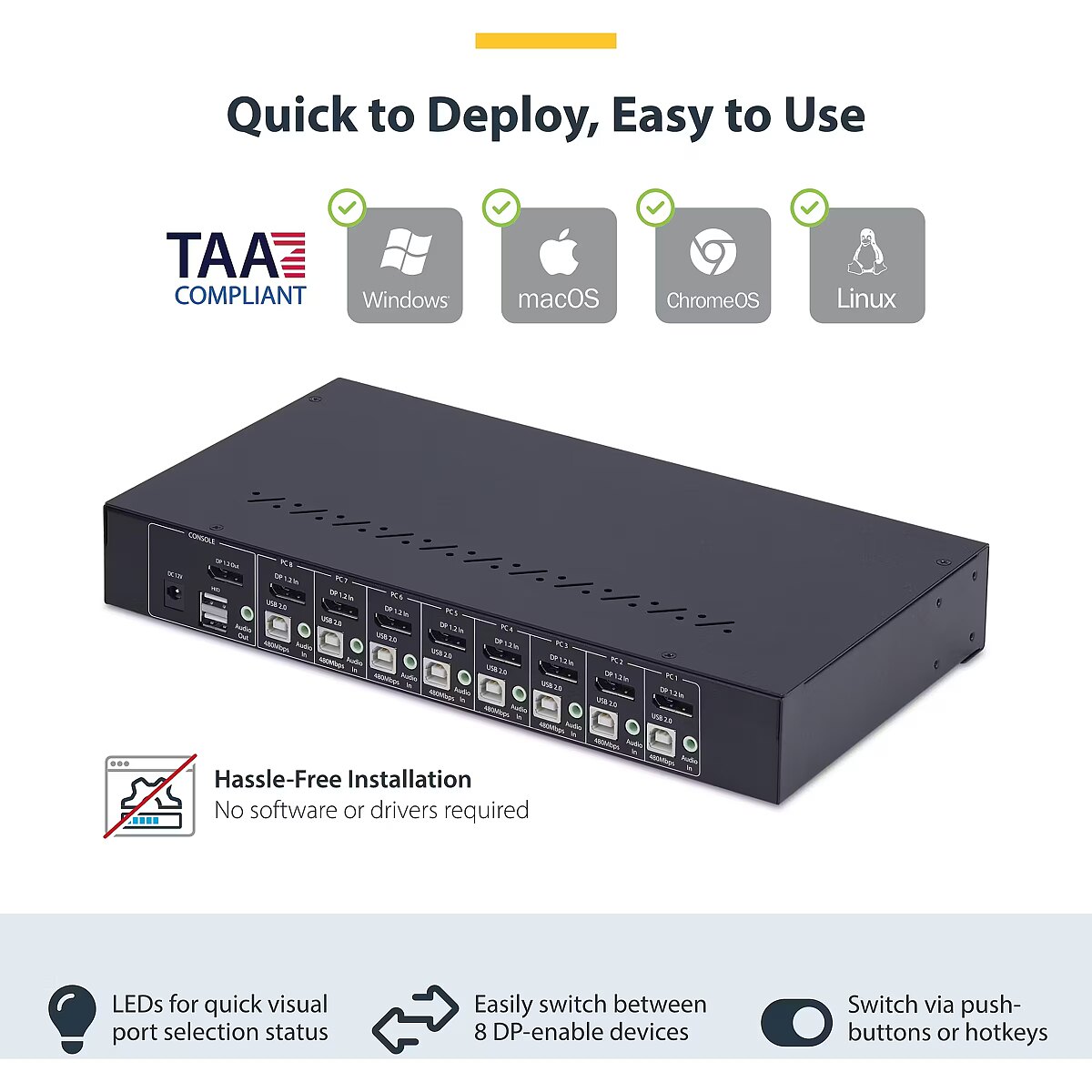

LongDesc - Control up to eight USB and DisplayPort-enabled computers from a single keyboard, mouse, and 4K 60Hz DisplayPort monitorThe 4K 60Hz rackmount KVM switch allows switching between eight DisplayPort-enabled computers, sharing a keyboard, mouse, audio, 4-port USB 2.0 hub, and a 4K 60Hz DisplayPort 1.2 monitor. This enables effortless multi-system management, improved workspace efficiency, and enhanced productivity.No Drivers or SoftwareThe TAA-Compliant 8-Port KVM Switch is universally compatible, providing BIOS-level control and working with any operating system, including Windows, Windows ARM, macOS, ChromeOS, and Linux. It is also compatible with all hardware platforms such as Intel, AMD, SnapDragon/ARM, and Apple Silicon.Multiple Switching OptionsEnsures efficient and user-friendly operation for multi-server administration with switching via push-buttons or hotkeys, an audible buzzer for confirmation, and LEDs for quick visual port selection status.Rack Mount Kit IncludedThe KVM switch offers a space-saving solution for managing multiple servers directly within a rack. It includes rack-mount brackets for installation in 1U of rack space on network racks and is compatible with 19-inch server racks that have a mounting depth of 6.5 inches (165mm) or more. It also complies with ANSI/EIA RS-310-D standards.To ensure flexibility to choose the best cables for your specific installation, the KVM switch does not include cables. StarTech.com offers a wide variety of DisplayPort, USB, and 3.5mm audio cables in assorted lengths to suit different installation needs.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• USB Event Monitoring Utility: Track and log connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThe StarTech.com Advantage
LongProductName - StarTech.com 8-Port DisplayPort KVM Switch w/1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button/Hotkey Switching, TAA Compliant
LongSummaryDescription - StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Data transfer rate (max): 0.48 Gbit/s. Product colour: Black, Rack capacity: 1U, Housing material: Zinc. Power source: DC, Input voltage: 100 - 240 V, Input current: 1 A. Compliance certificates: Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Audio support - Yes
Other features - IP control - No
Packaging content - Quick installation guide - Yes

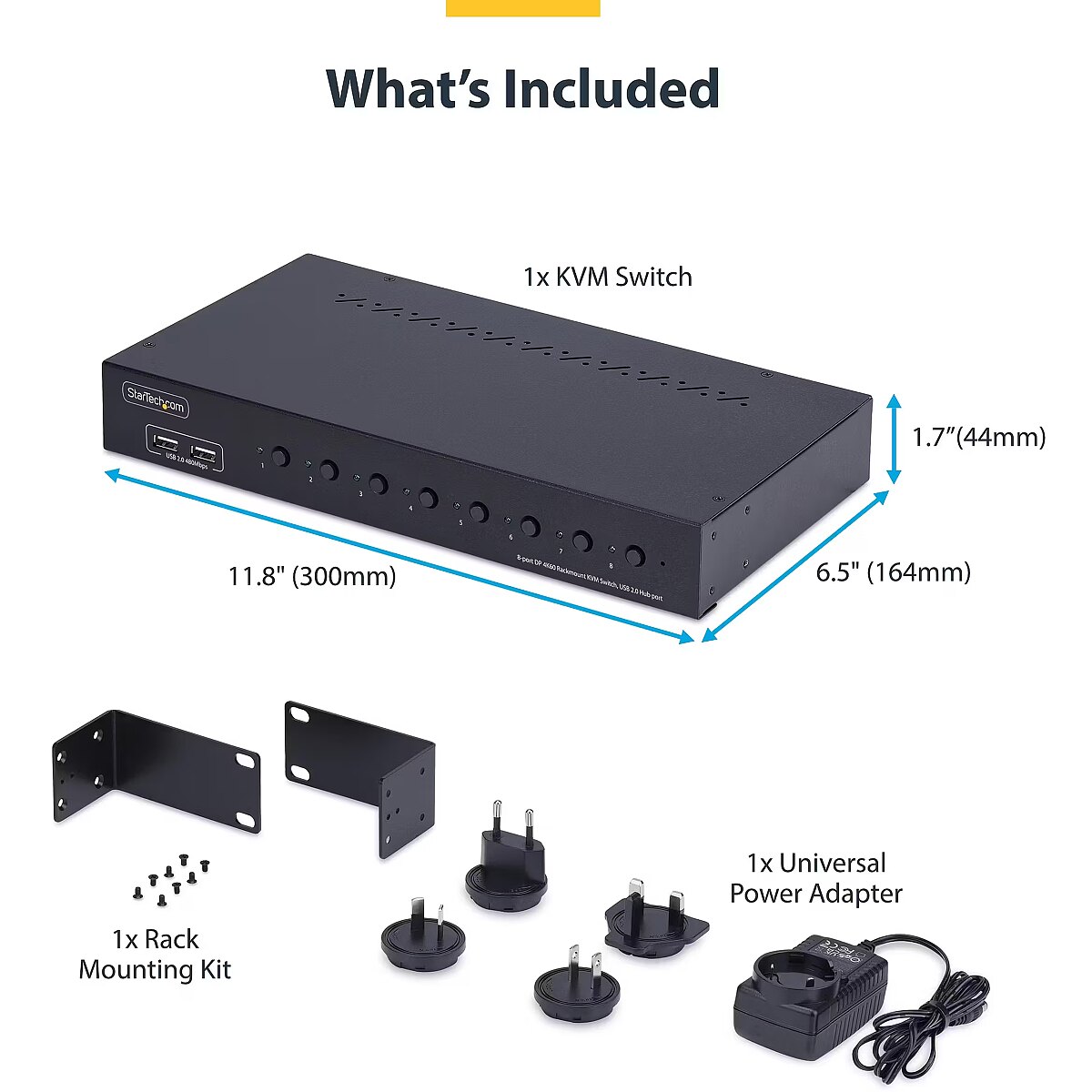

Packaging content - Rack mount kit - Yes
Packaging data - Package depth - 288 mm
Packaging data - Package height - 70 mm
Packaging data - Package weight - 2.3 kg
Packaging data - Package width - 435 mm
Performance - Audio channels - 2.0
Performance - Daisy chain - No
Performance - Data transfer rate (max) - 0.48 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Maximum resolution - 3840 x 2160 pixels
Performance - Scan interval - 10,20,30,40,50,60,70,80,90,100 s
Ports & interfaces - Audio connections - Yes

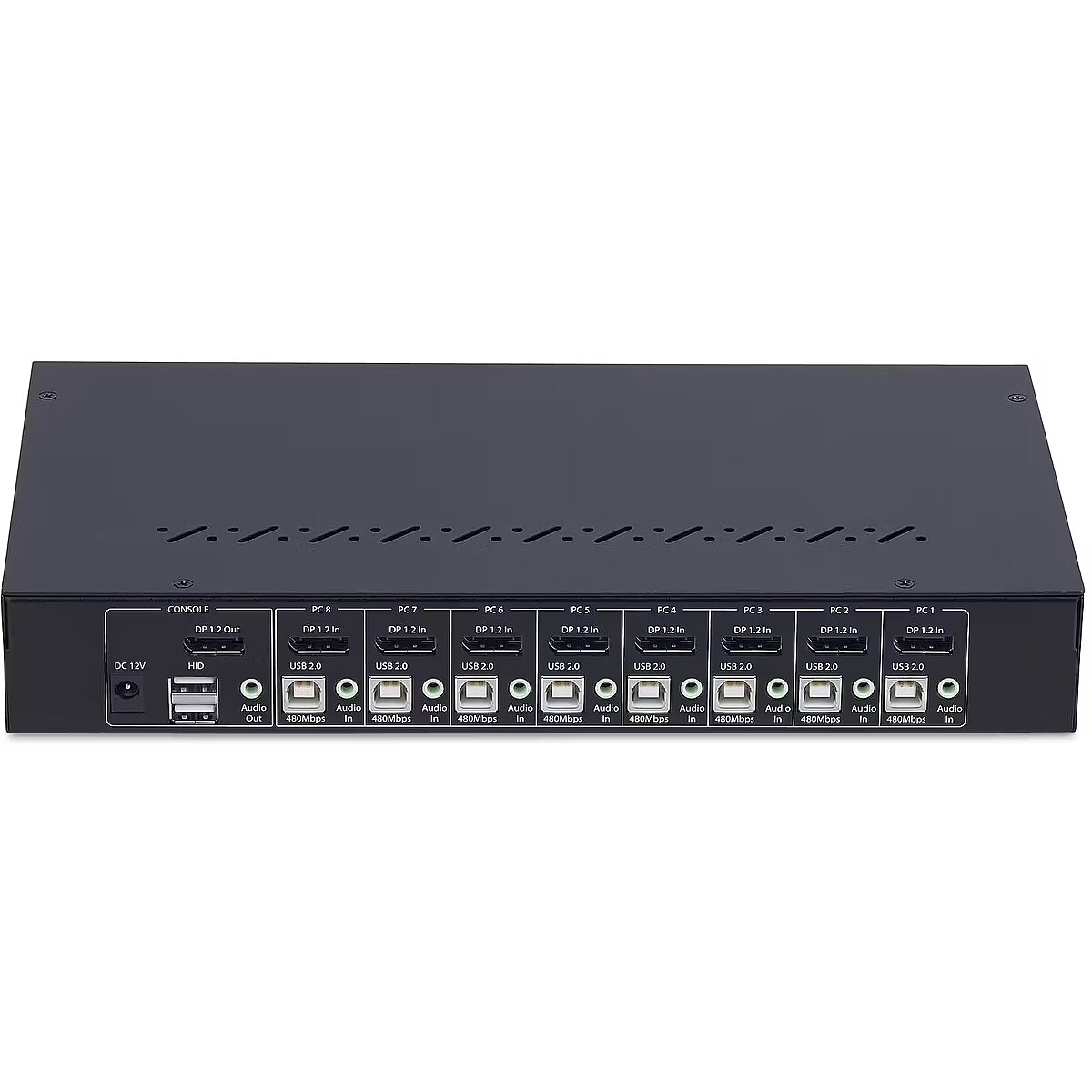

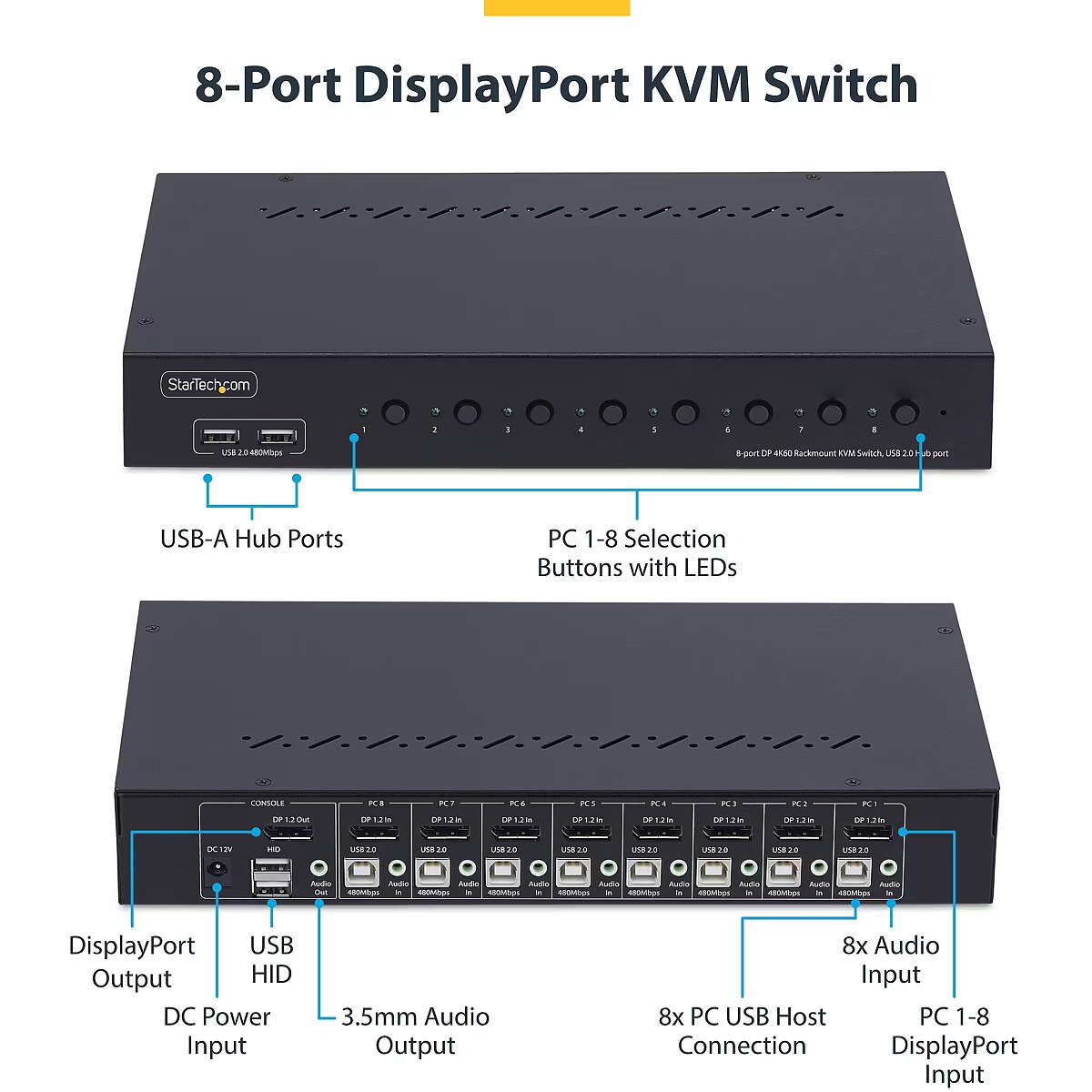

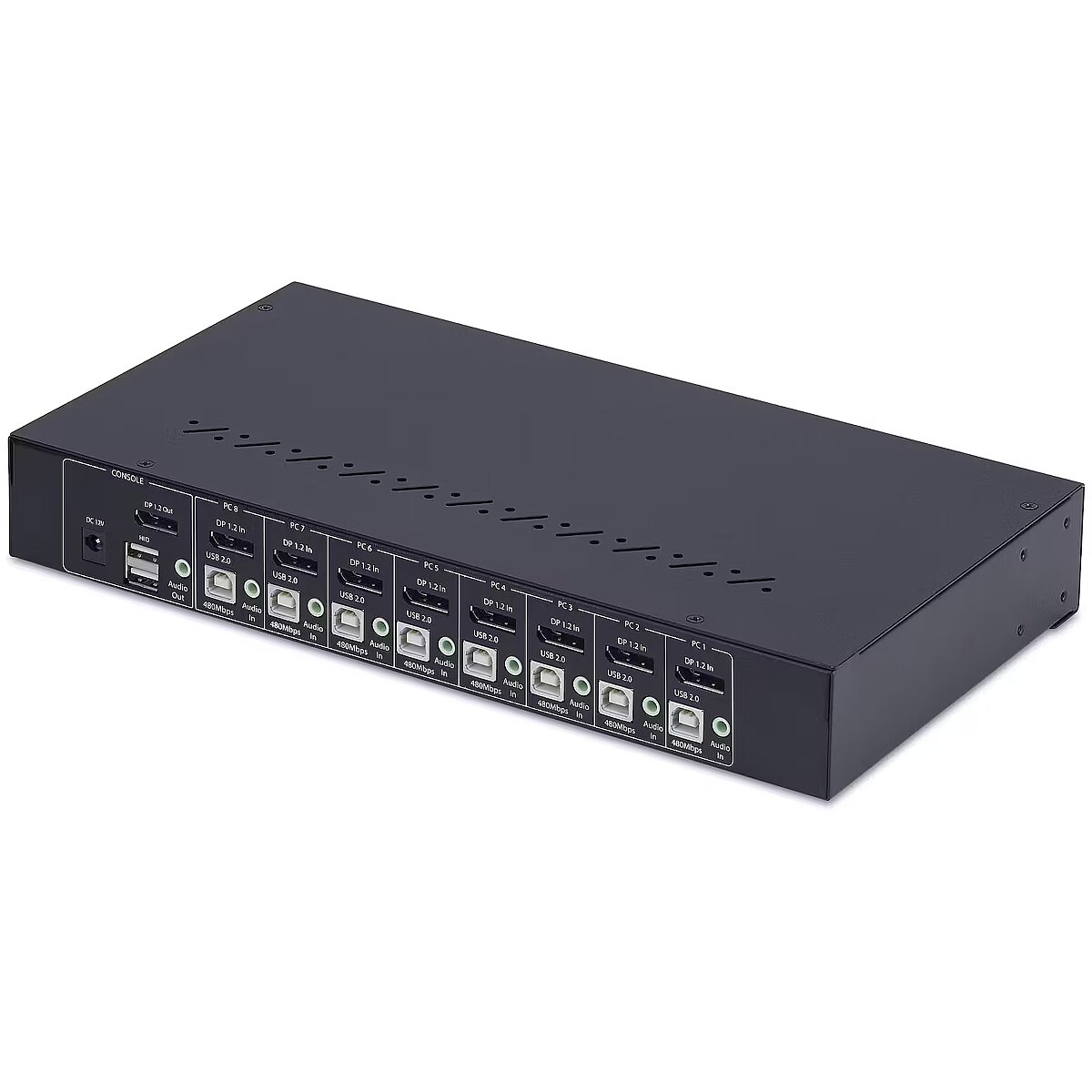

Ports & interfaces - Console ports - 3.5mm headphone, DisplayPort, USB A
Ports & interfaces - Console USB ports quantity - 4
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - DisplayPorts quantity - 8
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Keyboard port type - USB
Ports & interfaces - Mouse port type - USB
Ports & interfaces - Number of computers controlled - 8
Ports & interfaces - Number of microphone inputs - 8
Ports & interfaces - USB 2.0 Type-B ports quantity - 8
Ports & interfaces - Video port type - DisplayPort
Power - Compatible power plug types - AU, EU, UK, US
Power - Input current - 1 A
Power - Input voltage - 100 - 240 V
Power - Output current - 3 A
Power - Output voltage - 12 V
Power - Power consumption (typical) - 36 W
Power - Power plug type - Type M
Power - Power source - DC
ProductName - 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
ShortSummaryDescription - StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant, 3840 x 2160 pixels, 4K Ultra HD, Rack mounting, 1U, 36 W, Black
Stck_Kart - 5
Stck_Pal - 10
Storno - Y
Sustainability - Compliance certificates - Federal Communications Commission (FCC), Trade Agreements Act (TAA)
Title - StarTech.com 8-Port DisplayPort KVM Switch with 1U Rack Mount Kit, 4K 60Hz DP 1.2, Push-Button & Hotkey Switching, 4-Port USB Hub, OS Independent, TAA Compliant
URL - https://www.startech.com/en-us/R8AD122-KVM-SWITCH
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 300 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 1.5 kg
Weight & dimensions - Width - 164 mm
