Brand - ASUS
BrandPartCode - 90SB0CG0-M0UAY0
Category - Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - Intel
dimensionalWeight - 2719
EAN - 4711387343203
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 22110
Expansion slots - 2nd M.2 highest PCI Express generation - 5.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x8 (Gen 5.x) slots - 1
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2
Features - Component for - Server
Features - Cooling type - Passive
Features - Motherboard chipset family - AMD
Features - Product colour - Black
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387343203
Internal I/O - Chassis intrusion connector - Yes
Internal I/O - Number of chassis fan connectors - 6
Internal I/O - Serial port headers - 1
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 1

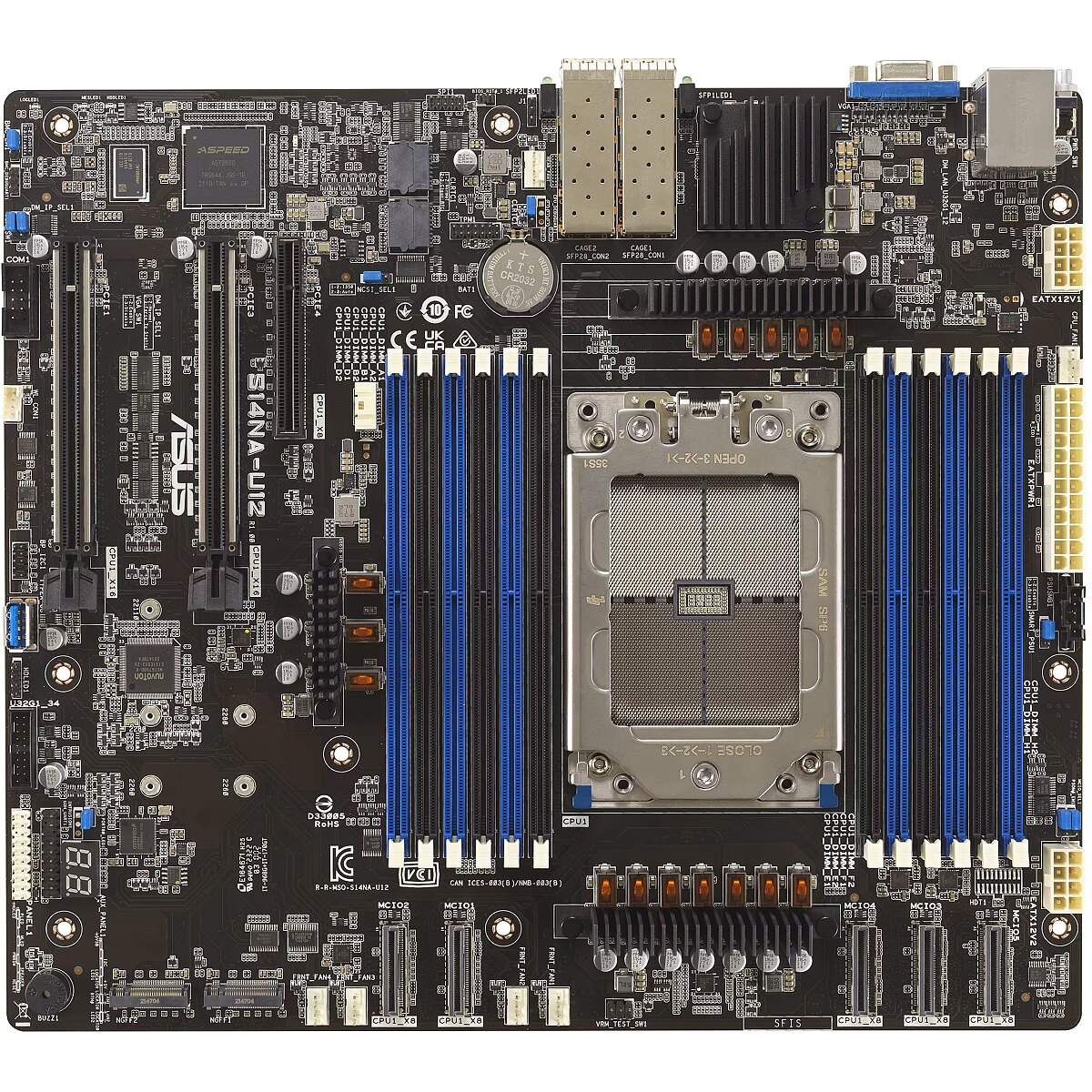

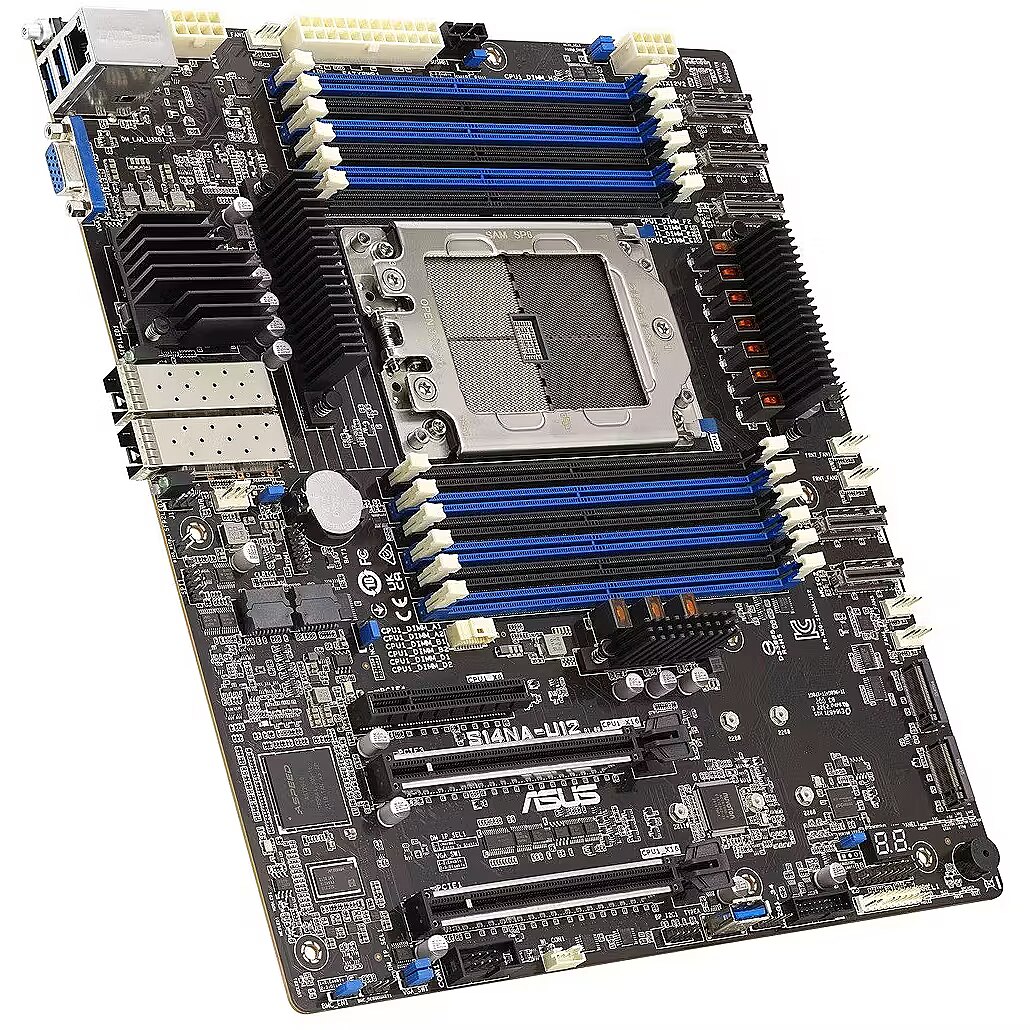

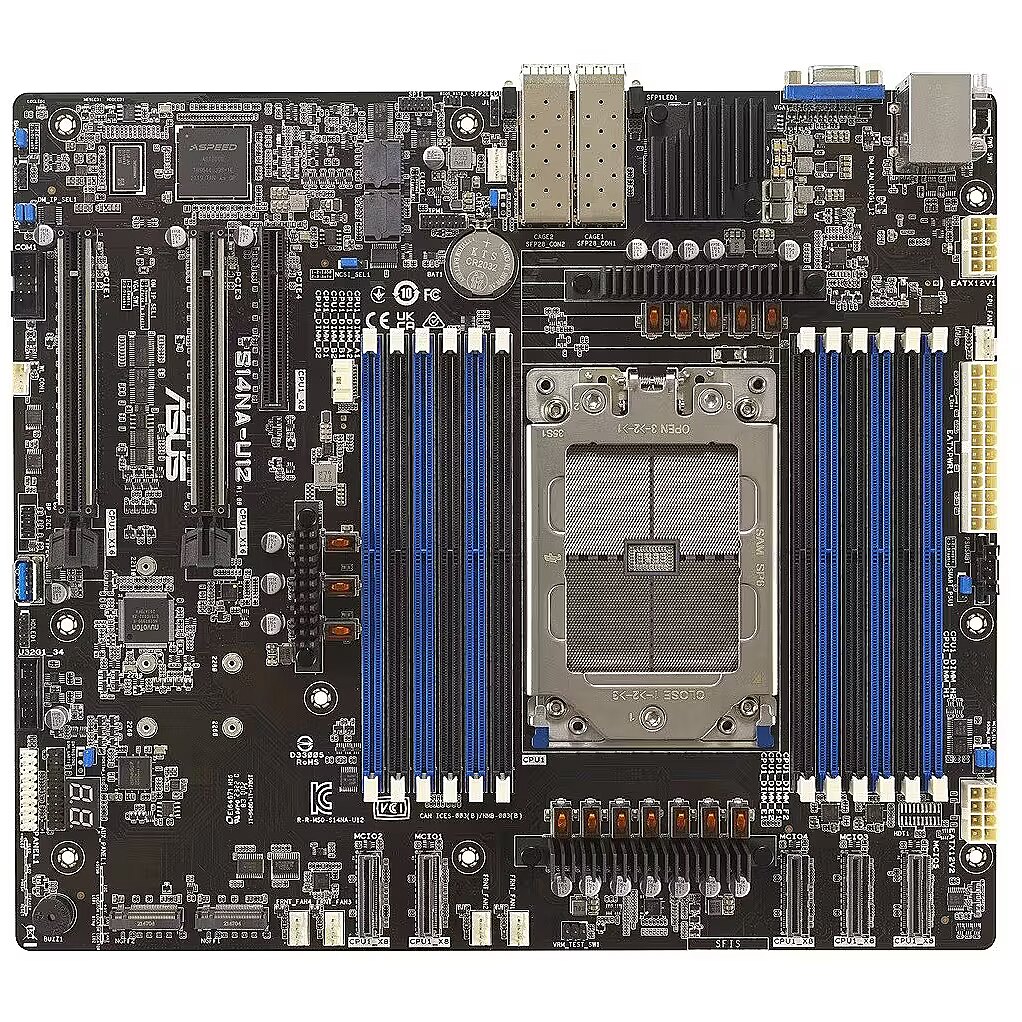

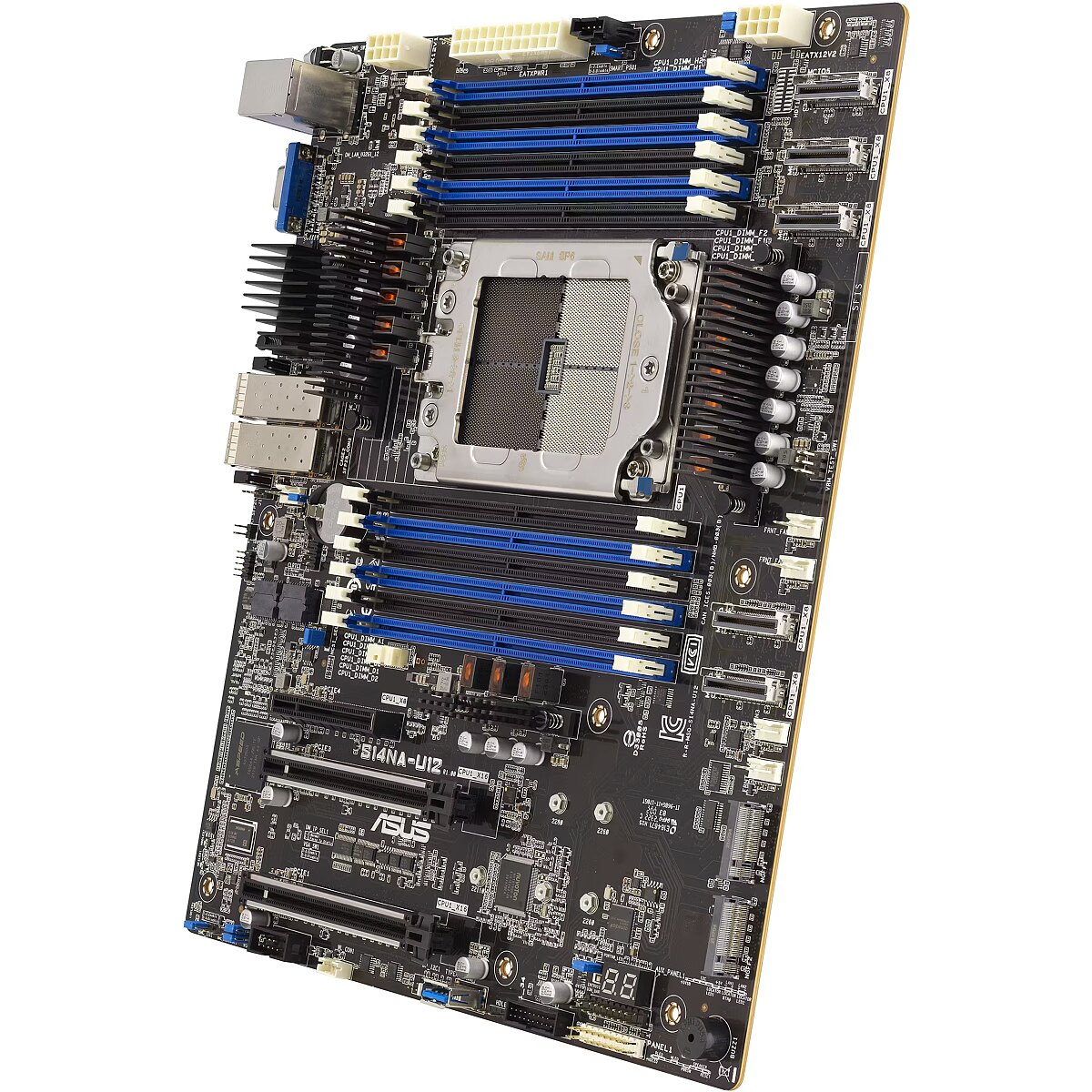

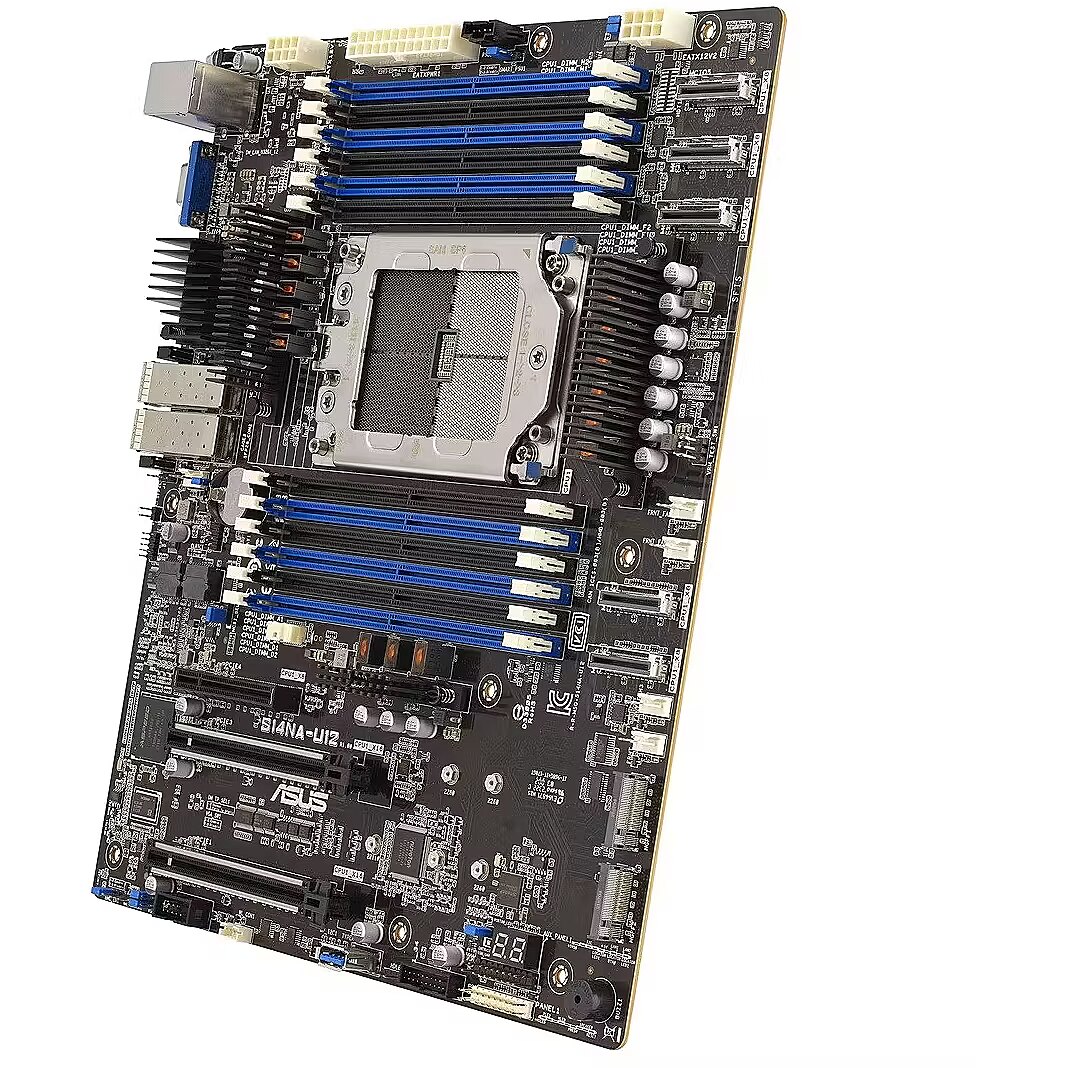

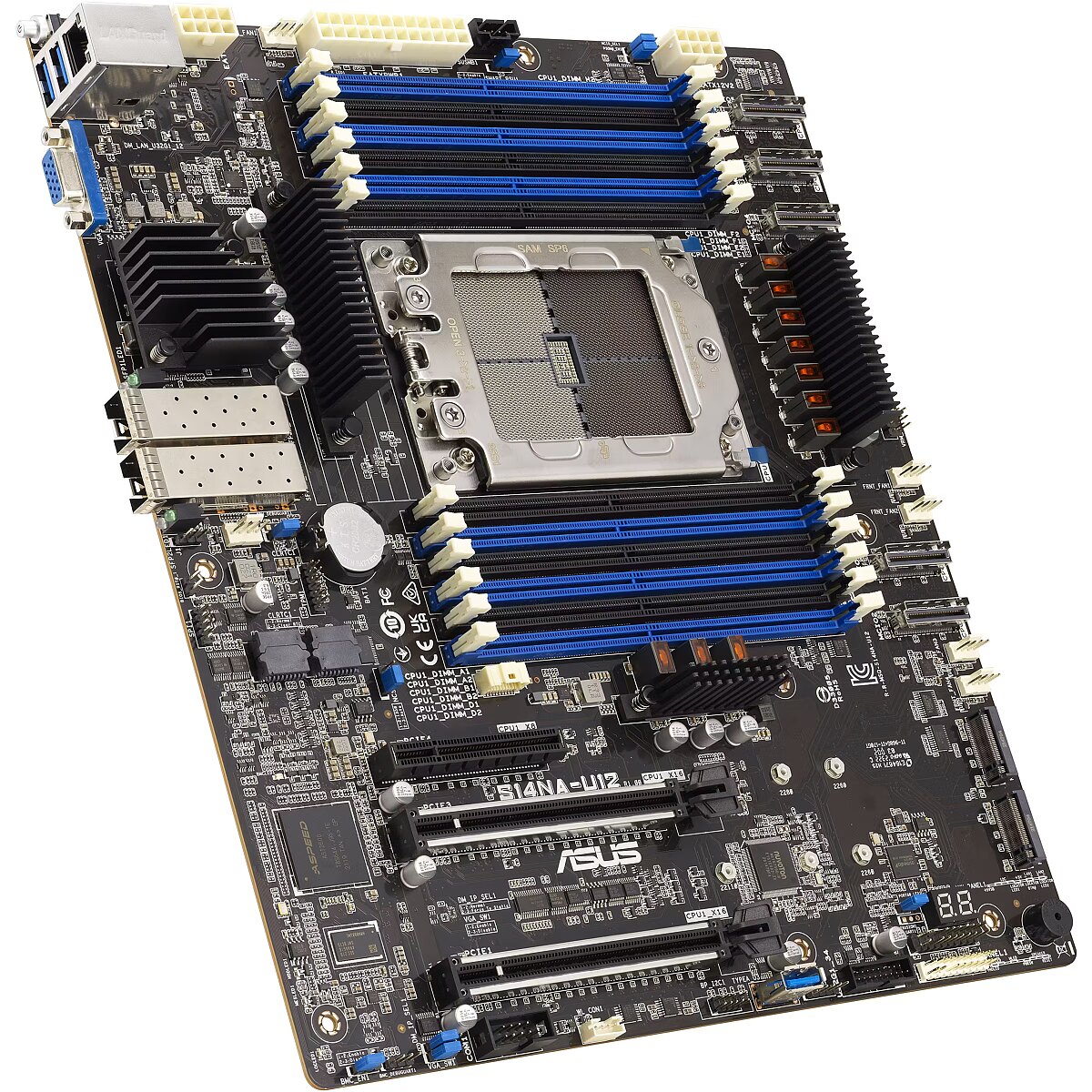

LongDesc - Server motherboard for 64-core AMD EPYC™ 8004-series processors, with dual 25 Gbps LAN, support for two dual-slot GPUs, 12 DIMM DDR5, dual M.2 and integrated ASMB11-iKVM.Powered by AMD EPYCTM 8004 processorsThe ASUS S14NA-U12 leverages the impressive performance and streamlined platform componentry of EPYC 8004 processors using the new SP6 socket, enabling original equipment manufacturers (OEMs) to offer cost-effective, business-relevant server configurations. The adherence to industry standards in platform management, coupled with top-tier security features and energy efficiency of the EPYC 8004-series processors, significantly reduces operational costs compared to power-hungry, non-standard alternatives. Customers can expect best-in-class total cost of ownership (TCO) across numerous deployments with systems based on AMD EPYC 8004 processors.Dual SFP28 25-gigabit Ethernet with teaming supportThe S14NA-U12 provides ultra-high-speed network connectivity, with each SFP28 25-gigabit Ethernet connection offering up to 25 Gbps bandwidth, vastly outperforming traditional gigabit Ethernet. This speed enhances data-traffic handling, thereby improving application performance. Additionally, it ensures reliability through teaming support, where multiple network interface cards (NICs) combine for enhanced redundancy, minimizing service interruptions. The server's low-latency SFP28 technology is crucial for real-time applications like high-frequency trading and video conferencing.Flexible expandabilityThe S14NA-U12 also boasts five MCIO slots, with MICO5 supporting both NVMe and SATA devices . This design offers versatile storage options, allowing users to choose between NVMe and SATA drives to meet a variety of storage needs. Additionally, it ensures high performance with support for NVMe drives, making it ideal for data-intensive applications like databases and high-performance computing.S14NA-U12’s scalability is another standout feature, as it can accommodate up to 10 NVMe drives — providing ample storage capacity that can readily expand to meet the growing demands of data-intensive operations. Up to two dual-slot GPUs are also supported.Comprehensive IT infrastructure managementS14NA-U12 features an embedded iKVM module and is optionally equipped with ASUS Control Center, offering comprehensive out-of-band and in-band management features tailored for small and mid-size businesses. The embedded ASUS ASMB11-iKVM module supports remote BIOS updates, fan control, standalone KVMs, video recording and BSOD capture, providing around-the-clock remote monitoring and diagnostics. This functionality remains accessible even if the operating system is down or offline, through a user-friendly web-based graphical interface compatible with all major browsers. ASUS Control Center (ACC) further enhances IT infrastructure management, centralizing and integrating monitoring and control for ASUS commercial products, including servers, workstations, and digital signage. ACC enables remote BIOS updates, mobile device system monitoring, and simplified server management through one-click software updates and dispatching.ASUS ProCool connectorASUS ProCool power connectors are designed without any hollow areas, enabling lower impedance, faster heat dissipation and cooler operating temperatures for reduced power loss and increased cost savings.Quick initialization guidanceThe S14NA-U12 provides instant system information during initialization and reports any unusual diagnostic results for more efficient IT operation and easy troubleshooting.Visible Q-CodeThe S14NA-U12 has a visible Q-Code/port 80 LED display for simple monitoring of the entire boot process, from powering on through loading the operating system.OS drive installation and debuggingAn internal USB 3.2 port accepts boot disks, providing a safer way to install Linux or VMware Hypervisor as well as additional access for debugging.
LongProductName - S14NA-U12 Server Motherboard Socket AMD SP6 (CEB, 12 DDR5-DIMM slots, 2x M.2 PCIe 5.0, AMD EPYC 8004, 2x dual-slot GPU support)
LongSummaryDescription - ASUS S14NA-U12. Processor manufacturer: AMD, Processor socket: Socket SP6, Supported processor sockets: SP6. Supported memory types: DDR5-SDRAM, Maximum internal memory: 1.15 TB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 5.0, Supported storage drive types: HDD & SSD. Ethernet interface type: 25 Gigabit Ethernet, Gigabit Ethernet. Component for: Server, Motherboard chipset family: AMD, Product colour: Black
Manufacturer - ASUS
Memory - Maximum internal memory - 1.15 TB
Memory - Maximum RDIMM memory - 96 GB
Memory - Memory channels - Hexa-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 12
Memory - Supported memory clock speed (max) - 4800 MHz
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3600,4000,4800 MHz
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4800
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 24GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 48GB
Memory - Supported memory module capacities - 64GB
Memory - Supported memory module capacities - 96GB
Memory - Supported memory types - DDR5 RDIMM
Memory - Supported memory types - DDR5-SDRAM
MPN - 90SB0CG0-M0UAY0
Name - ASUS S14NA-U12/ASMB11 CEB 1x LGA 4844 DDR5 2x25G
Network - Ethernet interface type - 25 Gigabit Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Weight - 1.4 kg
Packaging data - Package depth - 395 mm
Packaging data - Package height - 81 mm
Packaging data - Package weight - 2.2 kg
Packaging data - Package width - 425 mm
Processor - Compatible processor series - AMD EPYC 8004
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket SP6
Processor - Supported processor sockets - SP6
producerCode - 90SB0CG0-M0UAY0
productName - Asus S14NA-U12/ASMB11 motherboard 1x SP6 AMD Epyc 8004 SoC (12xDIMM, 2xSFP28 25G, 2xPCIe 5.0 x16, 1xPCIe 5.0 x8, ASMB11, CEB)
ProductName - S14NA-U12
productSize - Normal

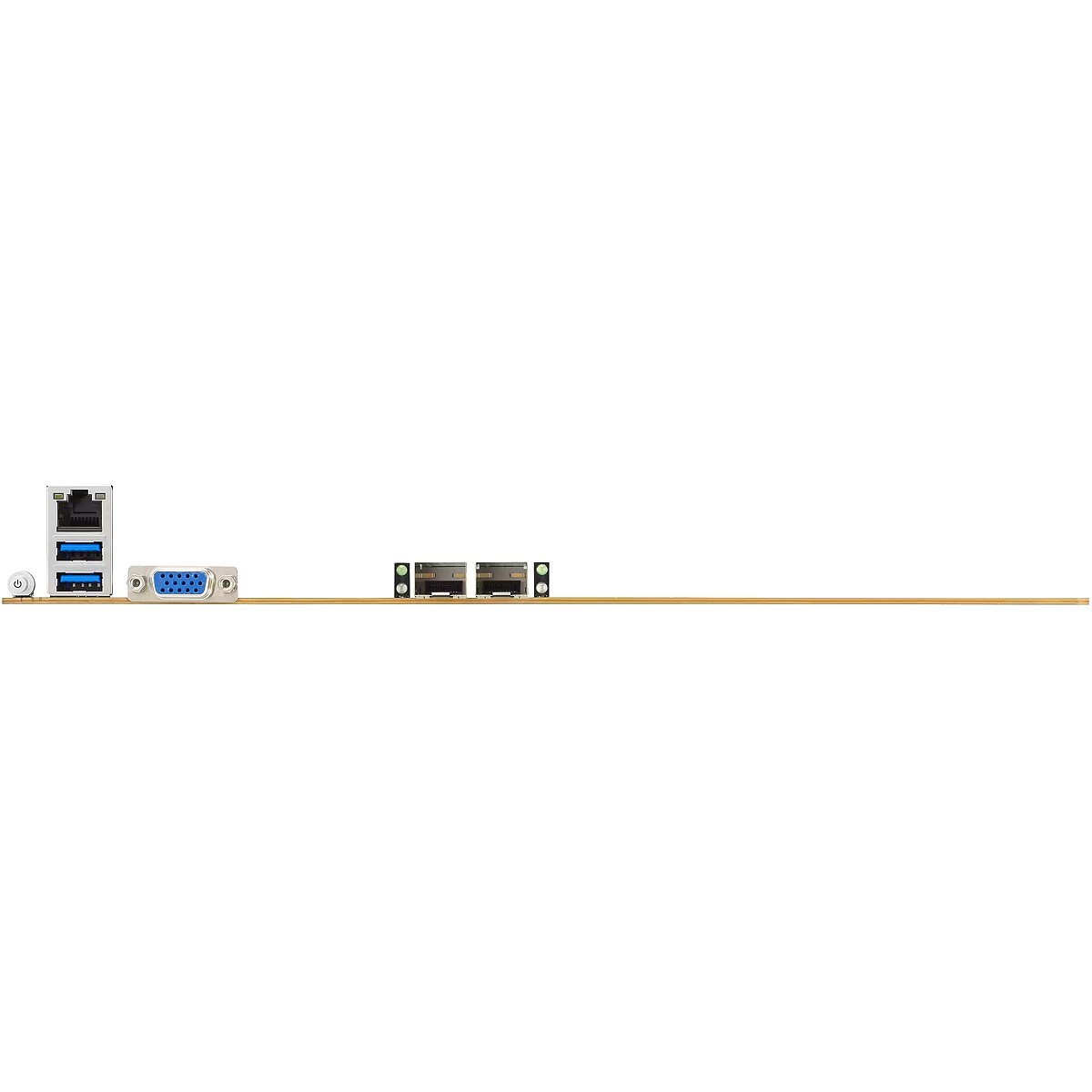

Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - SFP28 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Do not open or disassemble the motherboard.
Safety warning - Warnings - The motherboard may contain electronic components hazardous to health - avoid direct contact.
Safety warning - Warnings - Use only in a dry and well-ventilated area.
ShortSummaryDescription - ASUS S14NA-U12, AMD, Socket SP6, SP6, DDR5-SDRAM, 1.15 TB, DIMM
sizeX - 395
sizeY - 425
sizeZ - 81
Storage controllers - Number of HDDs supported - 8
Storage controllers - Number of storage drives supported - 7
Storage controllers - Supported storage drive interfaces - M.2
Storage controllers - Supported storage drive interfaces - PCI Express 5.0
Storage controllers - Supported storage drive types - HDD & SSD
Title - ASUS S14NA-U12 Socket SP6
URL - https://servers.asus.com/products/Servers/Server-Motherboards/S14NA-U12/#Features
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 2.201
weight - 2200
Weight & dimensions - Depth - 266.7 mm
Weight & dimensions - Width - 304.8 mm
