Axagon ADS-1PQN Adapter FTDI USB 2.0 > RS-232 serial

Accessories included - USB - serial adapter with a 1.5 m long permanently attached USB cable, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA, packed in a cardboard box with a hanging hole.
Box Weight Brutto (kg) - 12.1 kg
Brand - Axagon
BrandPartCode - ADS-1PQN
Cable Features - Gold Plated Connectors Plug&Play
Cable Functionality - Serial Cable
Cable Length - 1.5 m
Cable length - 1.5 m
Cable length - 1.5m
Cable Technology - Shielded
category - PC Components|Cables & Adapters|External Cables|USB|Adapter Cables
Category - Serial Cables
Category Code - UCB
Certificates - Certification - CE
Certificates - Compliance certificates - RoHS
code - ADS-1PQN
Code - ADS-1PQN
Color - Black
Colour - Black

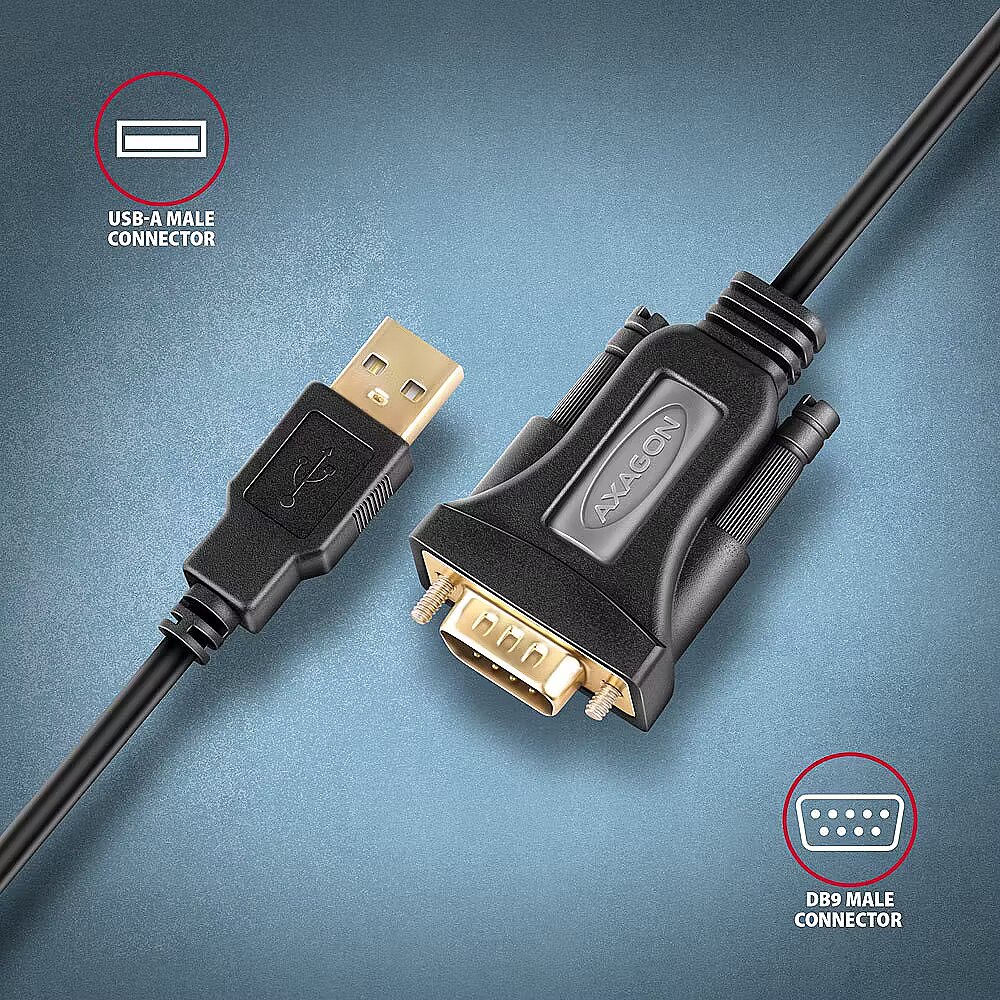

Connectors - DB9 male
Connectors #1 - USB Type A Male
Connectors #2 - DB9 Serial Port Male

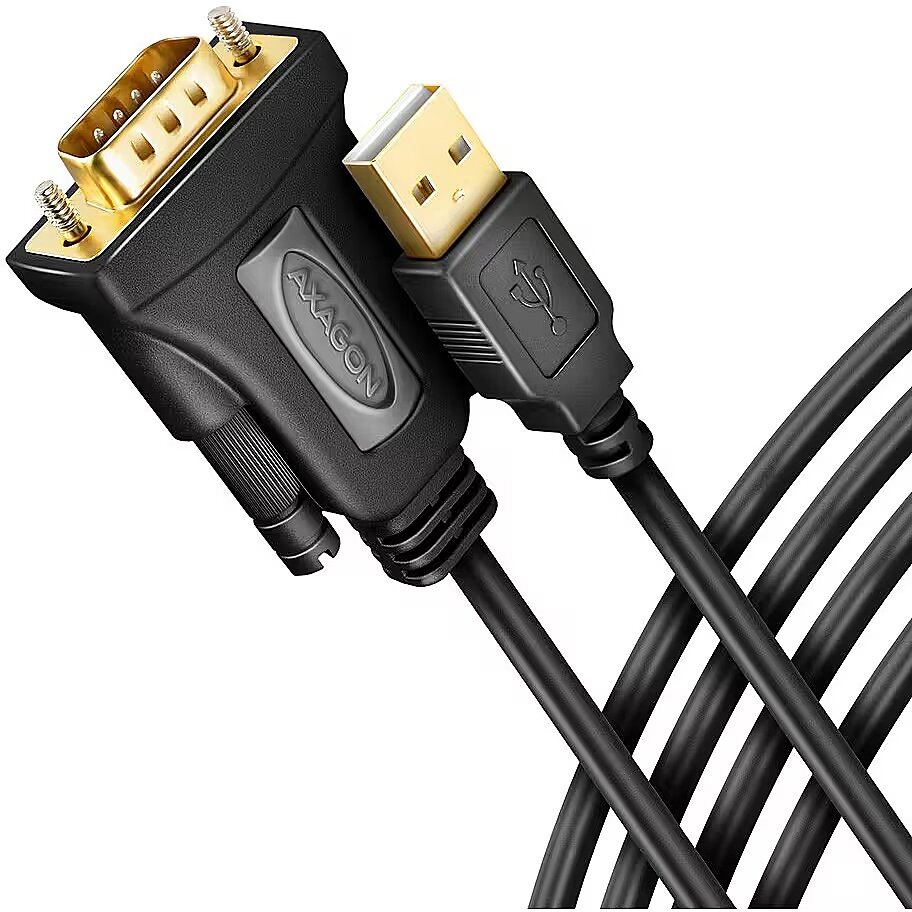

Description - ADS-1PQN USB > SERIAL ADVANCED active adapter An advanced active USB-A converter for connecting serial devices. FTDI chip.
Description - The advanced AXAGON ADS-1PQN active USB converter easily extends your computer with a RS 232 standard serial port. The highest level of compatibility between USB - serial RS232 adapters thanks to the use of an original valued chip by the Scottish Company FTDI. The fixed 1.5 m long USB-A cable is suitable for use with both a desktop computer and a laptop. The cable is equipped with gold-plated connectors and contacts, the very durable body of the adapter is also suitable for industrial applications. Double shielding protects transmitted signals from adverse interference. The converter is the ideal accessory for your computer to connect barcode readers, cash register printers, scanners, microcontroller programmers, CNC machines, modems, and to upgrade or configure set-top boxes, security devices, switches, transmitters and other devices.  Input:
USB 480Mbps interface (USB 2.0), backward compatible with USB 1.1.
Connecting USB type A male connector located on a fixed 1.5 m cable. Output:
1x serial RS-232 port with a DB9 male connector integrated in the adapters body.
Transmission rate adjustable in range 300 bit/s - 250 kbit/s.
Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850. Other features:
Plug and Play support.
FIFO buffer sending 256B and receiving 128B.
Adjustable flow control Xon/Xoff, hardware or none.
Adjustable word length 7 or 8 bits.
Adjustable parity (even, odd, none, mark, space), 1 or 2 stop bits.
Adjustable usage of the FIFO Buffer: receiving (64-4096b) and sending (64-4096b).
Adjustable latency 1 - 255 ms.
Adjustable interrupt 0 10.000 ms (read) / 0 10.000 ms (write).
Adjustable idle pause 1 - 3600 seconds.
Option to activate other functions: Serial Enumerator, Serial Printer, Cancel If Power Off, Event On Surprise Removal, Set RTS On Close, Disable Modem Ctrl At Startup, Enable Selective Suspend.
Adjustable number of the port COM1 to COM256.
Adapter power supply via USB (bus power) - no auxiliary power supply required.

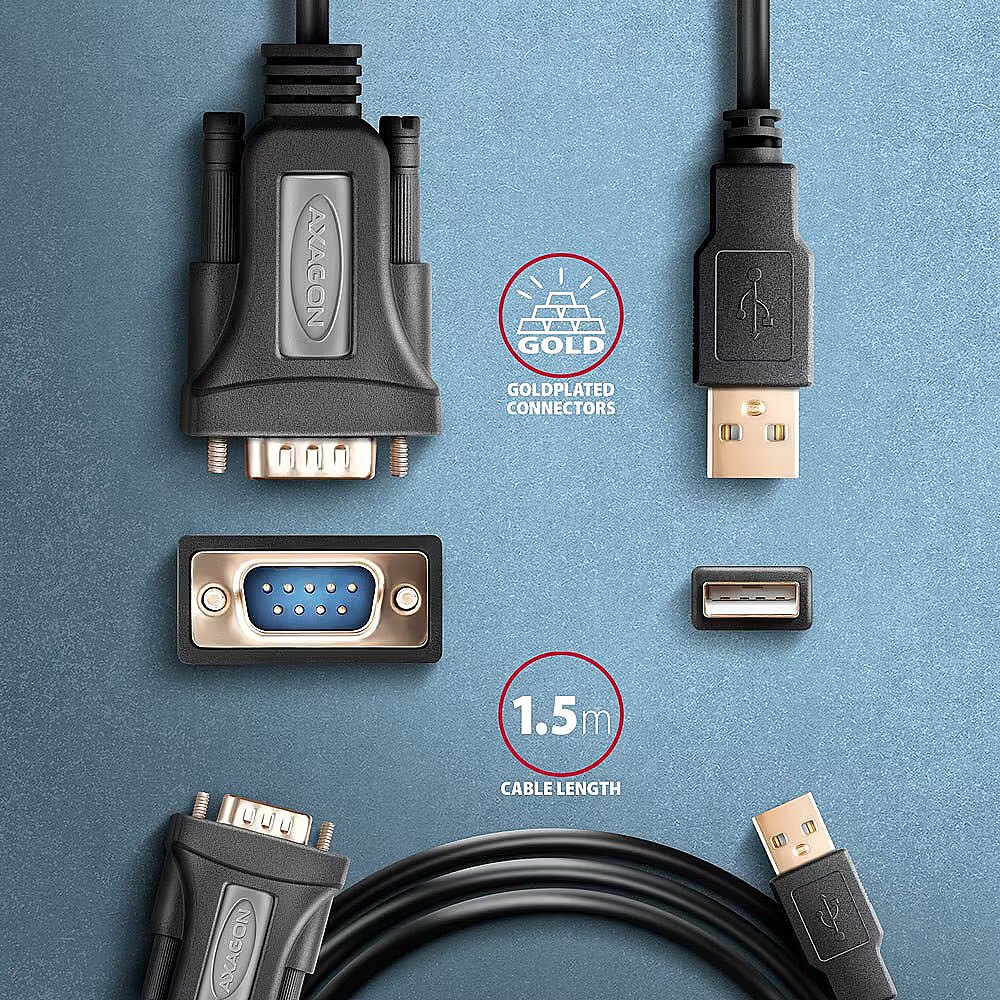

Gold-plated connectors and contacts ensure reliable connection and prevent oxidation, thus ensuring a long life of the converter.
Cable outer diameter 5 mm, double shielded.

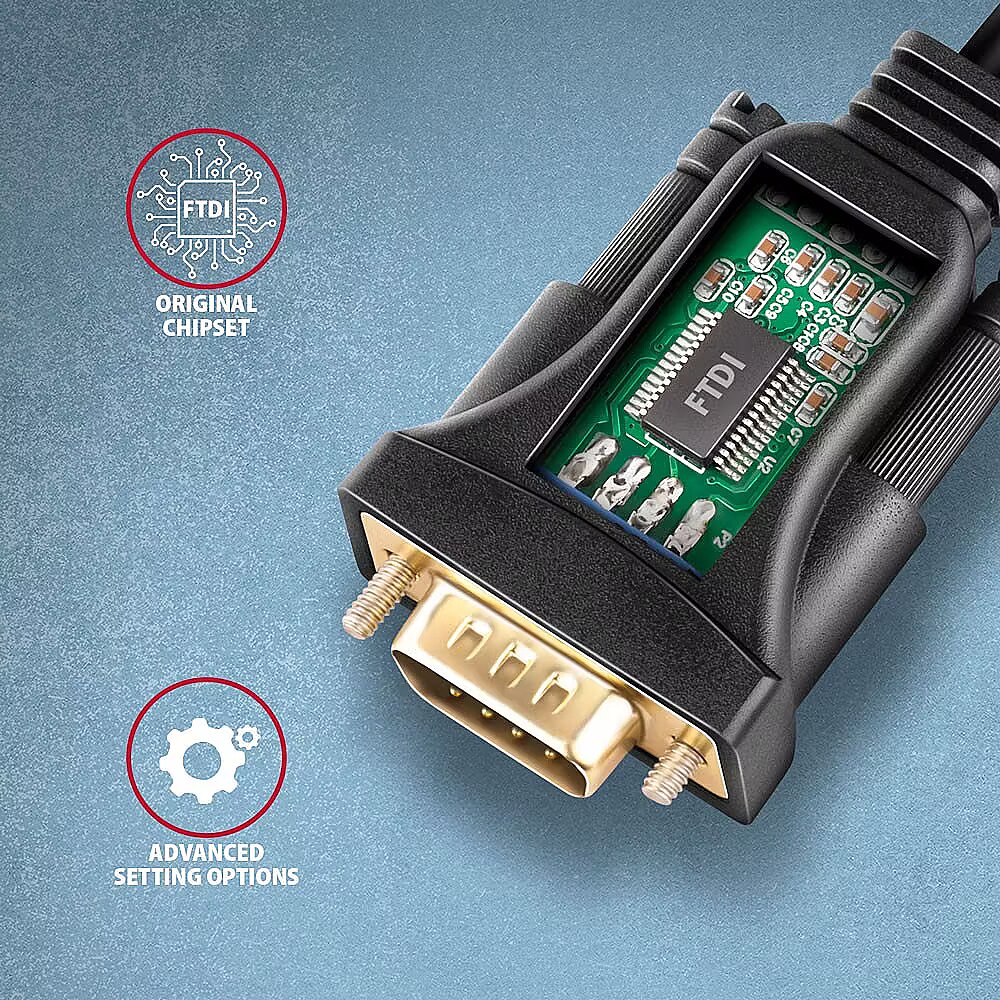

Use original FTDI FT232RL chip and TI TRS213l serial line driver.
Adapter body dimensions 35 x 56 x 17 mm, cable length 1.5 m.
Adapter weight 83 g (including cable). Supported OS:
MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32 and 64-bit versions of Windows OSs), MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions.

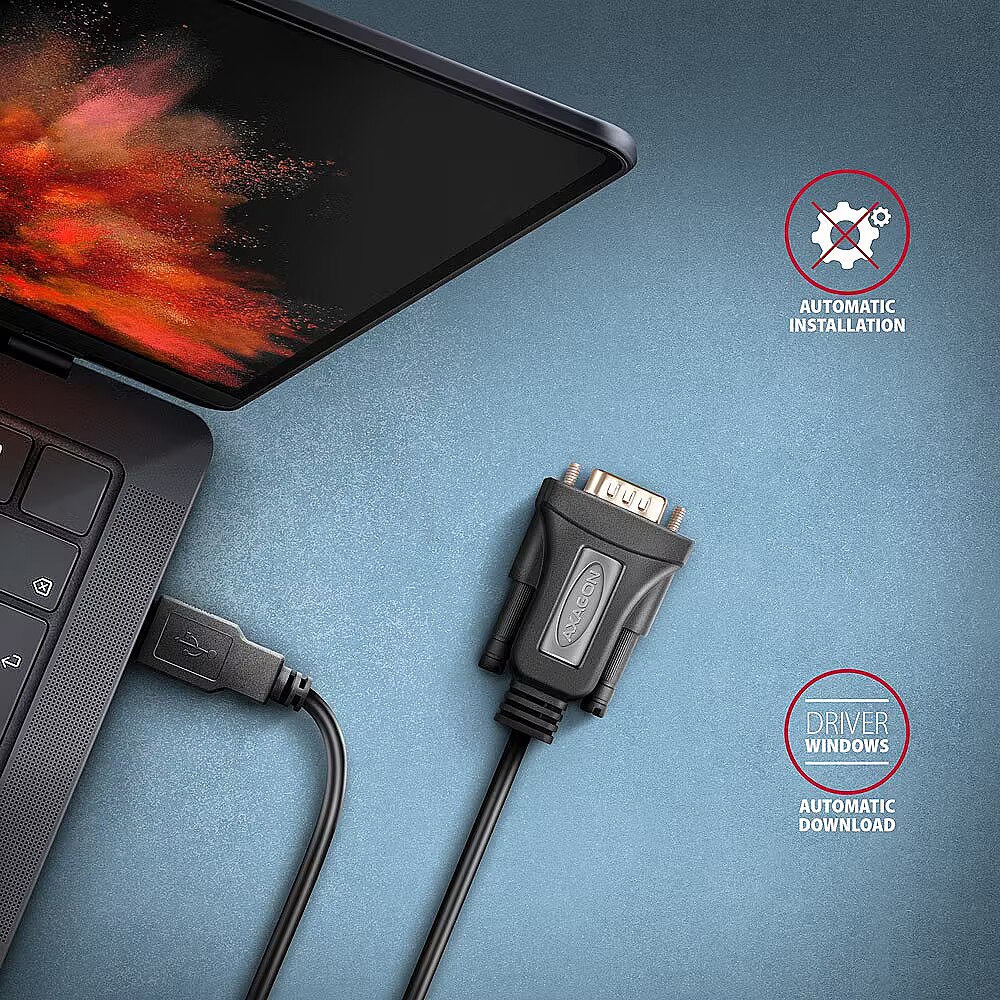

Note: Drivers are included with supported operating systems and are installed completely automatically.

Package contains:
USB - serial adapter with a 1.5 m long permanently attached USB cable,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box with a hanging hole.
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 180 mm
Dimensions - 35 x 56 x 17 mm
dimension weight - 95 g
dimension width - 95 mm
EAN - 8595247907622
ean - 8595247907622
EAN Code - 8595247907622
External Color - Black/Gray
Features - Bandwidth - 250 Kbit/s
Features - Cable length - 1.5 m
Features - Chipset - FTDI FT232RL
Features - Compatible products - barcode readers, cash register printers, scanners, microcontroller programmers, CNC machines, modems, and to upgrade or configure set-top boxes, security devices, switches, transmitters and other devices
Features - Connector 1 - USB Type-A
Features - Connector 1 gender - Male
Features - Connector 2 - RS-232
Features - Connector 2 gender - Male
Features - Country of origin - China
Features - Linux operating systems supported - Yes
Features - Mac operating systems supported - Yes
Features - Product colour - Black
Features - Server operating systems supported - Yes
Features - Windows operating systems supported - Yes
Full Description Line - Connectors DB9 male|1xRS232|1xUSB 2.0|Colour Black
GTIN - 8595247907622
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230620160012440931.jpg
Left Connector - USB Type A (Male)
Link - https://www.axagon.eu/en/produkty/ads-1pqn
LongDesc - The advanced AXAGON ADS-1PQN active USB converter easily extends your computer with a RS 232 standard serial port. The highest level of compatibility between USB - serial RS232 adapters thanks to the use of an original valued chip by the Scottish Company FTDI.The fixed 1.5 m long USB-A cable is suitable for use with both a desktop computer and a laptop. The cable is equipped with gold-plated connectors and contacts, the very durable body of the adapter is also suitable for industrial applications. Double shielding protects transmitted signals from adverse interference.The converter is the ideal accessory for your computer to connect barcode readers, cash register printers, scanners, microcontroller programmers, CNC machines, modems, and to upgrade or configure set-top boxes, security devices, switches, transmitters and other devices. Input: • USB 480Mbps interface (USB 2.0), backward compatible with USB 1.1.• Connecting USB type A male connector located on a fixed 1.5 m cable.Output:• 1x serial RS-232 port with a DB9 male connector integrated in the adapter’s body.• Transmission rate adjustable in range 300 bit/s - 250 kbit/s.• Compatible with 16C950 UART, backward compatible with 16C550, 16C650, 16C750 and 16C850.Other features:• Plug and Play support.• FIFO buffer sending 256B and receiving 128B.• Adjustable flow control Xon/Xoff, hardware or none.• Adjustable word length 7 or 8 bits.• Adjustable parity (even, odd, none, mark, space), 1 or 2 stop bits.• Adjustable usage of the FIFO Buffer: receiving (64-4096b) and sending (64-4096b).• Adjustable latency 1 - 255 ms.• Adjustable interrupt 0 – 10.000 ms (read) / 0 – 10.000 ms (write).• Adjustable idle pause 1 - 3600 seconds.• Option to activate other functions: Serial Enumerator, Serial Printer, Cancel If Power Off, Event On Surprise Removal, Set RTS On Close, Disable Modem Ctrl At Startup, Enable Selective Suspend.• Adjustable number of the port COM1 to COM256.• Adapter power supply via USB (bus power) - no auxiliary power supply required.• Gold-plated connectors and contacts ensure reliable connection and prevent oxidation, thus ensuring a long life of the converter.• Cable outer diameter 5 mm, double shielded.• Use original FTDI FT232RL chip and TI TRS213l serial line driver.• Adapter body dimensions 35 x 56 x 17 mm, cable length 1.5 m. • Adapter weight 83 g (including cable).Supported OS:• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 / 11 and later, Windows Server 2003 / 2008 / 2012 / 2016 / 2019 / 2022 and later (supported are all 32 and 64-bit versions of Windows OSs), MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions.• Note: Drivers are included with supported operating systems and are installed completely automatically. Package contains:• USB - serial adapter with a 1.5 m long permanently attached USB cable,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,• packed in a cardboard box with a hanging hole.
LongProductName - ADS-1PQN USB > SERIAL ADVANCED active adapter
LongSummaryDescription - Axagon ADS-1PQN USB-A 2.0 - serial RS-232 DB9-M FTDI adapter cable 1.5m - Adapter - Digital/Daten. Product colour: Black, Cable length: 1.5 m, Connector 1: USB Type-A. Quantity per pack: 1 pc(s), Package type: Box, Package width: 150 mm. Compliance certificates: RoHS, Certification: CE. Cable diameter: 5 mm, Width: 35 mm, Depth: 56 mm
Model - ADS-1PQN
name - ADS-1PQN Adapter FTDI USB 2.0 > RS-232 serial
name - AXAGON ADS-1PQN Adapterkabel, RS-232 COM-Port auf USB 2.0 - FT232RL-Chip
Name - AXAGON USB - Serial Advanced Active Adapter | ADS-1PQN
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 92.00 mm
Package features > Gross height (mm) - 28.00 mm
Package features > Gross width (mm) - 150.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 4472 pc(s)
Package features > Paper/Pasteboard - 23.20 g
Package features > Plastic (No PET) - 5.80 g
Package features > Tare weight (kg) - 0.03 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging content - Manual - Yes
Packaging data - Package depth - 92 mm
Packaging data - Package height - 28 mm
Packaging data - Package type - Box
Packaging data - Package weight - 112 g
Packaging data - Package width - 150 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 100
Pack Weight Brutto (kg) - 0.11 kg
Pack Weight Netto (kg) - 0.01 kg
Pieces in pack - 1
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230620062138734871&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - ADS-1PQN
ProductDescription - Axagon ADS-1PQN USB > SERIAL ADVANCED ACTIVE ADAPTER
ProductName - ADS-1PQN USB-A 2.0 - serial RS-232 DB9-M FTDI adapter cable 1.5m - Adapter - Digital/Daten
Product Net Weight - 0.083 kg
ProductType - Adaptors
Product Type - Cable
Retail Packaging Net Weight Carton - 0.01 kg
Retail Packaging Net Weight Plastic - 0.01 kg
Right Connector - D-Sub 9-pin (DB-9) (Male)
RS232 Input/Output connectors - 1
Shipping Box Depth Shipping/Package Box Dimensions - 2.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 16 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.11 kg
Shipping Box Width Shipping/Package Box Dimensions - 9 cm
ShortSummaryDescription - Axagon ADS-1PQN USB-A 2.0 - serial RS-232 DB9-M FTDI adapter cable 1.5m - Adapter - Digital/Daten, Black, 1.5 m, USB Type-A, RS-232, Male, Male
Standard - USB 1.1
Standard - USB 2.0
System Requirements -
Technical details > Gross weight - 0.11 kg
Technical details > Net weight - 0.08 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - USB - Serial Advanced Active Adapter
Technical details > Producer product name - ADS-1PQN
Terminator Type - Active
Title - Axagon ADS-1PQN USB-A 2.0 - serial RS-232 DB9-M FTDI adapter cable 1.5m - Adapter - Digital/Daten serial cable Black USB Type-A
Type - Adapter
Type - Cable
Unit Calculated Volume - 0.00036 cubm
Unit Calculated Weight - 0.11 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/ads-1pqn
Usage - Computer
USB 2.0 Input/Output connectors - 1
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/ads-1pqn?ami=211
vendpn - ADS-1PQN
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight - 83 g
Weight & dimensions - Cable diameter - 5 mm
Weight & dimensions - Depth - 56 mm
Weight & dimensions - Height - 17 mm
Weight & dimensions - Weight - 83 g
Weight & dimensions - Width - 35 mm
