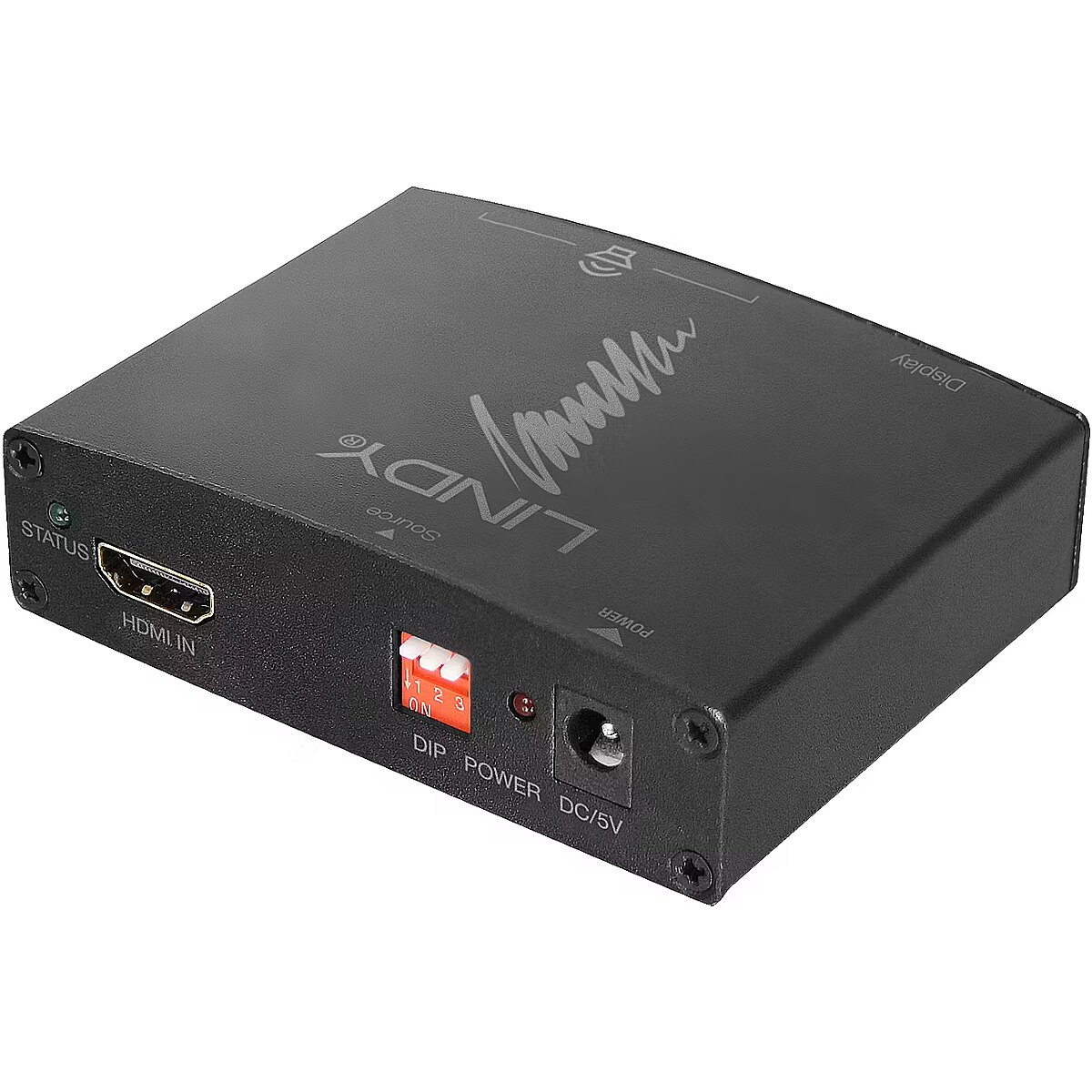

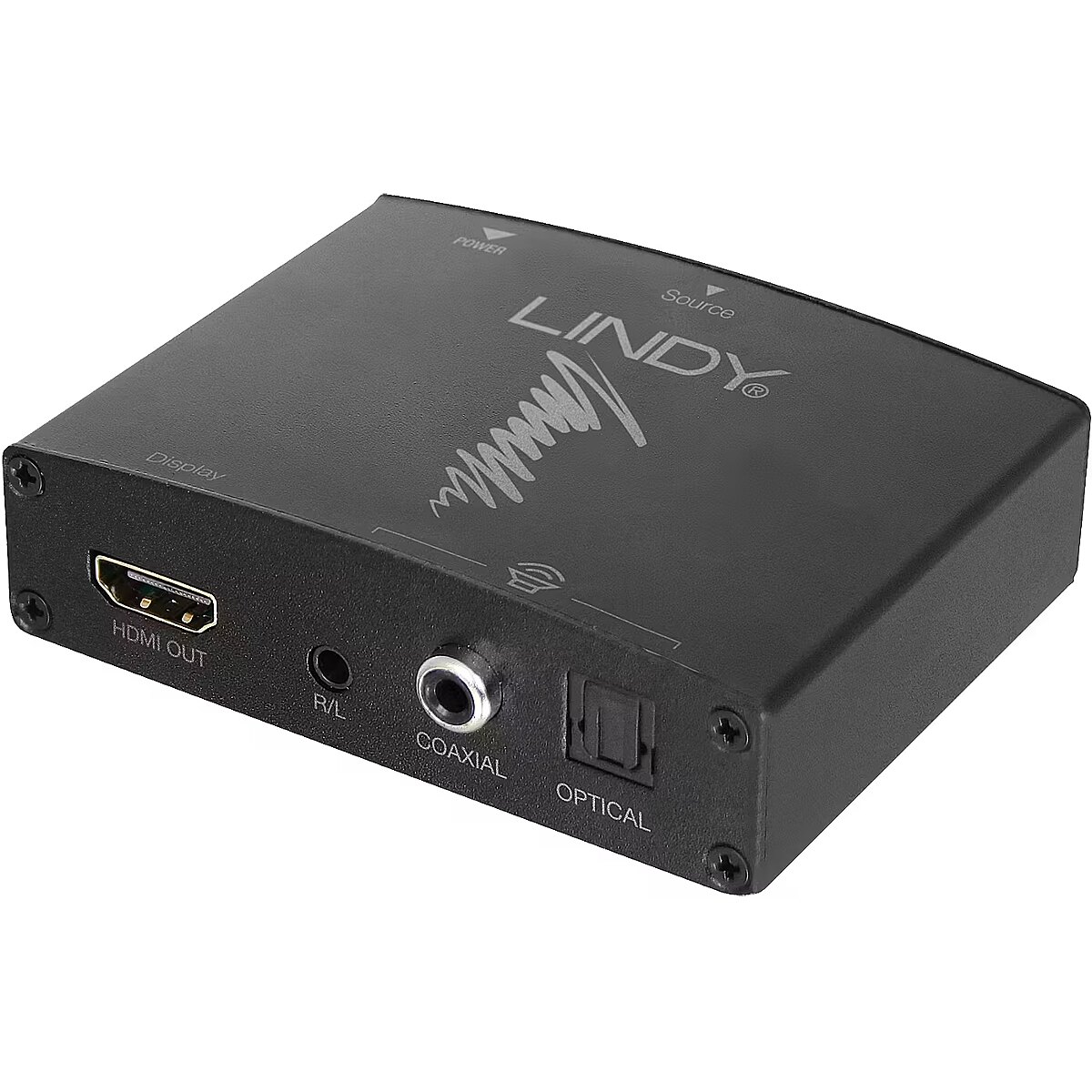

Lindy I/O EXTRACTOR HDMI 10.2G AUDIO

Brand - Lindy
BrandPartCode - 38167
Category - Audio Converters
Category Code - IOC
Coaxial S/PDIF Input/Output connectors - 1
Colour - Black
Description - HDMI 10.2G Audio Extractor Extract stereo or multi-channel audio from a HDMI source
GTIN - 4002888381673
HDMI Input/Output connectors - 2
Inputs - DC-in jack - Yes
Inputs - HDMI in - 1
Logistics data - Harmonized System (HS) code - 85176990
LongDesc - The Lindy HDMI 4K Audio Extractor is an effective solution for extracting audio from a HDMI source to both digital and analogue audio devices, while sending the video signal to a 4K display or projector. This is a perfect solution for connecting Non-HDMI AV receivers, or analogue 2-channel speaker setups to an HDMI source device, while also ideal for extracting audio and video to a display that requires separate speakers such as a PC monitor.The extractor supports high quality 4096x2160@30Hz resolutions with additional pass-through support for CEC, to allow source devices to be controlled from a TV control, and HDCP 1.4, this is ideal for use with source devices such as set top boxes, games consoles and Blu-Ray Players.This audio extractor allows output to both digital formats via Optical and HDMI and analogue via L/R connections, ensuring seamless compatibility with an amplifier, sound bar or 2-channel speaker setup. With support for multi-channel audio including DTS: HD and Dolby Digital 5.1, this device will ensure an impressive three-dimensional surround sound performance to compliment films, games and music when connected to an audio device. The 3.5mm analogue connection ensures 2-channel speaker set ups can also be connected to the extractor.Featuring a neat switch to fully control which source audio EDID is used and the ability to be powered via USB from the source or display device, the extractor provides simple use and installation, great for both AV installations in the home or in commercial settings. With a minimalist and stylish design, it can also be hidden out of sight to compliment the popular trend of discreet AV installations.
LongProductName - HDMI 4K30 Audio Extractor
LongSummaryDescription - Lindy HDMI 4K30 Audio Extractor. Power consumption (typical): 5 W, Power note: 5.5/2.1mm DC. Width: 65 mm, Depth: 88 mm, Height: 24 mm. Cables included: DC to USB Type-A, Package width: 202 mm, Package depth: 144 mm
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -15 - 55 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Outputs - Audio (L/R) out - 1
Outputs - Digital audio coaxial out - 1
Outputs - Digital audio optical out - 1
Outputs - Number of HDMI outputs - 1
Outputs - S/PDIF out port - Yes
Packaging data - Cables included - DC to USB Type-A
Packaging data - Manual - Yes
Packaging data - Package depth - 144 mm
Packaging data - Package height - 55 mm
Packaging data - Package type - Box
Packaging data - Package weight - 250 g
Packaging data - Package width - 202 mm
Packaging data - Quantity - 1
Power - Power consumption (typical) - 5 W
Power - Power note - 5.5/2.1mm DC
ProductName - HDMI 4K30 Audio Extractor
Product Net Weight - 0.118 kg
ShortSummaryDescription - Lindy HDMI 4K30 Audio Extractor, 5 W, 5.5/2.1mm DC, 65 mm, 88 mm, 24 mm, 118 g
Stereo jack 3.5mm Input/Output connectors - 1
Technical details - Accuracy - 0.1 dB
Technical details - Audio codecs - Dolby Digital 2/5.1, DTS-HD
Technical details - Audio recording formats - LPCM
Technical details - CEC pass-through - Yes
Technical details - Certification - CE, UKCA, FCC, RoHS, REACH
Technical details - Chipset - EP91A2E
Technical details - Compliance certificates - REACH, RoHS
Technical details - HDCP - Yes
Technical details - HDCP version - 1.4
Technical details - HDMI pass-through - Yes
Technical details - HDMI version - 1.4
Technical details - Housing material - Metal
Technical details - Input impedance - 100 Ω
Technical details - Maximum data transfer rate - 10200 Mbit/s
Technical details - Maximum resolution - 4096 x 2160 pixels
Technical details - Output impedance - 100 Ω
Technical details - Product colour - Black
Technical details - Supported chroma subsampling - 4:4:4
Technical details - Supported sample rates - 192 kHz
Title - Lindy HDMI 4K30 Audio Extractor
Unit Box Height - 0.058
Unit Box Length - 0.205
Unit Box Width - 0.146
Unit Calculated Volume - 0.001736 cubm
Unit Calculated Weight - 0.25 kg
Units per Shipping Box - 1
URL - https://www.lindy.co.uk/audio-video-c2/converters-scalers-c105/hdmi-4k30-audio-extractor-p10032
Vendor Homepage - www.lindy-international.com/HDMI-10-2G-Audio-Extractor.htm?websale8=ld0101.ld021102&pi=38167&ci=20
Warranty - 24 months
WarrantyInfo -
Weight & dimensions - Depth - 88 mm
Weight & dimensions - Height - 24 mm
Weight & dimensions - Weight - 118 g
Weight & dimensions - Width - 65 mm
