Logilink PCI-Express to 4xUSB3.0

Accessories included -
Brand - LogiLink
BrandPartCode - PC0057A
Category - Interface Cards/Adapters
Category - Root/Electronics/PC parts/Controllers
Category 1 - Kabel & Adapter
Category 2 - Computer
Category 3 - Interfacekarten
Chipset type -
Controller type - USB 3.0
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Maks. liczba urządzeń - 4 szt.
Dane techniczne: Metoda przesyłu danych - szeregowo
Dane techniczne: Obsługiwane systemy operacyjne - Windows 7
Dane techniczne: Obsługiwane systemy operacyjne - Windows 8
Dane techniczne: Obsługiwane systemy operacyjne - Windows 8.1
Dane techniczne: Obsługiwane systemy operacyjne - Windows Vista
Dane techniczne: Obsługiwane systemy operacyjne - Windows XP
Dane techniczne: Producent - Logilink
Dane techniczne: Standard - USB 3.0
Dane techniczne: Szyna systemowa - PCI-E
Dane techniczne: Typ złącza - PCI Express 2.0
Dane techniczne: Złącza zewnętrzne - 4 x USB 3.0
Description - PCI Express interface card 4xUSB3.0
Design - Hot-Plug support - Yes
Design - Internal - Yes
Design - Purpose - PC
Designation - CE+WEEE
dimension depth - 60 mm
dimension height - 170 mm
Dimensions -
dimension weight - 140 g
dimension width - 180 mm
ean - 4052792030471
EAN - 4052792030471
Eans - 4052792030471
Features - Bandwidth - 5 Gbit/s
Features - Chipset - VIA VL805
Features - Plug and Play - Yes
GTIN - 4052792030471
guarantee - 24
guarantee_type - normal
Interface - PCIe
Logistics data - Harmonized System (HS) code - 84733020

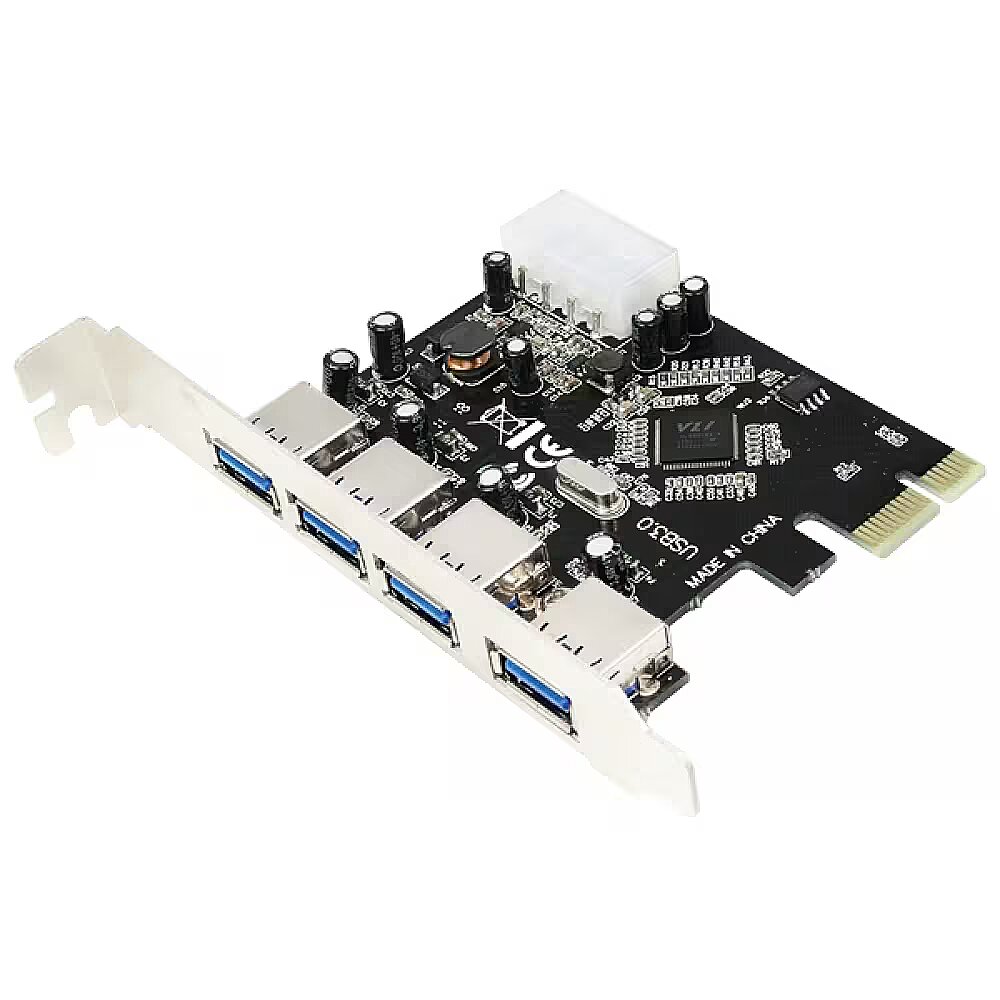

LongDesc - Expansion card LogiLink for 4 additional USB 3.0 ports. The interface is installed in the PCI Express port of your computer with Plug and Play support. It supports USB 3.0 transfer rates of up to 5 Gbps and an electricity supply of up to 900 mA per port. Backwards-compatible USB 2.0 or USB 1.1 devices are operated.- PCI Express card, USB 3.0.- Chipset: VIA VL805.- 4x USB 3.0 (Type A) female.- Backward compatible with USB 2.0/1.1.- Specification according to USB 3.0.- Max. Transfer rate: 5 GBit/s.- USB Legacy function.- Internal power supply via 5.25".- Maximum of 900 mA per USB 3.0 port.- Supports Windows XP/Vista/7/8/8.1.
LongProductName - PCI Express Card, 4 x USB 3.0
LongSummaryDescription - LogiLink PC0057A. Host interface: PCIe, Output interface: USB 3.2 Gen 1 (3.1 Gen 1). Purpose: PC. Chipset: VIA VL805, Bandwidth: 5 Gbit/s. Windows operating systems supported: Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home. Package width: 172 mm, Package depth: 167 mm, Package height: 60 mm
Manufacturer - LogiLink
MPN - PC0057A
Name - LogiLink 4-Port USB 3.0 PCI Express-Karte
Name - LogiLink kontroler PCI-E 4x USB 3.0
name - PCI Express interface card 4xUSB3.0
Other features - • The card complies with PCI-Express v2.0
• Compliance with specifications: USB3.0/2.0/1.1
• Supports current USB port functions
• Ability to connect an external power supply to power any device connected to a USB3.0 up to 900mA per port
• Compatible with Windows 2000/XP/Vista/7
Packaging data - Package depth - 167 mm
Packaging data - Package height - 60 mm
Packaging data - Package weight - 140 g
Packaging data - Package width - 172 mm
Packaging data - User guide - Yes
Ports - 4 x USB 3.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Output interface - USB 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Producent: Nazwa producenta / importera - Logilink
2direct GmbH
Langenstuck 5
D-58579 Schalksmuhle

producer - LogiLink
Producer - Logilink
ProducerCode - PC0057A
ProductName - PC0057A
ShortDescription - 4 porty USB3.0 A żeńskie / Zgodność ze specyfikacją: USB3.0/2.0/1.1
ShortSummaryDescription - LogiLink PC0057A, PCIe, USB 3.2 Gen 1 (3.1 Gen 1), PC, VIA VL805, 5 Gbit/s, Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home
System Requirements -
System requirements - Windows operating systems supported - Windows 7 Home Basic, Windows 8, Windows 8.1, Windows Vista Home Basic, Windows XP Home
Technical details - Compliance certificates - RoHS
Title - LogiLink PC0057A interface cards/adapter Internal USB 3.2 Gen 1 (3.1 Gen 1)
URL - https://www.logilink.de/Suche/PC0057A
vendpn - PC0057
WarrantyInfo -
Weight - 0.091
