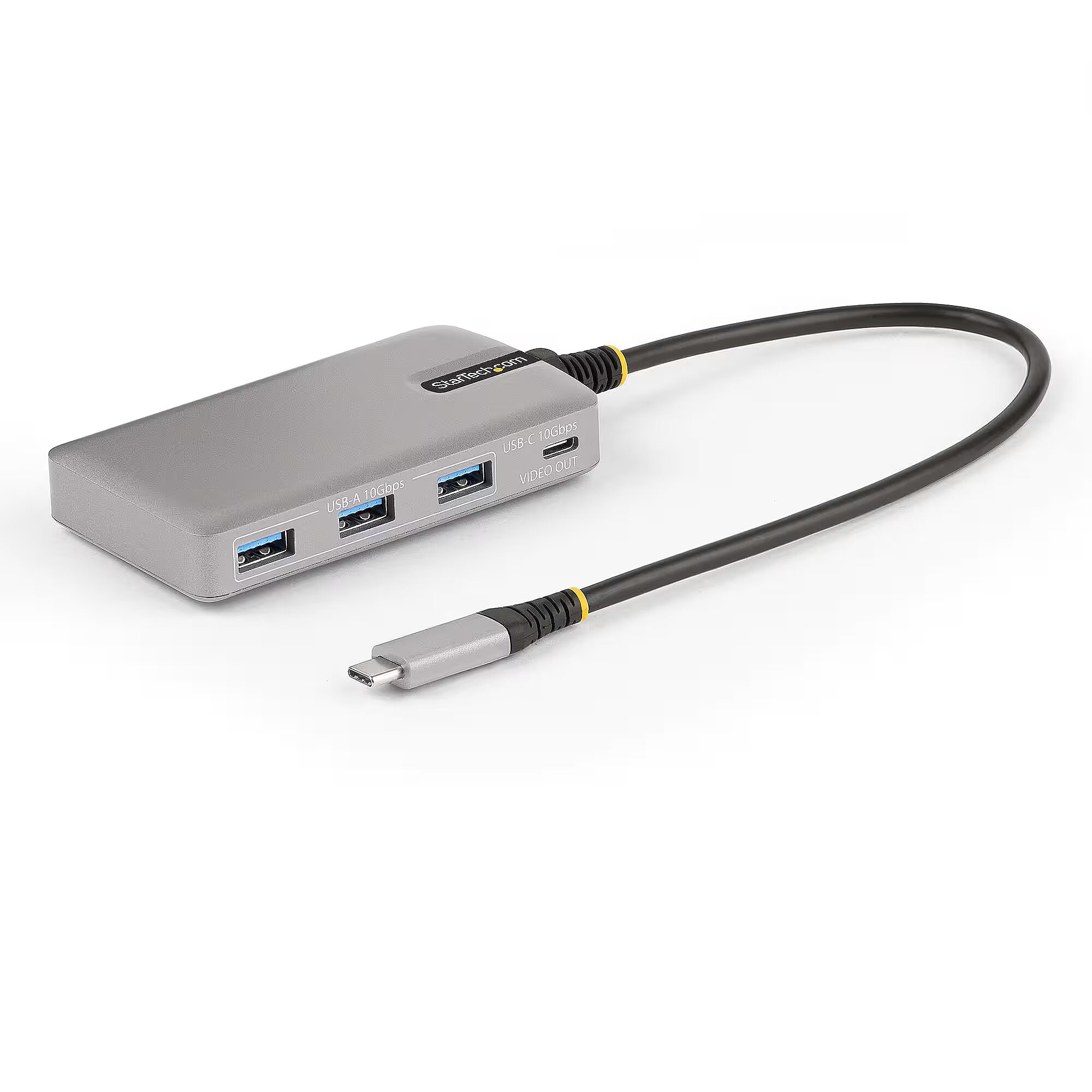

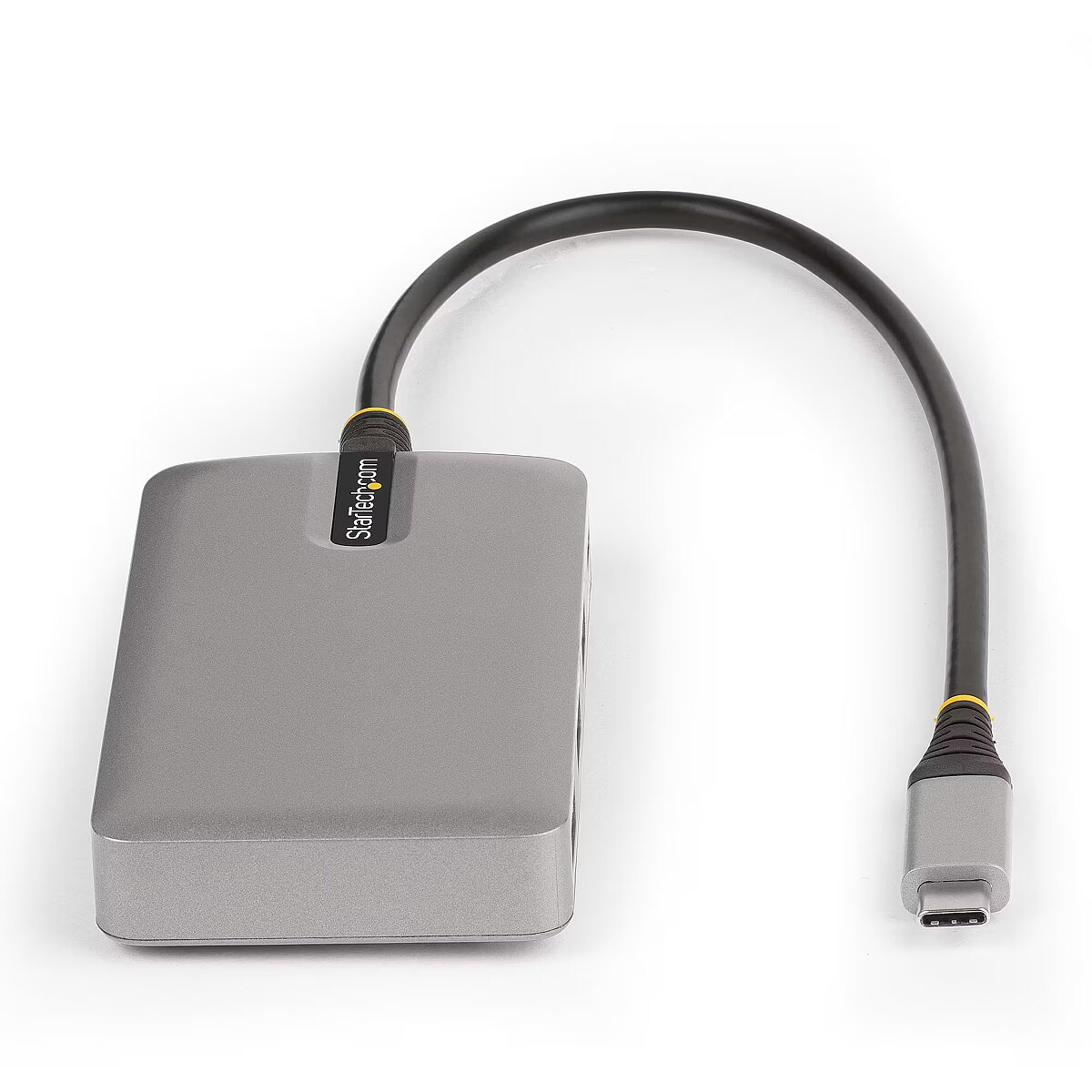

Startech 4-PORT USB-C 10GBPS HUB - 3X USB-A/1X USB-C FOR LAPTOPS

ARTIKEL1 - 4-PORT USB-C 10GBPS HUB
ARTIKEL2 - - 3X USB-A/1X USB-C FOR LAPTOPS
Brand - StarTech.com
BrandPartCode - HB31C3A1CDPPD3
Breite - 0
Category - Interface Hubs
EANCode - 0065030893022
Features - Data transfer rate - 10000 Mbit/s
Features - Maximum refresh rate - 60 Hz
Features - Overcurrent protection - Yes
Features - Product colour - Silver
Features - Supported graphics resolutions - 4096 x 2160
Features - USB Power Delivery (USB PD) - Yes
Features - USB Power Delivery revision - 3.0
Features - USB Power Delivery up to - 100 W
GRUPPE1 - Network
GRUPPE2 - USB Hub / Controller
GTIN - 0065030893022
GTIN - 065030893022
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - HB31C3A1CDPPD3
Laenge - 0
Logistics data - Master (outer) case height - 440 mm
Logistics data - Master (outer) case length - 331 mm
Logistics data - Master (outer) case width - 473 mm
Logistics data - Products per master (outer) case - 70 pc(s)

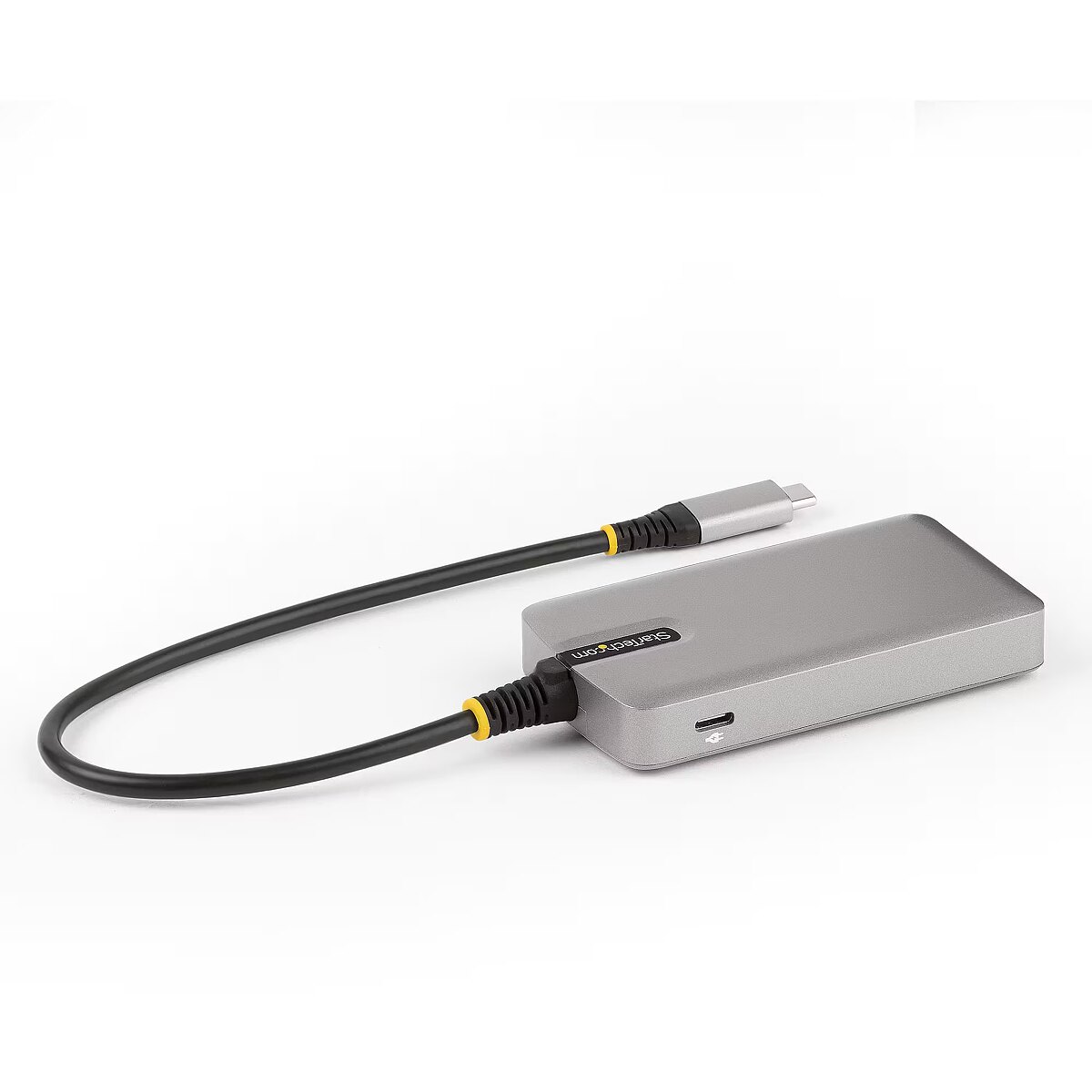

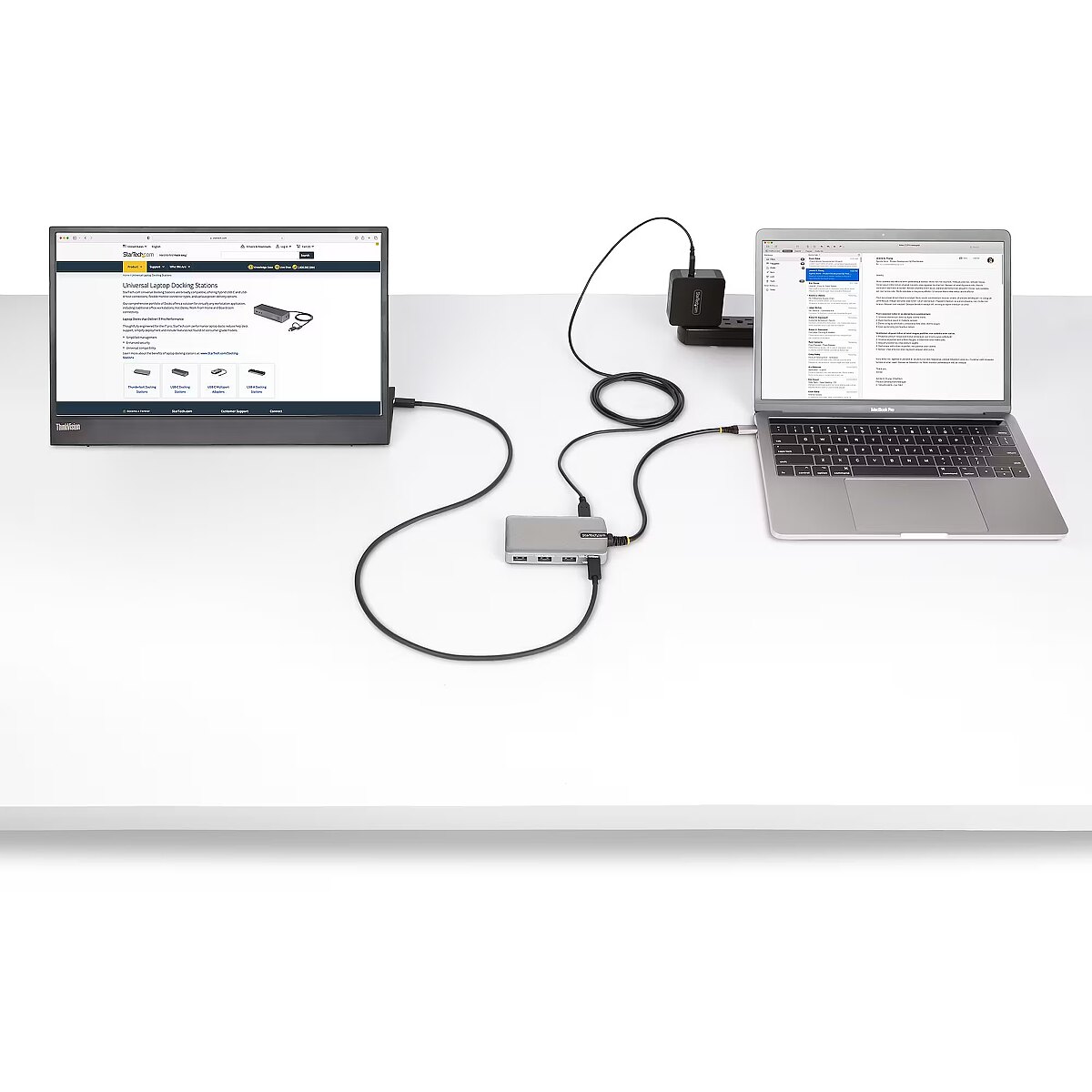

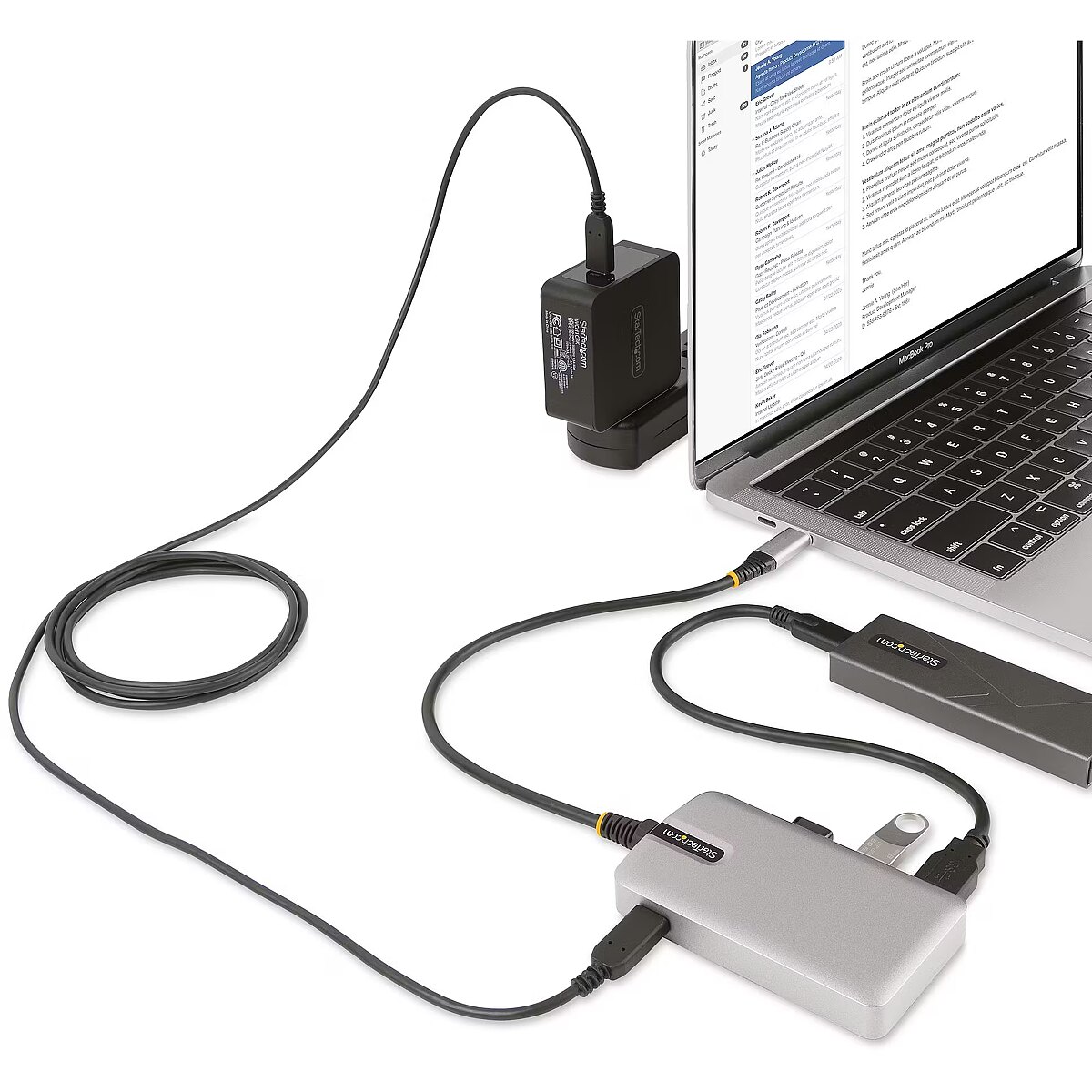

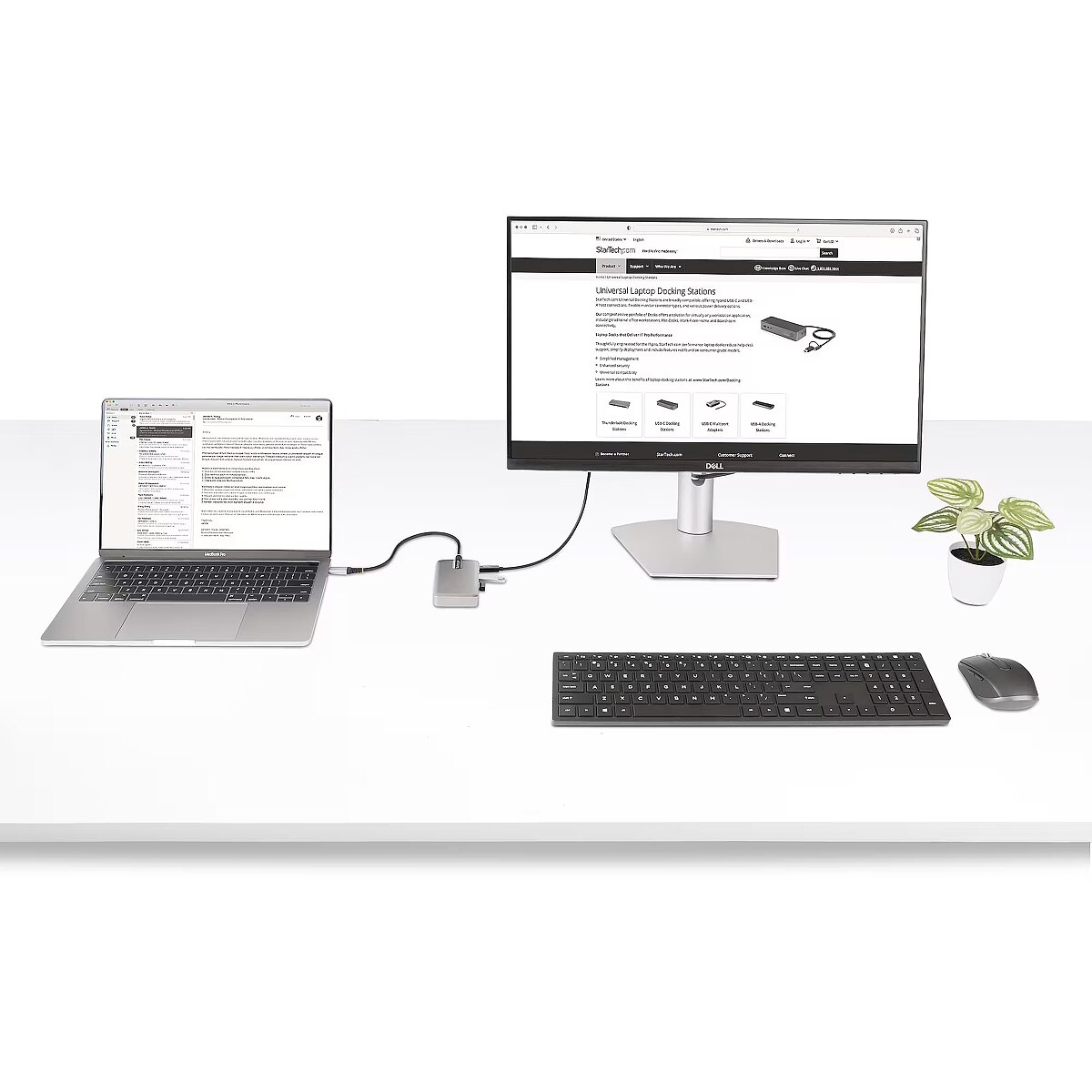

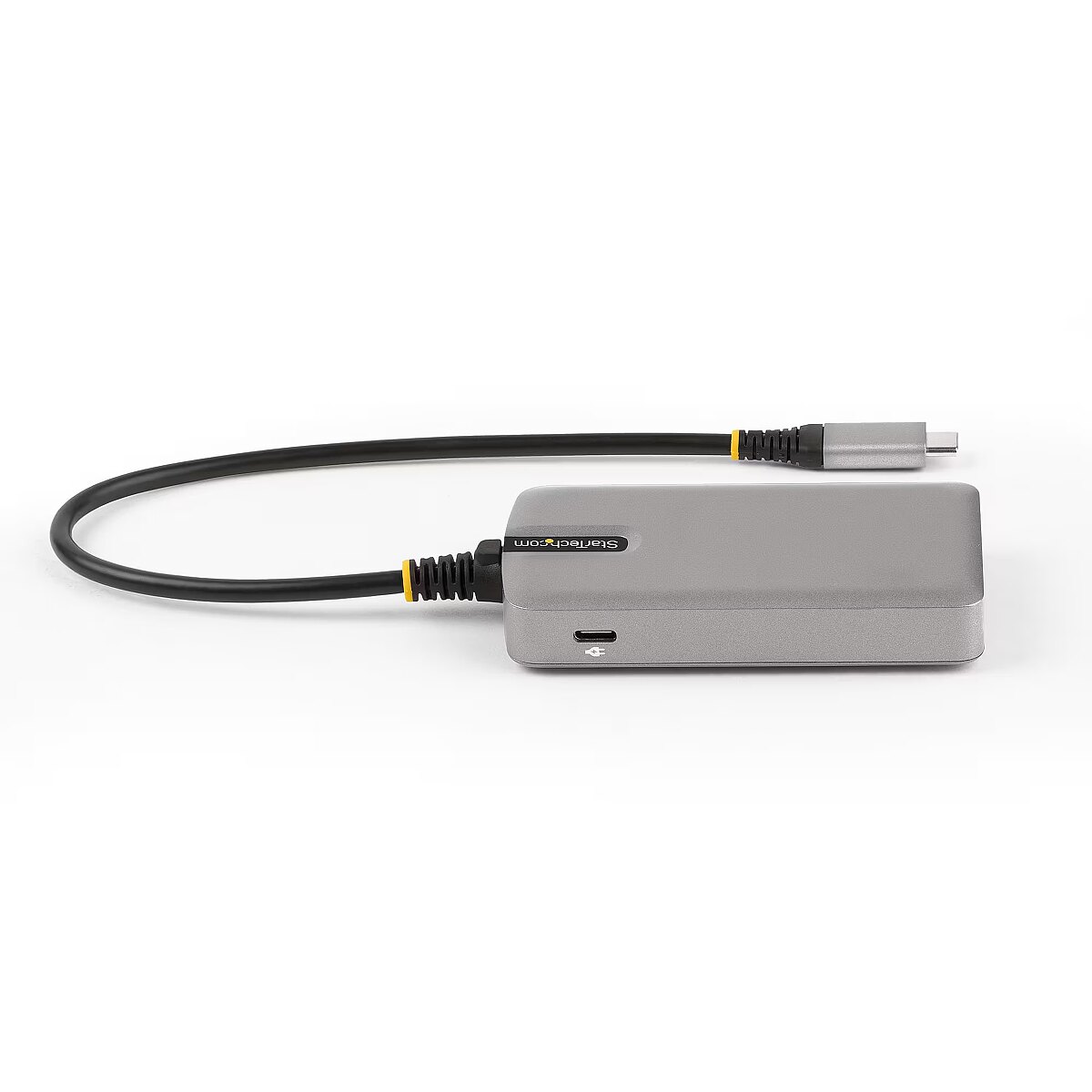

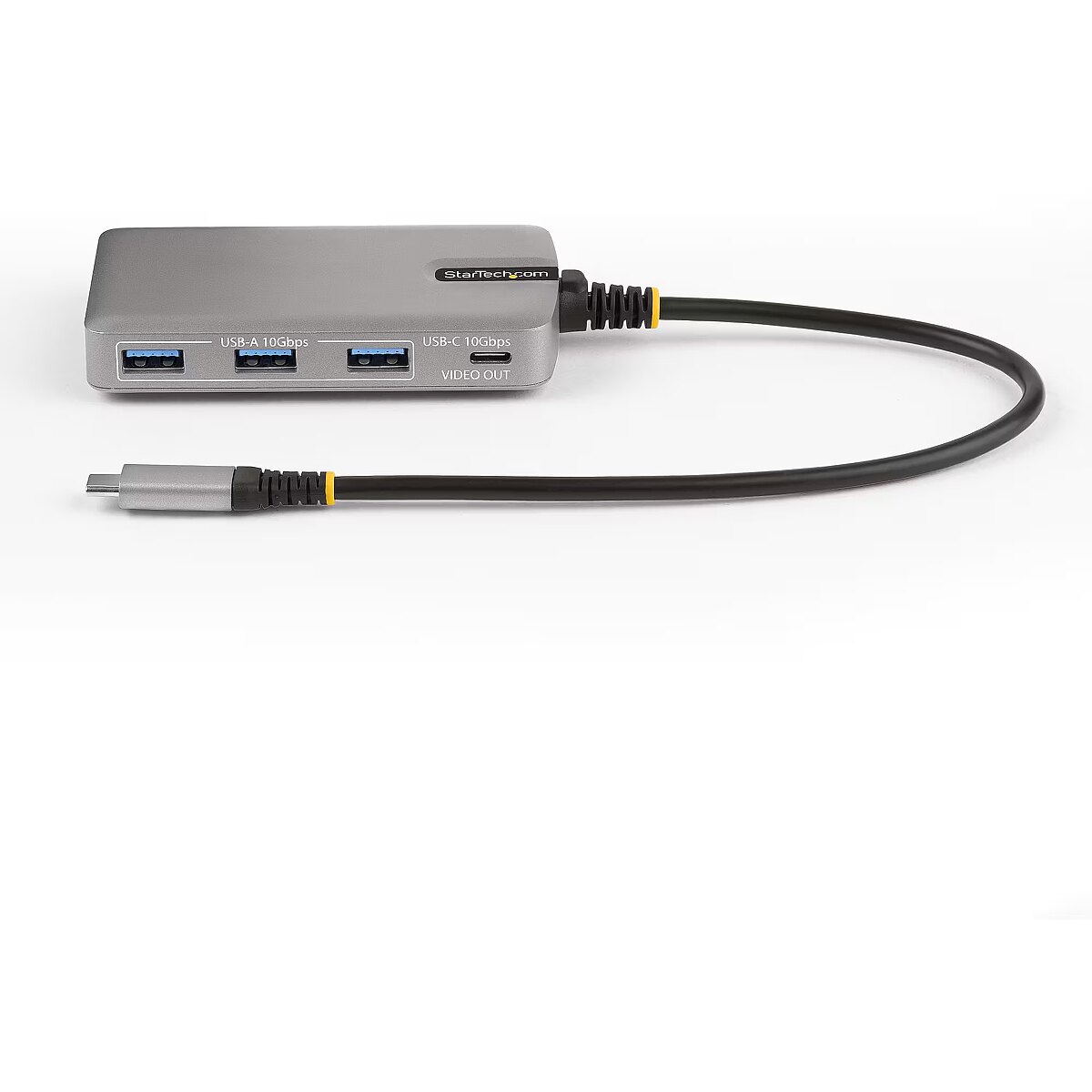

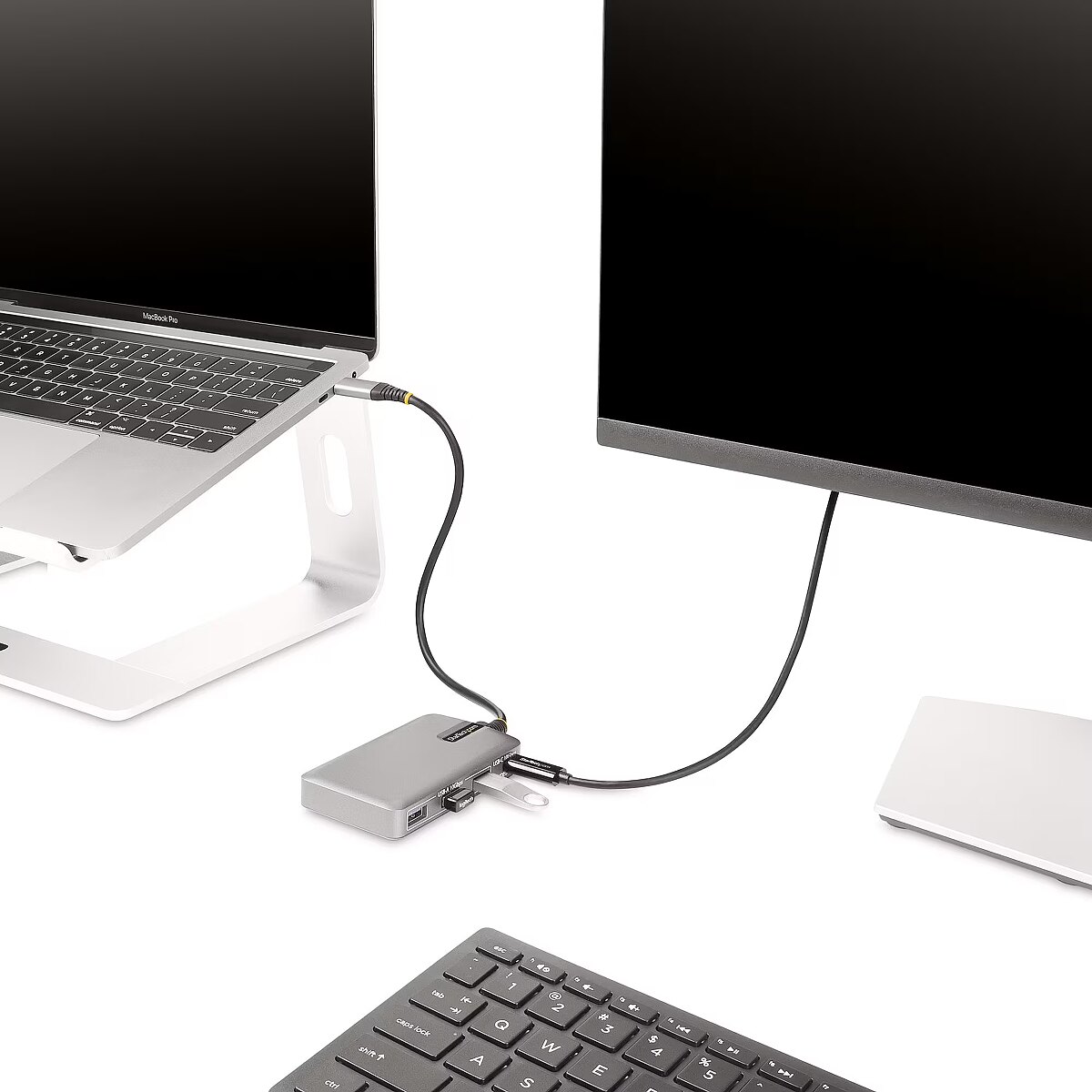

LongDesc - Add four 10Gbps USB ports (3x USB-A and 1x USB-C) to a USB-C enabled laptop while powering and charging the host device with Power Delivery 3.0This USB Type-C Hub with USB-C DP Alt Mode Output and 100W USB Power Delivery pass-through adds four USB 3.2 Gen 2 (10Gbps) ports (3x USB-A, 1x USB-C) to a USB-C enabled computer. The Hub supports USB-C DP Alt mode on the downstream USB-C port, enabling the connection of USB-C portable monitors or desktop monitors. Connect the USB hub to a USB-C port on a laptop, using the built-in 1ft (30cm) USB-C host cable. Charge a host laptop by connecting the host laptop's USB-C power supply to the USB Power Delivery (PD) 3.0 port. Backward compatibility with USB 2.0 (480Mbps) devices ensures support for a wide range of modern and legacy USB peripherals.USB-C DP Alt Mode Video OutputThe downstream USB-C port on this USB hub supports both 10Gbps data transfers and USB-C DP Alt Mode, with support for resolutions up to 4K 60Hz. This enables users to connect either a USB data peripheral or a USB-C portable or desktop monitor. The USB-C port outputs 12W (5V/2.4A) of power to support portable USB-C monitors, or power and charge other USB peripherals. This integration is particularly valuable for enhancing productivity in professional settings and delivering either video or USB 10Gbps performance, depending upon user needs.USB Power Delivery Pass-ThroughThis USB hub features USB Power Delivery 3.0 pass-through (up to 100W). Connect a power source to the PD pass-through port to power the host, the hub, and an external display, and to enable full charging capabilities for the USB peripheral ports. PD 3.0 features Fast Role Swap (FRS) to prevent USB data disruption when switching power sources (USB-C power adapter to bus power).Power the hub using a USB-C power adapter connected or with bus-powered alone. The hub requires up to 18W of power. This power is dynamically shared across the downstream ports. For added protection to this USB hub and the connected host device, the USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.Plug and PlayThis device is compatible with all major operating systems, including Windows, macOS, ChromeOS, iPadOS, and Android. The Hub is automatically detected, configured, and installed upon connection to a host computer.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility: Setup and save custom windows layouts.•USB Event Monitoring Utility: Track and log connected USB devices.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/connectivity-toolsThe StarTech.com Advantage
LongProductName - StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub (HB31C3A1CDPPD3)
LongSummaryDescription - StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub. Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, Hub interfaces: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C. Data transfer rate: 10000 Mbit/s, Maximum refresh rate: 60 Hz, Supported graphics resolutions: 4096 x 2160. Power supply type: USB, Power consumption (max): 18 W. Width: 54 mm, Depth: 98 mm, Height: 16 mm. Package width: 142 mm, Package depth: 170 mm, Package height: 30 mm
Network - UASP support - Yes
Operational conditions - Operating relative humidity (H-H) - 0 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Chipset - VIA - VL103-Q4, VIA - VL822-Q7, Parade - PS8802, Parade - FL7102-2L0, TMI - IM2605, Realtek - RTD2186
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 170 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 133 g
Packaging data - Package width - 142 mm
Ports & interfaces - Card reader integrated - No
Ports & interfaces - DC-in jack - No
Ports & interfaces - DisplayPort version - 1.4
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Hub interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 3
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - Power consumption (max) - 18 W
Power - Power supply type - USB
ProductName - 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub
ShortSummaryDescription - StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 10000 Mbit/s, 60 Hz, 4096 x 2160, Silver
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, RoHS
Title - StarTech.com 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz - 3x USB-A, 1x USB Type-C, 100W Power Delivery Pass-Through, USB 3.2 10Gbps, 1ft/30cm Cable, Portable USB Hub
URL - https://www.startech.com/en-us/HB31C3A1CDPPD3
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 16 mm
Weight & dimensions - Weight - 98 g
Weight & dimensions - Width - 54 mm
