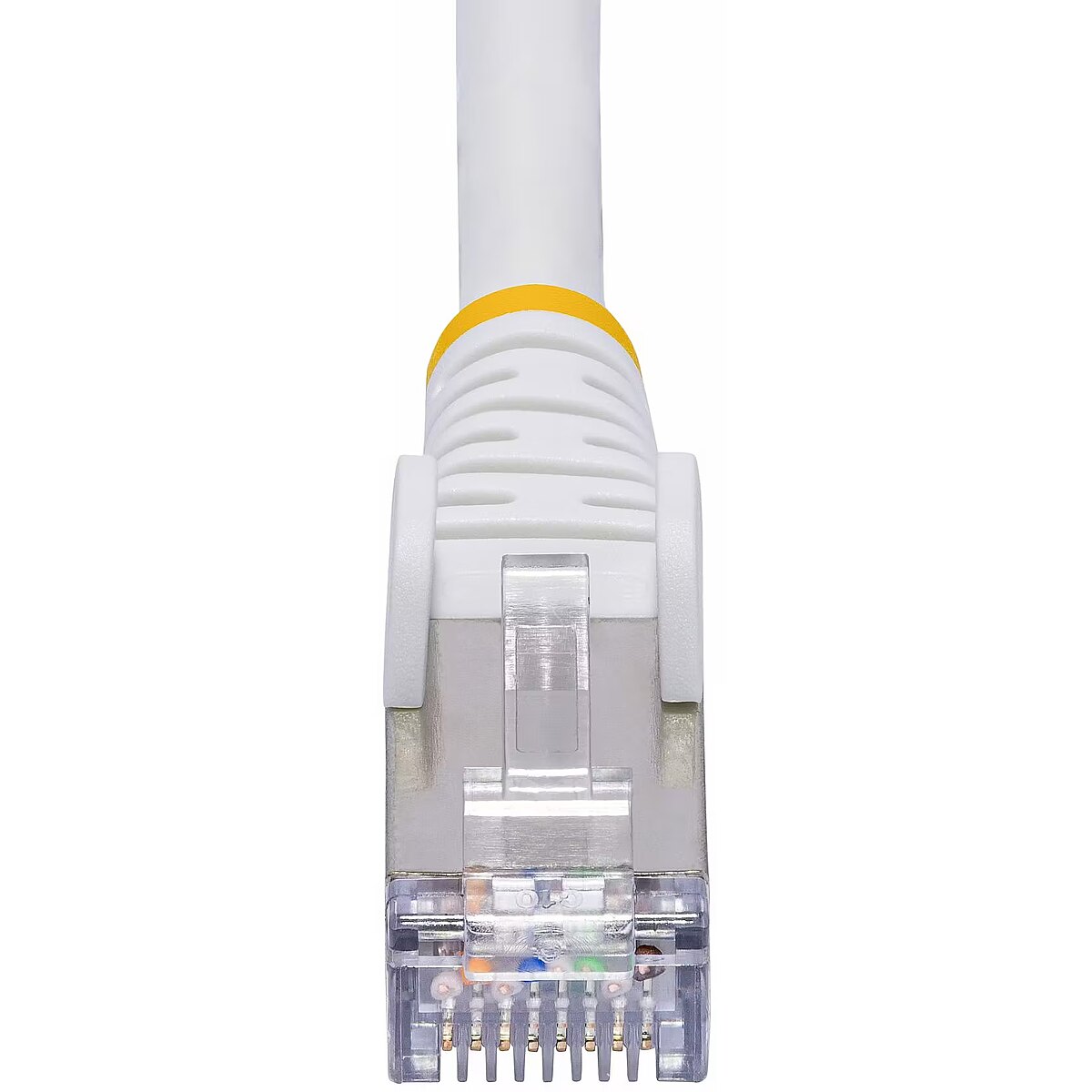

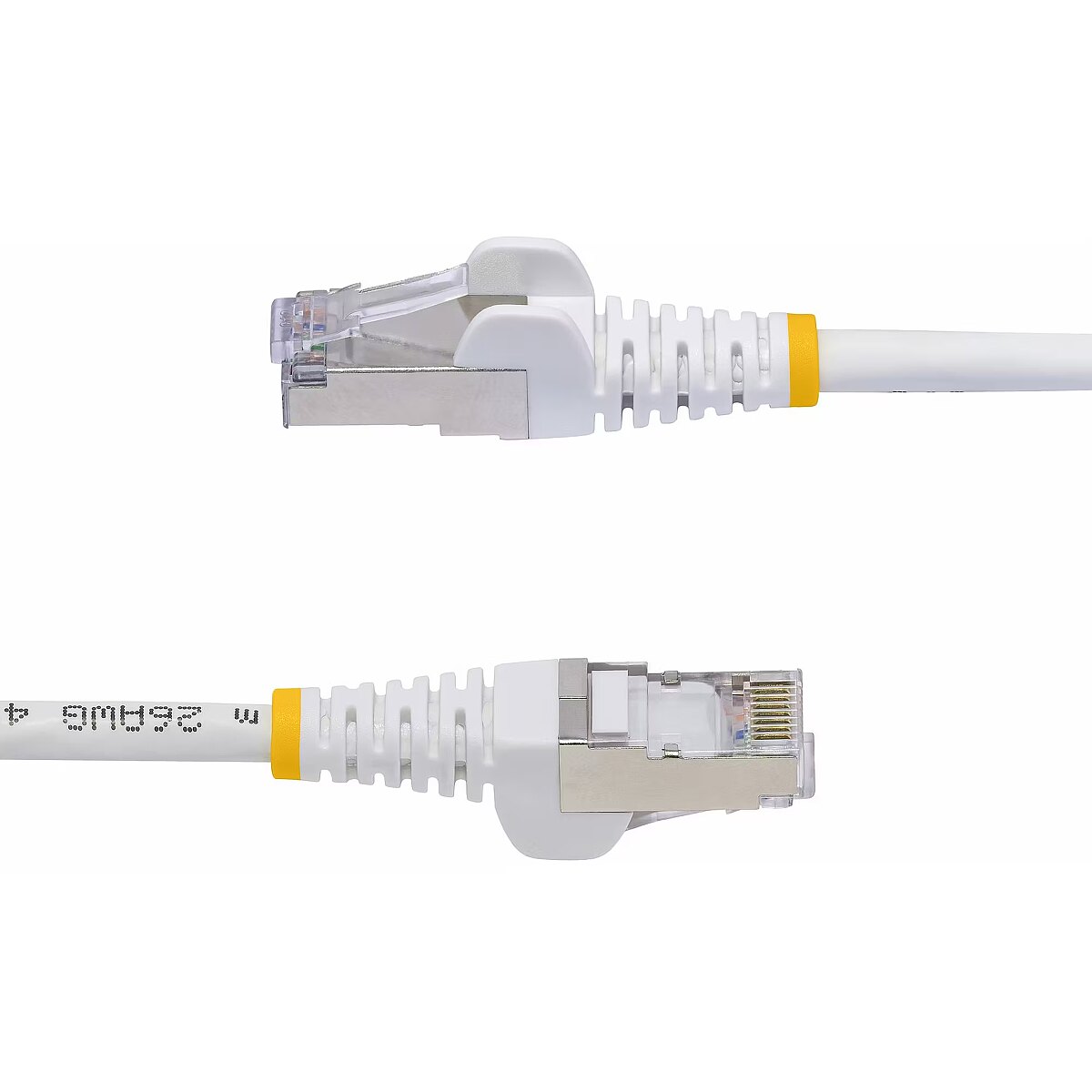

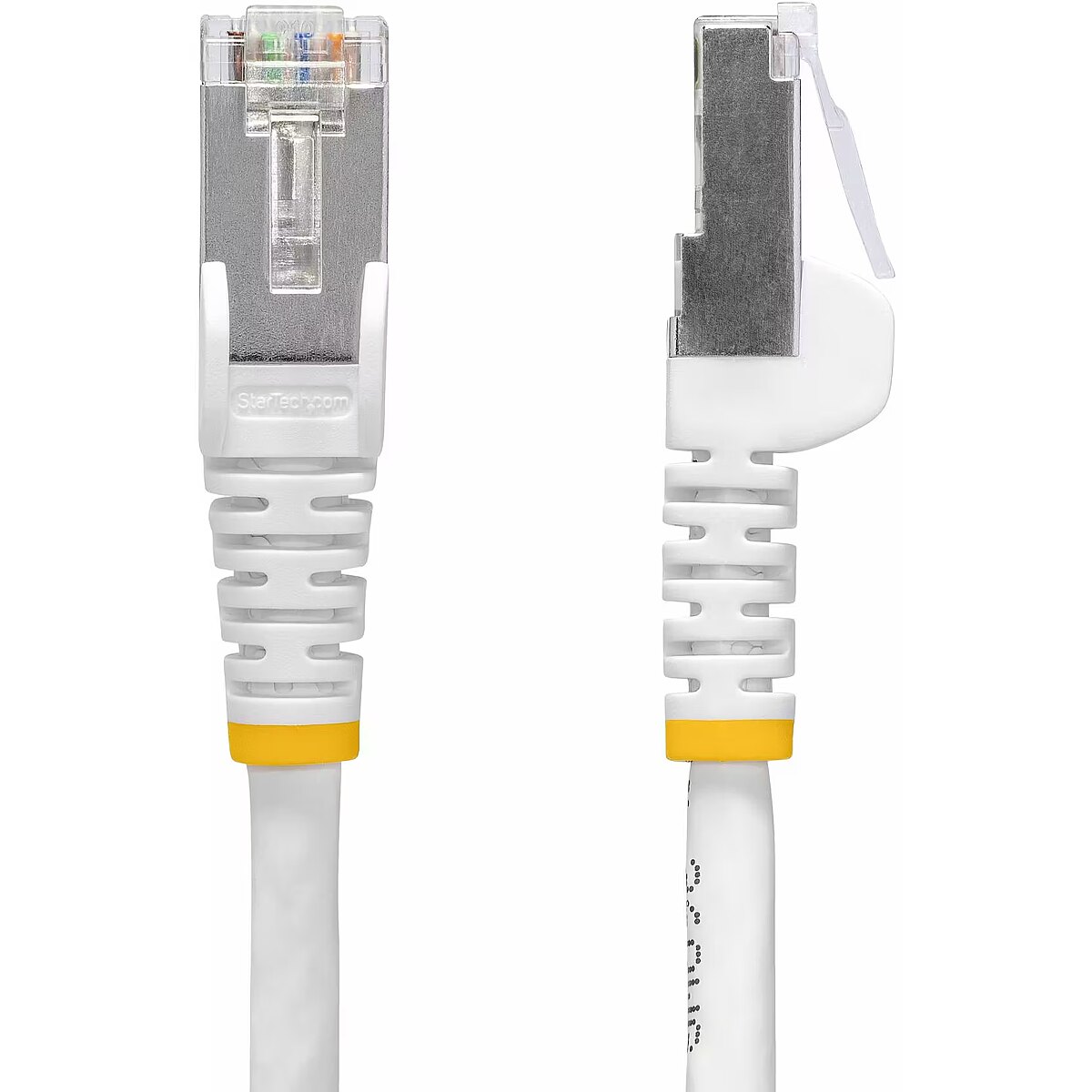

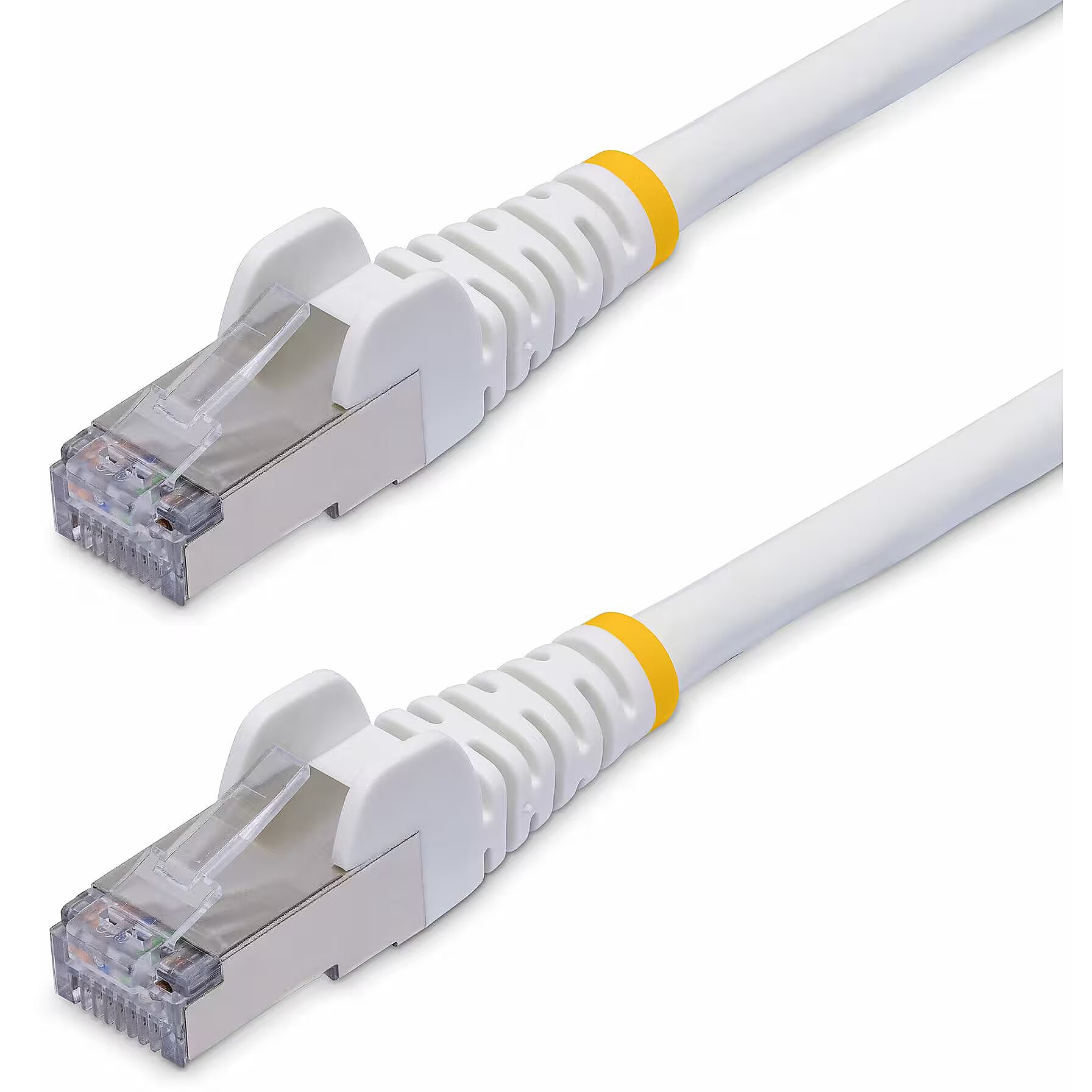

Startech CAT8 ETHERNET CABLE LSZH 25G/40G S/FTP LSZH 100W POE

ARTIKEL1 - CAT8 ETHERNET CABLE LSZH
ARTIKEL2 - 25G/40G S/FTP LSZH 100W POE
Brand - StarTech.com
BrandPartCode - NLWH-3M-CAT8-PATCH
Breite - 0
Category - Networking Cables
Certificates - Certification - TIA/EIA-T568B
EANCode - 0065030898577
Features - AWG wire size - 26
Features - Cable length - 3 m
Features - Cable shape - Round
Features - Cable shielding - S/FTP (S-STP)
Features - Cable standard - Cat8
Features - Cabling technology - 40GBase-T
Features - Conductor material - Copper
Features - Conductor type - Solid
Features - Connector 1 - RJ-45
Features - Connector 1 form factor - Straight
Features - Connector 1 gender - Male
Features - Connector 2 - RJ-45
Features - Connector 2 form factor - Straight
Features - Connector 2 gender - Male
Features - Connector contacts plating - Gold
Features - Connector shielding - Yes
Features - Data transfer rate - 40000 Mbit/s
Features - Ethernet interface type - 25 Gigabit Ethernet, 40 Gigabit Ethernet
Features - Frequency - 2000 MHz
Features - Jacket material - Low smoke zero halogen (LSZH)
Features - Networking standards - IEEE 802.3ba
Features - Power over Ethernet (PoE) - Yes
Features - Power over Ethernet (PoE) type supported - PoE++ (4PPoE)
Features - Product colour - White
Features - Snagless cable boot - Yes
Features - Total Power over Ethernet (PoE) budget - 100 W
GRUPPE1 - Cables
GRUPPE2 - Fiber Optic Cable
GTIN - 0065030898577
GTIN - 065030898577
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - NLWH-3M-CAT8-PATCH
Laenge - 0
Logistics data - Master (outer) case height - 290 mm
Logistics data - Master (outer) case length - 430 mm
Logistics data - Master (outer) case width - 380 mm
Logistics data - Products per master (outer) case - 70 pc(s)
LongDesc - Connect reliably to a 25G/40G network using this Shielded LSZH Cat8 CableConnect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.Pure Bare Copper WireOur Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.Durable ConstructionThe Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.Versatile DependabilityThe Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras. ETL VerifiedOur Cat8 Ethernet Cables are ETL Verified to meet ANSI/TIA-568.2-D standards, ensuring peak performance for high-speed 25G/40G applications. Independent testing confirms compliance with strict insertion loss, return loss, and crosstalk limits, maintaining stable signal transmission over longer runs. The S/FTP shielding is verified for EMI resistance, for guaranteed reliability in demanding environments.Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Each cable is individually tested using a Fluke® DSX2-8000 CableAnalyzer™ for guaranteed Cat8 performance.
LongProductName - StarTech 3m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper, LSZH
LongSummaryDescription - StarTech.com 3m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Individually Tested. Cable length: 3 m, Cable standard: Cat8, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Data transfer rate: 40000 Mbit/s, Product colour: White
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Packaging content - Quantity per pack - 1 pc(s)
Packaging data - Package depth - 220 mm
Packaging data - Package height - 20 mm
Packaging data - Package weight - 131 g
Packaging data - Package width - 190 mm
ProductName - 3m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Individually Tested
ShortSummaryDescription - StarTech.com 3m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Individually Tested, 3 m, Cat8, S/FTP (S-STP), RJ-45, RJ-45, White
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
Title - StarTech.com 3m White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G, 2000MHz, 100W PoE++, S/FTP, 26AWG Pure Bare Copper Wire, LSZH, Shielded Network Patch Cord w/Strain Reliefs, Individually Tested
URL - https://www.startech.com/en-us/NLWH-3M-CAT8-PATCH
WarrantyInfo - Lifetime
Weight & dimensions - Outer diameter - 5.6 mm
