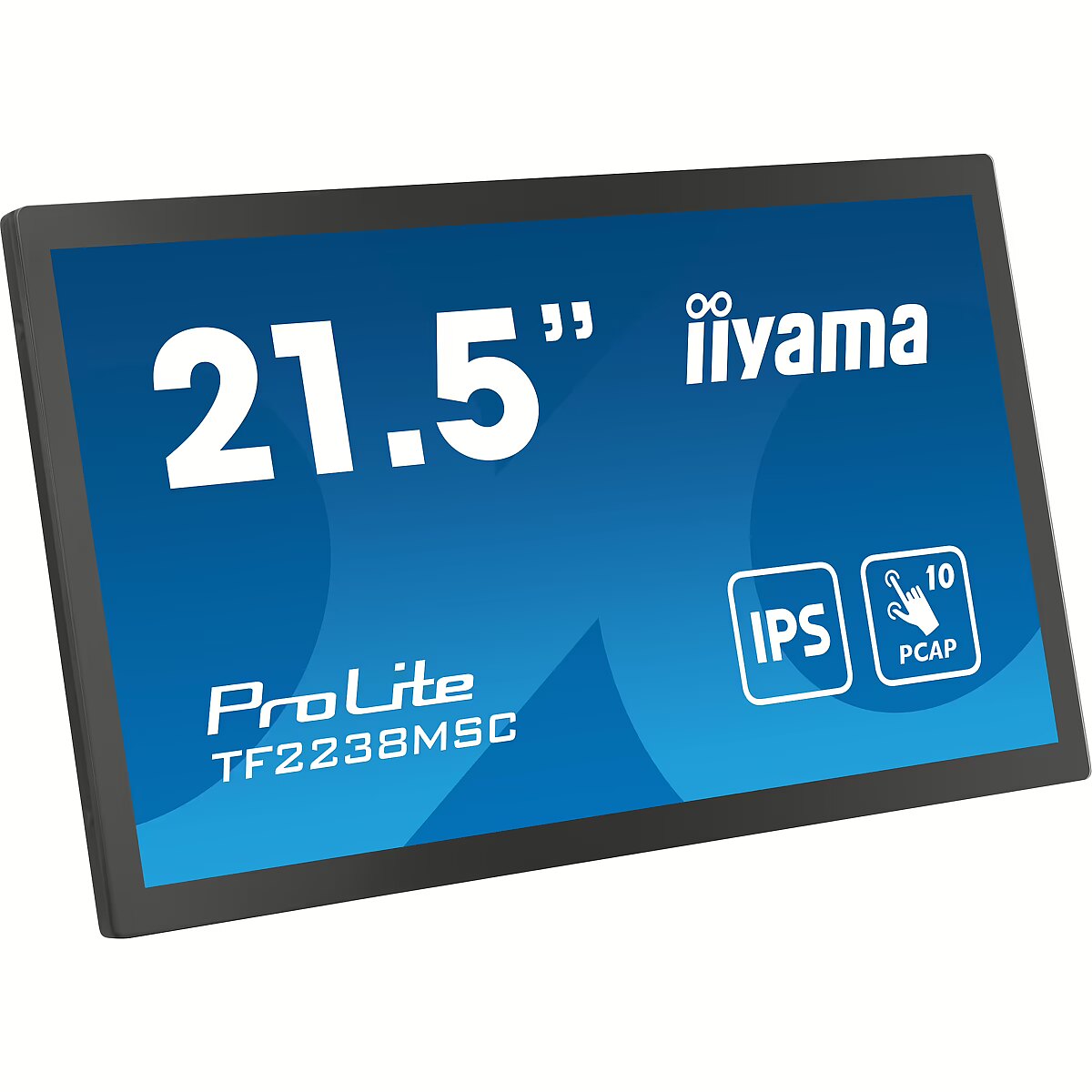

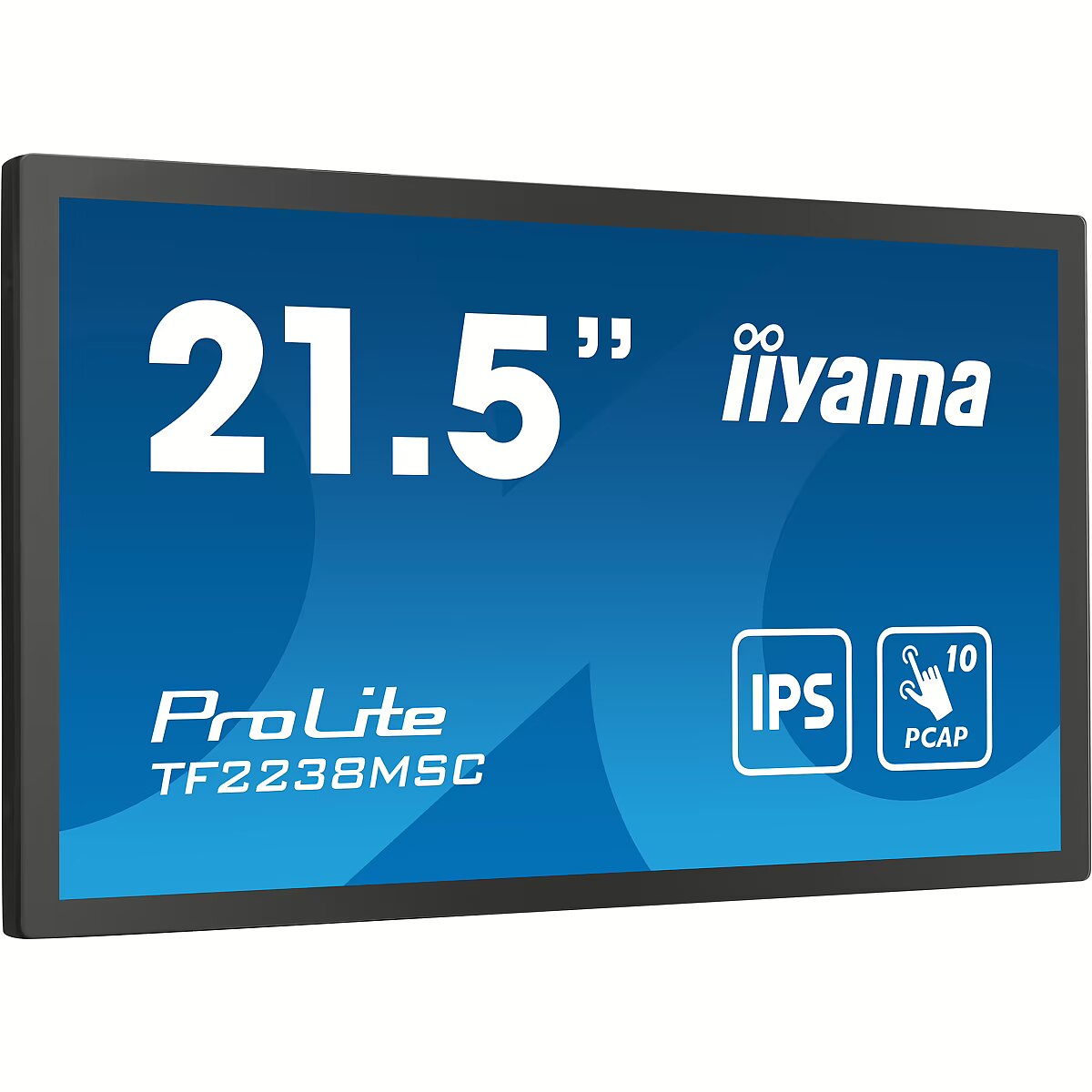

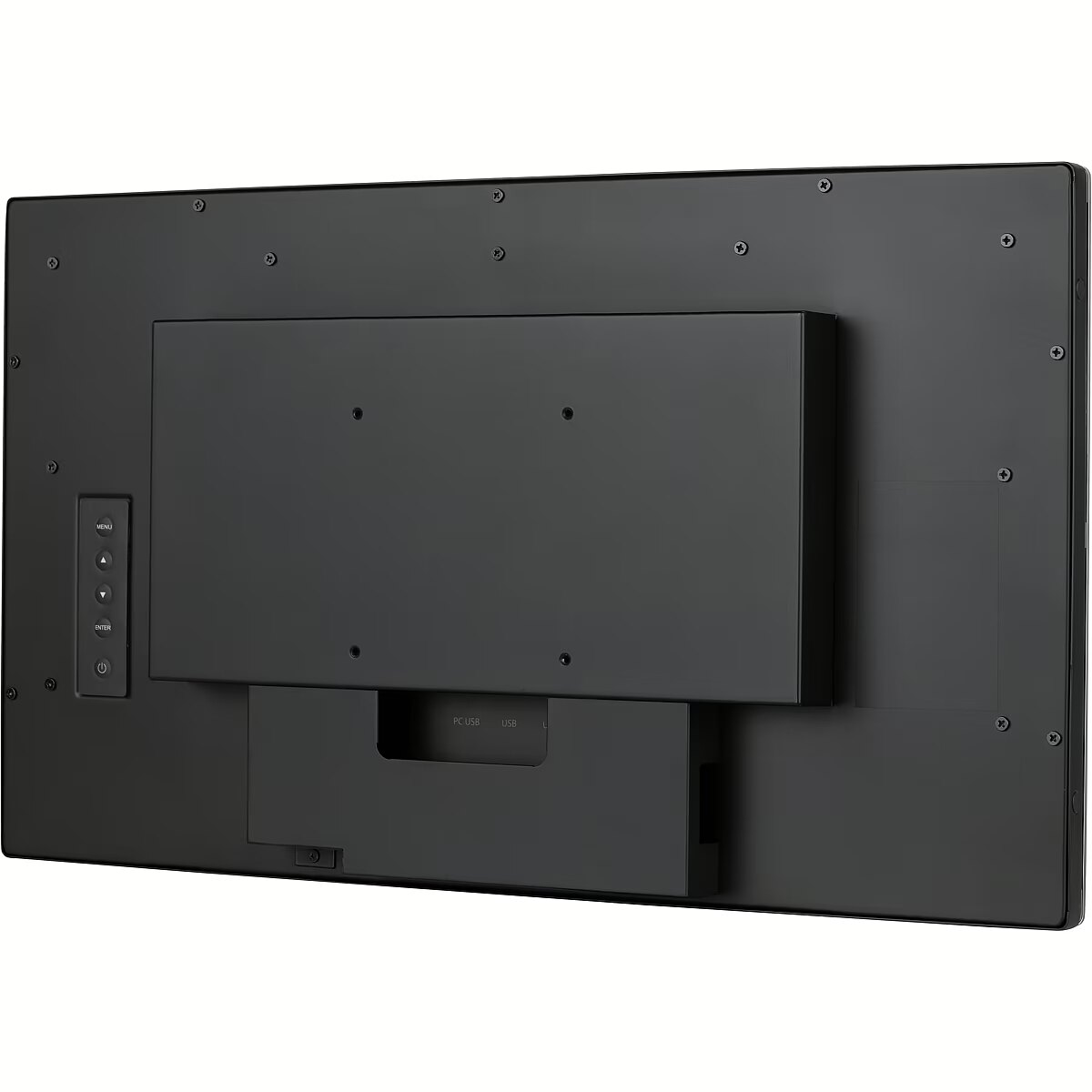

Iiyama TF2238MSC-B1, 21.5"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 993023 Product code: TF2238MSC-B1
Can be ordered 9 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
484.72 €
Ready for dispatch
07.04.2026
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Unisend parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Curved: None
  • Panel Type: IPS
  • Refresh rate: 60 Hz
  • Response time: 5ms
  • Contrast ratio: 1000:1
  • Brightness: 600cd/m2
  • Size: 22"
  • Resolution: FHD 1920x1080
Description

This Iiyama TF2238MSC-B1, 21.5" monitor with FHD 1920x1080 resolution ensures a clear and comfortable image for work, study, and everyday tasks. It combines a convenient form factor, modern design, and optimal visual features, making everyday use more productive and enjoyable.

The reaction time of 5ms means that pixels change state faster, reducing artifacts in motion picture depiction. This ensures a more accurate representation of fast transitions and reduces visual disturbances. The monitor provides a clear image in dynamic situations and improves the readability of moving objects.

The IPS technology provides a stable image, thanks to wide viewing angles and consistent color reproduction across the entire screen area. Unlike TN and VA panels, IPS maintains accurate colors even when the viewing position is changed, reducing distortions and increasing reliability for precise visual work.

The refresh rate of 60 Hz ensures stable images and comfortable work in office and home applications. This mode reduces eye fatigue during prolonged use, minimizes flickering, and ensures smooth motion. It is ideally suited for everyday tasks, web browsing, and multimedia viewing.

VESA wall mount provides a standardized mounting hole layout, allowing you to safely attach the monitor to the wall using compatible brackets. This type of installation frees up desk space, reduces vibrations from the table, and ensures a stable screen position for prolonged work.

Built-in speakers provide sound playback without having to connect separate acoustic systems, reducing the amount of equipment in the workplace. They provide basic audio signals for video conferencing, system announcements, and multimedia. This solution enhances convenience and reduces the number of additional cables.

HDMI uses a single cable connection for video and audio transmission, ensuring a stable signal and minimal losses. Such an interface simplifies connection and reduces the possibility of synchronization errors. HDMI is compatible with a majority of modern devices and ensures reliable operation in various configurations.

DisplayPort is a modern image transmission standard that ensures stable playback with high resolution and refresh intensity. The interface supports HDR and multiple monitor configurations, transmits details without quality loss and provides accurate graphics display on professional and gaming monitors.

Warranty

Iiyama provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

All parameters
Model : TF2238MSC-B1
Display characteristics
AMD FreeSync : None
Curved : None
NVIDIA G-SYNC : None
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : YES
VESA DisplayHDR : There isn't
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 600cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 16:9
Color : Black
Size 22"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : There isn't
Height adjustment : None
Pivot : None
Swivel : None
Tilt : NO

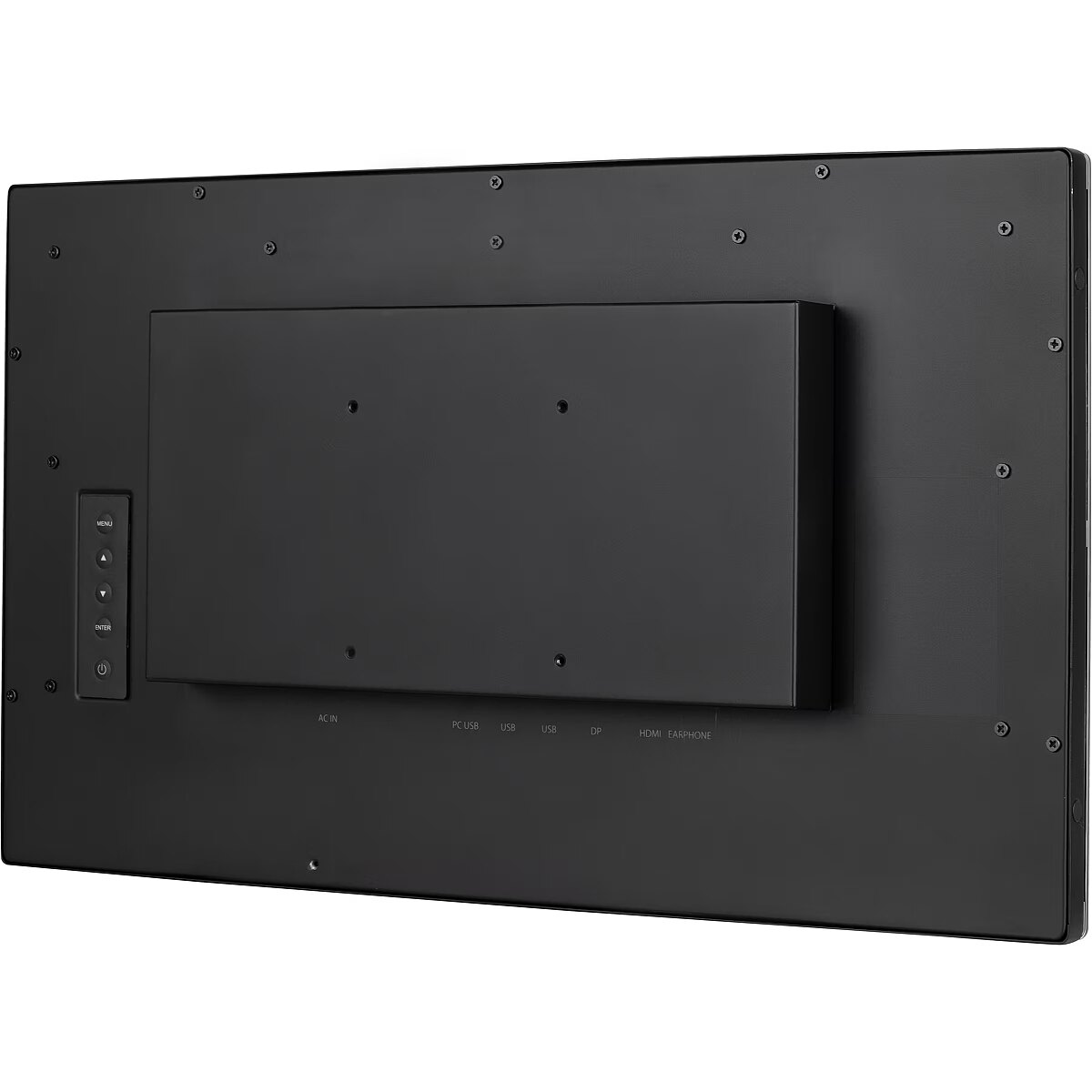

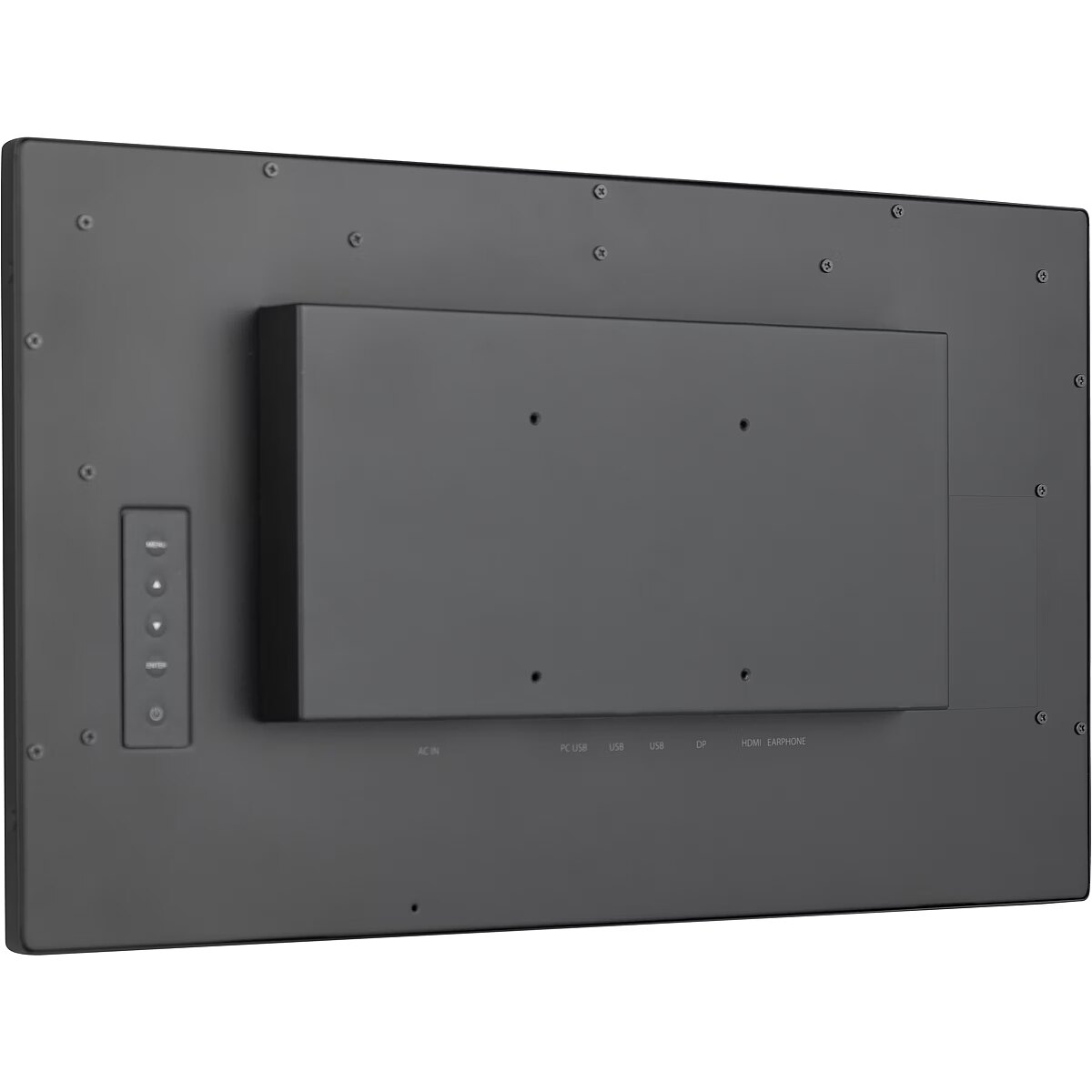

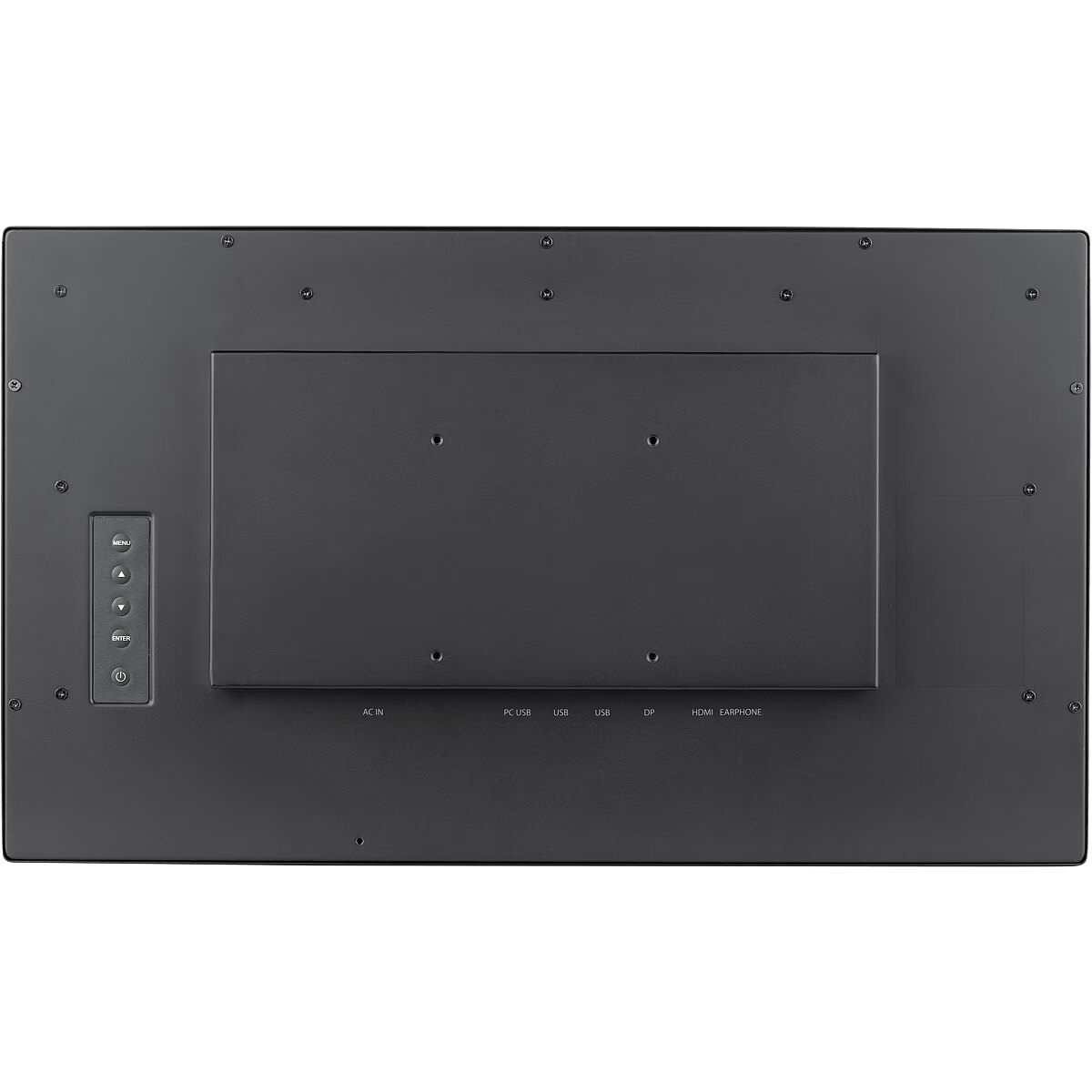

VESA wall mount : 100x100 mm

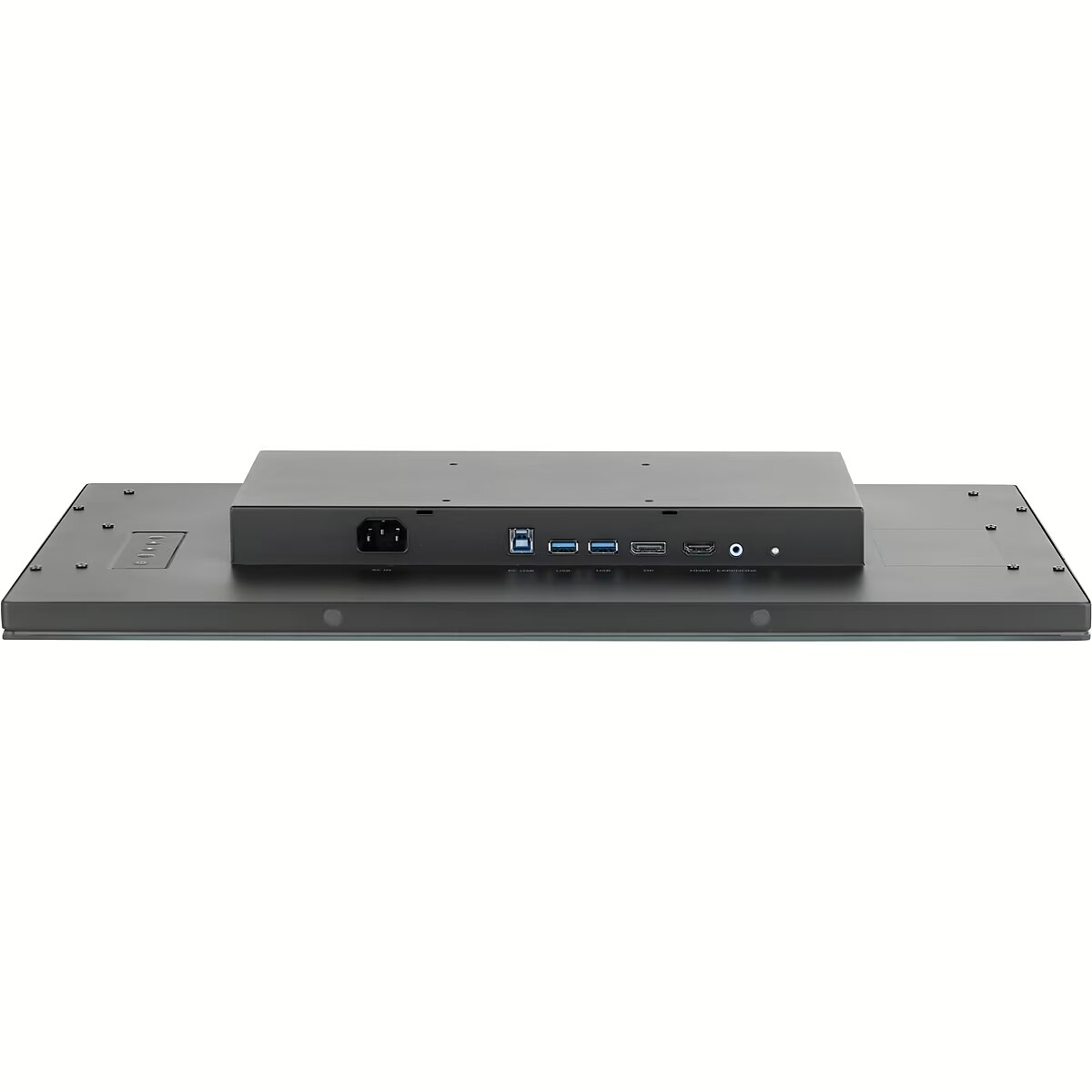

Ports and equipment
D-SUB 0

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 0

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Is

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : There isn't
USB-C video input : 0
More detailed specification
Additional information in manufacturers website Iiyama TF2238MSC-B1, 21.5"
ARTIKEL1 - TF2238MSC-B1 21.5IN BONDED PCAP
ARTIKEL2 - 10P TOUCH WITH ANTI-FINGERPRINT
Brand - iiyama
BrandPartCode - TF2238MSC-B1
Breite - 0
Category - Computer Monitors
Category 1 - Displays
Category 2 - Monitore
Design - Front bezel colour - Black
Design - Glass thickness - 3.6 mm
Design - Product colour - Black
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 525 cd/m²
Display - Display brightness (typical) - 600 cd/m²
Display - Display diagonal - 53.3 cm (21")
Display - Display diagonal (metric) - 54.5 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LED
Display - HD type - Full HD
Display - Horizontal scan range - 30 - 83 kHz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - IPS
Display - Pixel pitch - 0.249 x 0.249 mm
Display - Response time - 5 ms
Display - Response time measurement type - GTG (Gray to Gray)
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Viewable size, horizontal - 47.9 cm
Display - Viewable size, vertical - 26 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570121618
EANCode - 4948570121618
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, French, Japanese, Dutch, Polish, Russian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - VESA mounting - Yes
Gewicht - 6.49
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 4948570121618
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - TF2238MSC-B1
Laenge - 0
LongDesc - The Full HD (1920x1080) Open Frame monitor ProLite TF2238MSC-B1 with IPS panel technology offers exceptional colors and wide viewing angles. The Optical Bonded Projective Capacitive (PCAP) 10-point touch technology ensures a seamless and accurate touch response and a lower light reflection, in addition, the display is protected against humidity and potential moisture development. A robust metal housing and a scratch-resistant 7H edge-to-edge glass with anti-fingerprint coating make the monitor particularly suitable for integration in demanding environments. The monitor meets also a IPX1 protection rating, making it waterproof for a period of time against dripping water. The ProLite TF2238MSC-B1 can be used in landscape, portrait and face-up orientation. A perfect solution for kiosk systems, retail and interactive digital signage installations.
LongProductName - 21.5” 10pt Optical Bonded PCAP Open Frame Touch monitor with IPS panel technology, edge-to-edge glass design, anti-fingerprint coating and metal housing
LongSummaryDescription - iiyama TF2238MSC-B1. Display diagonal: 53.3 cm (21"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting. Product colour: Black
Manufacturer - iiyama
MPN - TF2238MSC-B1
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Name - IIYAMA 54.5cm (21.5") TF2238MSC-B1 16:9 M-Touch HDMI+DP+USB retail
Network - Ethernet LAN - No
Network - Wi-Fi - No
Other features - Active display area (W x H) - 479 x 260 mm
Other features - Brightness - 525 cd/m²
Other features - Built-in processor - No
Other features - Certification - CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cTUVus, EAC, REACH, RoHS, TÜV mark, UKCA, WEEE

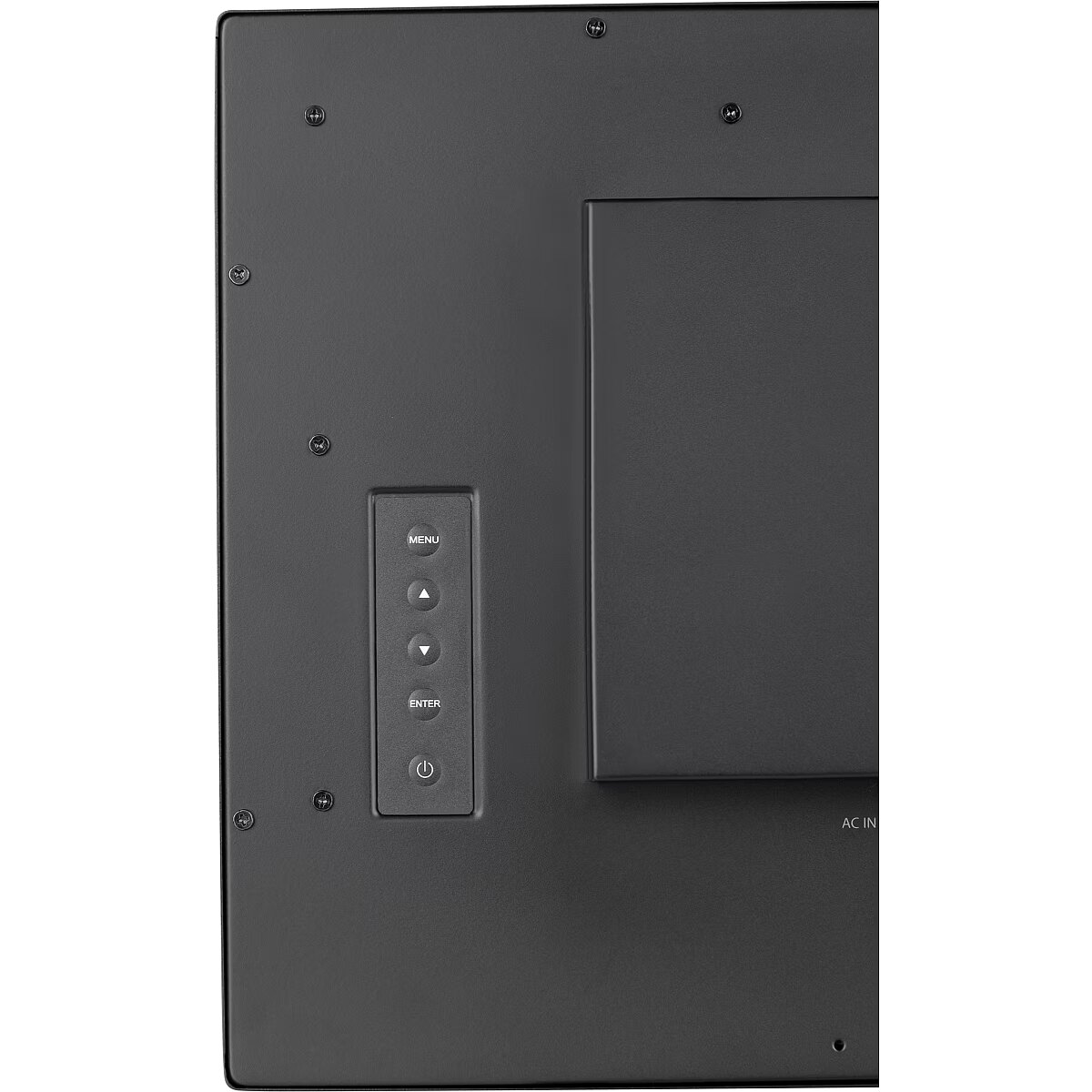

Other features - Control panel - Menu, Scroll up/ Eco, Scroll down/ Volume, Enter/ Input select, Power
Other features - Depth - 47 mm
Other features - Height - 300 mm
Other features - International Protection (IP) code - IP1X
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Placement supported - Indoor
Other features - Touch method - stylus, finger, glove
Other features - USB ports quantity - 2
Other features - User controls - Picture adjust (brightness, contrast, i-Style color, adv. contrast, ECO mode, OD, X-Res), color settings (gamma, RGB range, color. temp.), image settings (video mode adjust, blue light reducer, sharp & soft), OSD (H. pos., V. pos., time, background, rotate, language, display information), extra (reset, DDC/CI, signal select, volume, mute, led, opening logo, touch switch)
Other features - Weight - 5.1 kg
Other features - Width - 512.5 mm

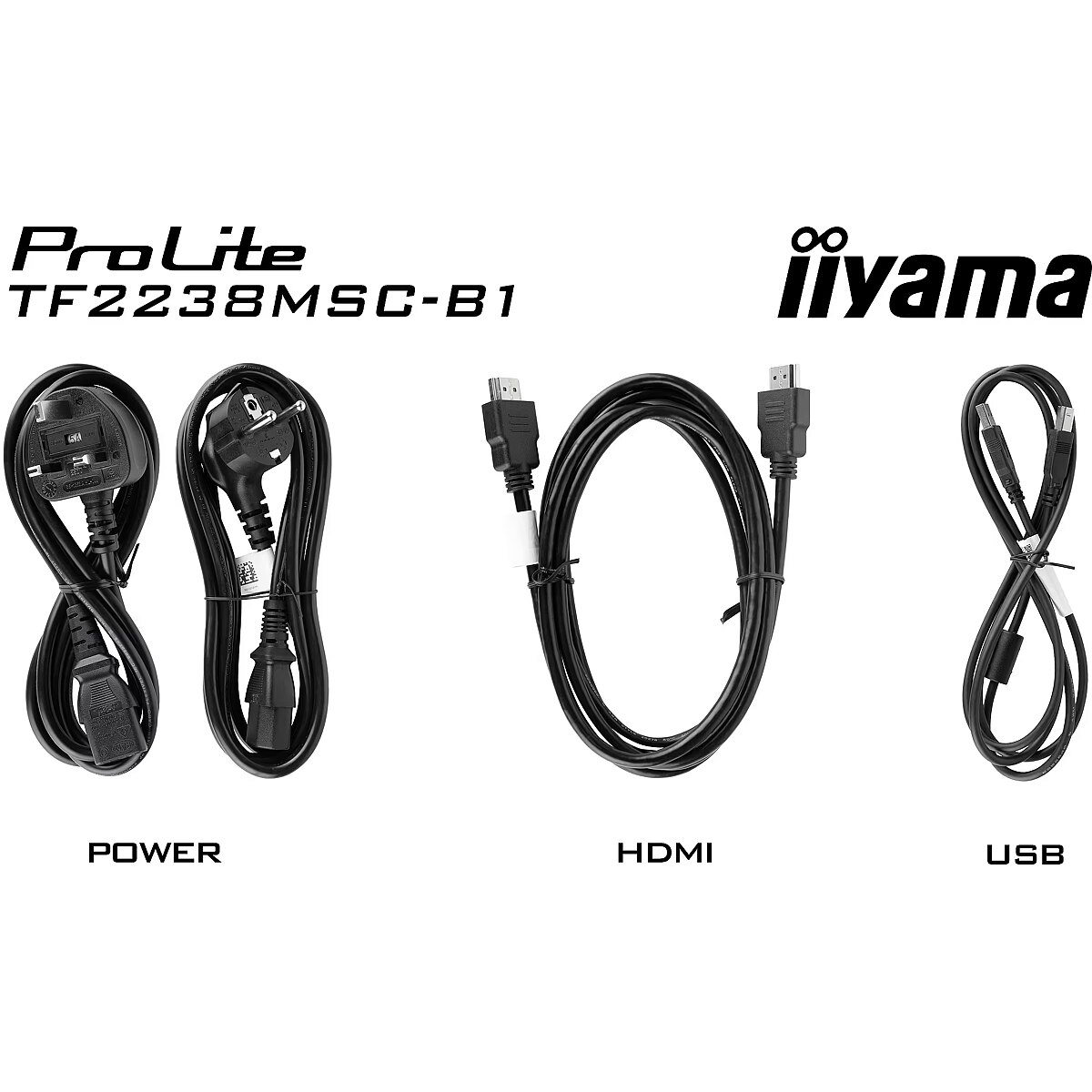

Packaging content - Cables included - AC, USB, HDMI
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 112 mm
Packaging data - Package height - 364 mm
Packaging data - Package weight - 6.4 kg
Packaging data - Package width - 572 mm
Performance - Low Blue Light technology - Yes
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DVI port - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Number of downstream ports - 2
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - USB version - 3.2 Gen 1 (3.1 Gen 1)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - D
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.4 W
Power - Power consumption (typical) - 17 W
Power - Power supply type - Internal
ProductName - TF2238MSC-B1
ShortSummaryDescription - iiyama TF2238MSC-B1, 53.3 cm (21"), 1920 x 1080 pixels, Full HD, LED, 5 ms, Black
Stck_Kart - 1
Stck_Pal - 4
Storno - Y
Sustainability - Sustainability certificates - ErP
Title - iiyama TF2238MSC-B1 computer monitor 53.3 cm (21") 1920 x 1080 pixels Full HD LED Touchscreen Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Bezel width (bottom) - 1.98 cm
Weight & dimensions - Bezel width (side) - 1.7 cm
Weight & dimensions - Bezel width (top) - 1.98 cm
Weight & dimensions - Depth (with stand) - 47 mm
Weight & dimensions - Height (with stand) - 300 mm
Weight & dimensions - Weight (with stand) - 5.1 kg
Weight & dimensions - Width (with stand) - 512.5 mm
