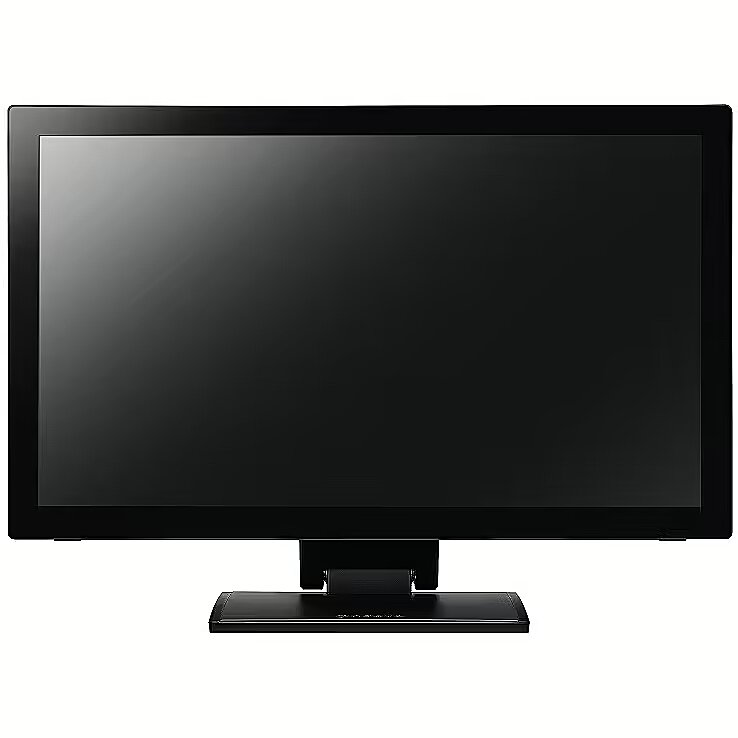

AG NEOVO TM-22, Touch Screen, Multi-Touch, 21.5"

Name: AG NEOVO TM-22, Touch Screen, Multi-Touch, 21.5"
Brand: AG NEOVO
SKU: 253853
Price: 539.48 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 253853 Product code: TM-22

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Main product parameters All parameters

Curved: None
Panel Type: TN
Refresh rate: 75 Hz
Response time: 3ms
Contrast ratio: 20000000:1
Brightness: 250cd/m2
Size: 21.5"
Resolution: FHD 1920x1080

Similar Products


	This product AG NEOVO TM-22, Touch Screen, Multi-Touch, 21.5"	AG NEOVO TM-23, Touch Screen, Multi-Toich, 23"	AG NEOVO TX-2202A, 21.5"	AG NEOVO TX-2202A, 21.5"	AG NEOVO LA-2202, 21.5"
Show similar specs. Hide similar specs.	539.48 €	454.98 €	795.97 €	939.69 €	159.01 €
Model		TM-23	TX-2202A	TX-2202A	LA-2202
Display characteristics
AMD FreeSync	None	None	None	None	None
Curved	None	None	None	None	None
NVIDIA G-SYNC	None	None	None	None	None
Panel Type	TN	IPS	VA	VA	VA
Refresh rate	75 Hz	60 Hz	75 Hz	75 Hz	75 Hz
Touchscreen	YES	YES	YES	YES	NO
VESA DisplayHDR	There isn't	There isn't	There isn't	There isn't	There isn't
Response time	3ms	5ms	5ms	5ms	5ms
Contrast ratio	20000000:1	20000000:1	1000:1	1000:1	N/A
Brightness	250cd/m2	250cd/m2	250cd/m2	250cd/m2	250cd/m2
Basic information
Application	Home & Office	Home & Office	Home & Office	Home & Office	Home & Office
Aspect ratio	16:9	16:9	16:9	16:9	16:9
Color	Black	Black	Black	Black White	Black
Size	21.5"	23"	21.5"	21.5"	21.5"
Resolution	FHD 1920x1080	FHD 1920x1080	FHD 1920x1080	FHD 1920x1080	FHD 1920x1080
Functionality
Flicker-free	There isn't	There isn't	There isn't	There isn't	Is
Height adjustment	Is	Is	None	None	None
Pivot	None	None	None	None	None
Swivel	None	None	None	None	None
Tilt	YES	YES	YES	YES	YES
VESA wall mount	100x100 mm	100x100 mm	100x100 mm	100x100 mm	75x75mm
Ports and equipment
D-SUB	1	0	1	1	1
DisplayPort	1	1	1	1	1
DVI	0	0	0	0	0
HDMI port	1	1	1	1	1
Speakers	Is	Is	Is	Is	Is
USB Hub	YES	YES	NO	NO	NO
USB-C Power Delivery	There isn't	There isn't	There isn't	There isn't	There isn't
USB-C video input	0	0	0	0	0

Description

This AG NEOVO TM-22, Touch Screen, Multi-Touch, 21.5" monitor with FHD 1920x1080 resolution is suitable for comfortable work with documents, web content, and multimedia. It provides natural image reproduction, comfortable viewing, and stable performance, satisfying user needs for a universal work screen.

TN technology is based on vertical crystal orientation, which allows for lower switching delay. As a result, the monitor quickly responds to movement and effectively displays dynamic content. This approach provides one of the best response times among the most common display types.

Tilt mechanism allows to change the screen's vertical angle without moving the whole construction. Such adjustment improves workplace ergonomics, ensures stable image quality and helps to adapt the monitor to the user's individual preferences or specific tasks.

The built-in speakers provide direct sound playback, eliminating the need for external audio devices. This simplifies the setup of the work system and saves space. The speakers are suitable for everyday needs, including online meetings, training, and video viewing, providing adequate sound level.

D-Sub is an analog interface that ensures monitor compatibility with various video signals. It allows the use of a monitor with older devices without adapters, maintaining a stable image. D-Sub makes the device universal for various generation operating systems, ensuring correct graphics transmission and minimal distortions.

Warranty

AG NEOVO provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

Display characteristics

AMD FreeSync : None

Curved : None

NVIDIA G-SYNC : None

Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz

Touchscreen : YES

VESA DisplayHDR : There isn't

Response time 3ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 20000000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 250cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 21.5"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution FHD 1920x1080

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : There isn't

Height adjustment : Is

Pivot : None

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

Ports and equipment

D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 0

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Is

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : There isn't

USB-C video input : 0

More detailed specification

Additional information in manufacturers website AG NEOVO TM-22, Touch Screen, Multi-Touch, 21.5"

ARTIKEL1 - TM-22 54.6CM 21.5IN LED
ARTIKEL2 - 10TP MULTITOUCH HDMI
Brand - AG Neovo
BrandPartCode - TM220011E0100
Breite - 0.42
Category - Computer Monitors
Design - Glass thickness - 2.4 mm
Design - Market positioning - Business
Design - Product colour - Black
Display - Backlight type - LED
Display - Contrast ratio (typical) - 20000000:1
Display - Digital horizontal frequency - 30 - 83 kHz
Display - Digital vertical frequency - 55 - 75 Hz
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 54.6 cm (21.5")
Display - Display diagonal (metric) - 55 cm
Display - Display number of colours - 16.78 million colours
Display - Display resolution - 1920 x 1080 pixels
Display - Display technology - LCD
Display - HD type - Full HD
Display - Maximum refresh rate - 60 Hz
Display - Native aspect ratio - 16:9
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.248 x 0.248 mm
Display - Response time - 3 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Capacitive
Display - Touchscreen type - Multi-user
Display - Touch technology - Multi-touch
Display - Viewable size diagonal - 54.6 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4710739592429
Ergonomics - Adjustable height (max) - 38.7 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - Yes
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes
Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -5 - 90°
Ergonomics - VESA mounting - Yes
Ergonomics - Wall mountable - Yes
Gewicht - 7.64
GRUPPE1 - Displays
GRUPPE2 - Lcd Touchscreen
GTIN - 0813086002987
GTIN - 813086002987
GTIN - 4710739592429
HERSTELLER - AG NEOVO TECHNOLOGY
Hoehe - 0.18
HSTNUMMER - TM22E011E0100
Laenge - 0.59
Logistics data - Harmonized System (HS) code - 85285210
LongDesc - With the AG Neovo TM-22, industry professionals can keep an eye on budgets without losing sight of performance. Incorporating the advanced projected capacitive touch technology, the TM-22 not only comes with a stylish design but also offers smooth and accurate touch response. On top of LED backlighting and Full HD resolution, it comes with 10-point multi-touch capability that delivers seamless compatibility with Windows® 7, 8 & 10 touch functions. The flexible dual-hinge stand ensures multi-user comfort and productivity. The TM-22 is the ideal multi-touch solution for a great diversity of interactive environments.
LongProductName - 21.5" LED TFT LCD, 1920x1080, 0.248x0.248mm, 220cd/m2, 1000:1, 170°/160°, 3ms, D-Sub, HDMI, DisplayPort, USB3.0x4, 2Wx2
LongSummaryDescription - AG Neovo TM-22. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 3 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
Multimedia - Built-in camera - No
Multimedia - Built-in microphone - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 2 W
Operational conditions - Operating relative humidity (H-H) - 10 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 93%
Operational conditions - Storage temperature (T-T) - -25 - 55 °C
Other features - Certification - FCC, CE, LVD, WEEE, RoHS, REACH, EAC, UKCA
Other features - Compliance certificates - CE, Federal Communications Commission (FCC), Low Voltage Directive (LVD), REACH, RoHS, UKCA, WEEE
Packaging content - Cables included - AC, Audio (3.5mm), HDMI, USB
Packaging data - Package depth - 186 mm
Packaging data - Package height - 422 mm
Packaging data - Package weight - 8.1 kg
Packaging data - Package width - 586 mm
Performance - AMD FreeSync - No
Performance - NVIDIA G-SYNC - No
Performance - Operating hours (hours/days) - 24/7
Performance - Operating system installed - Windows 10
Ports & interfaces - Audio input - 1
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 1.3
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone out - Yes
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Number of upstream ports - 4
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 14 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 430365
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 22 W
Power - Power supply type - Internal
ProductName - TM-22
ShortSummaryDescription - AG Neovo TM-22, 54.6 cm (21.5"), 1920 x 1080 pixels, Full HD, LCD, 3 ms, Black
Stck_Kart - 1
Stck_Pal - 9
Storno - Y
Title - AG Neovo TM-22 computer monitor 54.6 cm (21.5") 1920 x 1080 pixels Full HD LCD Touchscreen Multi-user Black
URL - https://nl.agneovo.com/global/content/tm-22.asp
WarrantyInfo -
Weight & dimensions - Depth (without stand) - 57.2 mm
Weight & dimensions - Depth (with stand) - 238.5 mm
Weight & dimensions - Height (without stand) - 318.4 mm
Weight & dimensions - Height (with stand) - 387.4 mm
Weight & dimensions - Weight (without stand) - 3.9 kg
Weight & dimensions - Weight (with stand) - 6.3 kg
Weight & dimensions - Width (without stand) - 522.4 mm
Weight & dimensions - Width (with stand) - 522.4 mm
