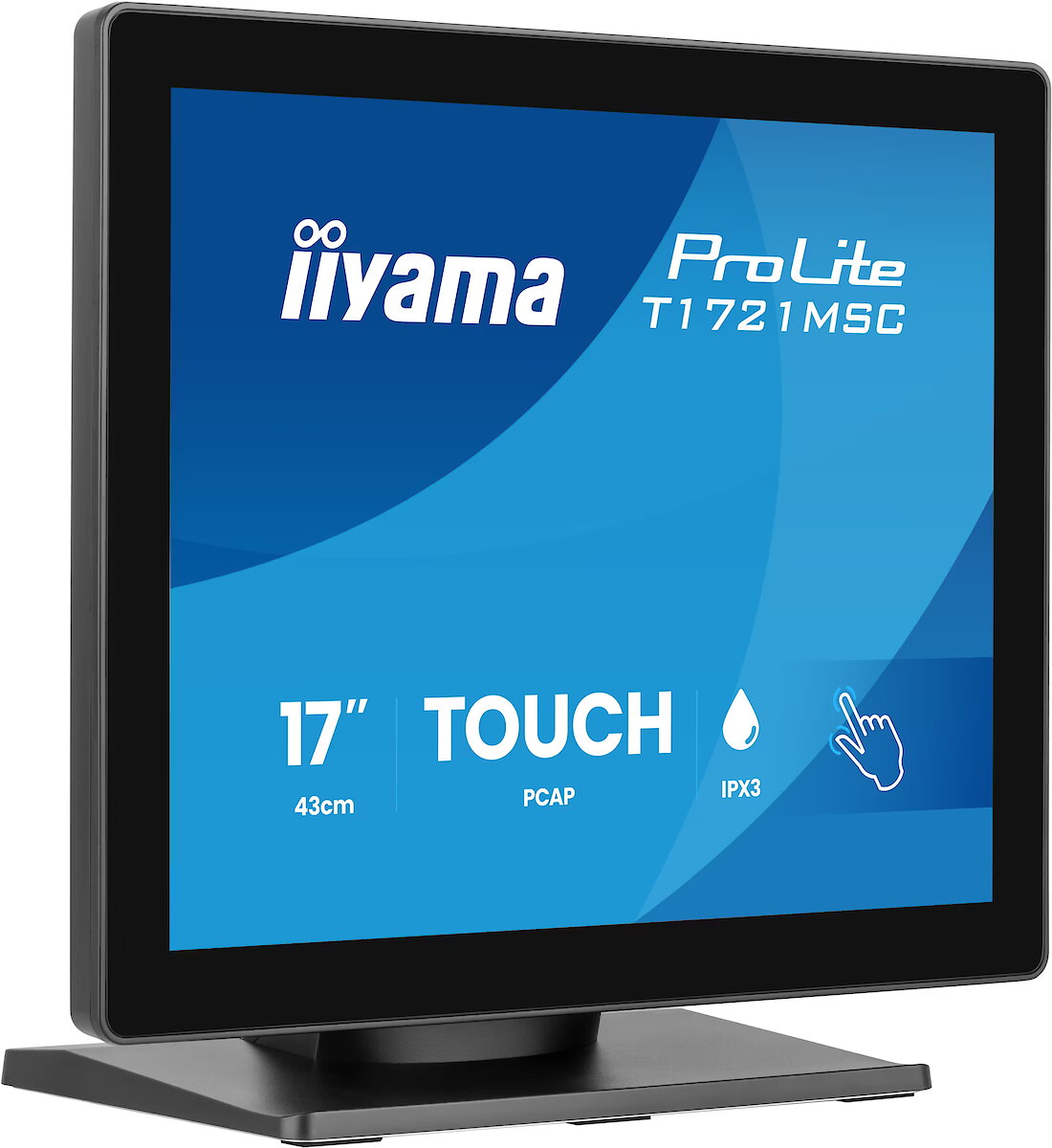

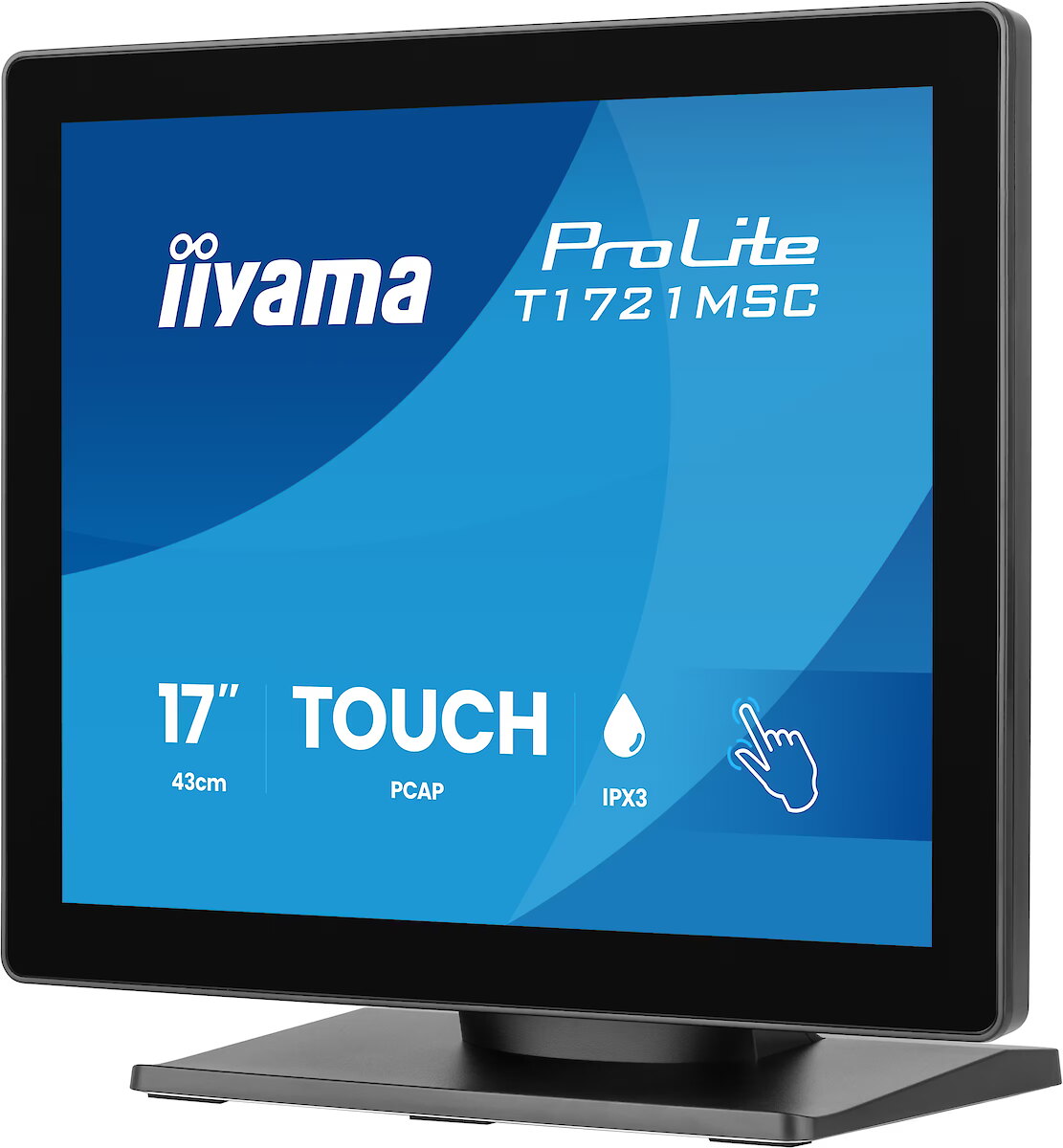

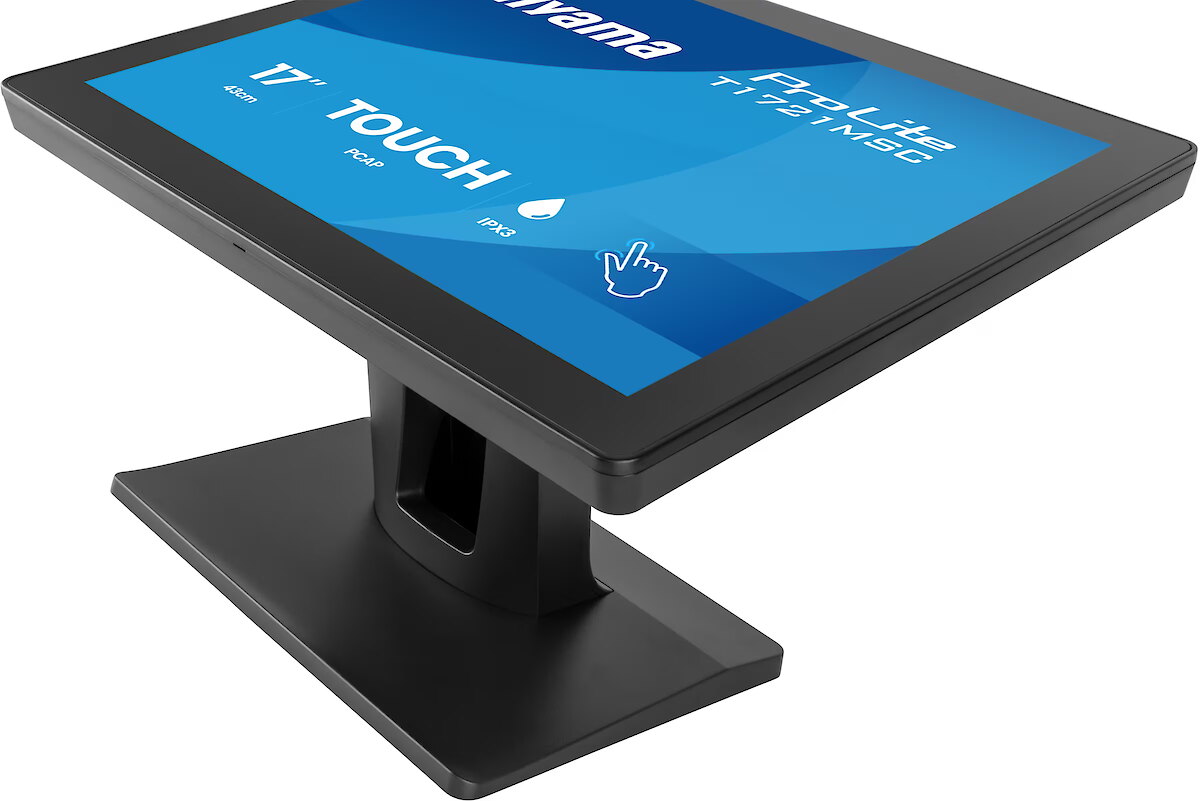

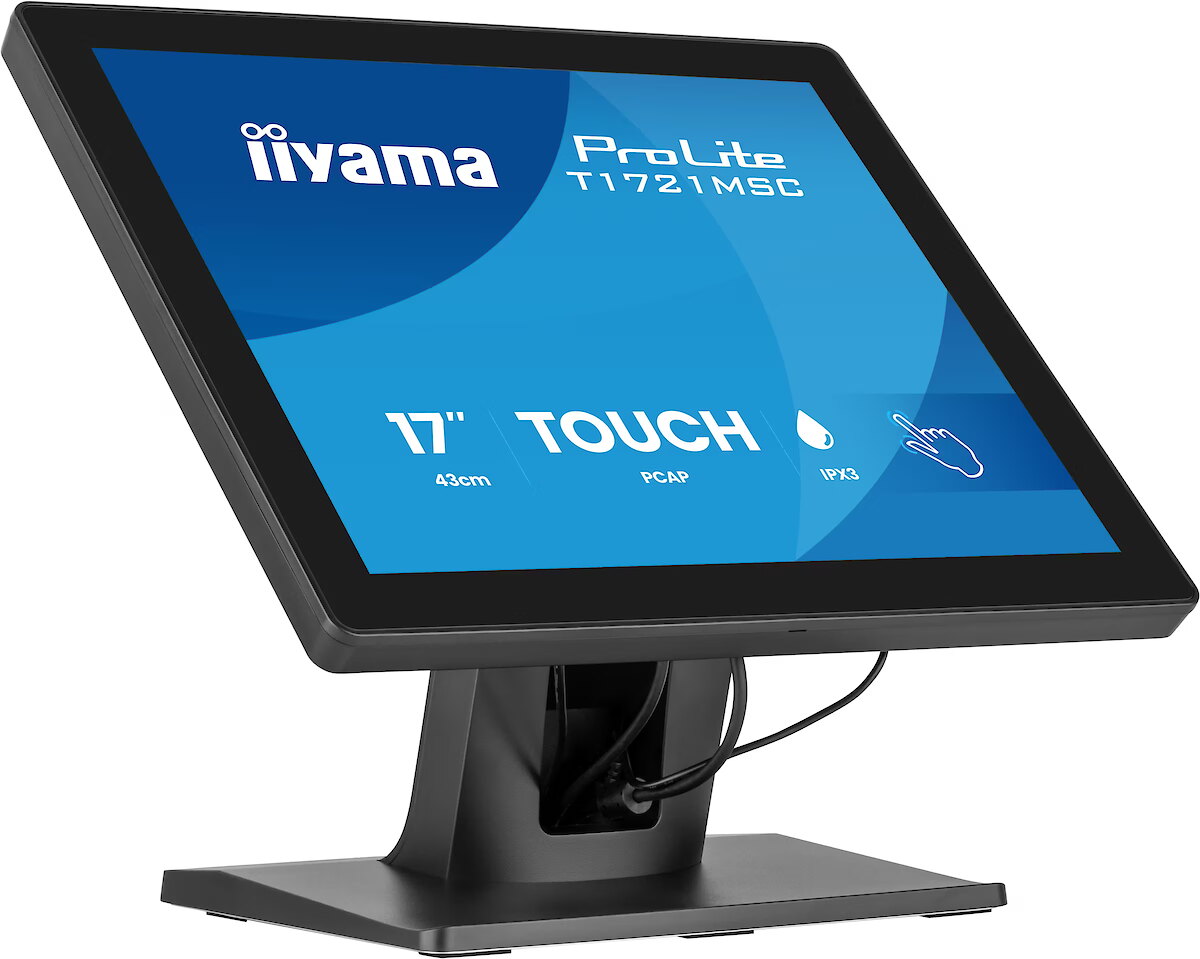

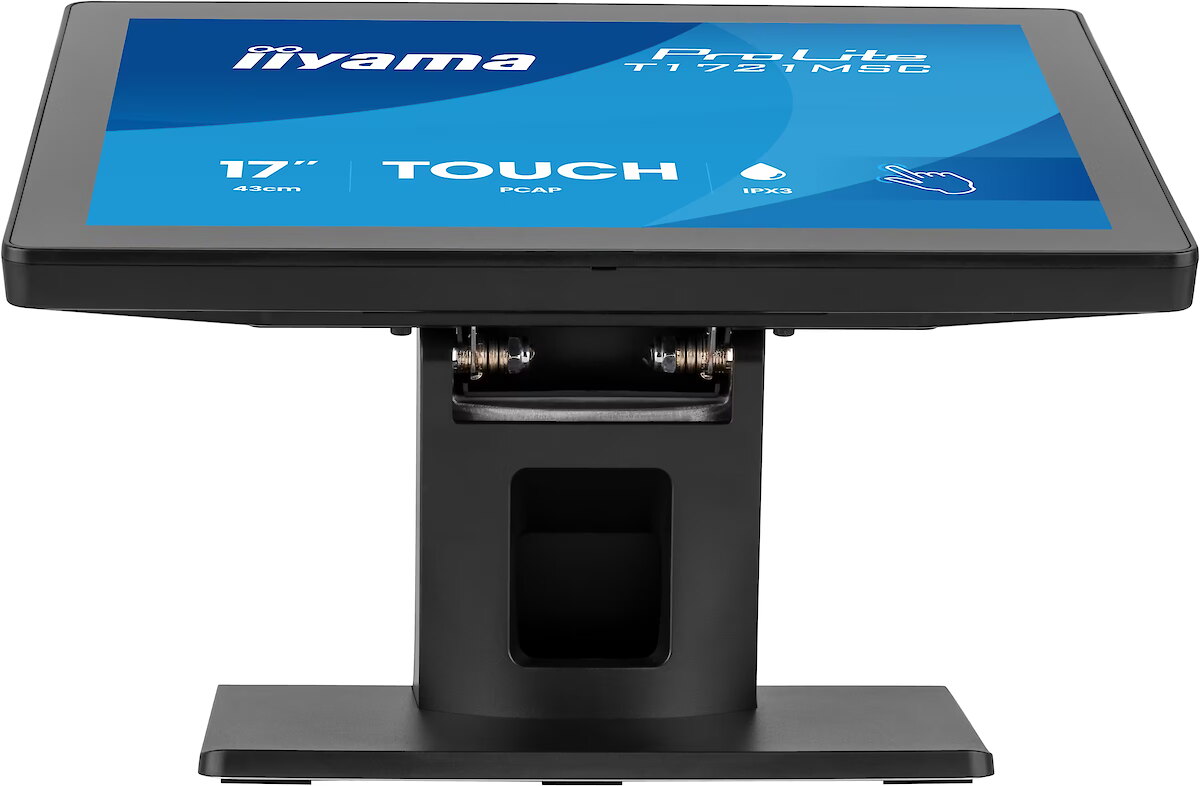

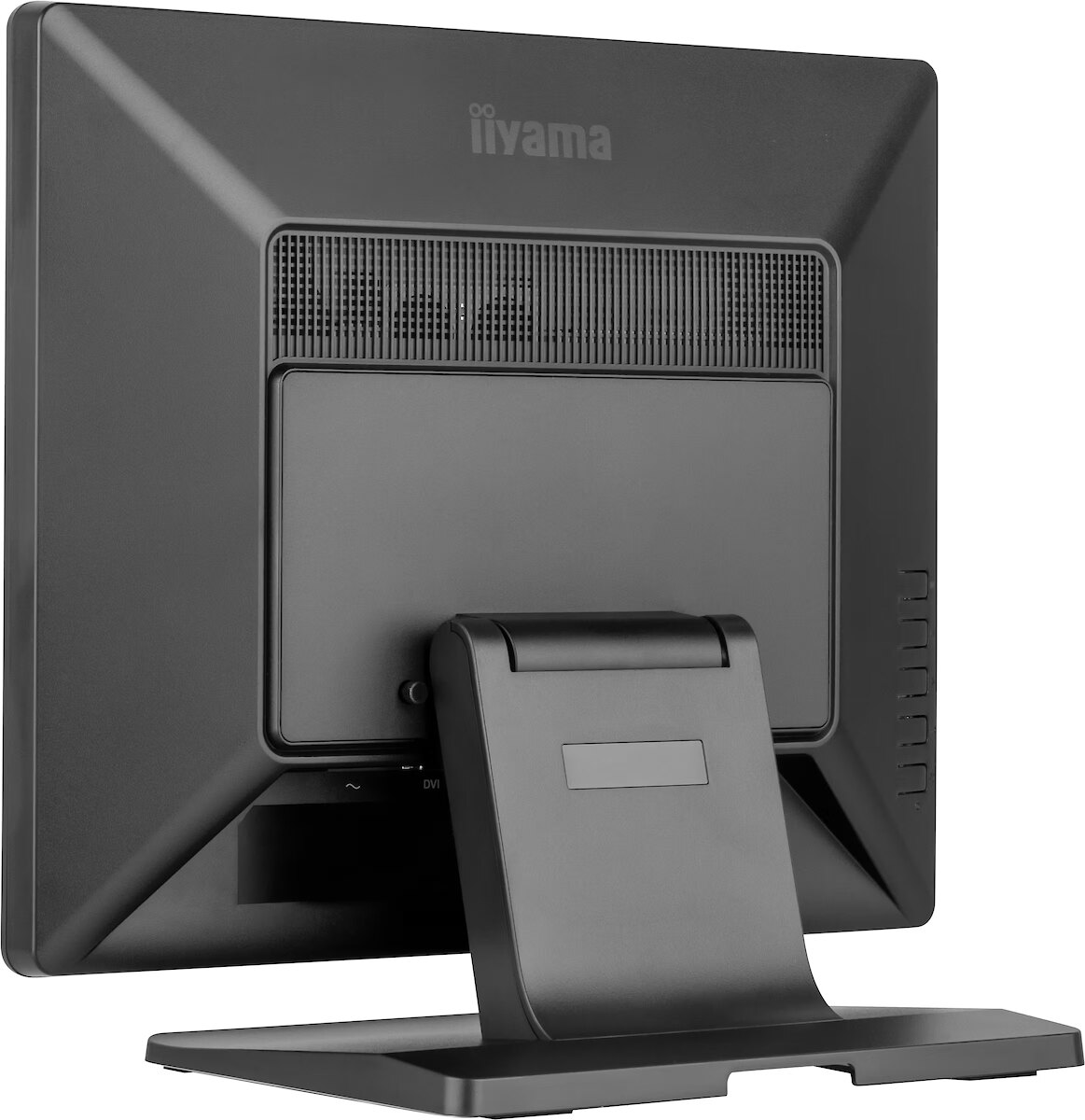

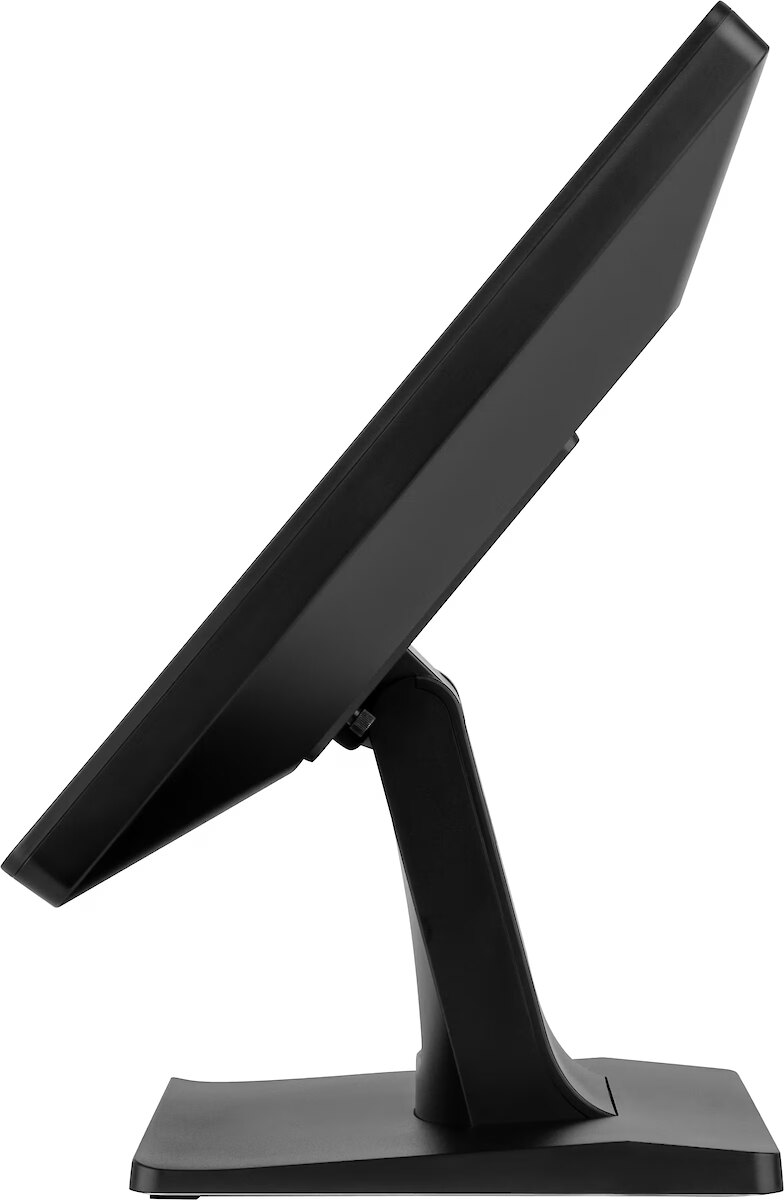

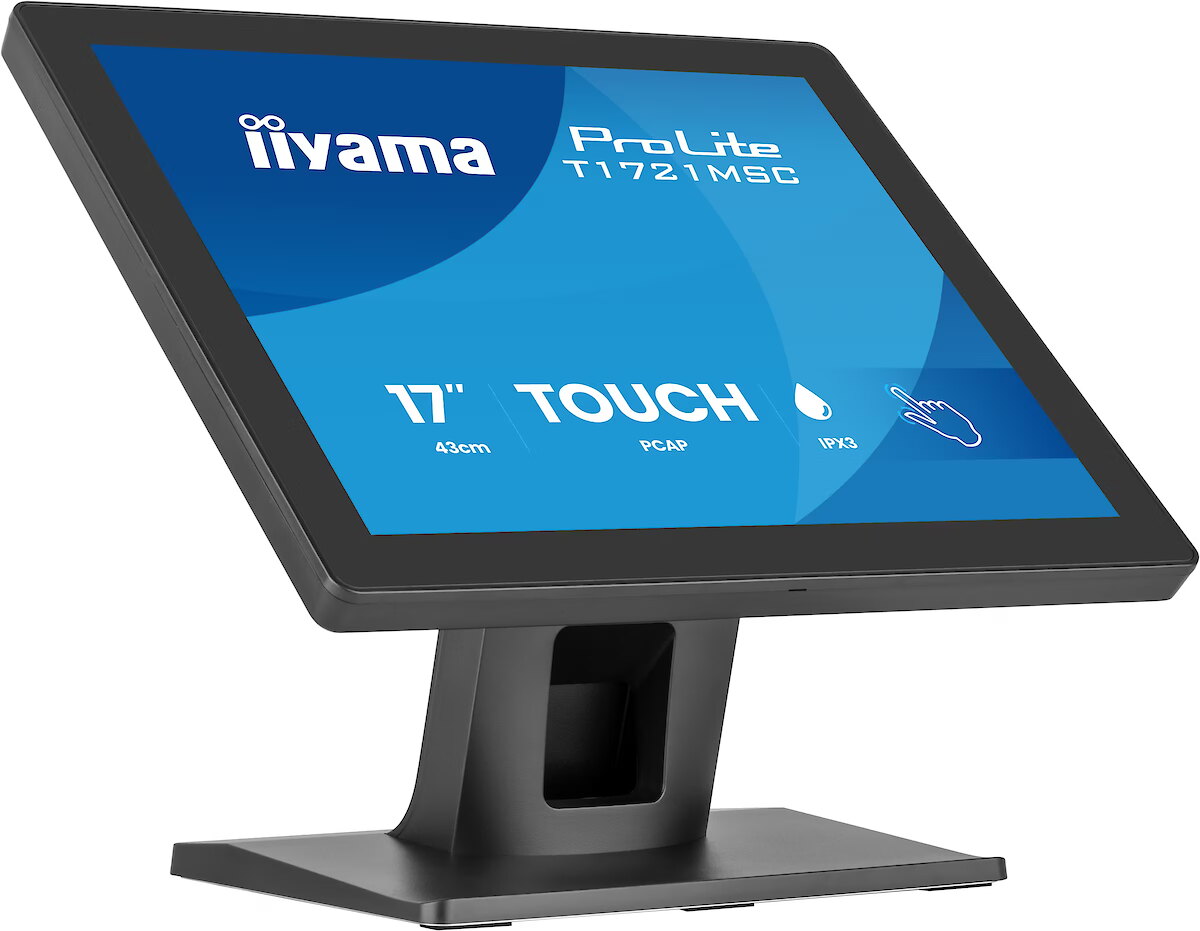

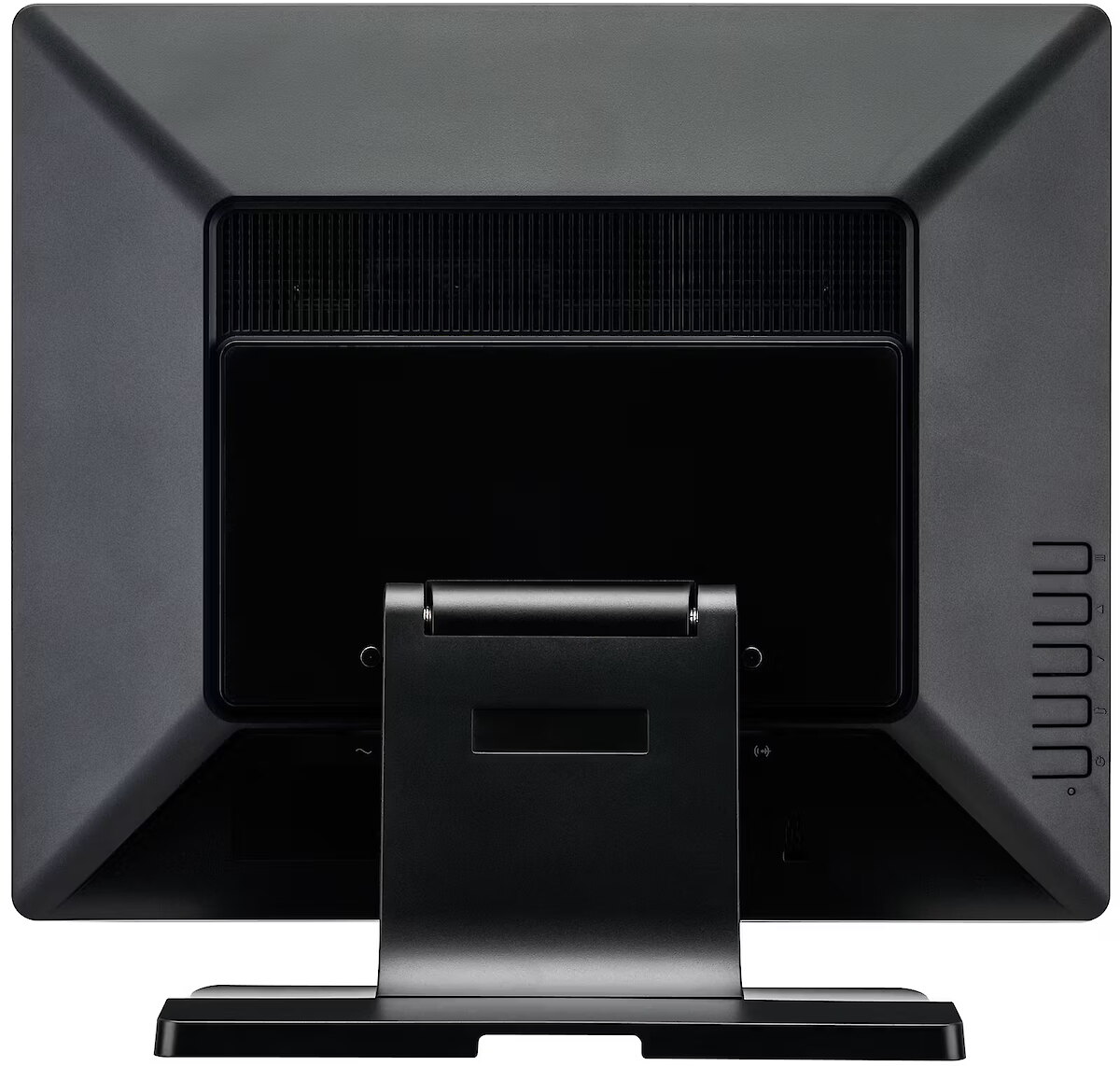

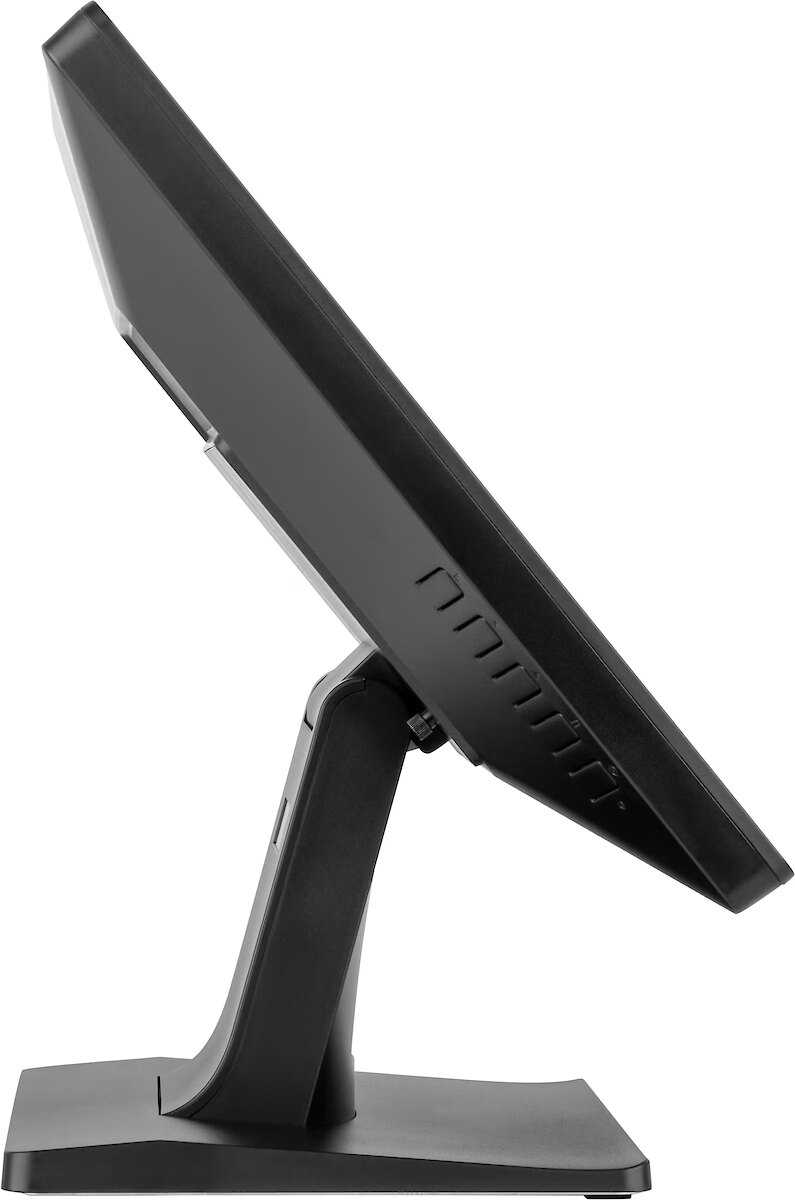

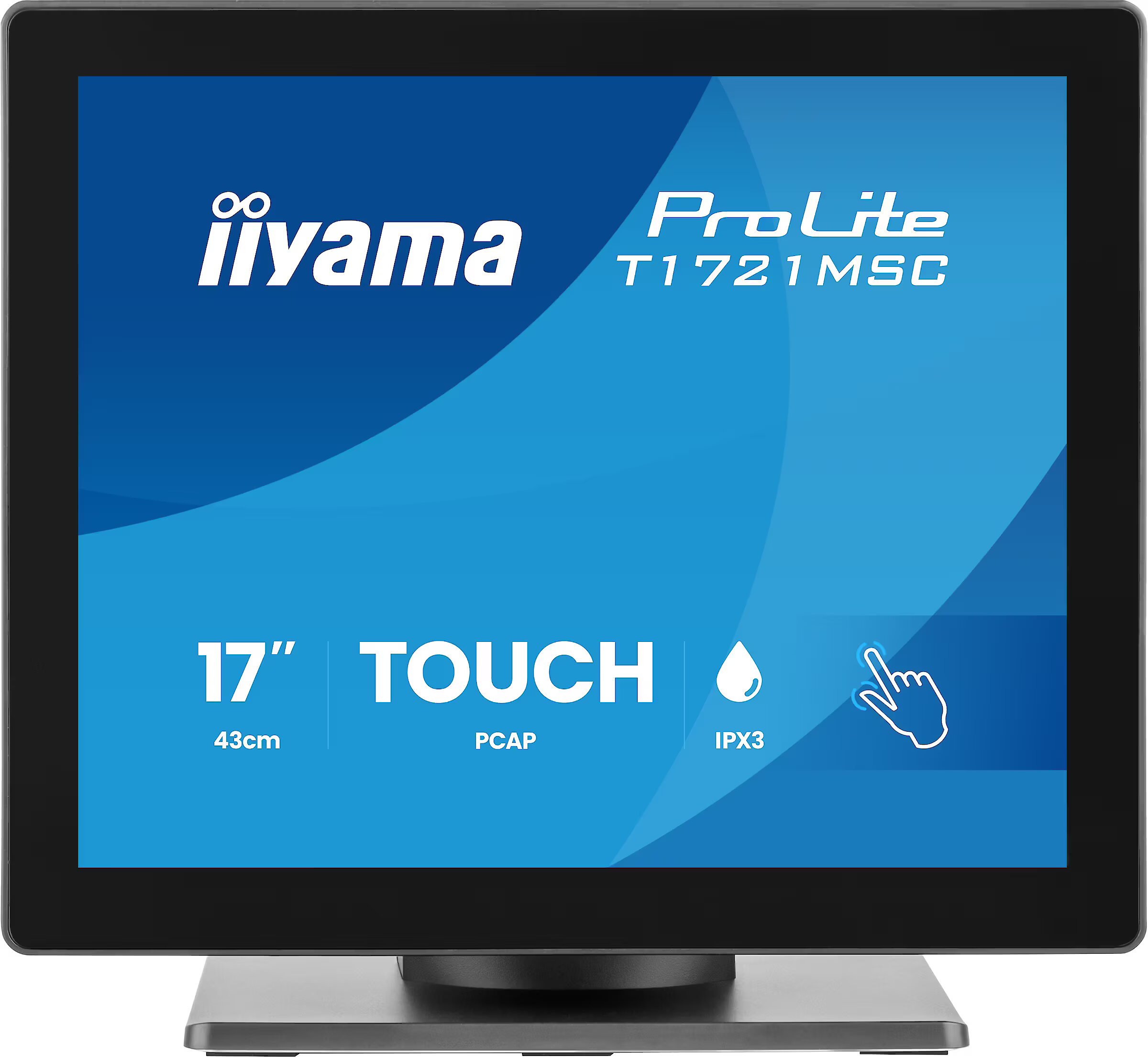

Iiyama T1721MSC-B3, 17"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1457470 Product code: T1721MSC-B3
Can be ordered 15 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
394.82 €
318.40 € w/o VAT
Ready for dispatch
13.10.2026
starting from 1.99 € with VAT
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Unisend parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Curved: None
  • Panel Type: TN
  • Refresh rate: 75 Hz
  • Response time: 5ms
  • Contrast ratio: 1000:1
  • Brightness: 230cd/m2
  • Size: 17"
  • Resolution: SXGA 1280x1024
Description

This Iiyama 17IN PCAP BEZEL FREE FRONT 10P TOUCH 1280X1024 SPEAKERS VGA HDM monitor with SXGA 1280x1024 resolution is suitable for comfortable work with documents, web content, and multimedia. It provides natural image reproduction, comfortable viewing, and stable performance, satisfying user needs for a universal work screen.

The TN technology utilizes a simplified crystal orientation mechanism that ensures very fast pixel switching. This allows to reduce blur and maintain clear motion in fast scenes. Thanks to this structure, TN technology often provides better response time than IPS or VA solutions.

This monitor with a 75 Hz refresh rate ensures predictable pixel operation and sufficient motion smoothness for standard tasks. It is suitable for document work, image processing and video viewing, guaranteeing stable frame updates without unnecessary system or user load.

Flicker-Free ensures a stable light flow without sudden intensity fluctuations, which may not be visible, but cause discomfort during prolonged usage. The technology improves visual perception, helps to reduce eye strain, and increases comfort when working with texts and static images.

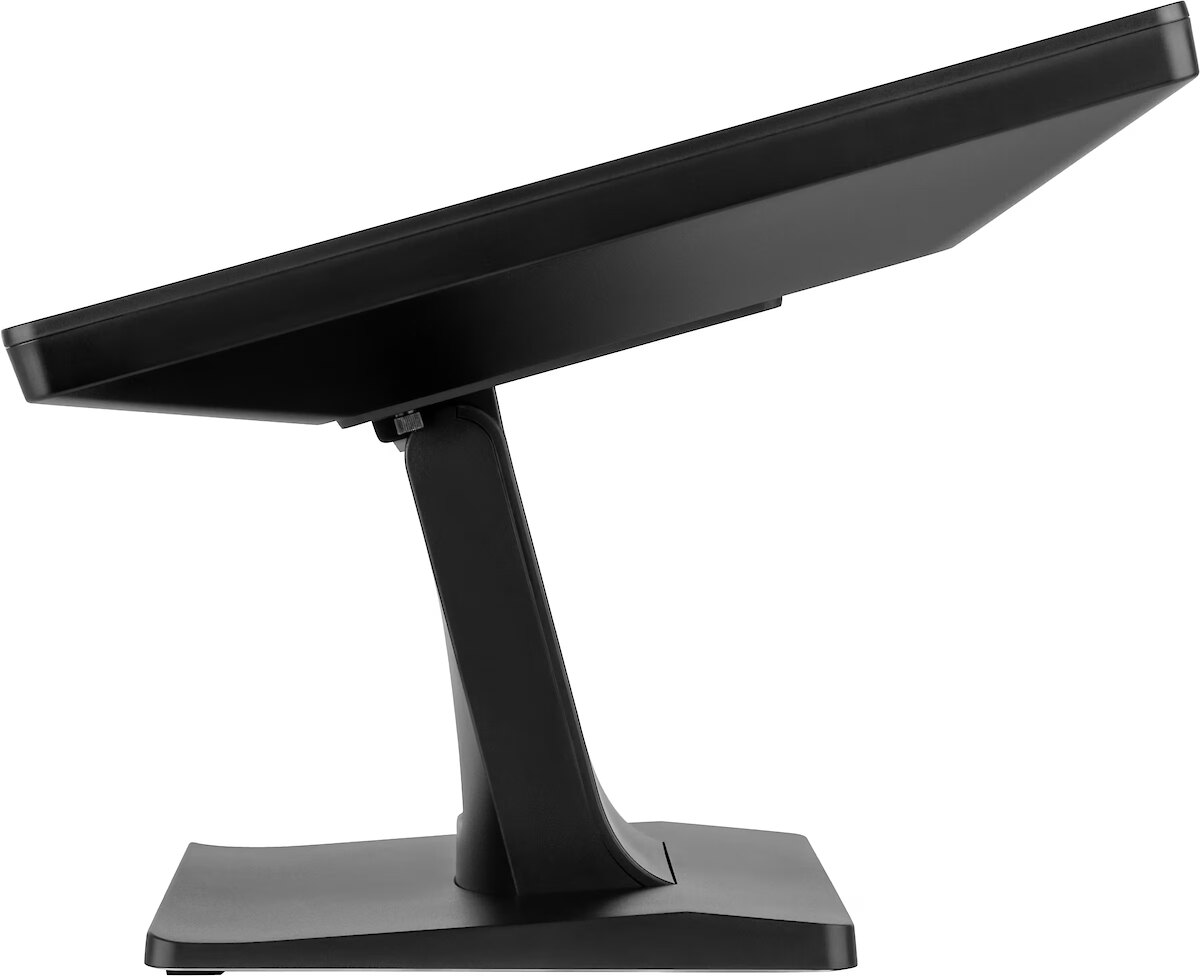

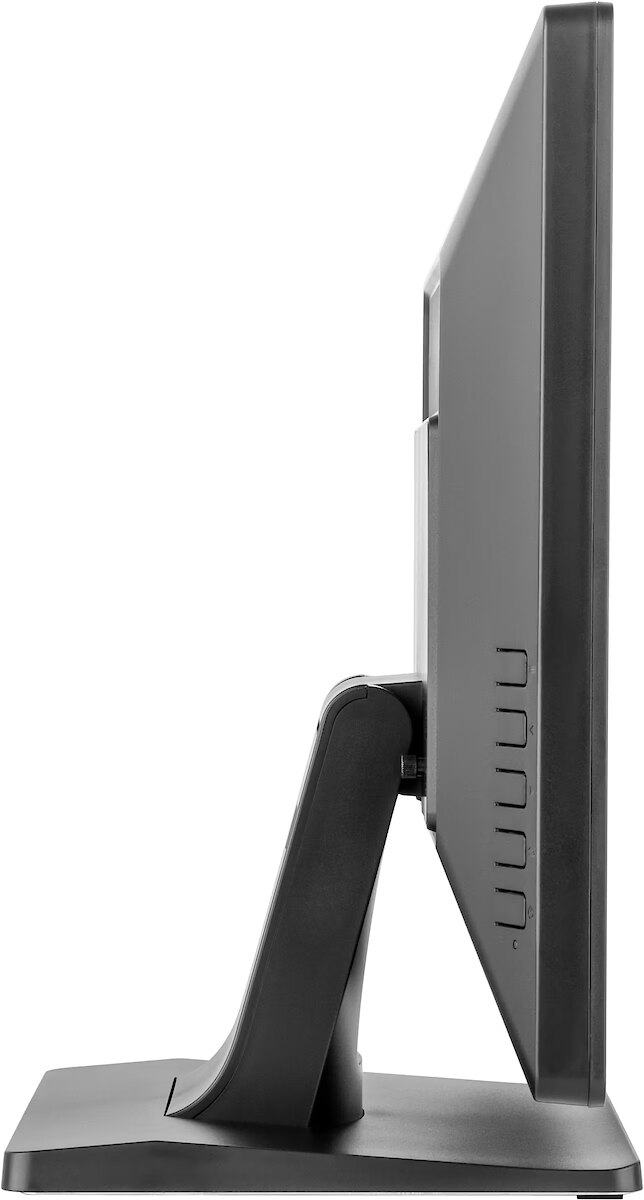

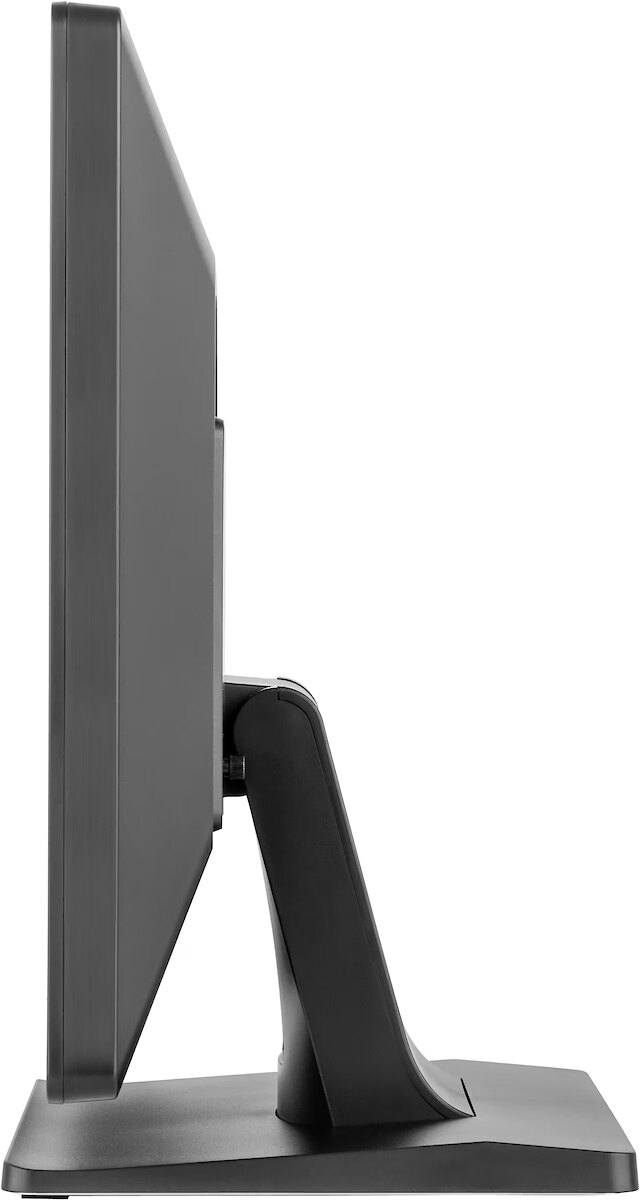

Tilt mechanism allows to change the screen's vertical angle without moving the whole construction. Such adjustment improves workplace ergonomics, ensures stable image quality and helps to adapt the monitor to the user's individual preferences or specific tasks.

Compatibility with VESA wall mount makes the monitor universal for installation: it can be attached to the wall, used with a movable bracket or integrated into an ergonomic stand. The standard facilitates assembly, improves cable organization and frees up additional space.

The built-in speakers provide direct sound playback, eliminating the need for external audio devices. This simplifies the setup of the work system and saves space. The speakers are suitable for everyday needs, including online meetings, training, and video viewing, providing adequate sound level.

D-Sub is an analog interface that ensures monitor compatibility with various video signals. It allows the use of a monitor with older devices without adapters, maintaining a stable image. D-Sub makes the device universal for various generation operating systems, ensuring correct graphics transmission and minimal distortions.

HDMI provides video and audio transmission with a single cable, which enhances connection stability and reduces the risk of interference. The interface reduces the number of connections and maintains the integrity of the digital signal. HDMI supports modern formats and ensures reliable operation with a wide range of devices.

Warranty

Iiyama provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

All parameters
Model : T1721MSC-B3
Display characteristics
AMD FreeSync : None
Curved : None
NVIDIA G-SYNC : None
Panel Type TN

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 75 Hz
Touchscreen : YES
VESA DisplayHDR : There isn't
Response time 5ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 230cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Home & Office
Aspect ratio : 5:4
Color : Black
Size 17"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution SXGA 1280x1024

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Is
Height adjustment : None
Pivot : None
Swivel : None
Tilt : YES
VESA wall mount : 100x100 mm

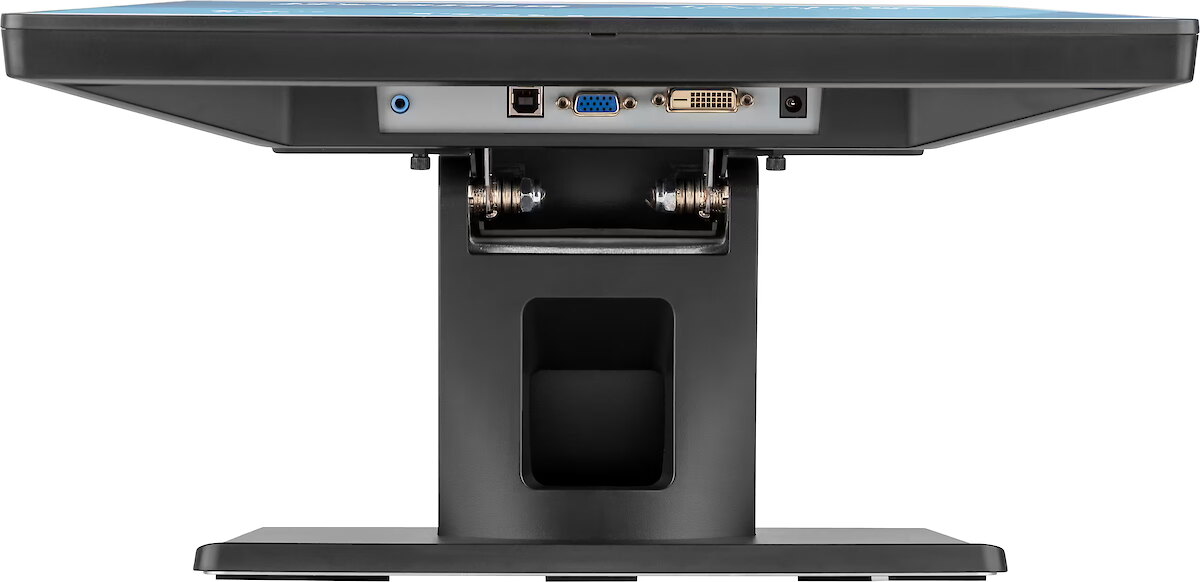

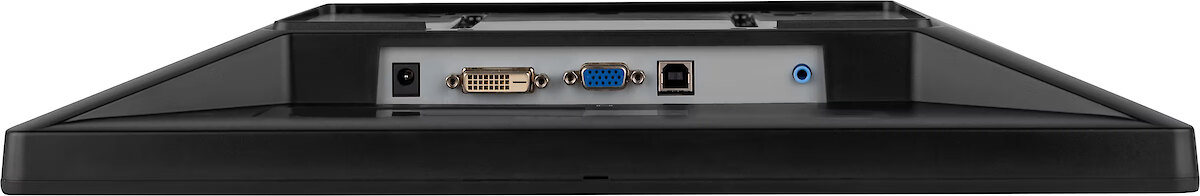

Ports and equipment
D-SUB 1

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 0

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI 0

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 1

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Is

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO
USB-C Power Delivery : There isn't
USB-C video input : 0
More detailed specification
ARTIKEL1 - 17IN PCAP BEZEL FREE FRONT 10P
ARTIKEL2 - TOUCH 1280X1024 SPEAKERS VGA HDM
Brand - iiyama
BrandPartCode - T1721MSC-B3
Breite - 0
Category - Computer Monitors
Design - Front bezel colour - Black
Design - Glass thickness - 1.5 mm
Design - Market positioning - Business
Design - Product colour - Black
Display - Contrast ratio (typical) - 1000:1
Display - Display brightness - 230 cd/m²
Display - Display brightness (typical) - 250 cd/m²
Display - Display diagonal - 43.2 cm (17")
Display - Display diagonal (metric) - 43 cm
Display - Display number of colours - 16.7 million colours
Display - Display resolution - 1280 x 1024 pixels
Display - HD type - SXGA
Display - Horizontal scan range - 31 - 80 kHz
Display - Maximum refresh rate - 75 Hz
Display - Native aspect ratio - 5:4
Display - Number of simultaneous touchpoints - 10
Display - Panel type - TN
Display - Pixel pitch - 0.264 x 0.264 mm
Display - Response time - 5 ms
Display - Screen shape - Flat
Display - Surface hardness - 7H
Display - Touchscreen - Yes
Display - Touchscreen technology - Projected capacitive system
Display - Touchscreen type - Tabletop
Display - Viewable size, horizontal - 33.8 cm
Display - Viewable size, vertical - 27.1 cm
Display - Viewing angle, horizontal - 170°
Display - Viewing angle, vertical - 160°
EANCode - 4948570127092
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Cable management - Yes
Ergonomics - Height adjustment - No
Ergonomics - Number of OSD languages - 7
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Plug and Play - Yes

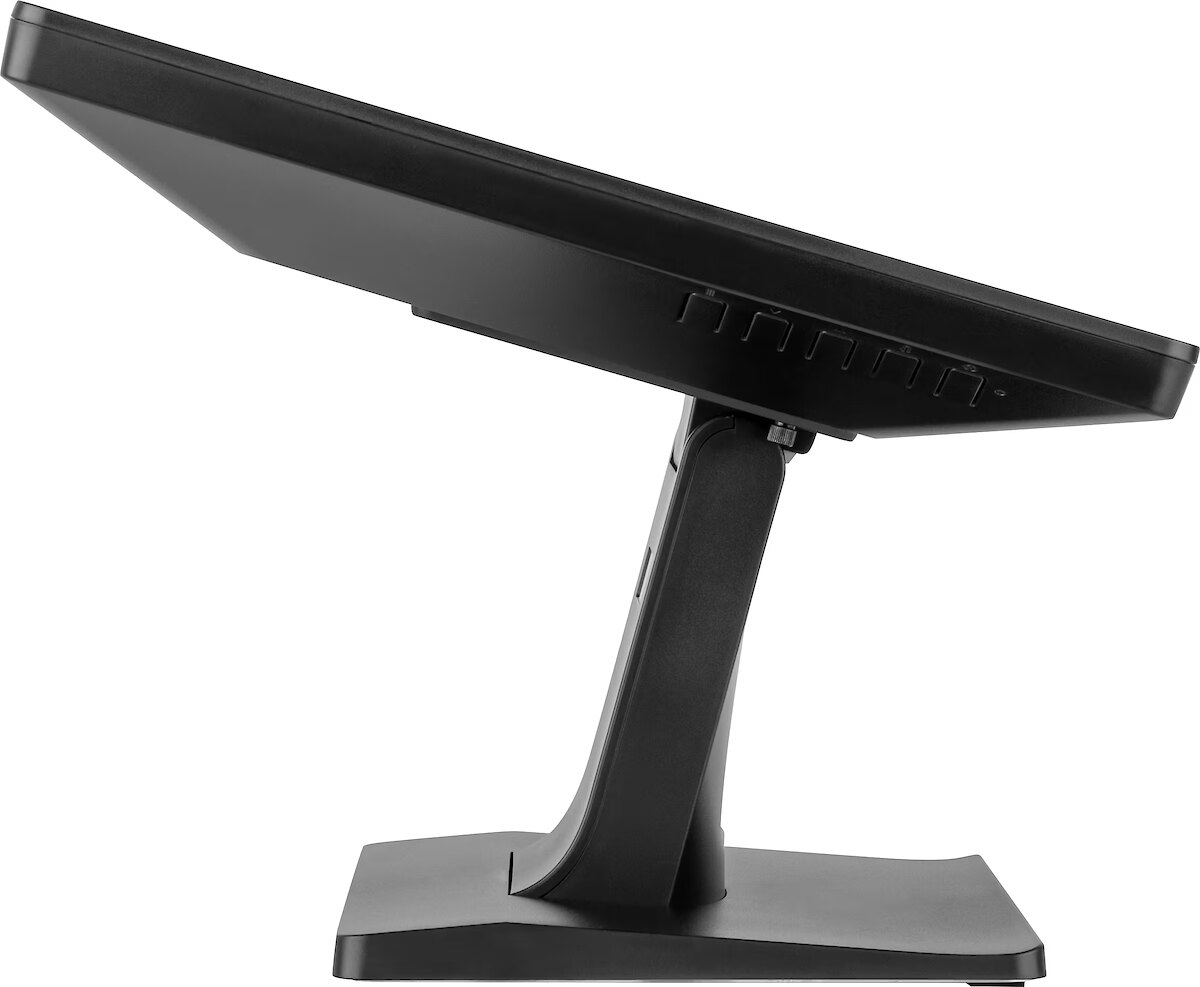

Ergonomics - Tilt adjustment - Yes
Ergonomics - Tilt angle range - -10 - 70°
Ergonomics - VESA mounting - Yes
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4948570127092
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - T1721MSC-B3
Laenge - 0
LongDesc - The ProLite T1721MSC-B3 is a versatile 17” touchscreen monitor designed for smooth, accurate and reliable interaction. Its 10-point PCAP touch technology supports operation by finger, latex glove or compatible stylus, making it well suited to retail, hospitality, education and industrial environments. A protective glass overlay enhances durability and scratch resistance while preserving clear image quality and consistent touch performance. This makes the monitor a dependable choice for applications where the screen is used frequently throughout the day. The IPX3-rated front provides protection against water sprays from different directions at angles of up to 60°, offering added reassurance in environments where occasional exposure to moisture may occur. The stable stand features an 70° tilt range, allowing the screen to be positioned comfortably for different users and applications. Integrated 2 x 2W speakers deliver clear sound directly from the monitor, making the ProLite T1721MSC-B3 a practical and complete touchscreen solution for a wide range of professional settings.
LongProductName - 17” PCAP touchscreen monitor with durable glass overlay, IPX3 front protection and an angle-adjustable stand
LongSummaryDescription - iiyama ProLite T1721MSC-B3. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, HD type: SXGA, Response time: 5 ms, Native aspect ratio: 5:4, Viewing angle, horizontal: 170°, Viewing angle, vertical: 160°. Built-in speaker(s). VESA mounting. Product colour: Black
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 4 W
Other features - AC adapter included - Yes
Other features - Active display area (W x H) - 338 x 270.5 mm
Other features - Brightness - 230 cd/m²
Other features - Compatible operating systems - All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Other features - Compliance certificates - CE, cULus, REACH, RoHS, VCCI, WEEE
Other features - Control panel - Menu, Up/Left/ Auto adjustment button, Down/Right button, Return/Exit button, Power
Other features - Depth - 198 mm
Other features - Height - 364 mm
Other features - International Protection (IP) code - IPX3
Other features - Mean time between failures (MTBF) - 50000 h
Other features - Packaging content - AC adapter, mylar sheet (for VESA mount)
Other features - Touch method - stylus, finger, glove (latex)
Other features - USB ports quantity - 1
Other features - User controls - picture (backlight, brightness, contrast, sharpness) display (auto adjustment, H position, V position, pixel clock, phase) colour (colour temp, picture mode) input, audio (volume, mute, audio source), other (reset, OSD time, OSD H position, OSD V position, language) information
Other features - Weight - 4.4 kg
Other features - Width - 392.5 mm

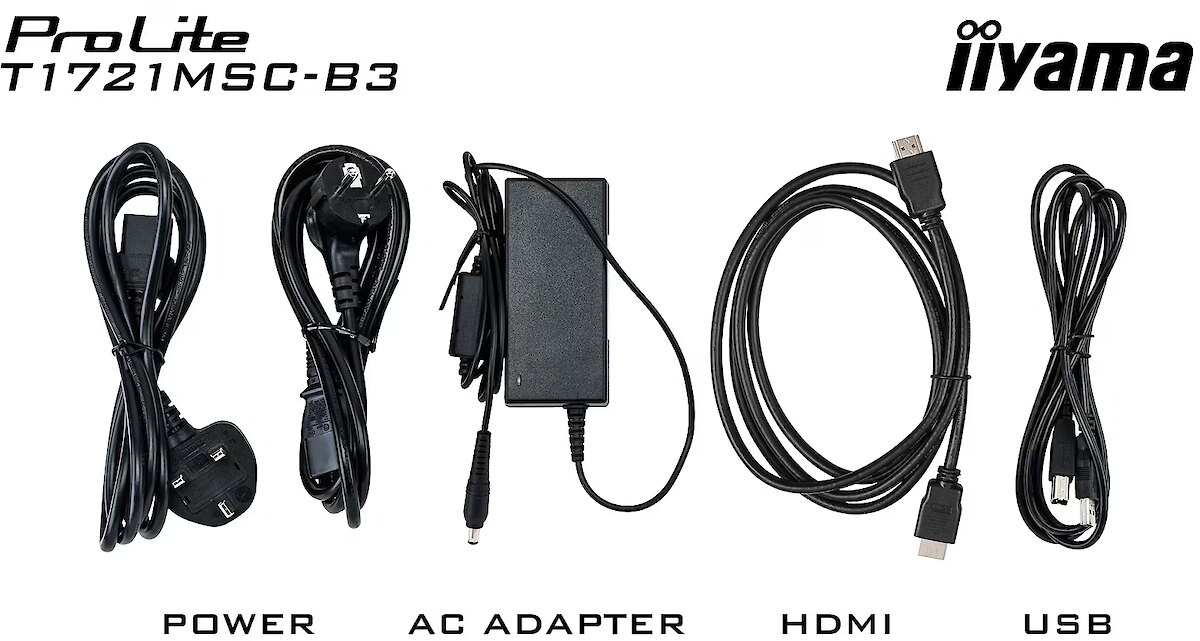

Packaging content - Cables included - AC, USB, HDMI
Packaging content - HDMI cable length - 1.8 m
Packaging content - Power cable length - 1.8 m
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 172 mm
Packaging data - Package height - 500 mm
Packaging data - Package weight - 5.8 kg
Packaging data - Package width - 537 mm
Packaging data - USB cable length - 1.8 m
Performance - AMD FreeSync - No
Performance - Low Blue Light technology - Yes
Performance - NVIDIA G-SYNC - No
Ports & interfaces - Audio input - Yes
Ports & interfaces - Built-in USB hub - No
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Headphone out - No
Ports & interfaces - USB Touch port - Yes
Ports & interfaces - VGA (D-Sub) ports quantity - 1
Power - AC adapter output voltage - 12 V
Power - Energy consumption (SDR) per 1000 hours - 13 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.9 W
Power - Power consumption (typical) - 20 W
Power - Power supply type - External
ProductName - T1721MSC-B3
ShortSummaryDescription - iiyama ProLite T1721MSC-B3, 43.2 cm (17"), 1280 x 1024 pixels, SXGA, 5 ms, Black
Stck_Kart - 1
Stck_Pal - 24
Storno - Y
Sustainability - Sustainability certificates - ErP
Technical details - Native refresh rate - 60 Hz
Title - iiyama ProLite T1721MSC-B3 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA Touchscreen Tabletop Black
URL - https://iiyama.com/
WarrantyInfo -
Weight & dimensions - Depth (with stand) - 198 mm
Weight & dimensions - Height (with stand) - 364 mm
Weight & dimensions - Weight (with stand) - 4.4 kg
Weight & dimensions - Width (with stand) - 392.5 mm
