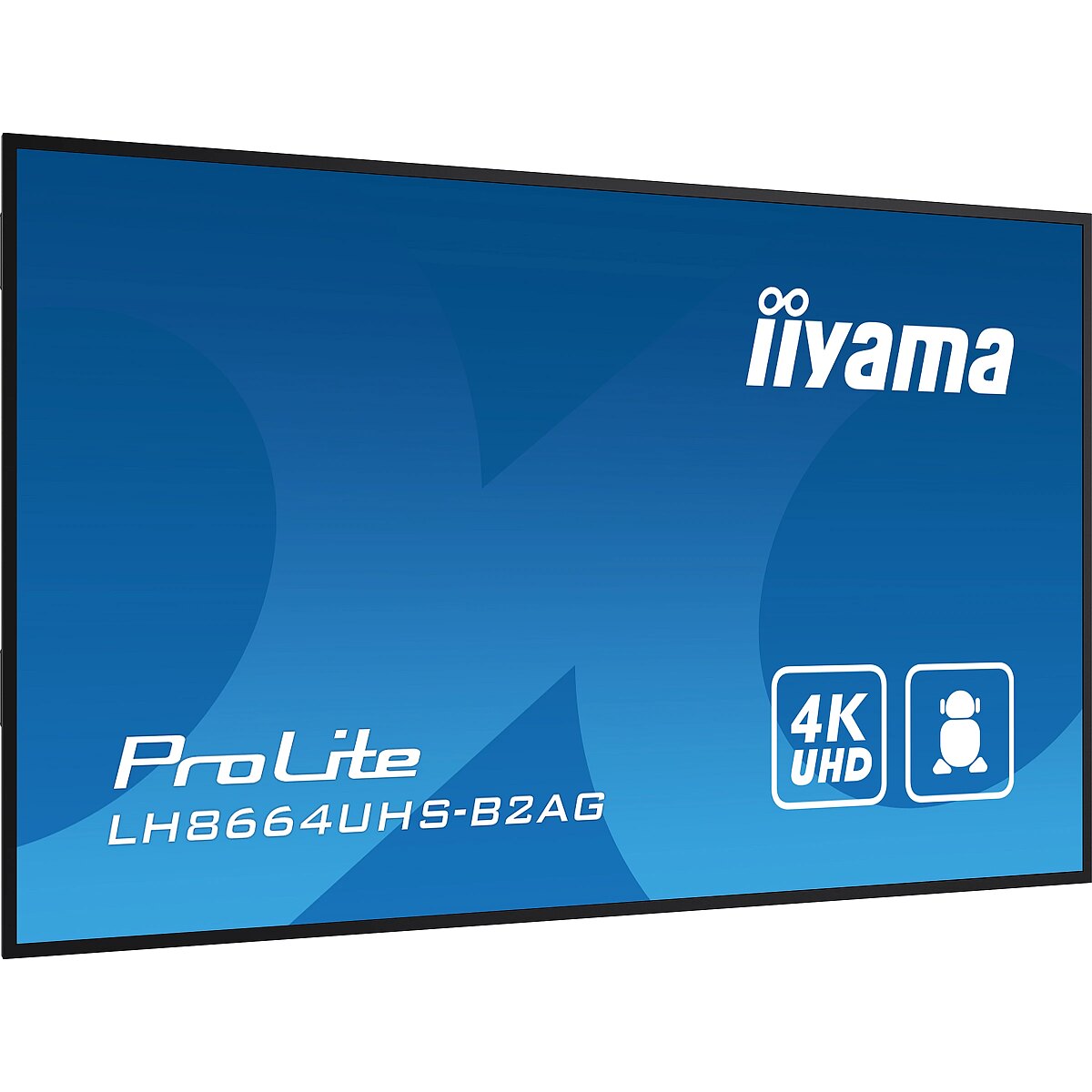

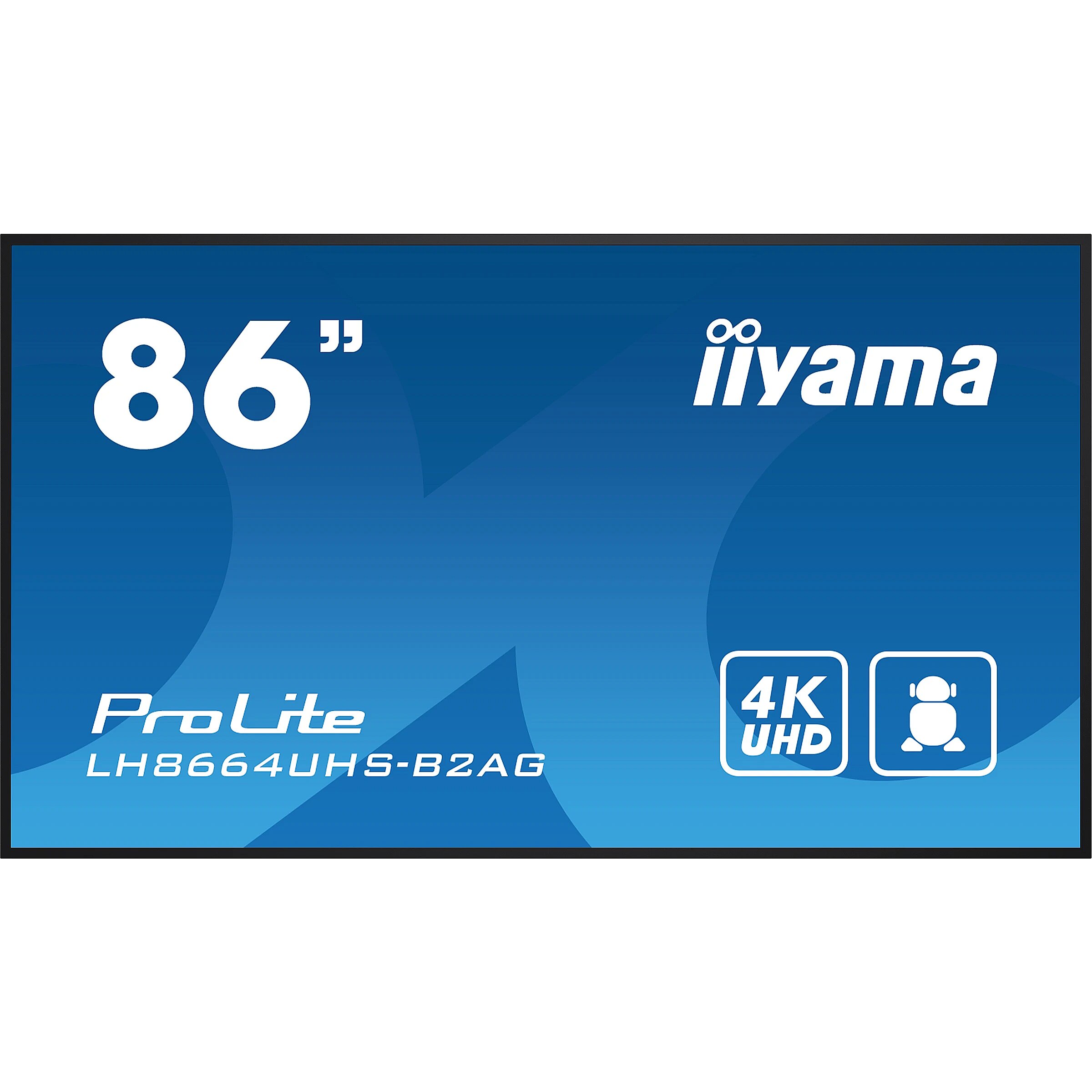

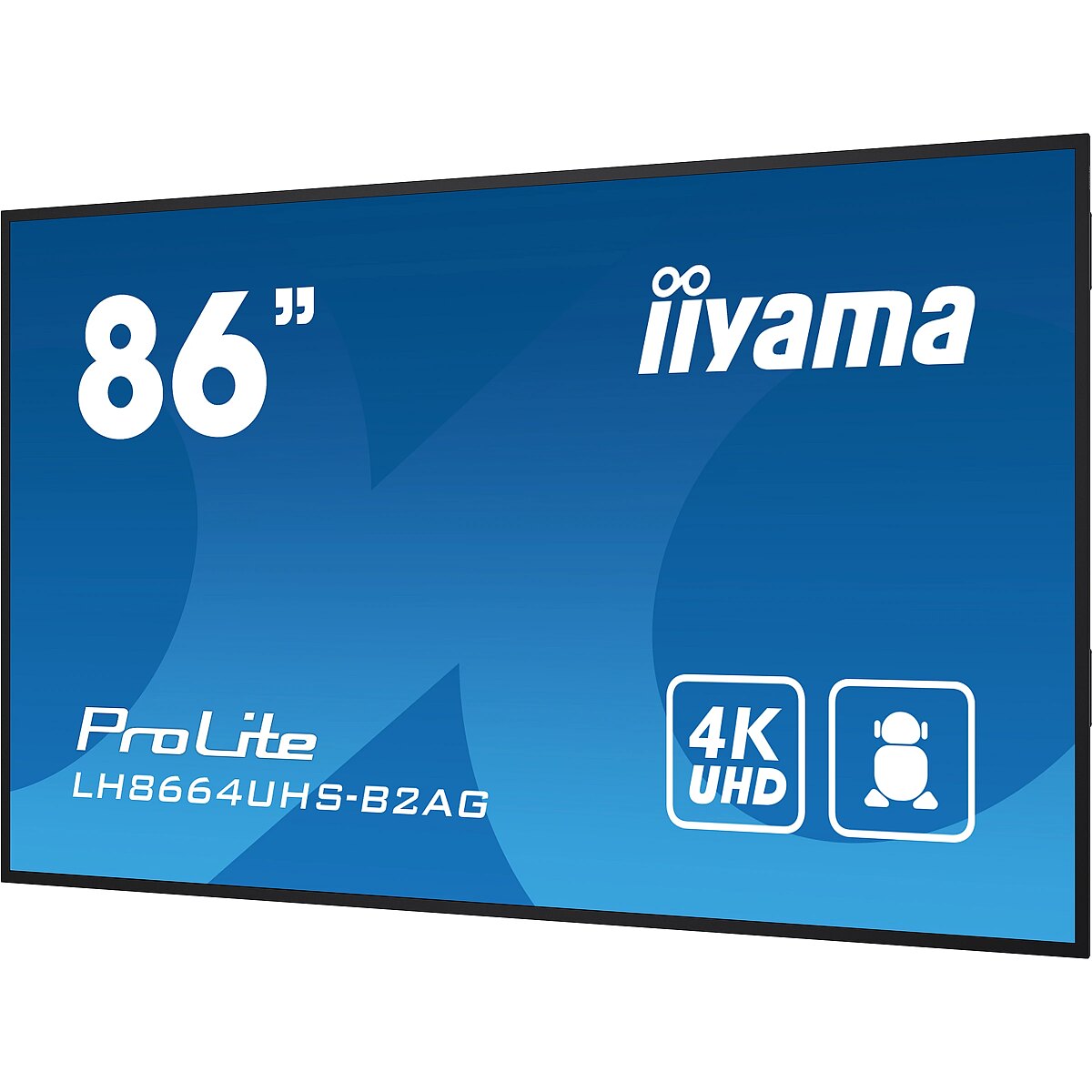

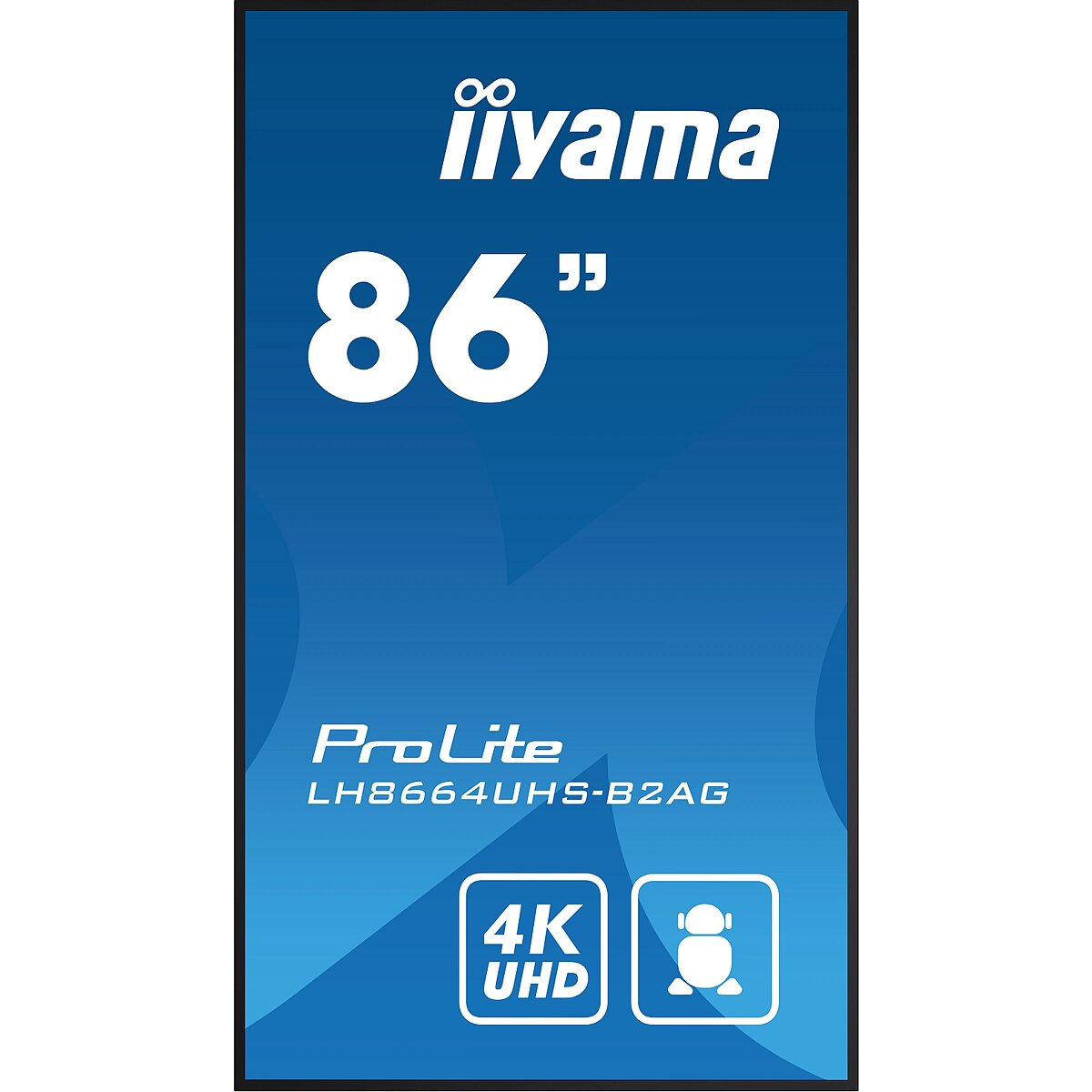

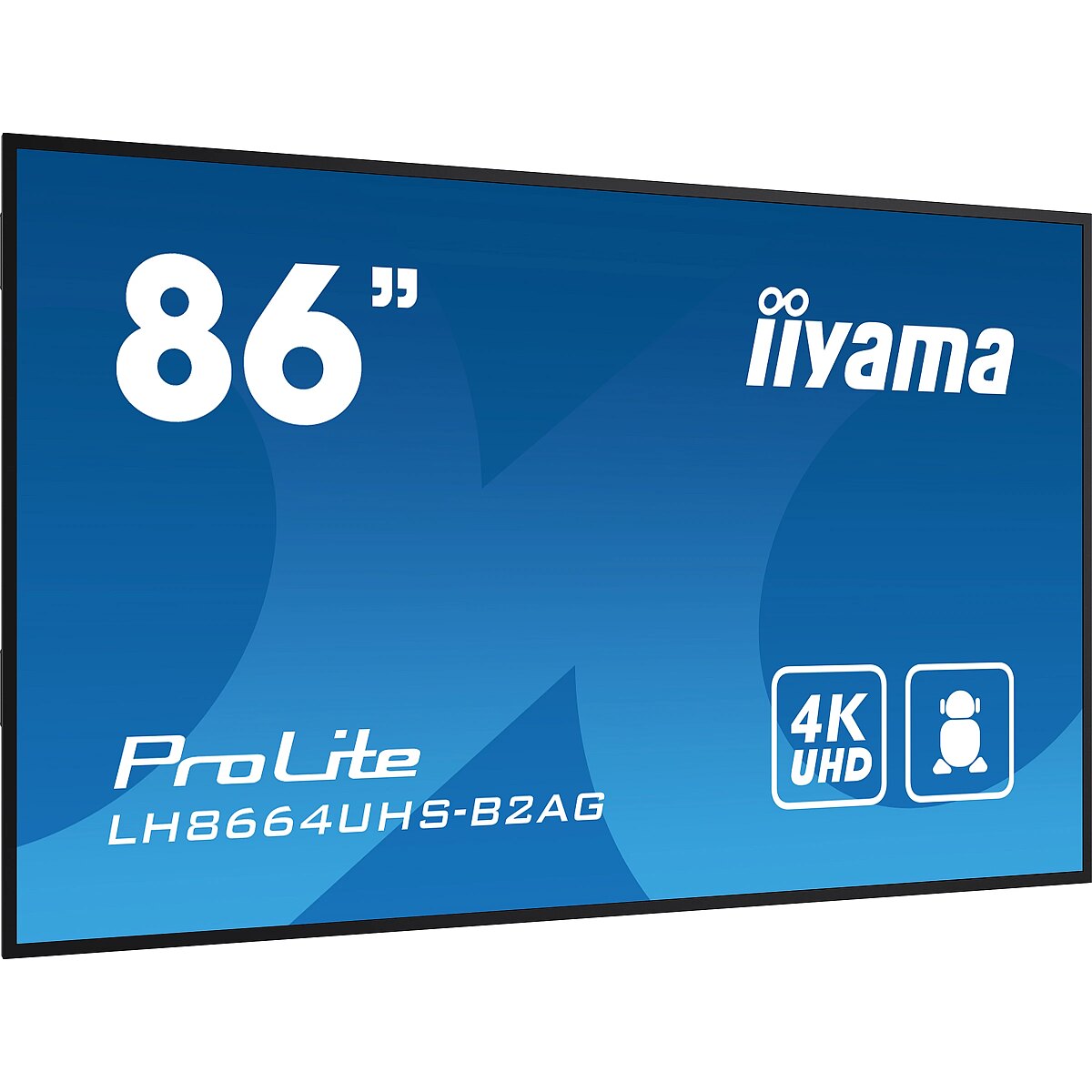

Iiyama LH8664UHS-B2AG, 86"

Name: Iiyama LH8664UHS-B2AG, 86"
Brand: Iiyama
SKU: 1209912
Price: 1798.72 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1209912 Product code: LH8664UHS-B2AG

Can be ordered 1 units Availability: 14 days after order approval

Warranty: 2 years (Warranty for business entities 1 year)

Compare

Ready for dispatch

01.12.2025

starting from 19.99 €

Delivery options

Delivery by courier to the address

Within 1-2 working days

19.99 €

Main product parameters All parameters

Curved: Nav
Panel Type: IPS
Refresh rate: 60 Hz
Response time: 8ms
Contrast ratio: 1200:1
Brightness: 500dc/m2
Size: 86"
Resolution: 4K UHD 3840x2160

Description

We offer to buy Iiyama 86" a monitor with 4K UHD 3840x2160 resolution.

IPS matrix for this monitor provides high colour correspondence parameters, superior picture contrast and good visibility from eventually all viewing angles.
The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.

Display characteristics

AMD FreeSync : Nav

Curved : Nav

NVIDIA G-SYNC : Nav

Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz

Touchscreen : NO

VESA DisplayHDR : Nav

Response time 8ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 1200:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 500dc/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 16:9

Color : Black

Size 86"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution 4K UHD 3840x2160

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Nav

Height adjustment : Nav

Pivot : Nav

Swivel : None

Tilt : NO

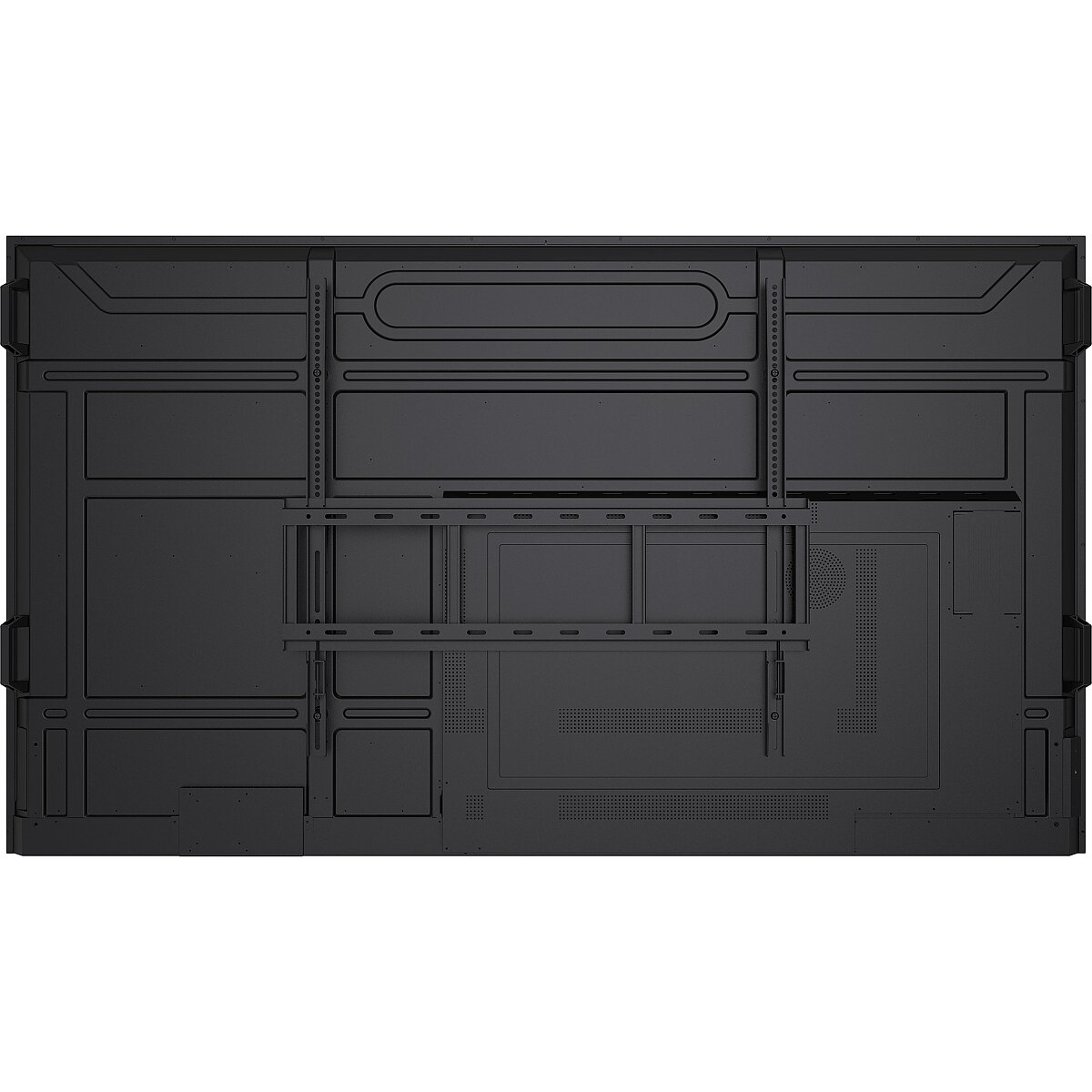

VESA wall mount : 800X600 mm

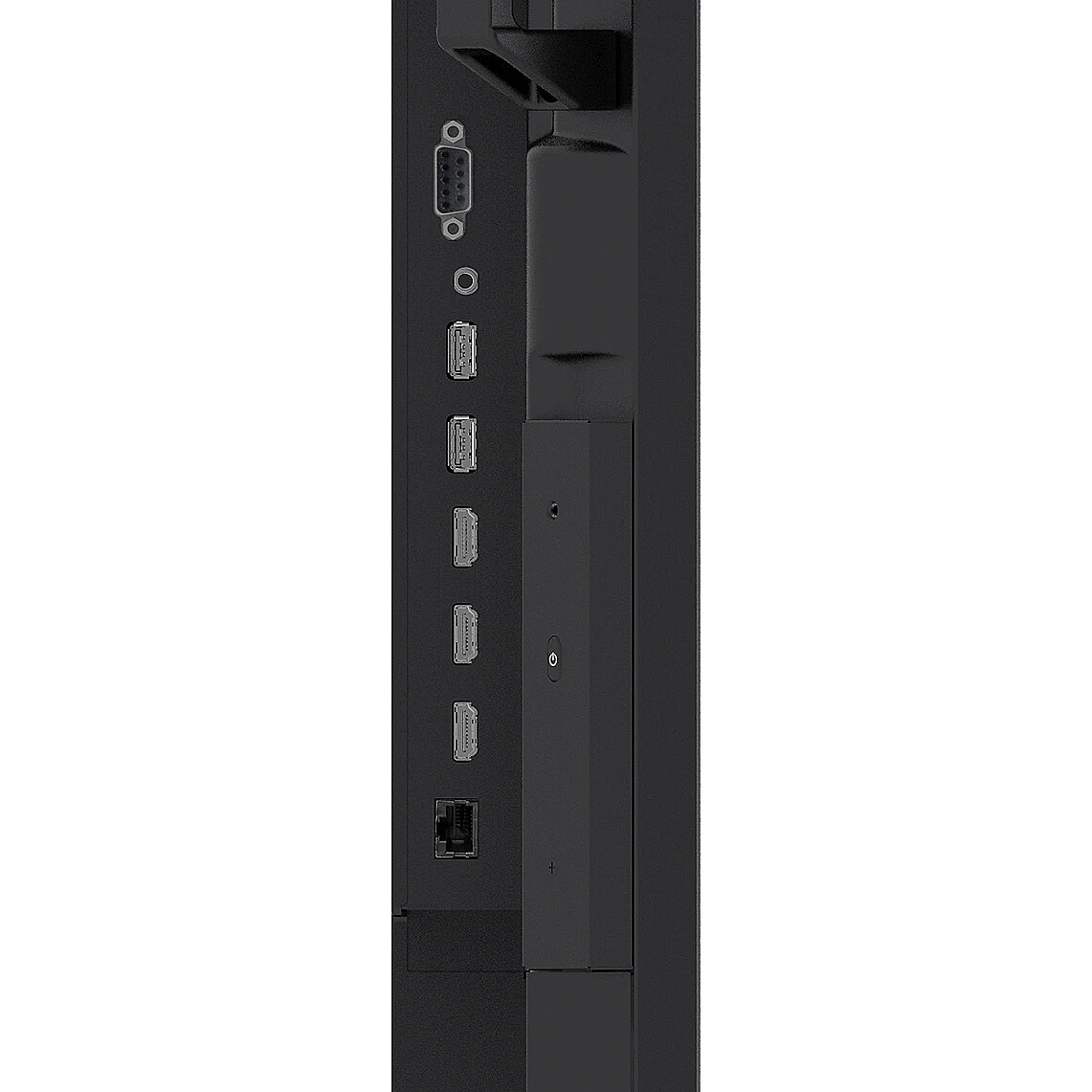

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort Nav

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 3

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : NO

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

Additional information in manufacturers website Iiyama LH8664UHS-B2AG, 86"

ARTIKEL1 - LH8664UHS-B2AG 86IN LCD UHD
ARTIKEL2 - 8MS 24/7 500CD/M2 1200:1 3XHDMI
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 32 W
Brand - iiyama
BrandPartCode - LH8664UHS-B2AG
Category - Signage Displays
Category 1 - Displays
Category 2 - Monitore
Certificates - Certification - CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 2 GB
Computer system - Internal storage capacity - 16 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android
Computer system - Operating system version - 11
Computer system - Processor cores - 4
Computer system - Processor model - A53
Design - Bezel width (bottom) - 1.6 cm
Design - Bezel width (side) - 1.4 cm
Design - Bezel width (top) - 1.4 cm

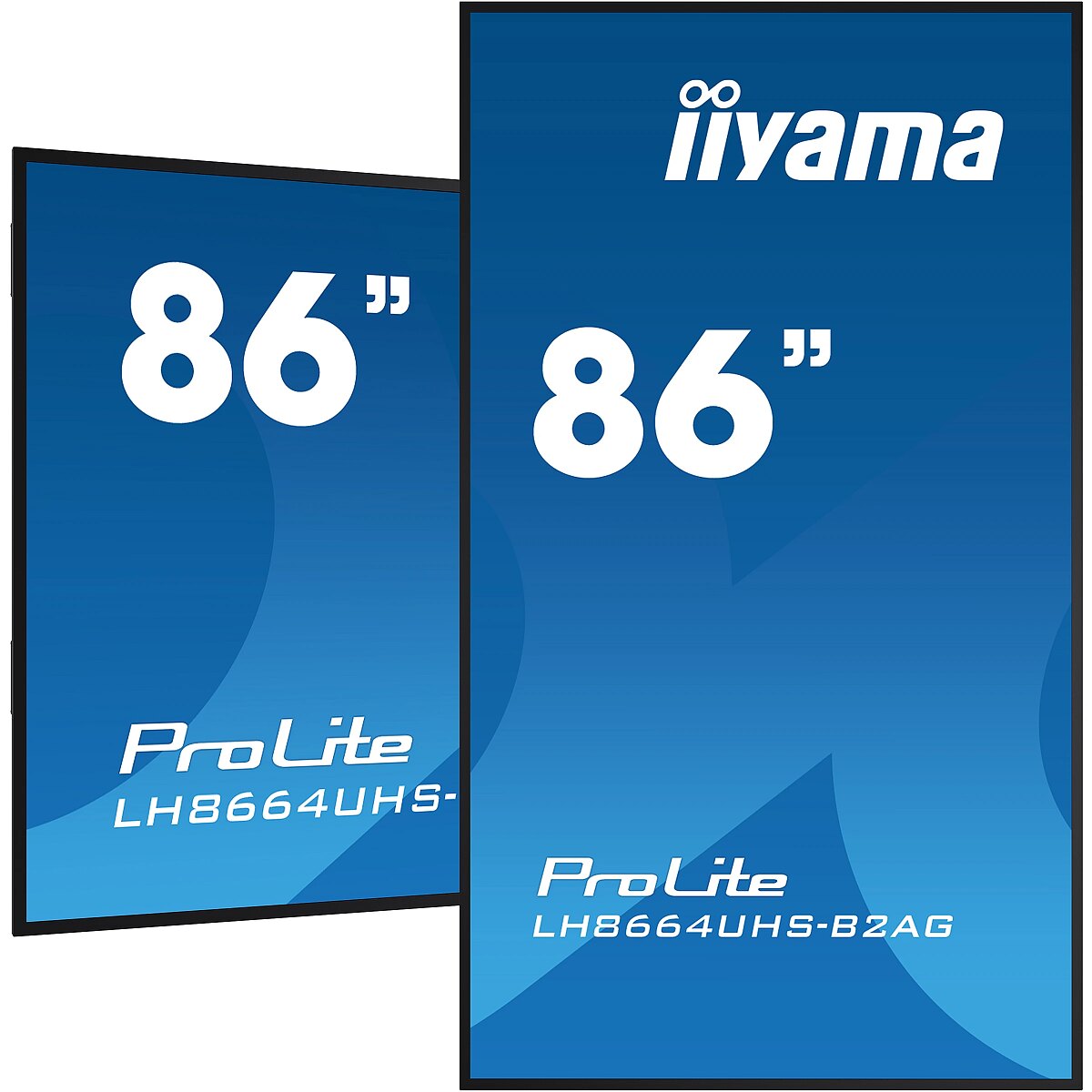

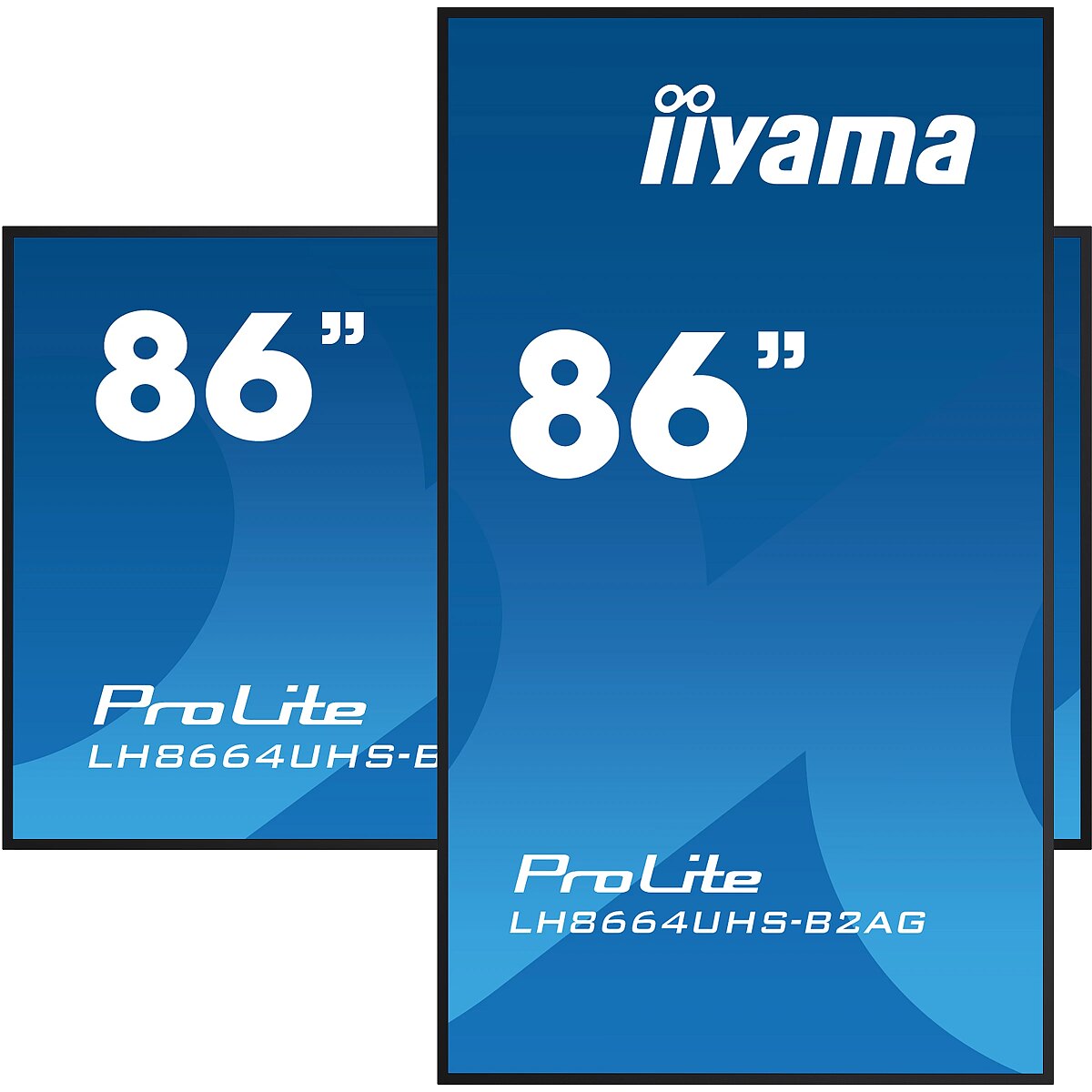

Design - Orientation - Horizontal/Vertical

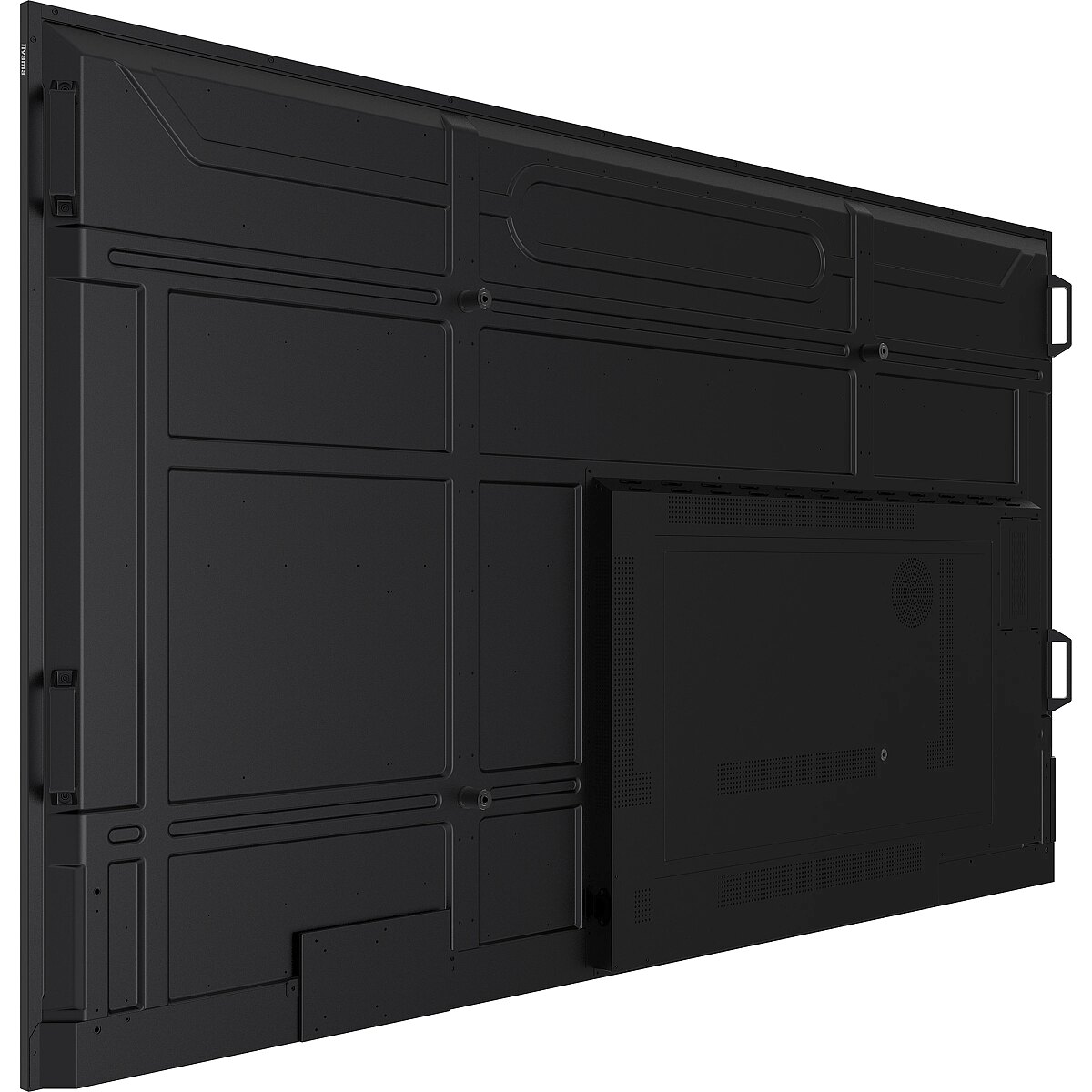

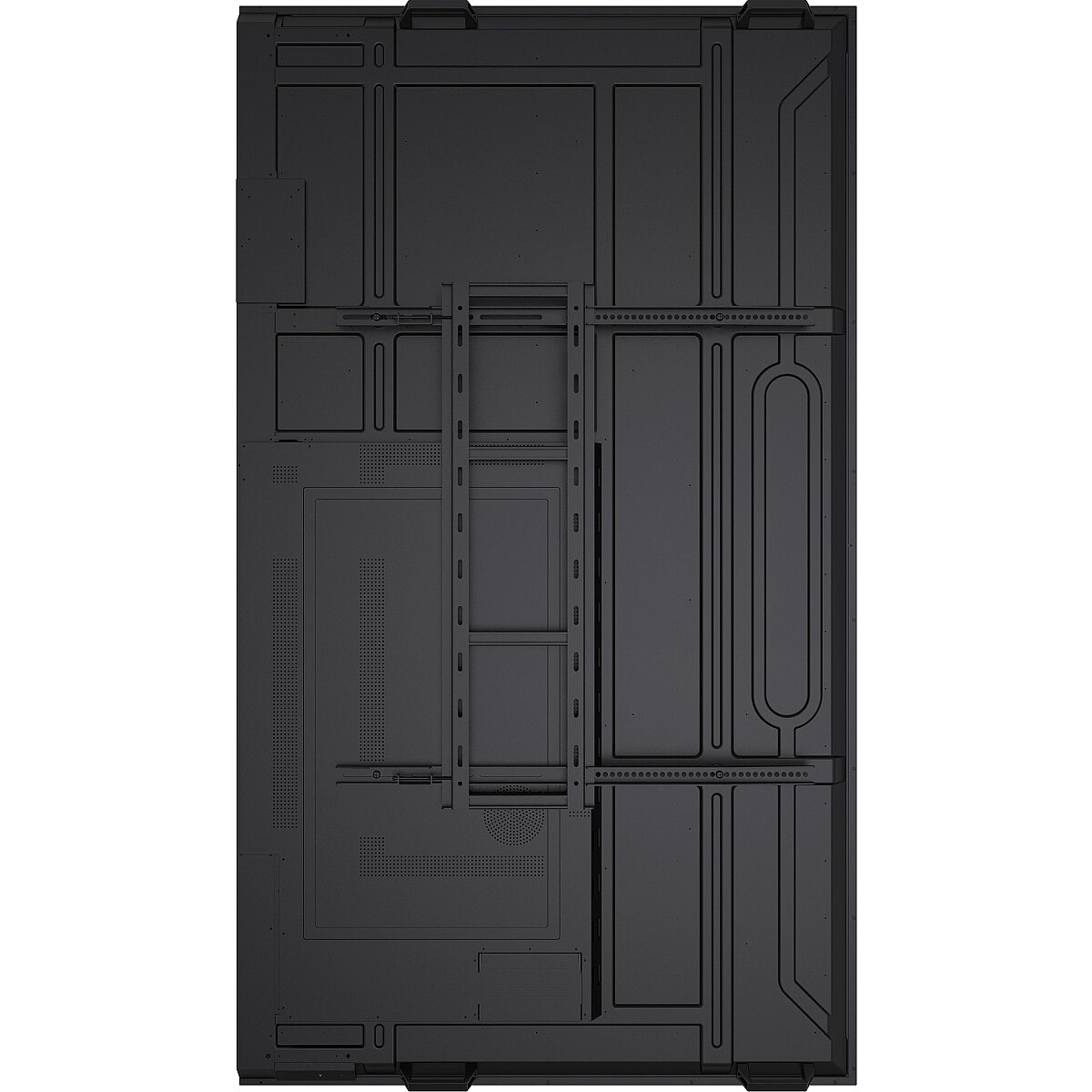

Design - Panel mounting interface - 800 x 600 mm
Design - Placement supported - Indoor
Design - Product colour - Black
Design - Product design - Digital signage flat panel
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 500 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display diagonal (metric) - 217.4 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 28 - 160 kHz
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Panel type - IPS
Display - Pixel pitch - 0.493 x 0.493 mm
Display - Response time - 8 ms
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EAN - 4948570124916
EANCode - 4948570124916
GRUPPE1 - Displays
GRUPPE2 - Lcd Large Format
GTIN - 4948570124916
HERSTELLER - IIYAMA CONSIGNMENT
HSTNUMMER - LH8664UHS-B2AG
LongDesc - Elevate your visual communication with the LH8664UHS-B2AG and unlock the new possibilities for your business. This 500cd/m² high brightness display is a powerful business tool that takes your marketing and communication efforts to the next level. With its Android 11 OS, iiSignage² (Content Management Software), Signal FailOver and EShare features, this display offers a straightforward user experience, making content creation, management, and sharing a breeze. WiFi enabled, the display is ready for remote content delivery using your network or you can choose to utilise LAN control. Its versatile orientation, sleek design, and 24/7 reliability ensure it seamlessly integrates into any business environment. Whether it's used in retail, corporate, hospitality, or educational settings, the LH8664UHS-B2AG will undoubtedly captivate your audience and leave a lasting impression.
LongProductName - 86" 4K UHD professional digital signage display with advanced control and connectivity options
LongSummaryDescription - iiyama 86" 4K UHD professional digital signage display with advanced control and connectivity options. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"), Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
Manufacturer - iiyama
MPN - LH8664UHS-B2AG
Name - IIYAMA 217.4cm(85.6") LH8664UHS-B2AG 16:9 3xHDMI+2xUSB 4K (Speditionsversand)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Audio output - Mini Jack
Packaging content - Batteries included - Yes

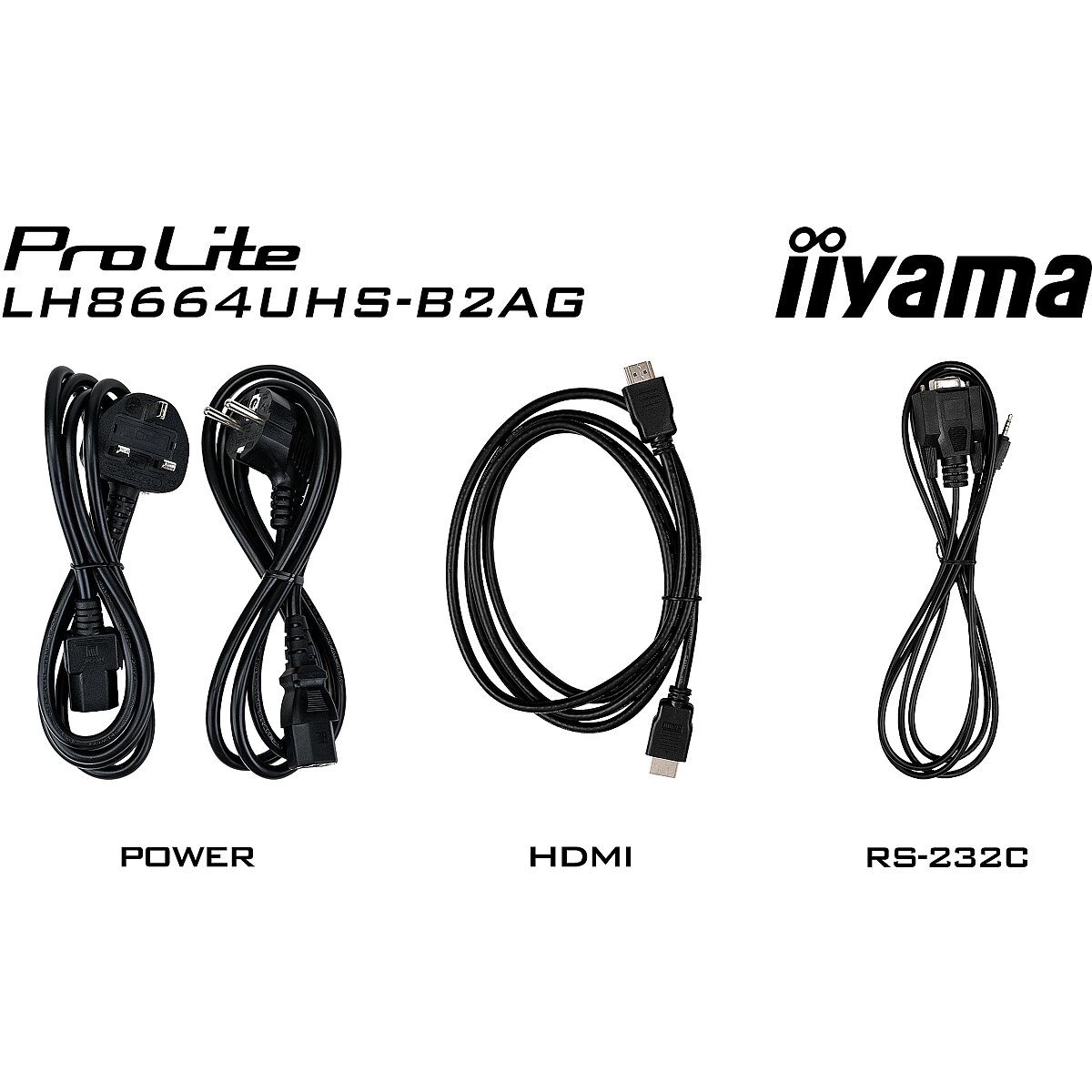

Packaging content - Cables included - AC, HDMI

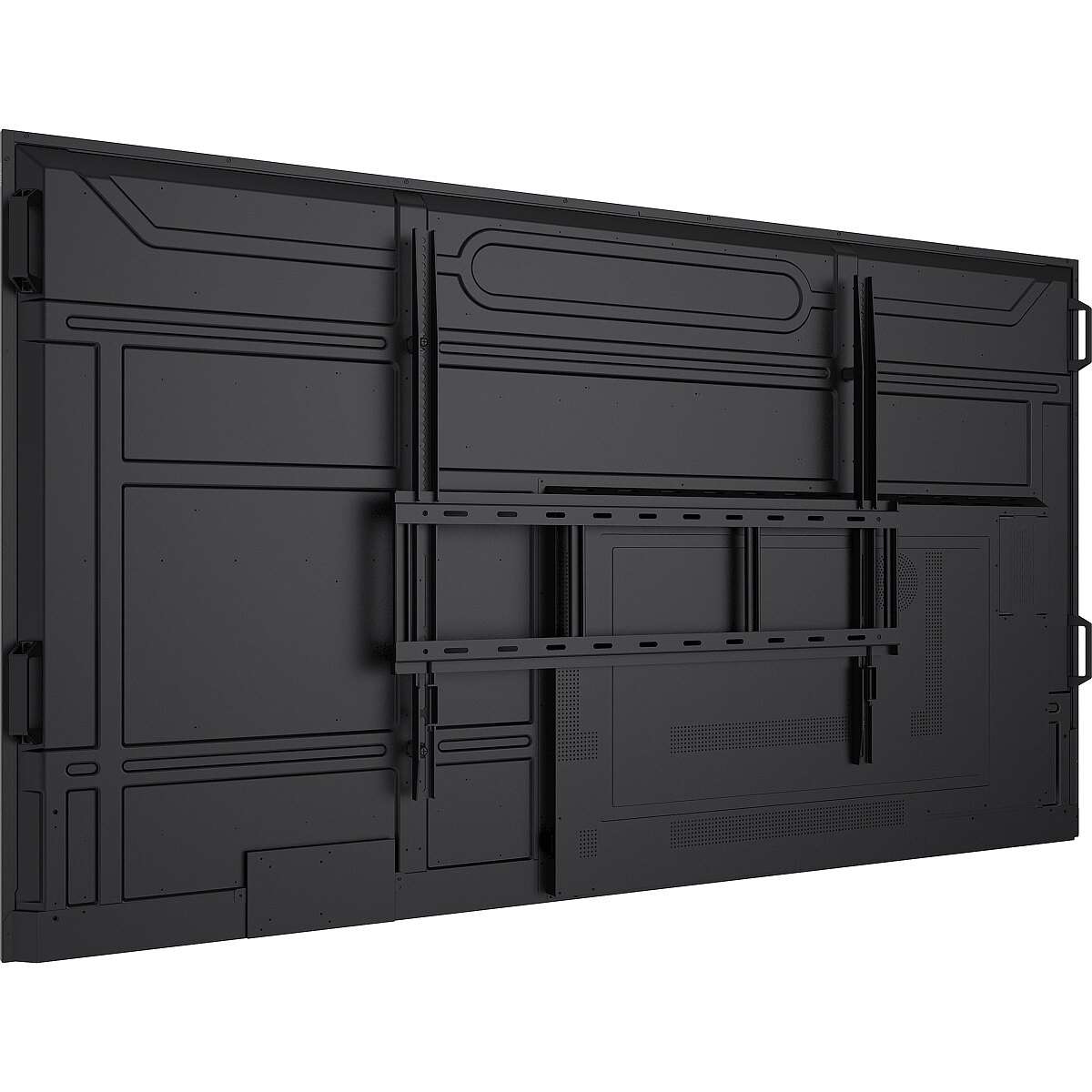

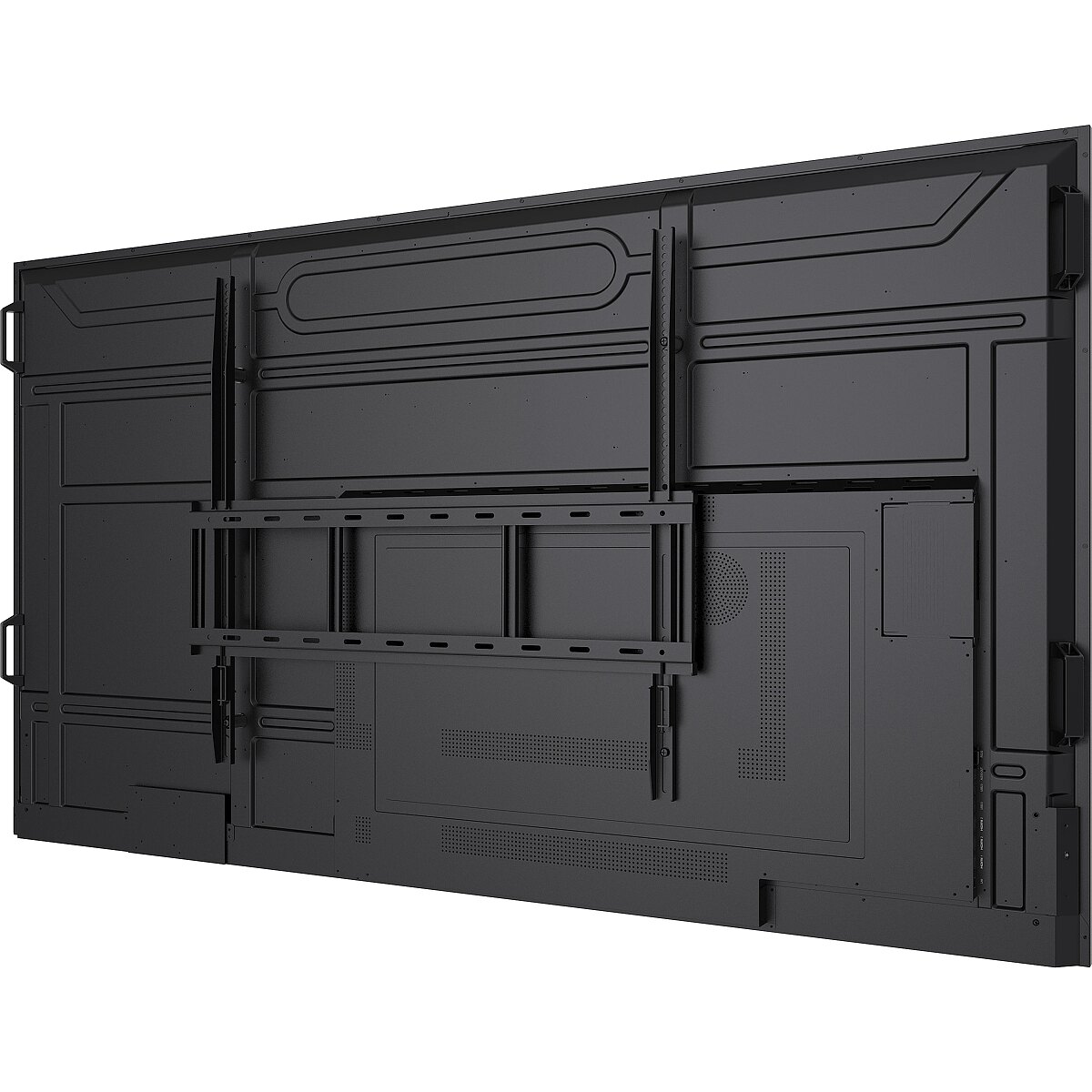

Packaging content - Mounting kit - Yes
Packaging content - Remote control included - Yes
Packaging data - Package depth - 275 mm
Packaging data - Package height - 1275 mm
Packaging data - Package volume - 73700 cm³
Packaging data - Package width - 2125 mm
Performance - HDCP - Yes
Performance - HDCP version - 1.4/2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 15
Performance - On Screen Display (OSD) - Yes
Performance - On Screen Display (OSD) languages - Simplified Chinese, Traditional Chinese, Czech, Danish, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Polish, Russian, Swedish
Performance - Operating hours (hours/days) - 24/7

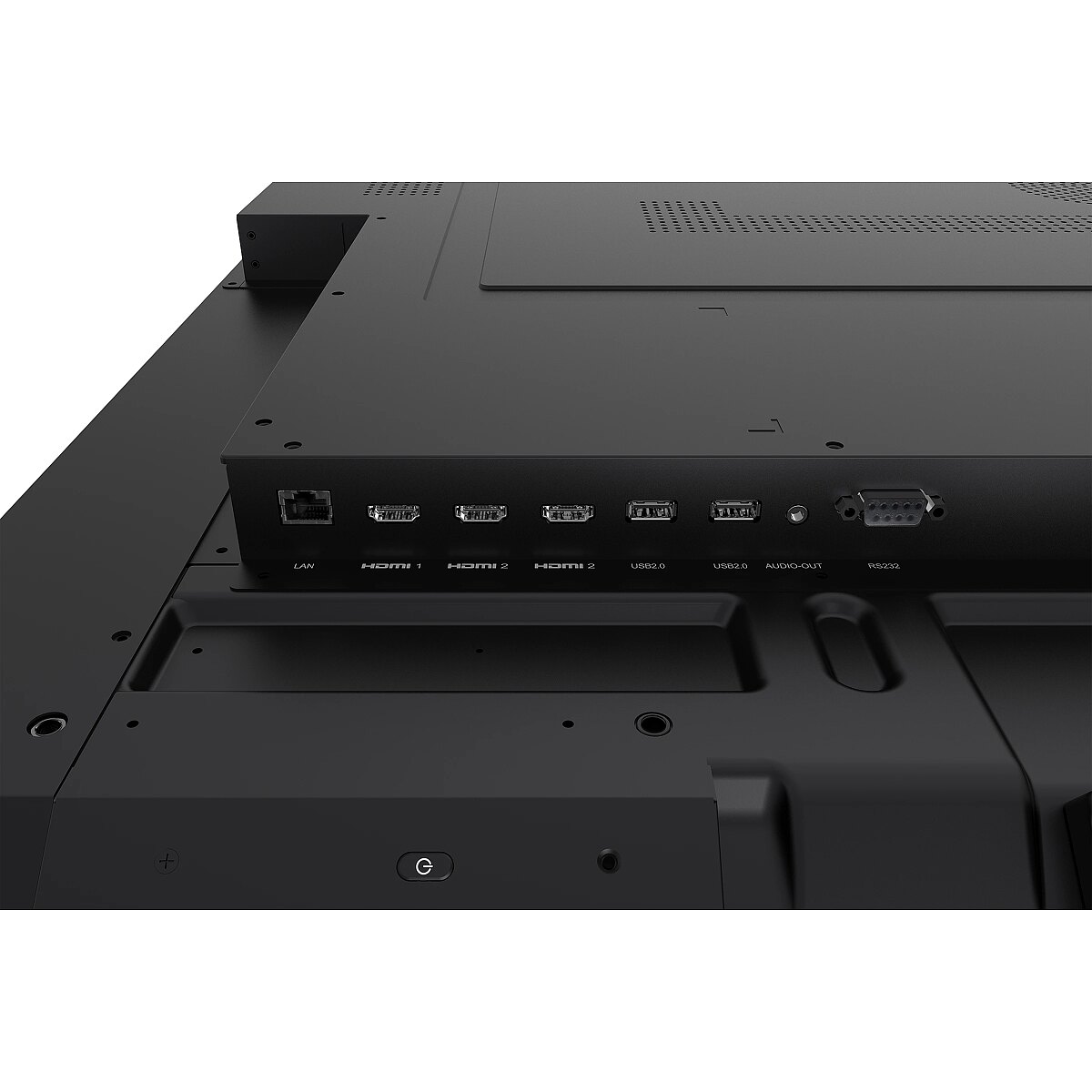

Performance - Purpose - Universal
Ports & interfaces - DVI port - No
Ports & interfaces - Ethernet LAN - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - Remote (IR) input - 1
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Ports & interfaces - Wi-Fi - Yes
Ports & interfaces - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 145 kWh
Power - Energy efficiency class (SDR) - F
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 145 W
ProductName - 86" 4K UHD professional digital signage display with advanced control and connectivity options
ShortSummaryDescription - iiyama 86" 4K UHD professional digital signage display with advanced control and connectivity options, Digital signage flat panel, 2.18 m (86"), 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Technical details - Audio in (mini jack) - Yes
Title - iiyama 86" 4K UHD professional digital signage display with advanced control and connectivity options
URL - https://iiyama.com/
WarrantyInfo -
Weight - 52

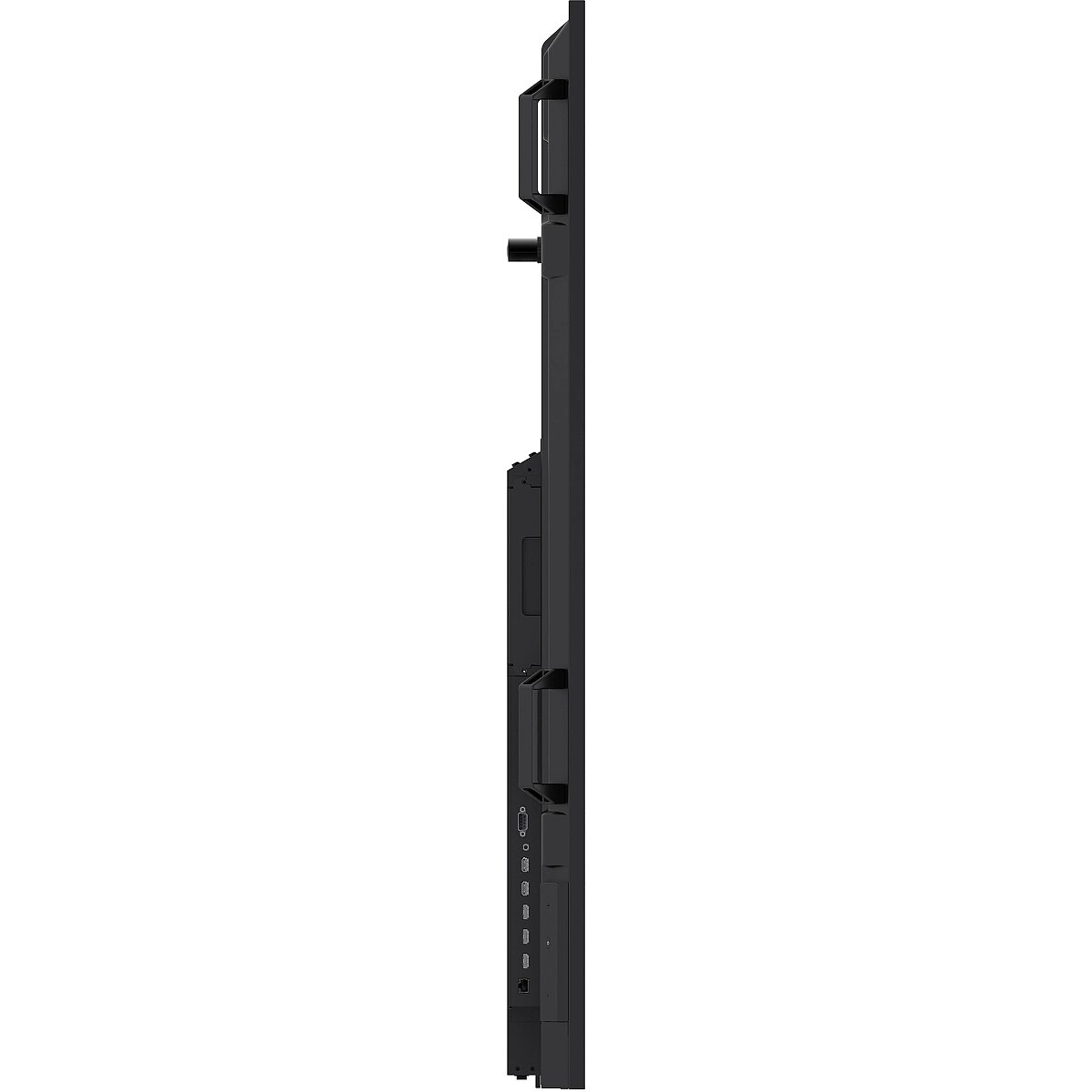

Weight & dimensions - Display depth - 79.6 mm
Weight & dimensions - Display height - 1108.8 mm
Weight & dimensions - Display weight - 55.2 kg
Weight & dimensions - Display width - 1937.8 mm
