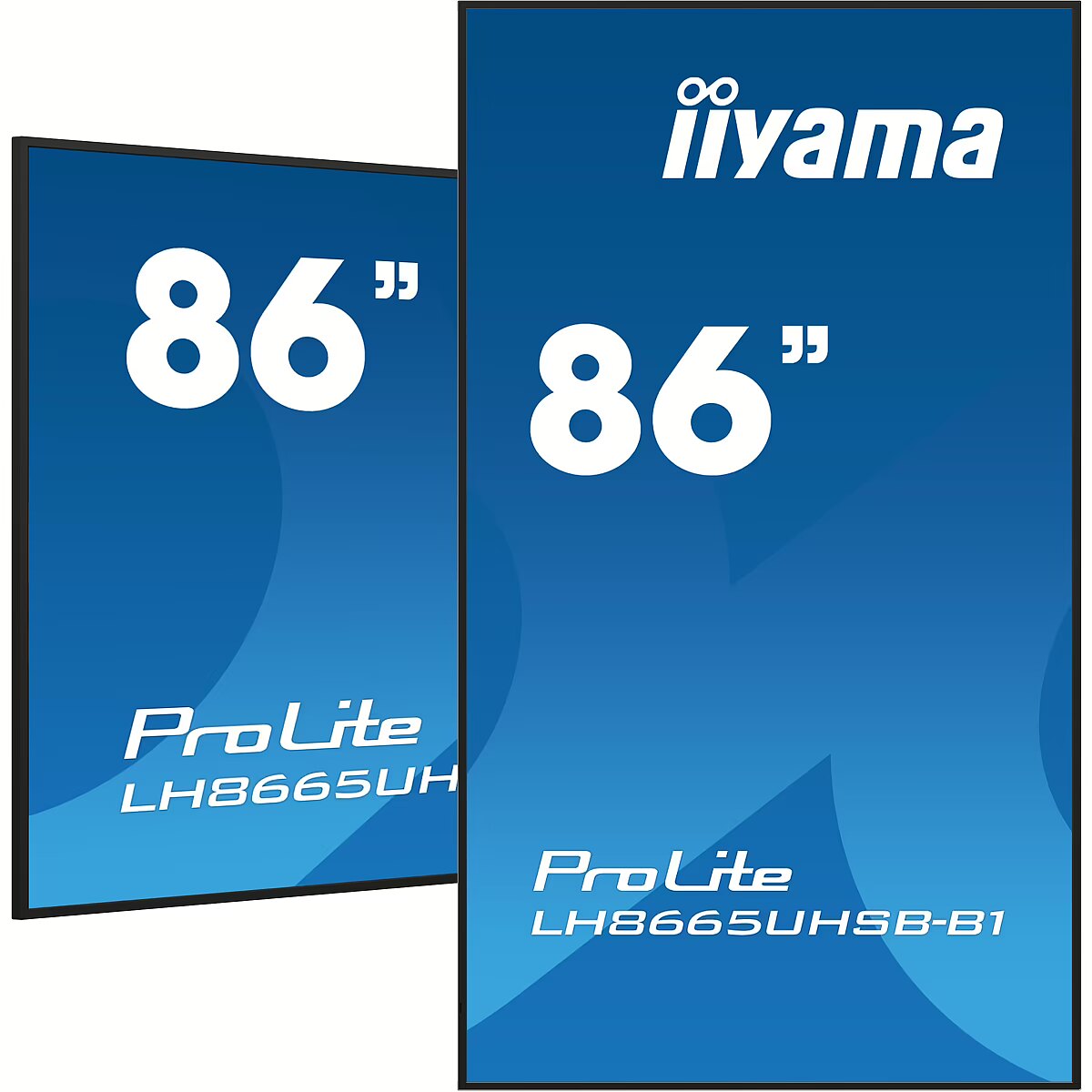

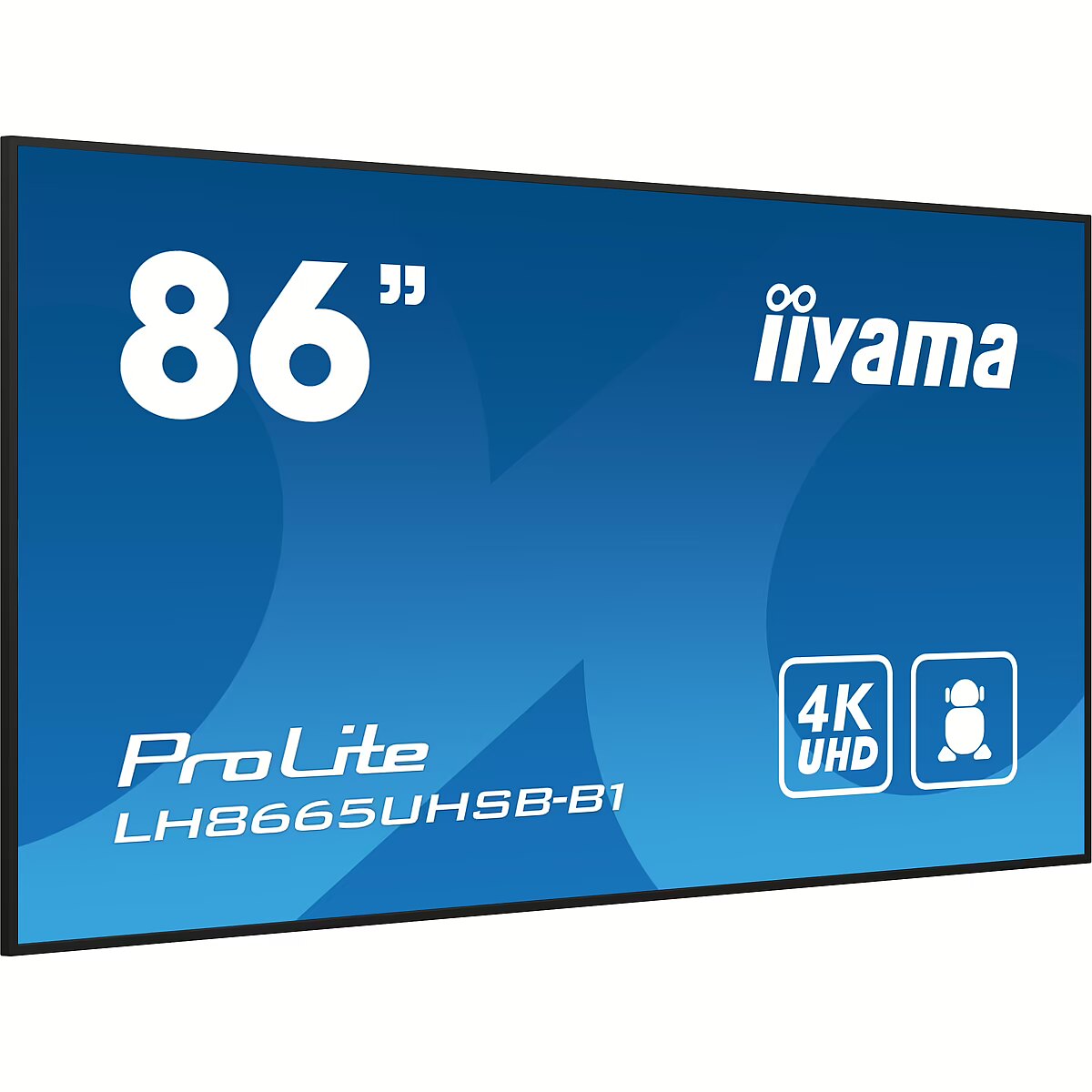

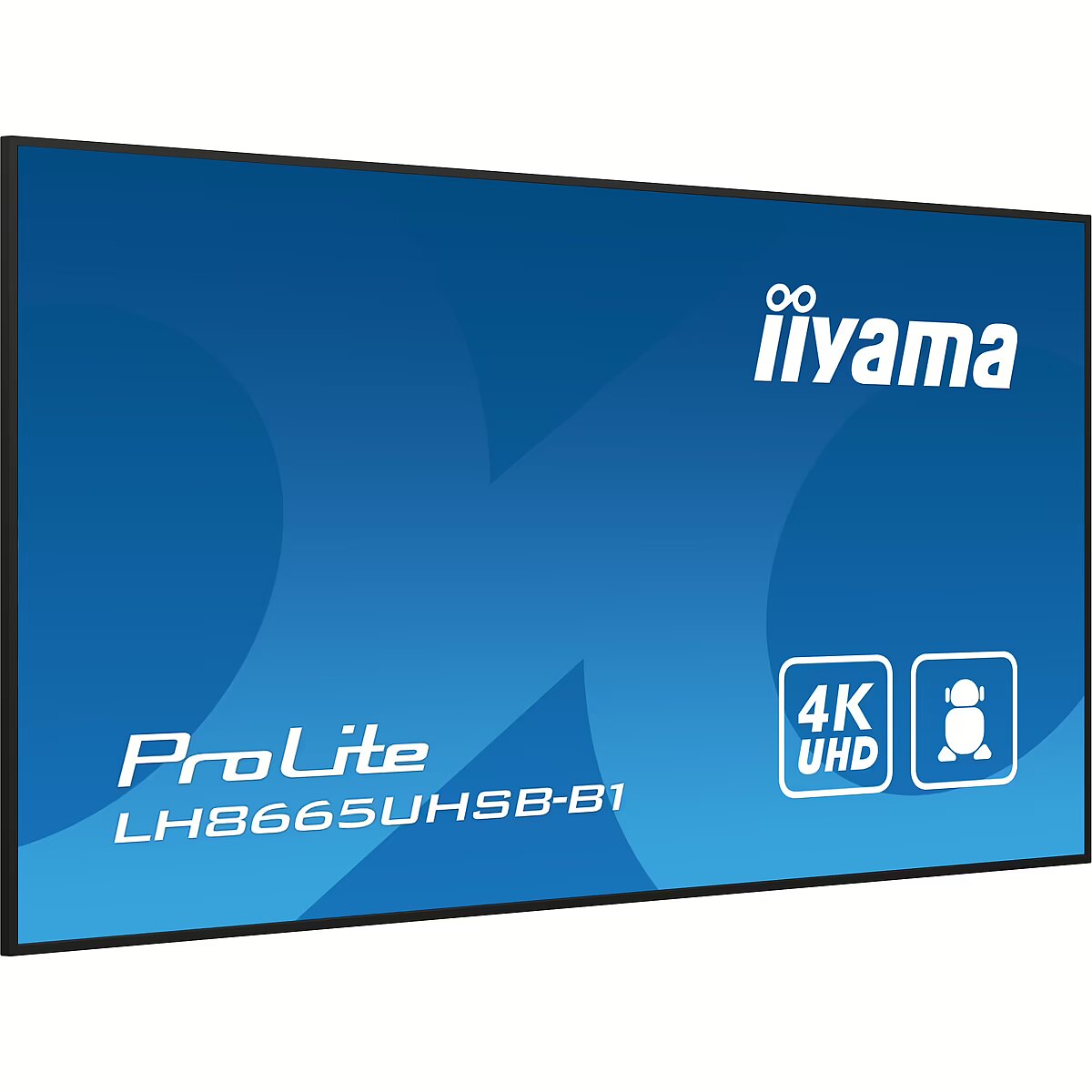

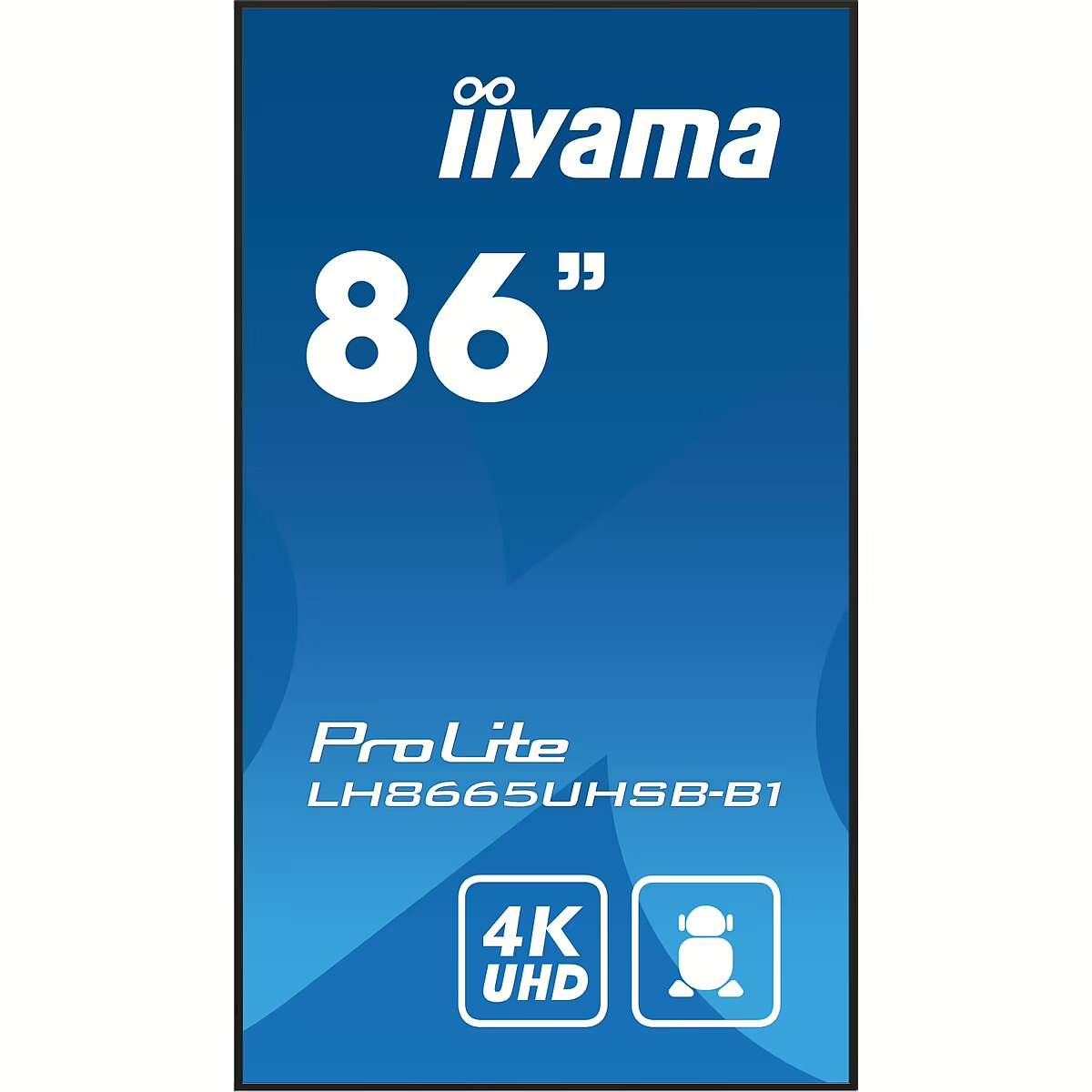

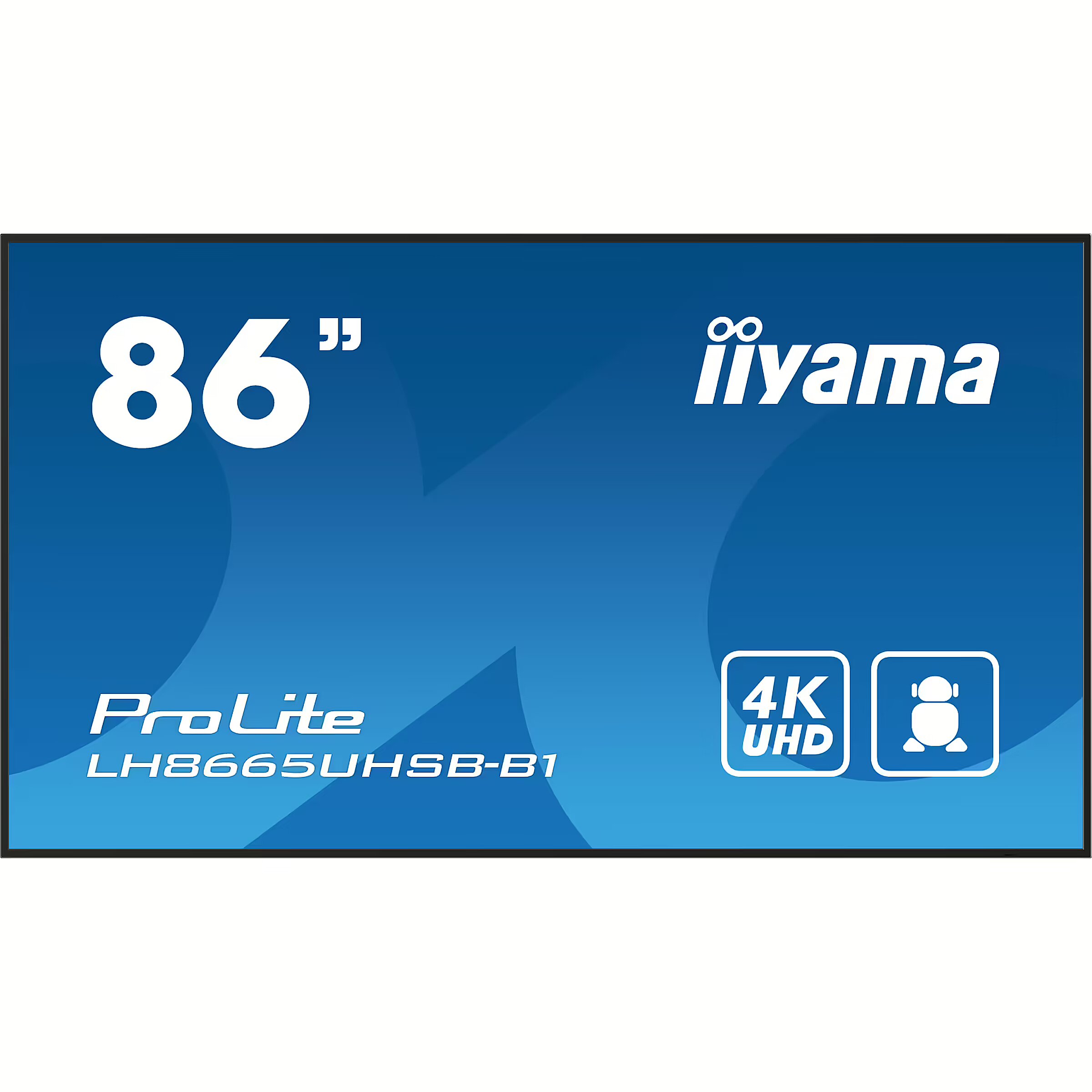

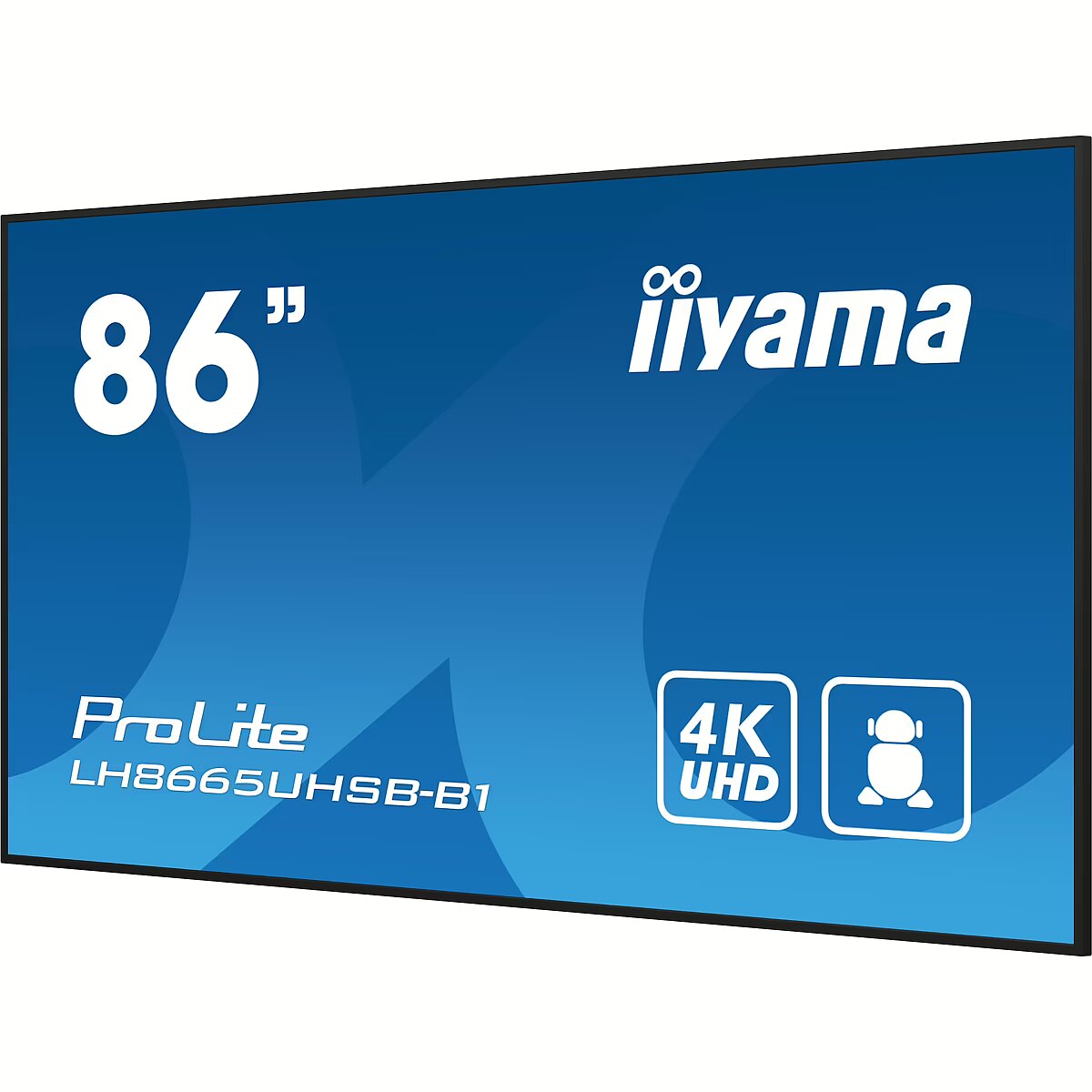

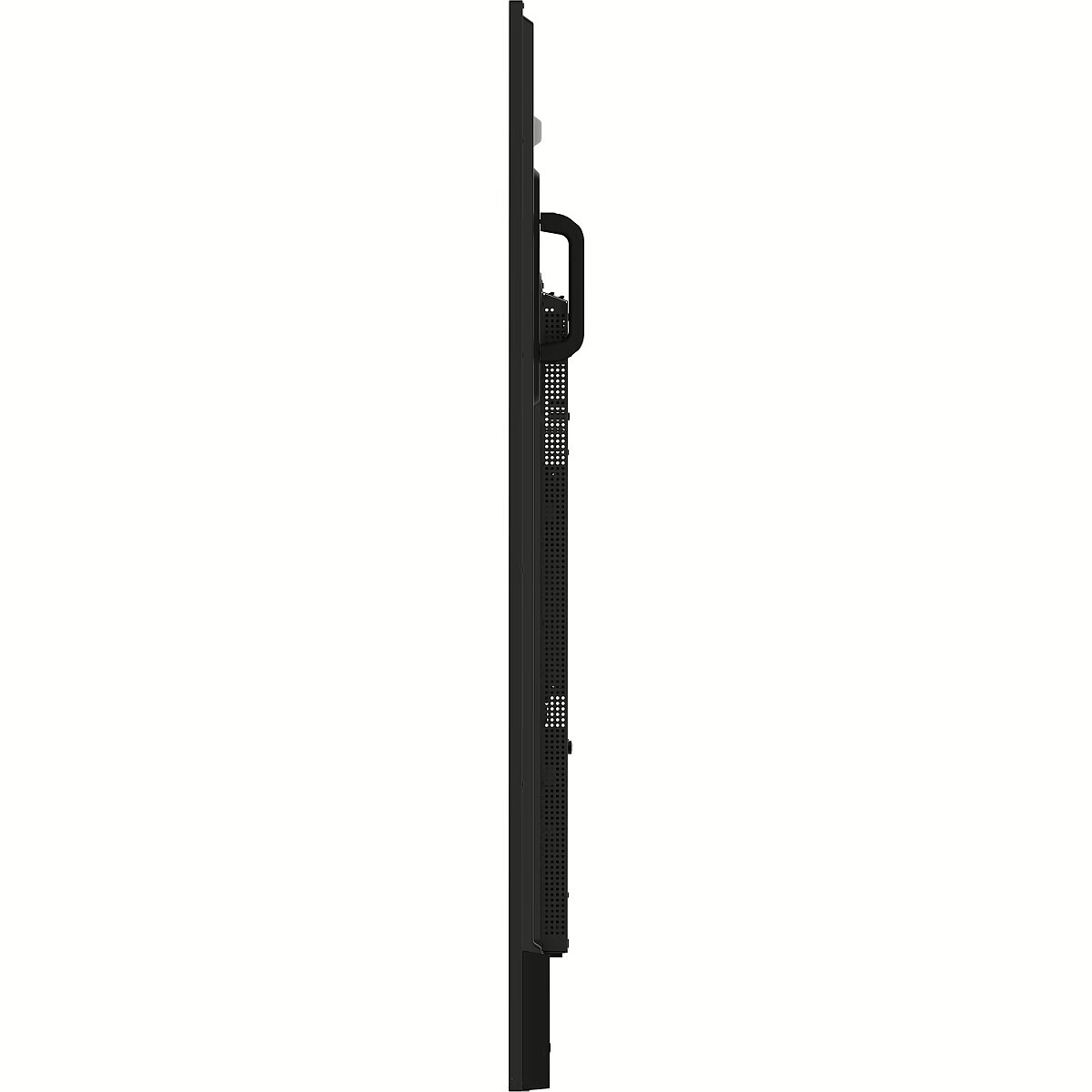

Iiyama ProLite LH8665UHSB-B1, 86"

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1113462 Product code: LH8665UHSB-B1
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
2,397.27 €
Ready for dispatch
23.01.2026
starting from €
Delivery options
Main product parameters All parameters
  • Curved: Nav
  • Panel Type: IPS
  • Refresh rate: 60 Hz
  • Response time: 8ms
  • Contrast ratio: 1200:1
  • Brightness: 800cd/m2
  • Size: 86"
  • Resolution: 4K UHD 3840x2160
Description

The monitor Iiyama ProLite LH8665UHSB-B1, 86" with 4K UHD 3840x2160 resolution is ideally suited for professional work with images. It combines accurate color reproduction, convenient connection and reliable construction, ensuring comfortable conditions for creative work and everyday productivity.

IPS technology ensures more accurate color representation and stable image when viewed from the side. Compared to TN and VA, it changes brightness and contrast less with viewing angle, making the displayed data visually more reliable and technically more accurate.

This monitor with a 60 Hz refresh rate ensures proper motion portrayal and minimal flickering, which is essential for prolonged use. Such a refresh speed is suitable for most domestic and professional scenarios, guaranteeing smooth frame renewal and comfortable image perception even over extended use periods.

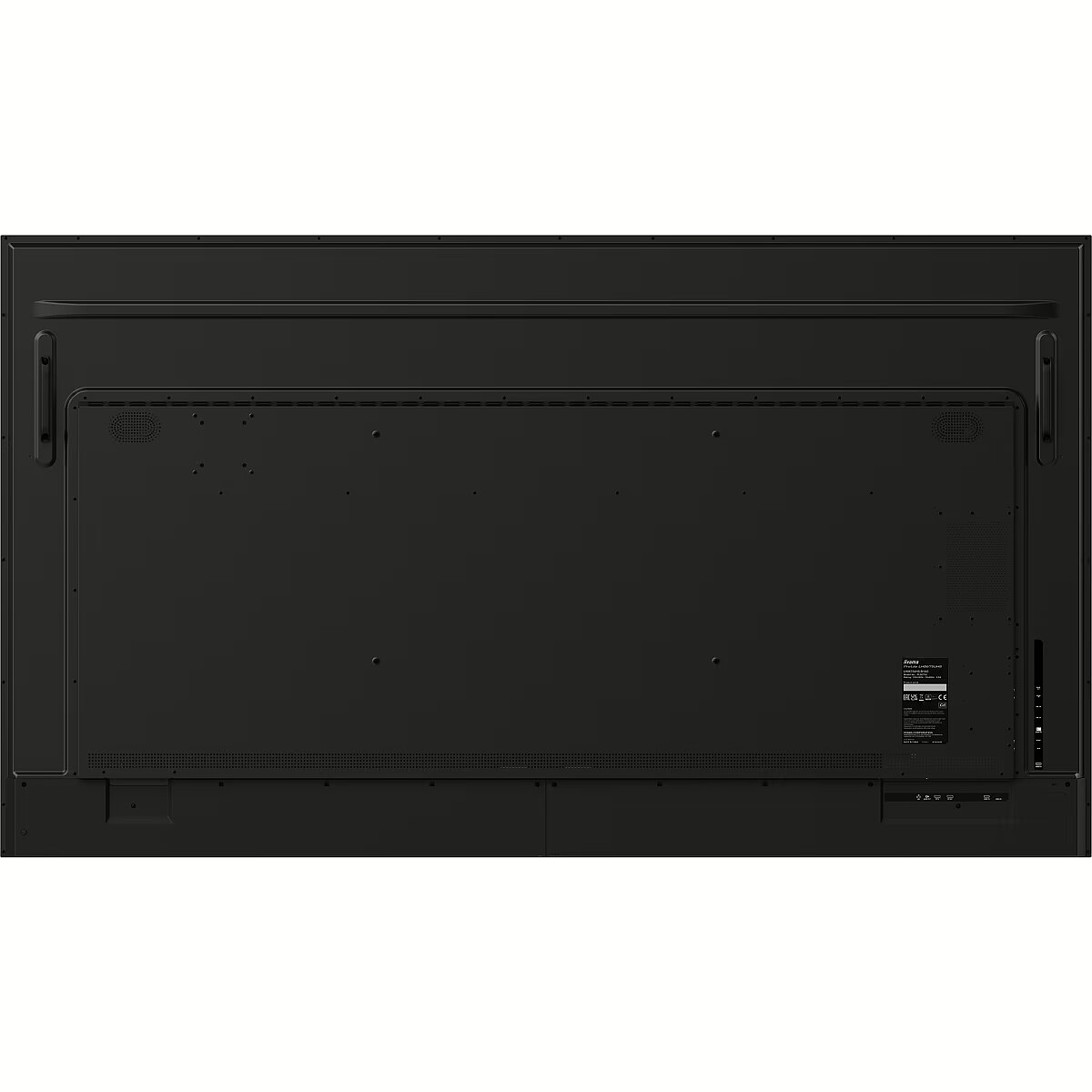

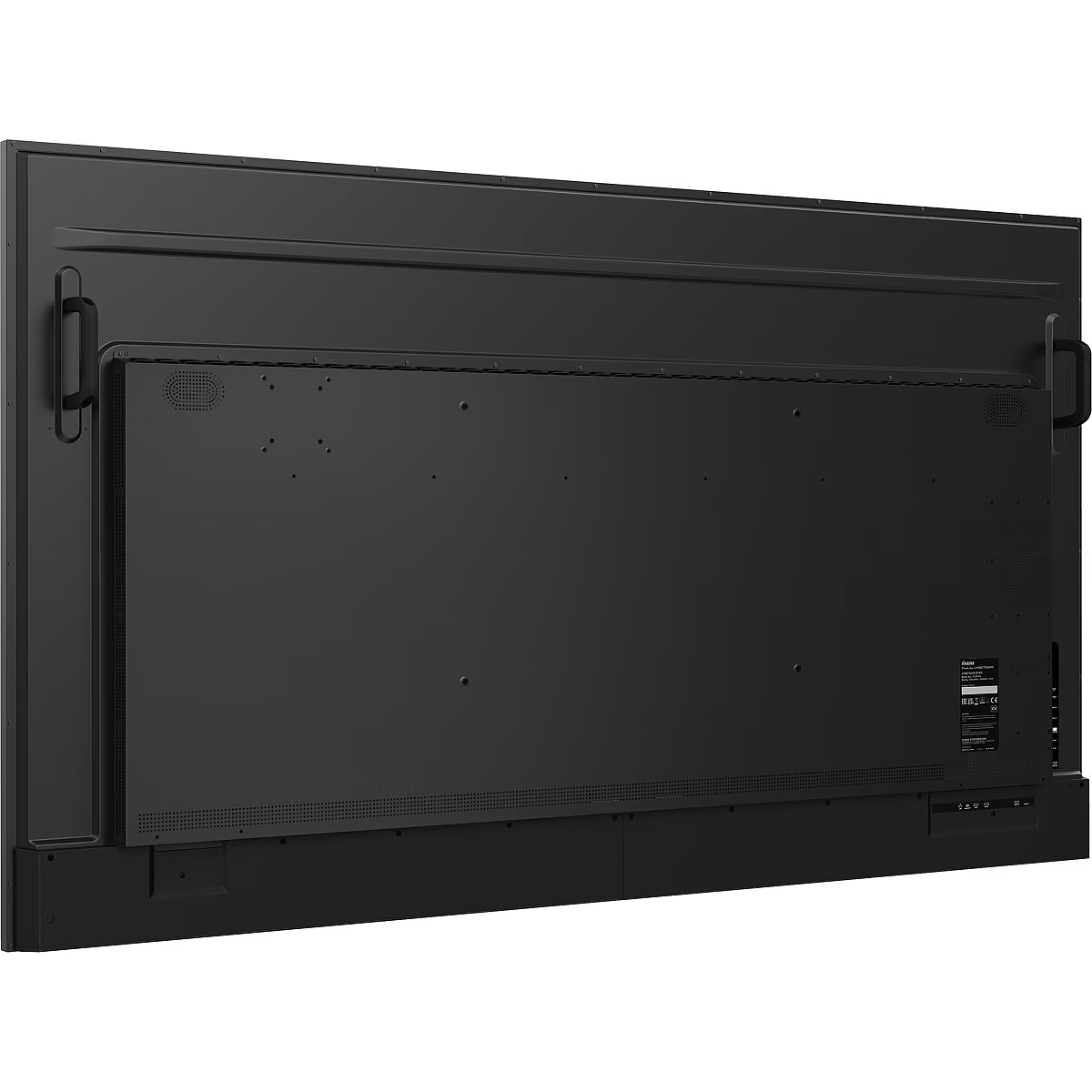

VESA wall mount provides a standardized mounting hole layout, allowing you to safely attach the monitor to the wall using compatible brackets. This type of installation frees up desk space, reduces vibrations from the table, and ensures a stable screen position for prolonged work.

The built-in speakers provide direct sound playback, eliminating the need for external audio devices. This simplifies the setup of the work system and saves space. The speakers are suitable for everyday needs, including online meetings, training, and video viewing, providing adequate sound level.

HDMI provides video and audio transmission with a single cable, which enhances connection stability and reduces the risk of interference. The interface reduces the number of connections and maintains the integrity of the digital signal. HDMI supports modern formats and ensures reliable operation with a wide range of devices.

DisplayPort is a modern image transmission standard that ensures stable playback with high resolution and refresh intensity. The interface supports HDR and multiple monitor configurations, transmits details without quality loss and provides accurate graphics display on professional and gaming monitors.

Warranty

Iiyama provides this model with a 2 year warranty at all certified service centres.
*When purchasing a monitor on the legal entity's details - manufacturer's warranty 1 year.

All parameters
Model : LH8665UHSB-B1
Display characteristics
AMD FreeSync : Nav
Curved : Nav
NVIDIA G-SYNC : Nav
Panel Type IPS

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 60 Hz
Touchscreen : NO
VESA DisplayHDR : Nav
Response time 8ms
The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.
Contrast ratio 1200:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 800cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information
Application : Creative
Aspect ratio : 16:9
Color : Black
Size 86"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution 4K UHD 3840x2160

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality
Flicker-free : Nav norādīts
Height adjustment : Nav
Pivot : Nav
Swivel : None
Tilt : NO
VESA wall mount : 600x400 mm
Ports and equipment
D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 1

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES
USB-C Power Delivery : Nav
USB-C video input : 0
More detailed specification
Additional information in manufacturers website Iiyama ProLite LH8665UHSB-B1, 86"
ARTIKEL1 - LH8665UHSB-B1 86IN LCD UHD
ARTIKEL2 - 86 3840X2160 UHD IPS PANEL HAZE
Audio - Built-in speaker(s) - Yes
Audio - Number of built-in speakers - 2
Audio - RMS rated power - 20 W
Brand - iiyama
BrandPartCode - LH8665UHSB-B1
Category - Signage Displays
Computer system - Built-in processor - Yes
Computer system - Computer system - Yes
Computer system - Internal memory - 4 GB
Computer system - Internal storage capacity - 32 GB
Computer system - On-board graphics card model - ARM Mali-G52
Computer system - Operating system installed - Android 11
Computer system - Processor architecture - ARM Cortex-A73
Computer system - Processor cores - 8
Computer system - Processor family - ARM Cortex
Computer system - Processor manufacturer - ARM
Design - Bezel colour - Black
Design - Bezel width (bottom) - 1.62 cm
Design - Bezel width (side) - 1.6 cm
Design - Bezel width (top) - 1.62 cm

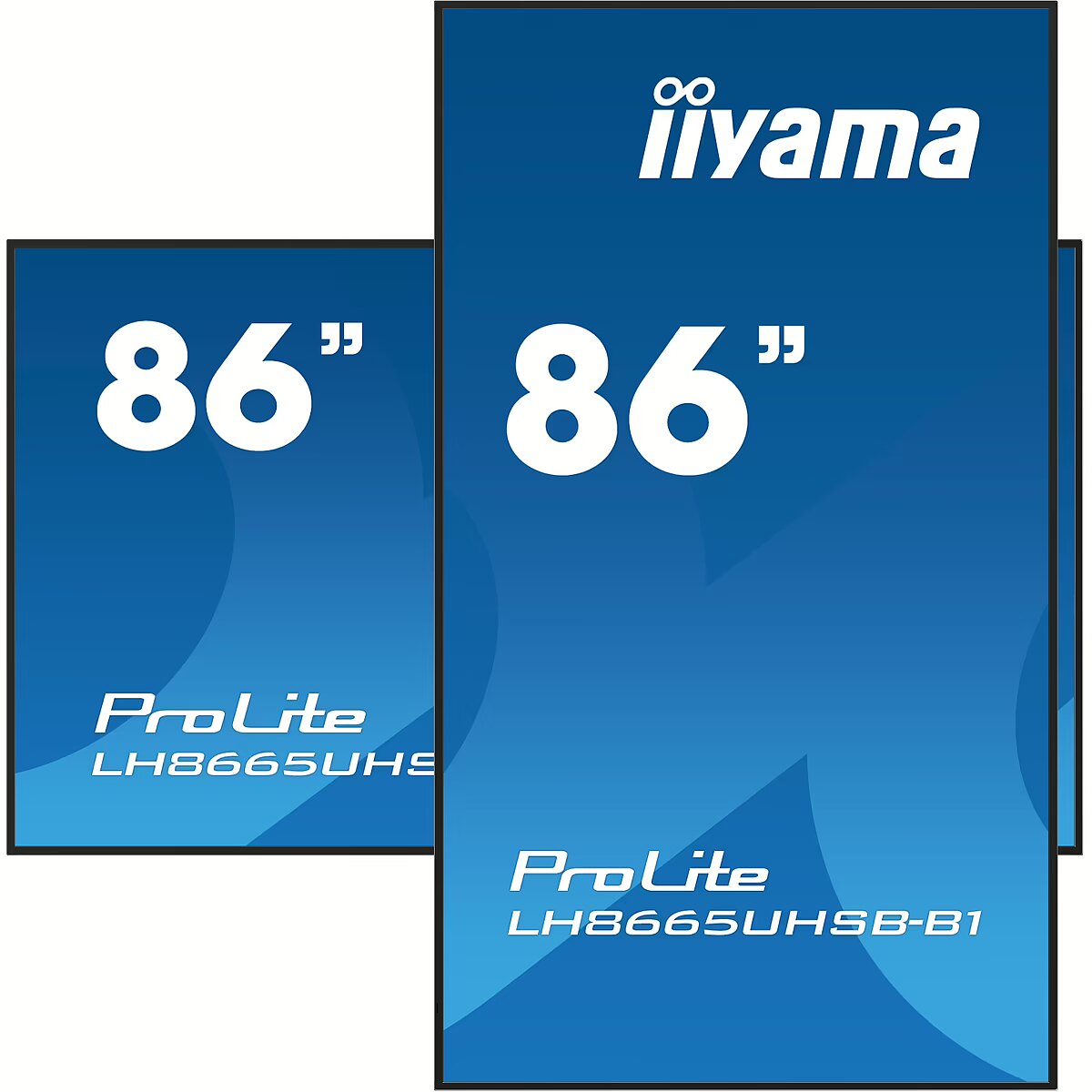

Design - Orientation - Horizontal/Vertical

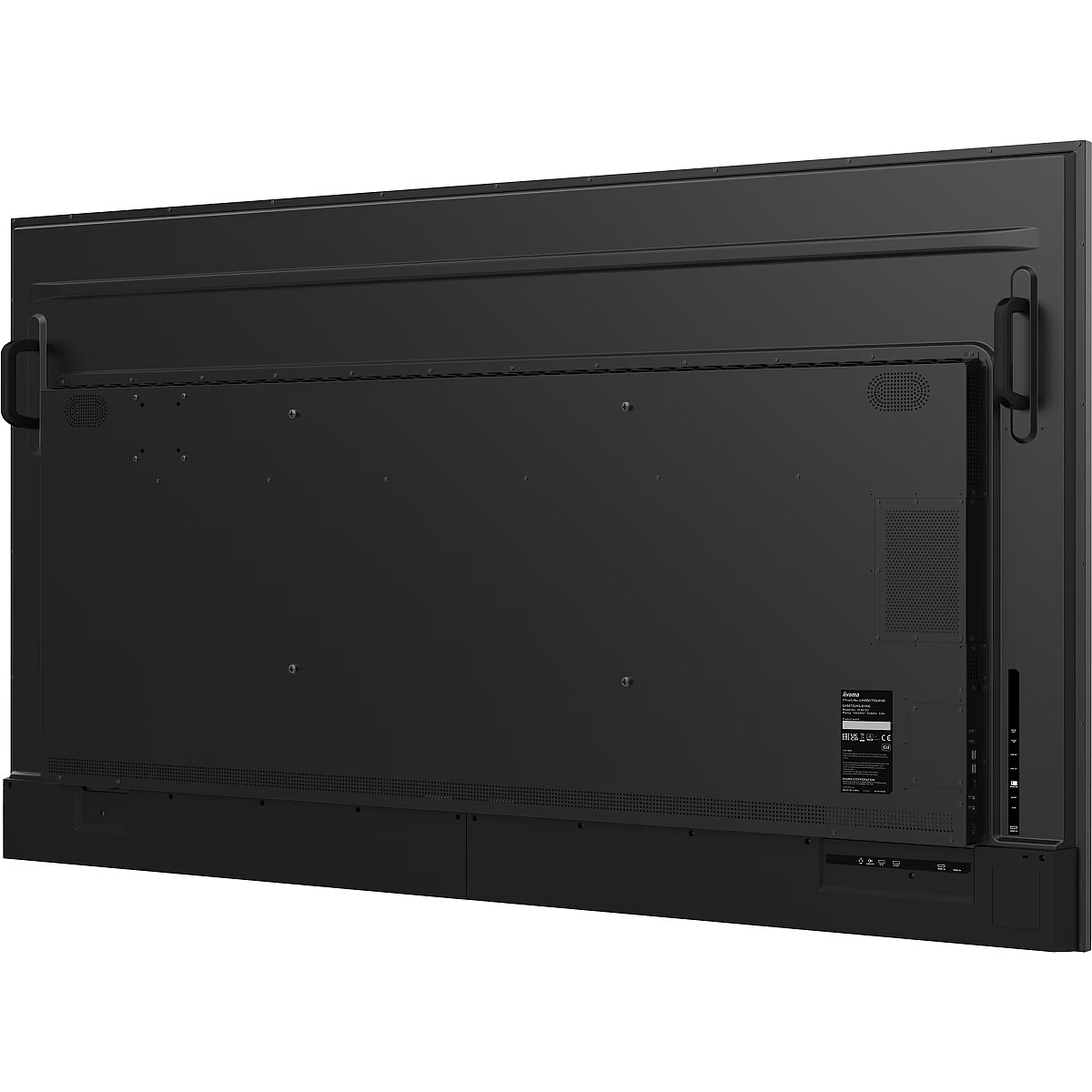

Design - Panel mounting interface - 600 x 400 mm
Design - Product colour - Black
Design - Product design - Kiosk design
Design - VESA mounting - Yes
Display - Active display area (W x H) - 1895 x 1066 mm
Display - Contrast ratio (typical) - 1200:1
Display - Display brightness - 800 cd/m²
Display - Display diagonal - 2.18 m (86")
Display - Display diagonal (metric) - 217 cm
Display - Display number of colours - 1.07 billion colours
Display - Display resolution - 3840 x 2160 pixels
Display - Display technology - LED
Display - Haze rate - 1%
Display - HD type - 4K Ultra HD
Display - Horizontal scan range - 28 - 160 kHz
Display - Native aspect ratio - 16:9
Display - Native refresh rate - 60 Hz
Display - Panel type - IPS
Display - Pixel pitch - 0.315 x 0.315 mm
Display - Response time - 8 ms
Display - RGB colour space - NTSC
Display - Touchscreen - No
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
EANCode - 4948570123605
GRUPPE1 - Displays
GRUPPE2 - Lcd Monitor
GTIN - 4948570123605
HERSTELLER - IIYAMA CONSIGNMENT
Hoehe - 0
HSTNUMMER - LH8665UHSB-B1
LongDesc - Create dynamic, show stopping content, designed to entice and captivate your audience. The LH8665UHSB vivid-bright display, boasting 800cd/m², can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android 11 OS means you can easily customize the display to your needs and smoothly run third party applications, including multiple CMS platforms. The on-board iiSignage² (Content Management System) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs for mission critical environments. The built-in (and removable) WiFi module means this series is ready for remote content delivery using your network. With iiControl (DMS), iiShare and the integrated EShare app (wireless screen sharing) you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
LongProductName - 86" Vivid-Bright Display with 4K resolution and 800cd/m² panels for illuminating communication
LongSummaryDescription - iiyama LH8665UHSB-B1. Product design: Kiosk design. Display diagonal: 2.18 m (86"), Display technology: LED, Display resolution: 3840 x 2160 pixels, Display brightness: 800 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android 11. Product colour: Black
Network - Ethernet LAN - Yes
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 5 (802.11ac)
Operational conditions - Operating relative humidity (H-H) - -20 - 60%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - Power supply type - Internal
Other features - Quick start guide - Yes

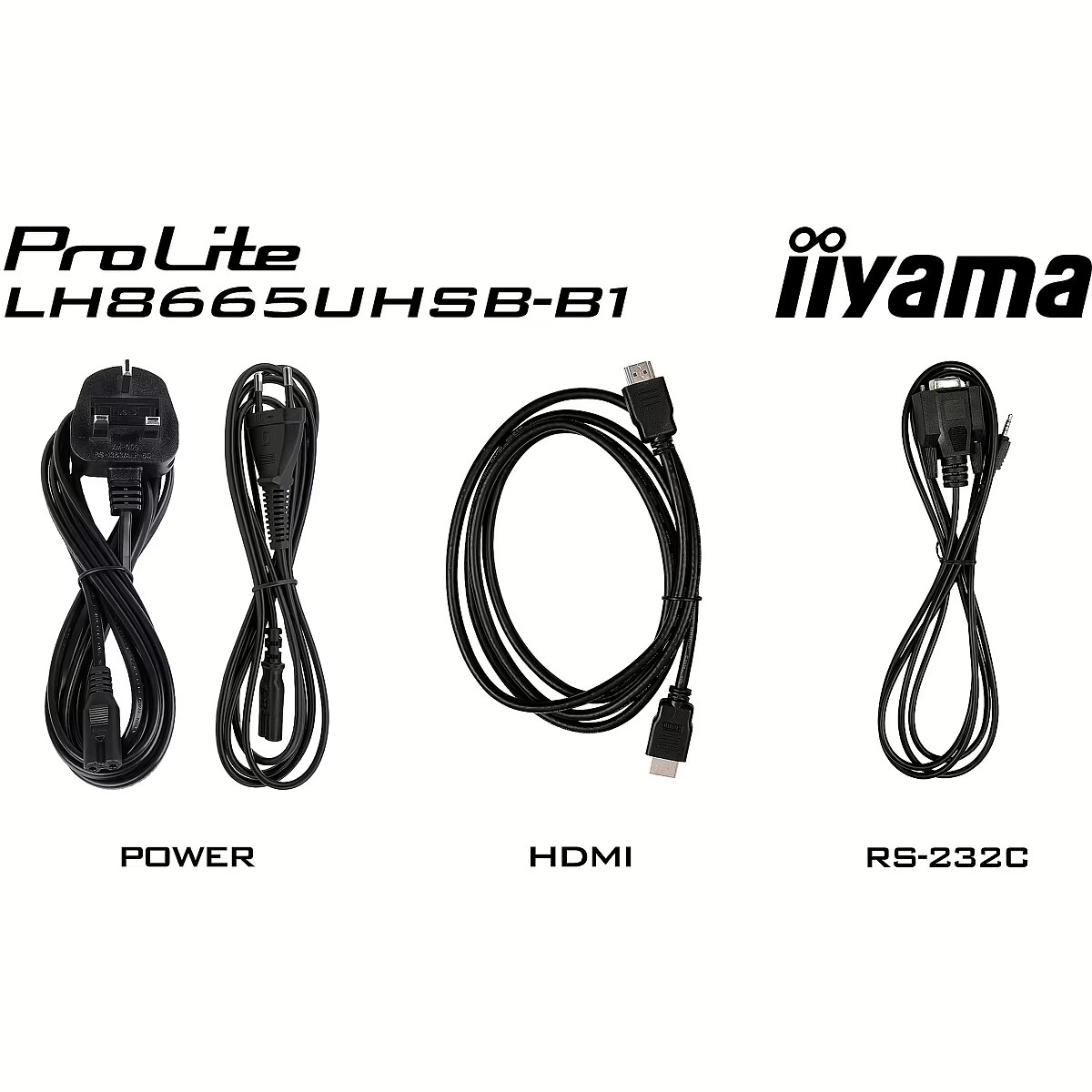

Packaging content - Cables included - HDMI, Power, RS-232
Packaging content - Remote control included - Yes
Packaging data - Package depth - 2123 mm
Packaging data - Package height - 1247 mm
Packaging data - Package weight - 64 kg
Packaging data - Package width - 2123 mm
Performance - HDCP - Yes
Performance - HDCP version - 2.2
Performance - Mean time between failures (MTBF) - 50000 h
Performance - Number of OSD languages - 8
Performance - On Screen Display (OSD) languages - Simplified Chinese, Czech, German, English, Spanish, French, Italian, Japanese, Polish, Russian
Performance - Operating hours (hours/days) - 24/7
Performance - Purpose - Commercial

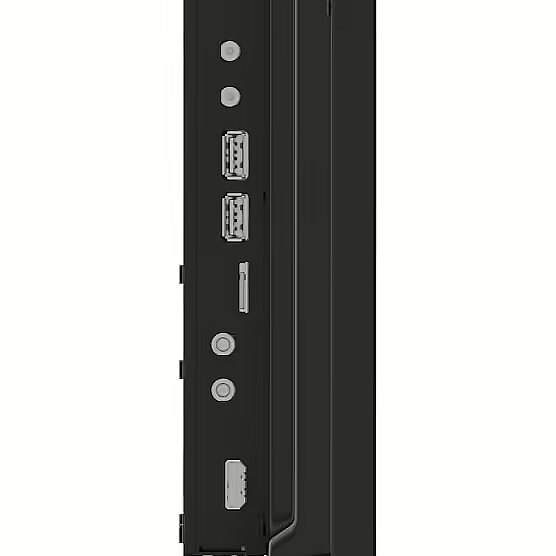

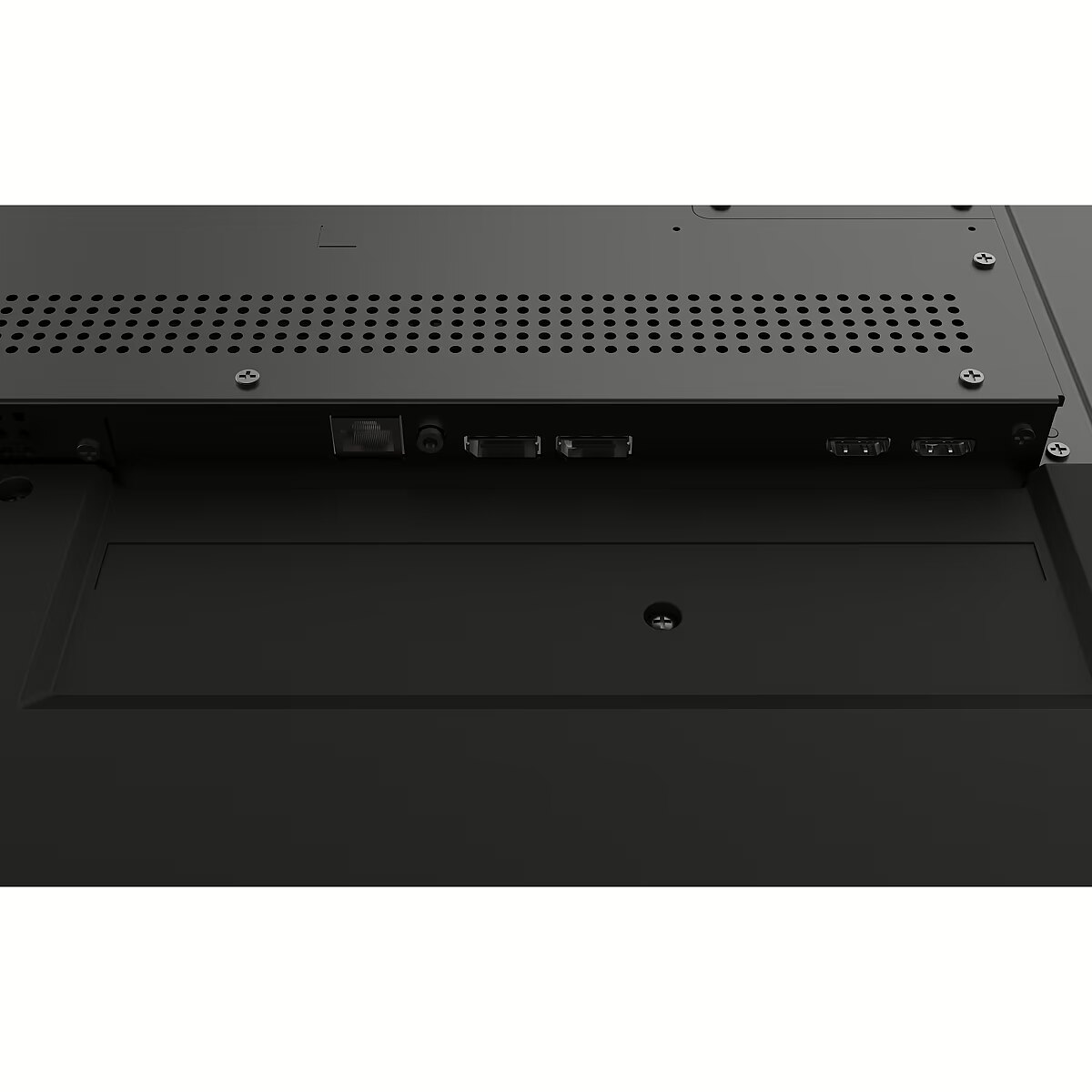

Ports & interfaces - Audio (L/R) in - 1
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - DisplayPort version - 1.2
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - HDMI version - 2.0
Ports & interfaces - RS-232 interface - Yes
Ports & interfaces - RS-232C - Yes
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (SDR) per 1000 hours - 159 kWh
Power - Energy efficiency class (HDR) - Not available
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.4 W
Power - Power consumption (typical) - 159 W
ProductName - LH8665UHSB-B1
ShortSummaryDescription - iiyama LH8665UHSB-B1, Kiosk design, 2.18 m (86"), LED, 3840 x 2160 pixels, Wi-Fi, 24/7
Stck_Kart - 1
Stck_Pal - 0
Storno - Y
Title - iiyama LH8665UHSB-B1 Signage Display Kiosk design 2.18 m (86") LED Wi-Fi 800 cd/m² 4K Ultra HD Black Built-in processor Android 11 24/7
URL - https://iiyama.com/
WarrantyInfo -

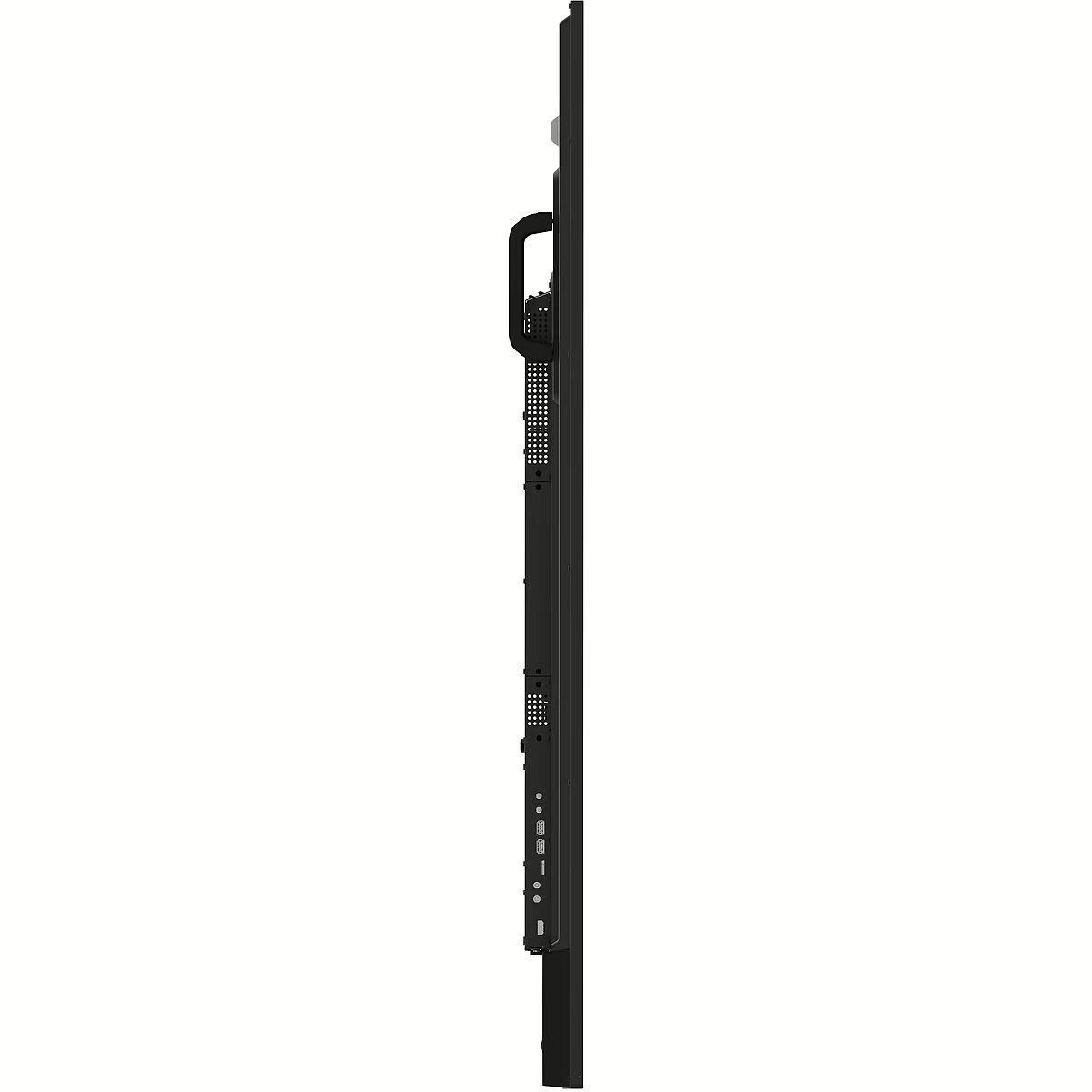

Weight & dimensions - Display depth - 57 mm
Weight & dimensions - Display height - 1098.5 mm
Weight & dimensions - Display weight - 49 kg
Weight & dimensions - Display width - 1927 mm
