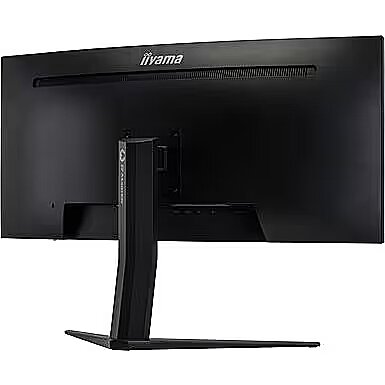

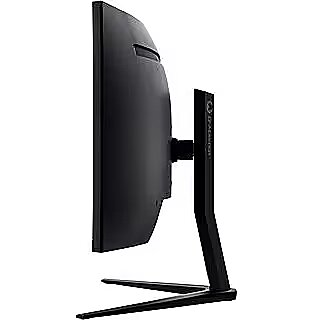

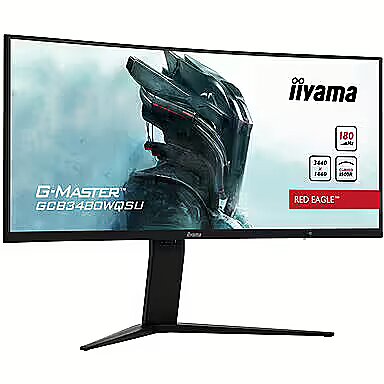

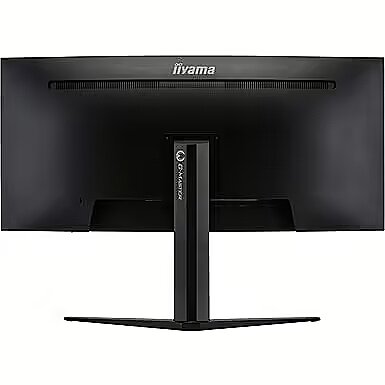

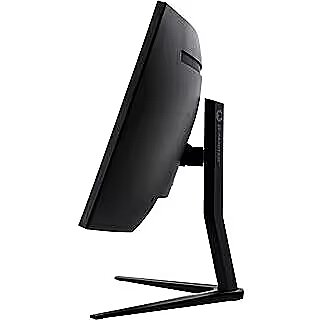

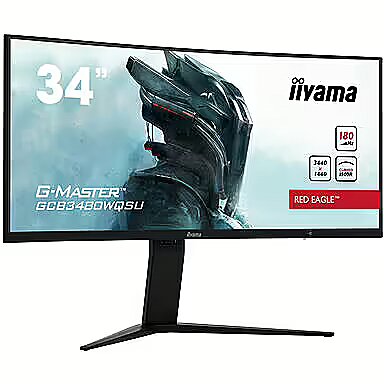

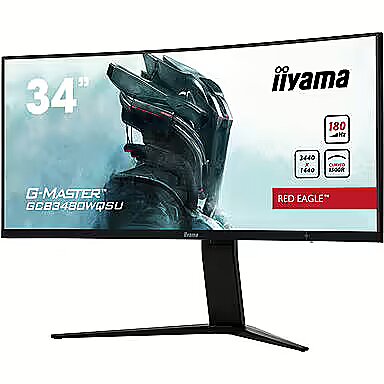

Iiyama GCB3480WQSU-B1, 34"

Name: Iiyama GCB3480WQSU-B1, 34"
Brand: Iiyama
SKU: 1014909
Price: 394.55 EUR
Availability: InStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1014909 Product code: GCB3480WQSU-B1

In stock 2 units

Warranty: 3 years

Compare

Ready for dispatch

tomorrow, 11.09.2025

starting from 5.99 €

Delivery options

Delivery by courier to the address

Within 1-2 working days

5.99 €

Main product parameters All parameters

Curved: Ir
Panel Type: VA
Refresh rate: 180 Hz
Response time: 0.4ms
Contrast ratio: 4000:1
Brightness: 420cd/m2
Size: 34"
Resolution: UWWQHD 3440x1440

Description

We offer to buy Iiyama 34" a monitor with UWWQHD 3440x1440 resolution.

The compatibility with the modern graphics cards and video players will be ensured by HDMI input.
DisplayPort port ensures the receipt of a higher quality picture from the computer graphics card supporting this technology.
VA panel provides high colour compatibility parameters and improved viewing angle to this monitor.
The speakers system built in the monitor allows to listen to music and enjoy films with sound without making it necessary to buy additional speakers.

Display characteristics

AMD FreeSync : Ir

Curved : Ir

NVIDIA G-SYNC : Nav

Panel Type VA

Teh monitor panel is the main feature of the visible part of the screen or the technology where the display of the colour dots (pixels) is implemented.

TN is the standard technology with average contract, brightness and colour compliance indices.

IPS is the matrix with high colour compliance and good response speed, therefore it is well suited for graphics tasks and photo editing. IPS matrix provide an excellent viewing angle maintaining the colours and contrast from almost any angle.

VA matrix ensures superior colour compliance, however, the response time of this matrix is lagging behind that of the IPS and TN; the viewing angle is somewhere between both these technologies.

The TN type monitor is fully sufficient for an average user. If you have more money available the VA or IPS can be chosen.

Refresh rate : 180 Hz

Touchscreen : NO

VESA DisplayHDR : DisplayHDR 400

Response time 0.4ms

The response time of the monitor screen determines how fast the monitor will display moving images (films, games, animations, etc.). The response time is measured in miliseconds. The less the response time the better the ability of the monitor to display moving images.
www.toppc.ee recommends to buy monitors with 5ms response time or lower.

Contrast ratio 4000:1

Ekrāna kontrasts nosaka attēla asumu. Tā ir atšķirība starp vistumšāko (pilnīgi melnu) un visgaišāko (pilnīgi baltu) pikseli. Jo lielāks kontrasts, jo skaidrāk salasāms teksts uz ekrāna, kontrasts arī nosaka, cik izteiksmīgas līnijas būs redzamas monitora attēlā.

Augsts kontrasts ir nozīmīgs faktors izvēloties monitoru biroja, vai mācību vajadzībām, kad lielākoties tiek strādāts ar tekstuālu informāciju.

Mājas vajadzībām svarīgāks izvēles rādītājs ir gaišums un attēla reakcijas laiks. Kontrastu labāk novērtēt tumšā istabā.
Lielākais LCD monitoru trūkums ir tas, ka samazinot attēla spilgtumu, kontrasts var pazust.

Brightness 420cd/m2

Monitora gaišums ir attēla redzamības rādītājs, kas nosaka, cik labi saskatāms ir attēls pie spēcīga ārējā apgaismojuma (saules gaisma, gaiša telpa, utt.). LCD monitoru gaišums tiek mērīts kandelās uz kvadrātmetru (Cd/m2).
Izvēloties monitoru jāņem vērā - jo lielāks gaišuma rādītājs, jo labāka attēla redzamība.

Ikdienas vajadzībām TopPC.ee iesaka iegādāties monitoru ar gaišumu, ne mazāku par 250 cd/m2.

Basic information

Application : Home & Office

Aspect ratio : 21:9

Color : Black

Size 34"

The size of the monitor screen is measured in inches across the diagonal. The screen size must be proportionate to the resolution of the screen for achieving the maximum utilisation of the desktop and details of the image.

Mainly two forms of LCD monitors are available: with standard width and height proportion 4:3 or the widescreen proportion 16:9 or 16:10. A widescreen monitor is wider and its resolution is higher than that of the monitors with standard proportion.

The bigger the monitor size the higher resolution usually is supported. Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.

Resolution UWWQHD 3440x1440

The resolution of the monitor screen determines the number of colour dots (pixels) a monitor can display. It refers to the clarity of the text and images displayed on the screen. The higher the resolution the sharper the items look.

The applied resolution depends on the resolution supported by the monitor. LCD monitors, including the screens of laptop computers usually work best if their local resolution has been set. The setting of this resolution for the monitor is not mandatory, but usually it is recommended to set it for ensuring the highest possible sharpness of texts and images. The bigger the monitor size the higher resolution usually is supported.

Possibilities to increase the resolution of the screen usually depend on the size and possibilities of the monitor and the type of the video card.
• 19 inches screen (standard proportions): 1280x1024 pixels
• 20 inches screen (standard proportions): 1600x1200 pixels
• 22 inches screen (widescreen): 1680x1050 pixels
• 24 inches screen (widescreen): 1900x1200 pixels

Functionality

Flicker-free : Ir

Height adjustment : Ir

Pivot : Nav

Swivel : None

Tilt : YES

VESA wall mount : 100x100 mm

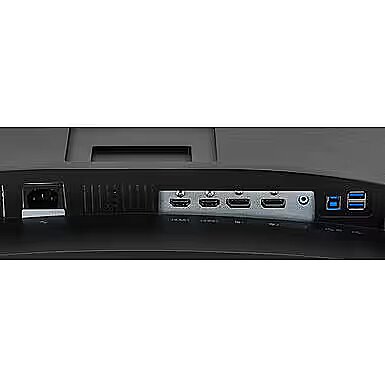

Ports and equipment

D-SUB Nav

D-SUB is the classic (analogous) monitor connection plug. This standard is gradually disappearing from the market giving the place to the higher quality HDMI or DisplayPort (digital) plugs.

If the resolution of the monitor is FullHD or below the average user will experience no problems with this connection. Those who want to achieve higher image quality and resolution should look for the monitor with the DisplayPort or HDMI connection slot.

DisplayPort 2

DisplayPort is the digital connection for transmitting the image via a single wire at a high quality level. Contrary to the HDMI, this connection allows to connect several external monitors to the computer via a single connector.

Prior to buying the monitor with the DisplayPort you should verify whether your computer has the DisplayPort plug available!

DVI Nav

DVI is a digital standard and ensures high image quality, however, thanks to the big size of the plug and the inability of the standard to develop further due to a few technical restrictions this type of connection is gradually losing its popularity to modern HDMI and DisplayPort standards.

DVI is compatible with HDMI and transitions of both directions are available.

DVI is not compatible with DisplayPort, however, there are DualMode DisplayPort connectors which contains the HDMI/DVI signal, and in the relevant direction DisplayPort -> DVI can transmit an image.

If the monitor resolution exceeds 1920px in any direction a graphics card with the DVI-D Dual Link support and the relevant quality cable will be required.

Before buying a monitor you should verify whether your graphics card has the corresponding connection slot!

HDMI port 2

HDMI is the digital high quality image transmission standard that allows to connect the monitor to the computer via a thin cable by using an elegant small-size connector. HDMI is compatible with DVI if the relevant transition or cable is used.

Speakers Ir

Some monitors may have built-in speakers that quite often allow to give up external speakers thus freeing a space on the desk and saving money. The sound quality of built-in speakers is quite moderate and therefore we recommend to use this possibility just for infrequent needs.

For enjoying music, movies and games we recommend buying the corresponding quality and capacity speakers.

USB Hub : YES

USB-C Power Delivery : Nav

USB-C video input : 0

More detailed specification

100 mm x 100 mm VESA mounting interface - Yes
ACinputfrequency - 50/60 Hz
ACinputvoltage - 100 - 240 V
Adjustableheightmax - 11 cm
AMDFreeSync - Yes
Antiglarescreen -
Aspectratio -
Audioinput -
Audiooutput -
Backlighttype -
Brand - iiyama
BrandPartCode - GCB3480WQSU-B1
Brightness - 420
Builtincamera - No
BuiltinKVMswitch -
Builtinmicrophone -
Builtinspeakers - Yes
BuiltinUSBhub - Yes
Bundledsoftware -
Cablelockslot - Yes
Cablesincluded - AC, DisplayPort, HDMI, USB
Category - Computer Monitors
Category Code - LC3
Category_1 - Monitors and TV
Category_2 - LED Monitors 31 inches and up
Colour - Black
Colourdepth -
Colourgamut -
Colourgamutstandard -
Contrast - 4000:1
Contrastratiodynamic -
Contrastratiotypical - 4000:1
Data Sheet (Link) Energy Efficiency - https://eprel.ec.europa.eu/api/product/1654168/fiches?language=EN
Depth Product Dimensions - 256 mm
Depthwithoutstand -
Depthwithstand - 256 mm
Description - G-MASTER GCB3480WQSU-B1 Immerse yourself in the game with the curved GCB3480WQSU Red Eagle featuring a game changing 180Hz refresh rate. The 1500R curved VA panel with 180Hz refresh rate, 0.4ms MPRT and 3440x1440 resolution gives you an immersive viewing experience and guarantees superb image quality. The height adjustable stand ensures you can easily adjust the screen position and intuitive customizable screen settings (predefined or custom) along with the Black Tuner function gives you control over the dark scenes to make sure details are always clearly visible. The HDMI, DisplayPort, USB hub and a headphone connector ensure compatibility across various devices and media platforms and the PbP (picture-by-picture) function allows for simultaneous display of content from up to four different signal inputs.
Design -
Design - Market positioning - Office
Design - Product colour - Black
Detachablestand -
Display -
Display - Contrast ratio (typical) - 4000:1
Display - Display brightness (typical) - 420 cd/m²
Display - Display diagonal - 86.4 cm (34")
Display - Display diagonal (metric) - 86.4 cm
Display - Display resolution - 3440 x 1440 pixels
Display - Display technology - LCD
Display - HD type - UltraWide Quad HD
Display - High Dynamic Range (HDR) supported - Yes
Display - High Dynamic Range (HDR) technology - High Dynamic Range (HDR) 400
Display - Horizontal scan range - 48 - 180 kHz
Display - Maximum refresh rate - 180 Hz
Display - Native aspect ratio - 21:9
Display - Panel type - VA
Display - Pixel pitch - 0.232 x 0.232 mm
Display - Response time - 0.4 ms

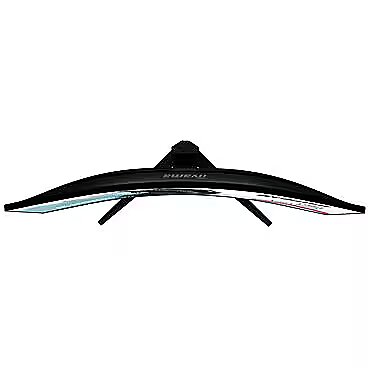

Display - Screen curvature rating - 1500R
Display - Screen shape - Curved
Display - Touchscreen - No
Display - Viewable size, horizontal - 79.7 cm
Display - Viewable size, vertical - 33.4 cm
Display - Viewing angle, horizontal - 178°
Display - Viewing angle, vertical - 178°
Displaybezeltechnology -
Displaybrightnesstypical - 420 cd/m²
Displaydiagonal - 86.4 cm (34")
Displaydiagonalmetric - 86.4 cm
Displaynumberofcolours -
DisplayPort Input/Output connectors - 2
DisplayPortoutquantity -
DisplayPortoutversion -
DisplayPortsquantity - 2
DisplayPortversion -
Displayresolution - 3440 x 1440 pixels
Displaysurface -
Display surface - Matte
Displaytechnology - LCD
EAN_code - 4948570122257
EnergyconsumptionSDRper1000hou - 26 kWh
Energy efficiency class Energy Efficiency - E
EnergyefficiencyclassHDR -
EnergyefficiencyclassSDR - E
Energyefficiencyscale - A to G
EPREL Registration Number Energy Efficiency - 1654168
EPREL Version Number Energy Efficiency - 1
Ergonomics -
Ergonomics - Adjustable height (max) - 11 cm
Ergonomics - Cable lock slot - Yes
Ergonomics - Cable lock slot type - Kensington
Ergonomics - Height adjustment - Yes
Ergonomics - Number of OSD languages - 10
Ergonomics - On Screen Display (OSD) - Yes
Ergonomics - On Screen Display (OSD) languages - Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
Ergonomics - Panel mounting interface - 100 x 100 mm
Ergonomics - Picture-in-Picture - Yes
Ergonomics - Tilt angle range - 20 - 5°
Ergonomics - VESA mounting - Yes
EthernetLAN -
Fastcharging -
Feetcolour -
Flickerfreetechnology - Yes
GTIN - 4948570122257
Hazerate -
HDCP - Yes
HDMI - Yes
HDMI Input/Output connectors - 2
HDMIportsquantity - 2
HDMIversion -
HDtype - UltraWide Quad HD
Headphoneconnectivity -
Headphoneout - Yes
Headphoneoutputs -
Headphones jack Input/Output connectors - 1
Height adjustable Stand - Yes
Heightadjustment - Yes
Height Product Dimensions - 551.5 mm
Heightwithoutstand -
Heightwithstand - 551.5 mm
HighLights -
Horizontalscanrange - 48 - 180 kHz
InfraredIRsensor -
Kensington lock support - Yes
LEDbacklight -
LongDesc -
LongSummaryDescription - iiyama G-MASTER GCB3480WQSU-B1. Display diagonal: 86.4 cm (34"), Display resolution: 3440 x 1440 pixels, HD type: UltraWide Quad HD, Display technology: LCD, Response time: 0.4 ms, Native aspect ratio: 21:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
LowBlueLighttechnology - Yes
Manufacturer - Iiyama
Manufacturer_code - GCB3480WQSU-B1
ManufDatasheet - https://www.tdbaltic.ee/leaflets/IIYAMA/GCB3480WQSU-B1.pdf
Marketpositioning - Office
Maximumrefreshrate - 180 Hz
Megapixelapprox -
Monitor features - 21 : 9/Curved/Gaming
Multimedia -
Multimedia - Built-in camera - No
Multimedia - Built-in speaker(s) - Yes
Multimedia - Number of speakers - 2
Multimedia - RMS rated power - 6 W
Name - iiyama G-Master GCB3480WQSU-B1, gaming monitor - 34 - black, UWQHD, HDMI, DisplayPort, USB, Free-Sync, 180 Hz, HDR, curved, 180Hz panel
Nativeaspectratio - 21:9
Native resolution - 3440x1440
Network -
Numberofspeakers - 2
NumberofUSBTypeBupstreamportsq -
NVIDIAGSYNC -
OnScreenDisplayOSD - Yes
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Operationalconditions -
Other features - Certification - CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
Packagedepth - 237 mm
Packageheight - 502 mm
Packagetype -
Packageweight - 10.6 kg
Packagewidth - 899 mm
Packagingcontent -
Packaging content - Cables included - AC, DisplayPort, HDMI, USB
Packaging content - Quick start guide - Yes
Packagingdata -
Packaging data - Package depth - 237 mm
Packaging data - Package height - 502 mm
Packaging data - Package weight - 10.6 kg
Packaging data - Package width - 899 mm
Panelmountinginterface - 100 x 100 mm
Panel type - VA
Paneltype - VA
Performance -
Performance - AMD FreeSync - Yes
Performance - AMD FreeSync refresh rate range - 48 - 180 Hz
Performance - AMD FreeSync type - FreeSync
Performance - Flicker-free technology - Yes
Performance - Low Blue Light technology - Yes
Pivot -
Pivotangle -
Pixeldensity -
Pixelpitch - 0.232 x 0.232 mm
Pixel size - 0.232 mm
Ports & interfaces - Built-in USB hub - Yes
Ports & interfaces - DisplayPorts quantity - 2
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDMI - Yes
Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone out - Yes
Ports & interfaces - USB hub version - 3.2 Gen 1 (3.1 Gen 1)
Portsinterfaces -
Power -
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Energy consumption (HDR) per 1000 hours - 57 kWh
Power - Energy consumption (SDR) per 1000 hours - 26 kWh
Power - Energy efficiency class (SDR) - E
Power - Energy efficiency scale - A to G
Power - European Product Registry for Energy Labelling (EPREL) code - 1654168
Power - Power consumption (off) - 0.3 W
Power - Power consumption (standby) - 0.5 W
Power - Power consumption (typical) - 51 W
Powerconsumptionmax -
Powerconsumptionoff - 0.3 W
Powerconsumptionstandby - 0.5 W
Powerconsumptiontypical - 51 W
Powersupplytype -
ProdDesc - 34" Curved R1500, 3440x1440, 2H2DP, USB,HAS
Productcolour - Black
Productcondition - Original
ProductHighLights -

86.4 cm (34") LCD VA
UltraWide Quad HD 3440 x 1440 pixels 21:9
180 Hz 0.4 ms 420 cd/m² 4000:1
AMD FreeSync Flicker-free technology
E 26 kWh 51 W

ProductName - GCB3480WQSU-B1
Product Net Weight - 7.6 kg
ProductPicture - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_6.jpg
ProductPicture6 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_7.jpg
ProductPicture7 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_8.jpg
ProductPicture8 - https://www.tdbaltic.ee/images/products/IIYAMA/GCB3480WQSU-B1_9.jpg
Quickstartguide - Yes
Refresh rate - 180Hz
Remotelyoperated -
Response time - 0.4 ms
Responsetime - 0.4 ms
Responsetimefast -
Responsetimemeasurementtype -
RMSratedpower - 6 W
Screen form factor - 21:9
Screen LED backlight - Yes
Screenshape - Curved
Screen size - 34"
ShortSummaryDescription - iiyama G-MASTER GCB3480WQSU-B1, 86.4 cm (34"), 3440 x 1440 pixels, UltraWide Quad HD, LCD, 0.4 ms, Black
Speakers - Yes
SRGBcoveragetypical -
Standby consumption - 0.4 Watts
StoragerelativehumidityHH -
Supportedgraphicsresolutions -
Surfacehardness -
Swivelanglerange -
Swivelling -
Tiltadjustment -
Tiltanglerange - 20 - 5°
Tilt Stand - Yes
Title - iiyama G-MASTER GCB3480WQSU-B1 computer monitor 86.4 cm (34") 3440 x 1440 pixels UltraWide Quad HD LCD Black
Touchscreen - No
Unit Box Height - 0.5
Unit Box Length - 0.89
Unit Box Width - 0.24
Unit Calculated Volume - 0.1068 cubm
Unit Calculated Weight - 10.9 kg
USB 3.2 Input/Output connectors - 2
USBhubversion - 3.2 Gen 1 (3.1 Gen 1)
USBPowerDeliveryUSBPD -
USBTypeAdownstreamportsquantit -
USBTypeCDisplayPortAlternateMo -
Vendor Homepage - iiyama.com/gl_en/products/g-master-gcb3480wqsu-b1/
Verticalscanrange -
VESAmounting - Yes
Viewablesizediagonal -
Viewablesizehorizontal - 79.7 cm
Viewablesizevertical - 33.4 cm
Viewing angle horizontal - 178 degrees
Viewinganglehorizontal - 178°
Viewing angle vertical - 178 degrees
Viewinganglevertical - 178°
Warranty - 36 months
Warrantyandmisc -
Weight - 10,60
Weight & dimensions - Depth (with stand) - 256 mm
Weight & dimensions - Height (with stand) - 551.5 mm
Weight & dimensions - Weight (with stand) - 7.6 kg
Weight & dimensions - Width (with stand) - 808 mm
Weightdimensions -
Weightwithoutstand -
Weightwithstand - 7.6 kg
Width Product Dimensions - 808 mm
Widthwithoutstand -
Widthwithstand - 808 mm
