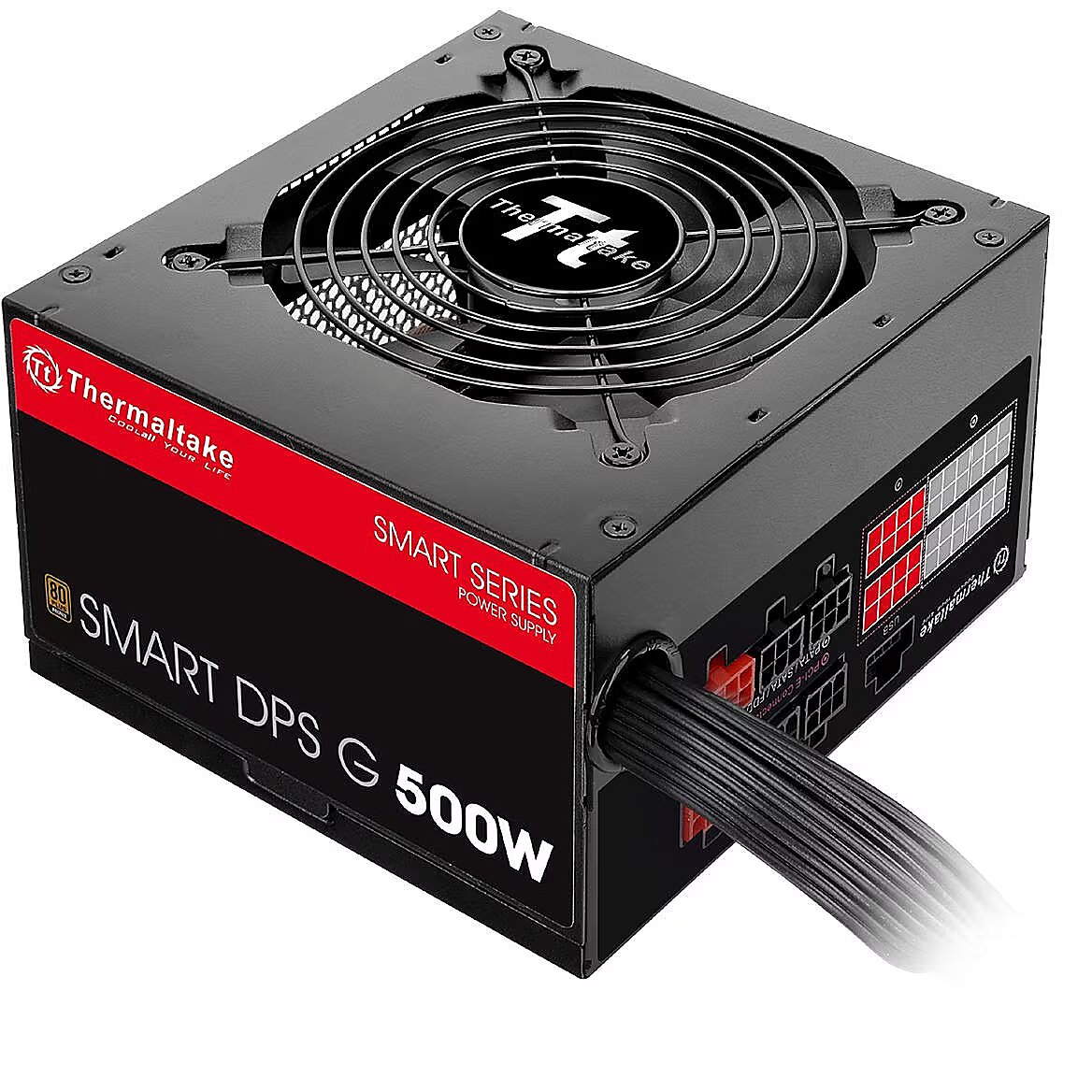

Thermaltake Smart DPS G, 500W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 844133 Product code: PS-SPG-0500DPCBEU-B
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Thermaltake
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Semi-Modular
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Similar Products
This product Thermaltake Smart DPS G, 500W, 80PLUS Bronze
Seasonic Prime Fanless PX, 500W, 80PLUS Platinum
Recommended XPG PROBE, 700W, 80PLUS Bronze
Recommended XPG PROBE, 600W, 80PLUS Bronze
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.
79.92 €
176.31 €
56.75 €
45.59 €
52.59 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Nav Nav
Cybenetics Noise level certification Nav Nav Nav Nav Nav
Power supply type ATX ATX ATX ATX ATX
Power output 500W 500W 700W 600W 650W
80 PLUS certification 80 PLUS Bronze 80 PLUS Platinum 80 PLUS Bronze 80 PLUS Bronze 80 PLUS Bronze
Total amperage (+12V) 38A 41A 54A 46A 54A
Fan size 120 mm Fanless 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Semi-Modular Fully-Modular Nav Nav Nav
Ports and equipment
PCI-E 5.0/5.1 Nav Nav Nav Nav 1 x 450W 12V-2X6 (5.1)
Processor plug-in 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 24-pin 20+4pin 20+4pin 20+4pin 24-pin
PCI-E 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin 2 X 6+2pin
SATA cconnectors 6 Eight Core 5 5 6
4pin Molex 3 3 2 2 2
Description

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.

The power supply unit's cables are partially modular. Some cables can be attached or removed as needed, while others are fixed. This unit is intended for those who want a certain level of flexibility but do not want a fully modular system.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 38A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Semi-Modular
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 3
More detailed specification
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
EAN - 4717964403643
EAN_code - 4717964403643
Manufacturer - Thermaltake
Manufacturer_code - PS-SPG-0500DPCBEU-B
MPN - PS-SPG-0500DPCBEU-B
Name - 500W Thermaltake SMART DPS G Digital 80+ Bronze
Name - Thermaltake Smart DPS G Bronze 500W - Modular - 80Plus Bronze
Technical_details - Fan(s): 120mm PFC: active connectors (partially modular): 1x 24-Pin, 1x 4/​8-Pin ATX12V, 2x 6/​8-Pin PCIe, 6x SATA, 3x IDE, 1x Floppy +3.3V: 18A +5V: 16A +12V: 38A -12V: 0.3A +5Vsb: 2.5A average efficiency (115V): >87%, 80 PLUS Bronze certified Form factor: ATX PS/​2 Dimensions (WxHxD): 150x86x140mm Special features: supports "Haswell" C6/​C7 Low-Power States, digital signal processor, USB-interface (Smart DPS G), ErP plumb line 6 Warranty: seven years
Weight - 2,28
