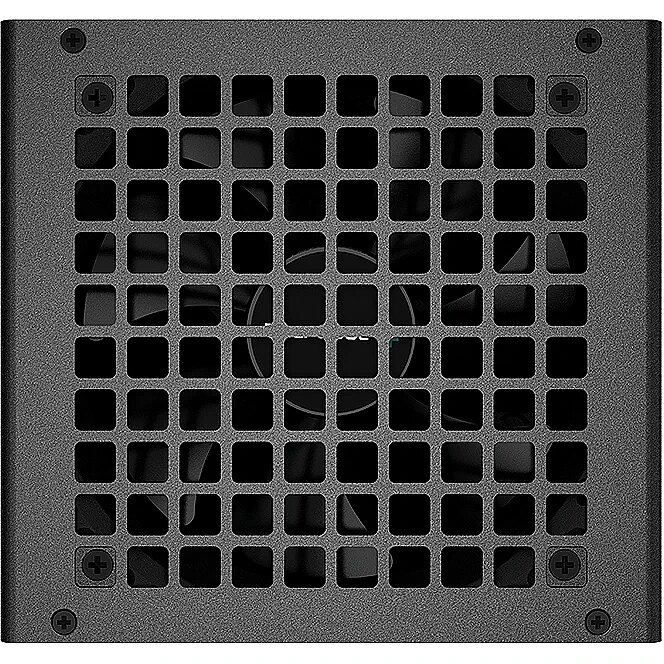

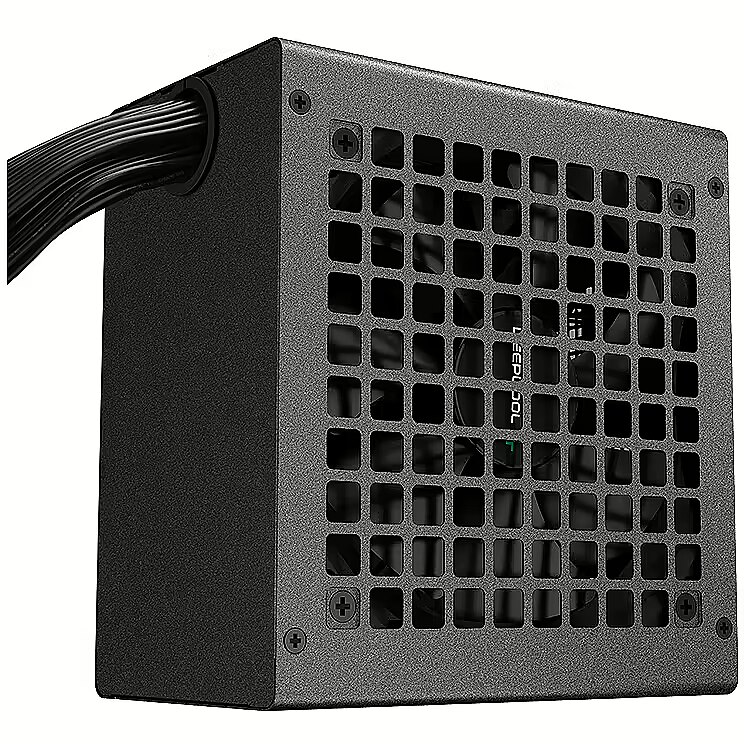

Deepcool PF550, 550W, 80PLUS

Name: Deepcool PF550, 550W, 80PLUS
Brand: Deepcool
SKU: 803863
Price: 56.26 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 803863 Product code: R-PF550D-HA0B-EU

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Producer: Deepcool
Power output: 550W
80 PLUS certification: 80 PLUS (White)
Fan size: 120 mm
Modular cables: Nav
Processor plug-in: 1 x 8-pin(4+4) EPS
PCI-E: 2 X 6+2pin

Similar Products

Basic information
	This product Deepcool PF550, 550W, 80PLUS	Mars Gaming MPB550SI, 550W, 80PLUS Bronze	Cougar Atlas, 750W, 80PLUS Bronze	Cougar Atlas, 650W, 80PLUS Bronze	Cougar STC500, 500W, 80PLUS
Show similar specs. Hide similar specs.	56.26 €	45.44 €	65.01 €	55.69 €	42.06 €
Cybenetics Efficiency certification	Nav	Nav	Nav	Nav	Nav
Cybenetics Noise level certification	Nav	Nav	Nav	Nav	Nav
Power supply type	ATX	ATX	ATX	ATX	ATX
Power output	550W	550W	750W	650W	500W
80 PLUS certification	80 PLUS (White)	80 PLUS Bronze	80 PLUS Bronze	80 PLUS Bronze	80 PLUS (White)
Total amperage (+12V)	44A	45A	62.5A	54.16A	38A
Fan size	120 mm	120 mm	120 mm	120 mm	120 mm
Functionality
Cable colour	Melna	Melna	Melna	Melna	Raiba
Lighting	Nav	Nav	Nav	Nav	Nav
Color	Melna	Melna	Melna	Melna	Melna
Modular cables	Nav	Nav	Nav	Nav	Nav
Ports and equipment
PCI-E 5.0	Nav	Nav	Nav	Nav	Nav
Processor plug-in	1 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	1 x 8-pin(4+4) EPS
Motherboard power	20+4pin	24-pin	20+4pin	20+4pin	20+4pin
PCI-E	2 X 6+2pin	1 X 6+2pin	4 X 6+2pin	2 X 6+2pin	2 X 6+2pin
SATA cconnectors	6	4	Eight Core	6	5
4pin Molex	2	2	3	2	2

Description

We offer to purchase a Deepcool power supply unit with a power capacity of 550W, which has received the 80 PLUS (White) energy efficiency certification.

With 550W power, it will be enough to run Office programs, browse the internet, and play simple computer games. It will be able to run a computer with a budget-level processor, integrated graphics card, small SSD, or HDD disk. If there is a desire to upgrade computer components in the future, it is definitely worth considering a more powerful power supply unit.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

80 PLUS (White) energy efficiency certificate, which this power supply unit has received, guarantees at least 80% efficiency. In other words, for every 100 W of energy the power supply unit gets from the electrical grid, at least 80 W goes to your computer components, while the remaining 20 W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.

The manufacturer of this power supply is Deepcool. View all Deepcool power supplies here.

Basic information

Cybenetics Efficiency certification : Nav

Cybenetics Noise level certification : Nav

Power supply type : ATX

Power output 550W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS (White)

Total amperage (+12V) : 44A

Fan size : 120 mm

Functionality

Cable colour : Melna

Lighting : Nav

Color : Melna

Modular cables : Nav

Ports and equipment

PCI-E 5.0 : Nav

Processor plug-in : 1 x 8-pin(4+4) EPS

Motherboard power : 20+4pin

PCI-E : 2 X 6+2pin

SATA cconnectors : 6

4pin Molex : 2

More detailed specification

Additional information in manufacturers website Deepcool PF550, 550W, 80PLUS

Category - Datortehnika :: Datoru komponentes :: Barošanas bloki (PSU)
Certificates > Certification - 80 PLUS Standard Certified
Code - R-PF550D-HA0B-EU
Desc - Jauda: 550W, Energoefektivitāte: 80 Plus, PFC: Aktīvs, Ventilators: 120mm, SATA pieslēgumi: 6, MOLEX PATA pieslēgumi: 2, PCI-E: 2 x 6 + 2 PIN, Garantija: 2 gadi
Design > Colour of product - Black
EAN - 6933412711322
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_103106_1.png
LargeDescHTML -
Link - https://global.deepcool.com/products/PowerSupplyUnits/powersupplyunits/PF550D-230V-Power-Supply-Unit/2021/15139.shtml?status=authorization
Name - Barošanas bloks Deepcool PF550 550W
Name - Deepcool | PF550 | 550 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260 mm
Package features > Gross height (mm) - 180 mm
Package features > Gross width (mm) - 115 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 161 pc(s)
Package features > Paper/Pasteboard - 862 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.162 kg
Package features > Volume (m3) - 0.005382 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - No
Performance > Form factor - ATX12V V2.4
Ports & interfaces > ATX power connector (20+4 pin) - 1
Ports & interfaces > EPS power connector (8-pin) - 1
Ports & interfaces > Number of SATA power connectors - 2
Ports & interfaces > PCI Express power connectors (6+2 pin) - 1
Power > Nominal power - 550 W
Producer product name - PF550
Technical details > Gross weight - 1.627 kg
Technical details > Net weight - 0.465 kg
Technical details > Other features - 120mm Hypro Bearing Fan; OVP (Over Voltage), SCP (Short Circuit), OPP (Over Power) Protections
Technical details > Producer - Deepcool
Warranty - 36
Warranty - 36 month(s)
