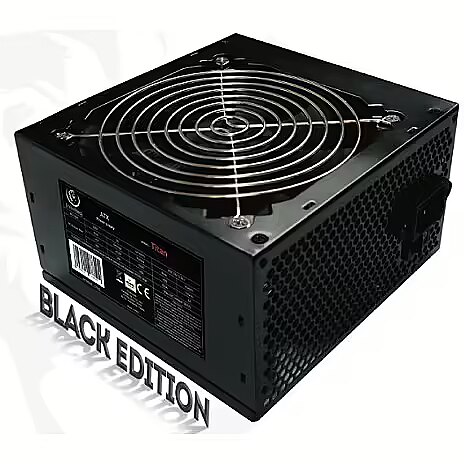

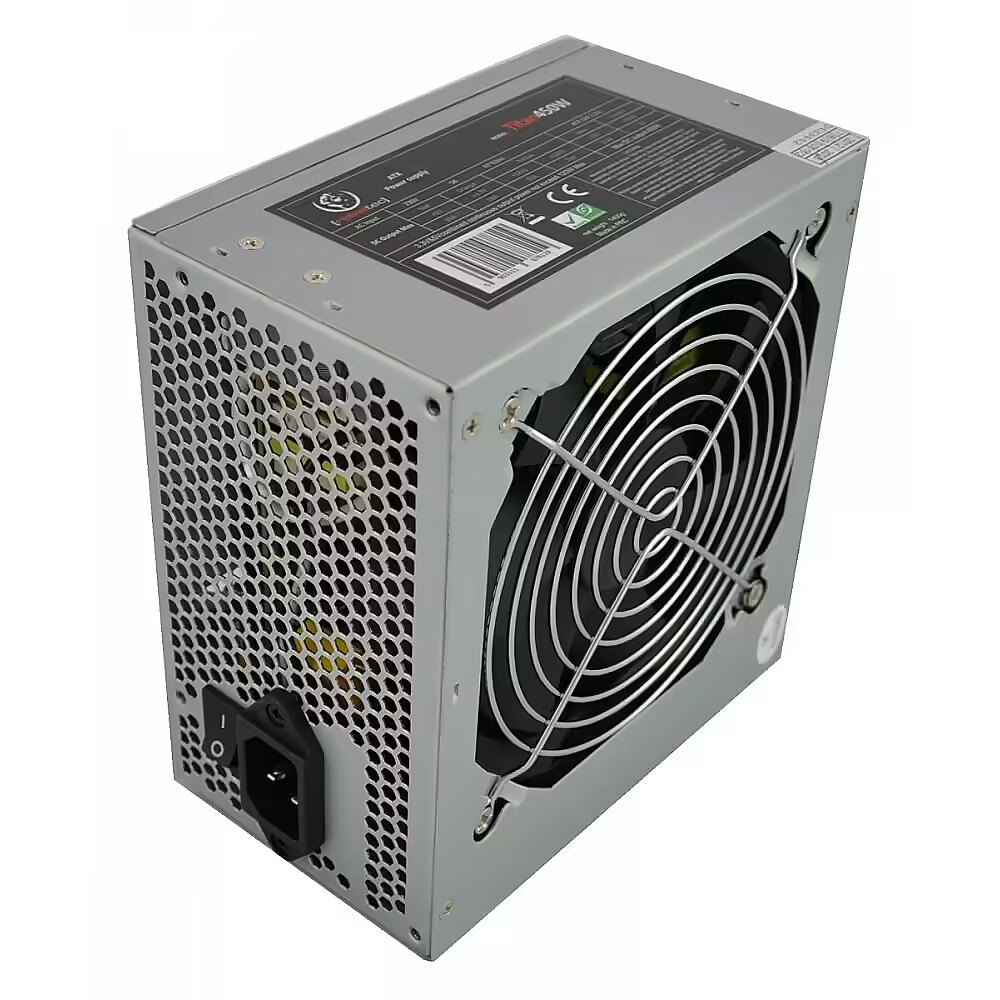

Rebeltec TITAN Series, 500W

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 234611 Product code: RECZAS00004
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Rebeltec
  • Power output: 500W
  • 80 PLUS certification: Nav
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 1 X 6pin
Similar ProductsFull list
This product Rebeltec TITAN Series, 500W
Recommended Cougar STC500, 500W, 80PLUS
Recommended Gigabyte UD750GM, 750W, 80PLUS Gold
Lian Li EDGE 1000W, 80PLUS Platinum, PCIe 5.1, ATX 3.1, Black Sleeved Cables
Recommended Corsair RM1200e (2025), 1200W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.
30.75 €
42.06 €
91.84 €
199.00 €
209.50 €
Basic information
Cybenetics Efficiency certification Nav Nav Cybenetics Platinum Cybenetics Platinum Cybenetics Platinum
Cybenetics Noise level certification Nav Nav Cybenetics Standard ++ Cybenetics A Cybenetics A
Power supply type ATX ATX ATX ATX ATX
Power output 500W 500W 750W 1000W 1200W
80 PLUS certification Nav 80 PLUS (White) 80 PLUS Gold 80 PLUS Platinum 80 PLUS Gold
Total amperage (+12V) 17A 38A 61A 83A 100A
Fan size 120 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Raiba Raiba Melna Melna Melna
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna Melna
Modular cables Nav Nav Fully-Modular Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0 Nav Nav Nav 1 x 12VHPWR 1 x 600W 12V-2X6
Processor plug-in 1 x 8-pin(4+4) EPS 1 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 20+4pin 20+4pin 20+4pin 20+4pin 24-pin
PCI-E 1 X 6pin 2 X 6+2pin 4 X 6+2pin 4 X 6+2pin 6 x 6+2pin
SATA cconnectors 4 5 Eight Core 12 7
4pin Molex 2 2 3 4 4
Description

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The color of this power supply is Melna. The cable color is Raiba and they are flat.

This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : Nav
Total amperage (+12V) : 17A
Fan size : 120 mm
Functionality
Cable colour : Raiba
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 1 X 6pin
SATA cconnectors : 4
4pin Molex : 2
More detailed specification
Accessories included - Cable 16A / 250V 3x0,75mm2 1,5m
Certificates 80+ - None
Description - Zasilacz uniwersalny komputerowy ATX ver. 2.31 REBELTEC TITAN 500
- Zasilacz uniwersalny komputerowy ATX ver. 2.31
- Wentylator 12cm (ultra silent)
- Moc max 500W
- Termiczna kontrola szybkości wentylatora
- 2x złacze Molex
- 4x złącze SATA
- 2x złącze CPU EPS 12V 4pin
- 1x złącze PCI Express 6pin
- 1x złącze pin ATX 20+4pin
- Filtry OVP, SCP, UVP, OPP, PFC, OTP
- W komplecie kabel 16A/250V 1,5m 3x0,75mm2
Designation - CE+WEEE
dimension depth - 100 mm
dimension height - 220 mm
Dimensions -
dimension weight - 1700 g
dimension width - 170 mm
ean - 5903111078126
Fan - 12 cm
Floppy power connectors - 1
guarantee - 24
guarantee_type - normal
MB power connector - 20 + 4 pin
Modular power supply - No
MOLEX power connectors - 2
name - Power supplay ATX ver2.31 TITAN 500W
Number of power supply connector 4-pin 12V - 2
Other features - Filters OVP, SCP, UVP, OPP, PFC, OTP
PCI-E 6-pin power connectors - 1
PFC - Yes
Power supply - 500 W
producer - Rebeltec
SATA power connectors - 4
vendpn - RECZAS00004
