Brand - FSP
BrandPartCode - PPA8504501
Category - Power Supply Units
Category_1 - Power
Category_2 - Computer Power Supplies
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
EAN_code - 4711498480200
GTIN - 4711498480200
LongDesc - The Future is Now：ATX 3.1 ReadyFollowing the latest ATX 3.1 regulation, this series supports 200% power excursion and ensure peak performance with future hardware upgrades.+5V & 3.3V DC to DC Circuit DesignIncrease the efficiency and stabilize the output voltage to ensure system stability.Powerful Single +12V RailModern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single +12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.Premium, Black Flat CablesFeaturing improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling performance in your PC build.105˚C Japanese Bulk CapacitorThe bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the performance for high reliability that your system can count on.Compact PSU size：140 x 150 x 86mm140mm in length which is relatively shorter than industry standard, it’s ideal for compact PC or space-constraint environment without compromising on performance.
LongProductName - 850W, 240V, 50/60Hz
LongSummaryDescription - FSP VITA BD 850W Power supply unit ATX ATX3.1 Black. Total power: 850 W, AC input voltage: 200 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 500 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, Peripheral (Molex), SATA
Manufacturer - Fortron
Manufacturer_code - PPA8504501
Name - FSP VITA BD 850W, PC power supply (1x 12-pin high power GPU, 4x PCIe, 850 watts)
Packaging content - Cables included - CPU, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 500 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Input current - 5.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.83 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 850 W
ProductName - VITA BD 850W Power supply unit ATX ATX3.1 Black
ShortSummaryDescription - FSP VITA BD 850W Power supply unit ATX ATX3.1 Black, 850 W, 200 - 240 V, 50/60 Hz, 5.5 A, Active, 100 W

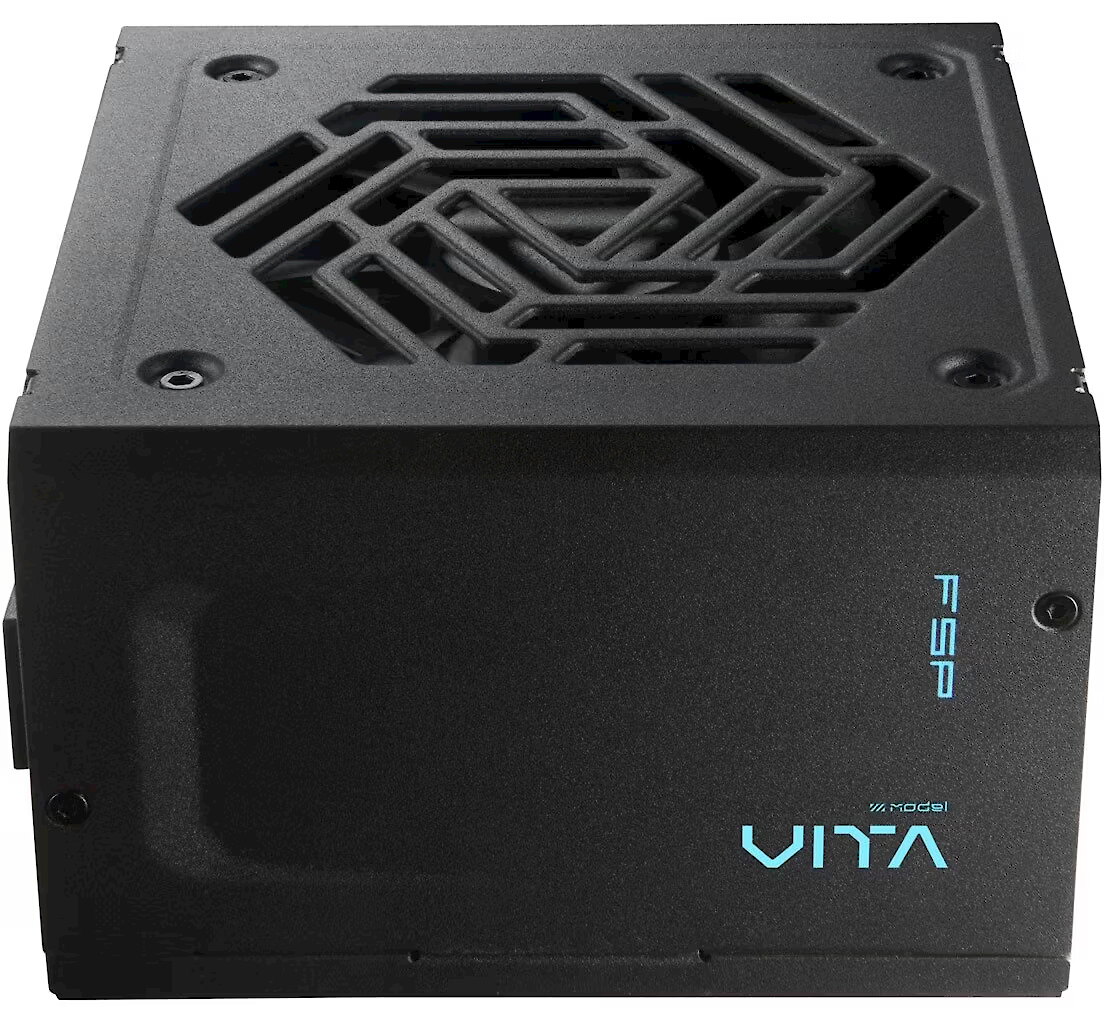

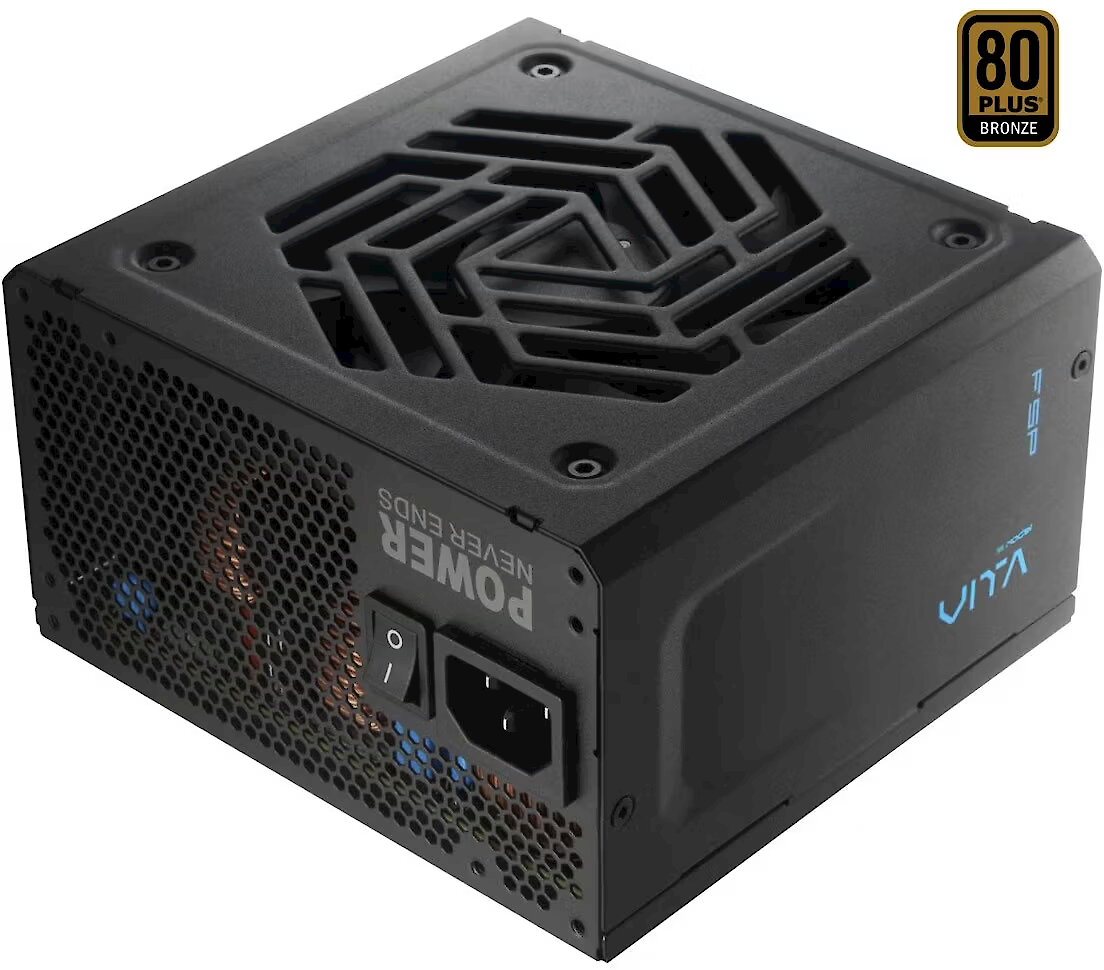

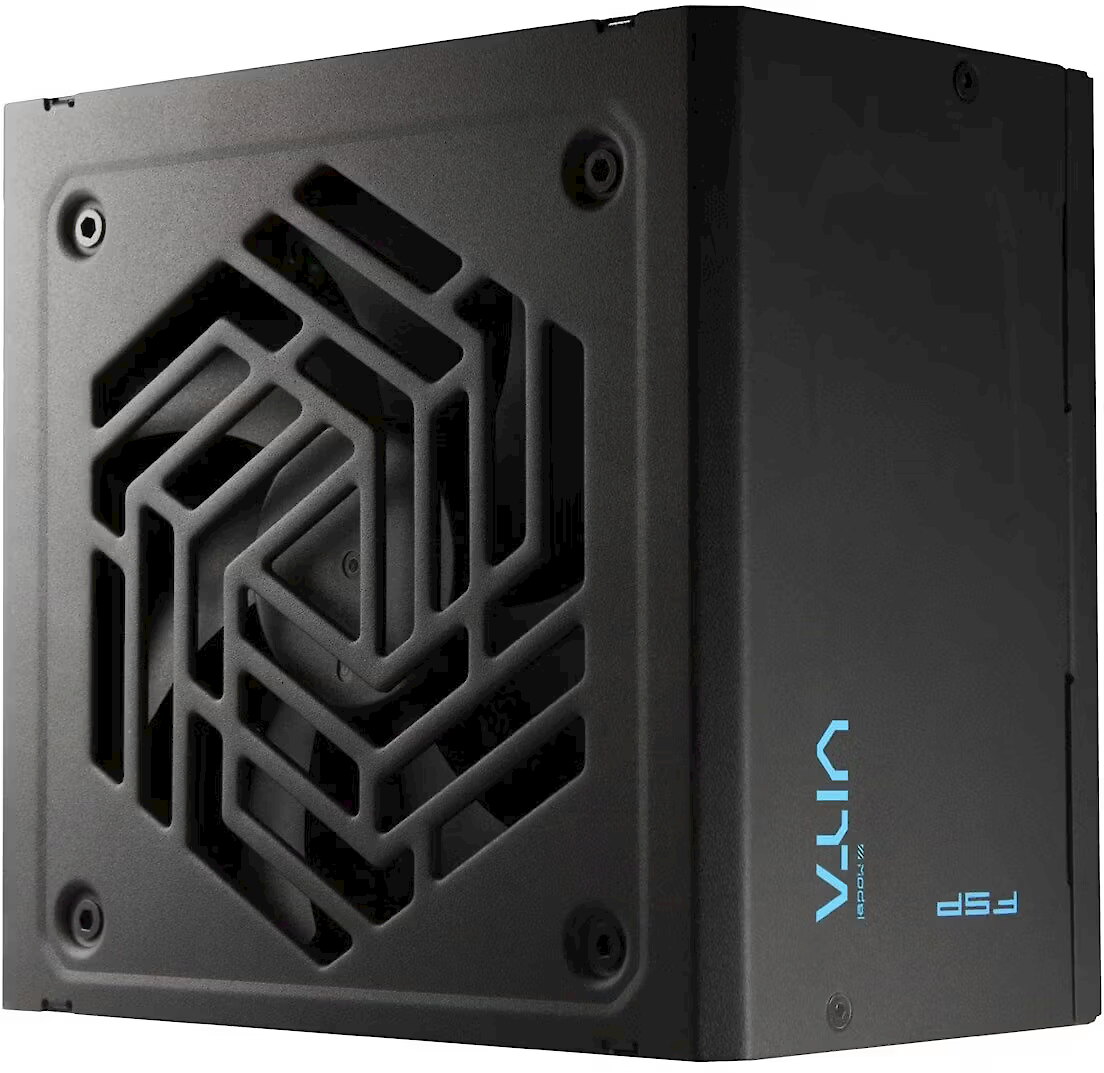

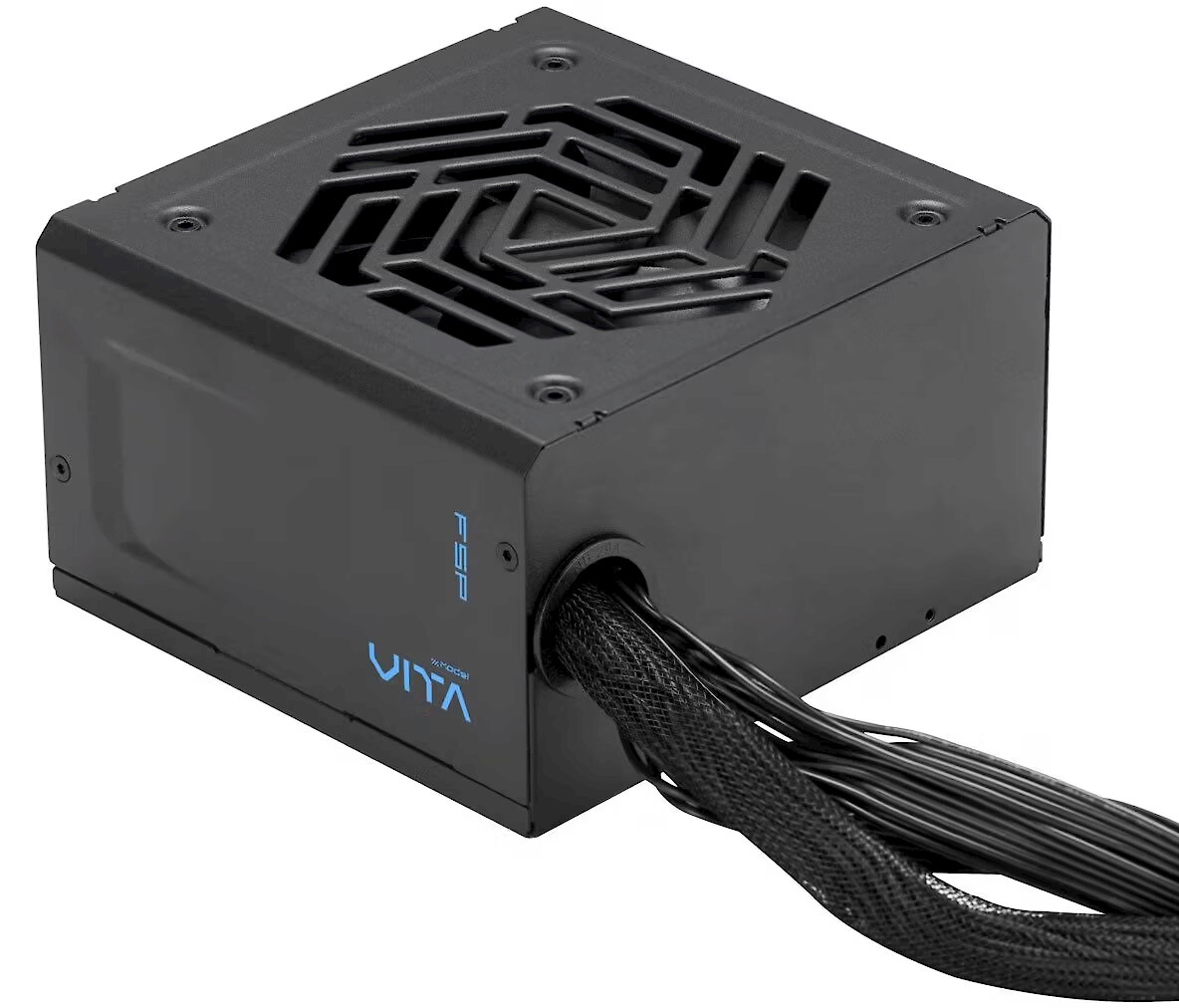

Title - FSP VITA BD 850W Power supply unit ATX ATX3.1 Black
URL - https://www.fsplifestyle.com/en/product/VITABD850W.html
WarrantyInfo -
Weight - 2,31
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
