ID: 1412513
Product code: GPX-650FC
In stock >50 units
Warranty: 2 years
Chieftec PowerUP Series, 650W, 80PLUS Gold
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Unisend parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Chieftec
- Power output: 650W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
This Chieftec brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 650W.
The 650W power will be enough for running Microsoft Office programs, browsing the internet, and budget-level computer games. The power supply unit will be able to run a computer with a mid-range processor, mid-range graphics card (for example, GTX 1650), and 1-2 hard drives. For serious gaming, a more powerful power supply unit is needed.

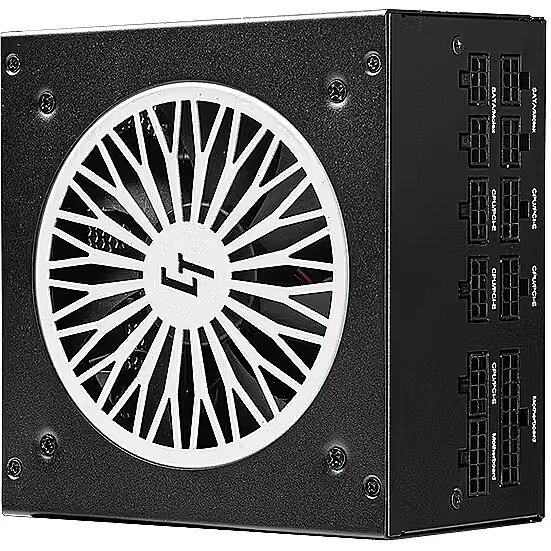

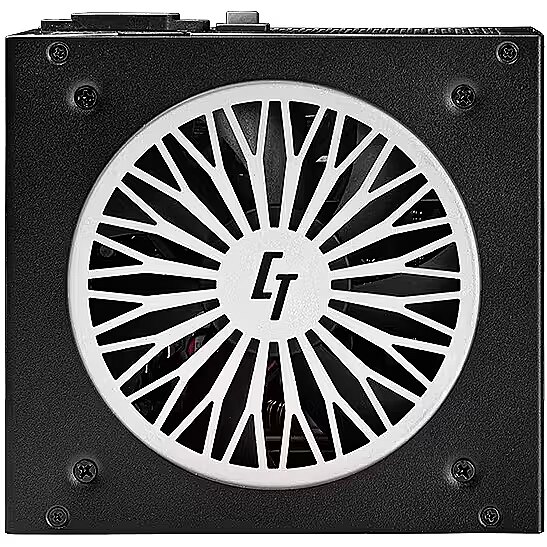

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

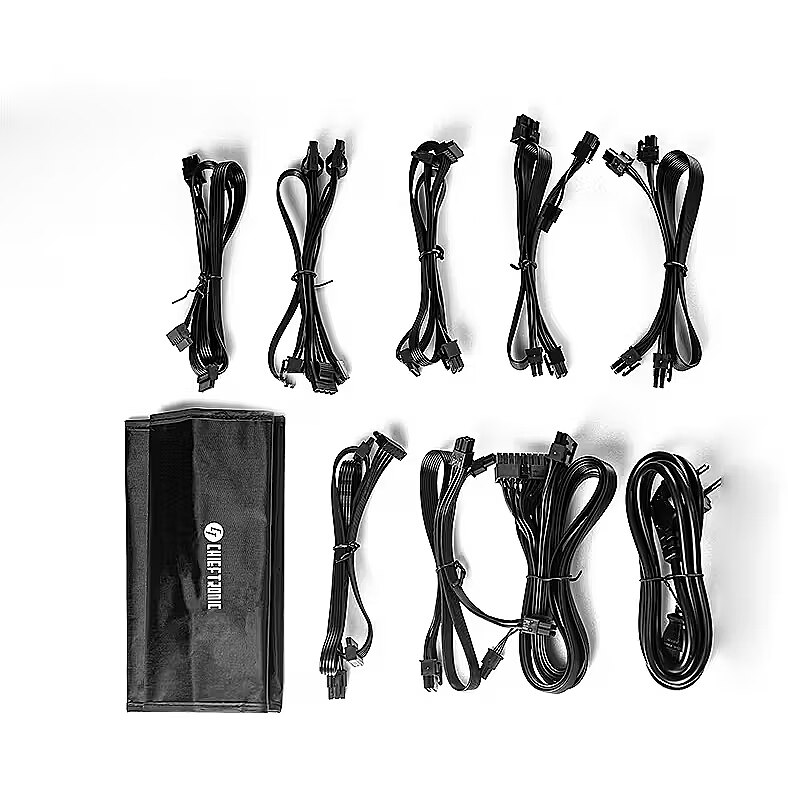

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.
Basic information
Cybenetics Efficiency certification
: There isn't
Cybenetics Noise level certification
: There isn't
Power supply type
: ATX
Power output
650W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 54A
Fan size
: 120 mm
Functionality
Cable colour
: Black
Lighting
: None
Color
: Black
Modular cables
: Fully-Modular

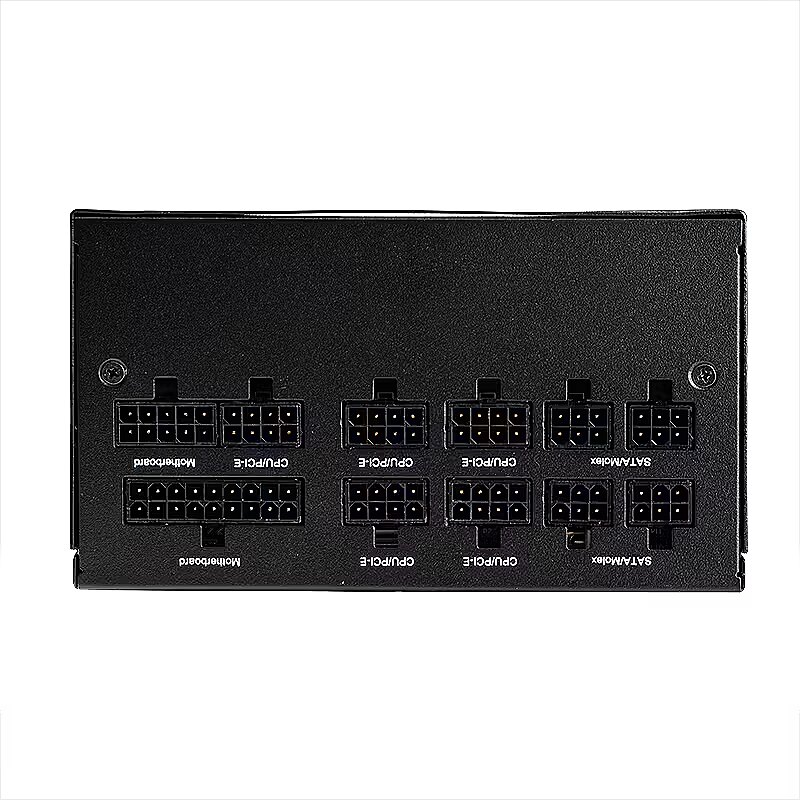

Ports and equipment
PCI-E 5.0/5.1
: There is no
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 9
4pin Molex
: 3
Case
More detailed specification
Brand - Chieftec
BrandPartCode - GPX-650FC
Category - Power Supply Units
Category Code - PSU
Certificates - Certification - 80PLUS Gold
Description - 80 PLUS® Gold certified efficiency Fully modular cable management Full-bridge LLC converter with DC-to-DC technology Low ripple and tight voltage regulation
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
GTIN - 753263077189
GTIN - 0753263077189
GTIN - 7532630771898
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very large gaming cases.
LongProductName - Chieftec PowerUp 650W, GPX-650FC, ATX, 80PLUS Gold
LongSummaryDescription - Chieftec PowerUp Chieftronic. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 47 - 63 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 65 cm, SATA power cable length: 500,650,800 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Certification: 80PLUS Gold
Packaging data - Package weight - 2.75 kg
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 2.53
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 65 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 9
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 50 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power cable length - 500,650,800,950 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 500,650,800 mm
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 648 W
Power - Combined power (-12V) - 3.6 W
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 54 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 650 W
ProductName - Chieftronic PowerUp
ShortSummaryDescription - Chieftec PowerUp Chieftronic, 650 W, 100 - 240 V, 47 - 63 Hz, 10 A, Active, 100 W
Title - Chieftec PowerUp Chieftronic power supply unit 650 W 20+4 pin ATX ATX Black
Unit Box Height - 0.22
Unit Box Length - 0.31
Unit Box Width - 0.125
Unit Calculated Volume - 0.0105 cubm
Unit Calculated Weight - 2.83 kg
Units per Pallet - 0
Units per Shipping Box - 4
URL - https://www.chieftec.eu/products-detail/326/PowerUP_SERIES/328/GPX-650FC
Vendor Homepage - www.chieftec.eu/products-detail/326/PowerUP_SERIES/328/GPX-650FC
Warranty - 24 months
WarrantyInfo - 5-year
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.2 kg
Weight & dimensions - Width - 150 mm
