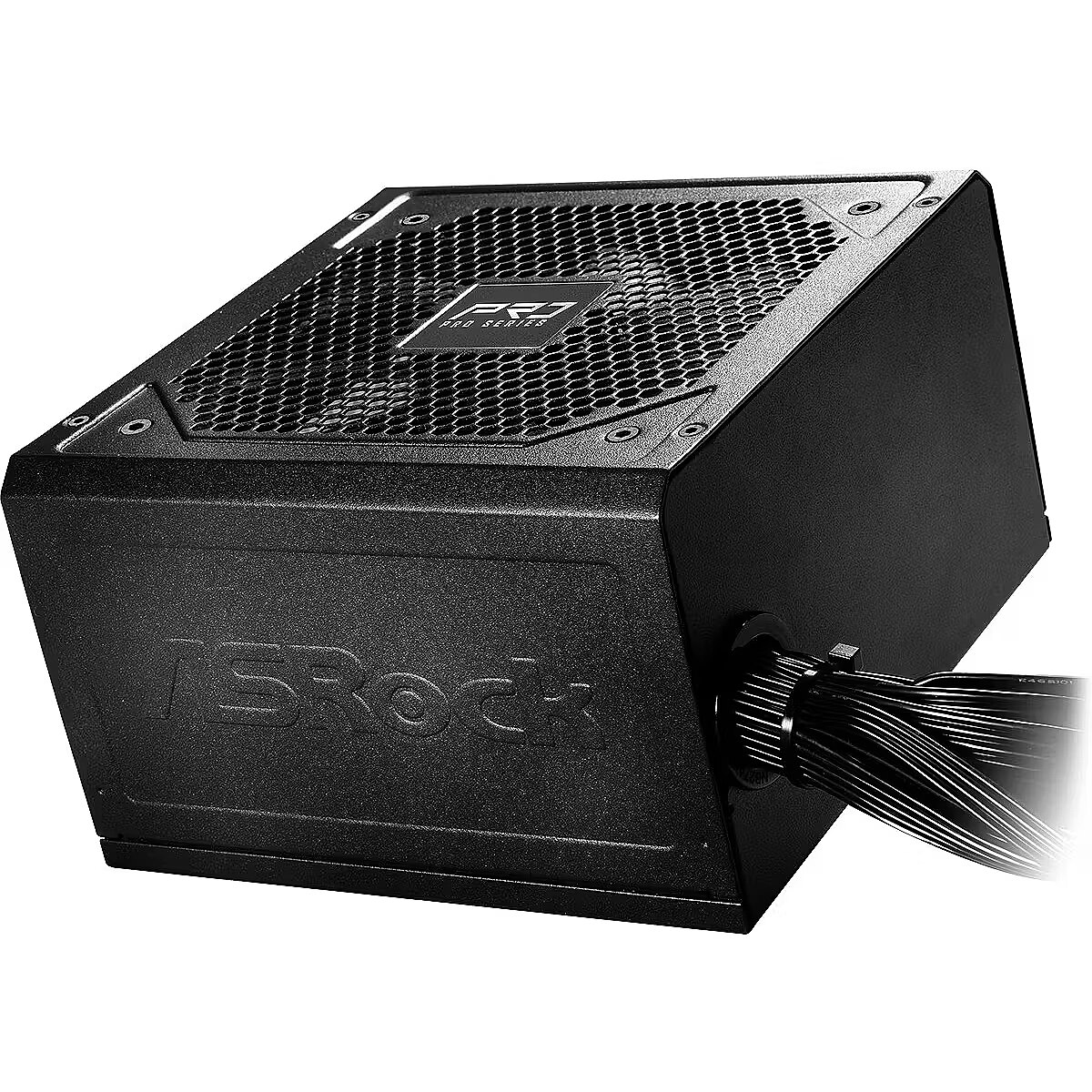

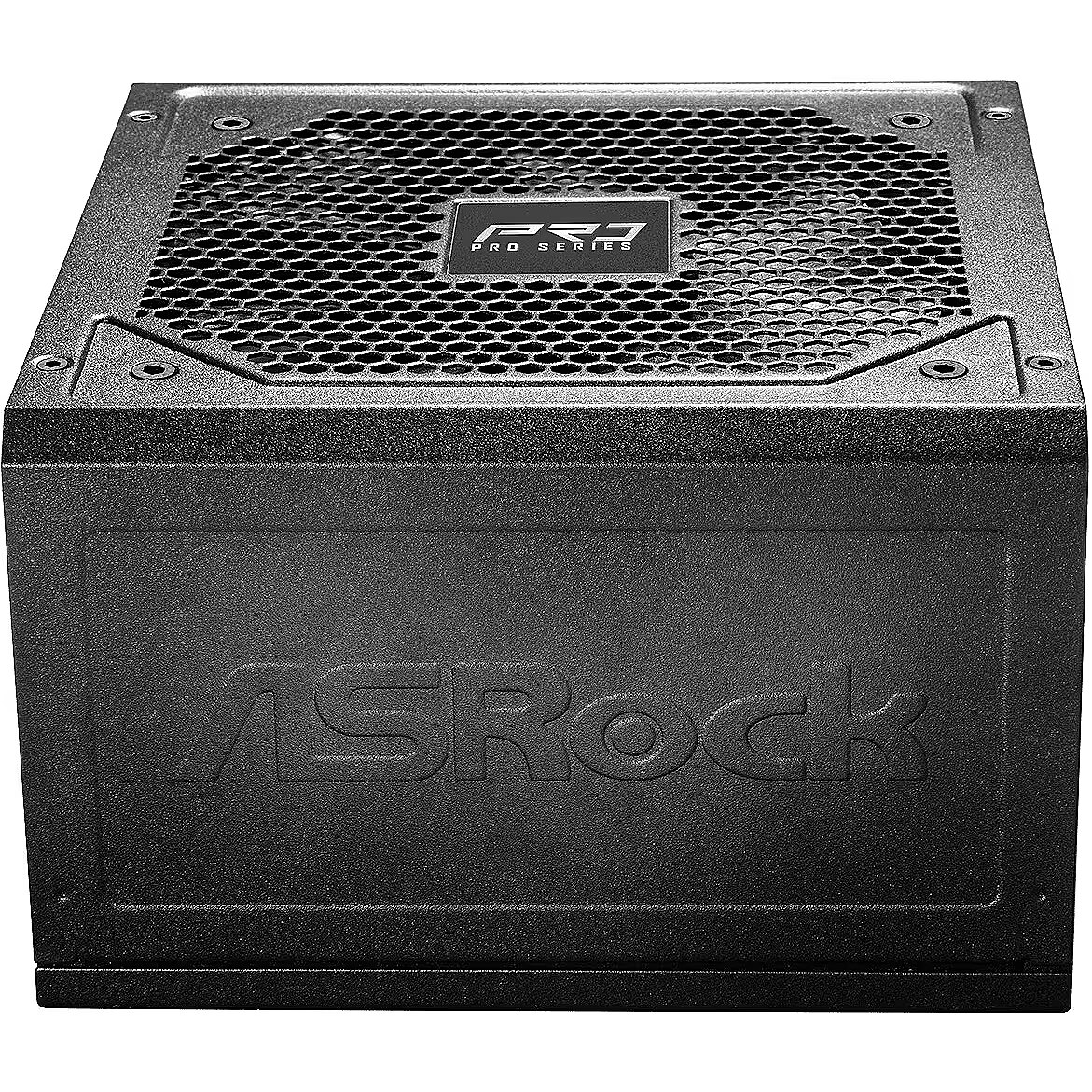

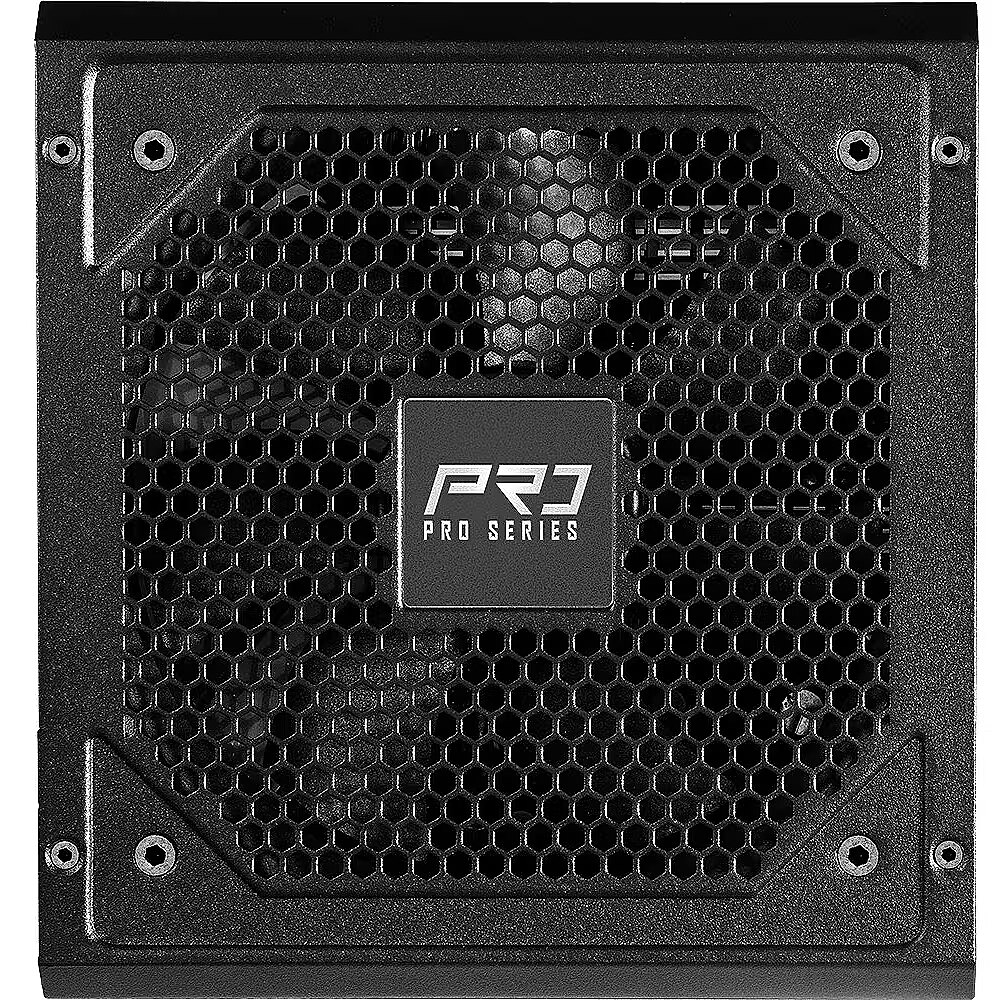

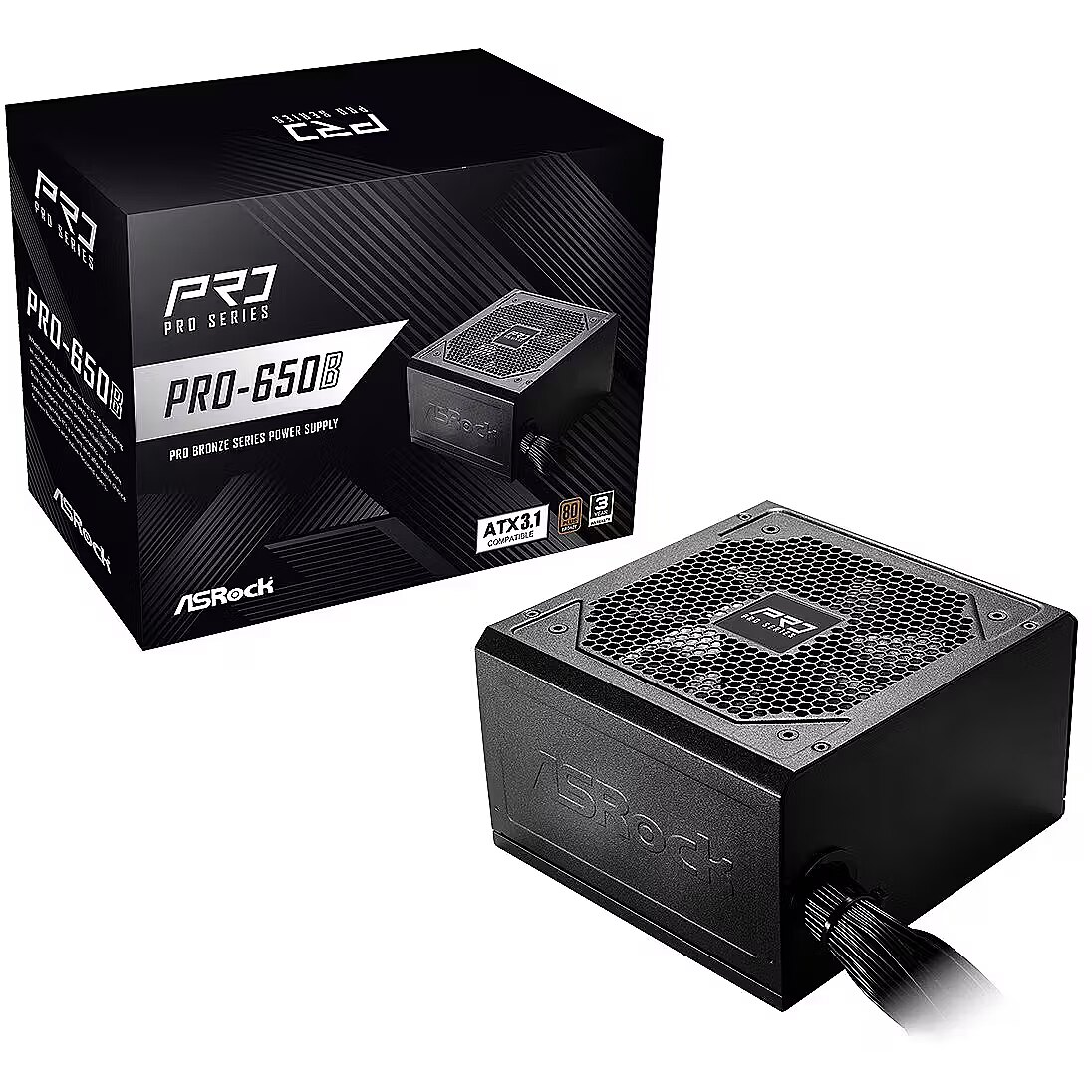

ASRock PRO-650B, 650W, 80PLUS Bronze, ATX 3.1

80 PLUS certification Performance - 80 PLUS Bronze
AC input frequency Power - 50/60 Hz
AC input voltage Power - 100 - 240 V
ATX version Performance - 3.1
Cabling type Ports & interfaces - Non-Modular
Category Code - PSU
Cooling type Design - Active
CPU power connector (4+4 pin) Ports & interfaces - Yes
Depth Weight & dimensions - 140 mm
Description - 80 PLUS CERTIFIED
The PRO series is created for value-focused users, offering 80 PLUS Bronze models in 850W, 750W, and 650W options. Safety First with ASRock
Full suite of protections to keep all components safe during normal to extreme power levels.
ASRock offers an outstanding 3 –Year warranty, guaranteeing long term reliable and peace of mind operation.80 PLUS® BRONZE CertifiedATX3.1Low noise 120mm FAN
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 1021
EPS power connector (4+4 pin) Ports & interfaces - Yes
Fan diameter Design - 12 cm
Height Weight & dimensions - 86 mm
Illumination Design - No
Input current Power - 10 - 5 A
Logistics data - Warranty period - 3 year(s)
Max output current (+12V) Power - 54.1 A
Mean time between failures (MTBF) Performance - 100000 h
Model name - PRO-650B
Motherboard power cable length Ports & interfaces - 60 cm
Motherboard power connector Ports & interfaces - 24-pin ATX
Number of fans Design - 1 fan(s)
Number of SATA power cables Ports & interfaces - 2
Number of SATA power connectors Ports & interfaces - 4
On/off switch Design - Yes
Package type Packaging data - Box
Packaging data - Package type - Box
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power cables - 2
Ports & interfaces - Number of SATA power connectors - 4
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 1
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 570
Ports & interfaces - SATA power cable length - 690 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Input current - 10 - 5 A
Power - Max output current (+12V) - 54.1 A
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 650 W
Power protection features Power - Over current, Short circuit, Over voltage, Under voltage, Overheating, Over power
Power supply unit (PSU) form factor Performance - ATX
producerCode - 90-UXR065-BNEAA2
Product colour Design - Black
productName - Asrock PRO-650B power supply unit 650 W 24-pin ATX ATX Black
productSize - Normal
Purpose Performance - PC
SATA power cable length Ports & interfaces - 450,570,690 mm
sizeX - 270
sizeY - 195
sizeZ - 97
Summary - Asrock PRO-650B. Total power: 650 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 450,570,690 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Total power Power - 650 W
Unit Box Height - 0.1
Unit Box Length - 0.27
Unit Box Width - 0.195
Unit Calculated Volume - 0.006526 cubm
Unit Calculated Weight - 1.95 kg
Units per Pallet - 0
Units per Shipping Box - 6
Vendor Homepage - https://www.asrock.com/Power-Supply/PRO/PRO-650B
Warranty - 24 months
warrantyLength - 36
Warranty period Logistics data - 3 year(s)
warrantyType - G
weight - 1900
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
Width Weight & dimensions - 150 mm
