8-pin 12V power connectors - 0
ATX version - 3.1
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum

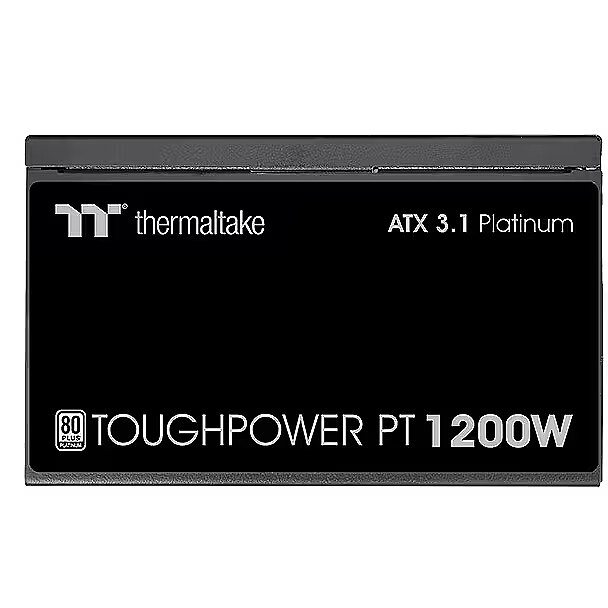

Description - Zasilacz - Toughpower PT 1200W Platinum modular Gen5
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1626
dimension depth - 120 mm
dimension height - 300 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 3508 g
dimension width - 200 mm
ean - 4711658545305
EAN - 4711658545305
EAN_code - 4711658545305
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPP-1200FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - PS-TPP-1200FNFAPE-1
Name - 1200W Toughpower PT
Name - Thermaltake Toughpower PT 1200W, PC power supply 1x 12 pin high power GPU, 5x PCIe, cable management, 1200 watts
name - Thermaltake Toughpower PT 1200W Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 2
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 5
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
PMBus 5 Pin - 0

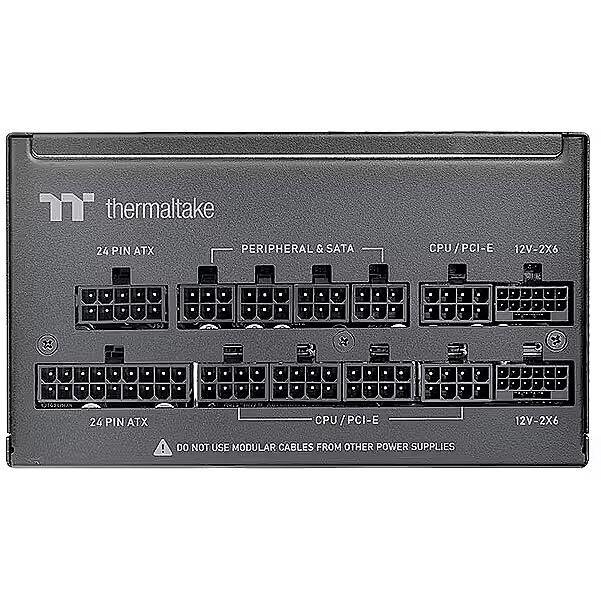

Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (12+4 pin) - 2
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power cable length - 450
Ports & interfaces - Peripheral (Molex) power cable length - 600
Ports & interfaces - Peripheral (Molex) power cable length - 750
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 600
Ports & interfaces - SATA power cable length - 750
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 17 ms
Power - Input current - 15 - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1200 W
Power supply - 1200 W
producer - Thermaltake
producerCode - PS-TPP-1200FNFAPE-1
productName - Thermaltake Toughpower PT 1200W power supply unit 24-pin ATX ATX Black
productSize - Normal
Safety regulation & standards - Safety - CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
SATA power connectors - 6
sizeX - 124
sizeY - 215
sizeZ - 305
vendpn - PS-TPP-1200FNFAPE-1
warrantyLength - 120
warrantyType - G
Weight - 3.524
Weight - 7,77
weight - 3506
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
