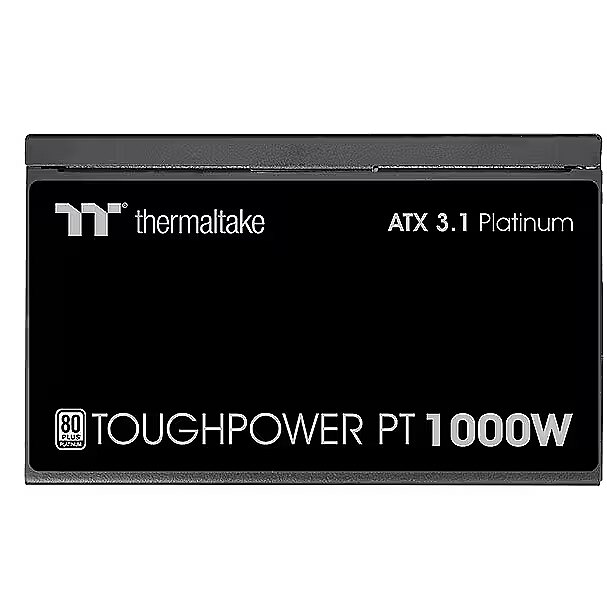

Thermaltake Toughpower PT, 1000W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
-
Omniva parcel machineWithin 1-2 working days1.99 €
-
SmartPosti parcel terminalWithin 1-2 working days1.99 €
-
Unisend parcel terminalWithin 1-2 working days1.99 €
-
Courier delivery to your addressWithin 1-2 working days5.99 €
- Producer: Thermaltake
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 5 x 6+2pin
We offer to purchase a Thermaltake power supply unit with a power capacity of 1000W, which has received the 80 PLUS Platinum energy efficiency certification.
1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.

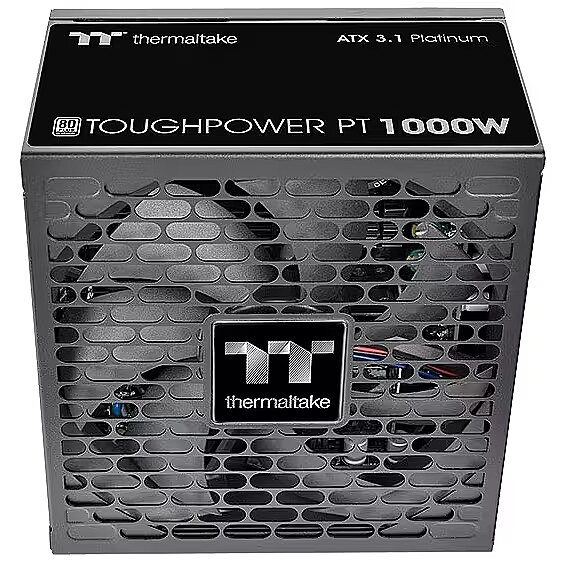

This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
ATX version - 3.1
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates 80+ - 80 PLUS Platinum
Description - Zasilacz - Toughpower PT 1000W Platinum modular Gen5
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1623
dimension depth - 120 mm
dimension height - 300 mm
dimension weight - 3100 g
dimension width - 220 mm
ean - 4711658545206
EAN - 4711658545206
EAN_code - 4711658545206
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
Form Factor - ATX
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPP-1000FNFAPE-1
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - PS-TPP-1000FNFAPE-1
Name - 1000W Thermaltake Toughpower PT
Name - Thermaltake Toughpower PT 1000W, PC power supply 1x 12 pin high power GPU, 4x PCIe, cable management, 1000 watts
name - Thermaltake Toughpower PT 1000W Platinum
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 5
Number of USB 10p connectors - 0
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 70 °C
Packaging data - Package type - Box
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
PMBus 5 Pin - 0
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 300 mm
Ports & interfaces - Peripheral (Molex) power cable length - 450
Ports & interfaces - Peripheral (Molex) power cable length - 600
Ports & interfaces - Peripheral (Molex) power cable length - 750
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 450
Ports & interfaces - SATA power cable length - 600
Ports & interfaces - SATA power cable length - 750
Power - AC input frequency - 47 - 63 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 110 W
Power - Combined power (+5V) - 110 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 999.6 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 92%
Power - Hold time - 17 ms
Power - Input current - 15 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
producer - Thermaltake
producerCode - PS-TPP-1000FNFAPE-1
productName - Thermaltake Toughpower PT 1000W power supply unit 24-pin ATX ATX Black
productSize - Normal
Safety regulation & standards - Safety - CE/UKCA/FCC/ICES/CB/TUV/cTUVus/LVD/CCC/BSMI/ S-MARK/EAC/RCM
SATA power connectors - 6
sizeX - 125
sizeY - 215
sizeZ - 302
vendpn - PS-TPP-1000FNFAPE-1
warrantyLength - 120
warrantyType - G
Weight - 3,70
Weight - 3.333
weight - 3325
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
