ID: 1286333
Product code: HEXA 85+ PRO 450
In stock 9 units
Warranty: 2 years

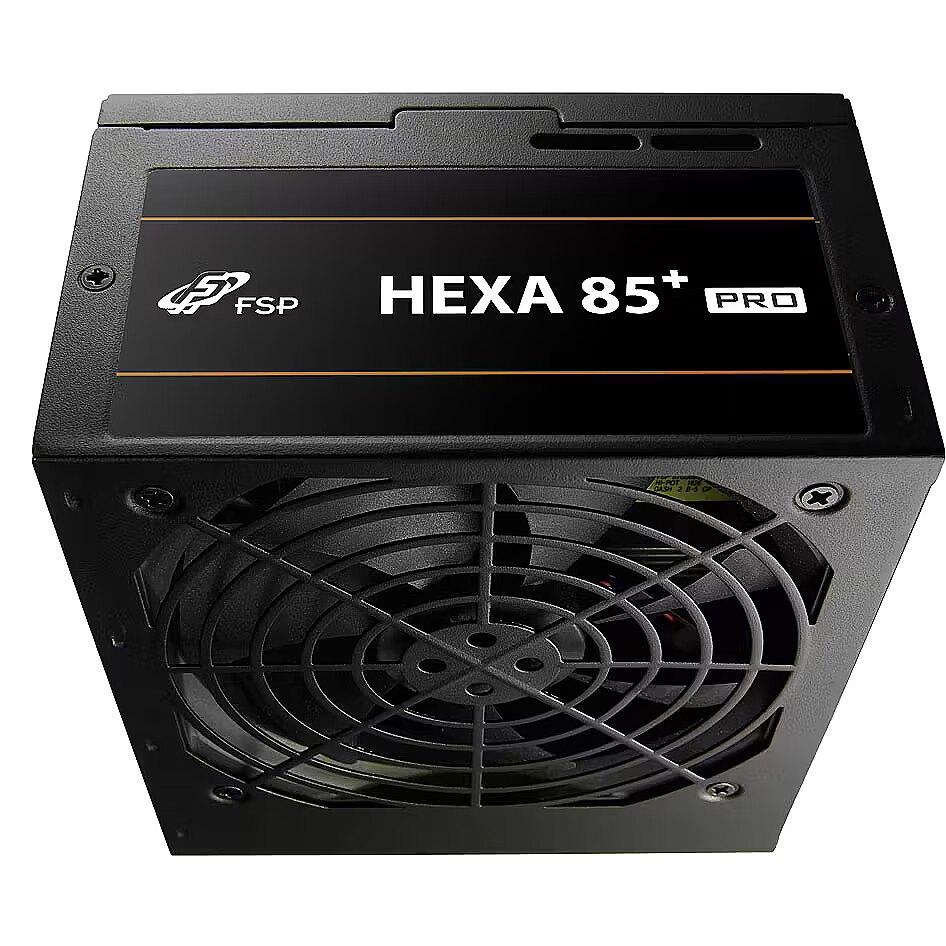

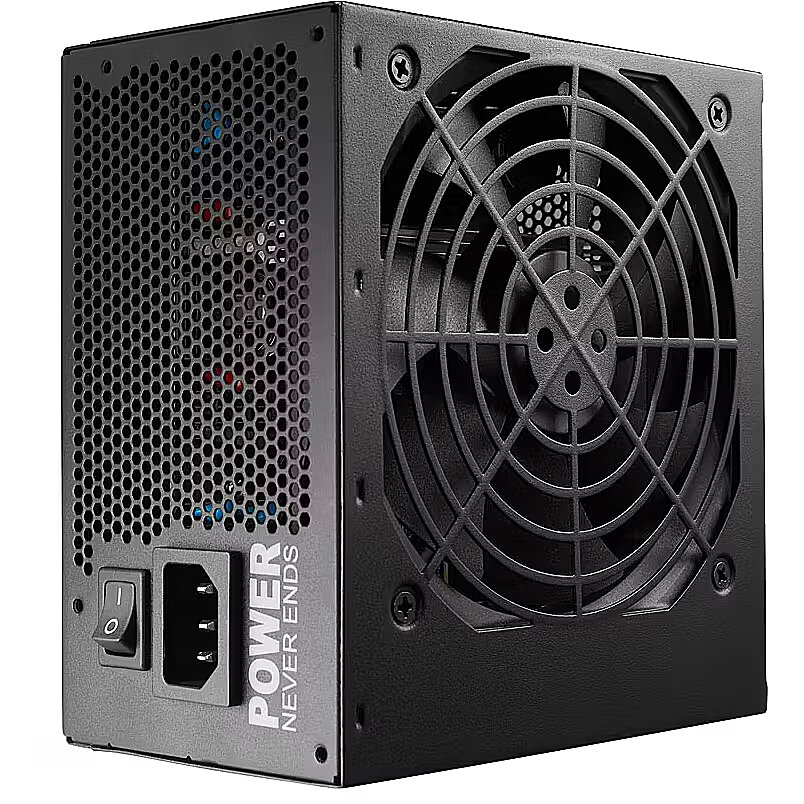

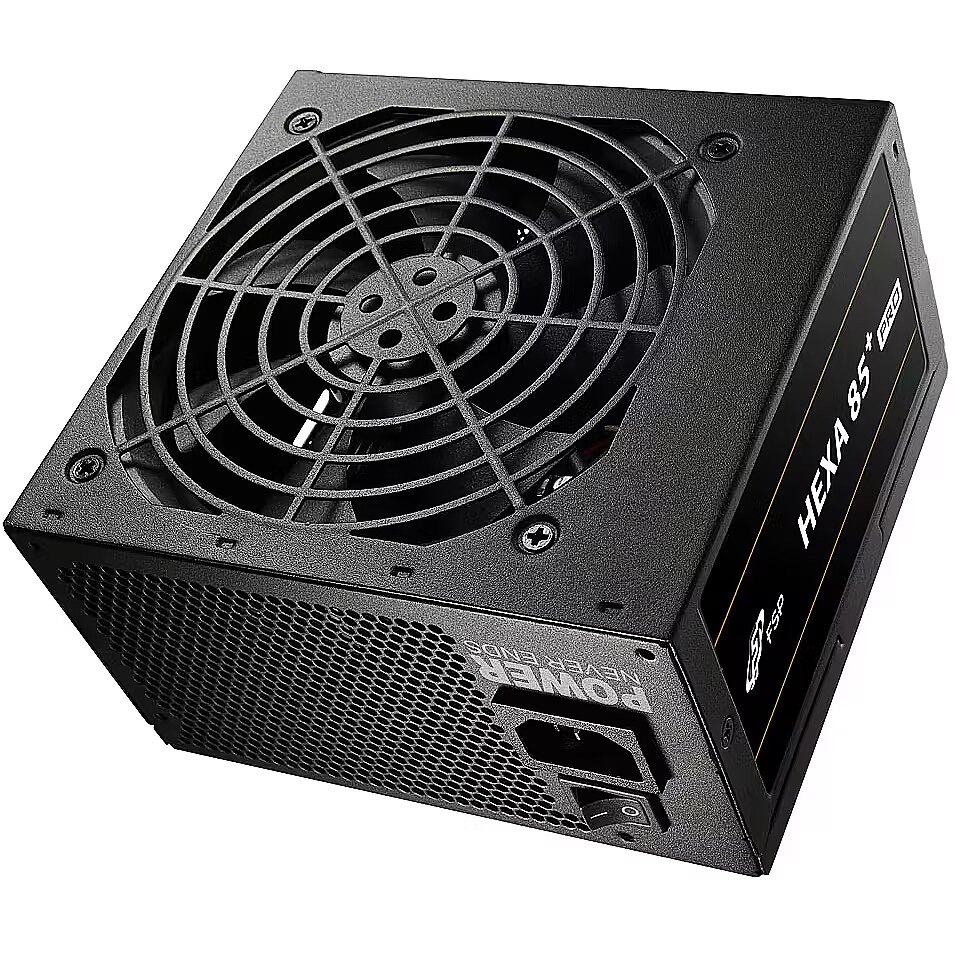

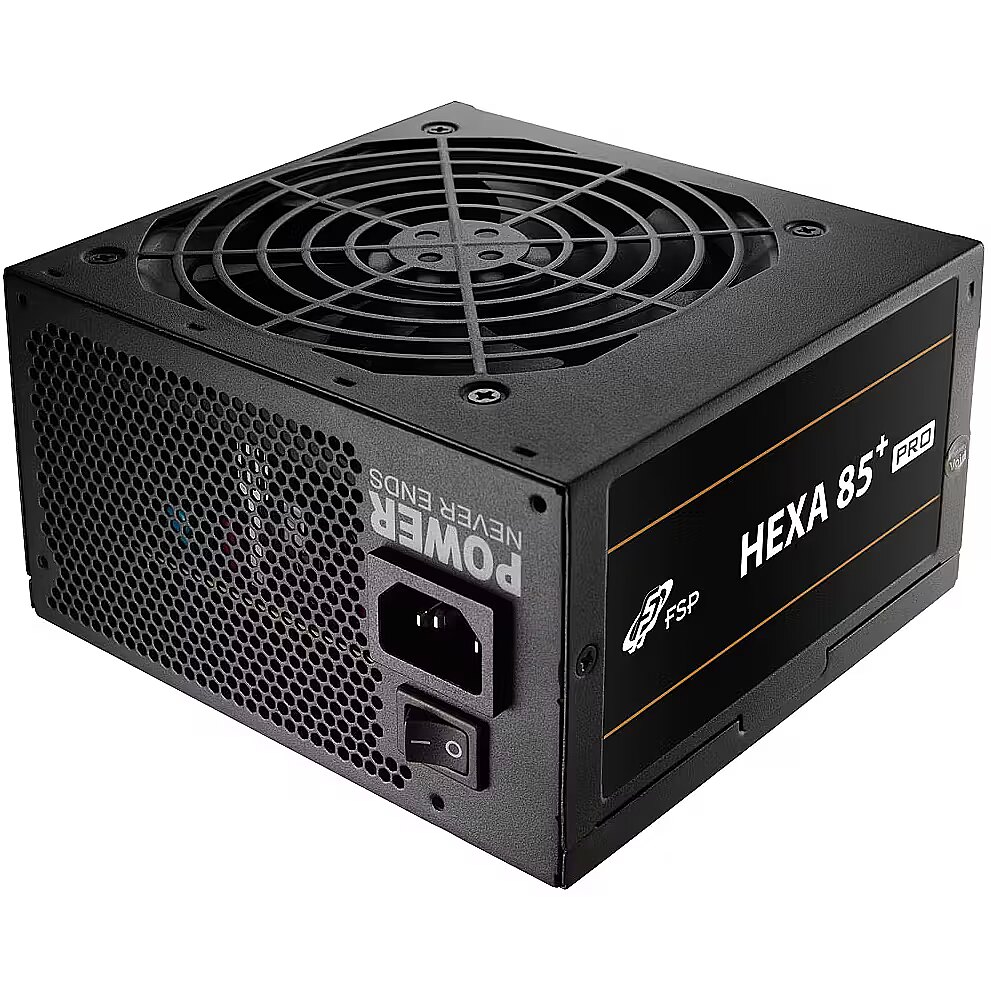

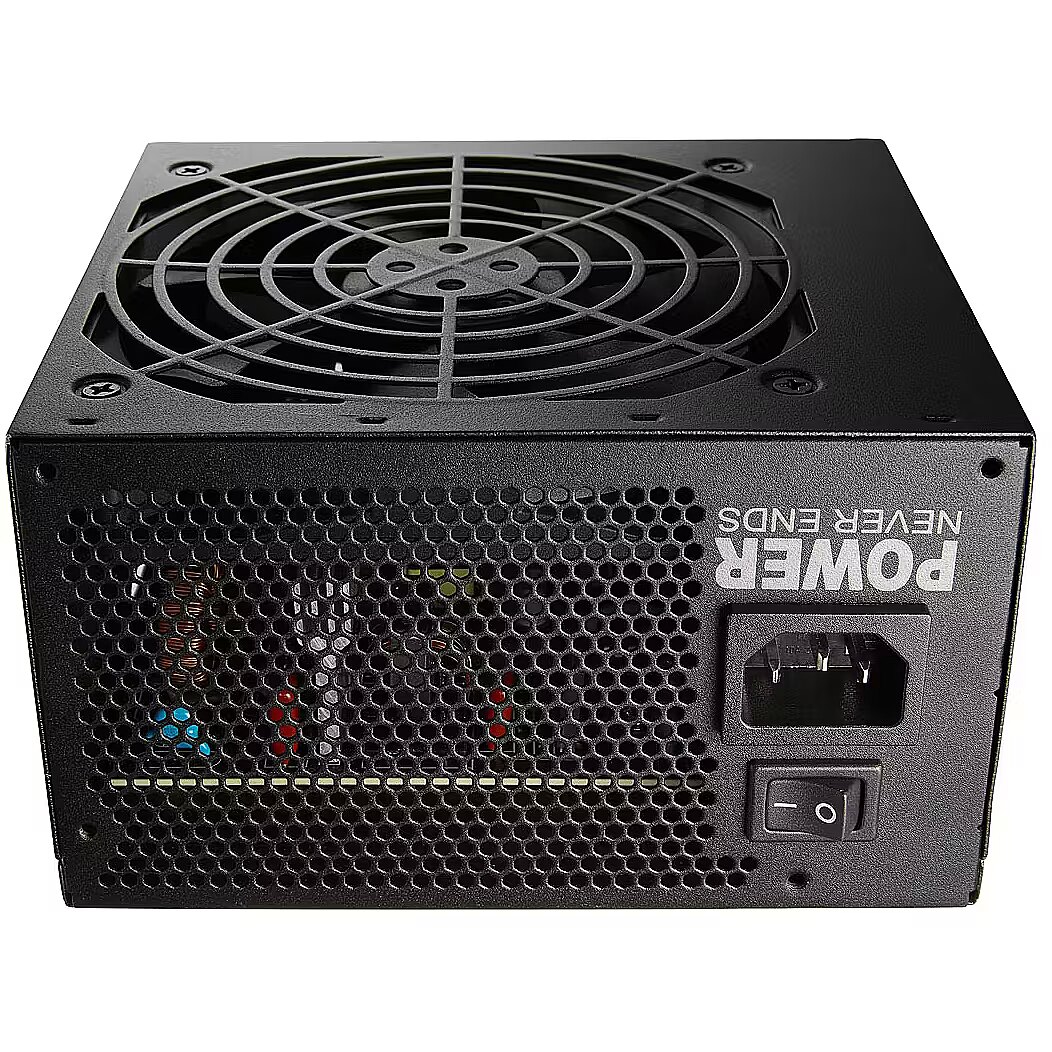

FSP HEXA 85+ PRO, 450W, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: FSP
- Power output: 450W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: 2 X 6+2pin
Description
Available for purchase is a power supply produced by FSP with a power output of 450W. The product has been awarded an 80 PLUS Bronze energy efficiency certificate.
120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
80 PLUS Bronze energy efficiency certificate, received by this power supply unit, guarantees at least 85% efficiency at 50% load. In other words, for every 100 W of energy the power supply unit receives from the electrical grid, at least 85 W goes to your computer components, while the remaining 15 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
This power supply has no removable cables and all cables are attached to the power supply. It has a simple design, but it works just as well as a power supply with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
450W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 37.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 2 X 6+2pin
SATA cconnectors
: 5
4pin Molex
: 2
Case
More detailed specification
Brand - FSP
BrandPartCode - PPA450AD01
Category - Power Supply Units
Code - HEXA 85+ PRO 450
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224522703
GTIN - 4713224522703
Link - https://www.fsplifestyle.com/en/product/HEXA85plus450W.html
Logistics data - Harmonized System (HS) code - 84733020
LongDesc - HEXA 85+ PRO series is ATX PSU certified with 80 PLUS® Bronze, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built-in with complete protections: OCP, OVP, SCP, OPP, and approved by the latest global safety regulation 62368 . Besides, the all black-cable design saves your system an optimal airflow space that allows for easy cable management and a polished look. HEXA 85+ PRO series power ranges from 350W, 450W, 550W to 650W to satisfy various needs.
LongProductName - 450W, ATX, 80 PLUS Bronze, OCP/OVP/OPP/SCP, 100-240Vac, 50-60Hz, 150x140x86mm
LongSummaryDescription - FSP HEXA 85+ PRO 450W. Total power: 450 W, AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 24-pin ATX, Cabling type: Non-Modular. Purpose: PC/Server, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Name - Fortron HEXA 85+ PRO 450 450 W
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 255 mm
Package features > Gross depth master carton - 550 mm
Package features > Gross height (mm) - 200 mm
Package features > Gross height master carton - 240 mm
Package features > Gross weight - 1.734 kg
Package features > Gross width (mm) - 95 mm
Package features > Gross width master carton - 535 mm
Package features > Net weight master carton - 17.34 kg
Package features > Packing quantity - 10 pc(s)
Package features > Palette Qty - 240 pc(s)
Package features > Paper/Pasteboard - 200.00 g
Package features > Plastic (No PET) - 30.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Tare weight master carton - 1.201 kg
Package features > Volume (m3) - 0.004845 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 2.5
Performance - Bearing technology - Sleeve
Performance - EPS version - 2.92
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 5
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 85 W
Power - Combined power (+5V) - 85 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 450 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 85%
Power - Hold time - 17 ms
Power - Input current - 6-2.5 A
Power - Max output current (+3.3V) - 16 A
Power - Max output current (+5V) - 16 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 37.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit
Power - Total power - 450 W
Power > Nominal power - 450 W
Producer product name - HEXA 85+ PRO 450
ProductName - HEXA 85+ PRO 450W
ShortSummaryDescription - FSP HEXA 85+ PRO 450W, 450 W, 100 - 240 V, 50 - 60 Hz, 6-2.5 A, Active, 85 W
Technical details > Net weight - 1.534 kg
Technical details > Other features - HEXA 85+ series, FSP brand new 80 PLUS® bronze ATX PSU, featured with DC to DC module and +12V single-rail design, taken with full Japanese capacitors and quiet 120mm silent fan, built in with complete protections: OCP, OVP, SCP, OPP, OTP and approved by global safety regulation. HEXA 85+ series comes out with four models – 350W, 450W,550W and 650W to satisfy various needs
Technical details > Producer - FSP
Title - FSP HEXA 85+ PRO 450W power supply unit 24-pin ATX ATX Black
URL - https://www.fsplifestyle.com/PROP209004892/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.25 kg
Weight & dimensions - Width - 140 mm
