ID: 1262934
Product code: GP-UD750GM PG5 V2
In stock 50 units
Warranty: 3 years

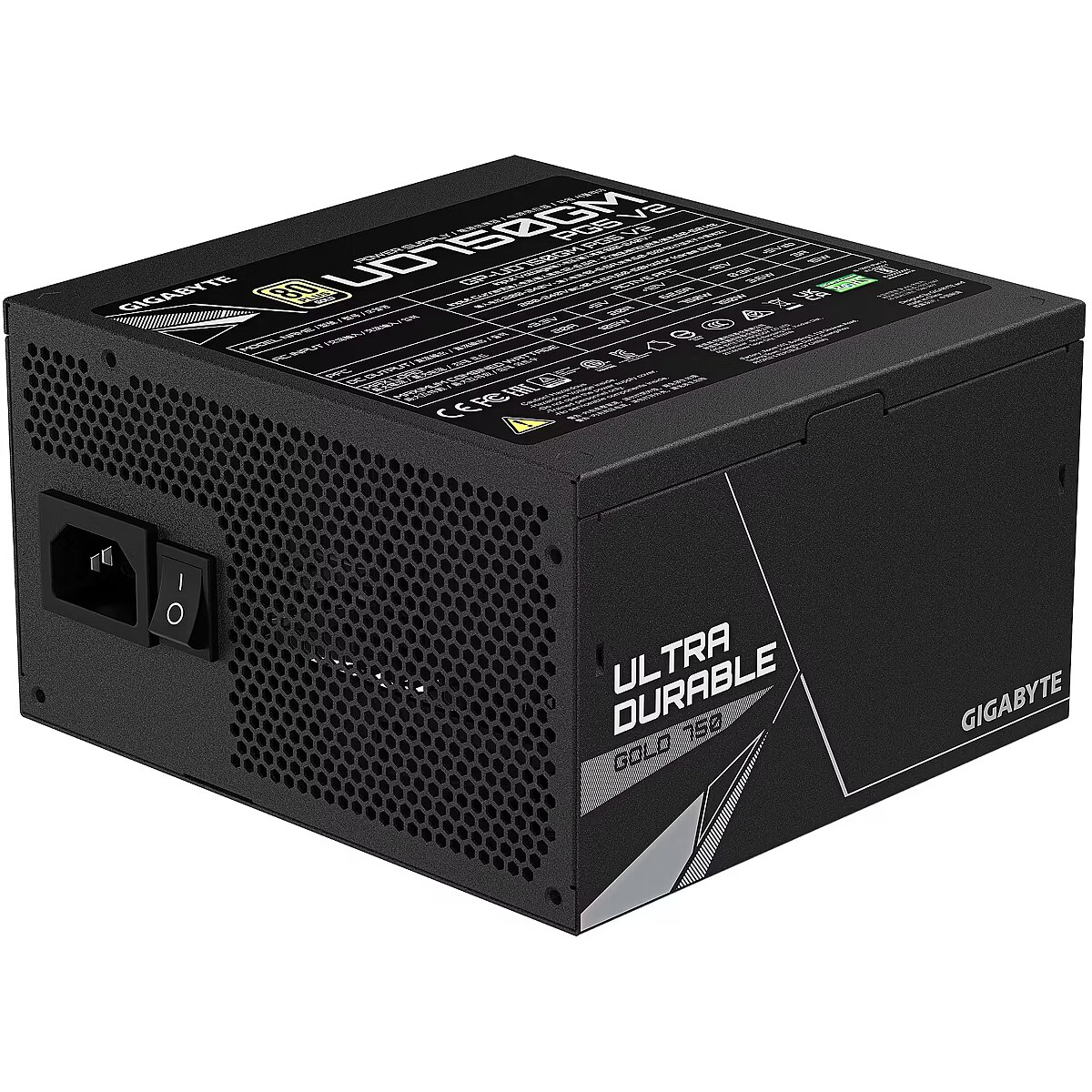

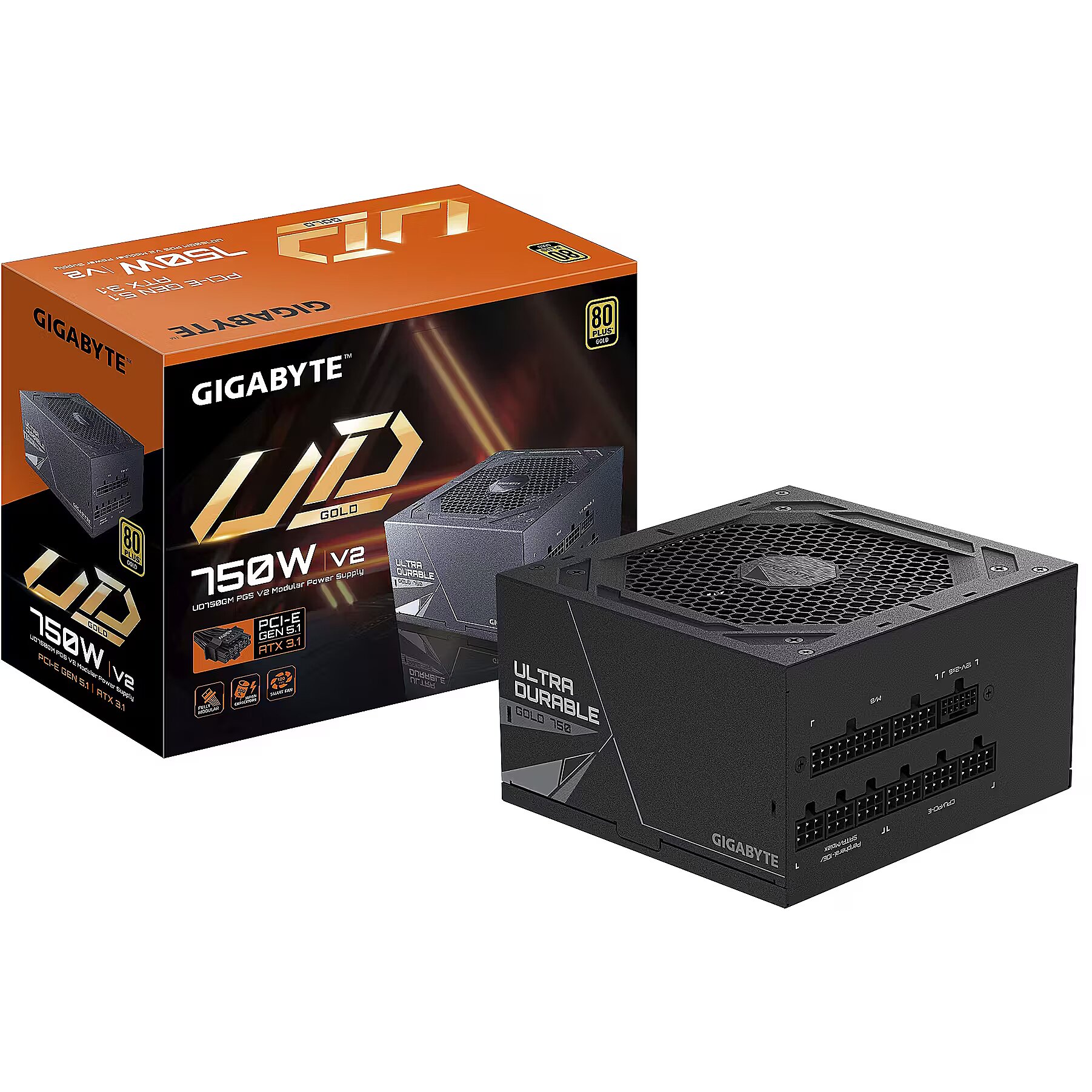

Gigabyte UD750GM PG5 V2, 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 750W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Gigabyte brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 750W.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

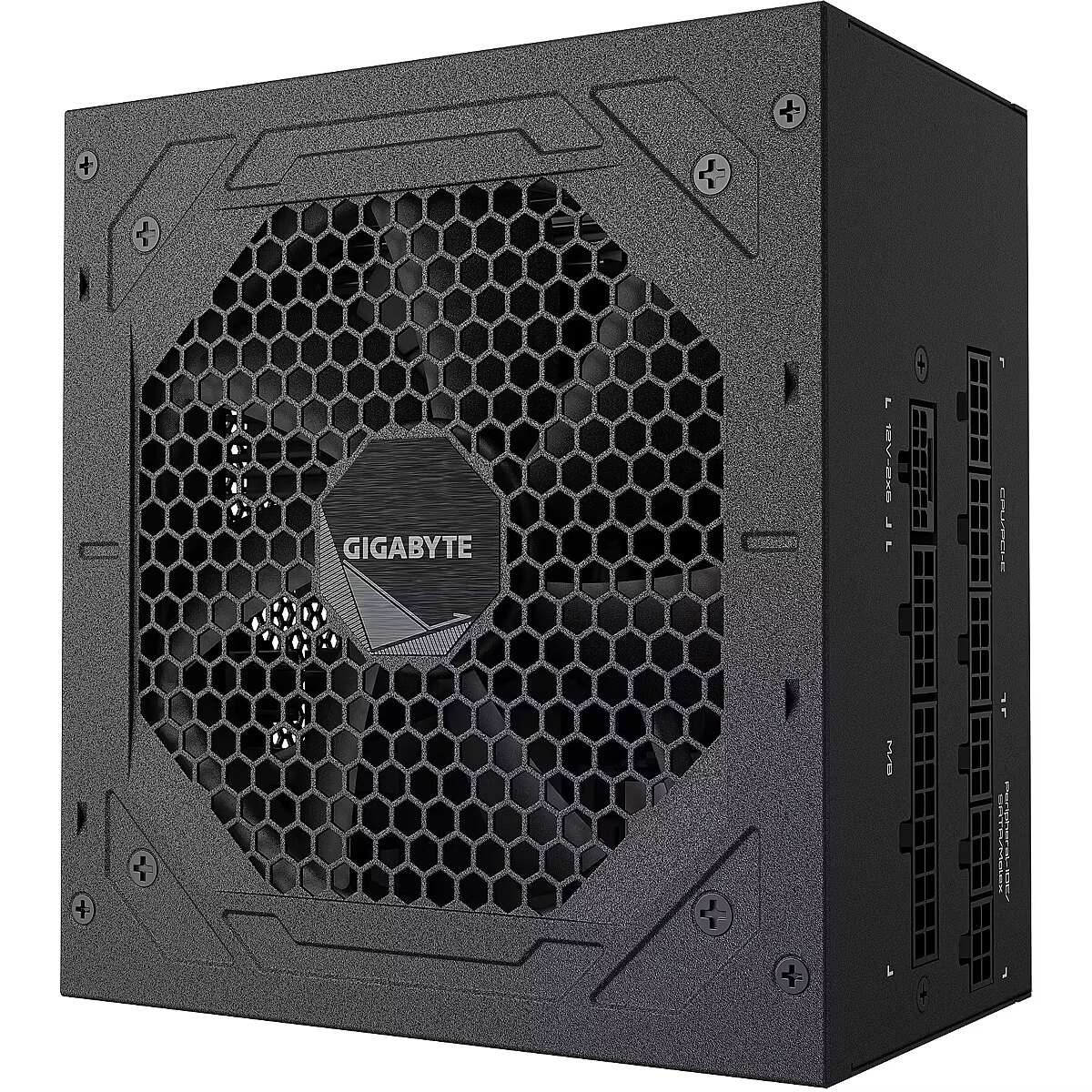

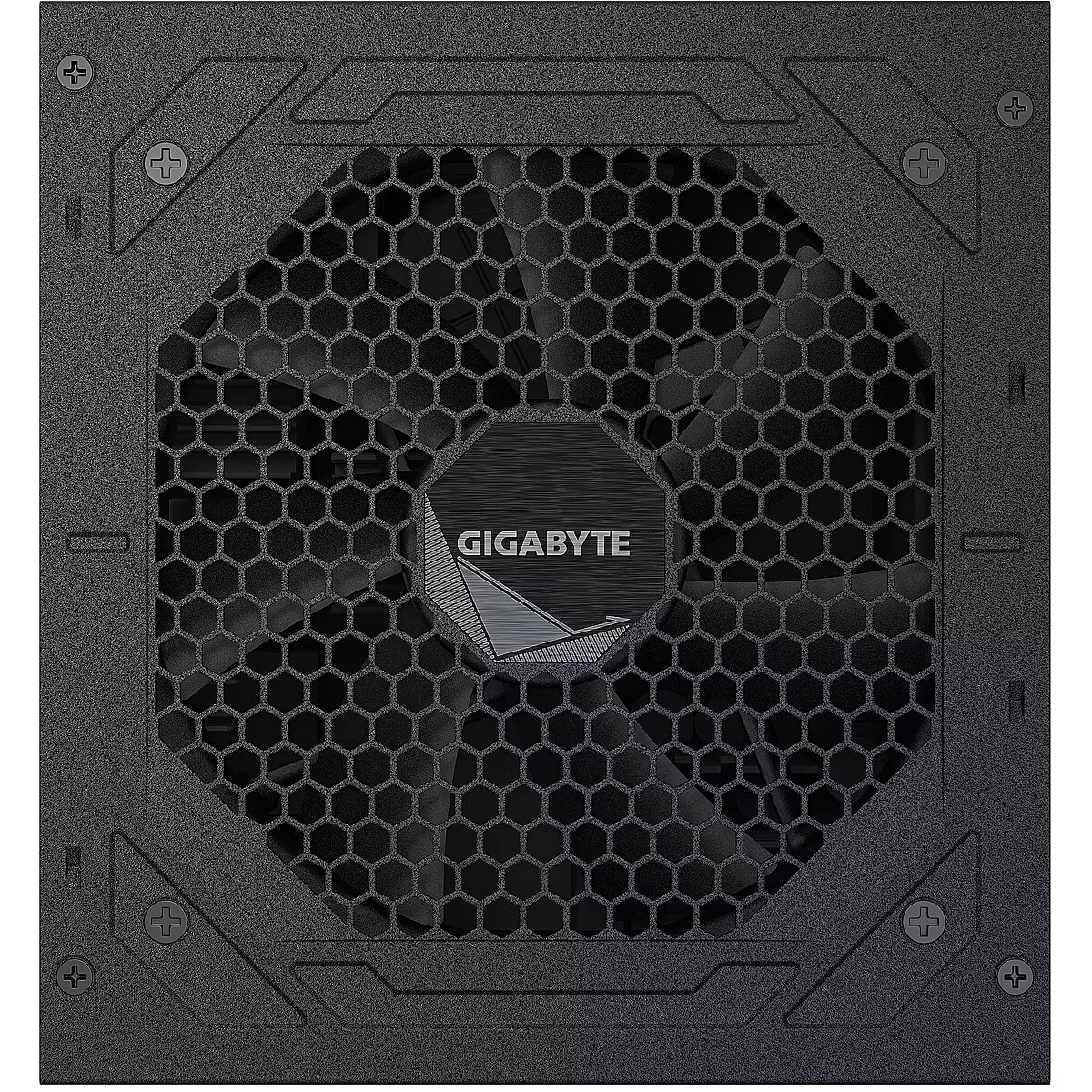

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of the block is Melna. The block has flat cables, whose color is Melna.

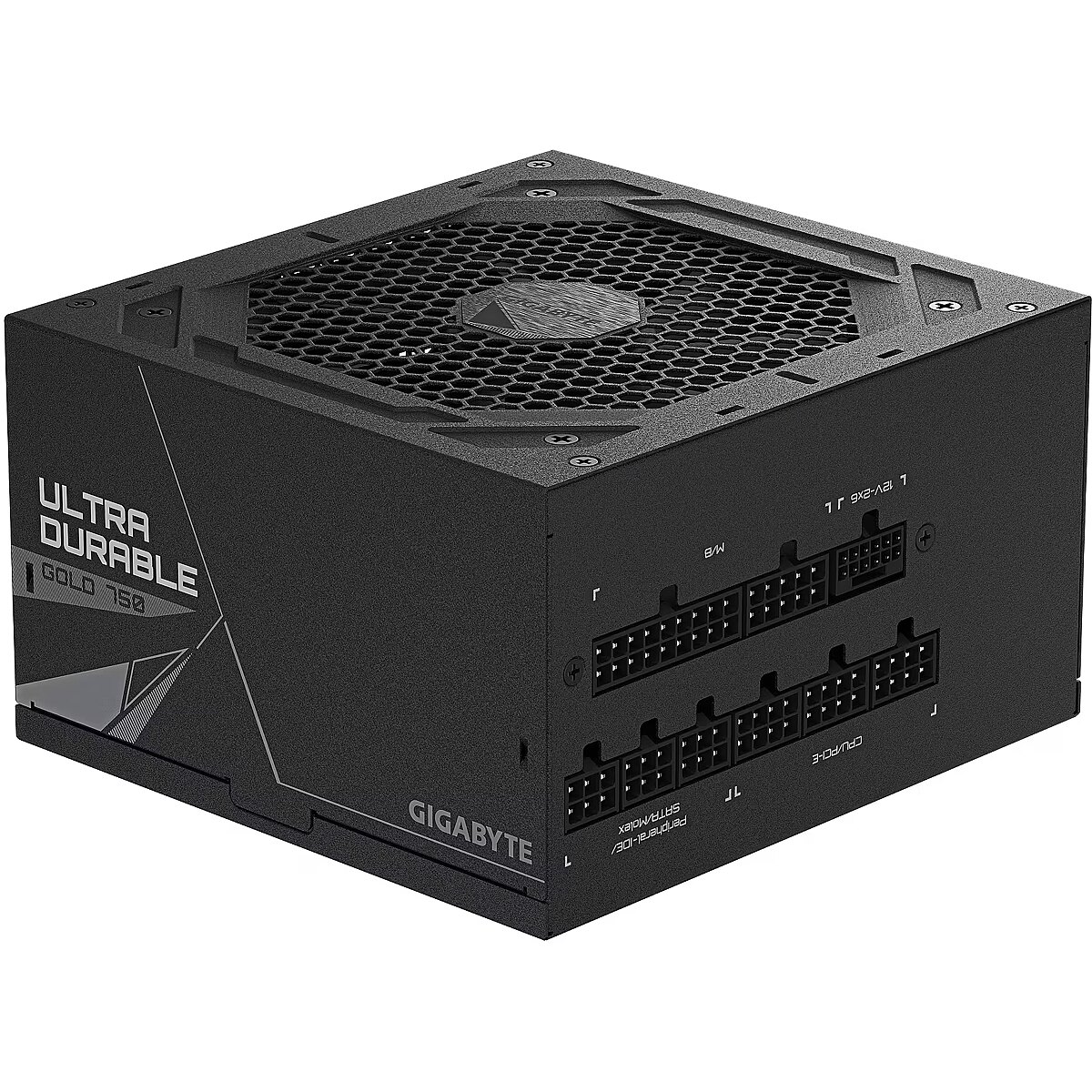

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
This power supply unit is manufactured by Gigabyte. You can view all Gigabyte power supply units here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 62.5A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular

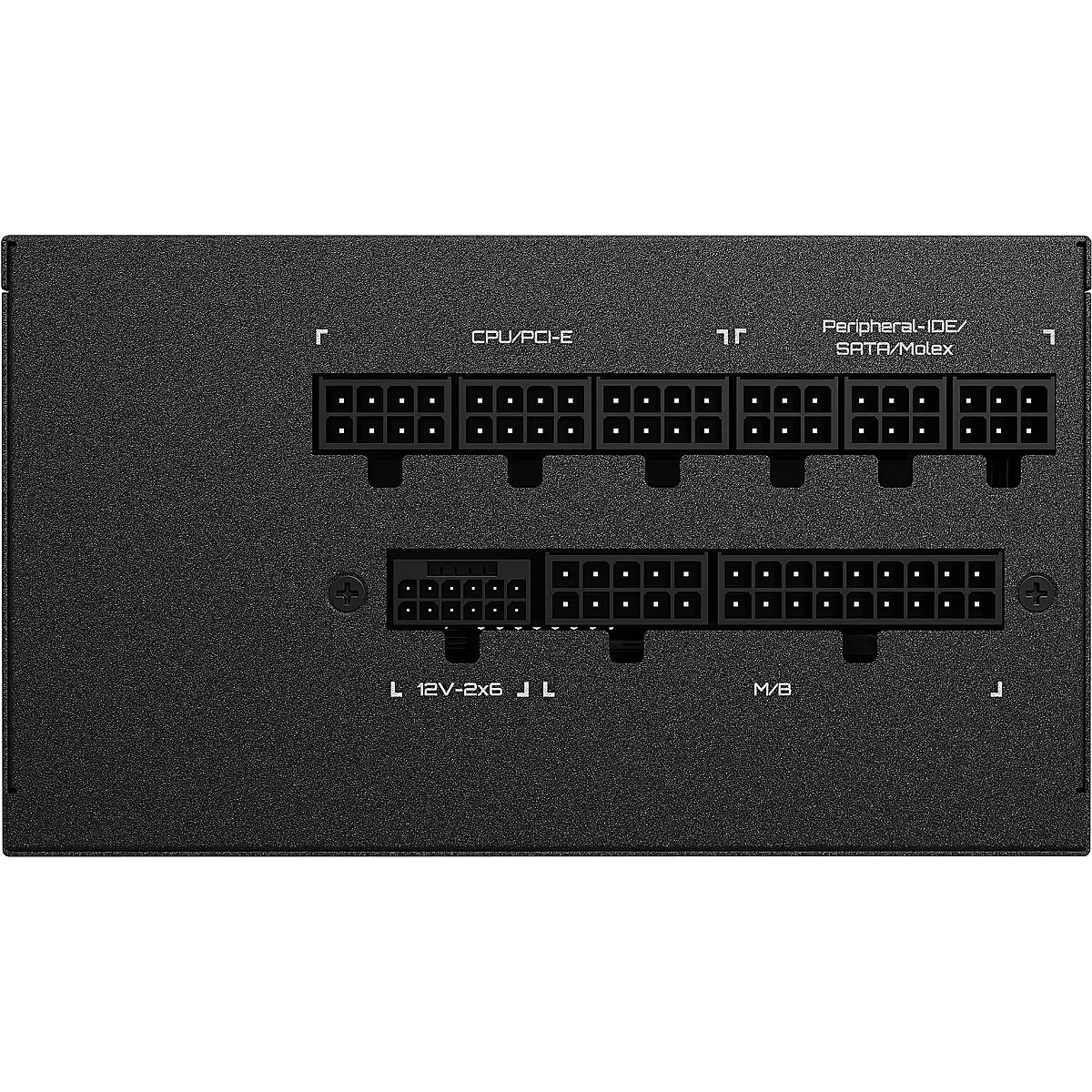

Ports and equipment
PCI-E 5.0/5.1
: 1 x 450W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 3
Case
More detailed specification
Brand - GIGABYTE
BrandPartCode - GP-UD750GM PG5 V2 EU
Category - Power Supply Units
Category Code - PSU
Colour - Black
Cooling System - 12cm fan
Description - UD750GM PG5 V2 Ultra Durable 100% Japanese capacitors 120mm smart hydraulic bearing (HYB) fan Optimized thermal solution OVP/OPP/SCP/UVP/OCP/OTP protection Intel ATX 3.1 and PCIe Gen 5.1 ready 80 PLUS Gold certified Fully modular design Powerful single +12V rail Compact size
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Dimensions - 150 x 140 x 86mm
Efficiency - 80 PLUS GOLD
GTIN - 4719331555870
Logistics data - Warranty period - 5 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 750 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,600 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
Model - GP-UD750GM PG5 V2
Model name - UD750GM PG5 V2
MTBF - 100000 hours
Packaging data - Package depth - 269 mm
Packaging data - Package height - 211 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.5 kg
Packaging data - Package width - 618 mm
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - HYB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 65 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy drive power connector - 1
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of EPS connectors - 2
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power cable length - 60 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150,500 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 150,600 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 105 W
Power - Combined power (+5V) - 105 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Hold time - 16 ms
Power - Input current - 12 - 6.5 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 750 W
ProductName - UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
Product Net Weight - 2 kg
PSU - ATX 3.1
PSU Output Power - 750 Watts
ShortSummaryDescription - GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 750 W, 100 - 240 V, 50/60 Hz, 12 - 6.5 A, Active, 105 W
Title - GIGABYTE UD750GM PG5 V2 Power Supply Unit- PCIe Gen 5.1, 80 PLUS Gold, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
Unit Box Height - 0.215
Unit Box Length - 0.255
Unit Box Width - 0.115
Unit Calculated Volume - 0.007812 cubm
Unit Calculated Weight - 2.5 kg
Units per Pallet - 0
Units per Shipping Box - 5
URL - https://www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-V2#kf
Vendor Homepage - www.gigabyte.com/Power-Supply/GP-UD750GM-PG5-V2
Warranty - 36 months
WarrantyInfo - 5 years
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.34 kg
Weight & dimensions - Width - 150 mm
