ID: 1247531
Product code: TACMARS-MPII550
Can be ordered 2 units Availability: 14 days after order approval
Warranty: 2 years

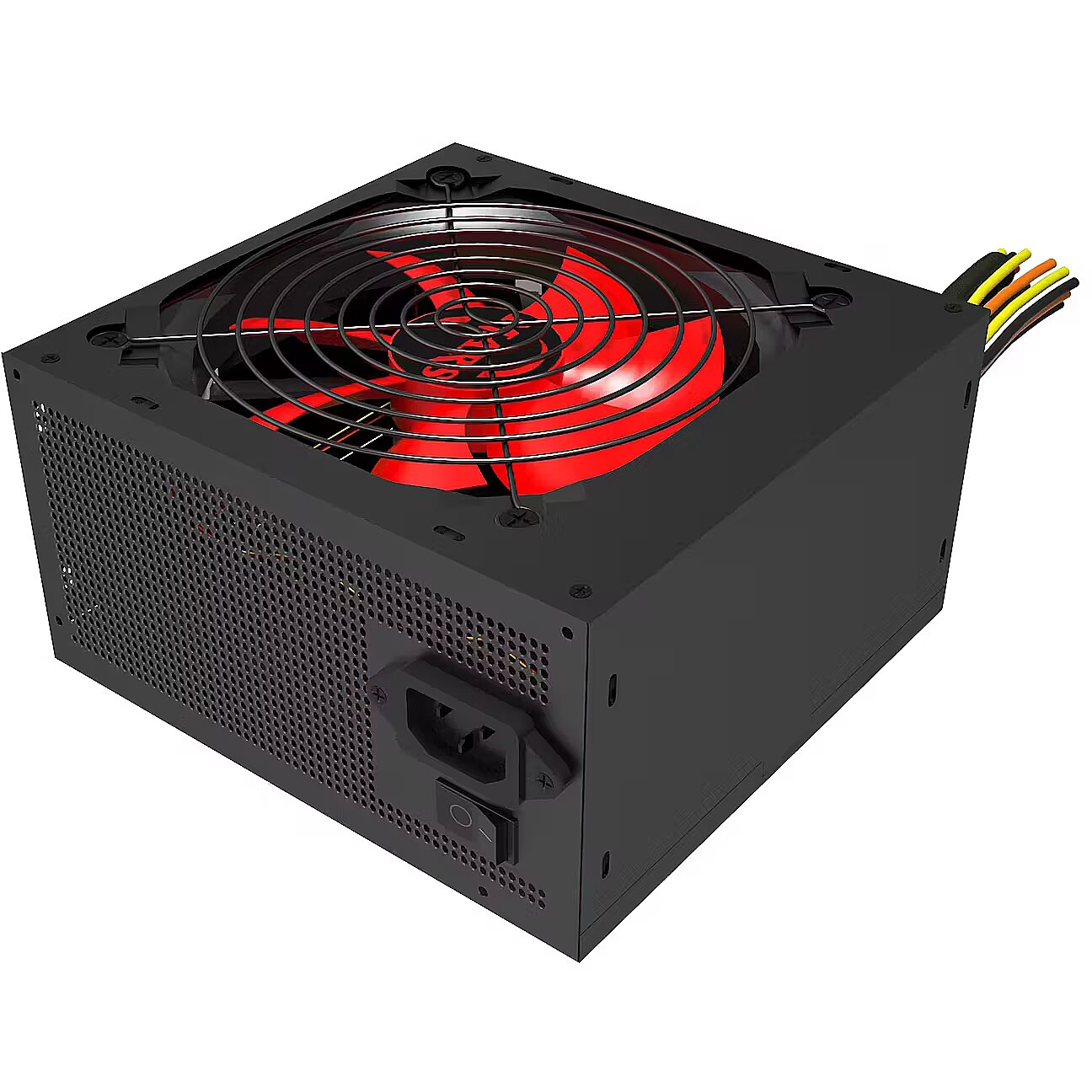

Mars Gaming MPII550, 550W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Mars Gaming
- Power output: 550W
- 80 PLUS certification: Nav
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 1 x 8-pin(4+4) EPS
- PCI-E: Nav
Description
The power of 550W is sufficient for basic computer gaming, web browsing, and Office applications use. The unit is designed for a computer with a budget processor, integrated graphics card, small SSD or hard drive. If you decide to upgrade your computer in the future, you should definitely consider purchasing a more powerful power supply.
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Raiba.
This power supply unit has been assigned the ATX 2.0 standard. This means that the unit is equipped only with 6-pin and 8-pin connectors, providing 75W and 150W power respectively. It's important to note that this unit will be compatible with RTX 4070 and more powerful cards, but you will need to use the 2x8-pin to 16-pin 12VHPWR adapter included with the graphics card. ATX 2.0 power connectors are not designed to handle the high power fluctuations of modern graphics cards; therefore, if you are building a system with a powerful GPU, such as the RTX 4070, we recommend choosing a power supply unit with the ATX 3.* standard and 12VHPWR (PCIe 5.0) connector.
The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
550W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: Nav
Total amperage (+12V)
: 34A
Fan size
: 120 mm
Functionality
Cable colour
: Raiba
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 1 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: Nav
SATA cconnectors
: 3
4pin Molex
: 2
More detailed specification
Brand - Mars Gaming
BrandPartCode - MPII550
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Red
Design - Product colour - Red
dimensionalWeight - 2200
GTIN - 4713105960372
Logistics data - Master (outer) case gross weight - 13.4 kg
Logistics data - Master (outer) cases per pallet - 24 pc(s)
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet - 240 pc(s)
LongDesc - With 550W of power and a 12cm anti-vibration fan, the MPII550 covers the basic needs of your computer.DesignFeaturing a matte black coated case and black grille, the MPII550 is a true gaming power supply. It contains a high-quality fan with anti-vibration system and intelligent speed control system, red blades and a black frame.BenefitsThe MPII550 power supply features a 12cm fan and generates only 14dB of noise, so its sound is barely perceptible. The MPII550 has a power output of 550W and features efficient 12V single rail technology to ensure extremely stable and powerful performance, perfect for gaming.EfficiencyThe MPII550, with its Eco-design, achieves extremely high efficiency of 85+ for greater energy savings and long lifespan.Full compatibilitySupporting Intel 4th Generation Haswell processors, the MPII550’s long cables (1x 20+4 PIN, 1x 12V 4+4 PIN, 3x SATA, 2x PATA, 1x FDD) offer maximum adaptability. This power supply ensures safe operation thanks to its industrial-grade electrical protections and filtering.Manufactured according to EU standardsThe MPII550 is manufactured to the required EU standards and directives, complying with the ATX12V standard.
LongProductName - 550W, 120mm, 14dB, 3x SATA, 2x PATA, FDD, 20+4-pin, 4+4-pin
LongSummaryDescription - Mars Gaming MPII550. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 14 dB. Product colour: Black, Red, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.2 kg
Performance - Noise level - 14 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 408 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 85%
Power - Input current - 7 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 34 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 550 W
producerCode - TACMARS-MPII550
productName - Mars Gaming MPII550 power supply unit 550 W 20+4 pin ATX ATX Black, Red
ProductName - MPII550
productSize - Normal
ShortSummaryDescription - Mars Gaming MPII550, 550 W, 200 - 240 V, 50 - 60 Hz, 7 A, Active, 150 W
sizeX - 275
sizeY - 200
sizeZ - 200
Title - Mars Gaming MPII550 power supply unit 550 W 20+4 pin ATX ATX Black, Red
URL - https://www.marsgaming.eu/en/products/mpii550.html
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1215
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 150 mm
BrandPartCode - MPII550
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
Design - Product colour - Black, Red
Design - Product colour - Red
dimensionalWeight - 2200
GTIN - 4713105960372
Logistics data - Master (outer) case gross weight - 13.4 kg
Logistics data - Master (outer) cases per pallet - 24 pc(s)
Logistics data - Products per master (outer) case - 10 pc(s)
Logistics data - Products per pallet - 240 pc(s)
LongDesc - With 550W of power and a 12cm anti-vibration fan, the MPII550 covers the basic needs of your computer.DesignFeaturing a matte black coated case and black grille, the MPII550 is a true gaming power supply. It contains a high-quality fan with anti-vibration system and intelligent speed control system, red blades and a black frame.BenefitsThe MPII550 power supply features a 12cm fan and generates only 14dB of noise, so its sound is barely perceptible. The MPII550 has a power output of 550W and features efficient 12V single rail technology to ensure extremely stable and powerful performance, perfect for gaming.EfficiencyThe MPII550, with its Eco-design, achieves extremely high efficiency of 85+ for greater energy savings and long lifespan.Full compatibilitySupporting Intel 4th Generation Haswell processors, the MPII550’s long cables (1x 20+4 PIN, 1x 12V 4+4 PIN, 3x SATA, 2x PATA, 1x FDD) offer maximum adaptability. This power supply ensures safe operation thanks to its industrial-grade electrical protections and filtering.Manufactured according to EU standardsThe MPII550 is manufactured to the required EU standards and directives, complying with the ATX12V standard.
LongProductName - 550W, 120mm, 14dB, 3x SATA, 2x PATA, FDD, 20+4-pin, 4+4-pin
LongSummaryDescription - Mars Gaming MPII550. Total power: 550 W, AC input voltage: 200 - 240 V, AC input frequency: 50 - 60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Non-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, Noise level: 14 dB. Product colour: Black, Red, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 85 mm
Packaging data - Package type - Box
Packaging data - Package weight - 1.2 kg
Performance - Noise level - 14 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of PATA power connectors - 2
Ports & interfaces - Number of SATA power connectors - 3
Power - AC input frequency - 50 - 60 Hz
Power - AC input voltage - 200 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 408 W
Power - Combined power (-12V) - 6 W
Power - Efficiency - 85%
Power - Input current - 7 A
Power - Max output current (+3.3V) - 25 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 34 A
Power - Max output current (-12V) - 0.5 A
Power - Power Factor Correction (PFC) type - Active
Power - Total power - 550 W
producerCode - TACMARS-MPII550
productName - Mars Gaming MPII550 power supply unit 550 W 20+4 pin ATX ATX Black, Red
ProductName - MPII550
productSize - Normal
ShortSummaryDescription - Mars Gaming MPII550, 550 W, 200 - 240 V, 50 - 60 Hz, 7 A, Active, 150 W
sizeX - 275
sizeY - 200
sizeZ - 200
Title - Mars Gaming MPII550 power supply unit 550 W 20+4 pin ATX ATX Black, Red
URL - https://www.marsgaming.eu/en/products/mpii550.html
WarrantyInfo -
warrantyLength - 24
warrantyType - G
weight - 1215
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 85 mm
Weight & dimensions - Weight - 1.2 kg
Weight & dimensions - Width - 150 mm
