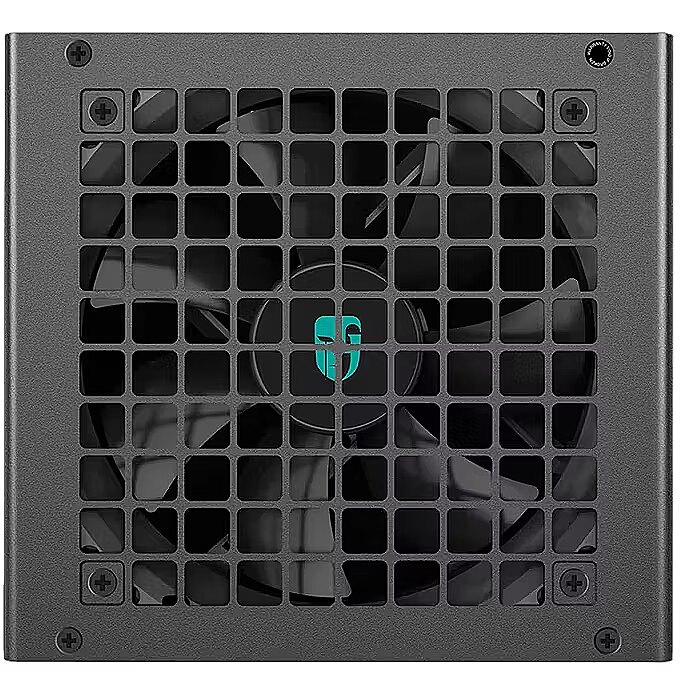

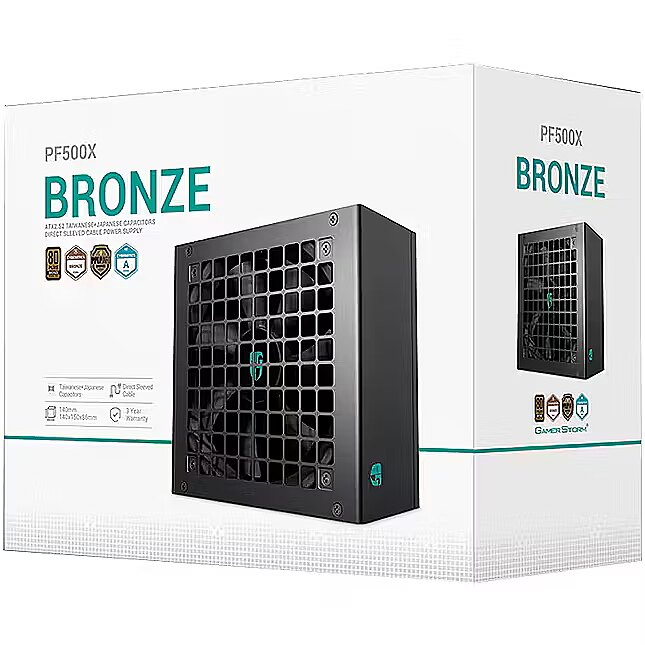

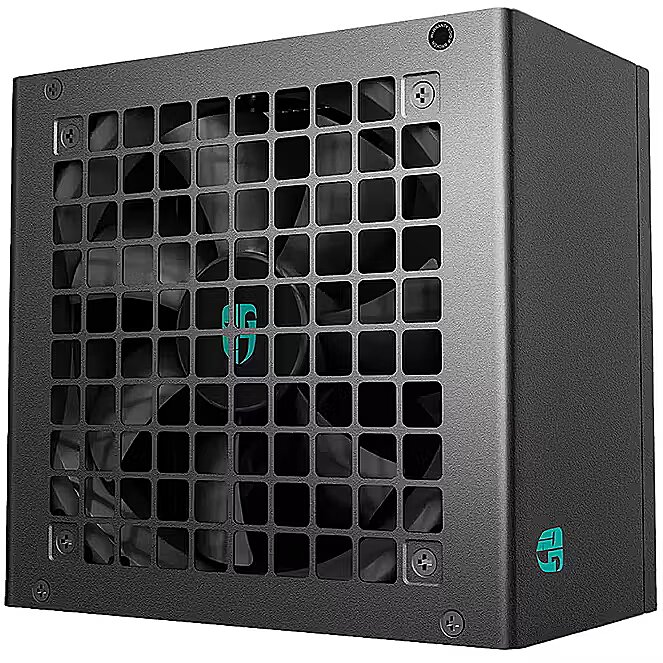

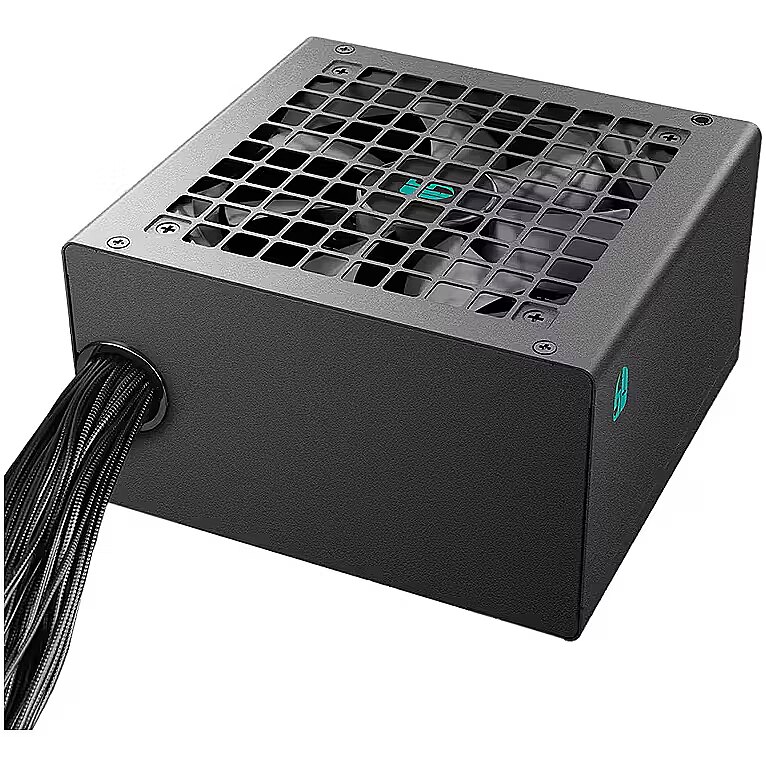

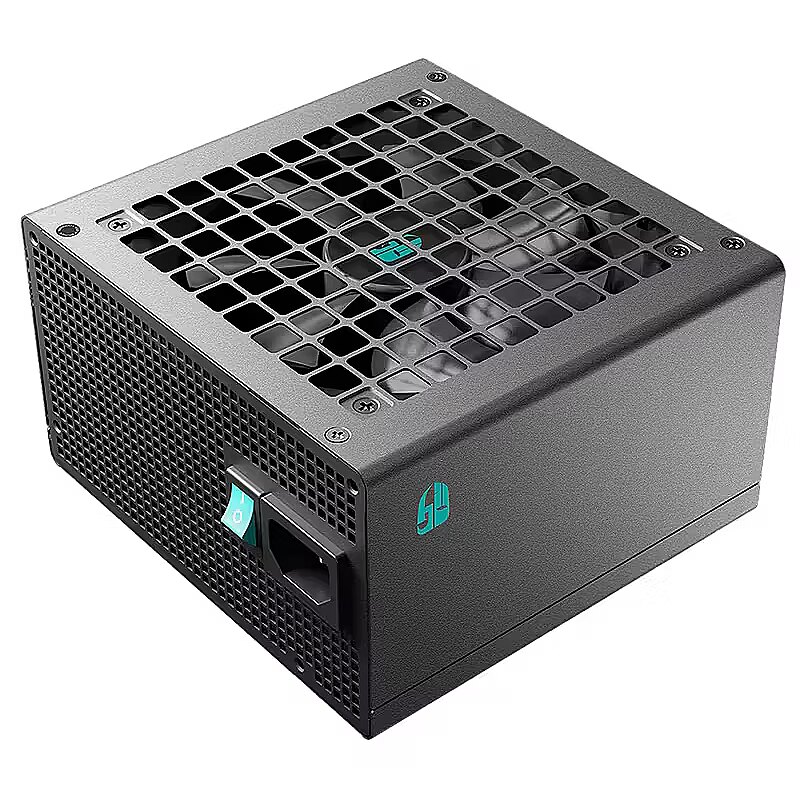

Deepcool PF500X, 500W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1246719 Product code: R-PF500XHD0B-JGEU
In stock 48 units
Warranty: 3 years
42.37 €
Ready for dispatch
on Thuesday, 15.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Deepcool
  • Power output: 500W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 120 mm
  • Modular cables: Nav
  • Processor plug-in: 1 x 8-pin(4+4) EPS
  • PCI-E: 2 X 6+2pin
Description

This Deepcool brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 500W.

This power supply unit is equipped with a 120 mm fan, which is the industry standard for ensuring quiet operation in average computers. If you want an especially quiet unit, look for one with a fan diameter of 135 mm or 140 mm.

The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The noise level of this power supply is 20-25 dB and it has a Cybenetics A noise level certificate.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

This power supply unit was produced by Deepcool. You can view all Deepcool power supply units here.

Basic information
Cybenetics Efficiency certification : Cybenetics Bronze
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 500W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 41.6A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0/5.1 : Nav
Processor plug-in : 1 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 2 X 6+2pin
SATA cconnectors : 6
4pin Molex : 2
Case
More detailed specification
Code - R-PF500XHD0B-JGEU
EAN - 6933412743804
Name - DEEPCOOL PF500X 500W 80 PLUS Standard PSU, Black
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 180.00 mm
Package features > Gross width (mm) - 115.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 161 pc(s)
Package features > Paper/Pasteboard - 935.00 g
Package features > Plastic (No PET) - 300.00 g
Package features > Tare weight (kg) - 1.23 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Technical details > Gross weight - 1.65 kg
Technical details > Net weight - 0.41 kg
Technical details > Producer - Deepcool
Warranty - 36
Warranty - 36 month(s)
