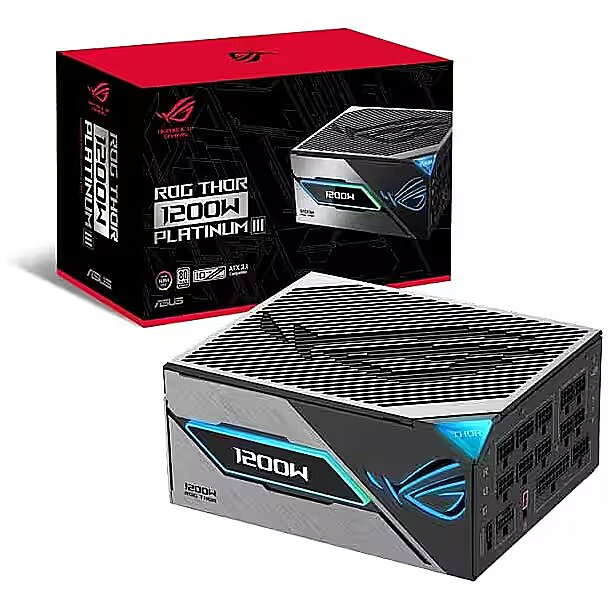

Asus ROG Thor Platinum III, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1233776 Product code: 90YE00V2-B0NA00
Can be ordered 3 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
446.54 €
Ready for dispatch
14.08.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 1200W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

We offer to purchase a Asus power supply unit with a power capacity of 1200W, which has received the 80 PLUS Platinum energy efficiency certification.

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

The color of the power supply is Melna,Sudraba. It is equipped with flat cables, whose color is Melna.

The noise level of this power supply is lower than 15 dB and it has a Cybenetics A ++ noise level certification.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

The power supply unit has RGB lighting.

This power supply is manufactured by Asus. You can view all Asus power supplies here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Cybenetics A ++
Power supply type : ATX
Power output 1200W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 100A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : RGB
Color : Melna, Silver
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 7
4pin Molex : 6
Case
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Asus ROG Thor Platinum III, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Brand - ASUS
BrandPartCode - 90YE00V2-B0NA00
category - PC Components|Power Supplies|PSUs above 800 Watts
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
code - 90YE00V2-B0NA00
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Dodatkowe informacje - AURA SYNC ARGB | wyświetlacz OLED
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 190 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1200 W
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Monitoring obrotów wentylatorów - tak
Dane techniczne: Natężenie przy napięciu +3.3V - 30 A
Dane techniczne: Natężenie przy napięciu +5V - 25 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 100 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Asus
Dane techniczne: Regulacja obrotów wentylatorów - tak
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Waga - 2.37 kg
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 4 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 6 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 7 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Design - Cooling type - Active
Design - Fan location - Top
Design - Illumination - Yes
Design - Number of fans - 1 fan(s)
Design - Product colour - Black
ean - 4711387610442
Eans - 4711387610442
GTIN - 4711387610442
LongDesc - Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1200W Platinum III delivers unmatched performance and rock-solid stability for your ultimate PC buildROG THOR 1200W PLATINUM IIIULTIMATE POWER. UNMATCHED STABILITY.The ROG Thor 1200W Platinum III delivers the ultimate power and stability demanded by gamers. A next-gen GaN MOSFET delivers superior efficiency, and "GPU-First" voltage sensing features a patented-intelligent voltage stabilizer, ensuring top-tier performance and stability. Meanwhile, there is Turbo Mode for maximum cooling when overclocking or for other demanding workloads.The ROG Thor 1200W Platinum III also features the signature Thor OLED display, now upgraded for easy magnetic attachment – it can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
LongProductName - ROG Thor 1200W Platinum III
LongSummaryDescription - ASUS ROG -THOR-1200P3-GAMING. Total power: 1200 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 400,120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Number of fans: 1 fan(s). Cables included: CPU, PCIe, SATA, Peripheral (Molex)
Name - ASUS ROG-THOR-1200P3-GAMING
name - ASUS ROG Thor Platinum III, 80 PLUS Platinum Netzteil, modular, ATX 3.1, PCIe 5.1 - 1.200 Watt
Packaging content - Cables included - CPU, PCIe, SATA, Peripheral (Molex)
Packaging data - Package depth - 241 mm
Packaging data - Package height - 127 mm
Packaging data - Package type - Box
Packaging data - Package weight - 5.14 kg
Packaging data - Package width - 379 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 100 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 7
Ports & interfaces - PCI Express power cable length - 75 cm
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (16-pin) - 1
Ports & interfaces - Peripheral (Molex) power cable length - 400,150 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 400,120 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 125 W
Power - Combined power (+5V) - 125 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1200 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 25 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 100 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Power - Total power - 1200 W
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
Producer - Asus
ProducerCode - 90YE00V2-B0NA00
ProductName - ROG-THOR-1200P3-GAMING
ShortDescription - 1200 | ATX | 135mm | 20 + 4 pin | 80Plus Platinum| 190 x 150 x 86 mm |
ShortSummaryDescription - ASUS ROG -THOR-1200P3-GAMING, 1200 W, 100 - 240 V, Active, 125 W, 1200 W, 125 W
Title - ASUS ROG -THOR-1200P3-GAMING power supply unit 1200 W 20+4 pin ATX ATX Black
URL - https://rog.asus.com/power-supply-units/rog-thor/rog-thor-1200p3-gaming/
WarrantyInfo - 10-year warranty included.
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 2.37 kg
Weight & dimensions - Width - 190 mm
