ID: 1228814
Product code: MPG A1000GS PCIE5
In stock 3 units
Warranty: 2 years

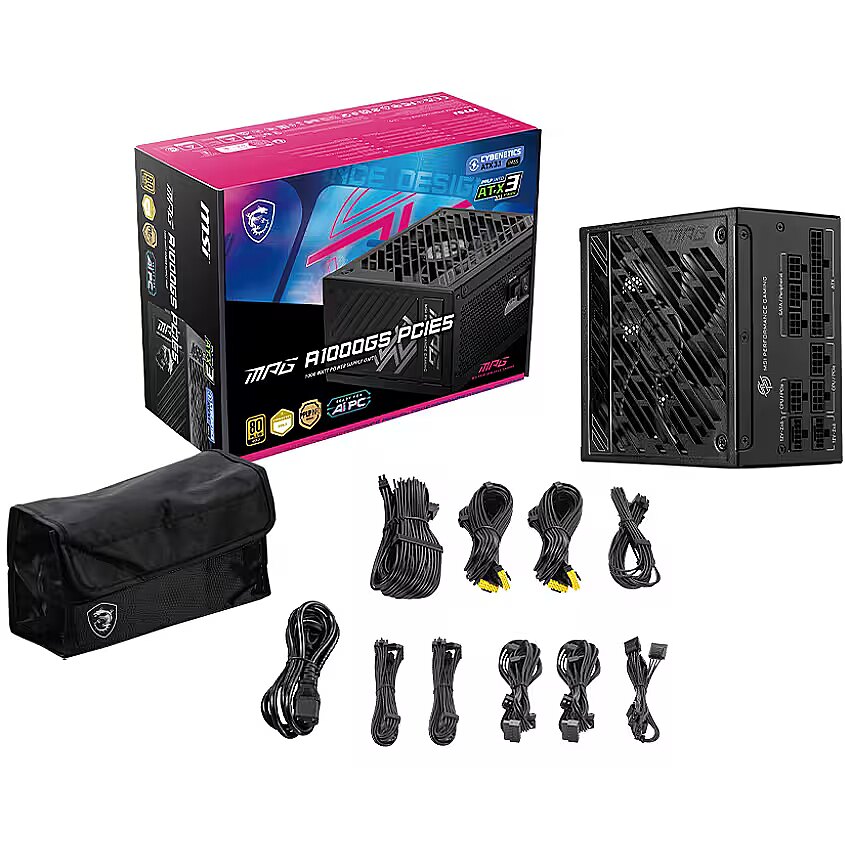

MSI MPG A1000GS PCIE5, 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: MSI
- Power output: 1000W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 135 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 1 X 6+2pin
Description
This MSI brand power supply unit has an 80 PLUS Gold energy efficiency certificate and a power output of 1000W.
Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.
This power supply is equipped with an exceptionally large 135 mm fan. Thanks to the larger blade size, it provides better airflow at lower speeds and quieter operation compared to standard 120 mm fans.
80 PLUS Gold energy efficiency certificate received by this power supply guarantees at least 90% efficiency at 50% load. In other words, for every 100 W of energy the power supply receives from the power grid, at least 90 W goes to your computer components, and the remaining 10 W is lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
The manufacturer of this power supply unit is MSI. Check out all MSI power supply units here.
Basic information
Cybenetics Efficiency certification
: Cybenetics Gold
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Gold
Total amperage (+12V)
: 83.3A
Fan size
: 135 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 2 x 600W 12V-2X6 (5.1)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 1 X 6+2pin
SATA cconnectors
: Eight Core
4pin Molex
: 4
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
ATX version - 3.1
Brand - MSI
BrandPartCode - MPG A1000GS PCIE5
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category Code - PSU
Certificates 80+ - 80 PLUS Gold
Colour - Black
Cooling System - 13.5cm fan
Dane techniczne: Certyfikat sprawności - 80 Plus Gold
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 150 mm
Dane techniczne: Moc - 1000 W
Dane techniczne: Model - MSI MPG A (GS)
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: Natężenie przy napięciu +3.3V - 22 A
Dane techniczne: Natężenie przy napięciu +5V - 22 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3 A
Dane techniczne: Natężenie przy napięciu +12V1 - 83.3 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - MSI
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 1 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 2 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 4 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - SIP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 135 mm
Description - MSI MPG A1000GS PCIE5
Description - Zasilacz MPG A1000GS PCIE5 Obsługa kart graficznych z serii NVIDIA GeForce RTX 50 2 x natywne złącze 12V-2x6 Dwukolorowy kabel 12V-2x6 Certyfikat 80 PLUS Gold Optymalizacja poziomu dźwięku W 100% wszystkie kondensatory klasy serwerowej mogące pracować w temperaturze 105°C Kable z przetłaczanym płaszczem, dzięki czemu łatwiej je zaginać i prowadzić w obudowie komputera Kompleksowa ochrona obwodów wykorzystująca przemysłowej klasy zabezpieczenia OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Illumination - No
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1988
dimension depth - 130 mm
dimension height - 230 mm
Dimensions - 150 x 150 x 86 mm
Dimensions - 150 x 150 x 86 мм
dimension weight - 3305 g
dimension width - 300 mm
ean - 4711377243773
Eans - 4711377243773
Efficiency - 80 PLUS GOLD
Fan - 13.5 cm
Fan speed (max) - 0 rpm
Fan speed (min) - 0 rpm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Protection against surges and surges
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
GTIN - 4711377243773
guarantee - 60
guarantee_type - normal
LongDesc - Featuring ATX 3.1 and PCIe 5.1 support with two 12V-2x6 connectors, these PSUs are built to handle NVIDIA’s 50 series graphics cards and AI PCs with ease. Advanced thermal solutions ensure cool, stable, and efficient operation, even under heavy loads, giving you the reliability and durability you need for gaming, streaming, or AI-powered tasks.
LongProductName - 1000W, 135 mm, 80 PLUS Gold
LongSummaryDescription - MSI MPG A1000GS PCIE5. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 60 cm, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
MB power connector - 24 pin
Model name - MPG A1000GS PCIE5
Modular power supply - Yes
MOLEX power connectors - 4
name - MPG A1000GS PCIE5
Name - MSI MPG A1000GS PCIE5
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 2
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 1
Number of USB 10p connectors - 0
Other features - Przepływ powietrza: 19.79 - 71.27 CFM Napięcie wejściowe: 100-240V~ Częstotliwość wejściowa: 50-60 Hz
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - Bearing technology - FDB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - No
Ports & interfaces - Floppy disk drive connector - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 8
Ports & interfaces - PCI Express power connectors (6+2 pin) - 1
Ports & interfaces - PCI Express power connectors (16-pin) - 2
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - Power connector 16 PIN PCIe GEN5 - 2
Power - AC input frequency - 50 - 60 Hz
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 90%
Power - Max output current (+3.3V) - 22 A
Power - Max output current (+5V) - 22 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83 A
Power - Max output current (+12V) - 83.3 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 1000 W
Power supply - 1000 W
Producent: Nazwa producenta / importera - MSIMSI Computer Europe BVEScience Park Eindhoven 57065692 ER Son Eindhoven HolandiaEmail: GPSR@msi.com
producer - MSI
Producer - MSI
producerCode - 306-7ZPFY11-CE0
ProducerCode - MPG A1000GS PCIE5
ProductName - A1000GS PCIE5
productName - MSI MPG A1000GS 1000W PCIE5 80+ Gold power supply (306-7ZPFX11-CE0)
Product Net Weight - 1.74 kg
productSize - Normal
PSU - ATX 3.1
PSU features - For gaming
PSU Output Power - 1000 Watts
Safety warning - Warnings - Do not open the case - risk of electric shock.
SATA power connectors - 8
ShortDescription - 1000 | ATX | 135mm | 20 + 4 pin | 150mm x 86mm x 150mm | 80PLUS GOLD | modularny |
ShortSummaryDescription - MSI MPG A1000GS PCIE5, 1000 W, 100 - 240 V, 50/60 Hz, Active, 120 W, 1000 W
sizeX - 311
sizeY - 230
sizeZ - 139
Title - MSI MPG A1000GS PCIE5 power supply unit 1000 W 24-pin ATX ATX Black
Unit Box Height - 0.13
Unit Box Length - 0.303
Unit Box Width - 0.228
Unit Calculated Volume - 0.01075 cubm
Unit Calculated Weight - 3.61 kg
Units per Shipping Box - 4
URL - https://www.msi.com/Power-Supply/MPG-A1000GS-PCIE5
Vendor Homepage - www.msi.com/Power-Supply/MPG-A1000GS-PCIE5
vendpn - MPG A1000GS PCIE5
Warranty - 24 months
WarrantyInfo -
warrantyLength - 120
warrantyType - G
weight - 3304
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
