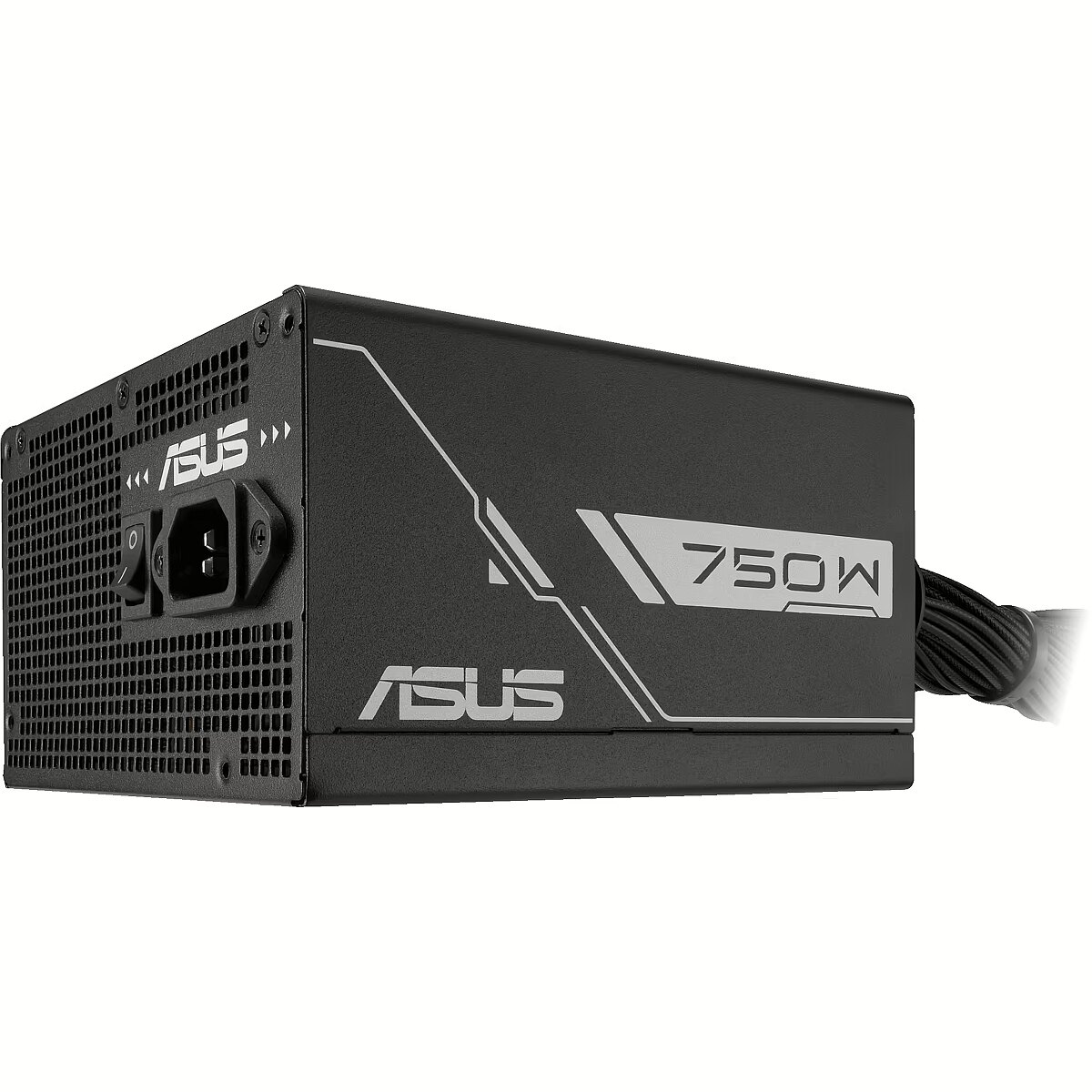

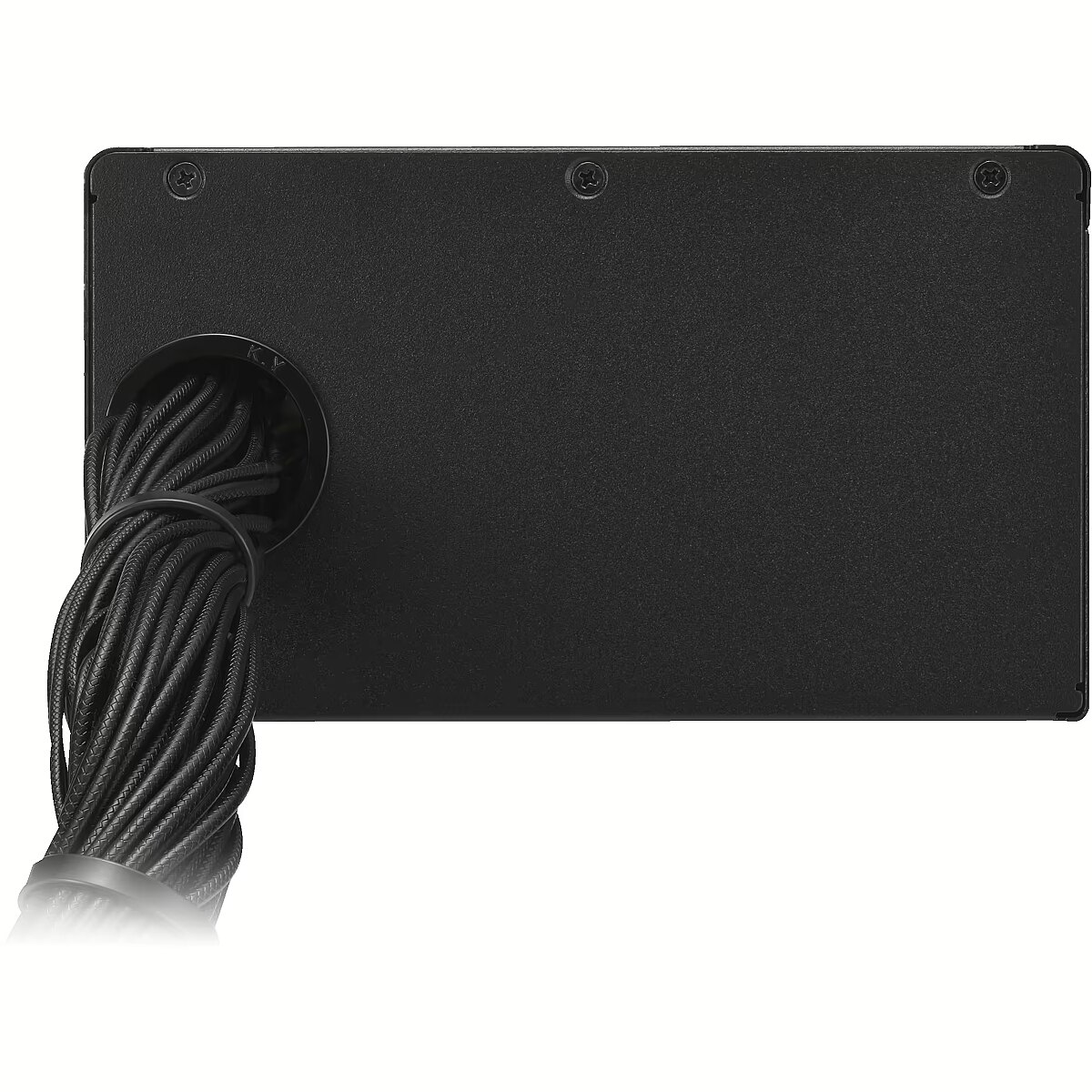

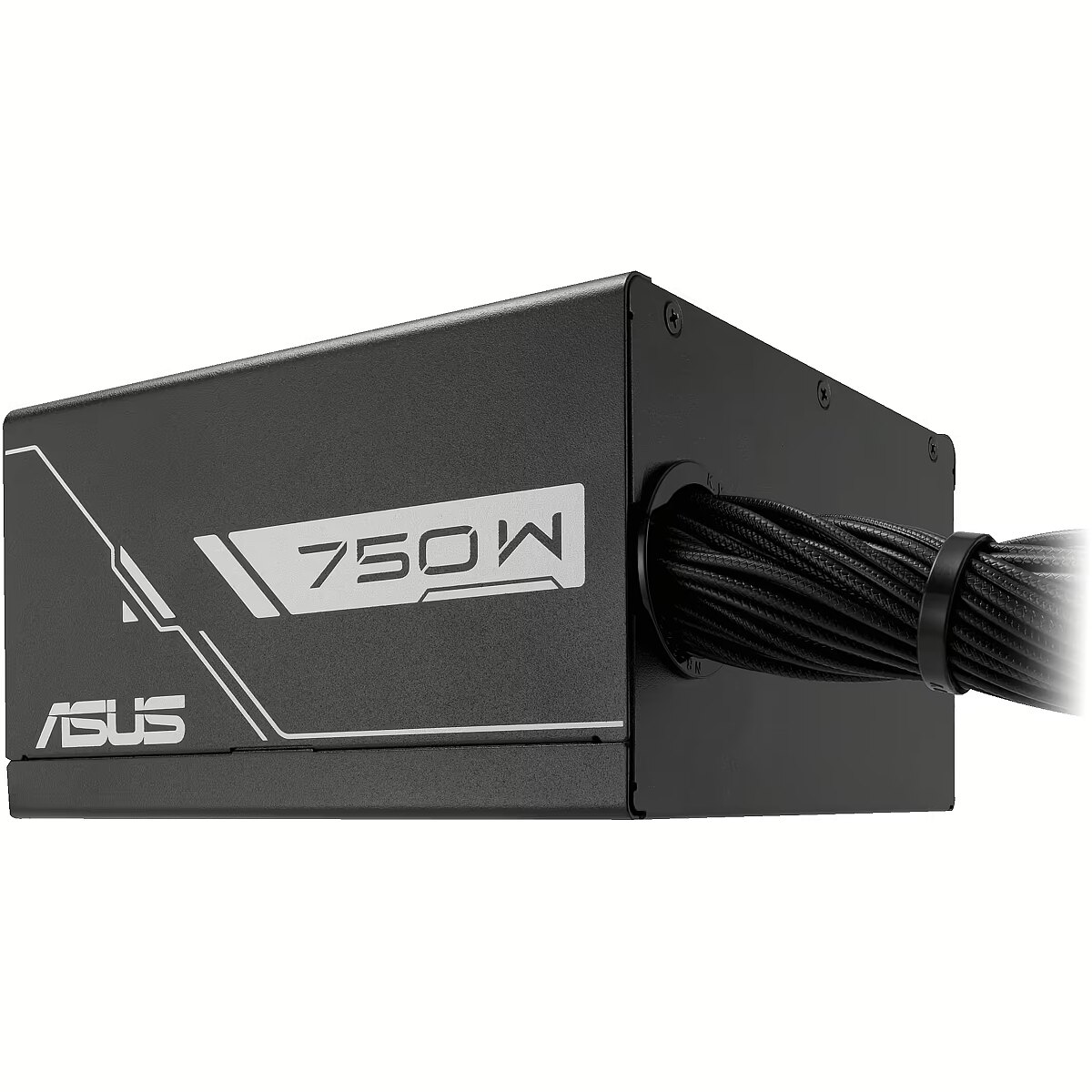

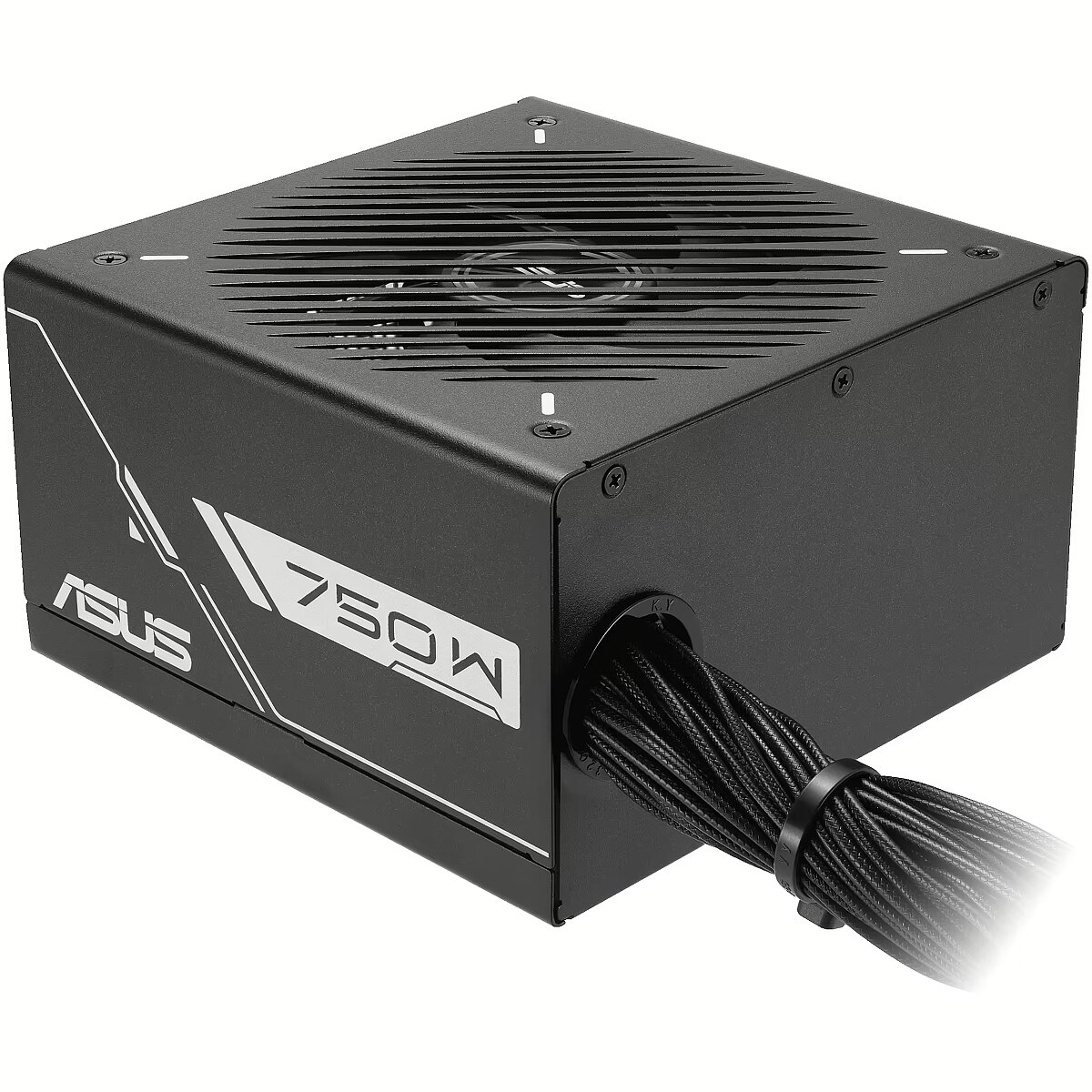

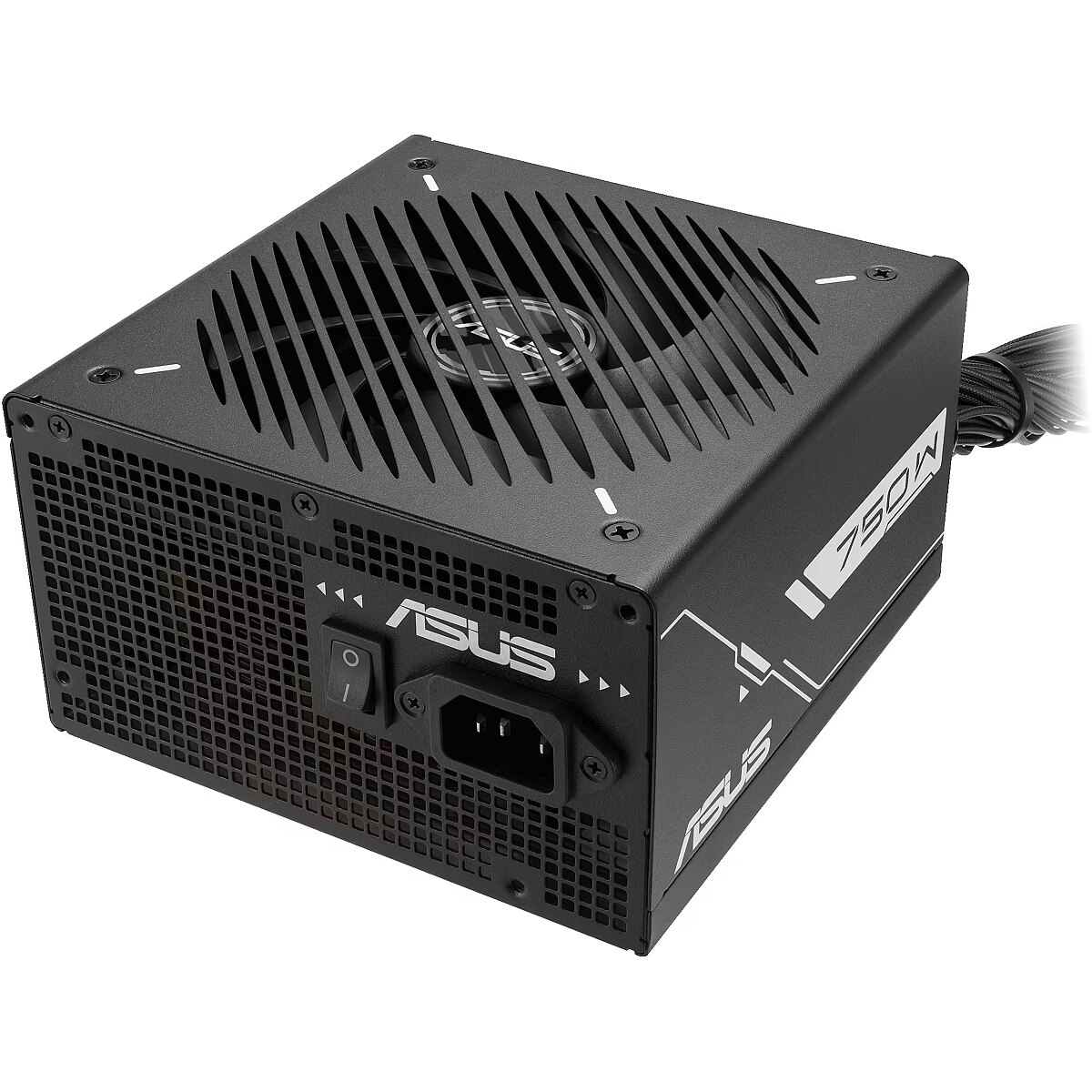

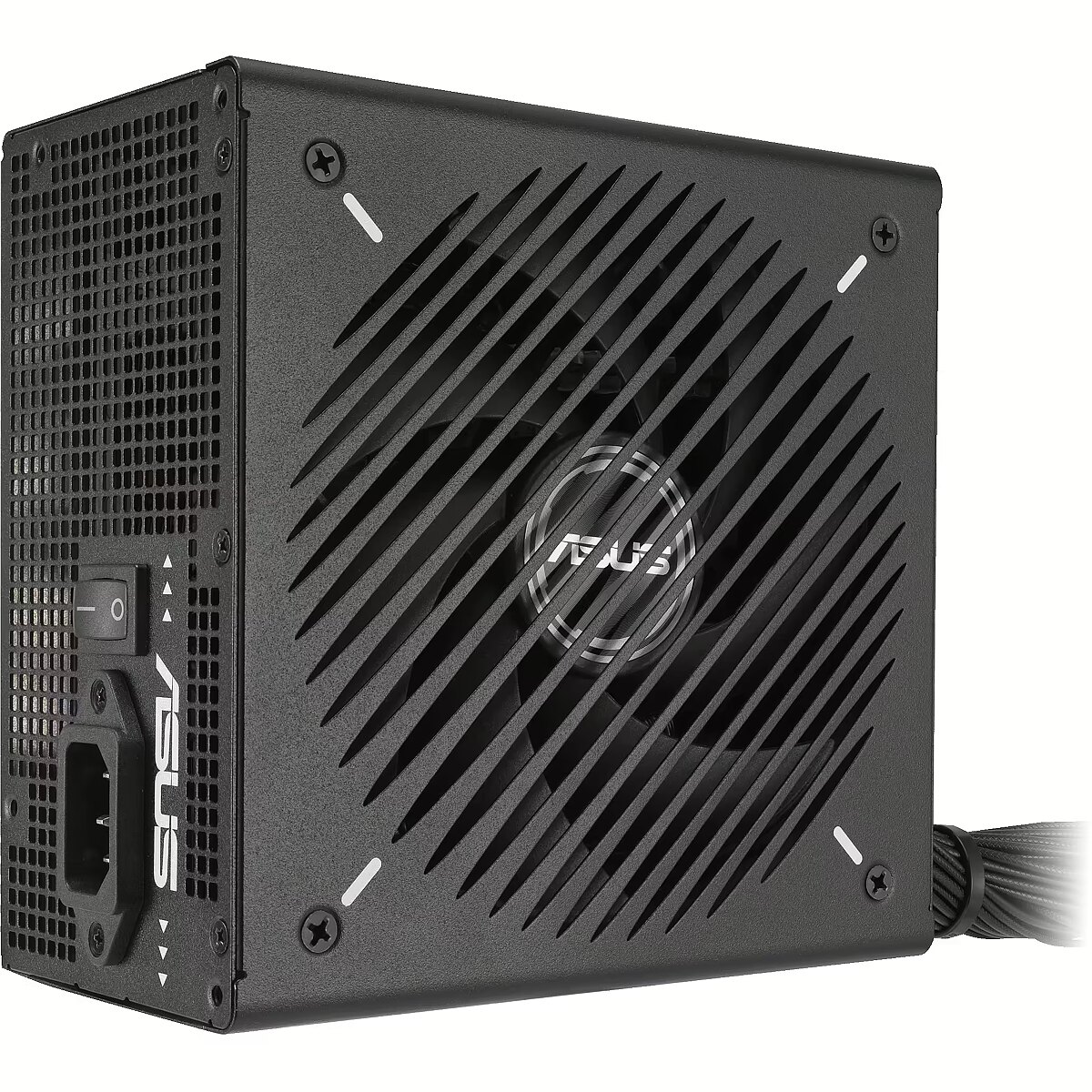

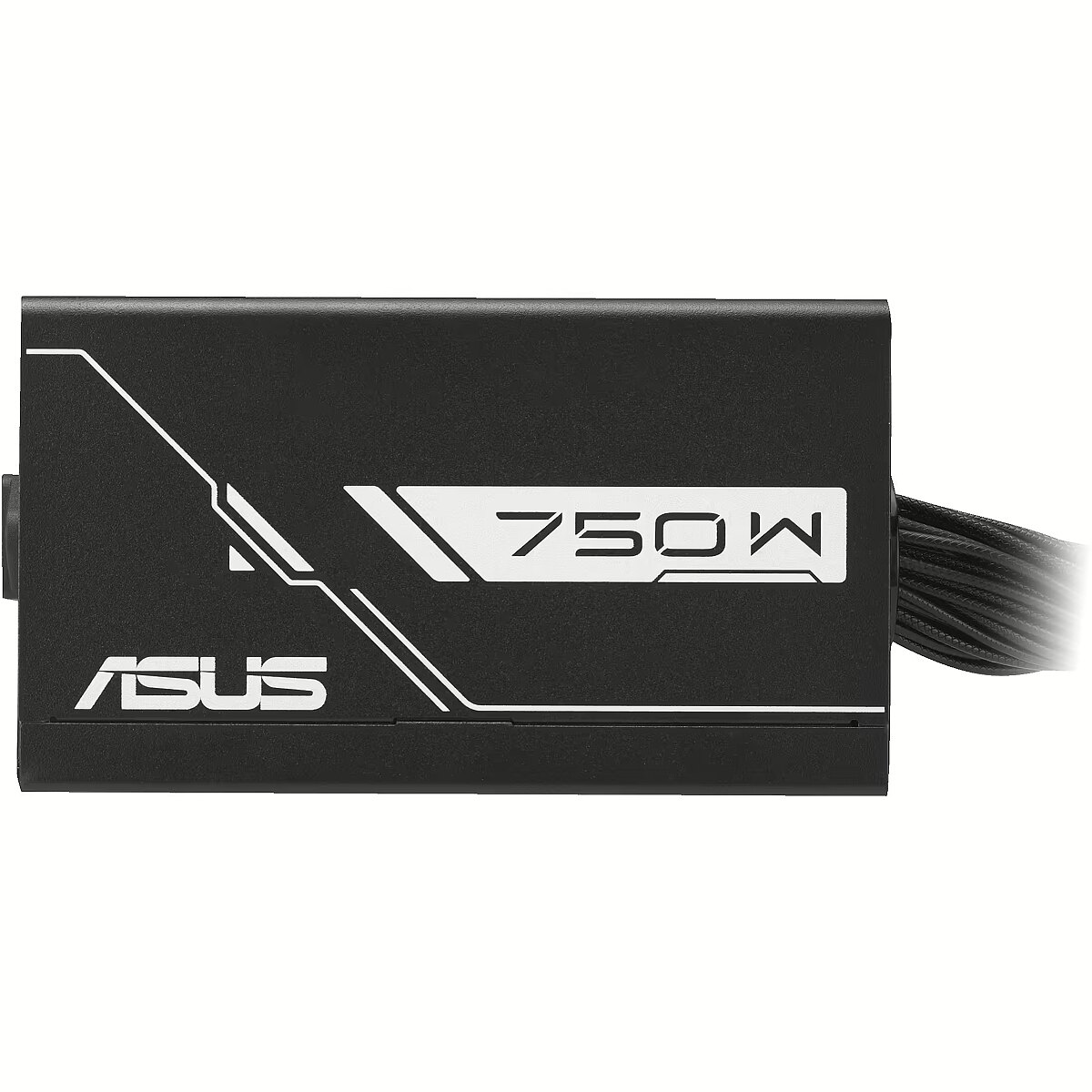

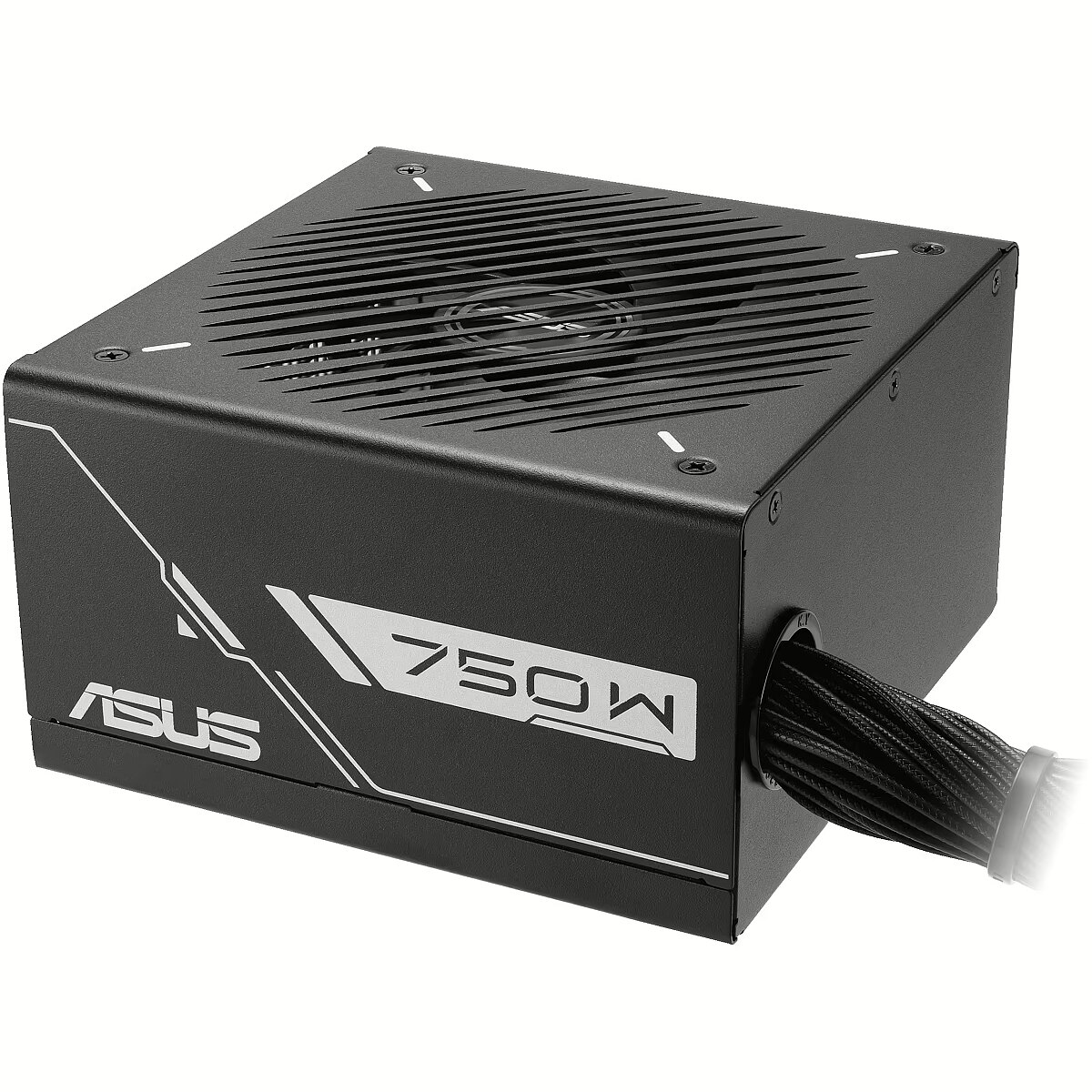

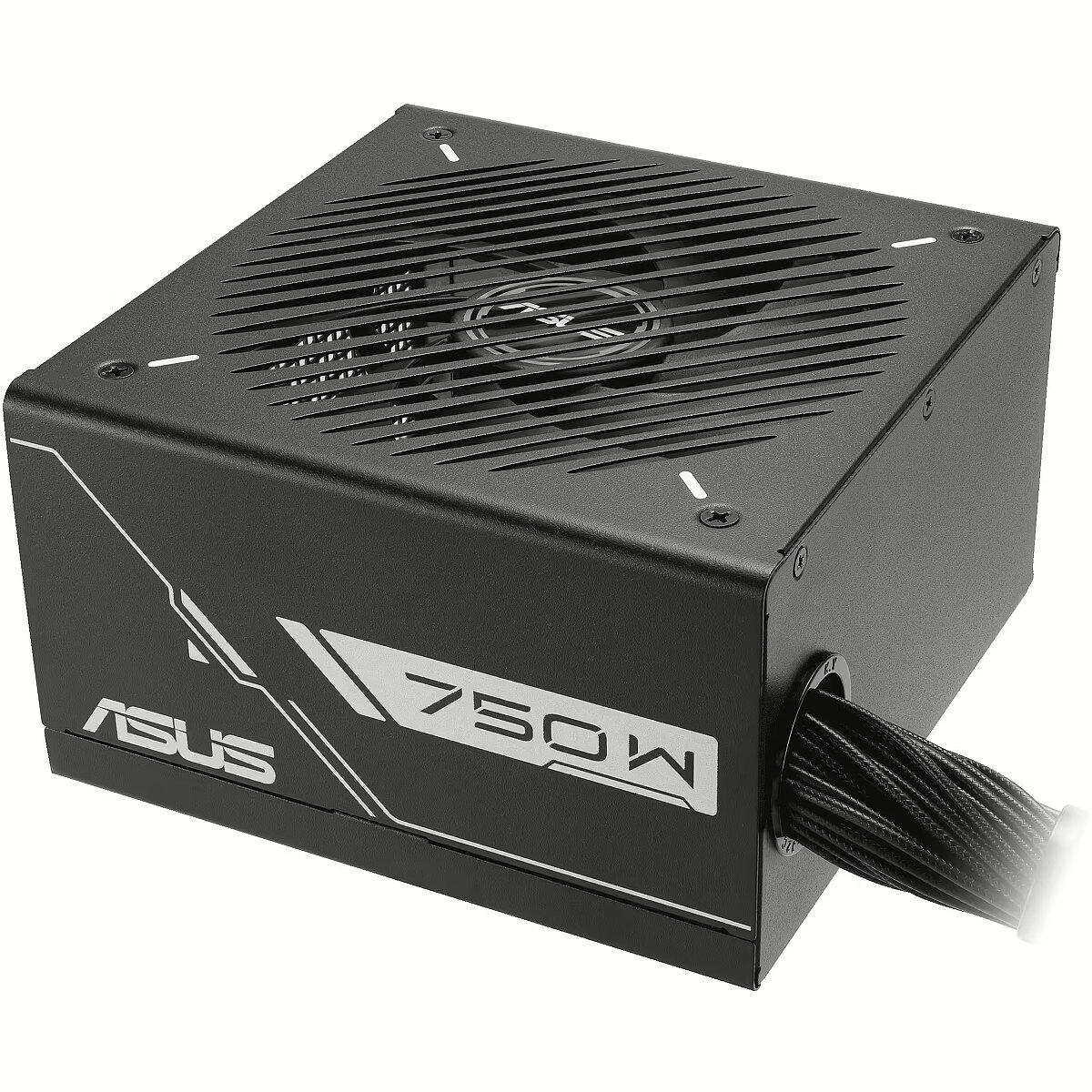

Asus Prime, 750W, 80PLUS Bronze

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
News
ID: 1223324 Product code: PRIME-750B-BLACK
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
100.62 €
Ready for dispatch
23.05.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • Itella parcel machine
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Asus
  • Power output: 750W
  • 80 PLUS certification: 80 PLUS Bronze
  • Fan size: 135 mm
  • Modular cables: Nav
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

We offer to purchase a Asus power supply unit with a power capacity of 750W, which has received the 80 PLUS Bronze energy efficiency certification.

With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

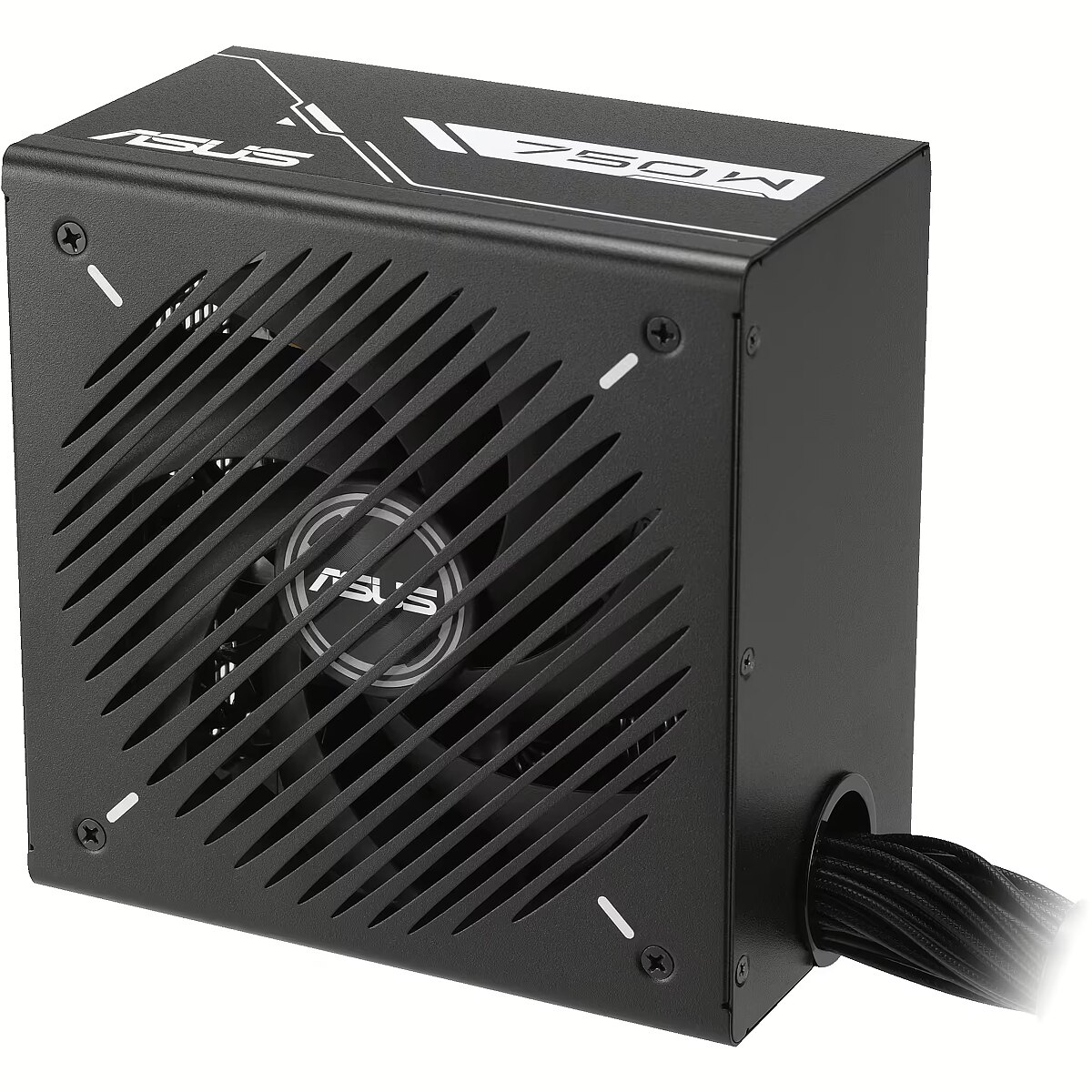

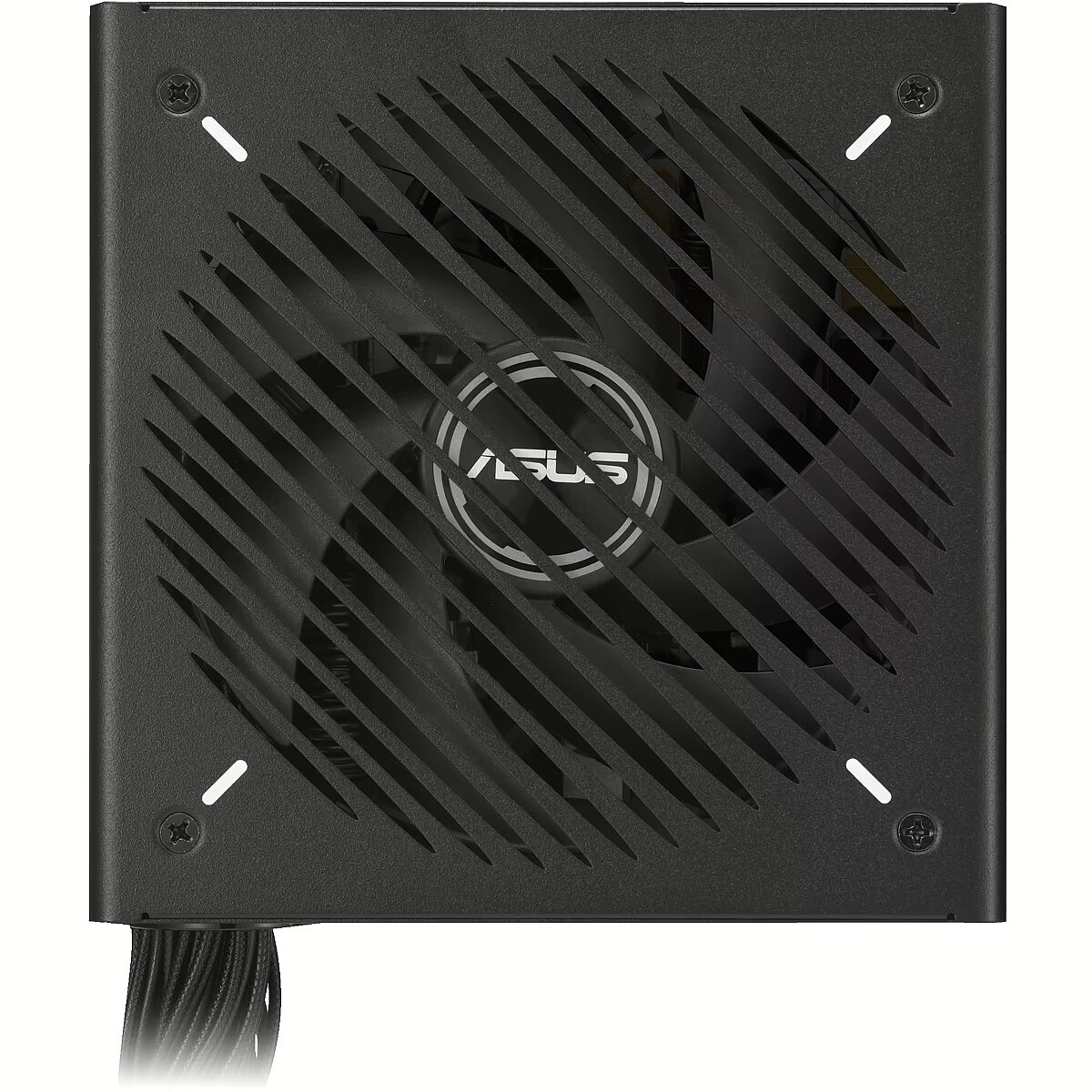

The large 135 mm cooling fan diameter makes this power supply significantly quieter than average. Since the fan blade area is larger, the fan provides the necessary airflow at lower fan speeds, overall reducing the noise and vibration levels.

The power supply has received the 80 PLUS Bronze energy efficiency certificate, which guarantees at least 85% efficiency at 50% load. This means that for every 100W of power the power supply draws from the electrical grid, at least 85W is delivered to your computer components, while the remaining 15W is lost as heat.

The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.

ATX 2.0 standard, which is assigned to this power supply unit, ensures that the unit is equipped only with 6-pin and 8-pin connectors (with respective power of 75W and 150W). For a system with a very powerful graphics card (such as RTX 4070), an ATX 3.* standard unit will be required, and ATX 2.0 will not be sufficient.

The power supply unit does not have modular cables; all cables are attached to the power supply unit and are not removable. Despite this, it will work just as well as a power supply unit with modular cables.

The manufacturer of this power supply unit is Asus. Check out all Asus power supply units here.

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Bronze
Total amperage (+12V) : 62.5A
Fan size : 135 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Nav
Ports and equipment
PCI-E 5.0 : Nav
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 6
4pin Molex : 3
Case
More detailed specification
Brand - ASUS
BrandPartCode - 90YE00Y0-B0NA00
Category - Power Supply Units
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)

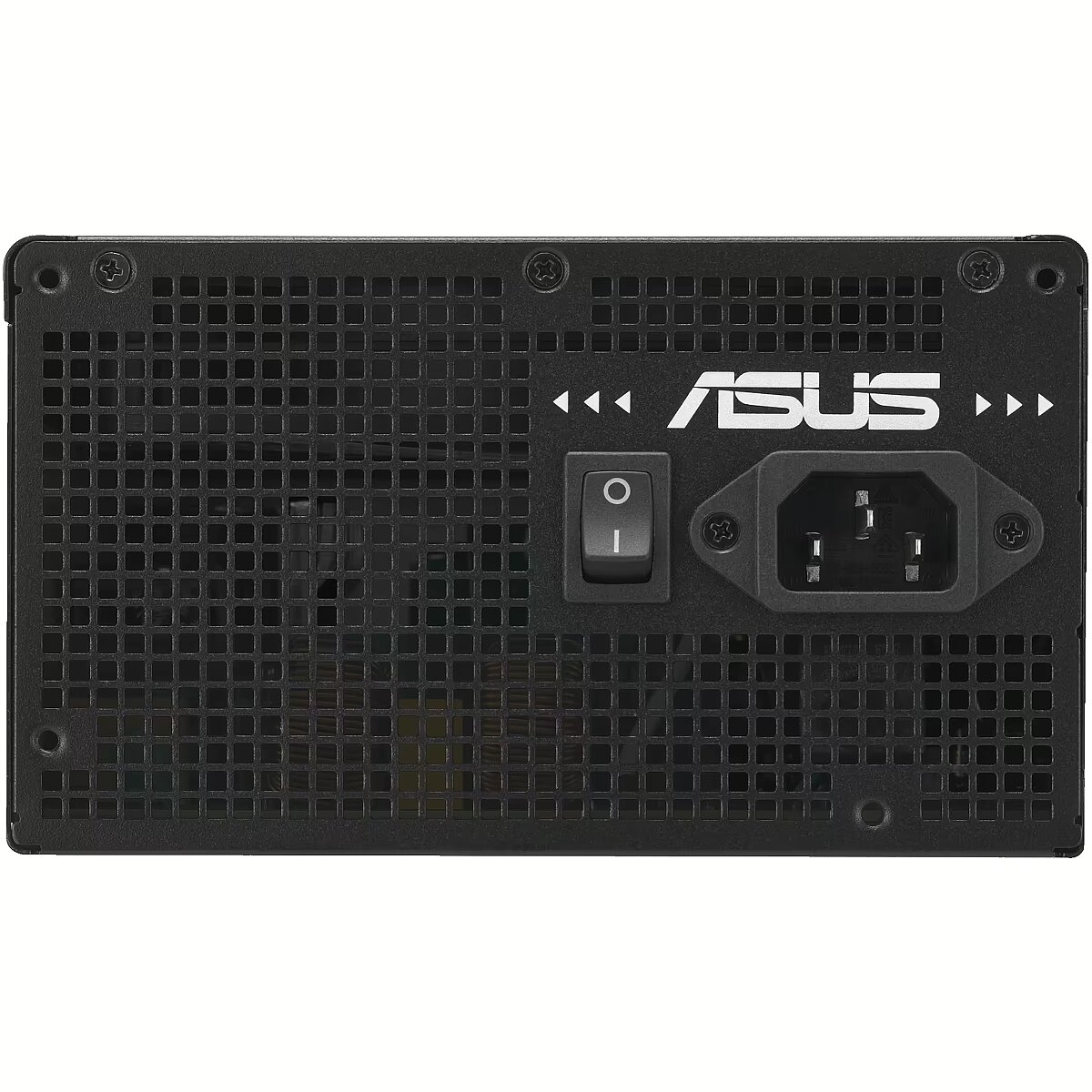

Design - On/off switch - Yes
Design - Product colour - Black
GTIN - 4711387635124
LongDesc - ASUS Prime 750W Bronze PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.Prime PerformanceWith 80+ Bronze certification, dual ball fan bearings, etched cables and an 6-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to reliable performance for the system build.
LongProductName - 750W, 80+ Bronze, ATX12V, Active PFC, 100-240Vac, 2.2 kg
LongSummaryDescription - ASUS Prime -750B-BLACK. Total power: 750 W, AC input voltage: 100 - 240 V, Power Factor Correction (PFC) type: Active. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, SATA power cable length: 120,400 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Bronze. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Width: 150 mm, Depth: 150 mm, Height: 86 mm
Packaging data - Package depth - 196 mm
Packaging data - Package height - 115 mm
Packaging data - Package type - Box
Packaging data - Package weight - 3 kg
Packaging data - Package width - 340 mm
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - Bearing technology - Ball bearing
Performance - Mean time between failures (MTBF) - 120000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - CPU power cable length - 80 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (8-pin) - 3
Ports & interfaces - Peripheral (Molex) power cable length - 120,400 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 120,400 mm
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 12.5 W
Power - Combined power (+12V) - 750 W
Power - Combined power (-12V) - 3.6 W
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 2.5 A
Power - Max output current (+12V) - 62.5 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power protection features - Over current, Over power, Over voltage, Short circuit, Under voltage
Power - Total power - 750 W
ProductName - PRIME-750B-BLACK
ShortSummaryDescription - ASUS Prime -750B-BLACK, 750 W, 100 - 240 V, Active, 120 W, 750 W, 120 W
Title - ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX
URL - https://www.asus.com/motherboards-components/power-supply-units/prime/prime-750b-black/
WarrantyInfo -
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.92 kg
Weight & dimensions - Width - 150 mm
