80 PLUS certification Performance - 80 PLUS Platinum
AC input voltage Power - 115 - 240 V
ATX version Performance - 3.0
Bearing technology Performance - FDB

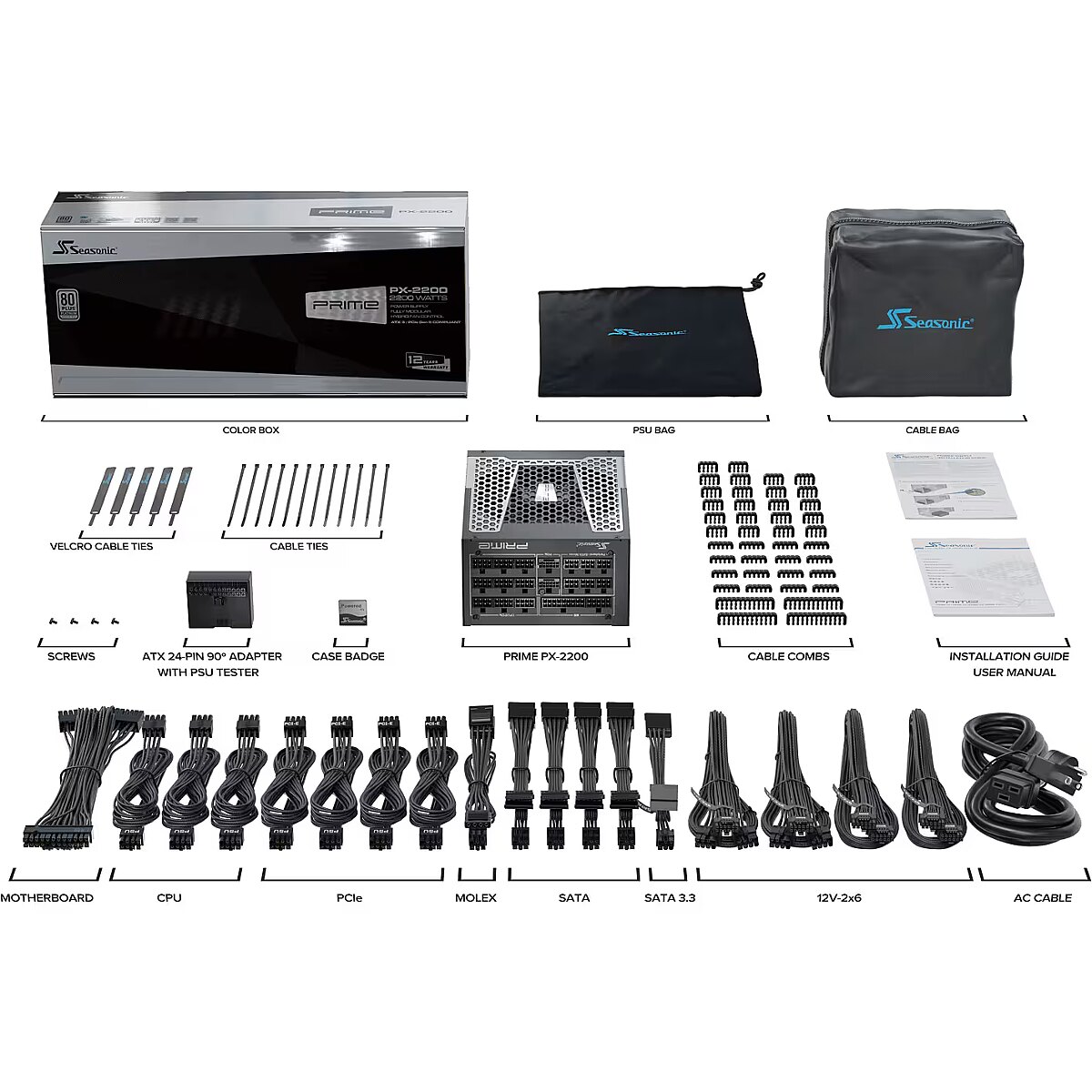

Cables included Packaging content - AC,CPU,PCIe,Peripheral (Molex),SATA
Cable tie(s) included Packaging content - Yes

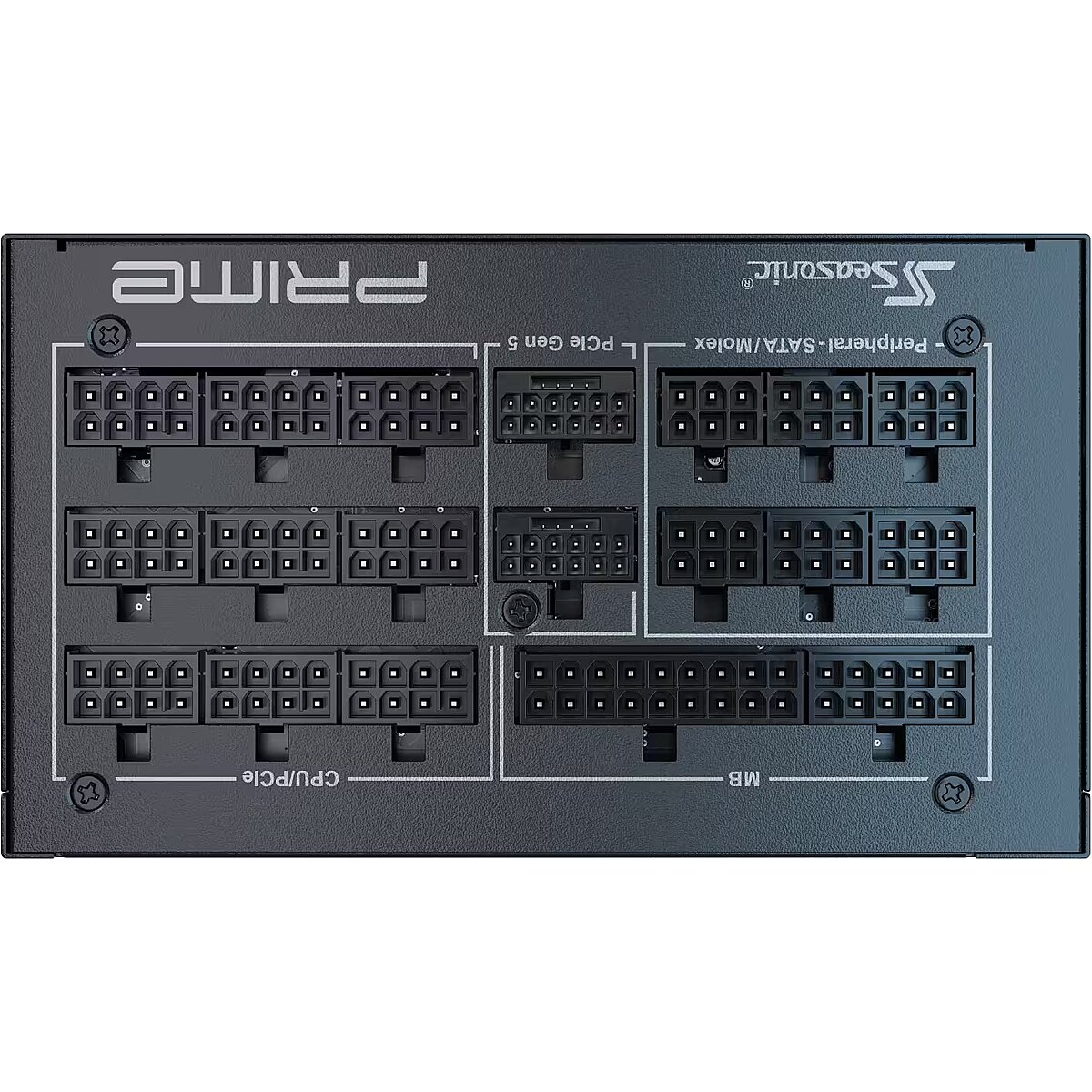

Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies|PSUs above 800 Watts
Category 1 - Netzteile
Category Code - PSU
Category_1 - Power
Category_2 - Computer Power Supplies
code - PRIME-PX-2200-ATX30
Combined power (+3.3V) Power - 125 W
Combined power (+5V) Power - 125 W
Combined power (+5Vsb) Power - 15 W
Combined power (+12V) Power - 2200 W
Combined power (-12V) Power - 6 W
Compliance certificates Certificates - CCC/CE/REACH/RoHS/WEEE
Cooling type Design - Active
CPU power cable length Ports & interfaces - 700 mm
Depth Weight & dimensions - 210 mm
Description - PRIME PX ATX 3.1
Power. Performance. PRIME. PRIME PX ATX 3
When selecting a power supply, it’s crucial to estimate the required power for both current and future components in your system. The Seasonic PRIME PX-2200 is a robust power supply capable of safely powering up to four RTX 4090 graphics cards, thanks to its adherence to ATX 3.1 and PCIe 5.1 specifications. Designed for demanding applications such as artificial intelligence and other high-power workloads, this flagship unit from the PRIME series delivers top-tier performance built on high-quality components. ATX 3.1 and 16-Pin PCIe Gen 5.1 Cable (12V-2x6)
Seasonic’s latest PRIME ATX 3.1 Series is designed and built to power new PC components requiring the new ATX 3.1 and PCIe 5.1 standards. Micro Tolerance Load Regulation
Seasonic’s latest design keeps the output voltage within a very tight range, achieving under 1 % load regulation. This impressive electrical performance and stability makes this power supply an ideal choice for high-performance systems. Digital Hybrid Fan Control
Seasonic’s vast experience in designing the most silent and efficient power supplies on the market was translated into the development of Hybrid Mode; a state-of-the-art digital fan control that enables users to keep the overall fan noise at the lowest possible level.
Note: The Digital Hybrid Fan Control chart is provided for reference only. The shape of the curve can look different due to the variability in ambient temperature, system set-up, air flow, and other unpredictable factors. Fluid Dynamic Fan Bearing
High performance Fluid Dynamic Bearing (FDB) fans are designed to take advantage of the impact absorbance effects of oil. They are extremely reliable and generate considerably less operating noise and heat than ball bearing fans. The lubrication of the bearing surface reduces friction and vibration and therefore lowers overall power consumption. Due to the effortless, quieter rotations and its robust construction, this reliable fan technology also greatly increases the lifespan of the fan.
ean - 4711173878414
EAN - 4711173878414
EAN_code - 4711173878414
EPS power connector (8-pin) Ports & interfaces - Yes
Fan diameter Design - 135 mm
Height Weight & dimensions - 86 mm
Input current Power - 15 A
Manufacturer - Seasonic
Manufacturer - Sea Sonic
Manufacturer_code - PRIME-PX-2200-ATX30
Max output current (+3.3V) Power - 25 A
Max output current (+5V) Power - 25 A
Max output current (+5Vsb) Power - 3 A
Max output current (+12V) Power - 183.3 A
Max output current (-12V) Power - 0.5 A
Mean time between failures (MTBF) Performance - 150000 h
Model name - PRIME PX ATX 3.1
Motherboard power cable length Ports & interfaces - 610 mm
Motherboard power connector Ports & interfaces - 24-pin ATX
MPN - PRIME-PX-2200-ATX30
Name - 2200W Seasonic Prime PX-2200 ATX30 Modular Platin
Name - Seasonic PRIME PX-2200 2200W ATX 3.1, PC power supply (4x 12-pin high power GPU, 4 x PCIe, cable management, 2200 watts)
name - Seasonic Prime PX-2200 Netzteil, 80 PLUS Platinum, vollmodular, ATX 3.1, PCIe 5.1 - 2.200 Watt
Number of fans Design - 1 fan(s)
Number of SATA power connectors Ports & interfaces - 10
On/off switch Design - Yes
Operating temperature (T-T) Operational conditions - 0 - 50 °C

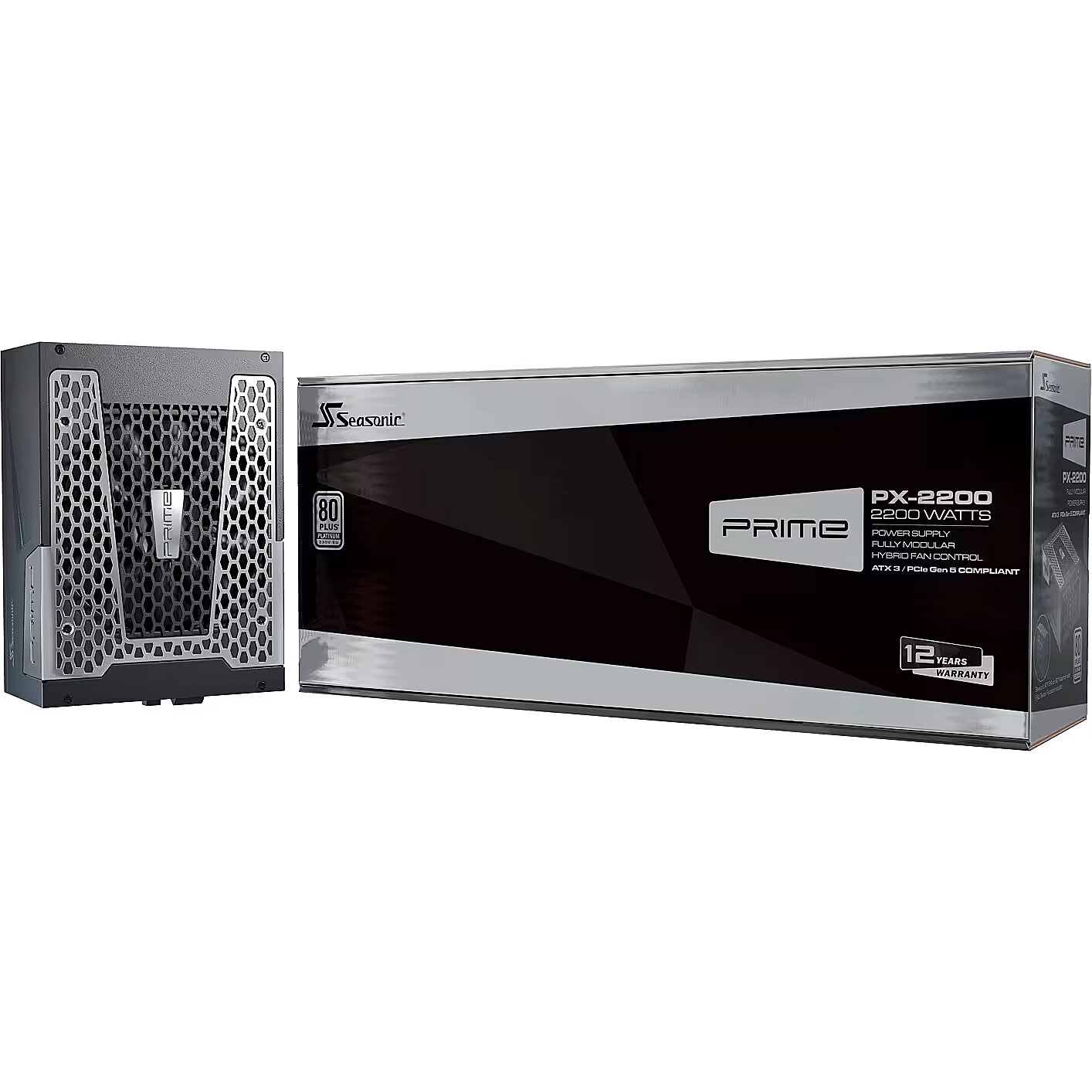

Package type Packaging data - Box
Peripheral (Molex) power cable length Ports & interfaces - 470/690 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 3
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
SATA power cable length Ports & interfaces - 450/470/550/570/760/860/950 mm
Summary - Seasonic Prime PX. Total power: 2200 W, AC input voltage: 115 - 240 V, Input current: 15 A. Motherboard power connector: 24-pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 450,470,550,570,760,860,950 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: AC, CPU, PCIe, Peripheral (Molex), SATA
Total power Power - 2200 W
Unit Box Height - 0.2
Unit Box Length - 0.455
Unit Box Width - 0.13
Unit Calculated Volume - 0.01406 cubm
Unit Calculated Weight - 6.2 kg
Units per Shipping Box - 4
Vendor Homepage - https://seasonic.com/atx3-prime-px-2200/
Warranty - 144 months
Weight - 6
Weight - 6,00
Width Weight & dimensions - 150 mm
