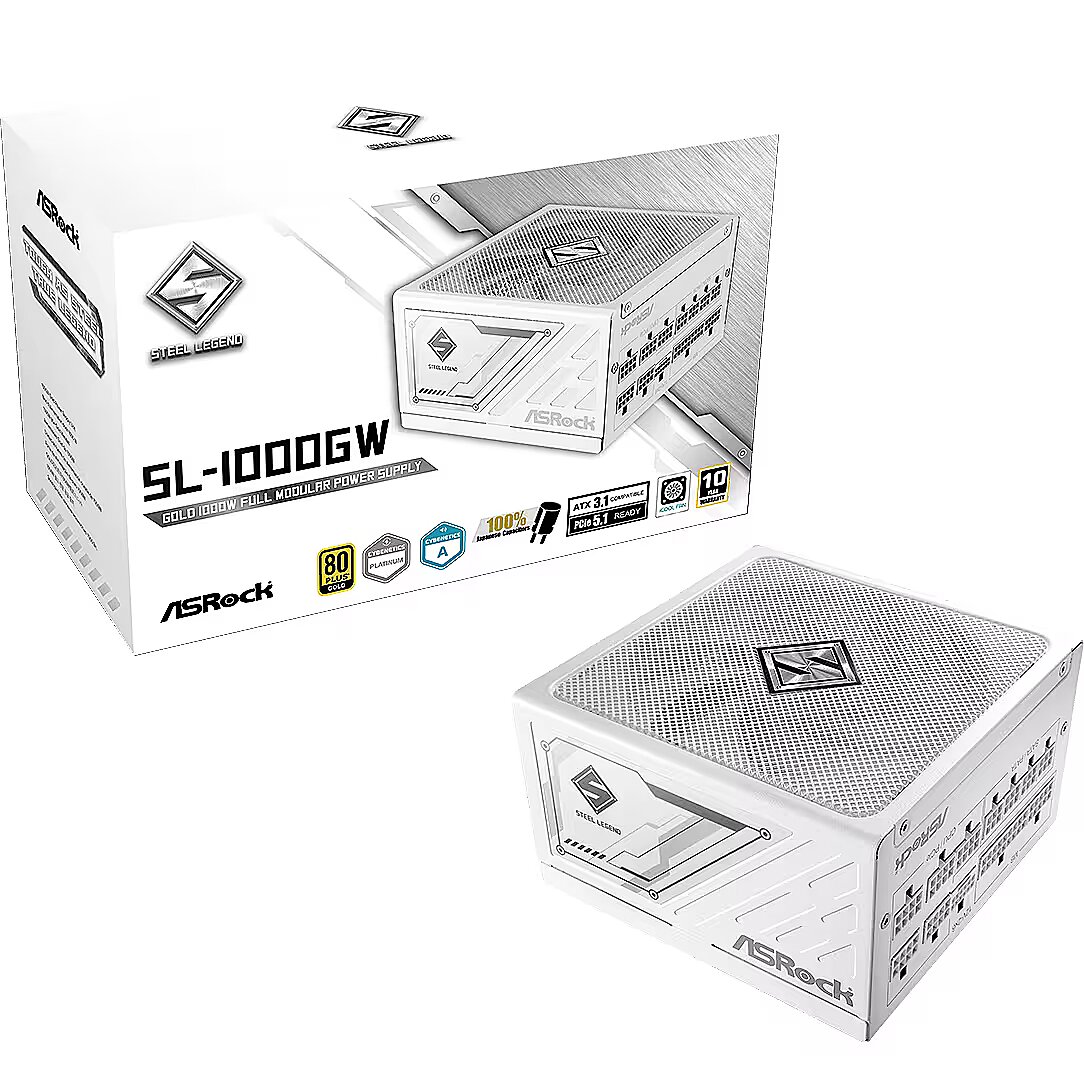

Asrock Steel Legend, 1000W, ATX 3.1, 80PLUS Gold, PCIe 5.1, White Edition

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1170340 Product code: 90-UXS100-GFEABA
Can be ordered 4 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
187.02 €
Ready for dispatch
04.06.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • Itella parcel machine
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Asrock
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Gold
  • Fan size: 135 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 3 x 6+2pin
Description

We offer to purchase a Asrock power supply unit with a power capacity of 1000W, which has received the 80 PLUS Gold energy efficiency certification.

Even the best gaming computer will be able to operate safely with this 1000W power supply unit. The power will be sufficient for both a substantial water cooling system and multiple high-end graphics cards, an overclocked high-end processor, and several hard drives.

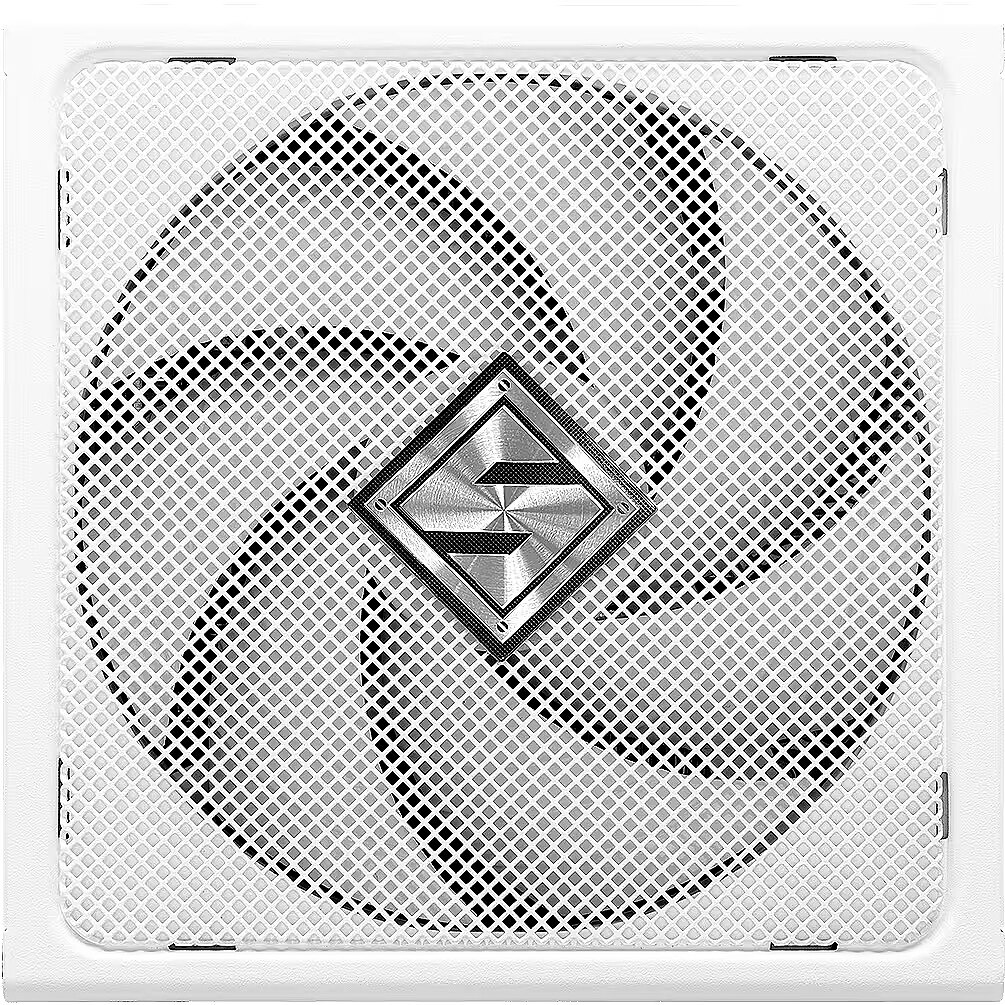

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.

The color of the block is Balta. The block has flat cables, whose color is Balta.

The power supply has a Cybenetics A noise level certificate, which means that its noise level is 20-25 dB.

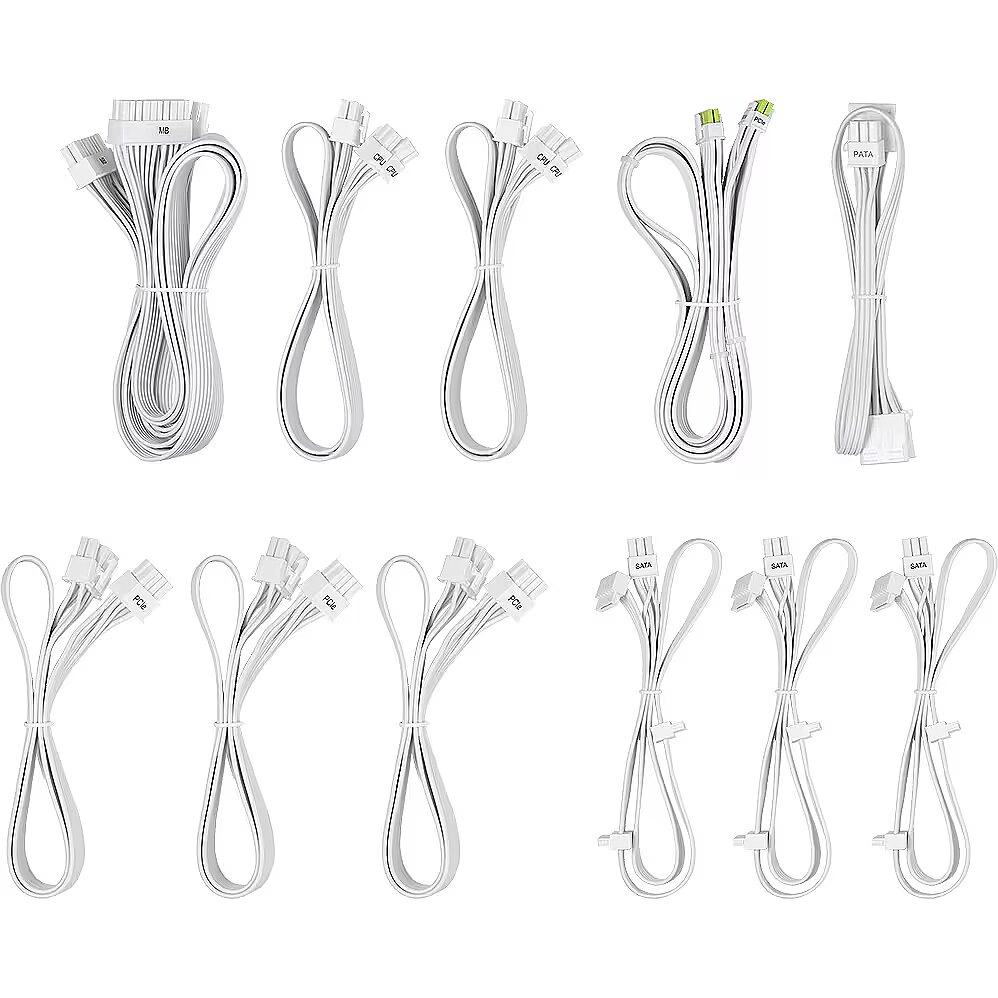

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Gold
Total amperage (+12V) : 83.4A
Fan size : 135 mm
Functionality
Cable colour : White
Lighting : Nav
Color : White
Modular cables : Fully-Modular

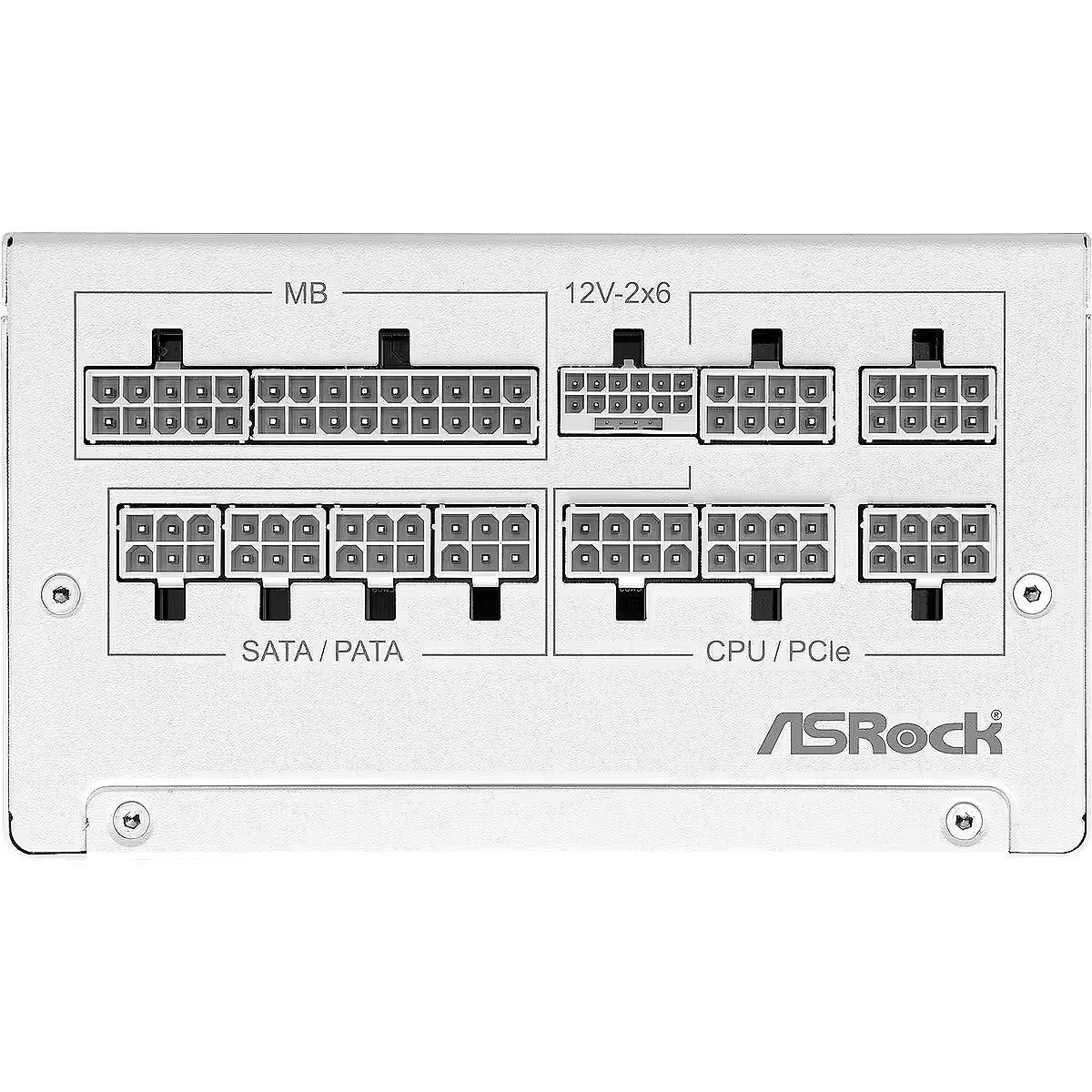

Ports and equipment
PCI-E 5.0 : 1 x 600W 12V-2X6
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 3 x 6+2pin
SATA cconnectors : 9
4pin Molex : 3
Case
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Certificates 80+ - 80 PLUS Gold
Description -
dimension depth - 188 mm
dimension height - 305 mm
Dimensions - 86 x 150 x 150 mm
dimension weight - 3025 g
dimension width - 135 mm
ean - 4710483949180
Fan - 13.5 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
Floppy power connectors - 0
guarantee - 120
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 3
name - Power supply SL-1000GW 1000W 80PLUS GOLD full modular
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 3
Number of USB 10p connectors - 0
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 1000 W
producer - ASRock
SATA power connectors - 9
vendpn - SL-1000GW
