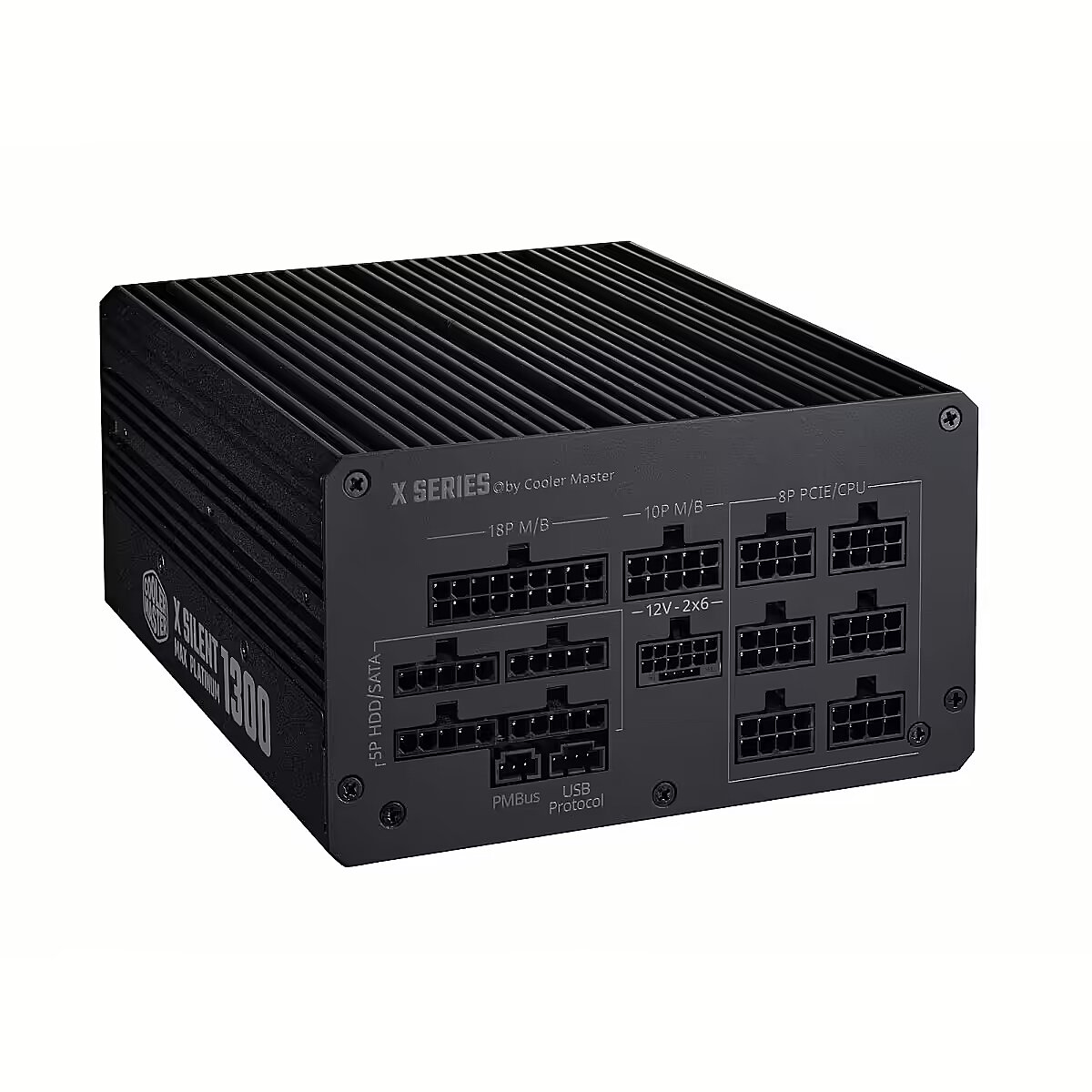

Cooler Master X Silent Max, 1300W, 80PLUS Platinum, ATX 3.1, PCIe 5.1

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1155067 Product code: MPS-D001-AFAP-BEU
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years (Warranty for business entities 1 year)
Main product parameters All parameters
  • Producer: Cooler Master
  • Power output: 1300W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Similar Products
This product Cooler Master X Silent Max, 1300W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Recommended Phanteks AMP GH V2, 1200W, 80PLUS Platinum, ATX 3.1, PCIe 5.1
Recommended ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1
Recommended Corsair RM750e (2025), 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Recommended Corsair RM850e White (2025), 850W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.
303.50 €
180.00 €
52.59 €
113.42 €
128.68 €
Basic information
Cybenetics Efficiency certification Nav Nav Nav Cybenetics Platinum Cybenetics Gold
Cybenetics Noise level certification Nav Nav Nav Cybenetics A Cybenetics A
Power supply type ATX ATX ATX ATX ATX
Power output 1300W 1200W 650W 750W 850W
80 PLUS certification 80 PLUS Platinum 80 PLUS Platinum 80 PLUS Bronze 80 PLUS Gold 80 PLUS Gold
Total amperage (+12V) 108.3A 100A 54A 54.2A 70.8A
Fan size 120 mm 120 mm 120 mm 120 mm 120 mm
Functionality
Cable colour Melna Melna Melna Melna White
Lighting Nav Nav Nav Nav Nav
Color Melna Melna Melna Melna White
Modular cables Fully-Modular Fully-Modular Nav Fully-Modular Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 1 x 600W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 1 x 450W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1) 1 x 600W 12V-2X6 (5.1)
Processor plug-in 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS 2 x 8-pin(4+4) EPS
Motherboard power 24-pin 24-pin 24-pin 20+4pin 24-pin
PCI-E 4 X 6+2pin 4 X 6+2pin 2 X 6+2pin 3 x 6+2pin 3 x 6+2pin
SATA cconnectors 16 14 6 6 6
4pin Molex 4 2 2 2 2
Description

Available for purchase is a power supply produced by Cooler Master with a power output of 1300W. The product has been awarded an 80 PLUS Platinum energy efficiency certificate.

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.

The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.

The color of this power supply is Melna. The cable color is Melna and they are flat.

Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).

Basic information
Cybenetics Efficiency certification : Nav
Cybenetics Noise level certification : Nav
Power supply type : ATX
Power output 1300W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 108.3A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 600W 12V-2X6 (5.1)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 24-pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 16
4pin Molex : 4
More detailed specification
8-pin 12V power connectors - 1
Accessories included -
ATX version - 3.1
category - PC Components|Power Supplies|PSUs up to 800 Watts
Certificates 80+ - 80 PLUS Platinum
code - MPS-D001-AFAP-NBEU
Description - Precise, Silent Power
Introducing the X Silent MAX Platinum with an ultra-quiet Mobius fan that operates at less than 25dBA, advanced aluminum thermal design, 80 Plus Platinum efficiency, intelligent thermal management, active bridge rectifier, and digital monitor powered by Cooler Master's MasterCTRL software. With these features, the MAX delivers precise, ultra-quiet power.
The X Silent MAX Platinum also includes ATX 3.1 support, a durable 12V 2x6 cable, reliable industrial Infineon ICs, Zero RPM fan mode, fully modular cabling, high-quality Japanese capacitors, and a 15-year warranty. The X Silent MAX Platinum is the next frontier of quiet, reliable, and efficient operation.
Designation - CE+WEEE
dimension depth - 270 mm
dimension height - 250 mm
Dimensions - 382 x 224 x 126 mm
dimension weight - 252 g
dimension width - 400 mm
ean - 4719512140659
ean - 4719512161173
Fan - None
Floppy power connectors - 0
guarantee - 120
guarantee_type - normal
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 1
name - Cooler Master X Silent MAX, 80 PLUS Platinum Netzteil, modular, PCIe 5.1 - 1.300 Watt, schwarz
name - PSU X Silent Edge Platinum 1300, 80 Plus Platinum, ATX 3.1
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 1
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 1
Number of power supply connector 4-pin 12V - 0
Number of power supply connectors PCI-E 6 +2 pin - 4
Number of USB 10p connectors - 1
Other features -
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
PFC - Active
Power supply - 1300 W
producer - Cooler Master
SATA power connectors - 4
vendpn - MPS-D001-AFAP-BEU
Weight - 4.5 kg
