ID: 1144323
Product code: GP-UD1600PM-PG5
In stock 6 units
Warranty: 2 years
(Warranty for business entities 1 year)

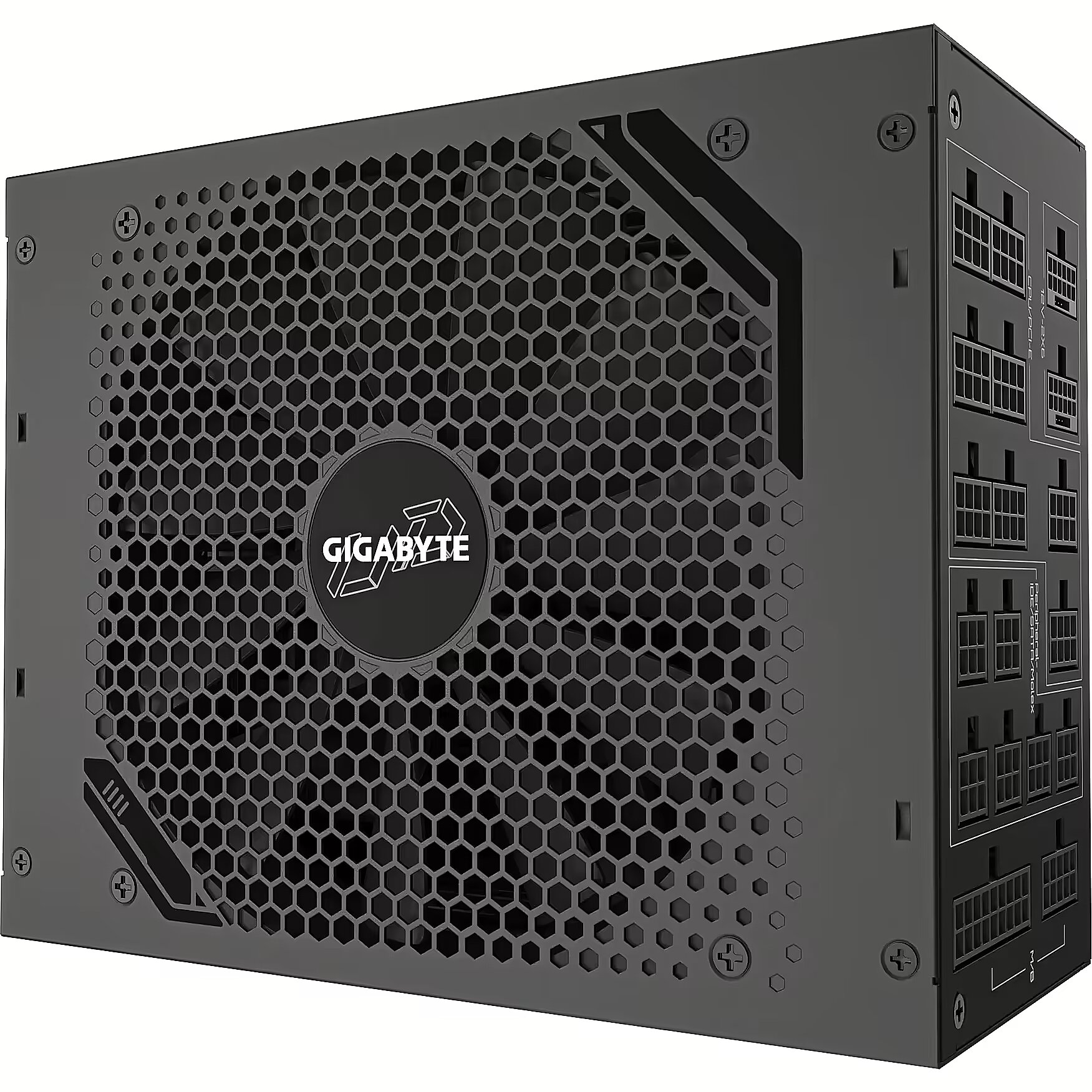

Gigabyte UD1600PM PG5, 1600W, 80PLUS Platinum, PCIe 5.0
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Gigabyte
- Power output: 1600W
- 80 PLUS certification: 80 PLUS Platinum
- Fan size: 140 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 8 x 6+2pin
Description
We offer to purchase a Gigabyte power supply unit with a power capacity of 1600W, which has received the 80 PLUS Platinum energy efficiency certification.
Thanks to the huge 140 mm cooling fan, this power supply unit is much quieter than a standard unit. The fan has a larger wing area, which ensures the necessary airflow at lower fan speeds, thus reducing the overall level of vibration and noise to a minimum.
The power supply unit has received the 80 PLUS Platinum energy efficiency certificate, which guarantees at least 92% efficiency at 50% load. This means that for every 100W of power the power supply unit receives from the electrical grid, at least 92W are delivered to your computer components, while the remaining 8W are lost as heat.
2 x 600W 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).
The color of this power supply is Melna. The cable color is Melna and they are flat.
This is a power supply unit compliant with ATX 3.0 requirements. It indicates that it has a 16-pin (12VHPWR) port, which can power the latest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards with up to 600 W of power. Furthermore, ATX 3.0 allows the current to be increased by 200% for a millisecond, ensuring smoother power delivery to the components.
Thanks to the fact that this power supply has modular cables, you can add hard drives, video cards, and other components as needed, using the various cables included in the package. This way, there are fewer wires in the computer, which improves ventilation and appearance (especially useful for those who choose a partially transparent case).
The manufacturer of the power supply unit is Gigabyte. All power supply units produced by Gigabyte can be viewed here.
Basic information
Cybenetics Efficiency certification
: Nav
Cybenetics Noise level certification
: Nav
Power supply type
: ATX
Power output
1600W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Platinum
Total amperage (+12V)
: 133.3A
Fan size
: 140 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Fully-Modular
Ports and equipment
PCI-E 5.0/5.1
: 2 x 600W 12VHPWR (5.0)
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 20+4pin
PCI-E
: 8 x 6+2pin
SATA cconnectors
: 16
4pin Molex
: 6
Case
More detailed specification
Brand - GIGABYTE
BrandPartCode - GP-UD1600PM PG5 EU
Category - Power Supply Units
Category - Root/Electronics/PC parts/PC power supply units
Category_1 - Power
Category_2 - Computer Power Supplies
Dane techniczne: Certyfikat sprawności - 80 Plus Platinium
Dane techniczne: Funkcja PFC - tak
Dane techniczne: Gwarancja - 10 lat w serwisie zewnętrznym
Dane techniczne: Głębokość - 190 mm
Dane techniczne: Ilość wentylatorów chłodzących - 1
Dane techniczne: Moc - 1600 W
Dane techniczne: Model - Gigabyte GP-UD
Dane techniczne: Modularne okablowanie - w pełni modularne
Dane techniczne: MTBF - 100000 godz.
Dane techniczne: Natężenie przy napięciu +3.3V - 30 A
Dane techniczne: Natężenie przy napięciu +5V - 30 A
Dane techniczne: Natężenie przy napięciu +5VSB - 3.5 A
Dane techniczne: Natężenie przy napięciu +12V1 - 133.3 A
Dane techniczne: Natężenie przy napięciu -12V - 0.3 A
Dane techniczne: Odłączane przewody - tak
Dane techniczne: Producent - Gigabyte
Dane techniczne: Rodzaj chłodzenia - wentylator
Dane techniczne: Standard - ATX
Dane techniczne: Szerokość - 150 mm
Dane techniczne: Układ PFC - aktywny
Dane techniczne: Wersja standardu ATX - ATX 3.1
Dane techniczne: Wtyczka zasilania [pin] - 2 x 4/8 EPS 12V
Dane techniczne: Wtyczka zasilania [pin] - 4 x 16-pin PCIe (12VHPWR)
Dane techniczne: Wtyczka zasilania [pin] - 4 x Floppy
Dane techniczne: Wtyczka zasilania [pin] - 6 x 4-pin Molex
Dane techniczne: Wtyczka zasilania [pin] - 8 x 6/8-pin PEG
Dane techniczne: Wtyczka zasilania [pin] - 16 x SATA
Dane techniczne: Wtyczka zasilania [pin] - ATX 24pin
Dane techniczne: Wysokość - 86 mm
Dane techniczne: Zabezpieczenia - OCP
Dane techniczne: Zabezpieczenia - OPP
Dane techniczne: Zabezpieczenia - OTP
Dane techniczne: Zabezpieczenia - OVP
Dane techniczne: Zabezpieczenia - SCP
Dane techniczne: Zabezpieczenia - UVP
Dane techniczne: Średnica wentylatorów - 140 mm
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
dimensionalWeight - 2808
Eans - 4719331555047
EAN_code - 4719331555047
GTIN - 4719331555047
Logistics data - Warranty period - 10 year(s)
LongDesc - Ensure reliable and efficient power delivery with GIGABYTE power supplies. Designed for peak performance and durability, our PSUs offer stable and consistent energy to power your high-performance systems. With advanced protections and high-quality components, GIGABYTE power supplies provide the confidence you need for seamless, uninterrupted computing experiences.
LongProductName - UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
LongSummaryDescription - GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug. Total power: 1600 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 61 cm, SATA power cable length: 150,650 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinum. Product colour: Black, Cooling type: Active, Fan diameter: 12 cm. Width: 150 mm, Depth: 190 mm, Height: 86 mm
Manufacturer - GigaByte
Manufacturer_code - GP-UD1600PM PG5
Name - GigaByte GiBy GP-UD 1600 PM PG5
Name - Gigabyte GP-UD1600PM PG5
Packaging data - Package depth - 219 mm
Packaging data - Package height - 145 mm
Packaging data - Package type - Box
Packaging data - Package weight - 5.58 kg
Packaging data - Package width - 410 mm
Performance - 80 PLUS certification - 80 PLUS Platinum
Performance - ATX version - 3.1
Performance - Bearing technology - DBB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - ATX power connector (20+4 pin) - Yes
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 61 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 16
Ports & interfaces - PCI Express connector - Yes
Ports & interfaces - PCI Express power connectors (6+2 pin) - 8
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 6
Ports & interfaces - SATA power cable length - 150,650 mm
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 150 W
Power - Combined power (+5V) - 150 W
Power - Combined power (+5Vsb) - 17.5 W
Power - Combined power (+12V) - 1600 W
Power - Combined power (-12V) - 9.6 W
Power - Efficiency - 92%
Power - Hold time - 16 ms
Power - Input current - 15 - 7.5 A
Power - Max output current (+3.3V) - 30 A
Power - Max output current (+5V) - 30 A
Power - Max output current (+5Vsb) - 3.5 A
Power - Max output current (+12V) - 133.3 A
Power - Max output current (-12V) - 0.8 A
Power - Power factor - 0.9
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 150 ms
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power - Total power - 1600 W
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenHolandiaEmail: EU.grp@gigabyte.com
Producer - Gigabyte
producerCode - GP-UD1600PM-PG5
ProducerCode - GP-UD1600PM PG5
ProductName - UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
productName - Zasilacz Gigabyte UD1600PM 1600W PG5 AI ATX 3.1 80+ Platinum
productSize - Normal
ShortDescription - 1600 | ATX | 140 mm | 20 + 4 pin | 150mm x 86mm x 190mm | modularny | 80 PLUS Platinum |
ShortSummaryDescription - GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug, 1600 W, 100 - 240 V, 50/60 Hz, 15 - 7.5 A, Active, 150 W
sizeX - 417
sizeY - 151
sizeZ - 223
Title - GIGABYTE UD1600PM PG5 AI TOP Power Supply - PCIe 5.0, 80 PLUS Platinum, Fully Modular Design, 120mm Fan, ATX 3.1 compatible, EU Plug
URL - https://www.gigabyte.com/
WarrantyInfo -
warrantyLength - 120
warrantyType - G
Weight - 5,30
weight - 5656
Weight & dimensions - Depth - 190 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 5.3 kg
Weight & dimensions - Width - 150 mm
