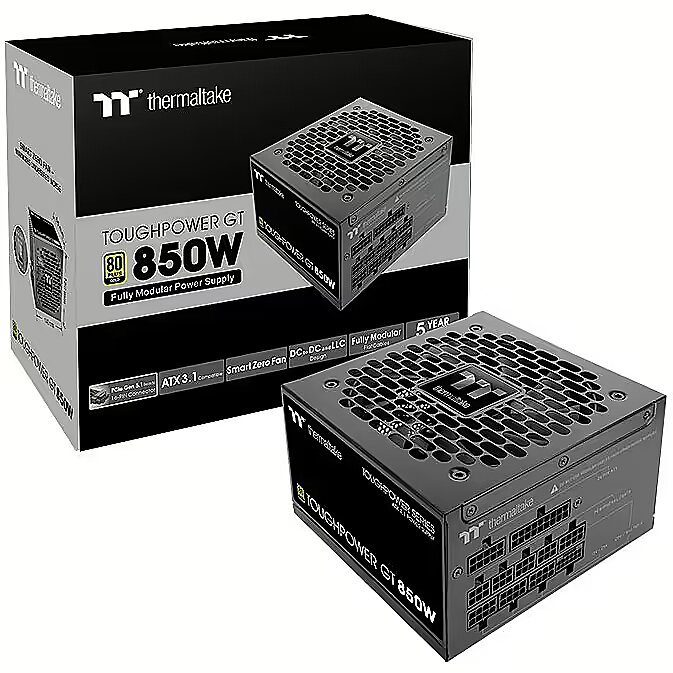

Thermaltake GT Series, 850W, ATX 3.1, 80PLUS Gold, PCIe 5.1
-
Omniva parcel machineWithin 1-2 working days1.99 €
-
SmartPosti parcel terminalWithin 1-2 working days1.99 €
-
Unisend parcel terminalWithin 1-2 working days1.99 €
-
Delivery by courier to the addressWithin 1-2 working days5.99 €
- Producer: Thermaltake
- Power output: 850W
- 80 PLUS certification: 80 PLUS Gold
- Fan size: 120 mm
- Modular cables: Fully-Modular
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Available for purchase is a power supply produced by Thermaltake with a power output of 850W. The product has been awarded an 80 PLUS Gold energy efficiency certificate.
This 850W power supply unit is intended for a workstation or high-performance gaming computer. It will be able to power multiple hard drives (SSD/HDD), water cooling, a high-end graphics card (for example, RTX 4070 Ti SUPER), and a top-tier processor (possibly overclocked).
The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.
The power supply has been awarded the 80 PLUS Gold energy efficiency certificate, which provides at least 90% efficiency at 50% load. This indicates that at least 90 W out of 100 W of power drawn from the electrical grid by the power supply is delivered to the computer components, with the remaining 10 W lost as heat.
The color of this power supply is Melna. The cable color is Melna and they are flat.
This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).
ATX version - 3.1
Category 1 - Netzteile
Category_1 - Power
Category_2 - Computer Power Supplies
Certificates - Certification - CE/UKCA/ICES/TUV/LVD/RCM/CB/FCC/cTUVus/BSMI/CCC/BIS/S-MARK
Certificates 80+ - 80 PLUS Gold
Description -
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1478
dimension depth - 120 mm
dimension height - 280 mm
Dimensions - 150 x 86 x 140 mm
dimension weight - 2475 g
dimension width - 215 mm
ean - 4711475647411
EAN - 4711475647411
EAN_code - 4711475647411
Fan - 12 cm
Filters / protection - Circuit
Filters / protection - Current too high
Filters / protection - Overload
Filters / protection - Surge
Filters / protection - Thermal
Filters / protection - Voltage drop
guarantee - 60
guarantee_type - statutory
Manufacturer - Thermaltake
Manufacturer_code - PS-TPT-0850FNFAGE-3
MB power connector - 24 pin
Modular power supply - Yes
MOLEX power connectors - 4
MPN - PS-TPT-0850FNFAGE-3
Name - 850W Thermaltake Toughpower GT
Name - Thermaltake Toughpower GT 850W, PC power supply (1x 12-pin high power GPU, 4x PCIe, cable management, 850 watts)
name - ToughPower GT 850W Gold
Number of power connectors PCI-E 16-pin Gen 5 - 1
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions - Operating relative humidity (H-H) - 5 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Packaging data - Package type - Box
Performance - 80 PLUS certification - 80 PLUS Gold
Performance - ATX version - 3.1
Performance - Bearing technology - Hydraulic
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC/Server
PFC - Active
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 55 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - PCI Express power connectors (12+4 pin) - 1
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 600 mm
Ports & interfaces - Peripheral (Molex) power cable length - 150 mm
Ports & interfaces - Peripheral (Molex) power cable length - 400
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Ports & interfaces - SATA power cable length - 150
Ports & interfaces - SATA power cable length - 450
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 100 W
Power - Combined power (+5V) - 100 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 850 W
Power - Combined power (-12V) - 3.6 W
Power - Hold time - 17 ms
Power - Input current - 10 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 70.8 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 250 ms
Power - Power protection features - Over current
Power - Power protection features - Overheating
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 850 W
Power supply - 850 W
producer - Thermaltake
producerCode - PS-TPT-0850FNFAGE-3
productName - Thermaltake Toughpower Gt power supply unit 850 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
sizeX - 125
sizeY - 215
sizeZ - 275
vendpn - PS-TPT-0850FNFAGE-3
warrantyLength - 120
warrantyType - G
Weight - 2,40
Weight - 2.454
weight - 2575
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
