ID: 1136341
Product code: MPE-7501-ACABW-3BEU
Can be ordered 34 units Availability: 14 days after order approval
Warranty: 2 years

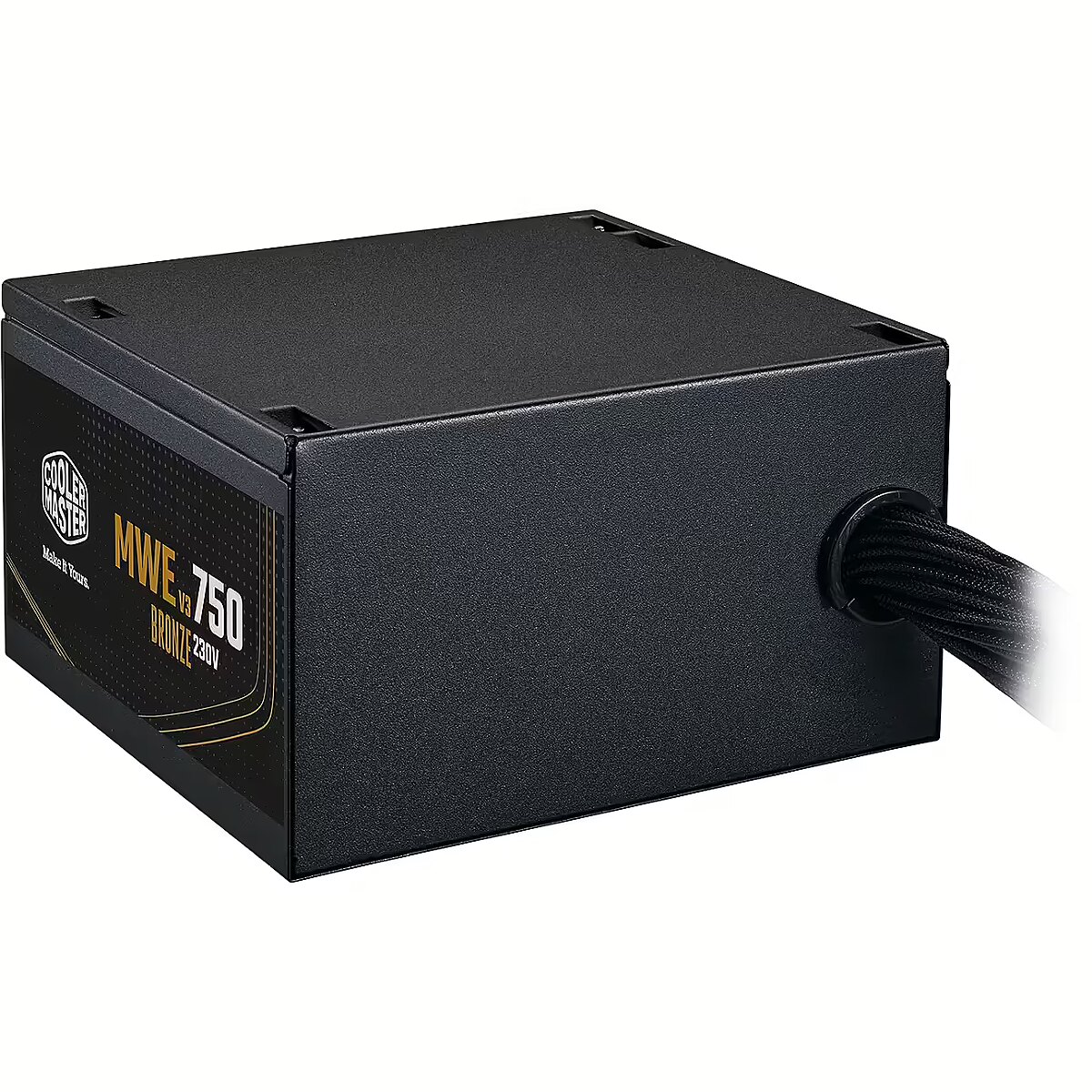

Cooler Master MWE Bronze V3, 750W, ATX 3.1, 80PLUS Bronze
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Producer: Cooler Master
- Power output: 750W
- 80 PLUS certification: 80 PLUS Bronze
- Fan size: 120 mm
- Modular cables: Nav
- Processor plug-in: 2 x 8-pin(4+4) EPS
- PCI-E: 4 X 6+2pin
Description
This Cooler Master brand power supply unit has an 80 PLUS Bronze energy efficiency certificate and a power output of 750W.
With 750W power, it will be sufficient for a good mid-level gaming experience. The power supply unit will be able to run a computer with a high-class processor, a powerful mid-range graphics card (for example, RTX 4070), and several drives (SSD/HDD).

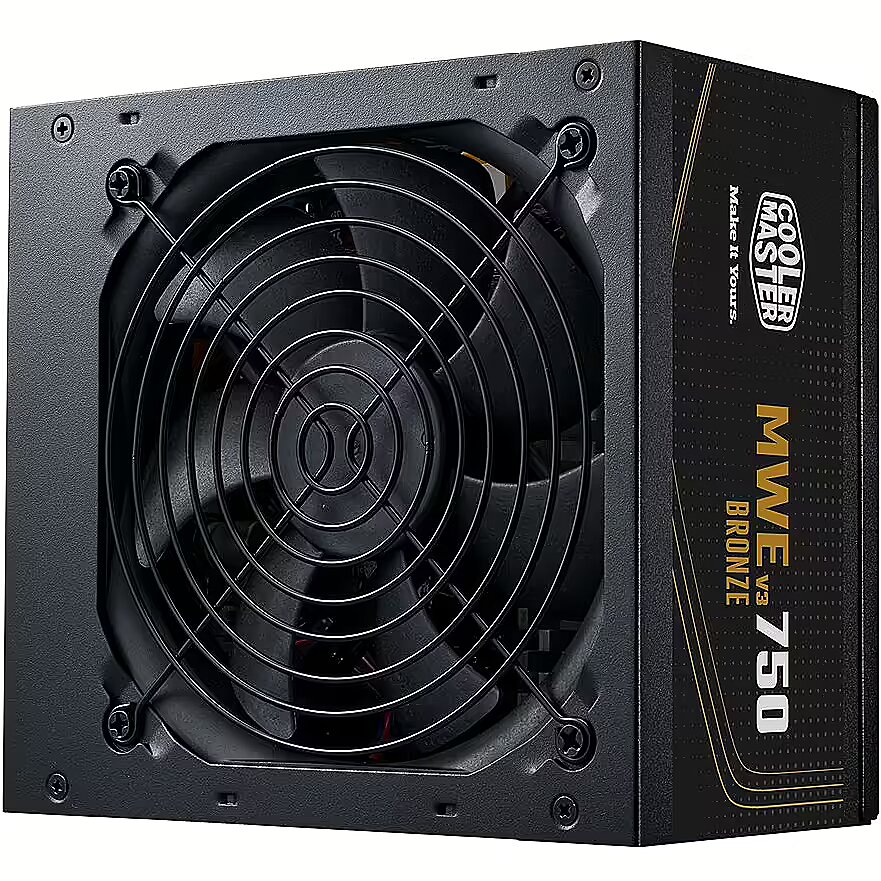

120 mm fans, with which this power supply unit is equipped, will ensure industry standard quiet operation. For especially quiet power supply unit operation, we recommend purchasing a 135 mm or 145 mm diameter fan.
The power supply has been awarded the 80 PLUS Bronze energy efficiency certificate, which ensures at least 85% efficiency at 50% load. This indicates that at least 85 W out of 100 W of power received by the power supply from the electrical grid is delivered to the computer components, with the remaining 15 W being lost as heat.
The color of the power supply is Melna. It is equipped with flat cables, whose color is Melna.
This is a power supply that complies with ATX 2.0 requirements. The power supply has only 6-pin and 8-pin connectors, which can handle only 75 W and 150 W of power, respectively. Modern graphics cards' high power needs exceed the capabilities of ATX 2.0 connectors. When building a system with a very powerful GPU, such as an RTX 4070, you will need an ATX 3.* standard power supply.
The noise level of this power supply is 35-40 dB and it has a Cybenetics Standard + noise level certification.
This power supply unit does not have modular cables – all its cables are attached to the unit and are not detachable. Despite the simple design, it will fulfill its functions just as well as a power supply unit with modular cables.
Basic information
Cybenetics Efficiency certification
: Cybenetics Silver
Cybenetics Noise level certification
: Cybenetics Standard +
Power supply type
: ATX
Power output
750W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification
: 80 PLUS Bronze
Total amperage (+12V)
: 62A
Fan size
: 120 mm
Functionality
Cable colour
: Melna
Lighting
: Nav
Color
: Melna
Modular cables
: Nav
Ports and equipment
PCI-E 5.0/5.1
: Nav
Processor plug-in
: 2 x 8-pin(4+4) EPS
Motherboard power
: 24-pin
PCI-E
: 4 X 6+2pin
SATA cconnectors
: 6
4pin Molex
: 3
More detailed specification
8-pin 12V power connectors - 0
Accessories included -
Category - Root/Electronics/PC parts/PC power supply units
Certificates 80+ - 80 PLUS Bronze
Certificates > Certification - 80 PLUS Bronze
Code - MPE-7501-ACABW-3BEU
Cooling > Fan diameter - 12 cm
Description - Introducing the MWE Bronze V3 230V, the evolutionary next step in Cooler Master power and the ATX 3.1 upgrade to our MWE Bronze V2 PSU. With features such as 80 Plus Bronze efficiency, a DC to DC + LLC circuit design, and a quiet HDB fan cooling, the V3 provides valuable performance in multiple dimensions. Several changes and additions improve the overall user experience. Together, these design choices deliver an advanced PSU that is highly efficient and reliable. With an embossed cable, exceptional temperature resilience and a 5 year warranty, the MWE Bronze V3 will evolve your machine.
Design - Cooling type - Active
Design - Fan diameter - 12 cm
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
Designation - CE+WEEE
dimensionalWeight - 1070
dimension depth - 110 mm
dimension height - 195 mm
Dimensions - 140 x 150 x 86 mm
dimension weight - 1760 g
dimension width - 250 mm
EAN - 4719512145340
ean - 4719512145340
Eans - 4719512145340
Fan - 12 cm
Floppy power connectors - 0
guarantee - 60
guarantee_type - normal
Link - https://www.coolermaster.com/en-global/products/mwe-bronze-750-v3-230v/?tab=overview
MB power connector - 24 pin
Modular power supply - No
MOLEX power connectors - 0
Name - Cooler Master MWE 650W V3 80+ Bronze
Name - Cooler Master MWE Bronze V3 | MPE-7501-ACABW-3BEU | 750 W
name - Zasilacz MWE Bronze 750W V3 ATX 3.1
Number of connectors PATA - 0
Number of power connectors 12VHPWR - 0
Number of power connectors PCI-E 16-pin Gen 5 - 0
Number of power supply connector 4+4-pin 12V - 2
Number of power supply connector 4-pin 12V - 3
Number of power supply connectors PCI-E 6 +2 pin - 4
Operational conditions > Operating temperature (T-T) - 0-40 °C
Other features -
Other features > Number of SATA connectors - 6
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 260.00 mm
Package features > Gross height (mm) - 110.00 mm
Package features > Gross width (mm) - 190.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 560 pc(s)
Package features > Paper/Pasteboard - 340.00 g
Package features > Plastic (No PET) - 60.00 g
Package features > Tare weight (kg) - 0.40 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEEE tax - No
Packaging data - Package depth - 190 mm
Packaging data - Package height - 110 mm
Packaging data - Package type - Box
Packaging data - Package weight - 2.15 kg
Packaging data - Package width - 245 mm
PCI-E 6-pin power connectors - 0
PCI-E 8-pin power connectors - 0
Performance - 80 PLUS certification - 80 PLUS Bronze
Performance - ATX version - 3.1
Performance - Bearing technology - HDB
Performance - Mean time between failures (MTBF) - 100000 h
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Performance > ATX version - ATX 12V Ver. 3.1
PFC - Active
Ports & interfaces - ATX Power connector (24-pin) - Yes
Ports & interfaces - Cabling type - Non-Modular
Ports & interfaces - EPS power connector (4+4 pin) - Yes
Ports & interfaces - EPS power connector (8-pin) - Yes
Ports & interfaces - Motherboard power cable length - 50 cm
Ports & interfaces - Motherboard power connector - 24-pin ATX
Ports & interfaces - Number of SATA power connectors - 6
Ports & interfaces - PCI Express power connectors (6+2 pin) - 4
Ports & interfaces - Peripheral (Molex) power cable length - 400 mm
Ports & interfaces - Peripheral (Molex) power cable length - 550
Ports & interfaces - Peripheral (Molex) power cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 3
Ports & interfaces - SATA power cable length - 400 mm
Ports & interfaces - SATA power cable length - 550 mm
Ports & interfaces - SATA power cable length - 700 mm
Ports & interfaces > ATX Power connector (24-pin) - 1

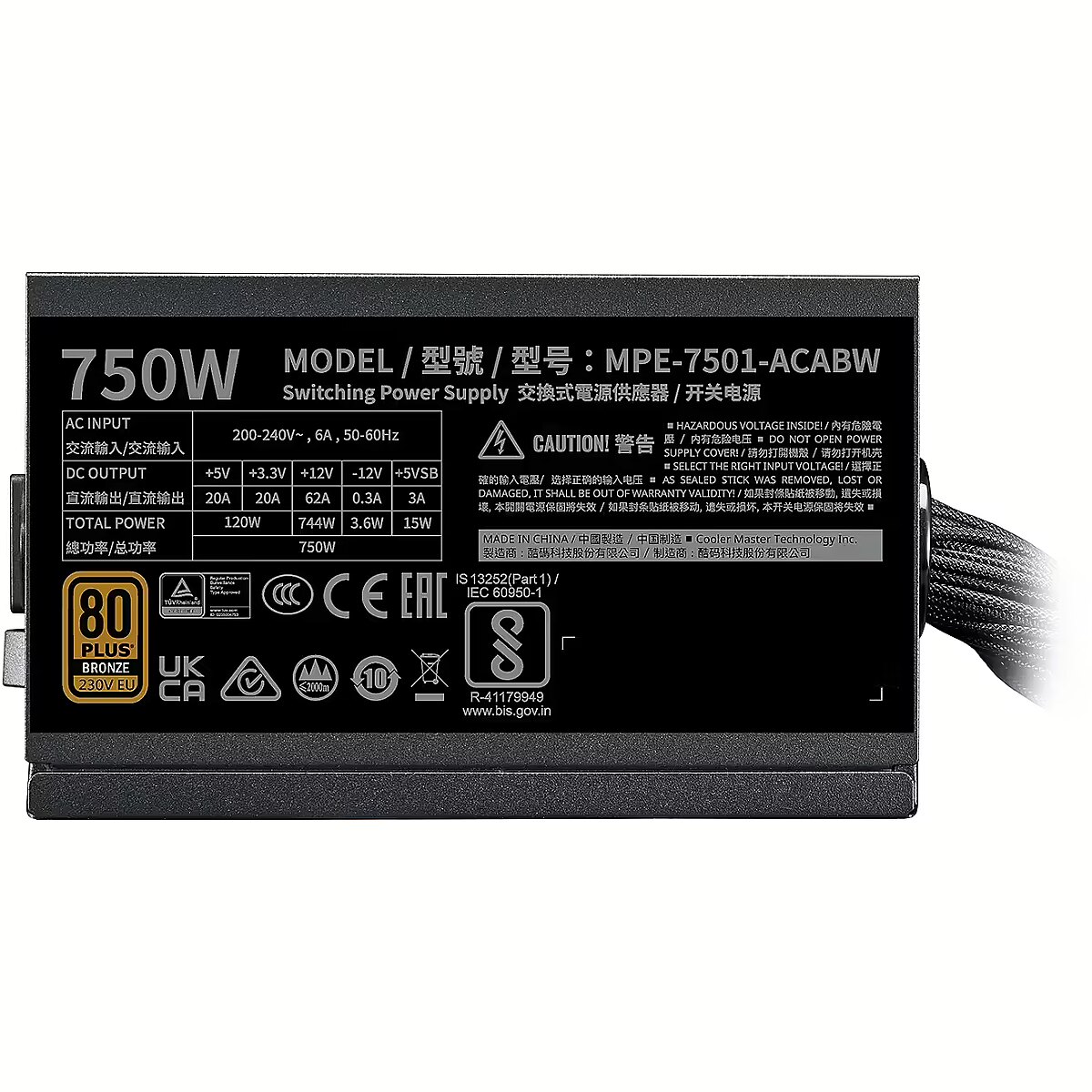

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 220 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 15 W
Power - Combined power (+12V) - 744 W
Power - Combined power (-12V) - 3.6 W
Power - Efficiency - 88%
Power - Hold time - 16 ms
Power - Input current - 6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 62 A
Power - Max output current (-12V) - 0.3 A
Power - Power Factor Correction (PFC) type - Active
Power - Power Good signal delay range - 100 - 500 ms
Power - Power protection features - Over power
Power - Power protection features - Over voltage
Power - Power protection features - Short circuit
Power - Power protection features - Under voltage
Power - Total power - 750 W
Power > Input current - 6 A
Power > Nominal power - 750 W
Power supply - 750 W
producer - Cooler Master
Producer - CoolerMaster
producerCode - MPE-7501-ACABW-3BEU
ProducerCode - MPE-7501-ACABW-3BEU
productName - Cooler Master MWE Bronze 750 V3 230V power supply unit 750 W 24-pin ATX ATX Black
productSize - Normal
SATA power connectors - 6
ShortDescription - 750 | ATX | 120mm | 24 pin | 140mm x 150mm x 86mm | 80 Plus Bronze | ATX 3.1 A/EU Cable |
sizeX - 245
sizeY - 190
sizeZ - 115
Technical details - Compliance certificates - BIS
Technical details - Compliance certificates - CE
Technical details - Compliance certificates - China Compulsory Certification (CCC)
Technical details - Compliance certificates - EAC
Technical details - Compliance certificates - Federal Communications Commission (FCC)
Technical details - Compliance certificates - KC
Technical details - Compliance certificates - RCM
Technical details - Compliance certificates - RoHS
Technical details - Compliance certificates - TÜV mark
Technical details - Compliance certificates - UKCA
Technical details > Gross weight - 1.90 kg
Technical details > Net weight - 1.50 kg
Technical details > Producer - Cooler Master
Technical details > Producer product family - MWE Bronze V3
Technical details > Producer product name - MPE-7501-ACABW-3BEU
vendpn - MPE-7501-ACABW-3BEU
Warranty - 24
Warranty - 24 month(s)
warrantyLength - 24
warrantyType - G
weight - 1945
Weight & dimensions - Depth - 140 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Weight - 1.75 kg
Weight & dimensions - Width - 150 mm
