Lian Li EDGE 1000W, 80PLUS Platinum, PCIe 5.1, ATX 3.1, Black Sleeved Cables

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1127808 Product code: EG1000 BLACK
Can be ordered 50 units Availability: 21 days after order approval
Warranty: 2 years
179.47 €
Ready for dispatch
05.01.2026
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Producer: Lian Li
  • Power output: 1000W
  • 80 PLUS certification: 80 PLUS Platinum
  • Fan size: 120 mm
  • Modular cables: Fully-Modular
  • Processor plug-in: 2 x 8-pin(4+4) EPS
  • PCI-E: 4 X 6+2pin
Description

This Lian Li brand power supply unit has an 80 PLUS Platinum energy efficiency certificate and a power output of 1000W.

This 1000W power supply unit will be able to run the best gaming computer. It has enough power to run multiple high-end graphics cards, a large water cooling system, an overclocked high-end processor, and several hard drives.

The diameter of this power supply unit's fan is 120 mm, which will ensure quiet operation in mid-range computers. For especially quiet power supply unit operation, we recommend selecting a fan with a 135 mm or 140 mm diameter.

The power supply has been awarded the 80 PLUS Platinum energy efficiency certificate, which ensures at least 92% efficiency at 50% load. This indicates that at least 92 W out of 100 W of power that the power supply receives from the power grid is delivered to the computer components, while the remaining 8 W is lost as heat.

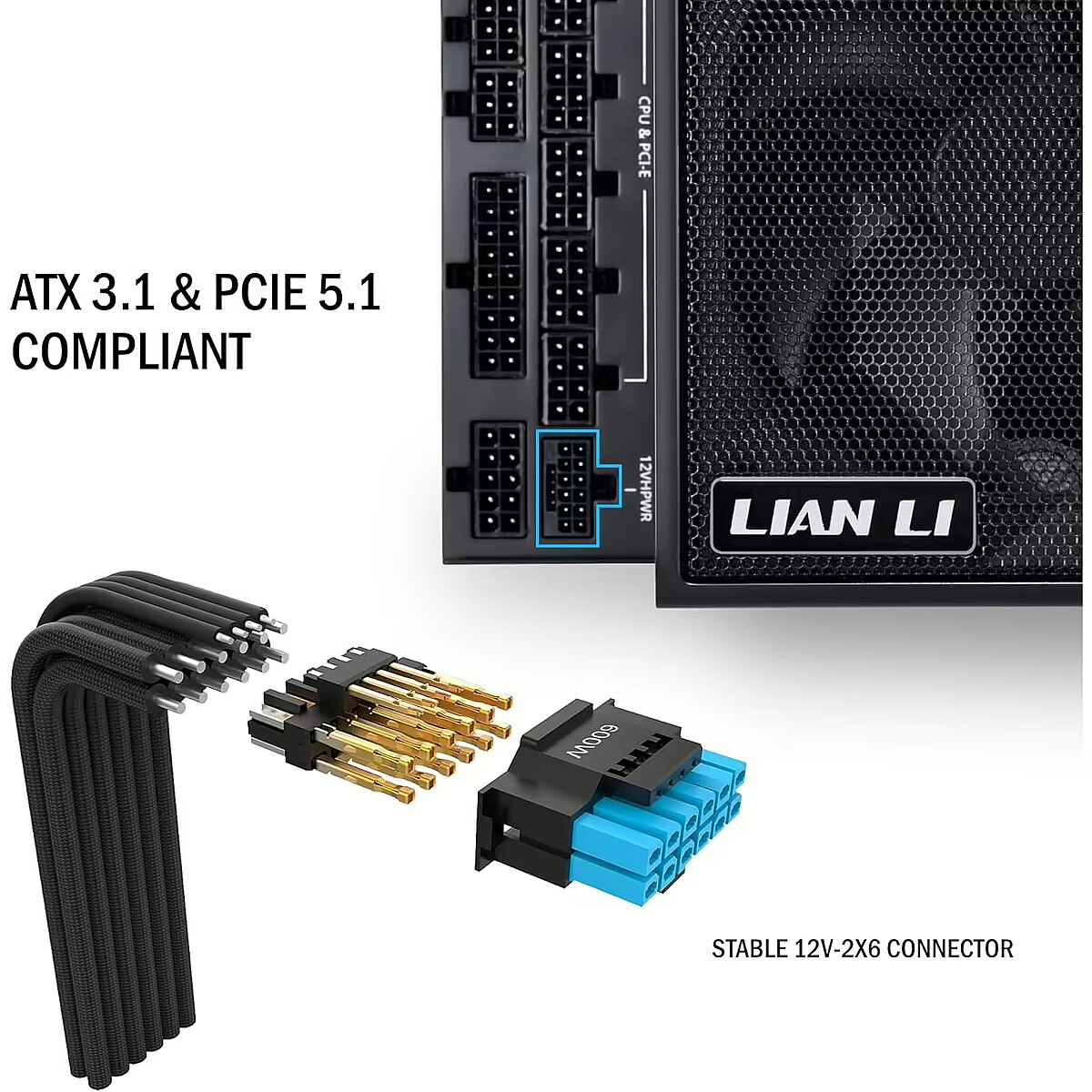

1 x 12VHPWR connector, with which this power supply unit is equipped, is intended for use with modern graphics cards such as Nvidia GeForce RTX 4070 and above (RTX 4060 and below use the standard 8-pin connector).

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has a Cybenetics A noise level certificate, which means that its noise level is 20-25 dB.

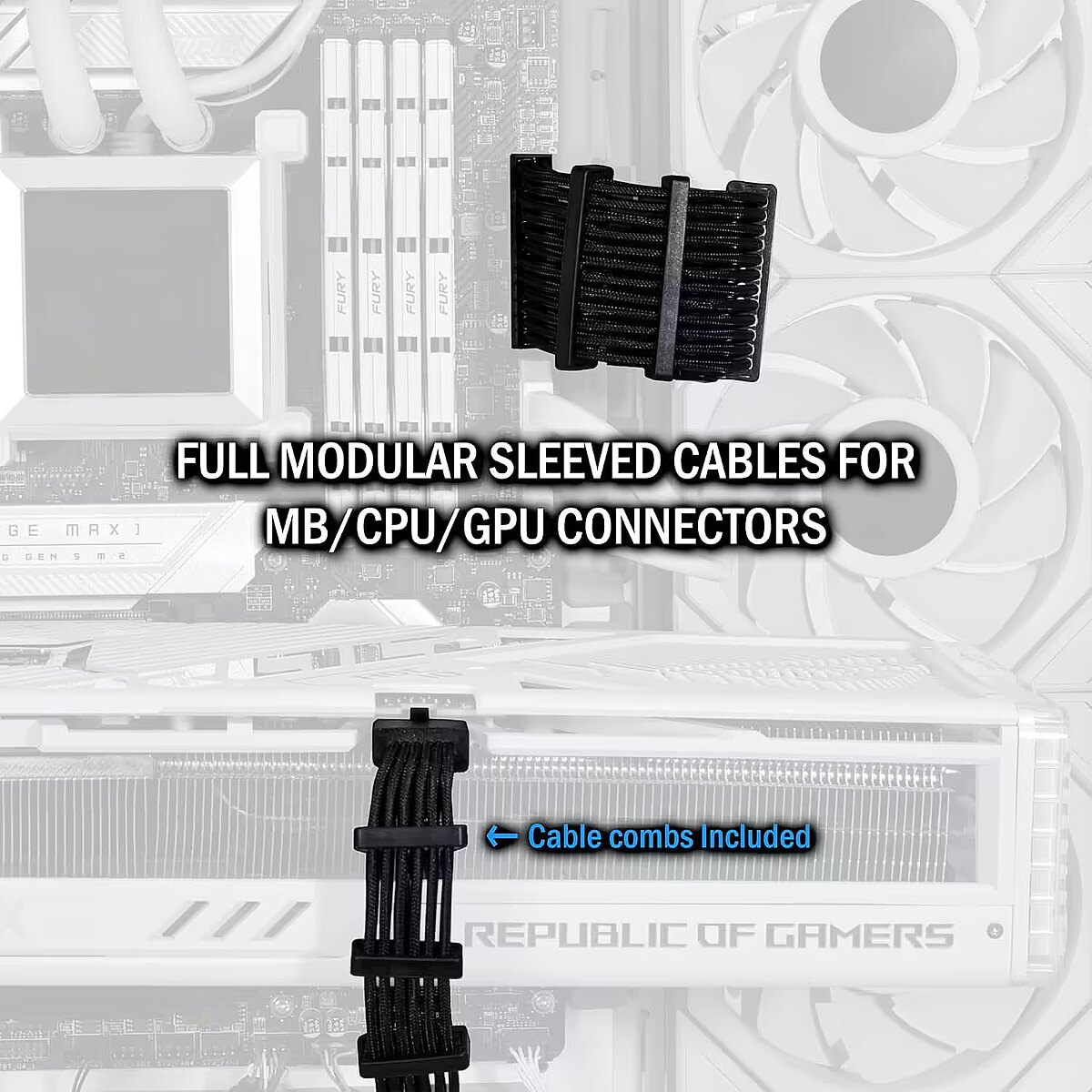

This power supply has modular cables, which provide the possibility to add video card cables, hard disk cables, etc. as needed from the supplied range. This way, the wire clutter in the computer is reduced, improving ventilation and the aesthetic factor (particularly important for those who purchase a partially transparent case).

Basic information
Cybenetics Efficiency certification : Cybenetics Platinum
Cybenetics Noise level certification : Cybenetics A
Power supply type : ATX
Power output 1000W
The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.
80 PLUS certification : 80 PLUS Platinum
Total amperage (+12V) : 83A
Fan size : 120 mm
Functionality
Cable colour : Melna
Lighting : Nav
Color : Melna
Modular cables : Fully-Modular
Ports and equipment
PCI-E 5.0/5.1 : 1 x 12VHPWR (5.0)
Processor plug-in : 2 x 8-pin(4+4) EPS
Motherboard power : 20+4pin
PCI-E : 4 X 6+2pin
SATA cconnectors : 12
4pin Molex : 4
Case
More detailed specification
80 PLUS certification Performance - 80 PLUS Platinum
AC input voltage Power - 100 - 240 V
Bearing technology Performance - FDB
Cables included Packaging content - CPU,PCIe,Peripheral (Molex),SATA
Cabling type Ports & interfaces - Fully-Modular
category - PC Components|Power Supplies
Category Code - PSU
code - EG1000 BLACK
Combined power (+3.3V) Power - 100 W
Combined power (+5V) Power - 100 W
Combined power (+12V) Power - 744 W
CPU P4 connector (4-pin) Ports & interfaces - 1
CPU power cable length Ports & interfaces - 450 mm
Depth Weight & dimensions - 100 mm

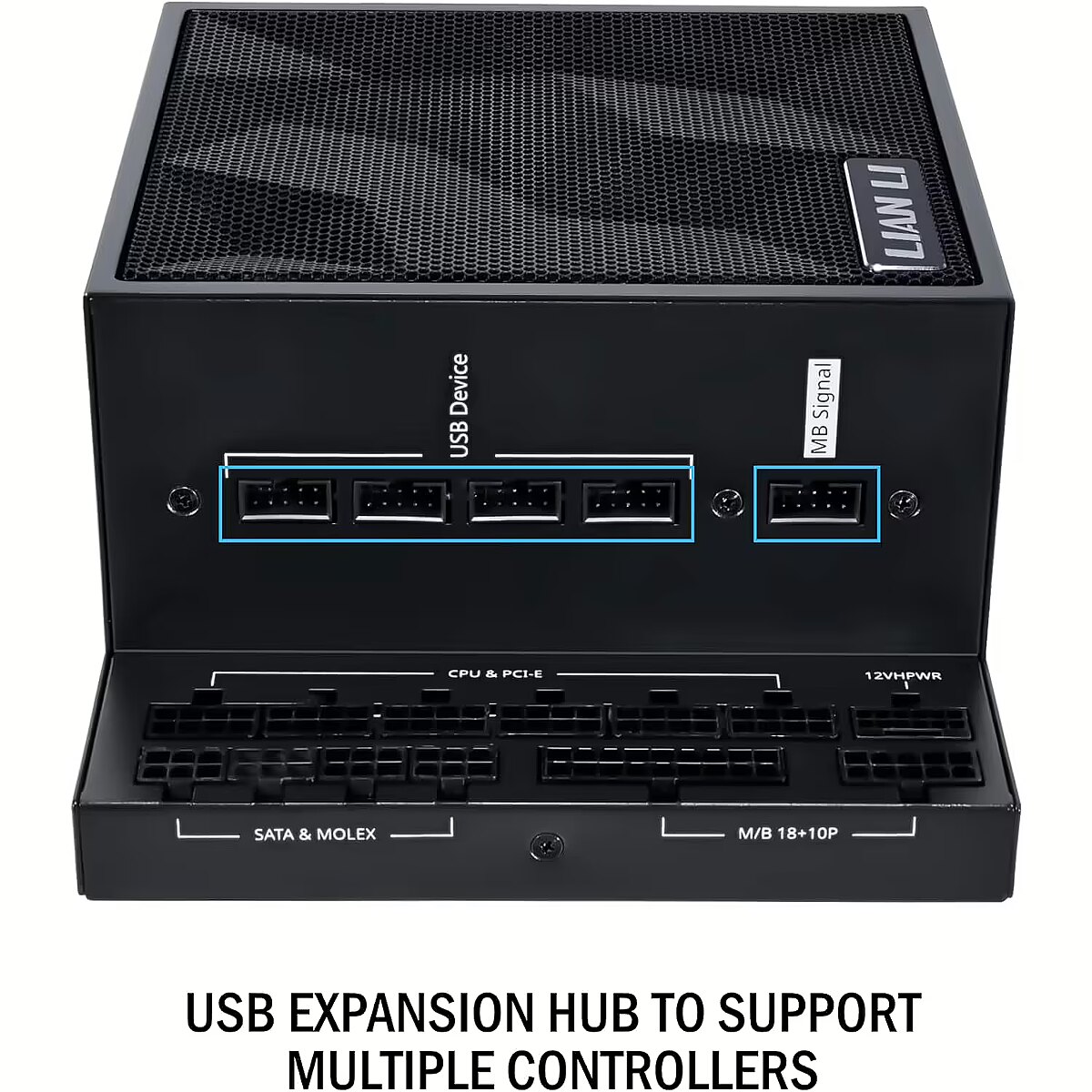

Description - L-Shape design for dual chamber case 80 PLUS Platinum Efficiency Built-in USB expantion hub with 4 internal USB 2.0 headers Integrating German EPCOS bulk capacitors In-house R&D 12V-2×6 alloy copper soldered terminals ATX 3.0/3.1 compliant PSU Full modular sleeved cable with cable comb MB/CPU/GPU connectors
ean - 4718466015198
Efficiency Power - 91.89 %
Height Weight & dimensions - 125 mm
Model name - EDGE1000
Motherboard power cable length Ports & interfaces - 300 mm
Motherboard power connector Ports & interfaces - 20-pin ATX
name - Lian Li EDGE EG1000 80 PLUS Platinum Netzteil, PCIe 5.1, ATX 3.1 - 1000 Watt, schwarz
Noise level Performance - 31.8 dB
Number of SATA power connectors Ports & interfaces - 2
PCI Express power cable length Ports & interfaces - 400 mm
PCI Express power connectors (6+2 pin) Ports & interfaces - 2
PCI Express power connectors (8-pin) Ports & interfaces - 1
Peripheral (Molex) power cable length Ports & interfaces - 120 mm
Peripheral (Molex) power connectors (4-pin) Ports & interfaces - 1
Power supply unit (PSU) form factor Performance - ATX
Product colour Design - Black
Purpose Performance - PC
Safety Safety regulation & standards - OCP/ OPP/ UVP/ OVP/ OTP/ SCP
SATA power cable length Ports & interfaces - 120 mm
Silent mode Performance - Yes
Summary - Lian Li EG1000. Total power: 1000 W, AC input voltage: 100 - 240 V, Combined power (+3.3V): 100 W. Motherboard power connector: 20-pin ATX, Motherboard power cable length: 30 cm, SATA power cable length: 120 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Platinium. Product colour: Black. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Supported motherboard form factors Performance - ATX
Total power Power - 1000 W
Unit Box Height - 0.135
Unit Box Length - 0.42
Unit Box Width - 0.21
Unit Calculated Volume - 0.01452 cubm
Unit Calculated Weight - 3.85 kg
Units per Shipping Box - 4
Vendor Homepage - https://lian-li.com/product/edge/
Warranty - 24 months
Width Weight & dimensions - 63.5 mm
