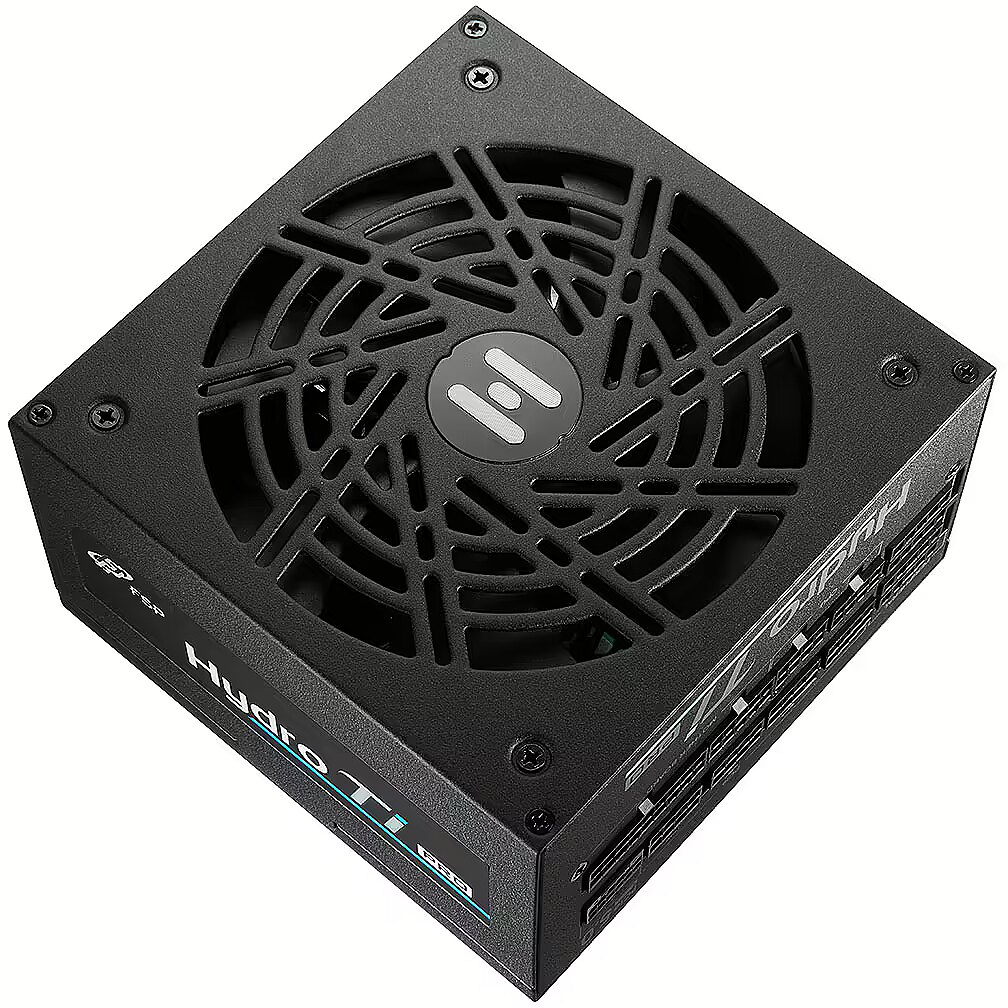

FSP Hydro TI PRO, 1000W, 80PLUS Titanium, ATX 3.0

Name: FSP Hydro TI PRO, 1000W, 80PLUS Titanium, ATX 3.0
Brand: FSP
SKU: 1006798
Price: 231.77 EUR
Availability: OutOfStock

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 1006798 Product code: PPA10A3803

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.ee website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Producer: FSP
Power output: 1000W
80 PLUS certification: 80 PLUS Titanium
Fan size: 135 mm
Modular cables: Fully-Modular
Processor plug-in: 2 x 8-pin(4+4) EPS
PCI-E: 5 x 6+2pin

Similar Products

Basic information
	This product FSP Hydro TI PRO, 1000W, 80PLUS Titanium, ATX 3.0	Seasonic Focus GX (2024), 1000W, 80PLUS Gold, ATX 3.1, PCIe 5.1	Be Quiet Straight Power 12, 1200W, ATX 3.0, 80PLUS Platinum, PCIe 5.0	ADATA XPG PYLON II, 650W, 80PLUS Bronze, ATX 3.1, PCIe 5.1	Corsair RM750e (2025), 750W, 80PLUS Gold, ATX 3.1, PCIe 5.1
Show similar specs. Hide similar specs.	231.77 €	161.61 €	244.48 €	52.59 €	114.14 €
Cybenetics Efficiency certification	Cybenetics Titanium	Nav	Nav	Nav	Cybenetics Platinum
Cybenetics Noise level certification	Cybenetics A ++	Nav	Nav	Nav	Cybenetics A
Power supply type	ATX	ATX	ATX	ATX	ATX
Power output	1000W	1000W	1200W	650W	750W
80 PLUS certification	80 PLUS Titanium	80 PLUS Gold	80 PLUS Platinum	80 PLUS Bronze	80 PLUS Gold
Total amperage (+12V)	83.33A	83A	100A	54A	54.2A
Fan size	135 mm	120 mm	135 mm	120 mm	120 mm
Functionality
Cable colour	Melna	Melna	Melna	Melna	Melna
Lighting	Nav	Nav	Nav	Nav	Nav
Color	Melna	Melna	Melna	Melna	Melna
Modular cables	Fully-Modular	Fully-Modular	Fully-Modular	Nav	Fully-Modular
Ports and equipment
PCI-E 5.0/5.1	1 x 600W 12VHPWR (5.0)	1 x 600W 12V-2X6 (5.1)	2 x 600W 12VHPWR (5.0)	1 x 450W 12V-2X6 (5.1)	1 x 600W 12V-2X6 (5.1)
Processor plug-in	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS	2 x 8-pin(4+4) EPS
Motherboard power	20+4pin	20+4pin	20+4pin	24-pin	20+4pin
PCI-E	5 x 6+2pin	3 x 6+2pin	4 X 6+2pin	2 X 6+2pin	3 x 6+2pin
SATA cconnectors	12	10	9	6	6
4pin Molex	4	1	2	2	2

Description

This FSP brand power supply unit has an 80 PLUS Titanium energy efficiency certificate and a power output of 1000W.

1000W power supply unit will satisfy the requirements of the best gaming computer. There will be enough power for an overclocked high-end processor, multiple high-class graphic cards, a wide water-cooling system, and multiple hard drives.

Thanks to the large 135 mm cooling fan diameter, this power supply is much quieter than average. The fan has a larger blade area, which provides the necessary airflow at lower fan speeds, thereby reducing the overall noise and vibration levels to a minimum.

The power supply has received the 80 PLUS Titanium energy efficiency certificate, which guarantees at least 94% efficiency at 50% load. This means that for every 100W of power the supply receives from the electrical grid, at least 94W is delivered to your computer components, while the remaining 6W is lost as heat.

This power supply unit is equipped with a 1 x 600W 12VHPWR plug intended for use with modern graphics cards – Nvidia GeForce RTX 4070 and up. The RTX 4060 uses a standard 8-pin connector.

The color of this power supply is Melna. The cable color is Melna and they are flat.

This power supply is assigned the ATX 3.0 standard. This means that the unit has a 16-pin (12VHPWR) connector, providing up to 600W of power for the newest generation (RTX 30 and 40 series) PCIe 5.0 graphics cards. Additionally, the ATX 3.0 standard supports a 200% power increase for 1 millisecond to ensure more stable power for the components.

The power supply has received the Cybenetics A ++ noise level certification – the noise generated by the unit will be less than 15 decibels.

This power supply unit has fully-modular cables (Fully-modular) – you can connect and disconnect all the included cables as needed, reducing clutter and improving ventilation. This will be useful for those with a partially transparent computer case and for whom the aesthetic factor is particularly important.

Basic information

Cybenetics Efficiency certification : Cybenetics Titanium

Cybenetics Noise level certification : Cybenetics A ++

Power supply type : ATX

Power output 1000W

The capacity of the power supply unit in watts. A higher capacity means higher stability of the computer operation. The recommended capacity of the power supply unit of a modern average computer is 500 W and above. If you use several HDDs, a powerful video card and processor it is recommended to buy a power supply unit with the capacity 600 W or above.

80 PLUS certification : 80 PLUS Titanium

Total amperage (+12V) : 83.33A

Fan size : 135 mm

Functionality

Cable colour : Melna

Lighting : Nav

Color : Melna

Modular cables : Fully-Modular

Ports and equipment

PCI-E 5.0/5.1 : 1 x 600W 12VHPWR (5.0)

Processor plug-in : 2 x 8-pin(4+4) EPS

Motherboard power : 20+4pin

PCI-E : 5 x 6+2pin

SATA cconnectors : 12

4pin Molex : 4

More detailed specification

Brand - FSP
BrandPartCode - PPA10A3803
Category - Power Supply Units
Category 1 - Netzteile
Design - Cooling type - Active
Design - Fan diameter - 13.5 cm
Design - Fan location - Top
Design - Number of fans - 1 fan(s)
Design - On/off switch - Yes
Design - Product colour - Black
EAN - 4713224527456
GTIN - 4713224527456
LongDesc - New ATX PSU SpecificationsUpdated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.Ultra Power DensityCompared to general high-efficiency & high wattage PSU 170mm length, Hydro Ti PRO series delivers high power with shorter size of 150mm.80 Plus® Titanium CertificationHydro Ti PRO series is a power supply with 80 PLUS® Titanium provides over 94% efficiency at the load of 50 % and Cybenetics-certified for lower power consumption.Lambda A++ CertificationHydro Ti PRO ATX3.0(PCIe5.0) 1000W got Lambda A++ noise rating. By averaging the noise measurements that take from Cybenetics test results.Smarter, Quieter and Longer Lasting Eco Friendly FanUnder 50% loading, you will enjoy Zero RPM experience when eco semi-fanless fan control switch is on, , and get the benefit of long lifespan from a 135mm fluid dynamic bearing fan.Off-Wet, Off-Dust and Off-Stain CoatingCovered with exclusive conformal coating which guarantees to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.LLC TopologyZero voltage switching of the main switches thereby dramatically lowering switching losses and boosting efficiency.450V, 105°C Japanese E-CapacitorsHydro Ti PRO series uses Japanese bulk capacitors to ensure a longer lifetime and protect your equipment from the infamous capacitor leakage problem.Unleash +12V Power OutputVGA card is a power-hungry component that needs most power. A single +12V rail design can deliver stable power and avoid any overloading conditions.Fully Modular Design Fully-modular design not just for easier installation, but also provides your system a neat and tidy look.Stylish & Changeable Side StickerIncludes unique side stickers for DIY enthusiasts and gamers.
LongProductName - 1000 W, 80 PLUS Titanium, ATX 3.1, 100-240V, 50/60 Hz, 150 x 150 x 85 mm
LongSummaryDescription - FSP Hydro Ti PRO 1000W. Total power: 1000 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 60 cm, PCI Express power connectors (12+4 pin) cable length: 700 mm. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Titanium. Product colour: Black, Cooling type: Active, Fan diameter: 13.5 cm. Cables included: CPU, PCIe, Peripheral (Molex), SATA
Manufacturer - FSP
MPN - PPA10A3807
Name - 1000W FSP Hydro TI PRO ATX 3.0 80+TITANIUM Gen 5.1
Packaging content - Cables included - CPU, PCIe, Peripheral (Molex), SATA
Performance - 80 PLUS certification - 80 PLUS Titanium
Performance - ATX version - 3.1
Performance - Bearing technology - FDB
Performance - EPS version - 2.92
Performance - Noise level - 15 dB
Performance - Power supply unit (PSU) form factor - ATX
Performance - Purpose - PC
Ports & interfaces - Cabling type - Fully-Modular
Ports & interfaces - CPU power cable length - 70 cm
Ports & interfaces - CPU power connector (4+4 pin) - Yes
Ports & interfaces - Motherboard power cable length - 60 cm
Ports & interfaces - Motherboard power connector - 20+4 pin ATX
Ports & interfaces - Number of SATA power connectors - 12
Ports & interfaces - PCI Express power connectors (6+2 pin) - 5
Ports & interfaces - PCI Express power connectors (12+4 pin) cable length - 700 mm
Ports & interfaces - Peripheral (Molex) power connectors (4-pin) - 4
Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Combined power (+3.3V) - 120 W
Power - Combined power (+5V) - 120 W
Power - Combined power (+5Vsb) - 18.6 W
Power - Combined power (+12V) - 1000 W
Power - Combined power (-12V) - 18.6 W
Power - Efficiency - 94%
Power - Input current - 13-6 A
Power - Max output current (+3.3V) - 20 A
Power - Max output current (+5V) - 20 A
Power - Max output current (+5Vsb) - 3 A
Power - Max output current (+12V) - 83.33 A
Power - Max output current (-12V) - 0.3 A
Power - Power protection features - Over current, Over power, Over voltage, Overheating, Short circuit
Power - Total power - 1000 W
ProductName - Hydro Ti PRO 1000W
ShortSummaryDescription - FSP Hydro Ti PRO 1000W, 1000 W, 100 - 240 V, 50/60 Hz, 13-6 A, 120 W, 1000 W
Title - FSP Hydro Ti PRO 1000W power supply unit 20+4 pin ATX ATX Black
URL - https://www.fsplifestyle.com/en/product/HydroTIPRO1000W.html
WarrantyInfo - 10 years
Weight - 4.34
Weight & dimensions - Depth - 150 mm
Weight & dimensions - Height - 86 mm
Weight & dimensions - Width - 150 mm
