10/100M LAN Ports - 1
Accessories included - RUT200 router 9W power supply 2 x LTE antenna (screwable, SMA male connector) WiFi antenna (screwable, RP-SMA male angled connector) Quick start guide
Aero2 support - No
Antenna - Detachable external
Antennas quantity - 3
Card reader - None
Category - Root/Electronics/Networks and communication/Routers
Category 1 - Netzwerk
Category 2 - Router
Category Code - WRO
Certificates -
Color - Black
Connections - Ethernet (RJ-45)
Data transmission - GPRS
Data transmission - LTE
Data transmission - UMTS
Description - RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing. This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
Description - RUT200 router RUT200 is one of the most popular routers on the market. Equipped with 4G LTE connectivity, Wi-Fi and two Ethernet ports, the model is perfect for quickly setting up primary and backup connectivity with remote management capabilities. Due to its compact size, industrial design and I/O, this model is well suited for manufacturing, automation, transportation and other industrial applications that require critical connectivity in rigorous environments.
Description - TELTONIKA IOT ROUTER RUT200 4G (CAT4) 2X10/100 RJ45 AC WIFI
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 175 mm
Dimensions - 83 x 25 x 74 mm
Dimensions W x D x H, mm - 83 x 74 x 25
dimension weight - 350 g
dimension width - 150 mm
ean - 4779051840229
EAN - 4779051840229
Eans - 4779051840229
Environment requirements - Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing

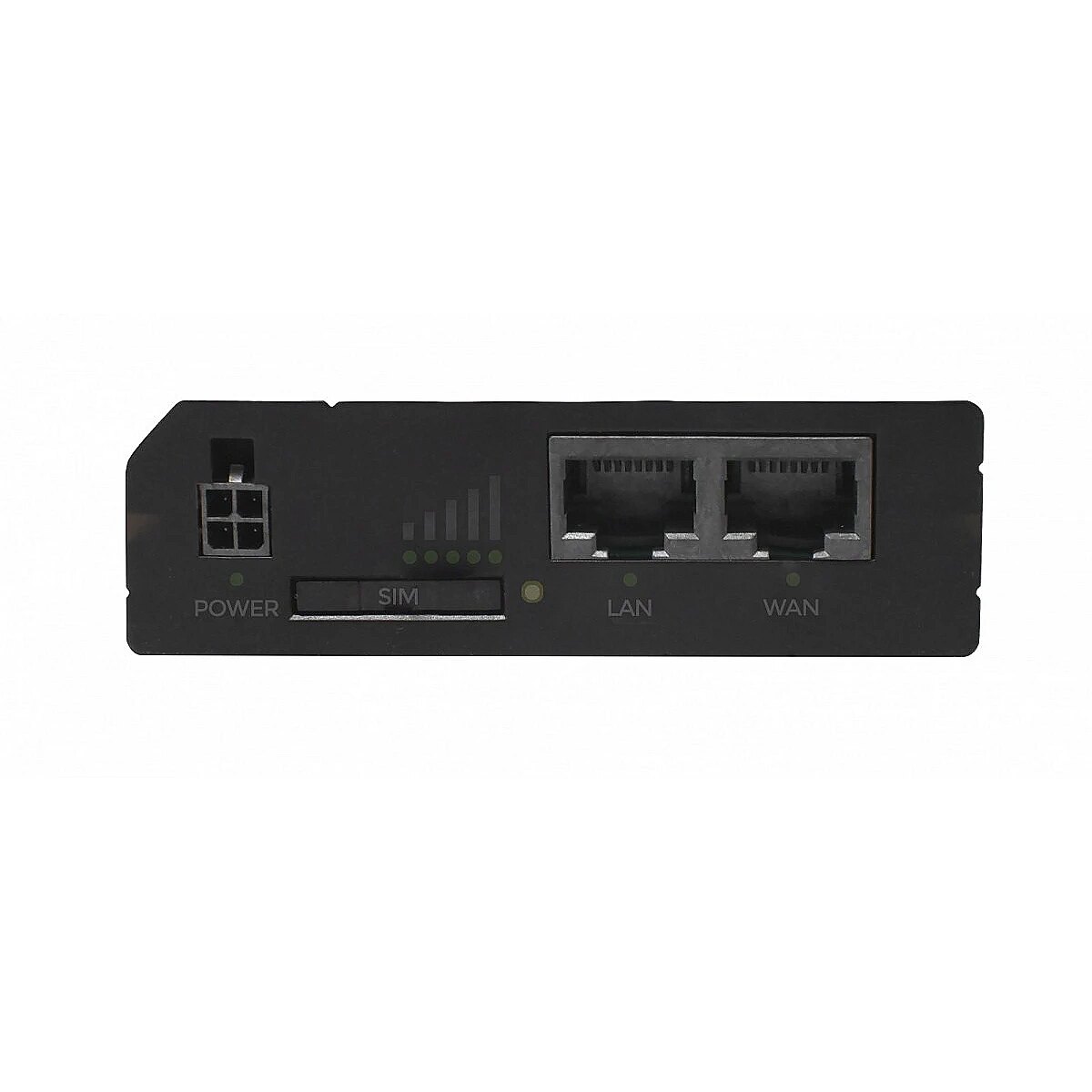

Ethernet LAN (RJ-45) ports quantity - 2
Ethernet LAN data transfer rates, Mbit/s - 10/100
Full Description Line - RUT200|1x10/100M|Dimensions 83 x 25 x 74 mm
GSM network - 900 MHz
GSM network - 1900 MHz
guarantee - 24
guarantee_type - normal
Height - 148.000000
I/O ports - 1 x 10/100 Mbit/s
I/O ports - 1 x 10/100 Mbit/s WAN
I/O ports - 1 x SIM card slot
Internal memory - 128 MB
LAN \ WAN ports - 1
LED indicators - 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Length - 75.000000
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2500 MHz
Management, monitoring, configuration - Monitoring and management: WEB UI, CLI, SSH, CALL, SMS, TR-069, SNMP, JSON-RPC, MQTT, MODBUS, RMS Connection monitoring: Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions: RMS, FOTA, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx SMS features Services: DDNS, VRRP, Wake On Lan (WOL), WEB filter, UPNP, Traffic Logging
Manufacturer - Teltonika
ManufacturerPartNumber - RUT200010000
Mobile broadband - Yes
Model - RUT200
Model name - RUT200
MPN - RUT200010000
name - Router 4G/LTE RUT200 (Cat 4), 3G, 2G, WIFI
Name - Teltonika RUT200
Name - Teltonika RUT200Industrial LTE WiFi Router
Number of antennas - 3-złącza na anteny
Operating frequency - 2,4 GHz
Operating system provided - Linux
Operating temperature range (T-T), °C - - 40 - 75

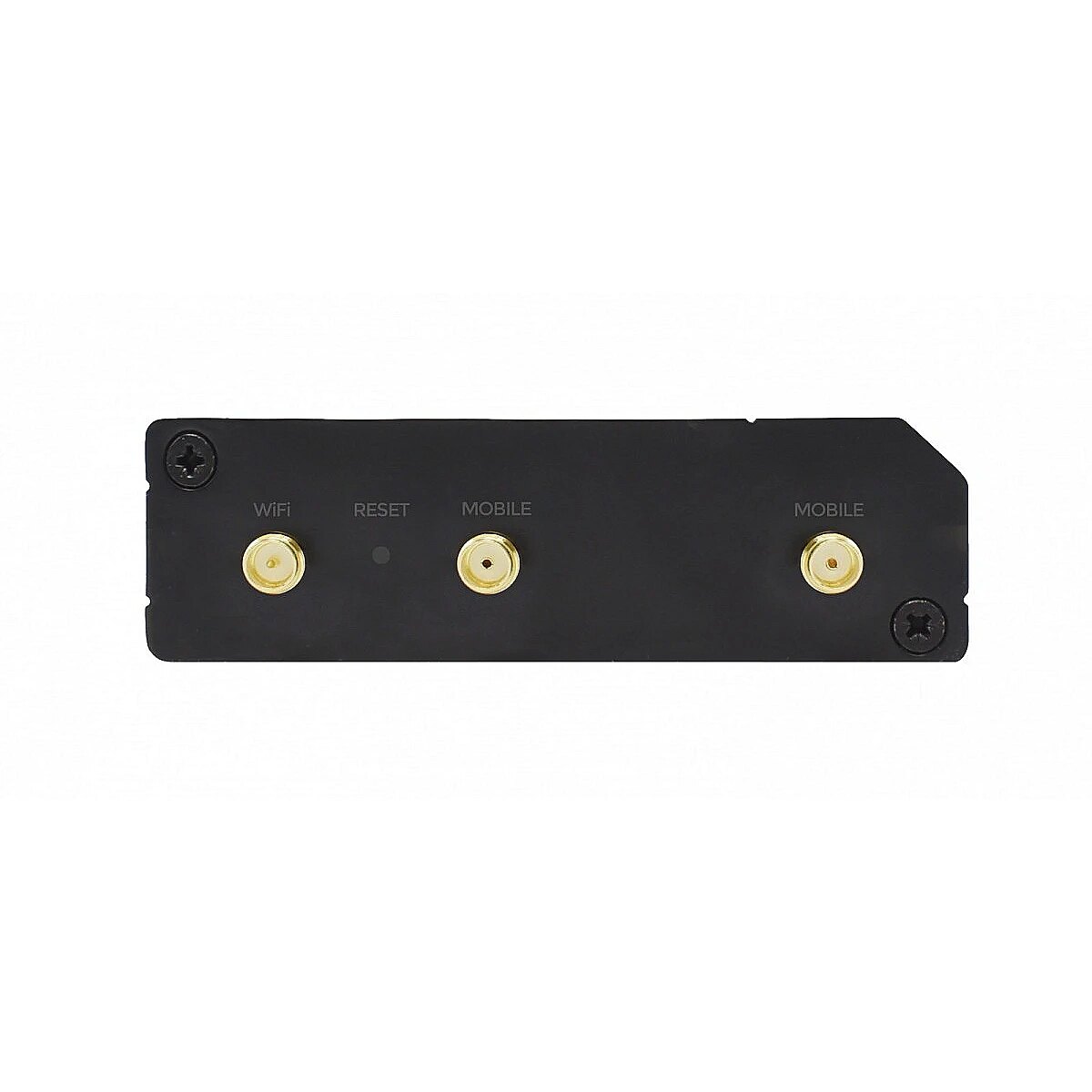

Other features - Network support: 4G/LTE (cat. 4), 3G, 2G Processor: Mediatek MIPS 24Kc 580 MHz Memory: 16 MB Flash Memory: 128MB RAM Antenna connectors: 2 x SMA (cellular), 1 x RP-SMA for WiFi Housing: Aluminum housing with the possibility of mounting on a DIN rail, plastic panels
PeriodofWarranty - 2 Y
Power supply - 4-pin socket, 9-30 VDC
producer - TELTONIKA
Producer - Teltonika
ProducerCode - RUT200
Product Net Weight - 0.125 kg
Security - Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Set up custom data limits for the SIM card WEB filter: Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
Shipping Box Depth Shipping/Package Box Dimensions - 17 cm
Shipping Box Height Shipping/Package Box Dimensions - 14.7 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 7 cm
ShortDescription -
SIM card - Not applicable
Software - RutOS (OpenWrt based Linux OS)
Special functions -
Standards - 802.3
Standards - 802.3u
Standards - 802.11b
Standards - 802.11e
Standards - 802.11g
Standards - 802.11n
Standards and Protocols - TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet
System Requirements -
Total storage capacity - 16 MB
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 2100 MHz
Unit Box Height - 0.147
Unit Box Length - 0.17
Unit Box Width - 0.07
Unit Calculated Volume - 0.001749 cubm
Unit Calculated Weight - 0.35 kg
Units per Shipping Box - 1
Vendor Homepage - teltonika-networks.com/products/routers/rut200
vendpn - RUT200010000
WAN port - 1
Warranty - 24 months
Weight - 0.349
Weight - 0.350000
Weight - 125 g
Weight, g - 125
Wi-Fi - Yes
Width - 175.000000
Wireless standard - 802.11 b
Wireless standard - 802.11 g
Wireless standard - 802.11 n
