5 GHz Features - Yes
Antenna connector type Antenna - RP-SMA
Built-in processor Performance - Yes
Category Code - WAP
Compatible operating systems Performance - RouterOS
Connector(s) Other features - 2 x RP-SMA
Depth Weight & dimensions - 135 mm

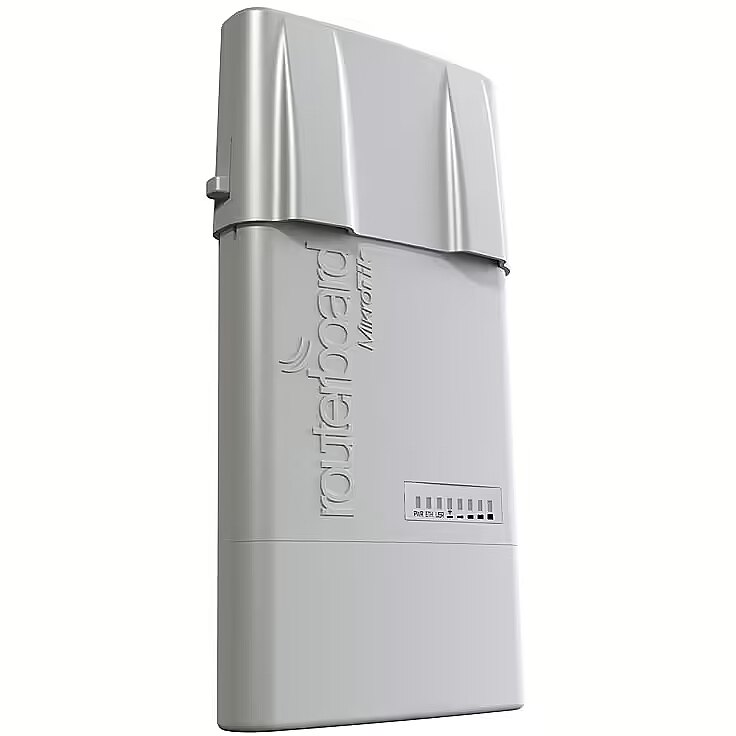

Description - The RB912 in an outdoor enclosure, fit with two RPSMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the RB912 miniPCIe slot for one more wireless interface to make a dual band device. The case can be opened with one hand, and is protected against the elements. USB, Ethernet and a Grounding wire exits are provided on the bottom, behind a protective door. Comes with a mounting loop for tower/pole mounting, and a separate DIN rail mount is also provided. Package also includes a PoE injector and power supply unit. Box contains: RB912 outdoor unit, PSU, PoE injector, mounting loop, DIN rail mount
Ethernet LAN (RJ-45) ports Ports & interfaces - 1
Ethernet LAN data rates Features - 10/100/1000 Mbit/s
Frequency band Features - 4.9 - 5.9 GHz
Harmonized System (HS) code Logistics data - 85176990
Height Weight & dimensions - 50 mm
Internal memory Performance - 64 MB
LED indicators Design - Yes
Model name - BaseBox 5 // RB912UAG-5HPND-OUT
Mounting kit Packaging content - Yes
Name - WRL BASE STATION BASEBOX5/RB912UAG-5HPND-OUT MIKROTIK
Networking standards Features - IEEE 802.11a/IEEE 802.11n
Operating temperature (T-T) Operational conditions - -30 - 60 °C
Output voltage Power - 30 V
Power consumption (max) Power - 14 W
Power over Ethernet (PoE) Power - Yes
Processor model Performance - Qualcomm Atheros AR9342
Product colour Design - Grey
Product Net Weight ELKO Logistics Data - 0.39 kg
Shipping Box Depth ELKO Internal Logistics Data - 34.5 cm
Shipping Box Height ELKO Internal Logistics Data - 14 cm
Shipping Box Weight ELKO Internal Logistics Data - 0.73 kg
Shipping Box Width ELKO Internal Logistics Data - 6.5 cm
Summary - Mikrotik BaseBox 5. 5 GHz, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: Grey. Power consumption (max): 14 W
Unit Box Height - 0.14
Unit Box Length - 0.345
Unit Box Width - 0.065
Unit Calculated Volume ELKO Internal Logistics Data - 0.003139 cubm
Unit Calculated Weight ELKO Logistics Data - 0.73 kg
Unit Depth ELKO Logistics Data - 34.5 cm
Unit Height ELKO Logistics Data - 14 cm
Units per Shipping Box ELKO Logistics Data - 1
Unit Width ELKO Logistics Data - 6.5 cm
USB 2.0 ports quantity Ports & interfaces - 1
USB connector type Ports & interfaces - USB Type-A
Vendor Homepage - https://routerboard.com/RB912UAG-5HPnD-OUT
WAN connection Ports & interfaces - Ethernet (RJ-45)/Wi-Fi
Warranty - 12 months
Weight Weight & dimensions - 390 g
Width Weight & dimensions - 246 mm
