2.4 GHz Features - Yes
5 GHz Features - Yes
AC adapter included Packaging content - Yes
Accessories included -
Antenna - Antenna features - Integrated antenna
Antenna - Antenna gain level (max) - 2.5 dBi
Antenna - Antennas quantity - 4
Antenna - Antenna type - Internal
Antenna > Antenna gain level (max) - 2.5 dBi
Antenna > Antenna type - Internal
Antenna > Integrated antenna - Yes
Antenna features Antenna - Integrated antenna
Antenna gain - 2.5 dBi
Antenna gain level (max) Antenna - 2.5 dBi
Antennas quantity Antenna - 4
Antenna type Antenna - Internal
brand - MikroTik
Built-in processor Performance - Yes
category - MikroTik > Wi-Fi mājai un ofisam > cAP
Category - Root/Electronics/Networks and communication/Access points
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - WAP
Certificates - Certification - CE, FCC, IC, EAC, ROHS
Certification Certificates - CE, FCC, IC, EAC, ROHS
CnCode - 85176200
Code - RBcAPGi-5acD2nD
Color - White
Dane techniczne: Częstotliwość - 2.4 GHz
Dane techniczne: Częstotliwość - 5 GHz
Dane techniczne: Gwarancja - 1 rok w serwisie sprzedawcy
Dane techniczne: Inne - obudowa okrągła 136 mm x 30 mm | obudowa kwadratowa 145 mm x 145 mm x 30 mm
Dane techniczne: LAN 10/100/1000 Mb/s - tak (2 szt.)
Dane techniczne: Producent - MikroTik
Dane techniczne: Przeznaczenie - biznesowe
Dane techniczne: Prędkość transmisji - 300 + 867 Mbps
Dane techniczne: Rodzaj - sufitowy
Dane techniczne: Standard - Wi-Fi 5 (802.11a/b/g/n/ac)
Dane techniczne: Zasilanie - PoE | zasilacz
DC voltage range Power - 17 - 57 V
Depth Weight & dimensions - 30 mm
Description - cAP ac to bardzo wydajny bezprzewodowy punkt dostępowy, który pięknie wygląda zarówno na ścianach, jak i na sufitach.
Description - The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it. Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too. The cAP ac is a feature packed device with a sleek enclosure, that can become inconspicuous with
the push of a button - the customizable mode button in the device center will turn off all lights and
sounds at it’s default configuration, but can be reconfigured to launch any RouterOS script.
Design - Internal - No
Design - LED indicators - Yes

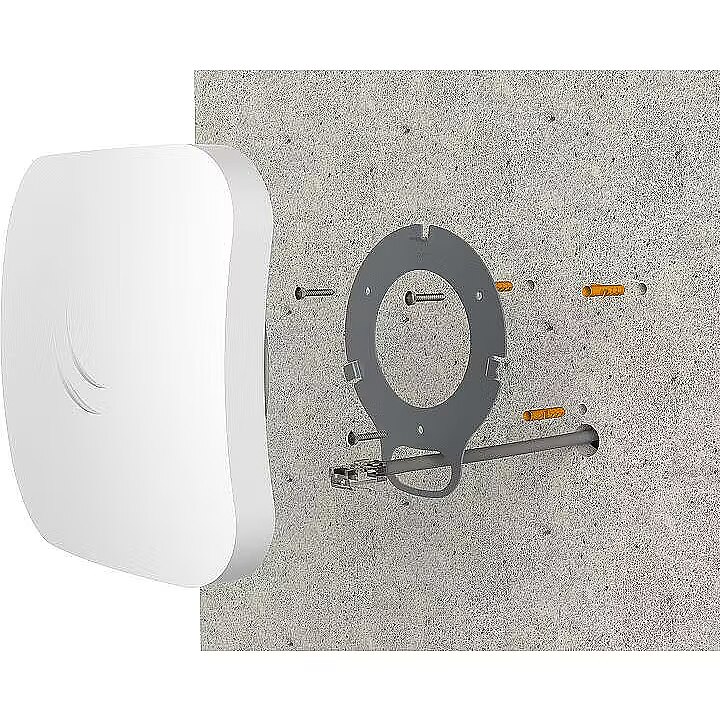

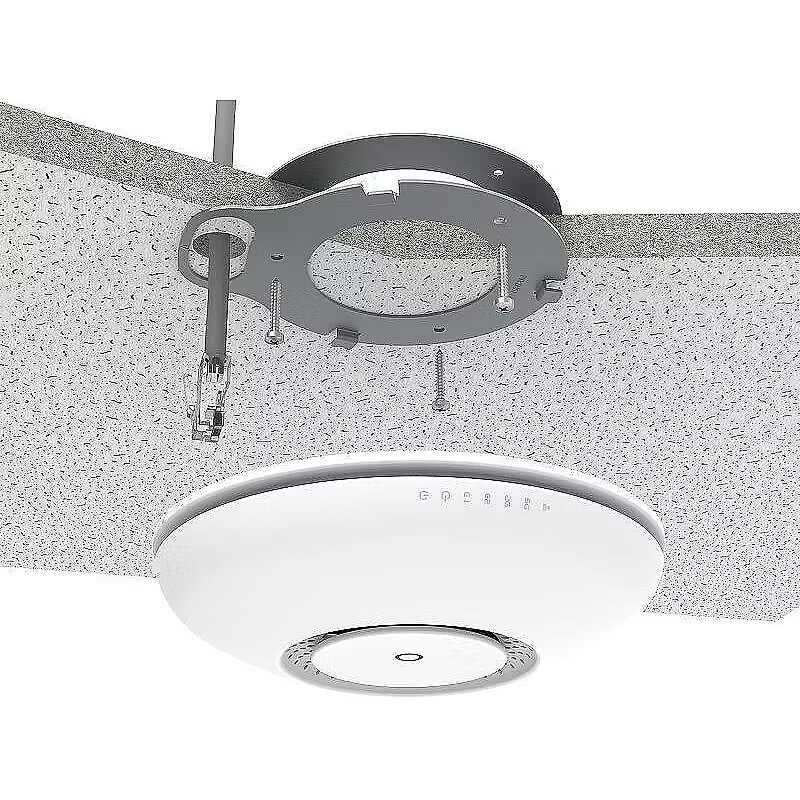

Design - Placement - Ceiling, Wall
Design - Product colour - White
Design > Colour of product - White
Design > Internal - Yes
Designation - CE+WEEE
dimensionalWeight - 635
dimension depth - 50 mm
dimension height - 180 mm
Dimensions - Okrągła koperta: śr. 136 mm, wysokość: 30 mm; Kwadratowa koperta: 145 mm x 145 mm x 30 mm
dimension weight - 420 g
dimension width - 260 mm
EAN - 4752224003416
ean - 4752224003416
Eans - 4752224003416
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Features - 10,100,1000 Mbit/s
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000
Features - Frequency band - 2.412 - 2.484, 5.15 - 5.875 GHz
Features - Maximum data transfer rate - 867 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 300 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 867 Mbit/s
Features - Networking standards - IEEE 802.3af
Features - Networking standards - IEEE 802.3at
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Receiver sensitivity - 2.4GHz:
1MBit/s: -100 @ 26dBm Tx
11MBit/s: -94 @ 26dBm Tx
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -78 @ 23dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -73 @ 22dBm Tx
5GHz:
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -80 @ 21dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -75 @ 20dBm Tx
MCS9: -70 @ 18dBm Tx
Features > LED indicators - Yes
Features > MU-MiMO - Yes
Flash memory Performance - 16 MB
Frequency band Features - 2.412 - 2.484, 5.15 - 5.875 GHz
Gross weight - 0.874 kg
guarantee - 12
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85176990
height - 0.07 m
Height Weight & dimensions - 136 mm
I/O ports - 2 x 10/100/1000 Mbit/s
Internal Design - No
Internal memory Performance - 128 MB
LED indicators Design - Yes
length - 0.27 m
Link - https://mikrotik.com/product/cap_ac#fndtn-specifications
Logistics data - Harmonized System (HS) code - 85176990
Management, monitoring, configuration -
Manufacturer - MikroTik
Maximum data transfer rate (2.4 GHz) Features - 300 Mbit/s
Maximum data transfer rate (5 GHz) Features - 867 Mbit/s
Maximum data transfer rate Features - 867 Mbit/s
Model name - cAP ac // RBcAPGi-5acD2nD
Mounting kit Packaging content - Yes
mpn - RBcAPGi-5acD2nD
MPN - RBCAPGI-5ACD2ND
name - Access point 2.4/5 GHz 2GbE RBcAPGi-5acD2nD
Name - MikroTik RBCAPGI-5ACD2ND
Name - MikroTik RBcAPGi-5acD2nD
Name - RBcAPGi-5acD2nD | cAP ac | 802.11ac | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 2 | MU-MiMO Yes | Antenna type Internal | 12 month(s)
Network architecture - GigabitEthernet
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11b/g/n/ac
Networking standards Features - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operating system installed Performance - RouterOS
Operating temperature (T-T) Operational conditions - -40 - 50 °C
Operational conditions - Operating temperature (T-T) - -40 - 50 °C
Other features - Procesor: IPQ-4018 Liczba rdzeni procesora: 4 Częstotliwość nominalna procesora: 716 MHz System operacyjny: RouterOS Rozmiar pamięci RAM: 128 MB Rozmiar przechowywania: 16 MB MTBF: Około 100 000 godzin w 25C
Output voltage Power - 57 V
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 180.00 mm
Package features > Gross height (mm) - 60.00 mm
Package features > Gross width (mm) - 260.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 308 pc(s)
Package features > Paper/Pasteboard - 337 g
Package features > Plastic (No PET) - 37 g
Package features > Tare weight (kg) - 0.374 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Mounting kit - Yes
Packaging content - PoE adapter included - Yes
Packaging content > AC adapter included - Yes
Packaging content > Mounting kit - Yes
Performance - Built-in processor - Yes
Performance - Flash memory - 16 MB
Performance - Internal memory - 128 MB
Performance - Operating system installed - RouterOS
Performance - Processor frequency - 716 MHz
Performance - Processor model - IPQ4018
Performance > 2.4 GHz - Yes
Performance > Built-in processor - IPQ-4015, Quad Core 716MHz
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Performance > Flash memory - 16 MB
Performance > Frequency band - 2.4-5
Performance > Internal memory - 128 MB
Performance > Web-based management - Yes
Placement Design - Ceiling, Wall
PoE adapter included Packaging content - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > Ethernet LAN (RJ-45) ports - 2
Ports & interfaces > POE - PoE in/out
Power - DC voltage range - 17 - 57 V
Power - Output voltage - 57 V
Power - Power consumption (max) - 13 W
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) type supported - Active PoE
Power - Power over Ethernet (PoE) type supported - Passive PoE
Power > Input voltage - 12 - 56 V
Power consumption (max) Power - 13 W
Power over Ethernet (PoE) > Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) Power - Yes
Power over Ethernet (PoE) type supported Power - Active PoE, Passive PoE
Power supply - Liczba wejść DC: 1 (PoE-IN) Maksymalne zużycie energii: 24 W
Processor frequency Performance - 716 MHz
Processor model Performance - IPQ4018
producer - Mikrotik
Producer - MikroTik
producerCode - RBcAPGi-5acD2nD
ProducerCode - RBCAPGI-5ACD2ND
Producer product family - RBcAPGi-5acD2nD
Producer product name - cAP ac
Product colour Design - White
productName - Mikrotik cAP ac 867 Mbit/s White Power over Ethernet (PoE)
productSize - Normal
Receiver sensitivity Features - 2.4GHz:
1MBit/s: -100 @ 26dBm Tx
11MBit/s: -94 @ 26dBm Tx
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -78 @ 23dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -73 @ 22dBm Tx
5GHz:
6MBit/s: -96 @ 26dBm Tx
54MBit/s: -80 @ 21dBm Tx
MCS0: -96 @ 26dBm Tx
MCS7: -75 @ 20dBm Tx
MCS9: -7
Safety warning - Warnings - Do not open the appliance - risk of electric shock.
Safety warning - Warnings - Do not use in damp conditions.
Safety warning - Warnings - Make sure the unit is stably mounted and ventilated.
Security -
ShortDescription - MikroTik cAP ac | Punkt dostępowy | RBcAPGi-5acD2nD, Dual Band, 2x RJ45 1000Mb/s
sizeX - 186
sizeY - 64
sizeZ - 267
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Summary - Mikrotik cAP ac. 2.4 GHz, 5 GHz, Maximum data transfer rate: 867 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 13 W
System Requirements -
Technical details > Net weight - 0.50 kg
Technical details > Producer - MikroTik
Technical details > Software type - RouterOS L4
Technical details > Warranty - 12 month(s)
title - MikroTik cAP ac
Unit Box Height - 0.265
Unit Box Length - 0.06
Unit Box Width - 0.18
Unit Calculated Volume - 0.003386 cubm
Unit Calculated Weight - 0.718 kg
Units per Pallet - 0
Units per Shipping Box - 20
Vendor Homepage - https://mikrotik.com/product/cap_ac#fndtn-specifications
vendpn - RBcAPGi-5acD2nD
Warranty - 12
Warranty - 12 months
warrantyLength - 12
warrantyType - G
weight - 0.76 kg
Weight - 0.686
weight - 692
Weight & dimensions - Depth - 30 mm
Weight & dimensions - Height - 136 mm
Weight & dimensions - Width - 136 mm
Weight & dimensions > Dimensions (WxDxH) - Round case: Ø136mm x 30mm, Square case: 145x145x30mm mm
width - 0.18 m
Width Weight & dimensions - 136 mm
Wireless LAN features > Wi-Fi band - 802.11ac
