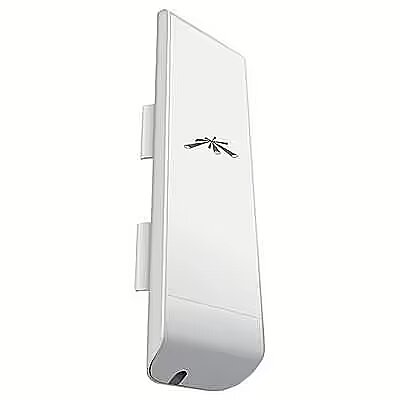

Ubiquiti NanoStation M5

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 143472 Product code: NSM5
In stock 2 units
Warranty: 2 years (Warranty for business entities 1 year)
76.82 €
Ready for dispatch
tomorrow, 17.06.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Speed index: 150
  • Type of device: Access Point
  • Wi-Fi standard: N/A
Basic information
Speed index : 150
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : N/A
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Single Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
  • Alternatives
  • Alternatives
More detailed specification
Additional information in manufacturers website Ubiquiti NanoStation M5
Accessories included -
Antenna - Built-in
Antenna - Internal
Antenna Gain - 16 dB
Antenna gain - 16.1 dBi
Augstums (mm) - 80 milimetrs
brand - Ubiquiti
Category - Root/Electronics/Networks and communication/Access points
category - Ubiquiti > Āra Wi-Fi > airMAX 5 GHz
Category 1 - Netzwerk
Category 2 - Netzwerkartikel
Category Code - WOD
Category_1 - Network and Servers
Category_2 - Network - Network Accessories
Code - NSM5
Color - White
Colour - White
CPU - Atheros MIPS 74KC
Data Bit Rate - 150 megabits sekundē
Data transmission speed - 150 Mbps
Description - Access Point CPE NanoStation M5 NSM5
Description - Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 320 mm
Dimensions - 294 x 31 x 80 mm
Dimensions - 294 x 31 x 80mm
dimension weight - 700 g
dimension width - 220 mm
Dziļums (mm) - 294 milimetrs
EAN - 810354022548
ean - 810354022548
EAN - 0810354022548
EAN kods - 810354022548
Eans - 810354022548
EAN_code - 0810354022548
Flash Memory - 8 megabaits
Full Description Line - Network Device Type Wireless CPE|Data transmission speed 150 Mbps|Antenna Gain 16 dB|Wireless Frequency Range 5Ghz|Colour White|Dimensions 294 x 31 x 80mm
Gabali iepakojumā - 1
Garantija Produkti atgriežami - Jā
Garantijas apstiprināšanas kritēriji - Sērijas numurs
Garantijas termiņš (mēnesis) - 24
guarantee - 12
guarantee_type - normal
height - 0.1 m
I/O ports - 2 x 10/100 Mbit/s
Iepakojuma svars Brutto (kg) - 0.714 kilograms
Iepakojuma svars Netto (kg) - 0.51 kilograms
Iepakojuma tips - Kaste
Iepakojums kastē - 20
Ierīces atrašanās vieta - Ārējais
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014047661.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014059280.jpg
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/190116080014073501.jpg
Interfeiss - Ethernet/Wi-Fi
Internal Clock Rate - 560 megahercs
Kastes svars Brutto (kg) - 14.27 kilograms
LAN - 2 (RJ-45)
length - 0.3 m
Local Area Network Architecture - 10Base-T/100Base-TX
Maks. Diapazons Atvērtā telpa - 15 kilometrs
Maksimālais darba mitrums - 95 procenti
Maksimālā darba vides temperatūra - 75 Celsija grāds
Management, monitoring, configuration -
Manufacturer - Ubiquiti
Manufacturer_code - NSM5
Minimālais darba gaisa mitrums - 5 procenti
Minimālā darba vides temperatūra - -30 Celsija grāds
mpn - NSM5
MPN - NSM5
name - Access Point CPE NanoStation M5 NSM5
Name - NSM5 NanoStation M5 | 12 month(s)
Name - Ubiquiti NanoStation M5, Antenna - 16dBi
Name - Ubiquiti NSM5
Name - Z Ubiquiti NSM5
Network/Transport Protocol - TCP/IP QoS
Network architecture - FastEthernet
Network Device Type - Wireless CPE
Networking Features - Power over Ethernet (PoE)
Nominālais svars - 0.4 kilograms
Number of Ports - 2
Operating frequency - 5 GHz
Other features - Operating Temperature: -30 to 75°C Operating Humidity: 5 to 95% Noncondensing Wireless Approvals: FCC Part 15.247, IC RS210, CE RoHS Compliance: Yes Shock & Vibration ETSI300-019-1.4
Package features > Gross depth (mm) - 292 mm
Package features > Gross depth master carton - 480 mm
Package features > Gross height (mm) - 90 mm
Package features > Gross height master carton - 325 mm
Package features > Gross width (mm) - 80 mm
Package features > Gross width master carton - 345 mm
Package features > Net weight master carton - 13.24 kg
Package features > Packing quantity - 20 pc(s)
Package features > Palette Qty - 640 pc(s)
Package features > Paper/Pasteboard - 18.27 g
Package features > PET - 6 g
Package features > Plastic (No PET) - 2.03 g
Package features > Tare weight (kg) - 0.203 kg
Package features > Tare weight master carton - 0.915 kg
Package features > Volume (m3) - 0.0021024 m³
Package features > WEE classification - CL109:6:2017-04-01
Platums (mm) - 31 milimetrs
Power Consumption Operational - 8 Vats
Power supply -
producer - UBIQUITI
Producer - Ubiquiti
ProducerCode - NSM5
Producer product name - NSM5 NanoStation M5
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=181227114940482954&THEME=asbis&LANG=lv
ProductCategory - Tīkla produkti
ProductCode - NSM5(EU)
ProductDescription - Ubiquiti NanoStation NSM5, 5 GHz, 150+ Mbps, range 15+ km, 16.1 dBi, Pole Mounting kit included, Power method - Passive Power over Ethernet,airMAX,EU
Product Net Weight - 0.4 kg
ProductType - Networking - Wireless Outdoor Access Point
RAM - 64 megabaits
Security -
Sertifikācija - FCC Part 15.247, IC RS210, CE
Shipping Box Depth Shipping/Package Box Dimensions - 48.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 32.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 14.35 kg
Shipping Box Width Shipping/Package Box Dimensions - 35 cm
ShortDescription - 150 Mbps - 802.11n, 802.3u 10/100 Mbps Fast Ethernet
Software -
Special functions -
Standards - 802.11a
Standards - 802.11n
System Requirements -
Technical details > Gross weight - 0.662 kg
Technical details > Net weight - 0.459 kg
Technical details > Producer - Ubiquiti
Technical details > Warranty - 12 month(s)
Technical_details - LAN: 2x 100Base-TX Wireless: WLAN 802.11a/​n Transfer rate: 300Mbps (5GHz) Antennas: internal Power consumption: not specified (operation) Special features: Outdoor, OpenWRT Note: Open-/​DD-WRT only for specific revisions available, please note the additional links!
title - Ubiquiti airMAX NanoStation M5
Tīkla formāts - External
Unit Box Height - 0.3
Unit Box Length - 0.04
Unit Box Width - 0.17
Unit Calculated Volume - 0.002758 cubm
Unit Calculated Weight - 0.718 kg
Units per Shipping Box - 20
Vendor - UBIQUITI
Vendor Homepage - www.ubnt.com/airmax/nanostationm/
vendpn - NSM5(EU)
Warranty - 12
Warranty - 12 months
Warranty - Warranty 12 months calculated from the date of sale
Warranty Term Notes - 24 months - for EU
Weight - 0,66
Weight - 0.66
weight - 0.724 kg
Weight - 400 g
Wi-Fi Band Frequency - 5 Gigahercs
width - 0.1 m
Wireless Frequency Range - 5Ghz
Ārējā krāsa - Balts
