TP-LINK Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1223652 Product code: ER703WP-4G-Outdoor
Can be ordered 19 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
336.33 €
Ready for dispatch
25.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Speed index: 3000
  • Type of device: LTE Router
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 3000
Type of device LTE Router

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment

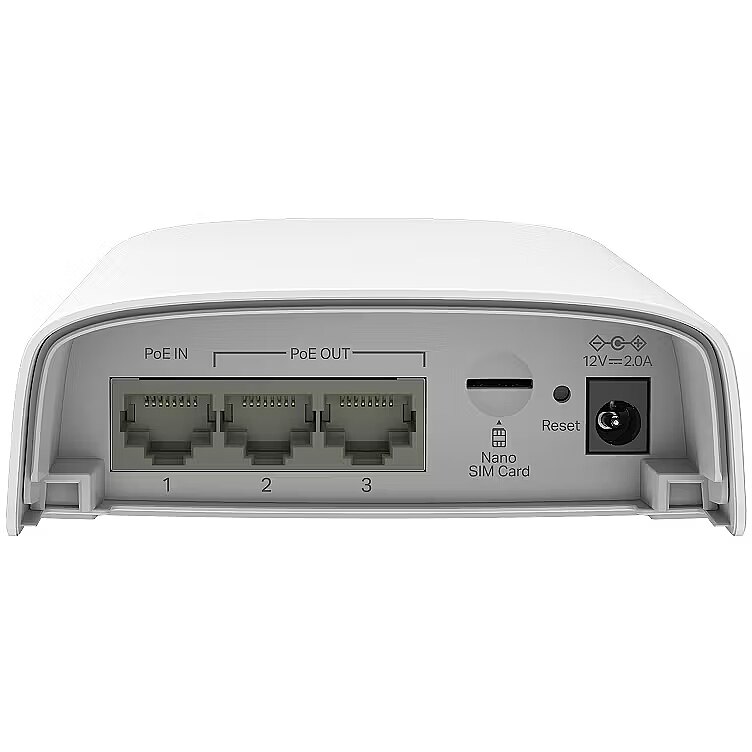

LAN ports : 4
More detailed specification

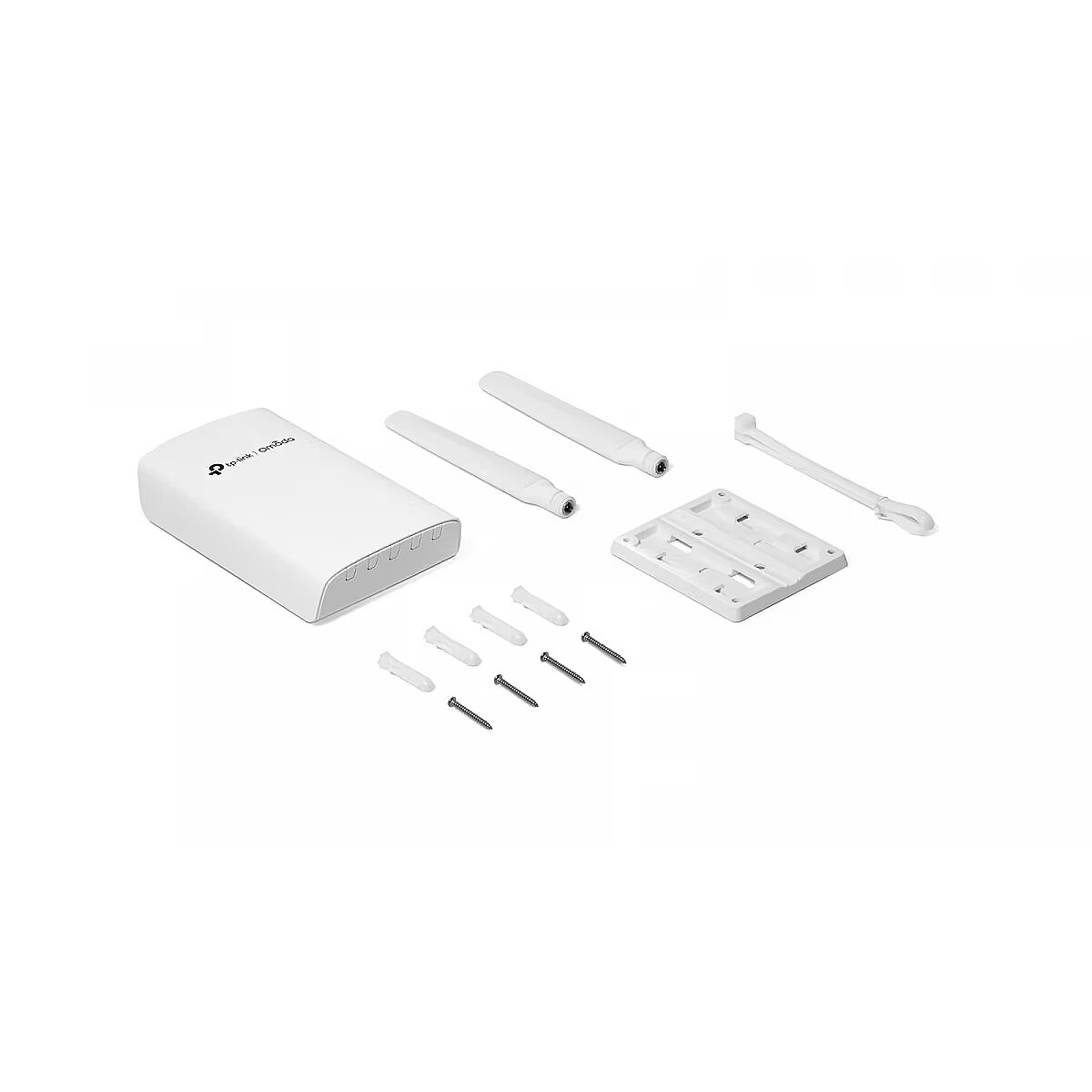

Accessories included - ER703WP-4G-Outdoor Anteny Kotwy Śruby Wspornik montażowy Opaski zaciskowe
Antenna - Built-in
Antenna - Detachable external
Antenna gain - 4 dBi
ARTIKEL1 - 4G+CAT6 AX3000 OUTDOOR GATEWAY
ARTIKEL2 - OMADA 4G+ CAT6 AX3000 WI-FI 6 OU
Brand - TP-Link
BrandPartCode - ER703WP-4G-OUTDOOR
Breite - 0
Category - Gateways/Controllers
Category 1 - Netzwerk
Category 2 - Router
Certificates - CE, FCC, RoHS
Certificates - Certification - CE, FCC, RoHS
Color - White
Description - Zewnętrzna/wewnętrzna brama sieciowa Omada 4G+ Cat6, Wi-Fi 6 AX3000
Urządzenie typu "Wszystko w jednym"
ER703WP-4G-Outdoor łączy w sobie dostęp do internetu 4G, technologię Wi-Fi 6 i 3 gigabitowe porty PoE (1 wejściowy, 2 wyjściowe). Oferuje również funkcję automatycznego łącza zapasowego i równoważenia obciążenia pomiędzy 4G oraz przewodowym WAN. Skorzystaj z wszechstronnej i wydajnej bramy sieciowej, którą wdrożysz bez najmniejszych problemów.
Obudowa odporna na warunki atmosferyczne, zaprojektowana do użytku na zewnątrz
Obudowa urządzenia otrzymała ocenę klasy szczelności IP55 w testach ochrony przed wnikaniem. Brama sieciowa poradzi sobie z trudnymi warunkami panującymi na zewnątrz budynku.
Wiele opcji zasilania
Możliwość zasilania przez PoE lub DC (zgodnego z panelami słonecznymi) pokonuje ograniczenia dostępu do sieci..
Design - LED indicators - Status

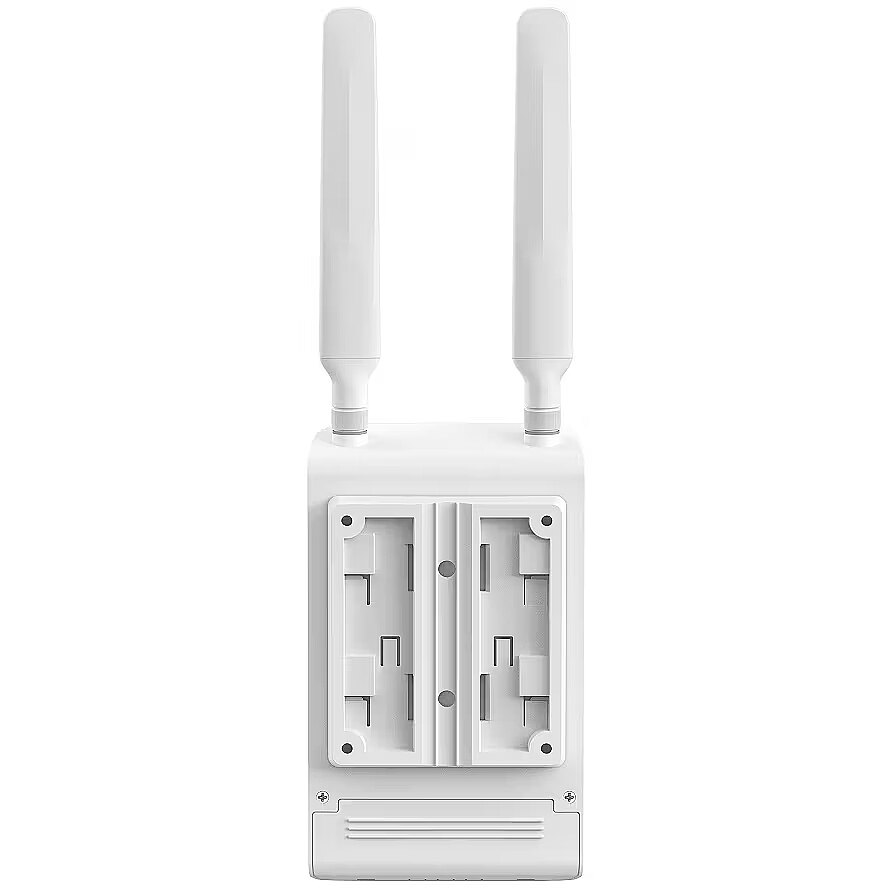

Design - Mounting type - Wall mounting
Design - Product colour - White
Designation - CE+WEEE
dimension depth - 70 mm
dimension height - 210 mm
Dimensions - 174,8 × 100,4 × 38,7 mm
dimension weight - 681 g
dimension width - 210 mm
ean - 8885020626858
EAN - 8885020626858
EANCode - 8885020626858
Environment requirements - Dopuszczalna temperatura pracy: -30 °C do 60 °C Dopuszczalna temperatura przechowywania: -40 °C do 70 °C Dopuszczalna wilgotność powietrza: 1090%, bez kondensacji Dopuszczalna wilgotność przechowywania: 590% bez kondensacji
Features - Antenna gain level (max) - 4 dBi
Features - Antennas quantity - 2
Features - Antenna type - External
Features - Short Message Service (SMS) - Yes
Gewicht - 0
GRUPPE1 - Network
GRUPPE2 - Router
GTIN - 1210002608442
GTIN - 8885020626858
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - ER703WP-4G-OUTDOOR
I/O ports - None
Laenge - 0
LongDesc - All-in-one DeviceCombines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.Specially Designed Weatherproof Enclosure for OutdoorsRated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.Multiple Power Supply OptionsPowered by PoE or DC (compatible with solar panels) to overcome mains access limitations.Plug and PlayInsert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.Centralized ManagementEnables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.Easy InstallationEasy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.
LongProductName - 4G, Nano SIM, 300Mbps D, 50Mbps U, 2.4/5GHz
LongSummaryDescription - TP-Link Omada ER703WP-4G-Outdoor. Product colour: White, Mounting type: Wall mounting, LED indicators: Status. Antenna type: External, Antenna gain level (max): 4 dBi. Internal memory: 512 MB, Internal memory type: DDR4, Flash memory: 256 MB. Ethernet LAN data rates: 10,100,1000 Mbit/s, Forwarding rate: 1453489 Mpps, Networking standards: IEEE 802.3at, IEEE 802.3bt. Security algorithms: SSID, WPA2, WPA3
Management, monitoring, configuration - Aplikacja Omada
Scentralizowane zarządzanie: Omada Cloud Essentials Kontroler Omada oparty na Chmurze Kontroler sprzętowy Omada (OC300) Kontroler sprzętowy Omada (OC200) Kontroler programowy Omada Dostęp do chmury Usługi: Dynamiczny DNS (Dyndns, No-IP, Peanuthull, Comexe, Dostosowanie DDNS) Wsparcie: Zarządzanie poprzez stronę web Zarządzanie zdalne Eksportowanie i importowanie konfiguracji SNMP v1/v2c/v3 Diagnostyka (Ping i Traceroute) Synchronizacja NTP Port Mirroring CLI (tylko w Trybie Autonomicznym) Obsługa dzienników systemowych Funkcje panelu zarządzania: Automatyczne wykrywanie urządzeń Inteligentne monitorowanie stanu sieci Ostrzeżenia o nietypowych zdarzeniach Ujednolicony proces konfiguracji Harmonogram restartu Spersonalizowana strona logowania do sieci (Portal)
Management features - Web-based management - Yes
Manufacturer - TP-Link
MPN - ER703WP-4G-OUTDOOR
name - TP-Link ER703WP-4G-Outdoor
Name - TP-Link Omada ER703WP-4G-Outdoor AX3000 Wi-Fi 6 Outdoor/Indoor Gateway
Network - All services ready time - 3.8 s
Network - Data network - LTE
Network - Downlink/uplink speed - 300/50 Mbit/s
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Forwarding rate - 1453489 Mpps
Network - Frequency band - 2.4/5 GHz
Network - GSM bands supported - 850,900,1800,2100 MHz
Network - Mobile network generation - 4G
Network - Networking standards - IEEE 802.3at, IEEE 802.3bt
Network - PPTP/L2TP VPN tunnels (max) - 50
Network - SSL VPN throughput - 0.0866 Gbit/s
Network - SSL VPN tunnels (max) - 50
Network - Wi-Fi - Yes
Network architecture - GigabitEthernet
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -30 - 60 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Performance - Control display unit - No
Performance - Flash memory - 256 MB
Performance - Internal memory - 512 MB
Performance - Internal memory type - DDR4
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - SIM card slot - Yes
Ports & interfaces - SIM card type - NanoSIM
Power - Power consumption (max) - 16.6 W
Power - Power over Ethernet (PoE) - Yes
Power supply - 802.3at/bt PoE 12V / 2A (Zasilanie DC)
producer - TP-LINK
ProductName - ER703WP-4G-Outdoor
Protocols - DHCP server - Yes
Security - DPI: Kontrola aplikacji przez DPI / Zaktualizowana biblioteka aplikacji Kontrola dostępu: Kontrola dostępu oparta na źródłowym/docelowym adresie IP Filtrowanie: Filtrowanie grup WEB Filtrowanie adresów URL Bezpieczeństwo sieciowe Ochrona przed atakami ARP: Wysyłanie pakietów GARP Skanowanie ARP Wiązanie adresów IP i MAC Ochrona przed atakami sieciowymi: TCP/UDP/ICMP Flood Defense Blokowanie skanowania TCP (Stealth FIN/Xmas/Null) Blokowanie pakietów ping z sieci WAN
Security - MAC address filtering - Yes
Security - Security algorithms - SSID, WPA2, WPA3
ShortSummaryDescription - TP-Link Omada ER703WP-4G-Outdoor, White, Wall mounting, Status, External, 4 dBi, 512 MB
Software -
Special functions - Klonowanie adresów MAC: Zmiana adresu WAN SMS: Odbieranie / Wysyłanie SMS IPv6: Statyczny adres IP / SLAAC / DHCPv6 / PPPoE / Tunel 6to4 / Pass-Through / Tryb Non-Address VLAN: 802.1Q VLAN IPTV: IGMP v2/v3 Proxy, Tryb niestandardowy, Tryb Bridge Typ połączenia WAN: Statyczne przydzielanie adresu IP Dynamiczne przydzielanie adresu IP PPPoE (obsługa konfiguracji MRU) PPTP L2TP DHCP: Serwer DHCP Serwer DHCPv6 PD (Tylko w trybie Autonomicznym) Możliwości dostosowania opcji DHCP Rezerwacja adresów DHCP Interfejsy Multi-IP Multi-Net DHCP
Standards - 802.3at
Standards - 802.3bt
Stck_Kart - 20
Stck_Pal - 0
Storno - Y
System Requirements - Microsoft Windows 98SE, NT, 2000, XP, Vista, 7, 8, 8.1, 10, 11 MAC OS NetWare UNIX Linux
Title - TP-Link Omada ER703WP-4G-Outdoor gateway/controller 10, 100, 1000 Mbit/s
URL - https://www.omadanetworks.com/uk/business-networking/omada-router-4g-wifi-router/er703wp-4g-outdoor/#specifications
vendpn - ER703WP-4G-Outdoor
WarrantyInfo -
Weight & dimensions - Depth - 100.4 mm
Weight & dimensions - Height - 38.7 mm
Weight & dimensions - Width - 174 mm
