Antenna - Antenna gain level (max) - 5.37 dBi
Antenna - Antenna type - Internal
Category 1 - Netzwerk
Category 2 - Accesspoints
Design - Certification - FCC, CE, RCM, IC, UKCA
Design - LED indicators - Status

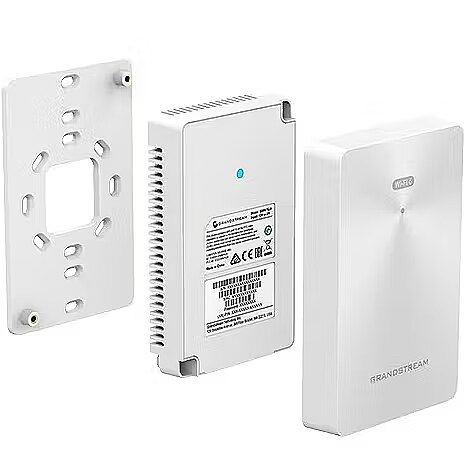

Design - Placement - Wall
Design - Product colour - White
dimensionalWeight - 285
EAN - 6947273704478
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000
Features - Maximum data transfer rate - 1201 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 573.5 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 1201 Mbit/s
Features - Maximum indoor range - 100 m
Features - MIMO - Yes
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Quality of Service (QoS) support - Yes
Features - VLAN support - Yes
Manufacturer - Grandstream
MPN - GWN7661

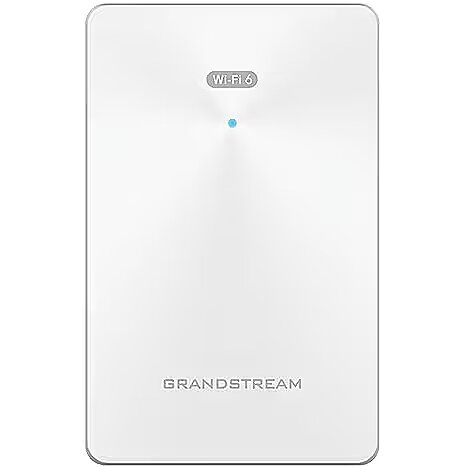

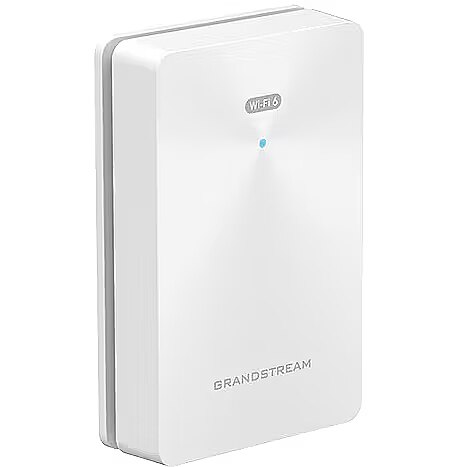

Name - Grandstream GWN7661 Wi-Fi 6 In-Wall Access Point
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - -10 - 50 °C
Operational conditions - Storage temperature (T-T) - -30 - 60 °C
Packaging data - Package depth - 176 mm
Packaging data - Package height - 65 mm
Packaging data - Package weight - 400 g
Packaging data - Package width - 118.5 mm

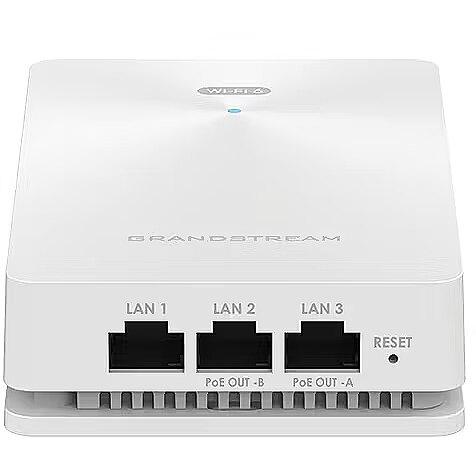

Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Power - Power consumption (max) - 9 W
Power - Power over Ethernet (PoE) - Yes
producerCode - GWN7661
productName - Grandstream Networks GWN7661 wireless access point 1201 Mbit/s White Power over Ethernet (PoE)
productSize - Normal
Protocols - Supported network protocols - IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
Safety warning - Warnings - Avoid direct contact with water.
Safety warning - Warnings - Do not expose to prolonged moisture.
Safety warning - Warnings - Electronic products should be recycled at specialist electronic waste collection facilities.
Security - Number of SSID supported - 32
Security - Security algorithms - WEP
Security - Security algorithms - WPA
Security - Security algorithms - WPA2
Security - Security algorithms - WPA2-PSK
Security - Security algorithms - WPA3
sizeX - 68
sizeY - 175
sizeZ - 120
warrantyLength - 24
warrantyType - F
Weight - 0.4
weight - 415
Weight & dimensions - Depth - 135 mm
Weight & dimensions - Height - 38.5 mm
Weight & dimensions - Weight - 185 g
Weight & dimensions - Width - 86 mm
