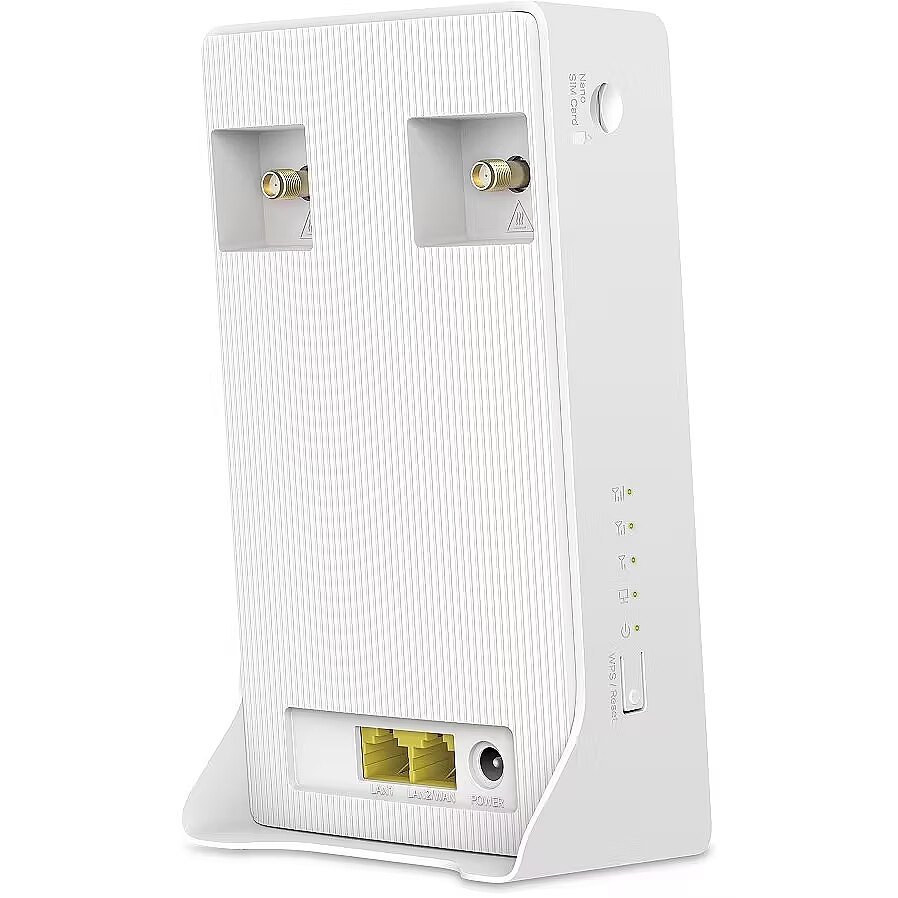

TP-LINK Mercusys MB130-4G 4G LTE Router AC1200

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1097926 Product code: MB130-4G
Can be ordered 17 units Availability: 14 days after order approval
Warranty: 2 years (Warranty for business entities 1 year)
44.07 €
Ready for dispatch
24.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Speed index: 1200
  • Type of device: 3G/4G Modem
  • Wi-Fi standard: Wi-Fi 5 (802.11ac)
Basic information
Speed index : 1200
Type of device 3G/4G Modem

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 5 (802.11ac)
Functionality
3G/4G support SIM slot

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 10/100

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
More detailed specification
Accessories included - MB130-4G Power Supply RJ45 Ethernet Cable Quick Installation Guide
Aero2 support - No
Antenna - Built-in
Card reader - None
Certificates -
Color - White
Data transmission - HSPA+
Data transmission - LTE
Data transmission - UMTS
Description - MB130-4G Dual-Band 4G LTE Wireless Router, AC1200 4G Network - Enjoy 4G LTE connection with download speeds of up to 150 Mbps Card-Insert Setup - Forget about the laborious installation process. SIM card compatibility has been confirmed by years of field testing 1200 Mbps Dual-Band Wi-Fi - Up to 300 Mbps on the 2.4 GHz band and up to 867 Mbps on the 5 GHz band Multiple Simultaneous Connections - Share your Internet connection with up to 64 wireless devices External Antenna Ports - Connect your 4G/3G antennas to improve the quality of the network reception Wireless Router Mode - Connect an Ethernet cable to the LAN/WAN port and use a wired connection when there is no 4G network access
Designation - CE+WEEE
dimension depth - 105 mm
dimension height - 210 mm
Dimensions - 95 x 61.05 x 165.97 mm
dimension weight - 505 g
dimension width - 135 mm
ean - 6957939001971
Environment requirements - Permissible operating temperature: 0°C~40°C Permissible storage temperature: -40°C~60°C Permissible air humidity: 10%~90%, non-condensing Permissible storage humidity: 5%~90%, non-condensing
guarantee - 36
guarantee_type - normal
I/O ports - 1 x 10/100 Mbit/s
I/O ports - 1 x 10/100 Mbit/s LAN / WAN (Combo)
I/O ports - 1 x SIM card slot
LTE network - 700 MHz
LTE network - 800 MHz
LTE network - 850 MHz
LTE network - 900 MHz
LTE network - 1800 MHz
LTE network - 2100 MHz
LTE network - 2300 MHz
LTE network - 2600 MHz
Management, monitoring, configuration -
Max download speed - 867 MB/s
Max upload speed - 300 MB/s
Memory standard - Not applicable
Model - MB130-4G
name - Mercusys MB130-4G 4G LTE Router AC1200
Number of antennas - 2
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Other features -
Power supply -
producer - TP-LINK
Security - WPA-PSK WPA2-PSK
SIM card - Nano
Software -
Special functions - Turning Wireless On/Off Wireless Schedule WMM Wireless Statistics
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
System Requirements -
Type - GSM 3G/4G
UMTS network - 850 MHz
UMTS network - 900 MHz
UMTS network - 2100 MHz
vendpn - MB130-4G
