Accessories included - EAP215-Bridge KIT Adapter Pasywnego PoE Przewód zasilający Instrukcja instalacji Zestaw montażowy
Antenna - Built-in
Antenna - Antenna design - Internal
Antenna - Antenna gain level (max) - 14 dBi
Antenna - Antenna type - 2x2
Antenna > Antenna type - Internal
Antenna design Antenna - Internal
Antenna gain - 11 dBi
Antenna gain level (max) Antenna - 14 dBi
Antenna type Antenna - 2x2
ARTIKEL1 - 5GHZ AC867 LONG-RANGE AP KIT
ARTIKEL2 - INDOOR/OUTDOOR
Brand - TP-Link
BrandPartCode - EAP215-BRIDGE KIT
Breite - 0
Cables included Packaging content - AC
Cabling technology Network - 10/100/1000Base-T(X)
Category - Bridges & Repeaters
Category 1 - Netzwerk
Category 2 - Accesspoints
Category Code - BRE
Certificates - CE, FCC, RoHS
Certificates - Certification - CE, FCC, RoHS
Certification Certificates - CE, FCC, RoHS
Code - EAP215-Bridge KIT
Color - White
Connectivity technology Ports & interfaces - Wired & Wireless
Data transmission - Maximum data transfer rate - 867 Mbit/s
Data transmission - Maximum transfer distance - 5000 m
DC-in jack Ports & interfaces - Yes
DC input voltage Power - 12 V
Depth Weight & dimensions - 79 mm
Description - EAP215-Bridge KIT
Bezprzewodowy, wewnętrzny/zewnętrzny Most Omada, 5 GHz 867 Mb/s Wi-Fi w standardzie 802.11ac i prędkości do 867 Mb/s w paśmie 5 GHz*1 Idealne rozwiązanie do bezprzewodowej trasmisji danych na dystansie do 5 km Automatyczne parowanie i diody LED ułatwiające wdrożenie 3 Gigabitowe porty Ethernet zapewniają szybkie połączenia dla kamer IP. Scentralizowane i zdalne zarządzanie dzięki integracji z Omada SDN Obudowa o klasie szczelności IP65 i ochrona odgromowa 6 kV umożliwiają pracę w każdych warunkach pogodowych Elastyczne wdrożenie za pomocą obsługi Pasywnego PoE (adapter znajduje się w zestawie)
Description - EAP215-Bridge KIT Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge - 802.11ac, up to 867 Mbps on 5 GHz - Up to 3.1 mi (5 km) Long-Range Transmission - Auto-Pairing and Multi-Bridge Auto-Pairing - App-Guided Alignment and Speed Testing - 3× Gigabit Ethernet Ports - 802.3af PoE & DC Power Supply & Passive PoE - IP65 Weatherproof and Operating Range of -40 °C to +70 °C. - Remote Monitoring & Management 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate Ideal for long-range wireless transmission up to 5 km Auto-pairing and agile LEDs for efficient deployment 3 × Gigabit Ethernet ports for more high-speed IP camera connections Supports Omada SDN for remote and centralized management IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability Supports Passive PoE for flexible deployment (adapter included)
Designation - CE+WEEE
dimension depth - 90 mm
dimension height - 235 mm
Dimensions - 224 × 79 × 60 mm
dimension weight - 1552 g
dimension width - 265 mm
ean - 1210002603744
EAN - 4895252502565
EAN - 8885020627077
EANCode - 1210002603744
Environment requirements - Dopuszczalna temperatura pracy: -40-70 stopni Celsjusza Dopuszczalna temperatura przechowywania: -40-70 stopni Celsjusza Dopuszczalna wilgotność powietrza: 10%-90%, bez kondensacji Dopuszczalna wilgotność przechowywania: 5%-90%, bez kondensacji

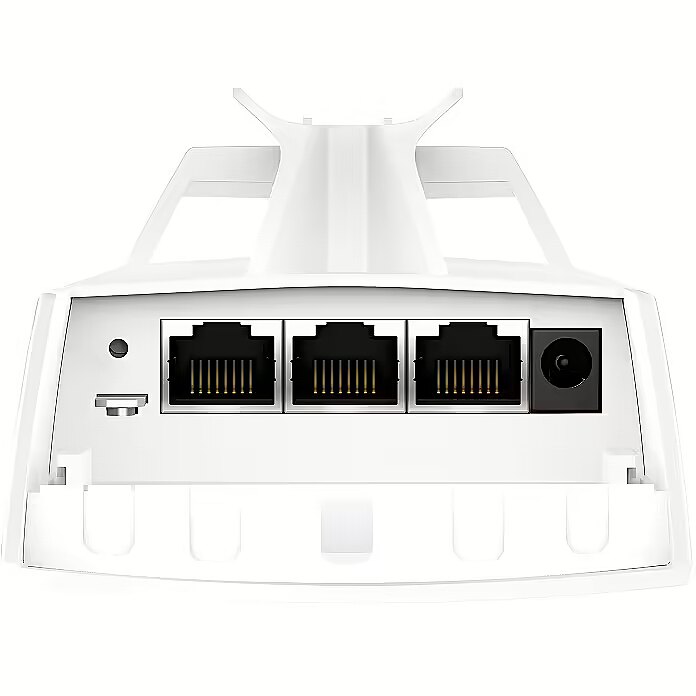

Ethernet LAN (RJ-45) ports Ports & interfaces - 3
Ethernet LAN data rates Network - 10/100/1000 Mbit/s
Ethernet LAN interface type Network - Gigabit Ethernet
Ethernet LAN Network - Yes
Features - International Protection (IP) code - IP65
Features - LED indicators - Power
Features - Mounting type - Pole
Features - Product colour - White
Features - Product type - Network bridge
Features - Quality of Service (QoS) support - Yes
Features - Reset button - Yes
Features > MU-MiMO - Yes
Frequency band Wireless LAN features - 5 GHz
Gross Weight Kg - 0,64
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0810142823388
GTIN - 810142823388
GTIN - 0840030709159
GTIN - 840030709159
GTIN - 0840460601542
GTIN - 840460601542
GTIN - 1210002603744
GTIN - 1210002603751
GTIN - 4895252502565
GTIN - 4895252502572
GTIN - 8885020627077
GTIN - 8885020627084
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 60 mm
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - EAP215-BRIDGE KIT
I/O ports - 3 x 10/100/1000 Mbit/s
International Protection (IP) code Features - IP65
Laenge - 0
LED indicators Features - Power
LongDesc - EAP215-Bridge KITOmada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge- 802.11ac, up to 867 Mbps on 5 GHz- Up to 3.1 mi (5 km) Long-Range Transmission- Auto-Pairing and Multi-Bridge Auto-Pairing- App-Guided Alignment and Speed Testing- 3× Gigabit Ethernet Ports- 802.3af PoE & DC Power Supply & Passive PoE- IP65 Weatherproof and Operating Range of -40 °C to +70 °C.- Remote Monitoring & Management
LongProductName - 3x Gigabit Ethernet Ports, IEEE 802.11 a/n/ac 5 GHz (867 Mbps), 5000m max, IP65
LongSummaryDescription - TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 5000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 14 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless
MAC address filtering Security - Yes
Management, monitoring, configuration - Funkcje transmisji bezprzewodowej Mesh MU-MIMO: 5G 2x2 MU-MIMO DL Równoważenie obciążenia pasma Beamforming Seamless Roaming(802.11r) Airtime Fairness Multi-SSID: 8 Statystyki sieci bezprzewodowej Harmonogram sieci bezprzewodowej Harmonogram restartów RADIUS Accounting Uwierzytelnianie MAC Statyczny/Dynamiczny adres IP
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP215-BRIDGE KIT
Manufacturer Name - TP-LINK
Maximum data transfer rate Data transmission - 867 Mbit/s
Maximum transfer distance Data transmission - 5000 m
Mounting type Features - Pole
MPN - EAP215-BRIDGE KIT
name - EAP215-Bridge KIT 5GHz AC867 Long-range Indoor/Outdoor signal amplifier
Name - TP-LINK Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point | EAP215-Bridge KIT | 802.11ac | 1000 Mbit/s | MU-MiMO Yes | PoE in | Antenna type Internal
Name - TP-Link Omada WL-AP Access Point EAP215-Bridge KIT
Network - Cabling technology - 10/100/1000Base-T(X)
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Ethernet LAN interface type - Gigabit Ethernet
Network - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Network architecture - GigabitEthernet
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11 a/b/g/n/ac
Networking standards Network - IEEE 802.11a/IEEE 802.11ac/IEEE 802.11ax/IEEE 802.11b/IEEE 802.11be/IEEE 802.11g/IEEE 802.11n
Number of antennas - 2
Operating frequency - 5 GHz
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - -40 - 70 °C
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - -40 - 70 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 266.00 mm
Package features > Gross height (mm) - 96.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Palette Qty - 289 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - PoE+ Injector(s) - Yes
Performance > Ethernet LAN data rates - 1000 Mbit/s
PoE+ Injector(s) Packaging content - Yes
Ports & interfaces - Connectivity technology - Wired & Wireless
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 3
Ports & interfaces > POE - PoE in
Power - DC input voltage - 12 V
Power - Power over Ethernet (PoE) - Yes
Power - Power over Ethernet (PoE) voltage - 24 V
Power - Power source type - DC, PoE
Power over Ethernet (PoE) Power - Yes
Power over Ethernet (PoE) voltage Power - 24 V
Power source type Power - DC, PoE
Power supply - 12V DC / 24V Pasywne PoE (adapter Pasywnego PoE w zestawie)
producer - TP-LINK
Product colour Features - White
ProductName - Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
Product type Features - Network bridge
Quality of Service (QoS) support Features - Yes
Reset button Features - Yes
Security - Bezpieczeństwo transmisji bezprzewodowej VLAN Kontrola dostępu Wykrywanie nieautoryzowanych AP Uwierzytelnianie przy pomocy strony powitalnej Maksymalna liczba Filtracji MAC: 4,000 Szyfrowanie WPA-Personal/Enterprise, WPA2-Personal/Enterprise
Security - MAC address filtering - Yes
Security - Security algorithms - SNMP, SNMPv2, SNMPv3, SSH
Security algorithms Security - SNMP/SNMPv2/SNMPv3/SSH
Short description - TP-LINK WLAN AC867 Access Point Dualband EAP215-Bridge KIT Long-range Indoor/Outdoor
ShortSummaryDescription - TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge, Network bridge, 867 Mbit/s, Wi-Fi, Ethernet LAN, White
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 5
Stck_Pal - 0
Storage relative humidity (H-H) Operational conditions - 5 - 90%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Storno - Y
Summary - TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge. Maximum data transfer rate: 867 Mbit/s, Maximum transfer distance: 5000 m. Antenna design: Internal, Antenna type: 2x2, Antenna gain level (max): 14 dBi. Wi-Fi band: Single-band (5 GHz), Top Wi-Fi standard: Wi-Fi 5 (802.11ac), WLAN data transfer rate (max): 867 Mbit/s. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n. Connectivity technology: Wired & Wireless
System Requirements -
Technical details > Gross weight - 1.51 kg
Technical details > Net weight - 1.31 kg
Technical details > Producer - TP-LINK
Technical details > Producer product family - Omada Wireless Bridge 5 GHz 867 Mbps Long-Range Indoor/Outdoor Access Point
Technical details > Producer product name - EAP215-Bridge KIT
Title - TP-Link Omada 5GHz 867Mbps Long-Range Indoor/Outdoor Wireless Bridge
Top Wi-Fi standard Wireless LAN features - Wi-Fi 5 (802.11ac)
Unit Box Height - 0.095
Unit Box Length - 0.265
Unit Box Width - 0.235
Unit Calculated Volume - 0.005916 cubm
Unit Calculated Weight - 1.53 kg
Units per Shipping Box - 1
URL - https://www.omadanetworks.com/uk/business-networking/omada-wifi-wireless-bridge/eap215-bridge-kit/v3.20/#specifications
Vendor Homepage - https://www.omadanetworks.com/uk/business-networking/omada-wifi-wireless-bridge/eap215-bridge-kit/v3.20/#specifications
vendpn - EAP215-Bridge KIT
Warranty - 60
Warranty - 60 month(s)
Warranty - 60 months
WarrantyInfo -
Web-based management Management features - Yes
Weight - 1.52
Weight - 330.9 g
Weight & dimensions - Depth - 79 mm
Weight & dimensions - Height - 60 mm
Weight & dimensions - Width - 224 mm
Wi-Fi band Wireless LAN features - Single-band (5 GHz)
Wi-Fi Wireless LAN features - Yes
Width Weight & dimensions - 224 mm
Wireless LAN features - Frequency band - 5 GHz
Wireless LAN features - Top Wi-Fi standard - Wi-Fi 5 (802.11ac)
Wireless LAN features - Wi-Fi - Yes
Wireless LAN features - Wi-Fi band - Single-band (5 GHz)
Wireless LAN features - WLAN data transfer rate (max) - 867 Mbit/s
Wireless LAN features > Wi-Fi band - 802.11ac
WLAN data transfer rate (max) Wireless LAN features - 867 Mbit/s
