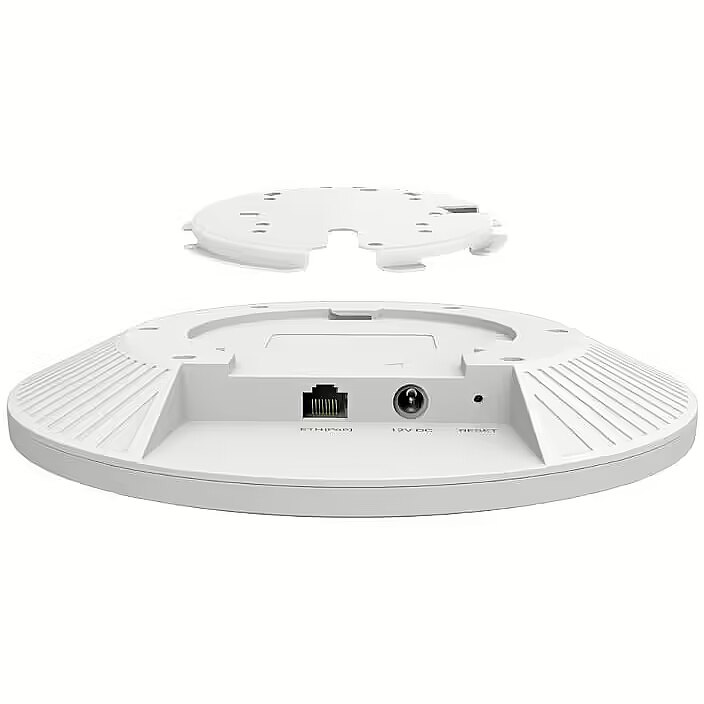

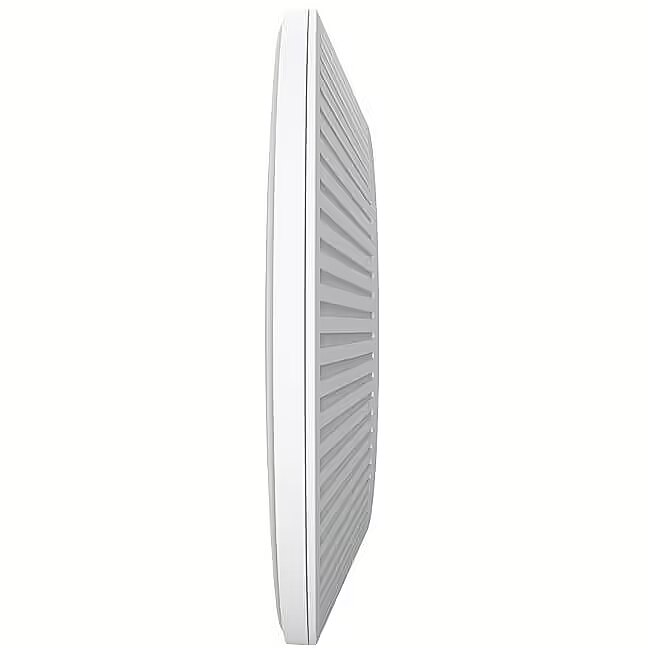

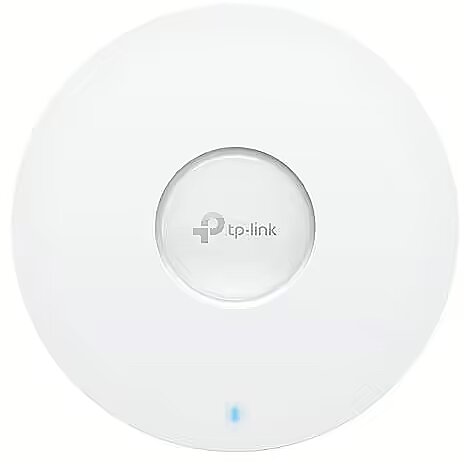

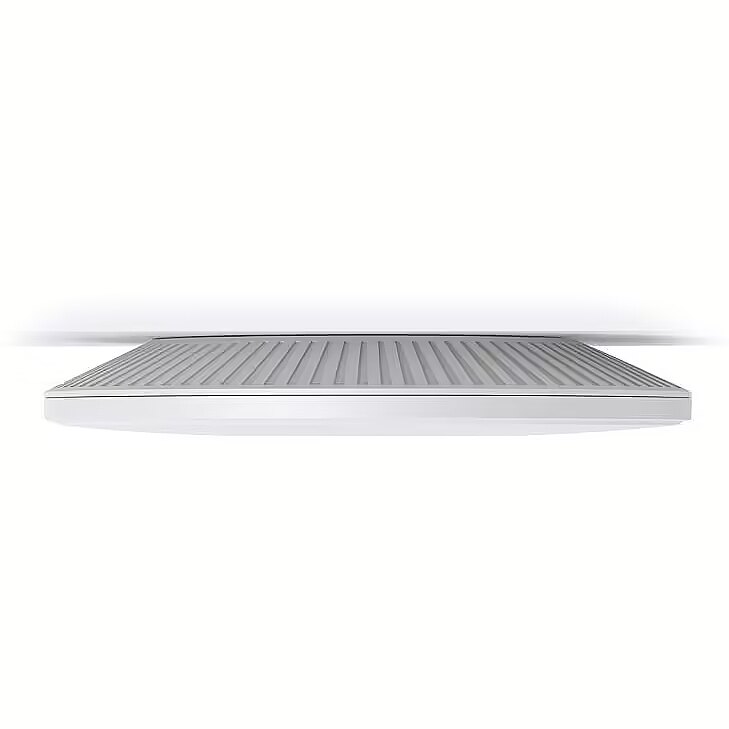

TP-LINK AX5400 Ceiling Mount WiFi 6 Access Point

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1051668 Product code: EAP673
Can be ordered 52 units Availability: 14 days after order approval
Warranty: 3 years
134.18 €
Ready for dispatch
25.07.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Speed index: 5400
  • Type of device: Access Point
  • Wi-Fi standard: Wi-Fi 6 (802.11ax)
Basic information
Speed index : 5400
Type of device Access Point

Access Point - bezvadu piekļuves punkts, kas nodrošina kabeļu tīkla paplašināšanas pārraidi bezvadu tīklā izmantojot vienu LAN pieslēgvietu. Access point nav rūteris, un nespēj sadalīt vienu interneta pieslēguma adresi vairākiem datoriem, tamdēļ šo iekārtu slēdziet tikai aiz esoša kabeļu rūtera.

Router, jeb maršrutētājs - bezvadu piekļuves punkts, kas nodrošina viena interneta pieslēguma sadalīšanu vairākiem datoriem, gan caur tīkla vadiem, gan bezvadu tīklā. Parasti bezvadu maršrutētājam ir viena kabeļu interneta pieslēgvieta, četras datoru pieslēgvietas (kuras var papildināt, izmantojot switch komutatoru) un antenas, kas nodrošina apraidi datoriem un citām WiFi iekārtām.

Range Extender - bezvadu tīkla apraides attāluma pastiprinātājs. Paredzēts esoša signāla pastiprināšanai, lai palielinātu uzveršanas un pārraides attālumu.

Wifi adapter - Bezvadu tīkla karte, paredzēta datora pieslēgšanai pie bezvadu WiFi rūtera vai piekļuves punkta. PCI, PCI-E ir paredzēti galddatoriem, savukārt PCMCIA un USB - portatīvajiem datoriem. Jāpiebilst, ka lielākā daļa portatīvo datoru jau rūpnīcā tiek komplektēti ar bezvadu tīkla kartēm.

USB tīkla karte ir pēdējā izvēle, jo USB2.0 caurlaidības ātrums ir samērā zems ~22MB/s, kas nozīmē to, ka netiks izmantots bezvadu tīkla maksimālais iespējamais ātrums. Ja ir iespēja, labāk izvēlēties kādu citu pieslēguma veidu.

Wi-Fi standard : Wi-Fi 6 (802.11ax)
Functionality
3G/4G support Nav

A possibility to put the SIM card of mobile operators or the USB Dongle adapter in the router providing access to the 3G mobile Internet.

Prior to buying a router with the 3G support you should verify whether the device supports the 3G USB Dongle receiver of the particular mobile communications operator at the manufacturer's website.

Band mode Dual-Band

SingleBand is a standard wireless technology characteristic of all the modern wireless devices.

DualBand is 2.4GHz with an additional 5.0GHz channel providing better receiving of the signal and more stable high-speed operation. For using this function both devices, i.e. the router and the wireless network card, have to support the DualBand mode.

Ethernet 100/1000

LAN or ethernet cables connection slots operational mode.

10/100 MB.s is the standard speed characteristic of almost all the routers.

10/100/1000 MB.s, or GigaBit is tens of times faster standard which, in combination of GigaBit LAN network cards, provides great data transmission speed advantages between computers connected within the internal network. This solution is usually required in offices where large data volumes are copied between computers or fast Internet connection is used (no ~30 MB/s) simultaneously in several computers.



Ports and equipment
LAN ports : 1
Wireless
More detailed specification
Accessories included - EAP673 Ceiling/wall mounting kits Installation Guide
Antenna - Built-in
Antenna - Antenna type - Internal
Antenna > Antenna type - Internal Omni
Antenna gain - 5 dBi
ARTIKEL1 - AX5400 WI-FI 6 ACCESS POINT
ARTIKEL2 - CEILING MOUNT W/O POWER ADAPTER
Brand - TP-Link
BrandPartCode - EAP673
Breite - 0
Category - Wireless Access Points
Category 1 - Netzwerk
Category 2 - Accesspoints
Certificates - CE, FCC, RoHS
Code - EAP673
Color - White
Description - AX5400 ceiling-mount Wi-Fi 6 access point Incredibly fast Wi-Fi with 6 speeds (574 Mbps in the 2.4 GHz band + 4804 Mbps in the 5 GHz band). Integrated with Omada SDN, supporting centralized cloud management, ZTP and more. The 160 MHz channel doubles the amount of data during peak hours in one stream. Advanced Features: Supports Seamless Roaming, Omada Mesh and more. Supports 802.3at PoE+ and DC power supplies (adapter not included) for flexible installations.
Design - LED indicators - Yes
Design - Placement - Ceiling, Wall
Design - Product colour - White
Design - Reset button - Yes
Designation - CE+WEEE
dimensionalWeight - 1481
dimension depth - 90 mm
dimension height - 260 mm
Dimensions - 220 × 220 × 32.5 mm
dimension weight - 1350 g
dimension width - 285 mm
EAN - 4895252506488
ean - 4895252506488
EANCode - 4895252506488
Environment requirements -
Features - 2.4 GHz - Yes
Features - 5 GHz - Yes
Features - 6 GHz - No
Features - Airtime Fairness (ATF) - Yes
Features - Automatic channel scanning - Yes
Features - Automatic channel selection - Yes
Features - Band steering - Yes
Features - BeamForming - Yes
Features - Ethernet LAN data rates - 10
Features - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Features - Ethernet LAN data rates - 100
Features - Ethernet LAN data rates - 1000 Mbit/s
Features - Ethernet LAN data rates - 2500 Mbit/s
Features - Flow control support - Yes
Features - Frequency band - 2.4 - 5 GHz
Features - Maximum data transfer rate - 5400 Mbit/s
Features - Maximum data transfer rate (2.4 GHz) - 574 Mbit/s
Features - Maximum data transfer rate (5 GHz) - 4804 Mbit/s
Features - MIMO - Yes
Features - MIMO type - Multi User MIMO
Features - Networking standards - IEEE 802.11a
Features - Networking standards - IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Features - Networking standards - IEEE 802.11ac
Features - Networking standards - IEEE 802.11ax
Features - Networking standards - IEEE 802.11b
Features - Networking standards - IEEE 802.11g
Features - Networking standards - IEEE 802.11n
Features - Number of users - 250 user(s)
Features - Quality of Service (QoS) support - Yes
Features - Rate limiting - Yes
Features - Virtual LAN features - VLAN mapping
Features - VLAN support - Yes
Features > MU-MiMO - Yes
Gewicht - 1.35
Gross Weight Kg - 1,5
GRUPPE1 - Network
GRUPPE2 - Wireless Lan Ap
GTIN - 0840030711909
GTIN - 840030711909
GTIN - 4895252506488
GTIN - 4895252506495
guarantee - 60
guarantee_type - normal
HERSTELLER - TP-LINK
Hoehe - 0
HSTNUMMER - EAP673
I/O ports - 1 x 10/100/1000/2500 RJ-45 port
Laenge - 0
Link - https://www.tp-link.com/my/business-networking/omada-wifi-ceiling-mount/eap673/
LongDesc - High-End Business WiFi 6 to Power Up Your BusinessAX5400 Ceiling Mount Wi-Fi 6 Access PointAX5400 WiFi 6 Speed4804 Mbps on 5 GHz; 574 Mbps on 2.4 GHz High-Efficiency WiFi 6More connected devices can enjoy faster speeds Centralized Cloud ManagementManage the whole network locally or from the cloud 2.5GE Wired PerformanceBoosts overall throughput with a 2.5 Gbps Ethernet port 160 MHz ChannelDouble the data at peak transmission times on a single stream with HE160 Auto Channel Selection and Power AdjustmentOptimize overall performance by reducing WiFi interference Omada Mesh TechnologyMore flexible and convenient wireless deployment§ Seamless RoamingUninterrupted streaming when moving between APs§ PoE+ PoweredSupports both DC (adapter not included) and 802.3at PoE+ for flexible installationsDesigned for Business EnvironmentsRequiring High-Performance WiFiHospitalityHigh-quality and full coverage Guest WiFi EducationHigh-security WiFi to connect more devices Shopping MallSeamless marketing WiFi coverage to boost business OfficeStable, seamless, and high-security WiFi coverage Meeting RoomFaster streaming, downloading, video conferencing, and moreHigh-End Business Wi-Fi 6 Bring Real Power to Your BusinessWiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.Blazing-Fast AX5400 Wi-Fi 6 SpeedsHigh-end business WiFi 6 with speeds up to 5378 Mbps brings 2.6-time speeds than WiFi 5.Seamless Integration into Omada SDNThe Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.Easy Deployment & Higher Performance by Omada MeshEasy Pairing, Less WiringWith Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.Optimized Network PerformanceIntelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.Always Stay Smooth with Fast RoamingEnsures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.Boosted Network Security and EfficiencySecure Guest Network with Up to 16 SSIDsGuest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.Boost Business with SMS LoginCaptive portal (including SMS and Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.WPA3 for Worry-Free Open Public NetworksWith advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.Band SteeringAutomatically moves dual band devices onto the wider 5GHz band for faster connections.Load BalanceEnsures large numbers of users have smooth network experiences in high-density business networksAirtime FairnessIncreases average network throughput in heavily congested environments
LongProductName - 2.4 GHz (574 Mbps), 5 GHz (4804 Mbps), 802.11ax/ac/n/g/b/a, 1× 2.5 Gigabit Ethernet, 220 x 220 x 32.5 mm
LongSummaryDescription - TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point. 2.4 GHz, 5 GHz, Maximum data transfer rate: 5400 Mbit/s. Security algorithms: SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Power over Ethernet (PoE). Product colour: White
Management, monitoring, configuration -
Management features - Firmware upgradeable - Yes
Management features - Syslog - Yes
Management features - Web-based management - Yes
Manufacturer - TP-Link
Manufacturer Code - EAP673
Manufacturer Name - TP-LINK
MPN - EAP673
name - EAP673 Access Point AX5400
Name - TP-Link Omada EAP673 WIFI6 AX5400
Name - TP-LINK | AX5400 Ceiling Mount WiFi 6 Access Point | EAP673 | 802.11ax | 10/100/1000 Mbit/s | Ethernet LAN (RJ-45) ports 1 | MU-MiMO Yes | PoE in | Antenna type Internal Omni
Network architecture - GigabitEthernet
Networking > Wi-Fi - Yes
Networking > Wi-Fi standards - 802.11ax/ac/n/g/b/a
Number of antennas - 6
Operating frequency - 2,4 GHz
Operating frequency - 5 GHz
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 280.00 mm
Package features > Gross height (mm) - 91.00 mm
Package features > Gross width (mm) - 259.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 262 pc(s)
Package features > Paper/Pasteboard - 90.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Mounting kit - Yes
Packaging content - Quantity per pack - 1 pc(s)
Packaging content - Quick start guide - Yes
Performance > Ethernet LAN data rates - 10/100/1000 Mbit/s
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > Ethernet LAN (RJ-45) ports - 1
Ports & interfaces > POE - PoE in
Power - DC voltage range - 12 V
Power - Power over Ethernet (PoE) - Yes
Power supply - 802.3at PoE 12 V / 2 A DC (power supply not included)
producer - TP-LINK
producerCode - EAP673
Producer product family - AX5400 Ceiling Mount WiFi 6 Access Point
Producer product name - EAP673
ProductName - AX5400 Ceiling Mount WiFi 6 Access Point
productName - TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point
productSize - Normal
Security - Captive portal authentication Access control Wireless Mac address filtering Wireless isolation between clients SSID to VLAN mapping Detecting fake access points 802.1X support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Security - Security algorithms - SNMP
Security - Security algorithms - SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise
Security - Security algorithms - SNMPv2
Security - Security algorithms - SNMPv3
Security - Security algorithms - WPA-Enterprise
Security - Security algorithms - WPA-Personal
Security - Security algorithms - WPA2-Enterprise
Security - Security algorithms - WPA2-Personal
Security - Security algorithms - WPA3-Enterprise
Short description - TP-LINK Access Point EAP673 WLAN AX5400 4800 Mbit Dualband Wi-Fi 6 1x 2,5 GB Port, w/o PoE adapter, Omada
ShortSummaryDescription - TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point, 2.4 GHz, 5 GHz, 5400 Mbit/s, SNMP, SNMPv2, SNMPv3, WPA-Enterprise, WPA-Personal, WPA2-Enterprise, WPA2-Personal, WPA3-Enterprise, 10,100,1000,2500 Mbit/s
sizeX - 290
sizeY - 266
sizeZ - 96
Software -
Special functions -
Standards - 802.11a
Standards - 802.11ac
Standards - 802.11ax
Standards - 802.11b
Standards - 802.11g
Standards - 802.11n
Stck_Kart - 6
Stck_Pal - 0
Storno - Y
System Requirements -
Technical details > Gross weight - 1.39 kg
Technical details > Net weight - 1.29 kg
Technical details > Producer - TP-LINK
Title - TP-Link Omada AX5400 Ceiling Mount WiFi 6 Access Point
URL - https://www.tp-link.com/uk/business-networking/omada-wifi-ceiling-mount/eap673/
vendpn - EAP673
Warranty - 60
Warranty - 60 month(s)
WarrantyInfo -
warrantyLength - 60
warrantyType - G
Weight - 1.366
weight - 1345
Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 32.5 mm
Weight & dimensions - Width - 220 mm
Wireless LAN features > Wi-Fi band - 802.11ax
