ID: 1179490
Product code: B860M DS3H WIFI6E
In stock 16 units
Warranty: 3 years

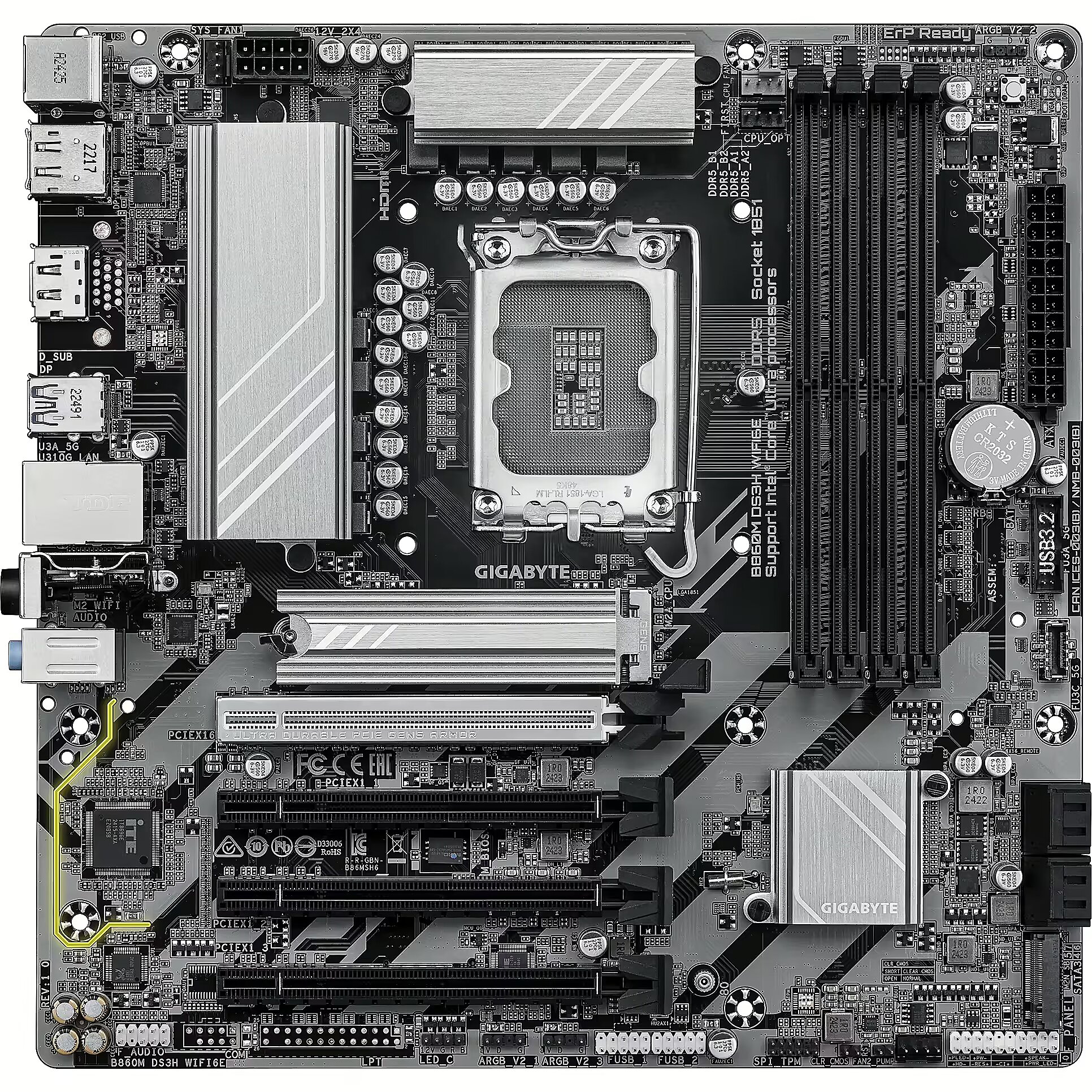

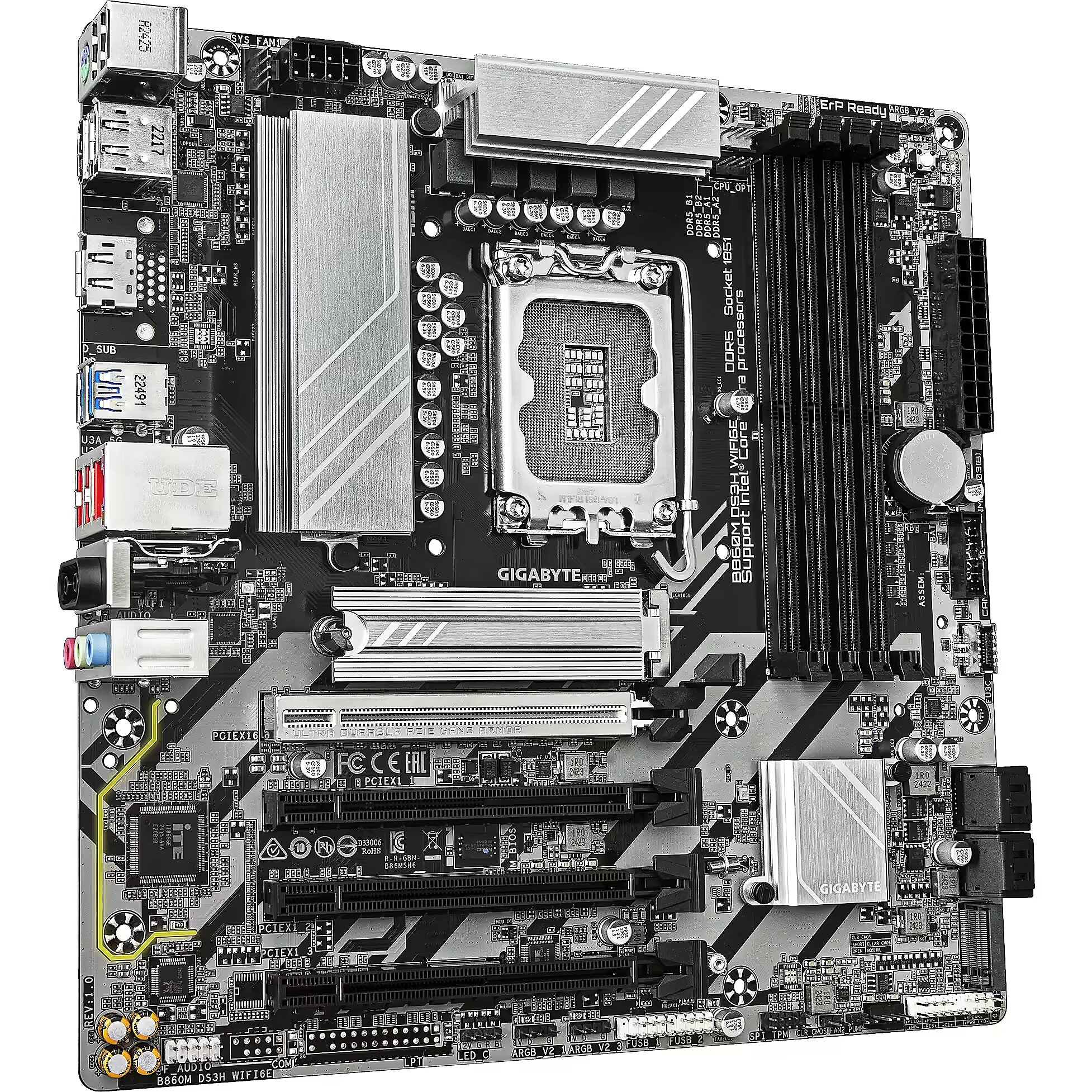

Gigabyte B860M DS3H WIFI6E
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Omniva parcel machineWithin 1-2 working days1.99 € -
SmartPosti parcel terminalWithin 1-2 working days1.99 € -
Delivery by courier to the addressWithin 1-2 working days5.99 €
Main product parameters All parameters
- Series: Gigabyte Ultra Durable
- CPU Socket: LGA 1851
- Chipset: Intel B860
- Form factor: Micro ATX
- Type: DDR5
- RAM Slots: 4
- Built-in Wi-Fi: Ir
Basic information
Series
: Gigabyte Ultra Durable
CPU Socket
LGA 1851
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Chipset
Intel B860
The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.
Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.
For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Form factor
Micro ATX
The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.
The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.
The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.
Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.
Random-access memory (RAM)
Type
: DDR5
RAM Slots
4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support
DDR5 6400 (OC 9066)
The RAM bus determines what type of RAM is supported by the relevant motherboard.
The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.
Graphics card
Video card port
PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics
Only with iGPU-ready CPU
The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.
An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required
Ports and equipment
PCI ports
0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
D-Sub
: 0
DVI
: 0
HDMI
: 1
DisplayPort
: 2
Integrated sound card
: Realtek Audio CODEC
Wireless connections
Built-in Bluetooth
: Ir
Built-in Wi-Fi
: Ir
External ports
External USB Type-C
: 0
External USB 2.0
: 2
External USB 3.0 (USB 3.2 Gen1)
: 2
External USB 3.1 (USB 3.2 Gen2)
: 2
Internal ports
Internal A-RGB 5V (3-pin)
: 3
Internal RGB 12V (4-pin)
: 1
Internal USB 2.0
: 2
Internal USB 3.0
: 1
Internal USB Type-C
: 1
M.2 Port
: 2
SATA3 ports
: 4
More detailed specification
Accessories included -
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B860M DS3H WIFI6E
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Płyty główne - Intel 1851
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860 Express Chipset
CnCode - 84733020
code - B860M DS3H WIFI6E
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Description - B860M DS3H WIFI6E Supports Intel® Core™ Ultra processors (Series 2) Hybrid 5+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe x16 Slot with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4 M.2 Thermal Guard : To Ensure M.2 SSD Performance Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity : 2*DisplayPort, HDMI
Description - Płyta główna B860M DS3H WIFI6E Supports Intel Core Ultra processors (Series 2) Hybrid 5+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI PerfDrive: Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch: PCIe x16 Slot with Quick Release Design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4 M.2 Thermal Guard: To Ensure M.2 SSD Performance Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: 2*DisplayPort, HDMI
description_en - Series : Gigabyte Ultra Durable
CPU Socket LGA 1851
Chipset Intel B860
Form factor Micro ATX
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
Memory support DDR5 6400 (OC 9066)
Graphics card
Video card port PCI-EXPRESS
Integrated graphics Only with iGPU-ready CPU
Ports and equipment
PCI ports 0
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 2
Integrated sound card : Realtek Audio CODEC
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 0
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Port : 2
SATA3 ports : 4
description_lv - Sērija: Gigabyte Ultra Durable
CPU ligzda LGA 1851
Chipset Intel B860
Formas faktors Micro ATX
Brīvpiekļuves atmiņa (RAM)
Tips: DDR5
RAM sloti 4
Atmiņas atbalsts DDR5 6400 (OC 9066)
Grafikas karte
Videokartes ports PCI-EXPRESS
Integrēta grafika Tikai ar iGPU gatavu centrālo procesoru
Ostas un aprīkojums
PCI porti 0
D-Sub: 0
DVI: 0
HDMI: 1
DisplayPort: 2
Integrētā skaņas karte: Realtek Audio CODEC
Bezvadu savienojumi
Iebūvēts Bluetooth: Ir
Iebūvēts Wi-Fi: Ir
Ārējie porti
Ārējais USB Type-C: 0
Ārējais USB 2.0: 2
Ārējais USB 3.0 (USB 3.2 Gen1): 2
Ārējais USB 3.1 (USB 3.2 Gen2): 2
Iekšējās pieslēgvietas
Iekšējais A-RGB 5V (3 kontaktu): 3
Iekšējais RGB 12V (4 kontaktu): 1
Iekšējais USB 2.0: 2
Iekšējais USB 3.0: 1
Iekšējais C tipa USB: 1
M.2 Ports: 2
SATA3 porti: 4
description_ru - Серия: Gigabyte Ultra Durable
Разъем ЦП LGA 1851
Чипсет Intel B860
Форм-фактор Micro ATX
Оперативная память (ОЗУ)
Тип: DDR5
Слоты ОЗУ 4
Поддержка памяти DDR5 6400 (OC 9066)
Видеокарта
Порт видеокарты PCI-EXPRESS
Встроенная графика Только с процессором iGPU-ready
Порты и оборудование
Порты PCI 0
D-Sub: 0
DVI: 0
HDMI: 1
DisplayPort: 2
Встроенная звуковая карта: Realtek Audio CODEC
Беспроводные соединения
Встроенный Bluetooth: ИК
Встроенный Wi-Fi: ИК
Внешние порты
Внешний USB Type-C: 0
Внешний USB 2.0: 2
Внешний USB 3.0 (USB 3.2 Gen1) : 2
Внешний USB 3.1 (USB 3.2 Gen2) : 2
Внутренние порты
Внутренний A-RGB 5 В (3-контактный) : 3
Внутренний RGB 12 В (4-контактный) : 1
Внутренний USB 2.0 : 2
Внутренний USB 3.0 : 1
Внутренний USB Type-C : 1
Порт M.2 : 2
Порты SATA3 : 4
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Złącza rozszerzeń CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3) Złącza SATA CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 17.4 cm
dimension weight - 1105 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 2
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
ean - 4719331866815
EAN - 4719331866815
Eans - 4719331866815
EAN_code - 4719331866815
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 3 x PCIe 4.0 x 1
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 5
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1

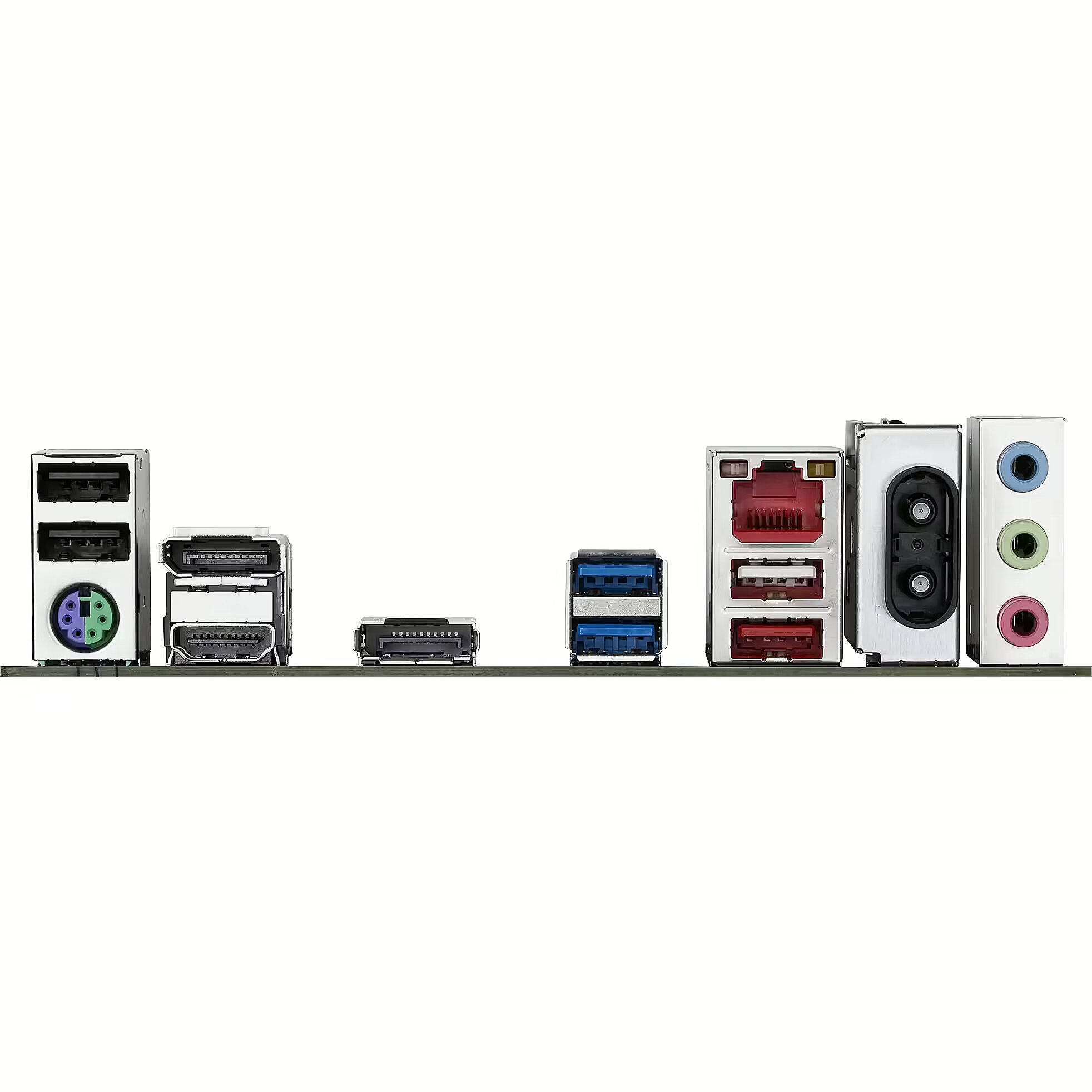

External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 2 x DisplayPort
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 3 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Dark brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3. 2 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz * Obsługa wersji DisplayPort 2.1. (Specyfikacja grafiki może się różnić w zależności od obsługi procesora.) Obsługa do trzech wyświetlaczy jednocześnie
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,17
gross_weight - 2 kg
GTIN - 4719331866815
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5GbE LAN)
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer Code - B860M DS3H WIFI6E
Manufacturer Name - Gigabyte
Manufacturer_code - B860M DS3H WIFI6E
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory clock speeds - 5600,6400,9066 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 9066 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860M DS3H WIFI6E
Model - Intel B860 Express
Name - Gigabyte B860M DS3H WIFI6E
Name - GIGABYTE B860M DS3H WIFI6E - Socket 1851 - motherboard (white)
name - GIGABYTE B860M DS3H WiFi6E Mainboard, Sockel 1851, Intel B860, mATX, DDR5
name - Motherboard B860M DS3H WIFI6E
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Moduł komunikacji bezprzewodowej Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.1 kg
Other information -
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.25 kg
Packaging data - Package width - 270 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
PCI-Express 4.0 16x Expansion slots - 4
PCI-Express 5.0 16x Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte
ProducerCode - B860M DS3H WIFI6E
ProductName - B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
Product Net Weight - 1 kg
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Short description - GIGA B860M DS3H WIFI6E S1851/DDR5/µATX
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Socket - LGA1851
Software - Norton Internet Security (wersja OEM) LAN bandwidth management software
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
title_en - Gigabyte Intel B860 Express Motherboard
title_lv - Gigabyte Intel B860 Express Mātesplate
title_ru - Gigabyte Intel B860 Express Материнская Плата
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.275
Unit Box Width - 0.07
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.0 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B860M-DS3H-WIFI6E#kf
vendpn - B860M DS3H WIFI6E
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 1,10
weight - 1.119 kg
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 3 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 4 x PCI-Express x16
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
Battery - Battery technology - Lithium-Manganese Dioxide (LiMnO2)
Battery - Battery type - CR2032
Battery - Battery weight - 3 g
Battery - Lithium weight per battery - 0.07 g
Battery - Number of battery cells - 1
BIOS - 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
BIOS - ACPI version - 5.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS jumper - Yes
BIOS - Desktop Management Interface (DMI) version - 2.7
BIOS - System Management BIOS (SMBIOS) version - 2.7
Bluetooth Interface - Yes
Brand - GIGABYTE
BrandPartCode - B860M DS3H WIFI6E
Category - Motherboards
category - PC Components|Mainboards|Intel Mainboards
Category - Root/Electronics/PC parts/Motherboards
Category Code - MBI
Category_1 - Motherboards
Category_2 - Płyty główne - Intel 1851
category_en - Computers & Components > Computer components > Motherboards > Intel motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > Intel mātesplates
Chipset - Intel B860 Express
Chipset manufacturer - Intel
Chipset type - Intel B860 Express Chipset
CnCode - 84733020
code - B860M DS3H WIFI6E
COM connector / port - No
CPU socket - LGA1851
Dane techniczne: Chipset płyty głównej - Intel B860
Dane techniczne: Grupa produktowa - Płyty główne Gigabyte
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Gigabyte
Dane techniczne: Przeznaczenie - Intel
Dane techniczne: Standard płyty - micro-ATX
Description - B860M DS3H WIFI6E Supports Intel® Core™ Ultra processors (Series 2) Hybrid 5+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI Perfdrive : Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation EZ-Latch : PCIe x16 Slot with Quick Release Design Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4 M.2 Thermal Guard : To Ensure M.2 SSD Performance Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity : 2*DisplayPort, HDMI
Description - Płyta główna B860M DS3H WIFI6E Supports Intel Core Ultra processors (Series 2) Hybrid 5+1+2 phases VRM solution D5 Bionic Corsa for Infinite Memory Performance AI PerfDrive: Provides optimal and customized BIOS preset profile for users WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation EZ-Latch: PCIe x16 Slot with Quick Release Design Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW New Power Monitor in HWinfo for real-time monitoring on CPU power phases Ultra-Fast Storage: 2*M.2 slots, including 1* PCIe 5.0 x4 M.2 Thermal Guard: To Ensure M.2 SSD Performance Fast Networking: 2.5GbE LAN & Wi-Fi 6E 802.11ax Extended Connectivity: 2*DisplayPort, HDMI
description_en - Series : Gigabyte Ultra Durable
CPU Socket LGA 1851
Chipset Intel B860
Form factor Micro ATX
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
Memory support DDR5 6400 (OC 9066)
Graphics card
Video card port PCI-EXPRESS
Integrated graphics Only with iGPU-ready CPU
Ports and equipment
PCI ports 0
D-Sub : 0
DVI : 0
HDMI : 1
DisplayPort : 2
Integrated sound card : Realtek Audio CODEC
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB Type-C : 0
External USB 2.0 : 2
External USB 3.0 (USB 3.2 Gen1) : 2
External USB 3.1 (USB 3.2 Gen2) : 2
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 1
Internal USB 2.0 : 2
Internal USB 3.0 : 1
Internal USB Type-C : 1
M.2 Port : 2
SATA3 ports : 4
description_lv - Sērija: Gigabyte Ultra Durable
CPU ligzda LGA 1851
Chipset Intel B860
Formas faktors Micro ATX
Brīvpiekļuves atmiņa (RAM)
Tips: DDR5
RAM sloti 4
Atmiņas atbalsts DDR5 6400 (OC 9066)
Grafikas karte
Videokartes ports PCI-EXPRESS
Integrēta grafika Tikai ar iGPU gatavu centrālo procesoru
Ostas un aprīkojums
PCI porti 0
D-Sub: 0
DVI: 0
HDMI: 1
DisplayPort: 2
Integrētā skaņas karte: Realtek Audio CODEC
Bezvadu savienojumi
Iebūvēts Bluetooth: Ir
Iebūvēts Wi-Fi: Ir
Ārējie porti
Ārējais USB Type-C: 0
Ārējais USB 2.0: 2
Ārējais USB 3.0 (USB 3.2 Gen1): 2
Ārējais USB 3.1 (USB 3.2 Gen2): 2
Iekšējās pieslēgvietas
Iekšējais A-RGB 5V (3 kontaktu): 3
Iekšējais RGB 12V (4 kontaktu): 1
Iekšējais USB 2.0: 2
Iekšējais USB 3.0: 1
Iekšējais C tipa USB: 1
M.2 Ports: 2
SATA3 porti: 4
description_ru - Серия: Gigabyte Ultra Durable
Разъем ЦП LGA 1851
Чипсет Intel B860
Форм-фактор Micro ATX
Оперативная память (ОЗУ)
Тип: DDR5
Слоты ОЗУ 4
Поддержка памяти DDR5 6400 (OC 9066)
Видеокарта
Порт видеокарты PCI-EXPRESS
Встроенная графика Только с процессором iGPU-ready
Порты и оборудование
Порты PCI 0
D-Sub: 0
DVI: 0
HDMI: 1
DisplayPort: 2
Встроенная звуковая карта: Realtek Audio CODEC
Беспроводные соединения
Встроенный Bluetooth: ИК
Встроенный Wi-Fi: ИК
Внешние порты
Внешний USB Type-C: 0
Внешний USB 2.0: 2
Внешний USB 3.0 (USB 3.2 Gen1) : 2
Внешний USB 3.1 (USB 3.2 Gen2) : 2
Внутренние порты
Внутренний A-RGB 5 В (3-контактный) : 3
Внутренний RGB 12 В (4-контактный) : 1
Внутренний USB 2.0 : 2
Внутренний USB 3.0 : 1
Внутренний USB Type-C : 1
Порт M.2 : 2
Порты SATA3 : 4
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Złącza rozszerzeń CPU 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3) Złącza SATA CPU 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
dimension depth - 70 mm
dimension height - 270 mm
Dimensions - 24.4 cm x 17.4 cm
dimension weight - 1105 g
dimension width - 270 mm
DisplayPort Input/Output connectors - 2
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek 7.1)
ean - 4719331866815
EAN - 4719331866815
Eans - 4719331866815
EAN_code - 4719331866815
Expansion slots - 1 x PCIe 5.0 x 16
Expansion slots - 2 x M.2
Expansion slots - 3 x PCIe 4.0 x 1
Expansion slots - 1st M.2 highest PCI Express generation - 5.0
Expansion slots - 1st M.2 largest key size - 2280
Expansion slots - 2nd M.2 highest PCI Express generation - 4.0
Expansion slots - 2nd M.2 largest key size - 2280
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 5
Expansion slots - PCI Express x16 (Gen 5.x) slots - 1
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 1 x USB 3.2 Gen 2 Type-A
External connectors - 2 x DisplayPort
External connectors - 2 x USB 3.2 Gen 1 Type-A
External connectors - 3 x USB 2.0
Features - Audio chip - Realtek ALC897
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Cooling type - Passive
Features - Motherboard chipset - Intel B860
Features - Motherboard chipset family - Intel
Features - Motherboard form factor - micro ATX
Features - PC health monitoring - Fan, Temperature, Voltage, Water cooling
Features - Power source type - ATX
Features - Product colour - Dark brown
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
FireWire (IEEE 1394) - No
Form Factor - Micro-ATX
Form factor - micro ATX
Frequency speed - 5600/6400/6600/6800/7000/7200/7400/7600/7800/7900/7950/8000/8200/8266/8400/8600/8800/9066 MHz
Graphics - Zintegrowany procesor graficzny - obsługa Intel HD Graphics 1 x port HDMI, obsługujący maksymalną rozdzielczość 4096x2160@60 Hz * Obsługa wersji HDMI 2.1 i HDCP 2.3. 2 x DisplayPort, obsługujący maksymalną rozdzielczość 3840x2160@144 Hz * Obsługa wersji DisplayPort 2.1. (Specyfikacja grafiki może się różnić w zależności od obsługi procesora.) Obsługa do trzech wyświetlaczy jednocześnie
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 4096 x 2160 pixels
Graphics - Parallel processing technology support - Not supported
Gross Weight Kg - 2,17
gross_weight - 2 kg
GTIN - 4719331866815
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
Integrated audio - Yes
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Front panel connector - Yes
Internal I/O - Number of chassis fan connectors - 2
Internal I/O - Number of CPU fan connectors - 2
Internal I/O - Number of EPS power connectors (8-pin) - 1
Internal I/O - Number of RGB LED pin headers - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - Number of water pump connectors - 2
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Karta bezprzewodowa - Intel Wi-Fi 6E | Bluetooth 5.3
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 2.5GbE LAN)
Logistics data - Country of origin - China
Logistics data - Products per shipping (inner) case - 1 pc(s)
LongDesc - Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
LongProductName - B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
LongSummaryDescription - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
LPT connector / port - No
M.2 Expansion slots - 2
Manufacturer - GigaByte
Manufacturer Code - B860M DS3H WIFI6E
Manufacturer Name - Gigabyte
Manufacturer_code - B860M DS3H WIFI6E
Max. number of SATA devices - 4
Max memory size - 256 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 256 GB
Memory - Maximum internal memory per slot - 64 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speed (max) - 9066 MHz
Memory - Supported memory clock speeds - 5600,6400,9066 MHz
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 5600 MHz
Memory bus frequency - 6400 MHz
Memory bus frequency - 6600 MHz
Memory bus frequency - 6800 MHz
Memory bus frequency - 7000 MHz
Memory bus frequency - 7200 MHz
Memory bus frequency - 7400 MHz
Memory bus frequency - 7600 MHz
Memory bus frequency - 7800 MHz
Memory bus frequency - 7900 MHz
Memory bus frequency - 7950 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8266 MHz
Memory bus frequency - 8400 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 8800 MHz
Memory bus frequency - 9066 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Microphone Input/Output connectors - 1
Model - B860M DS3H WIFI6E
Model - Intel B860 Express
Name - Gigabyte B860M DS3H WIFI6E
Name - GIGABYTE B860M DS3H WIFI6E - Socket 1851 - motherboard (white)
name - GIGABYTE B860M DS3H WiFi6E Mainboard, Sockel 1851, Intel B860, mATX, DDR5
name - Motherboard B860M DS3H WIFI6E
Network - Bluetooth - Yes
Network - Bluetooth version - 5.3
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8125
Network - Top Wi-Fi standard - Wi-Fi 6E (802.11ax)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Network - WLAN controller model - Intel Wi-Fi 6E AX211
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - Bluetooth
Network interface - LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Moduł komunikacji bezprzewodowej Intel Wi-Fi 6E AX211 (For PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (For PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 5
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 1
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin Chassis fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Clear CMOS jumper
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Q-Flash Plus button
Onboard connectors - 1 x Reset jumper
Onboard connectors - 1 x RGB LED strip header
Onboard connectors - 1 x System panel header
Onboard connectors - 1 x TPM header
Onboard connectors - 1 x USB 3.2 Gen 1 Type-A
Onboard connectors - 1 x USB 3.2 Gen 1 Type-C
Onboard connectors - 2 x M.2
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x SATA III 6Gb/s
Other features - Weight - 1.1 kg
Other information -
Packaging content - Antenna included - Yes
Packaging content - Batteries included - Yes
Packaging content - Bundled software - Norton® Internet Security (OEM version)
LAN bandwidth management software
Packaging content - Screws included - Yes
Packaging data - Package depth - 268 mm
Packaging data - Package height - 68 mm
Packaging data - Package weight - 1.25 kg
Packaging data - Package width - 270 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci - DDR5-5800 (PC5-46400)
Pamięć: Typ obsługiwanej pamięci - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7400 (PC5-59200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7600 (PC5-60800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7800 (PC5-62400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7900 (PC5-63200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7950 (PC5-63600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8000 (PC5-64000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8200 (PC5-65600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8266 (PC5-66128)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8400 (PC5-67200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8600 (PC5-68800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-8800 (PC5-70400)
PCI-Express 4.0 16x Expansion slots - 4
PCI-Express 5.0 16x Expansion slots - 1
Procesor: Gniazdo procesora - Socket 1851
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 5 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 7 seria 2
Procesor: Obsługiwane typy procesorów - Intel Core Ultra 9 seria 2
Processor - Compatible processor series - Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Processor - Processor manufacturer - Intel
Processor - Processor socket - LGA 1851 (Socket V1)
Processor - Supported processor sockets - LGA 1851
Processor family - Intel Core Ultra
Producent: Nazwa producenta / importera - GigabyteGiga-Byte Technology BVSteenoven 245626 EindhovenEmail: EU.grp@gigabyte.com
producer - Gigabyte
Producer - Gigabyte
ProducerCode - B860M DS3H WIFI6E
ProductName - B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
Product Net Weight - 1 kg
PS/2 Input/Output connectors - 1
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 2
Rear panel I/O ports - DisplayPort version - 2.1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Line-in - Yes
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Rear panel I/O ports - WiFi-AP antenna jack - 2
RJ45 Input/Output connectors - 1
SATA Interface - Yes
Short description - GIGA B860M DS3H WIFI6E S1851/DDR5/µATX
ShortDescription - Socket 1851| Chipset Intel B860| DDR5 |
ShortSummaryDescription - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2, Intel, LGA 1851 (Socket V1), Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2), LGA 1851, DDR5-SDRAM, 256 GB
Socket - LGA1851
Software - Norton Internet Security (wersja OEM) LAN bandwidth management software
Sound card - Realtek audio codec Obsługa High Definition Audio Ilość kanałów audio 2/4/5.1/7.1
Special functions -
Storage controllers - Number of HDDs supported - 4
Storage controllers - Number of storage drives supported - 6
Storage controllers - RAID levels - 0, 1, 5, 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Technical details - Warranty period - 3 year(s)
Title - GIGABYTE B860M DS3H WIFI6E Motherboard - Intel Core Ultra Series CPUs, 5+1+2+1 Phases VRM, up to 9066MHz DDR5, 1xPCIe 5.0 + 1xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 3.2 Gen 2
title_en - Gigabyte Intel B860 Express Motherboard
title_lv - Gigabyte Intel B860 Express Mātesplate
title_ru - Gigabyte Intel B860 Express Материнская Плата
TPM - Header
Unit Box Height - 0.27
Unit Box Length - 0.275
Unit Box Width - 0.07
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 1 kg
Units per Shipping Box - 10
URL - https://www.gigabyte.com/
USB-C Input/Output connectors - 1
USB-C Interface - Yes
USB 2.0 Input/Output connectors - 3
USB 2.0 Interface - Yes
USB 3.0 Interface - Yes
USB ports at back panel - 6
USB ports on motherboard - 7
Vendor Homepage - www.gigabyte.com/Motherboard/B860M-DS3H-WIFI6E#kf
vendpn - B860M DS3H WIFI6E
Warranty - 36 months
WarrantyInfo - 3 years
Weight - 1,10
weight - 1.119 kg
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 35 mm
Weight & dimensions - Width - 244 mm
WiFi Interface - Yes
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0, 1, 5, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 1 x USB 3.2 (Gen1) typ C
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 1 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 3 x USB
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza PCI-E (liczba slotów) - 4 x PCI-Express x16
