12V power connector Internal I/O - Yes

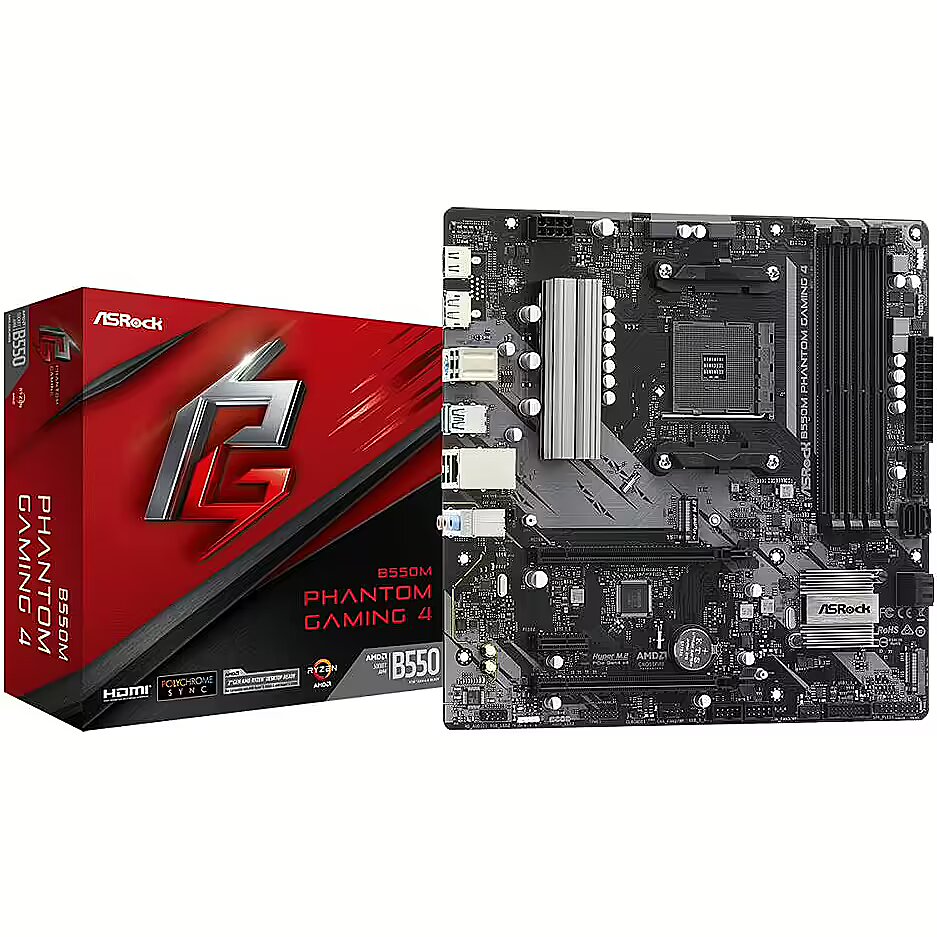

Accessories included - Quick Installation Guide CD I/O cover 2 x SATA data cable 2 x Screws for M.2 slot
ACPI version BIOS - 5.1
ATX Power connector (24-pin) Internal I/O - Yes
Audio chip Features - Realtek ALC887 / Realtek ALC897
Audio output channels Features - 7.1 channels
BIOS - 256 MB AMI UEFI Legal BIOS with GUI support Plug and Play ACPI 5.1 Compliance Events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment
BIOS - BIOS type - UEFI AMI
BIOS memory size BIOS - 256 Mbit
BIOS type BIOS - UEFI AMI
Cables included Packaging content - SATA
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Category_1 - Motherboards
Category_2 - Motherboards - AMD AM4
category_en - Computers & Components > Computer components > Motherboards > AMD motherboards
category_lv - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
category_ru - Datortehnika > Datoru komponentes > Pamatplates > AMD mātesplates
Chipset manufacturer - AMD
Chipset type - AMD B550
COM connector / port - No
Compatible processor series Processor - AMD Ryzen 3000 Series
Component for Features - PC
CPU fan connector Internal I/O - Yes
CPU socket - Socket AM4
Dane techniczne: Chipset płyty głównej - AMD B550
Dane techniczne: Grupa produktowa - Płyty główne ASRock
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Producent - ASRock
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - micro-ATX
Depth Weight & dimensions - 244 mm

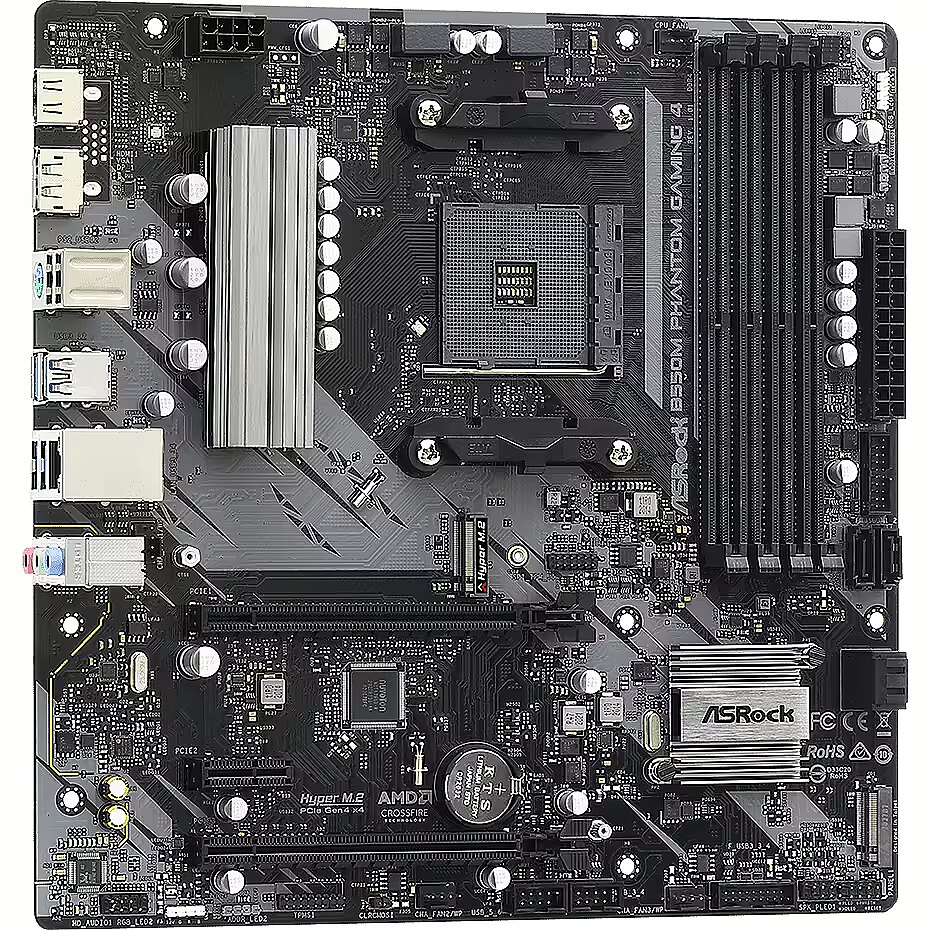

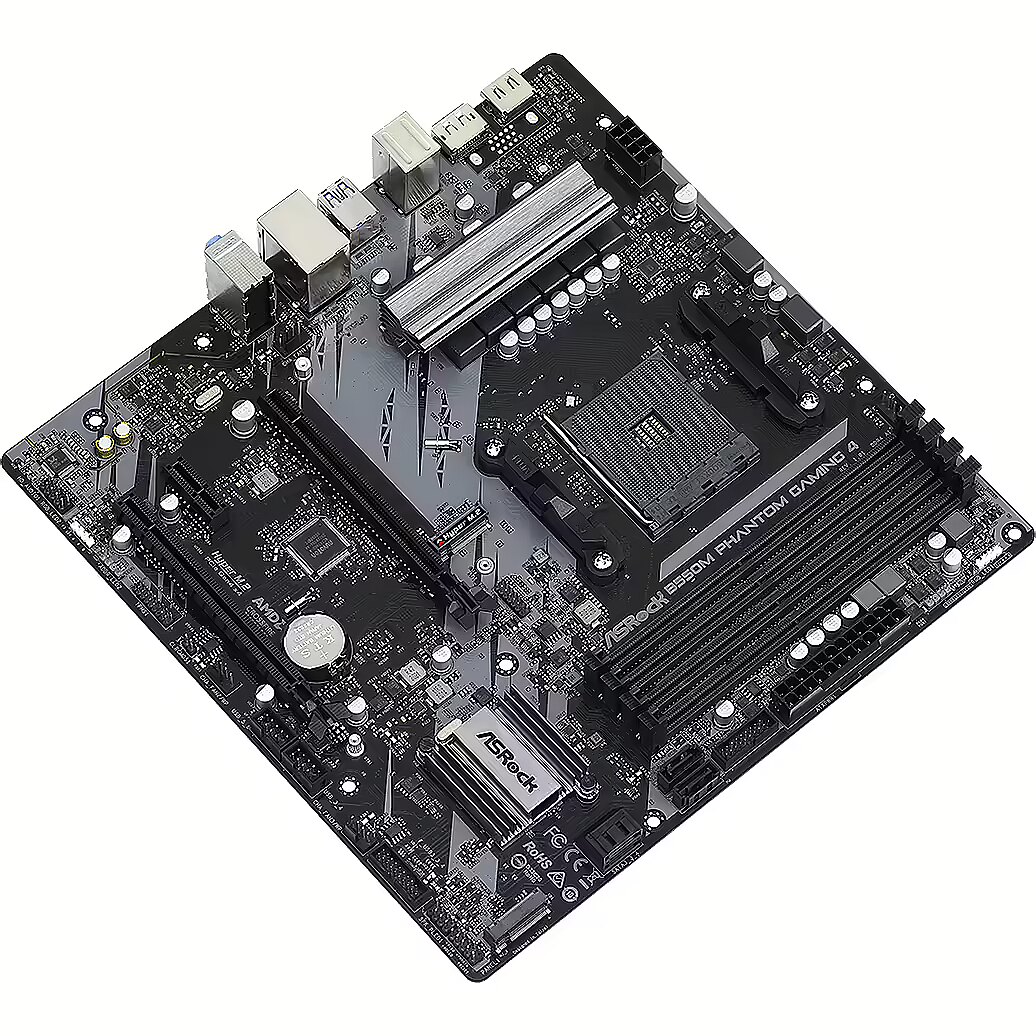

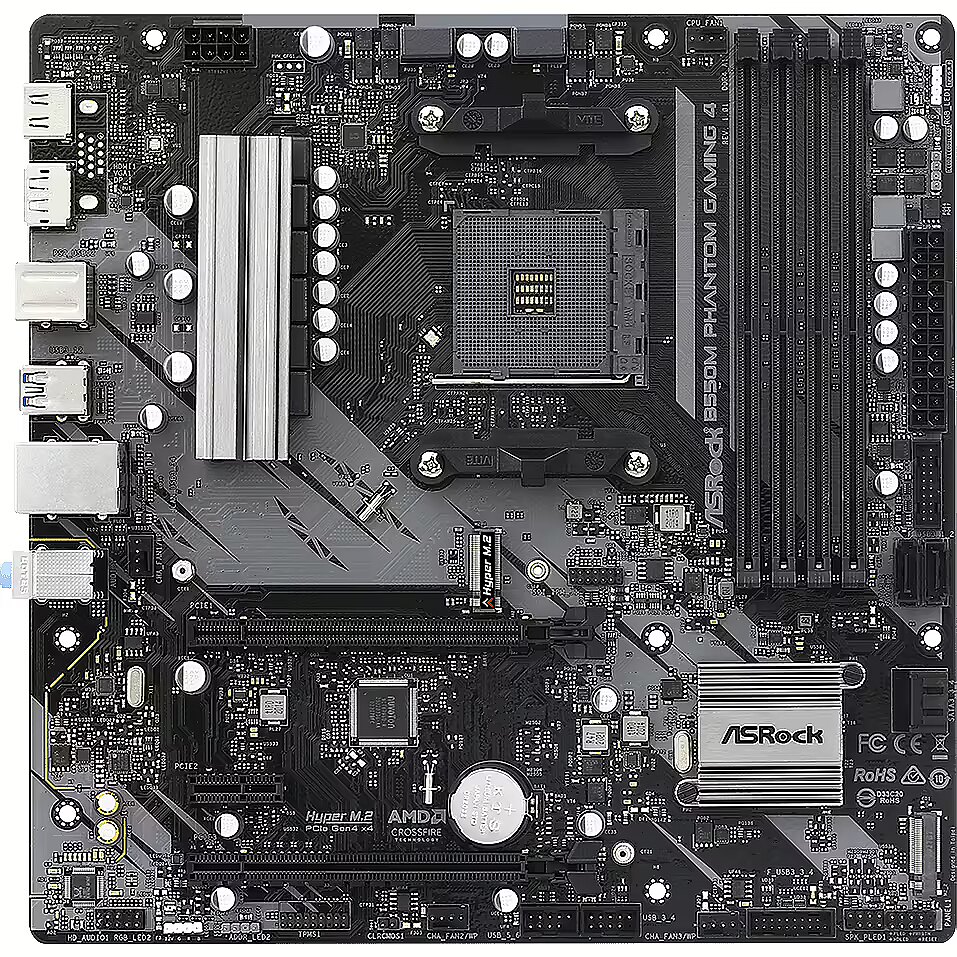

Description - B550M Phantom Gaming 4 Phantom Gaming was designed by gamers for gamers! Under the amazing appearance there is a number of gaming technologies that give excellent gaming possibilities. Everything to provide players with the best gaming experience! 8-Phase Power System It consists of solid components and ensures smooth power transfer to the processor. What's more, it guarantees increased performance and low operating temperature for advanced players. 50A Premium Power Chokes Compared to traditional chokes, ASRock's premium 50A power chokes efficiently saturate voltage up to three times better, delivering stable and enhanced Vcore power to the motherboard. AMD Smart Memory Access Ordinary PCs only have access to a fraction of the graphics memory, significantly limiting their performance. With AMD's Intelligent Memory Access, the data channel is extended to utilize all GPU memory power, remove bottlenecks and increase performance. Durability And High Performance M.2 Ready for high-capacity and fast M.2 NVMe Type 2280 SSDs for the ultimate performance needs. The Hyper M.2 connector supports PCIe Gen4 x4, and the M.2 port supports PCIe Gen3 x2 and SATA3 modes. PCB laminate with 2 oz copper 2 ounces of copper in the inner layers of the laminate ensure stable and reliable signal transmission! The copper in the PCB guarantees low operating temperatures and high energy efficiency for overclocking. Support for the latest DDR4 memory with the most extreme performance is also available! Create Your Own Lighting Style - Polychrome RGB This motherboard features integrated RGB headers and an addressable RGB header that allows mounting of compatible LED devices such as case fans, CPU fans, etc. Users also have the ability to synchronize certified Polychrome Sync RGB devices to create unique lighting effects. Dual Graphics Output Equipped with two types of the most commonly used connectors! Equipped with HDMI + DisplayPort you have more possible graphic outputs. HDMI 4k@60Hz Support for 4K resolution at 60Hz refresh rate. The higher the bitrate of the material and the higher the number of frames per second, the smoother and more accurate the image on the screen. AMD StoreMI technology A powerful tool that combines the speed of an SSD and the capacity of your hard drive into one fast and manageable drive. SSDs are fast but expensive; they also offer a small capacity. Disk drives have a lot of memory for a low price, but they are much slower than SSDs. AMD StoreMI technology "combines" these two types of data stores into one drive. It automatically moves the data you use most to SSD, so you get the benefits of both worlds: SSD responsiveness and platter capacity.
Description - Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers! 8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers. Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 2280 M.2
Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode. 2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance! RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. *The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters. Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now. HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. AMD StoreMI Technology
A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds. Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. 2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes. Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.Premium 50A Power ChokeSapphire Black PCBHigh Density Glass Fabric PCB2oz Copper PCBASRock Hyper M.2 (PCIe Gen4x4)ASRock Full Spike Protection (for all USB, Audio, LAN Ports)ASRock Live Update & APP Shop
description_en - The ASRock B550M Phantom Gaming 4 is a compact micro‑ATX motherboard designed for building gaming and performance PCs using AMD Ryzen processors with AM4 socket. It features a strong power design, PCIe 4.0 support, dual M.2 slots, and four DDR4 memory slots. It’s ideal for versatile and upgrade-ready configurations.
Technical specifications: Form factor: micro‑ATX Chipset: AMD B550 Socket: AM4 (supports Ryzen 3000/4000/5000 Series) Power: 8-phase digital power design Memory: DDR4, up to 128 GB, 4 × DIMM Expansion slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 Storage: 2 × M.2, 4 × SATA III Video & audio: HDMI, 7.1 HD audio codec USB: up to 6 ports (including USB 3.2 Gen1) Network: Gigabit Ethernet
description_lv - ASRock B550M Phantom Gaming 4 ir kompakta micro‑ATX mātesplate, kas paredzēta spēļu un augstas veiktspējas datoru būvei ar AMD Ryzen procesoriem AM4 ligzdā. Tā aprīkota ar jaudīgu barošanas ķēdi, PCIe 4.0 atbalstu, diviem M.2 slotiem un četriem DDR4 atmiņas slotiem. Lieliski piemērota elastīgām un paplašināmām konfigurācijām.
Tehniskā specifikācija: Form‑faktors: micro‑ATX Čipkopa: AMD B550 Ligzda: AM4 (atbalsta Ryzen 3000/4000/5000 sērijas) Barošana: 8-fāžu digitālais dizains Atmiņa: DDR4, līdz 128 GB, 4 × DIMM Paplašināšanas sloti: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 Datu glabāšana: 2 × M.2, 4 × SATA III Video un skaņa: HDMI, 7.1 HD audio USB: līdz 6 portiem (ieskaitot USB 3.2 Gen1) Tīkls: Gigabit Ethernet
description_ru - Материнская плата ASRock B550M Phantom Gaming 4 компактная micro‑ATX плата, предназначенная для сборки игровых и производительных систем на базе процессоров AMD Ryzen с сокетом AM4. Оснащена современной системой питания, поддержкой PCIe 4.0, двумя слотами M.2 и четырьмя слотами под оперативную память DDR4. Идеальна для создания мощных конфигураций с возможностью дальнейшего расширения.
Технические характеристики: Форм-фактор: micro‑ATX Чипсет: AMD B550 Сокет: AM4 (поддержка Ryzen 3000/4000/5000 Series) Питание: 8-фазная цифровая схема Память: DDR4, до 128 ГБ, 4 слота DIMM Слоты расширения: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 Накопители: 2 × M.2, 4 × SATA III Видео и звук: HDMI, аудиокодек 7.1 HD USB: до 6 портов USB (включая USB 3.2 Gen1) Сеть: Gigabit Ethernet
Designation - CE+WEEE
Detailed data on disk/drive interfaces - 4 x SATA3 6.0 Gb/s connectors, RAID support (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug 1 x Hyper M.2 slot (M2_1), supports M Key Type 2280 M.2 PCI Express to Gen4x4 (64Gbps) (from Vermeer, Matisse) or Gen3x4 (32Gbps) (from Cezanne, Renoir and Picasso)* 1 x M.2 slot (M2_2), supports M.2 SATA3 6.0Gb/s Type M 2280 module and M.2 PCI Express module up to Gen3 x2 (16Gb/s)* *NVMe SSD boot support
dimensionalWeight - 873
dimension depth - 65 mm
dimension height - 265 mm
Dimensions - 24.4 x 24.4 cm
dimension weight - 1094 g
dimension width - 280 mm
DirectX version Graphics - 12.0
DisplayPorts quantity Rear panel I/O ports - 1
DisplayPort version Rear panel I/O ports - 1.4
Drivers included Packaging content - Yes
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC887/897 - 7.1)
ean - 4710483932755
EAN - 4710483932755
Eans - 4710483932755
EAN_code - 4710483932755
ECC сompatibility Memory - ECC & Non-ECC
Ethernet interface type Network - Gigabit Ethernet
Ethernet LAN (RJ-45) ports Rear panel I/O ports - 1
Ethernet LAN Network - Yes
Expansion slots - 1 x PCIe 3.0 x 1
Expansion slots - 1 x PCIe 3.0 x 16
Expansion slots - 1 x PCIe 4.0 x 16
Expansion slots - Number of M.2 (M) slots - 1
Expansion slots - PCI Express x1 (Gen 3.x) slots - 1
Expansion slots - PCI Express x16 (Gen 3.x) slots - 3

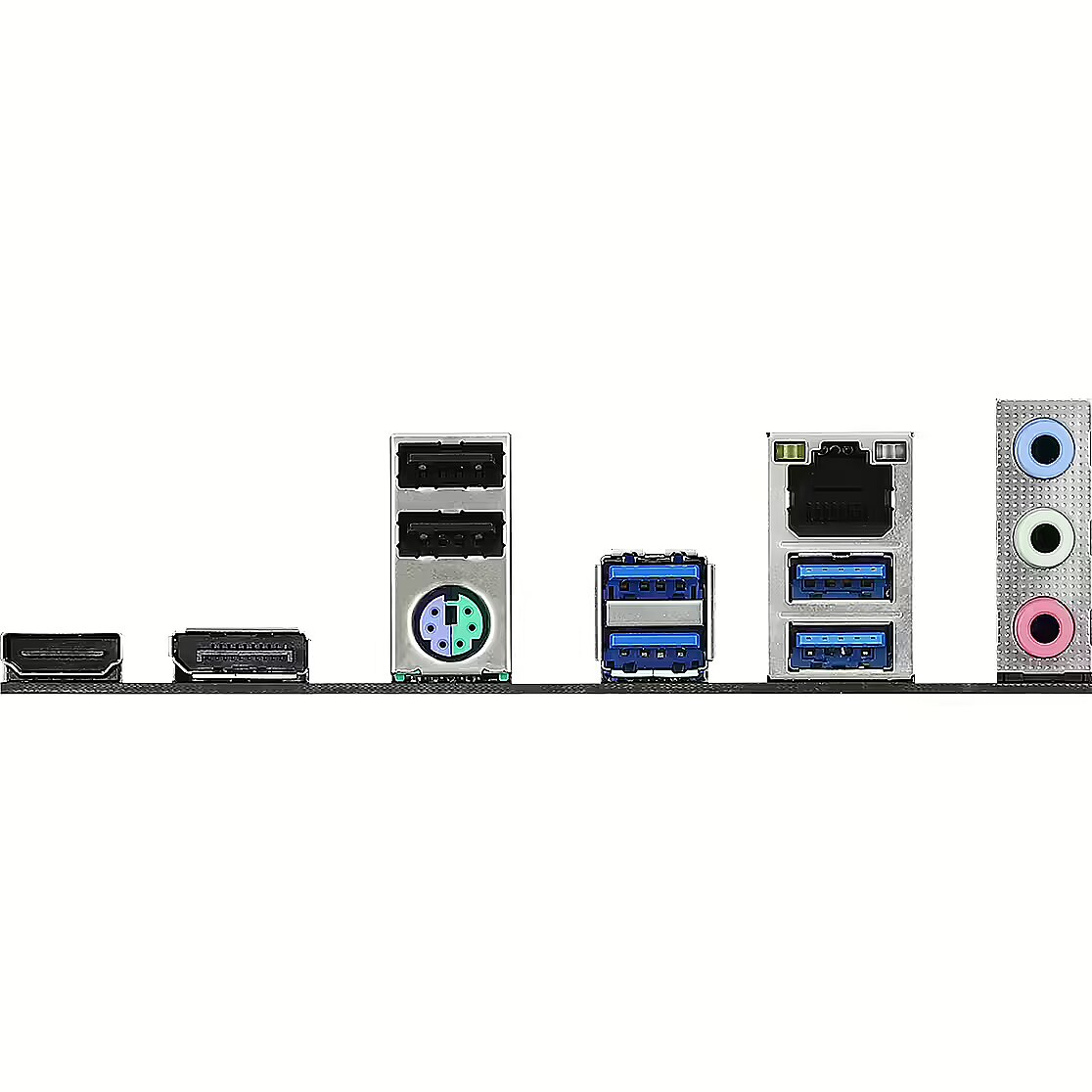

External connectors - 1 x DisplayPort
External connectors - 1 x HDMI
External connectors - 1 x Line In
External connectors - 1 x Line Out
External connectors - 1 x MIC
External connectors - 1 x PS/2 Keyboard/MouseCombo
External connectors - 1 x RJ-45
External connectors - 2 x USB 2.0
External connectors - 4 x USB 3.0
Features - Audio output channels - 7.1 channels
Features - Motherboard chipset - AMD B550
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - micro ATX
Features - Overclocking features - FCC, CE
ErP/EuP
Features - PC health monitoring - Fan
Features - PC health monitoring - Temperature
Features - PC health monitoring - Voltage
Features - Windows operating systems supported - Windows 10 x64
FireWire (IEEE 1394) - No
Form factor - micro ATX
Front panel audio connector Internal I/O - Yes
Grafika: Obsługa technologii CrossFire - tak
Graphics - Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* DirectX 12, Pixel Shader 5.0 The default amount of shared memory is 2GB. Maximum shared memory up to 16GB.** Dual Graphics Output: HDMI and DisplayPort 1.4 supported by independent display controllers HDMI 2.1 with maximum resolution up to 4K x 2K (4096x2160) @ 60Hz DisplayPort 1.4 with maximum resolution up to 5K (5120x2880)@120Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 port (compatible HDMI monitor required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 ports*** Supports 4K Ultra HD (UHD) playback via HDMI 2.1 and DisplayPort 1.4 ports Supports Microsoft PlayReady *Support may vary by CPU **Maximum shared memory of 16GB requires 32GB of system memory. ***Picasso supports HDCP 2.2 with HDMI 2.0 Port
Graphics - DirectX version - 12.0
Graphics - HDCP - Yes
Graphics - Maximum resolution - 5120 x 2880 pixels
gross_weight - 1.1 kg
guarantee - 24
guarantee_type - normal
Harmonized System (HS) code Logistics data - 84733020
HDCP Graphics - Yes
HDMI ports quantity Rear panel I/O ports - 1
HDMI version Rear panel I/O ports - 2.1
Height Weight & dimensions - 70 mm
Integrated CPU - No
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 3
Internal I/O - Number of SATA III connectors - 4
Internal I/O - RGB LED pin header - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek RTL8111H)
LAN controller Network - Realtek RTL8111H
LPT connector / port - No
Manufacturer - Asrock
Manufacturer - ASRock
Manufacturer_code - 90-MXBE90-A0UAYZ
Max. number of SATA devices - 4
Maximum internal memory Memory - 128 GB
Maximum number of SMP processors Processor - 1
Maximum resolution Graphics - 5120 x 2880 pixels
Max memory size - 128 GB
Memory - Maximum internal memory - 128 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory clock speeds - 2133
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2667
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory clock speeds - 3466
Memory - Supported memory clock speeds - 3600
Memory - Supported memory clock speeds - 3733
Memory - Supported memory clock speeds - 3800
Memory - Supported memory clock speeds - 3866
Memory - Supported memory clock speeds - 4000
Memory - Supported memory clock speeds - 4133
Memory - Supported memory clock speeds - 4200
Memory - Supported memory clock speeds - 4266
Memory - Supported memory clock speeds - 4333
Memory - Supported memory clock speeds - 4400
Memory - Supported memory clock speeds - 4466
Memory - Supported memory clock speeds - 4533
Memory - Supported memory types - DDR4-SDRAM
Memory - Unbuffered memory - Yes
Memory bus frequency - 2133 MHz
Memory bus frequency - 2400 MHz
Memory bus frequency - 2667 MHz
Memory bus frequency - 2933 MHz
Memory bus frequency - 3200 MHz
Memory bus frequency - 3333 MHz
Memory bus frequency - 3466 MHz
Memory bus frequency - 3600 MHz
Memory bus frequency - 3733 MHz
Memory bus frequency - 3800 MHz
Memory bus frequency - 3866 MHz
Memory bus frequency - 4000 MHz
Memory bus frequency - 4133 MHz
Memory bus frequency - 4200 MHz
Memory bus frequency - 4266 MHz
Memory bus frequency - 4333 MHz
Memory bus frequency - 4400 MHz
Memory bus frequency - 4466 MHz
Memory bus frequency - 4533 MHz
Memory bus frequency - 4600 MHz
Memory bus frequency - 4666 MHz
Memory bus frequency - 4733 MHz
Memory channels Memory - Dual-channel
Memory slots type Memory - DIMM
Memory type - DDR4
Model - ASRock
Model - B550M PHANTOM GAMING 4
Motherboard chipset family Features - AMD
Motherboard chipset Features - AMD B550
Motherboard form factor Features - micro ATX
MPN - 90-MXBE90-A0UAYZ
Name - AM4 ASRock B550M Phantom Gaming 4
Name - ASRock B550M Phantom Gaming 4
Name - ASRock B550M PHANTOM GAMING 4, motherboard
name - Motherboard B550M PHANTOM GAMING 4 AM4 4DDR4 HDMI/DP mATX
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8111H
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Network interface - 1 x 10/100/1000 Mbit/s
Network interface - PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Wake-On-LAN Lightning/ESD Protection Energy Efficient Ethernet 802.3az PXE
Number of chassis fan connectors Internal I/O - 3
Number of DDR4 slots - 4
Number of M.2 (M) slots Expansion slots - 1
Number of memory slots Memory - 4
Number of SATA III connectors Internal I/O - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 8
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 0
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x Power LED and Speaker Header
Onboard connectors - 1 x TPM header
Onboard connectors - 2 x Addressable LED
Onboard connectors - 2 x M.2
Onboard connectors - 2 x RGB LED Strip
Onboard connectors - 3 x 4pin Chassis/Water Pump Fan Connectors
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 4 x USB 2.0/1.1
Onboard connectors - 4 x USB 3.0
Other information -
Overclocking features Features - FCC, CE
ErP/EuP
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 128 GB
Pamięć: Obsługiwana pamięć - DDR4
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR4-2133 (PC4-17000)
Pamięć: Typ obsługiwanej pamięci - DDR4-2400 (PC4-19200)
Pamięć: Typ obsługiwanej pamięci - DDR4-2666 (PC4-21300)
Pamięć: Typ obsługiwanej pamięci - DDR4-2800 (PC4-22400)
Pamięć: Typ obsługiwanej pamięci - DDR4-3200 (PC4-25600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3466 (PC4-27700)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3600 (PC4-28800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-3866 (PC4-30900)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4000 (PC4-32000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4133 (PC4-33000)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4400 (PC4-35200)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4600 (PC4-36800)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4700 (PC4-37600)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-4800 (PC4-38400)
Pamięć: Typ obsługiwanej pamięci OC - DDR4-5000 (PC4-40000)
PC health monitoring Features - Fan, Temperature, Voltage
PCI Express x1 (Gen 3.x) slots Expansion slots - 1
PCI Express x16 (Gen 3.x) slots Expansion slots - 3
Procesor: Gniazdo procesora - Socket AM4
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 4000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 5000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 3000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 5000
Processor - Compatible processor series - 3rd Generation AMD Ryzen™ 9
Processor - Compatible processor series - AMD Ryzen™ 3
Processor - Compatible processor series - AMD Ryzen™ 5
Processor - Compatible processor series - AMD Ryzen™ 7
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM4
Processor family - AMD Ryzen
Processor manufacturer Processor - AMD
Processor socket Processor - Socket AM4
Producent: Nazwa producenta / importera - ASRock
ASRock Europe B.V.
Bijsterhuizen 11-11
6546 AR Nijmegen
producer - ASRock
Producer - ASRock
producerCode - B550M PHANTOM GAMING 4
ProducerCode - B550M Phantom Gaming 4
productName - Asrock B550M Phantom Gaming 4 Socket AM4 micro ATX AMD B550
Product Net Weight ELKO Logistics Data - 0.7 kg
productSize - Normal
PS/2 ports quantity Rear panel I/O ports - 1
RAID - Yes
Rear panel I/O ports - DisplayPorts quantity - 1
Rear panel I/O ports - DisplayPort version - 1.4
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 1
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - HDMI version - 2.1
Rear panel I/O ports - PS/2 ports quantity - 1
Rear panel I/O ports - USB 2.0 ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
RGB LED pin header Internal I/O - Yes
Safety warning - Warnings - Avoid direct contact with sensitive electronic components.
Safety warning - Warnings - Dispose of according to local electro-waste regulations.
Safety warning - Warnings - Store away from water and sources of moisture.
Shipping Box Depth ELKO Internal Logistics Data - 27.5 cm
Shipping Box Height ELKO Internal Logistics Data - 26 cm
Shipping Box Weight ELKO Internal Logistics Data - 1.1 kg
Shipping Box Width ELKO Internal Logistics Data - 6 cm
ShortDescription - Socket AM4 | Chipset AMD B550
sizeX - 260
sizeY - 60
sizeZ - 280
Software - Software: ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC* UEFI: ASRock Full HD UEFI ASRock Instant Flash *This tool can be downloaded from Live Update & APP Shop
Sound card - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Special functions - ASRock Super Alloy Premium 50A Power Choke Sapphire Black PCB High Density Glass Fabric PCB 2oz Copper PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop
Storage controllers - Supported storage drive interfaces - Serial ATA III
Storage controllers - Supported storage drive types - HDD & SSD
Summary - Asrock B550M Phantom Gaming 4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III, Supported storage drive types: HDD & SSD. Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Supported memory clock speeds Memory - 2133,2400,2667,2933,3200,3466,3600,3733,3800,3866,4000,4133,4200,4266,4333,4400,4466,4533 MHz
Supported memory types Memory - DDR4-SDRAM
Supported operating systems - Windows 10
Supported operating systems - Windows 11
Supported storage drive interfaces Storage controllers - SATA III
Supported storage drive types Storage controllers - HDD & SSD
System Management BIOS (SMBIOS) version BIOS - 2.3
title_en - Asrock B550M Phantom Gaming 4 micro‑ATX Motherboard
title_lv - Asrock B550M Phantom Gaming 4 micro‑ATX Mātesplate
title_ru - Asrock B550M Phantom Gaming 4 micro‑ATX Материнская плата
TPM connector Internal I/O - Yes
Unbuffered memory Memory - Yes
Unit Box Height - 0.26
Unit Box Length - 0.275
Unit Box Width - 0.06
Unit Calculated Volume ELKO Internal Logistics Data - 0.00429 cubm
Unit Calculated Weight ELKO Logistics Data - 1.1 kg
Units per Shipping Box ELKO Logistics Data - 1
USB 2.0 connectors Internal I/O - 2
USB 2.0 ports quantity Rear panel I/O ports - 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors Internal I/O - 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity Rear panel I/O ports - 4
USB ports at back panel - 6
USB ports on motherboard - 8
Vendor Homepage - https://www.asrock.com/MB/AMD/B550M%20Phantom%20Gaming%204/index.asp#Overview
vendpn - B550M PHANTOM GAMING 4
Wake-on-LAN ready Network - Yes
Warranty - 24 months
warrantyLength - 24
warrantyType - G
weight - 0.998 kg
Weight - 1,06
Weight - 1.077
weight - 1080
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Width - 244 mm
Weight Other features - 465 g
Wi-Fi Network - No
Width Weight & dimensions - 244 mm
Windows operating systems supported Features - Windows 10 x64
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 244 mm
Złącza: Obsługa Raid - tak (0,1,10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2
Złącza: Złącza na płycie głównej - 1 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - 1 x Display Port
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 1 x PS/2
Złącza: Złącza na tylnym panelu - 1 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB
Złącza: Złącza na tylnym panelu - 4 x USB 3.2 (Gen1)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza PCI-E (liczba slotów) - 1 x PCI-Express x1
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
