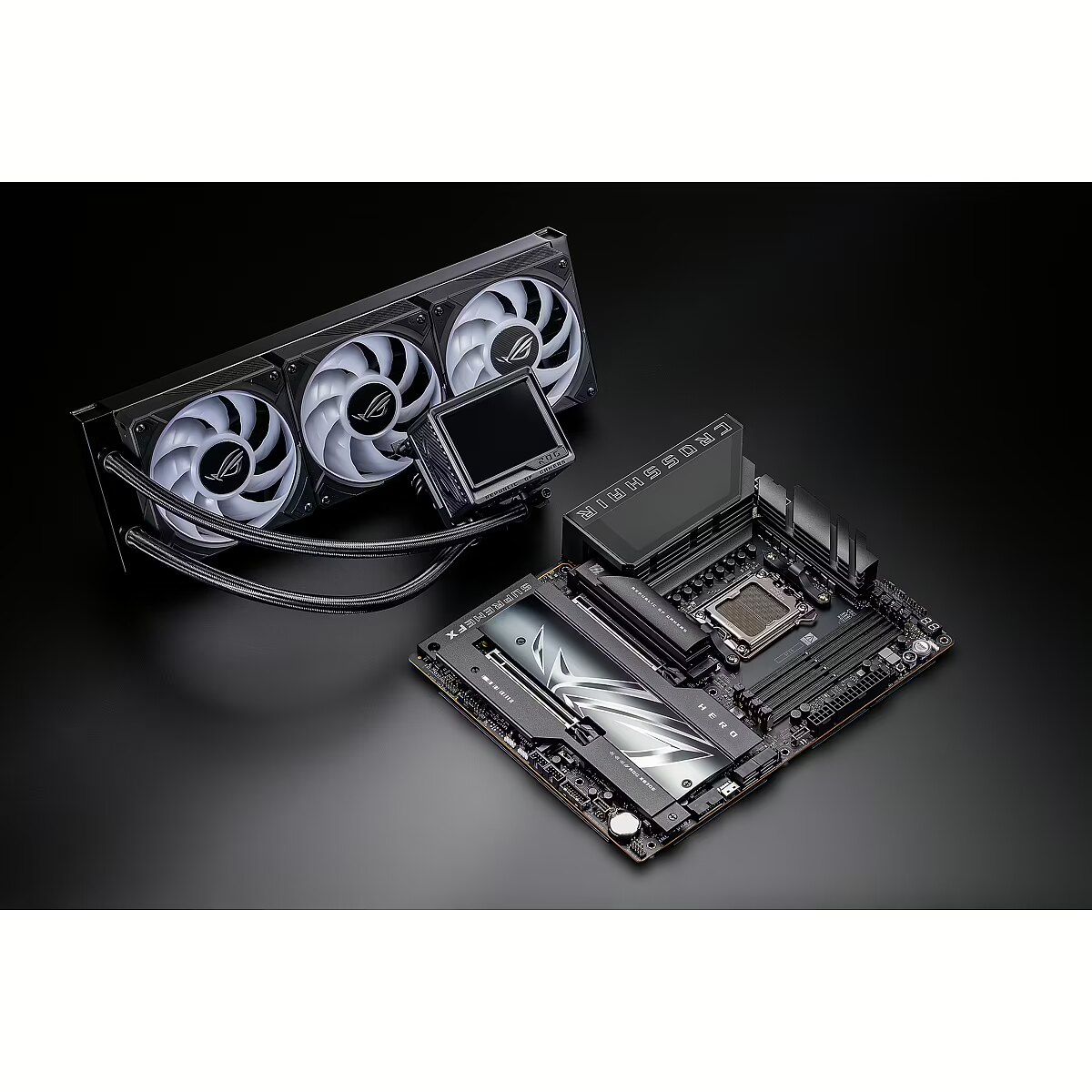

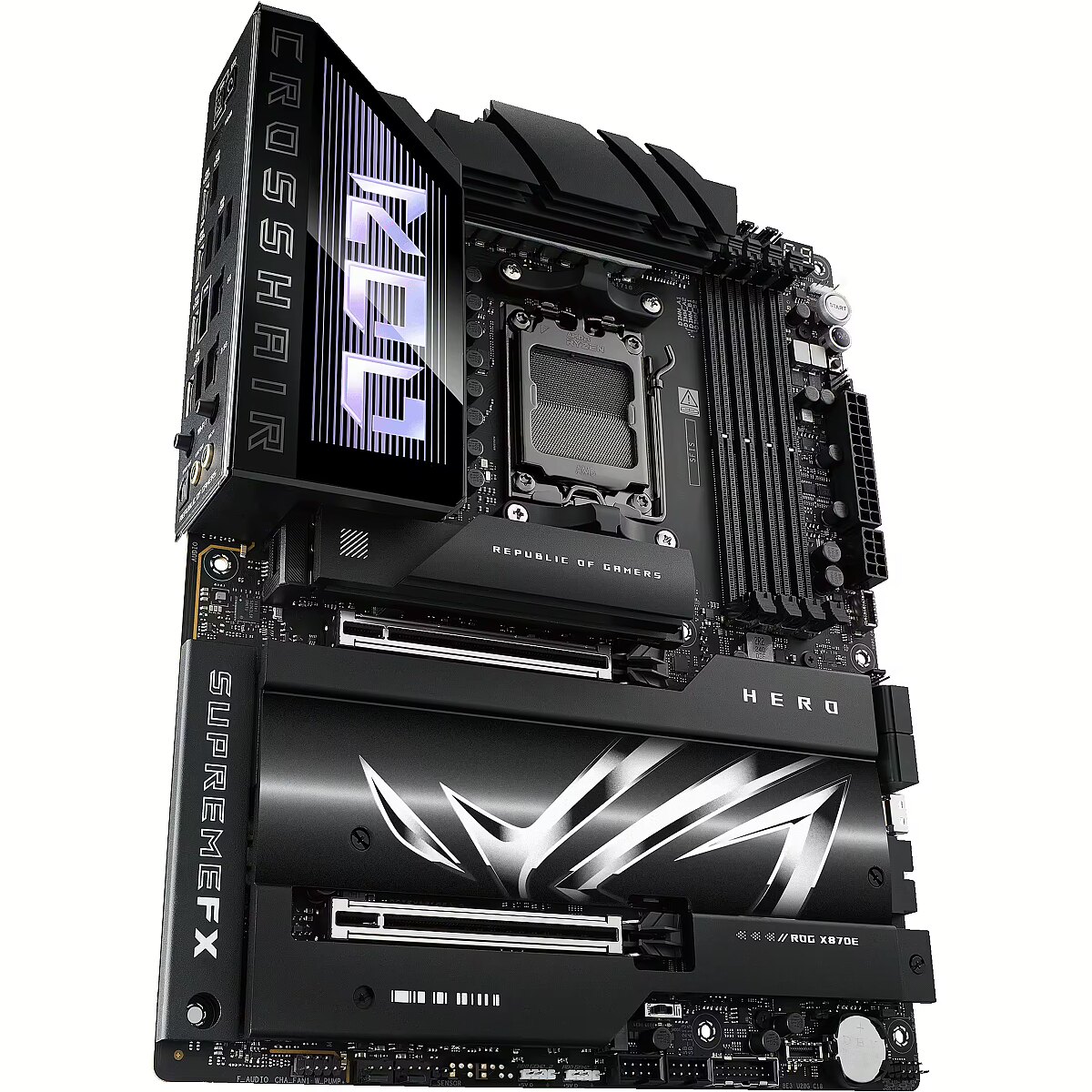

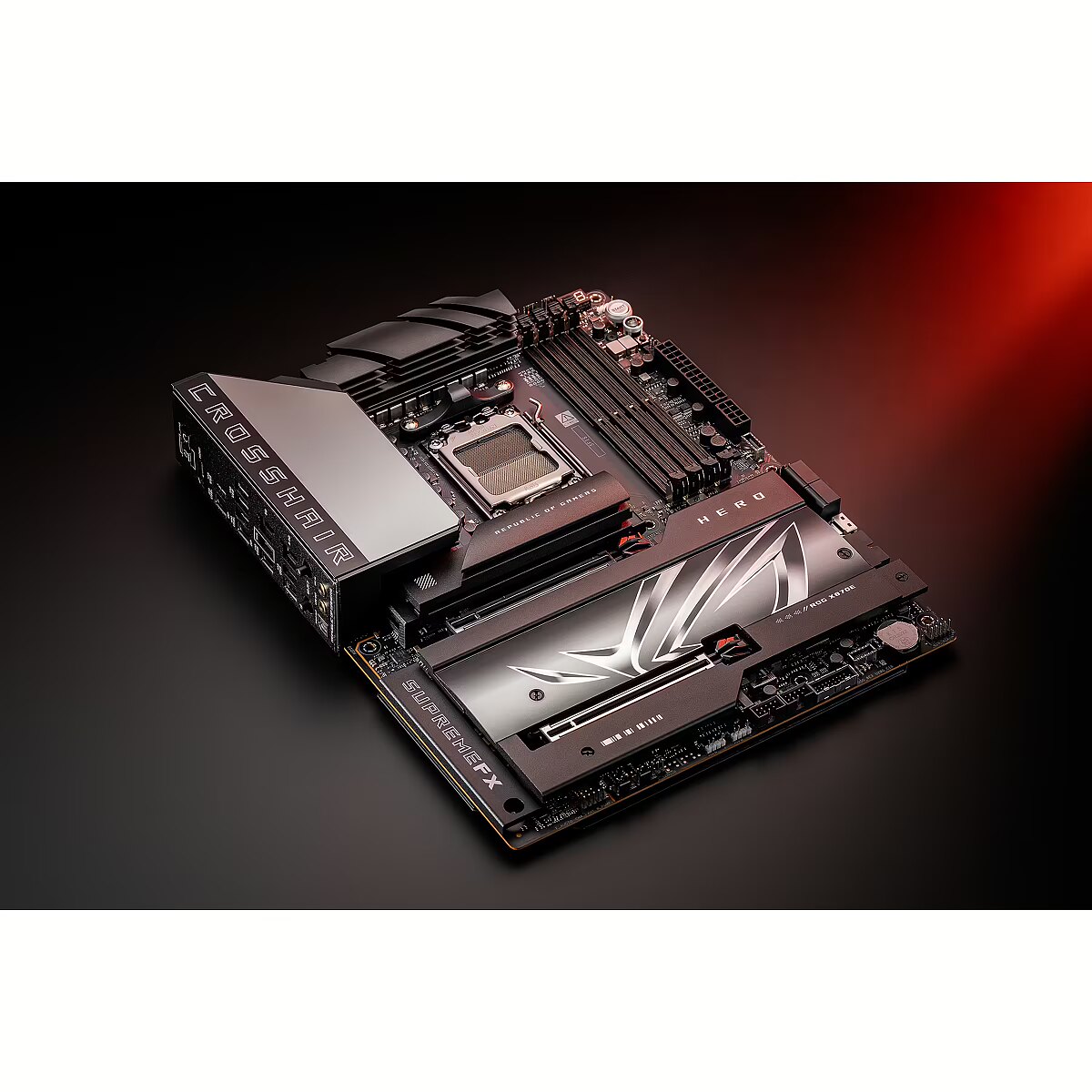

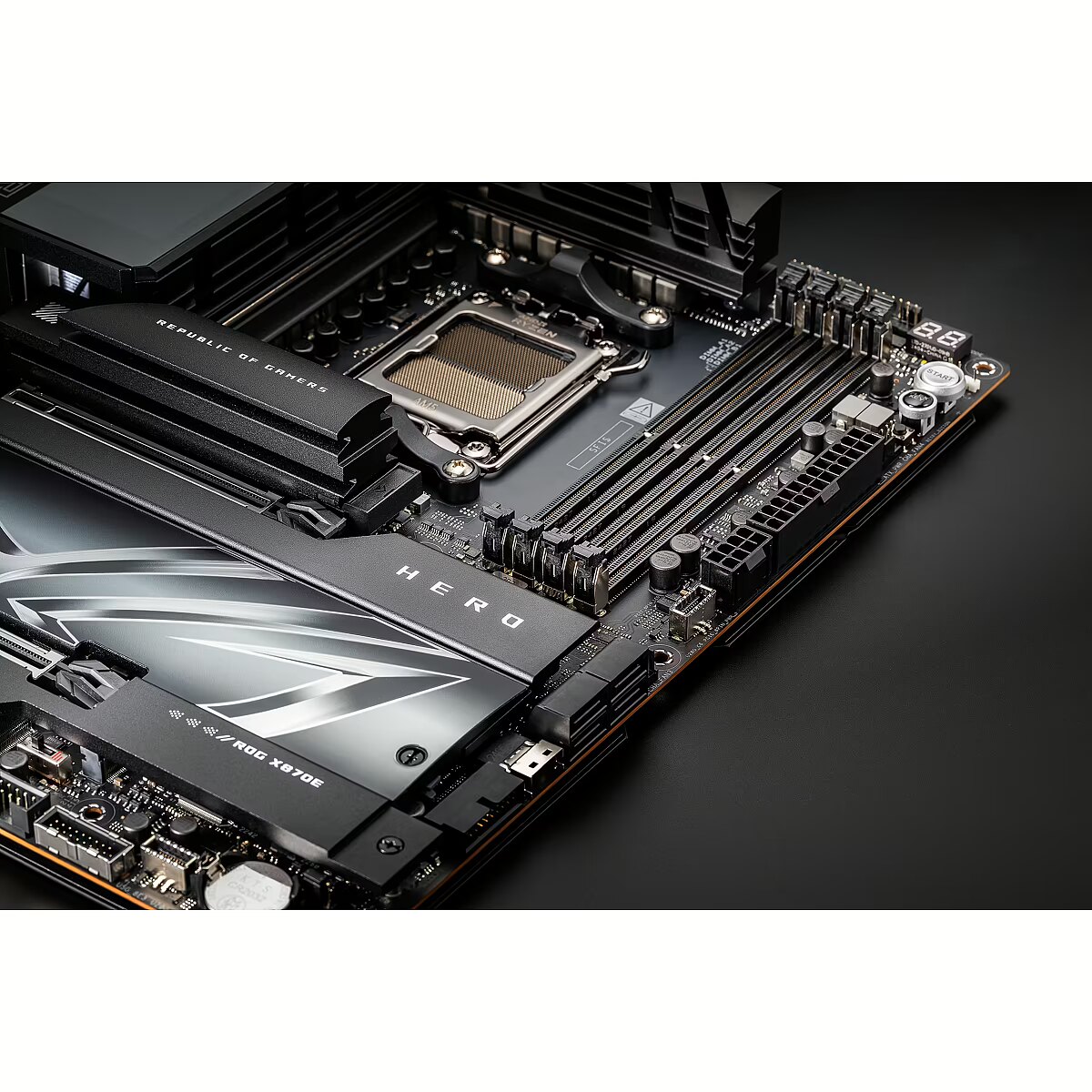

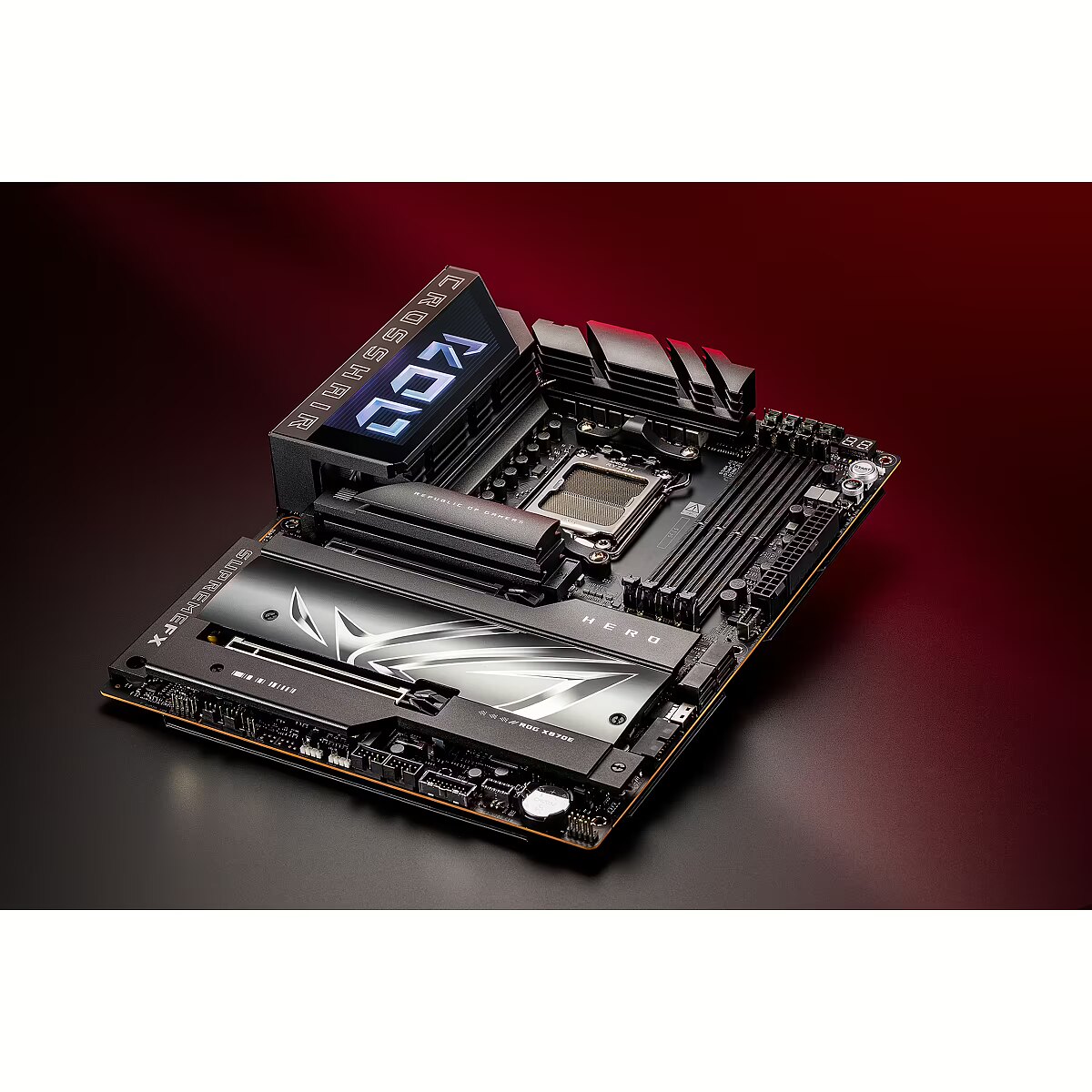

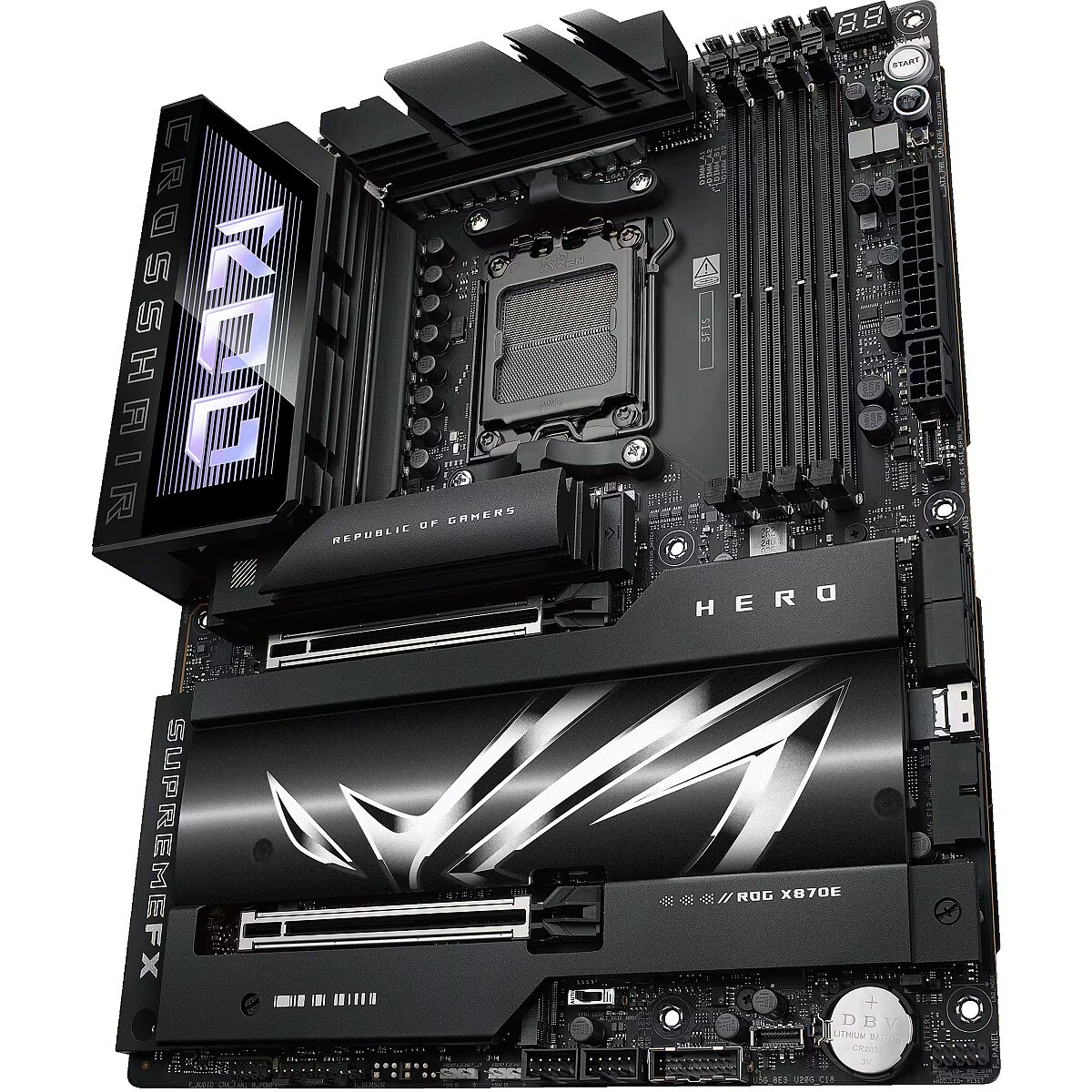

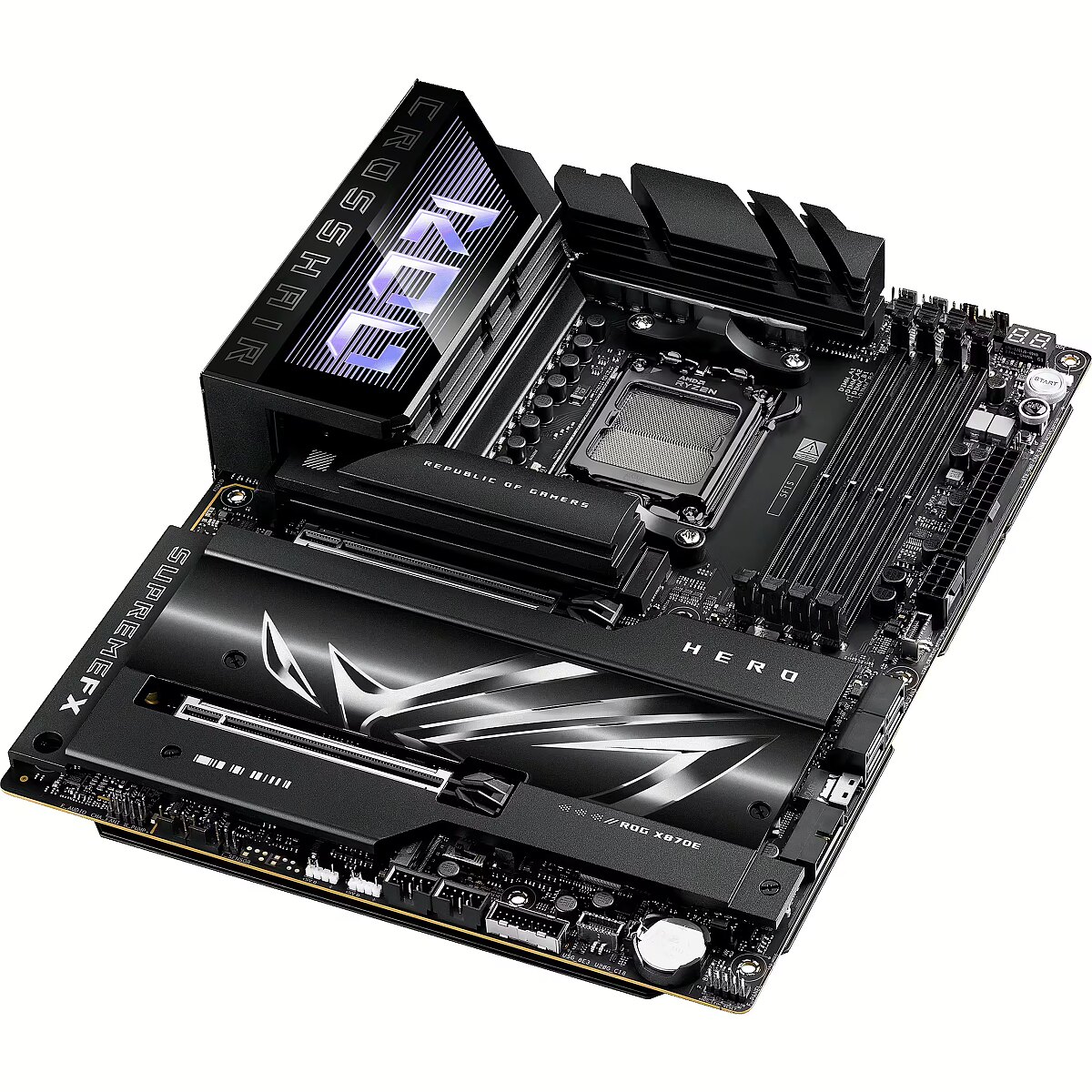

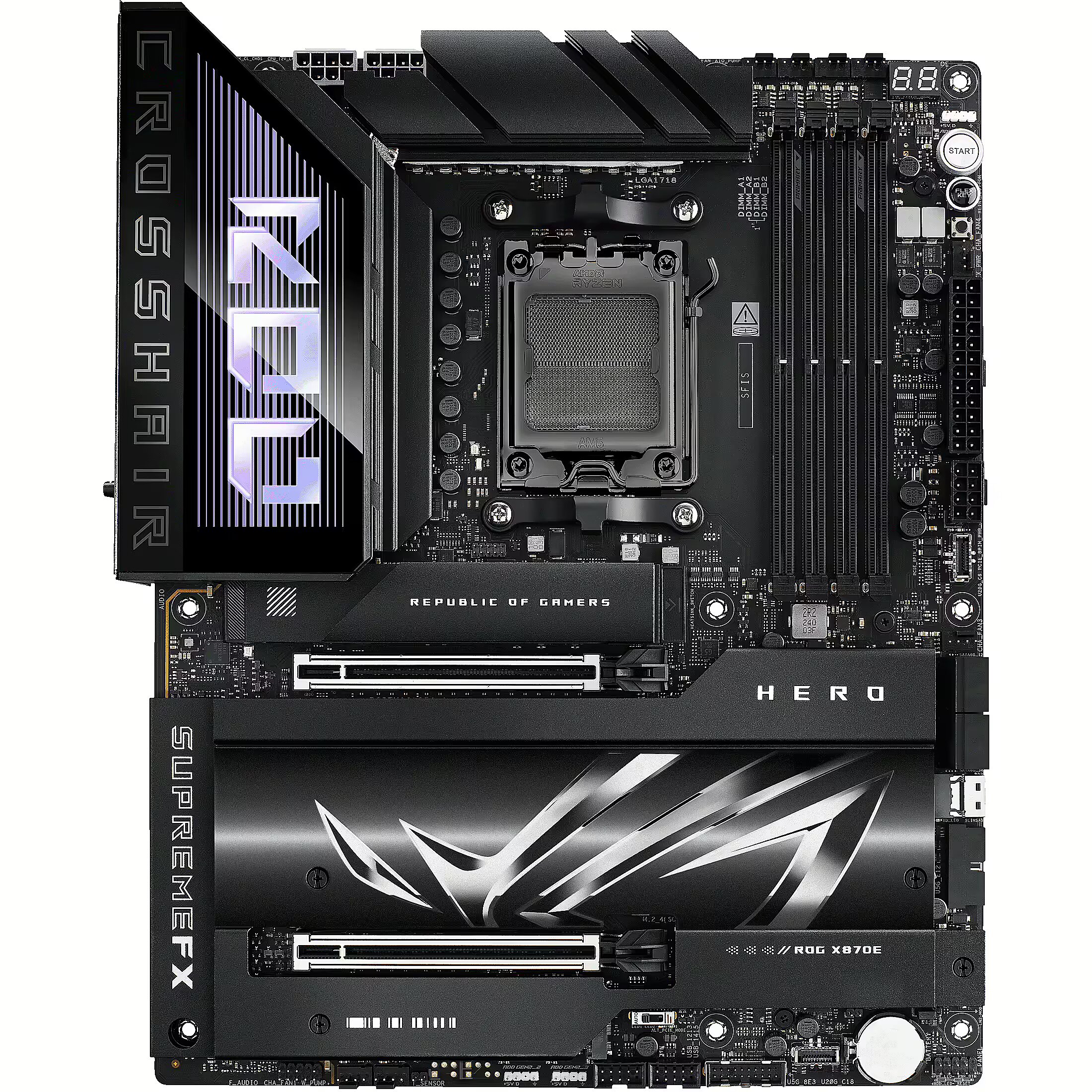

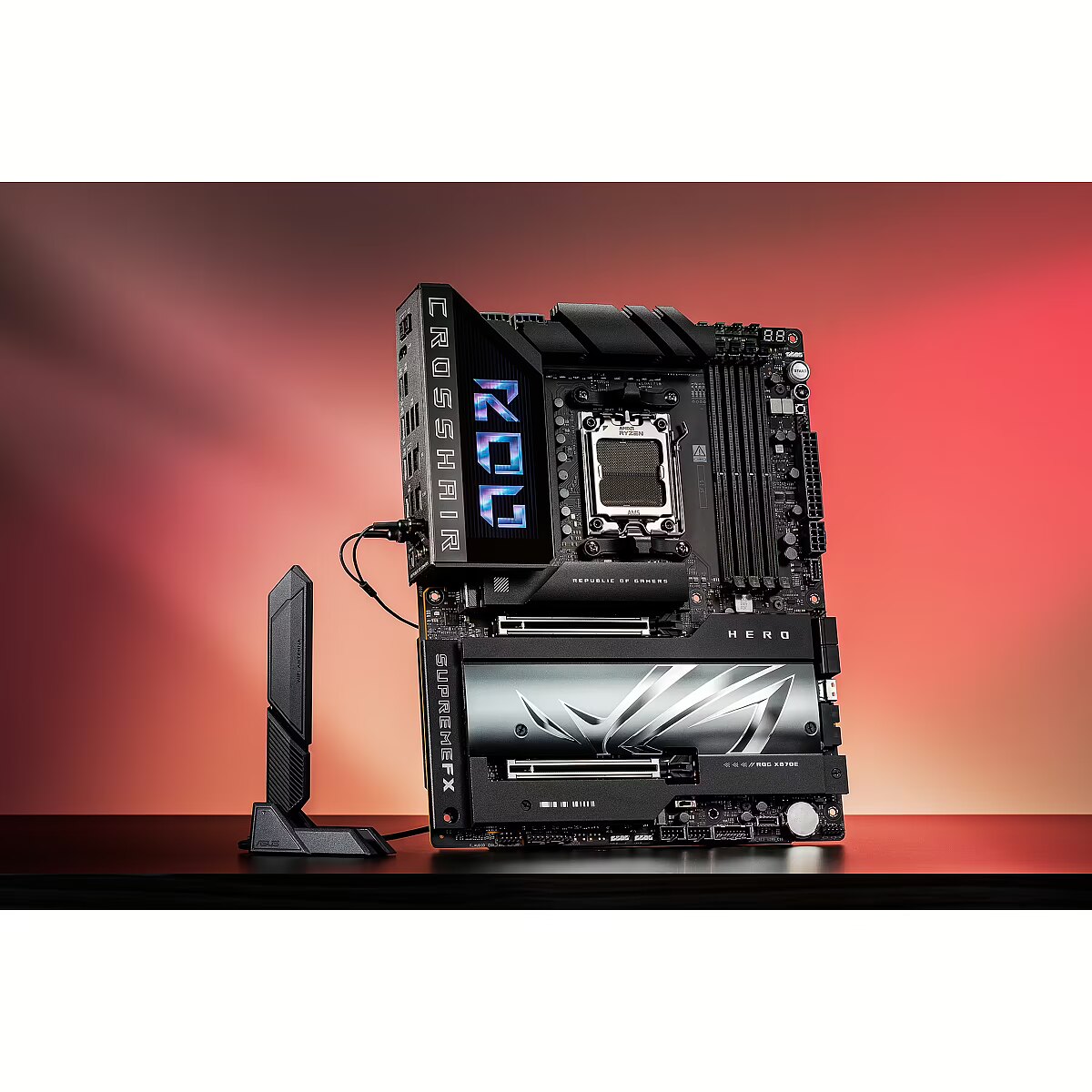

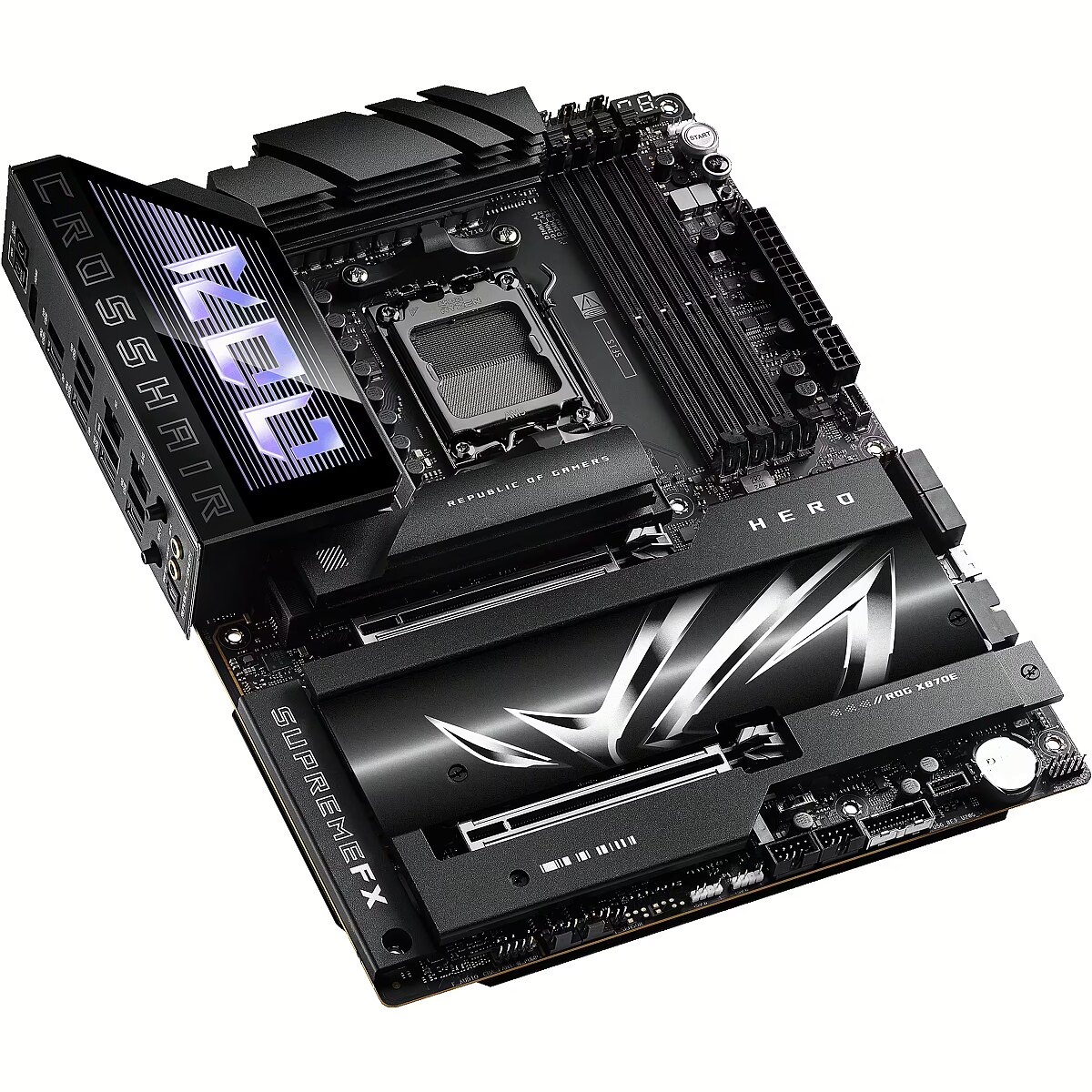

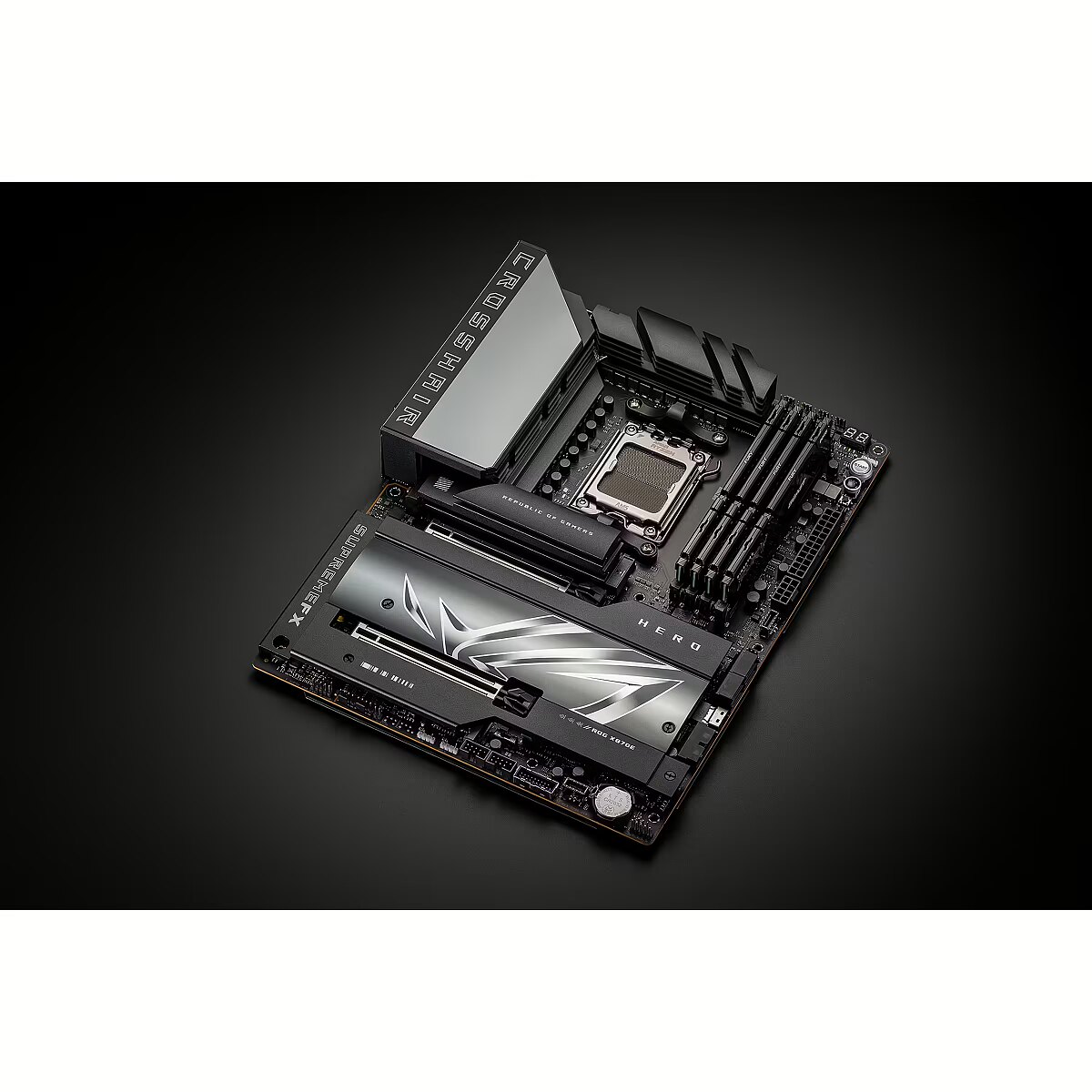

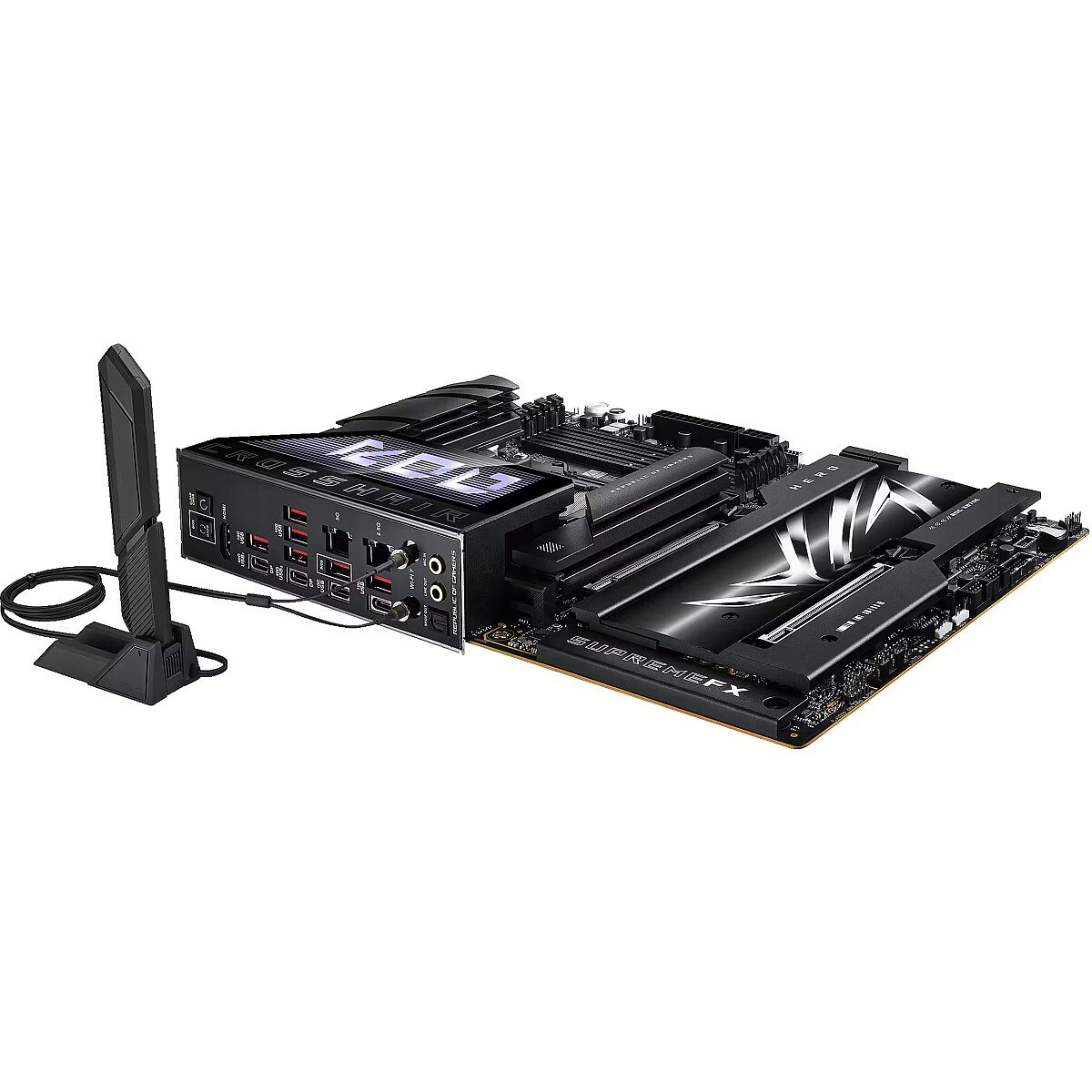

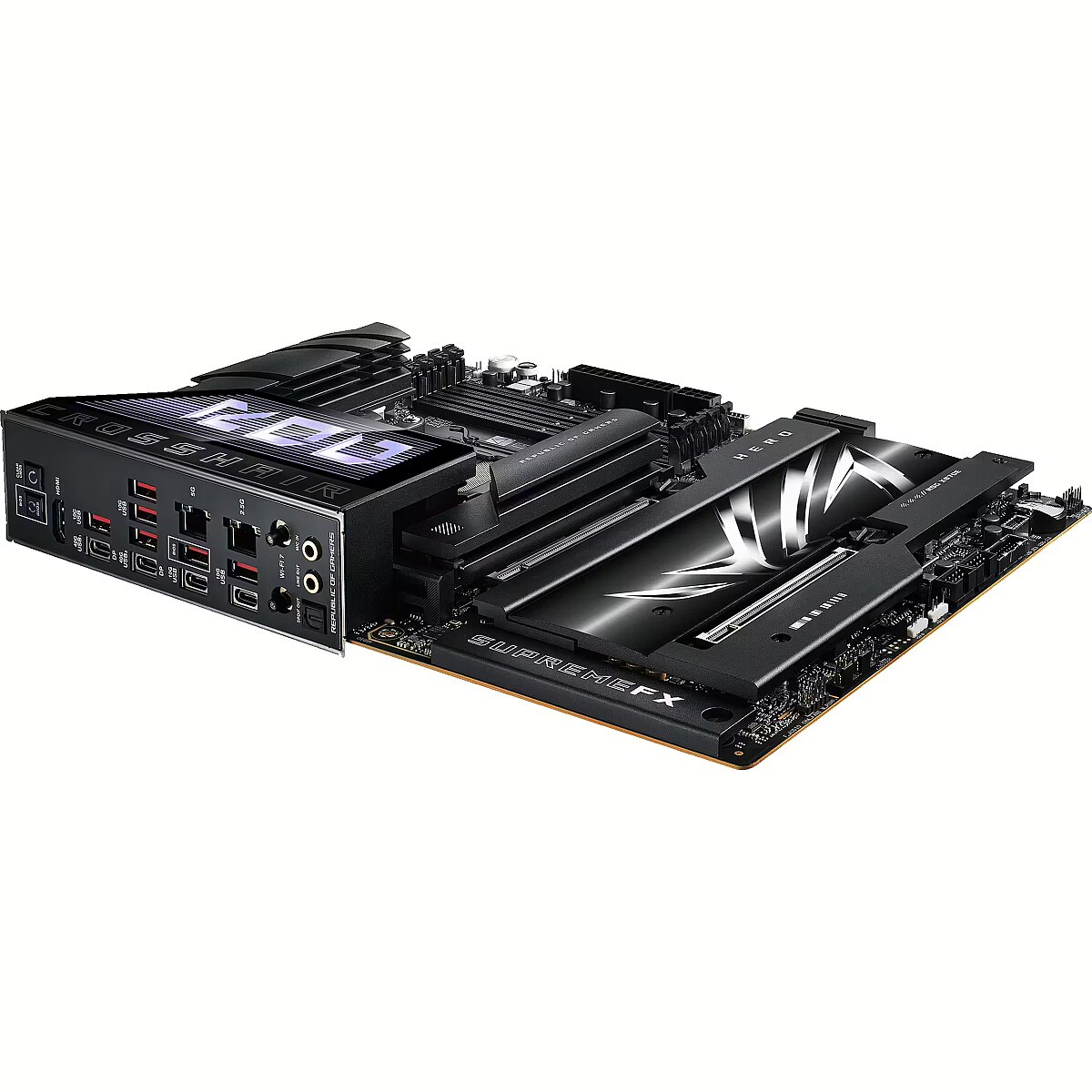

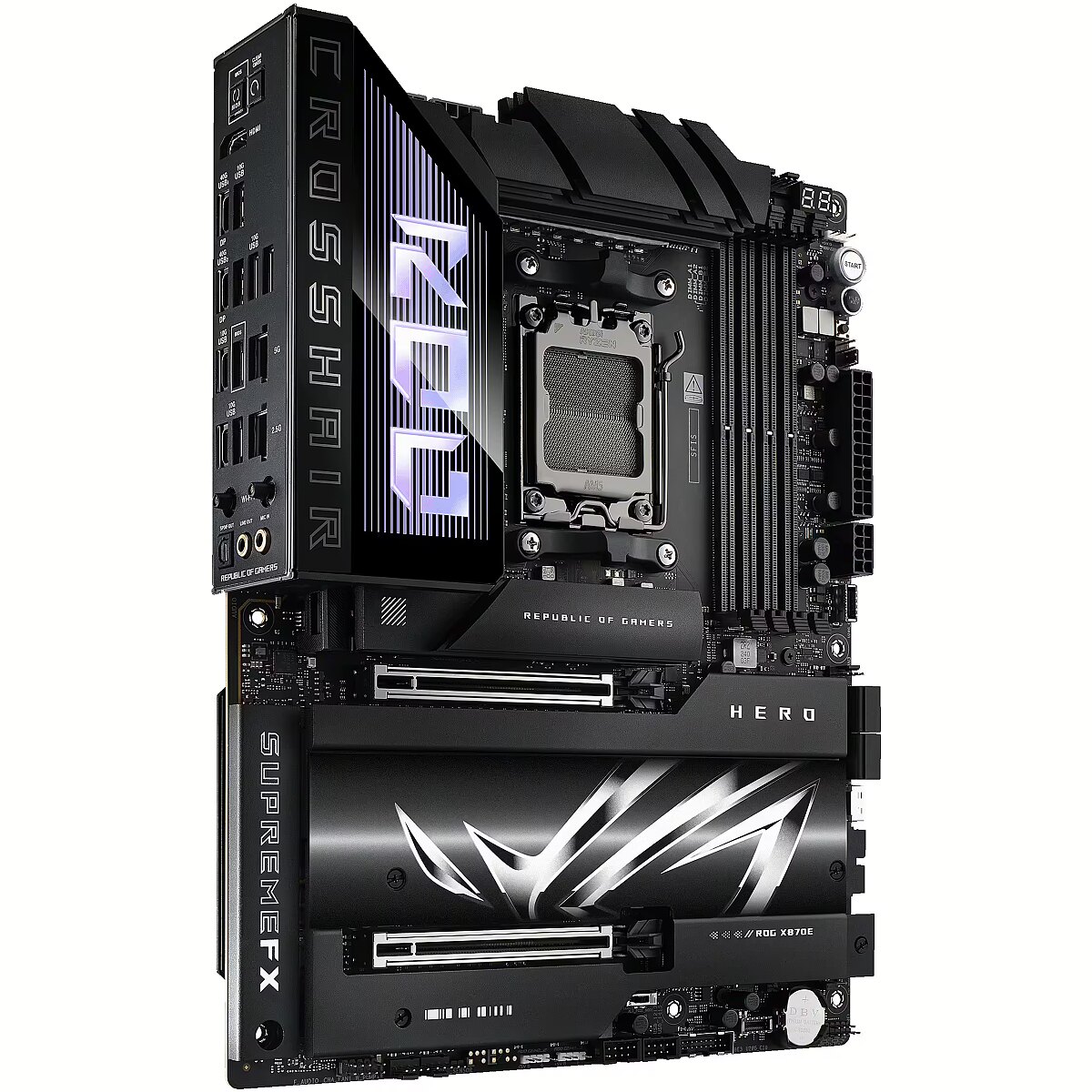

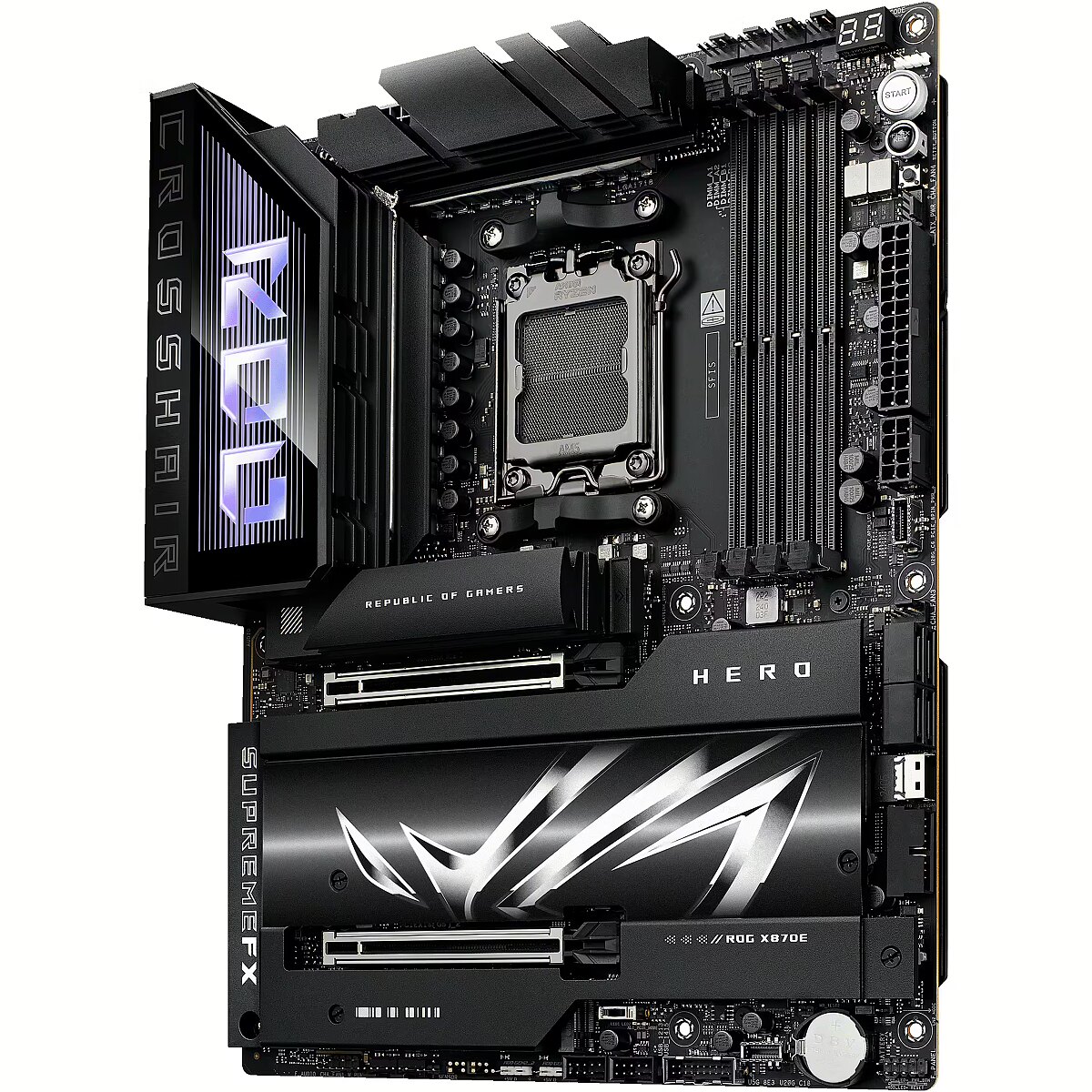

Asus ROG CROSSHAIR X870E HERO

+
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
+ Gift Doom: The Dark Ages Game Bundle worth 99 eur
ID: 1147006 Product code: 90MB1IE0-M0EAY0
In stock 17 units
Warranty: 3 years
614.20 €
Ready for dispatch
on Thuesday, 17.06.2025
starting from 1.99 €
Delivery options
  • Omniva parcel machine
    Within 1-2 working days
    1.99 €
  • SmartPosti parcel terminal
    Within 1-2 working days
    1.99 €
  • Delivery by courier to the address
    Within 1-2 working days
    5.99 €
Main product parameters All parameters
  • Series: ASUS ROG CROSSHAIR
  • Plate size: ATX
  • Chipset: AMD X870E
  • Socket: AM5
  • Type: DDR5
  • RAM Slots: 4
  • Built-in Wi-Fi: Ir
  • M.2 ports: 5
Basic information
Series : ASUS ROG CROSSHAIR
Plate size ATX

The physical size of the motherboard. TopPC.ee offers ATX (full size board), mATX (micro ATX) (a board of reduced size) and miniATX size motherboards. Within the housing of an ATX size computer it is possible to place both ATX and mATX motherboard, however, in the mATX housing it is not possible to place an ATX board.

The ATX board has at least 3 memory slots and at least 5 local slots PCI, which means that a well functioning powerful computer can be built on this board. However, a home or office computer does not need this high number of slots, therefore also microATX will be suitable.

The connector of the power supply unit of the motherboard is the power source socket which are currently of ATX and ATX2.0 standard. ATX is an older standard with a 20pin connector (20 "pins"), and ATX2.0 has 4 additional pins (20+4). The motherboards of ATX standard can operate with a ATX2.0 power supply unit (PSU), however the mother board of ATX2.0 standard requires an ATX2.0 power supply unit.

Form-factor is rather a recommendation. However, prior to buying a mother board you should verify the compatibility of the housing size to the motherboard size and its power supply connector.

Chipset AMD X870E

The chip bus is the most important criterion of selecting the motherboard (the system logic chips or the voltage transformers). The chip bus determines the CPUs, memory ports and other parameters that are supported by the motherboard.

Each chipset is directly related to a certain CPU platform which are divided based upon the family of CPUs or the connection point of the CPU.

For verifying which chip bus is suitable for your CPU, etc. you should ask our managers.
Socket AM5
The CPU socket is an important factor in selecting the board; the CPU board must be exactly compatible with the CPU that you want to install with the board. Irrespective of the fact that the CPU fits the socket of the motherboard also the support of this CPU has to be taken into account. For verifying which CPUs are supported by the selected motherboard you should visit the website of the manufacturer of the motherboard, find the CPU support section of the relevant motherboard and verify that the specification of this particular board provides for the support of the CPU that you have selected.
Random-access memory (RAM)
Type : DDR5
RAM Slots 4
The number of available memory slots indicates the number of memory modules (plates) that can be installed in the motherboard.
Memory support DDR5 5600MT/s (8200MT/s OC)

The RAM bus determines what type of RAM is supported by the relevant motherboard.

The bus marking contains the memory type DDRII or DDRIII as well as the maximum memory clock frequency that is supported by the mother board. The type of memory is the most important index, memories of different types are physically different, therefore DDRIII memory cannot be connected to the mother board that supports DDRII memory (except the cases when the motherboard supports both types of memory). However the motherboard that support 800Mhz DDRII memory can work with the memory speeds of DDII667 and DDRII533. The mother board with the memory bus speed below the speed of the memory module will be able to operate as fast as the specified bus speed only, i.e. if the memory bus of the motherboard is DDRII667 and the memory DDRII800 is installed it will operate with the speed of DDRII667.

Graphics card
VGA Port PCI-EXPRESS
VGA port or the video card plug. The VGA port must comply with the specification of the video card port you have selected. Older video cards have an AGP port, new cards are manufacturer with a PCI-EXPRESS (PCI-X) port.AGP and PCI-Xpress video cards are not mutually compatible. Prior to buying the motherboard you should verify the compliance of the video card port of both the motherboard and the video card.
Integrated graphics Only with iGPU-ready APU

The parameter that determines whether a video card has been integrated with the motherboard. An integrated video card is suitable for working with the office software, Internet, watching films and playing simple games. If you wish to use graphics applications, play 3D games and watch 3D animations you would need an additional video card.

An integrated video card uses a fraction of the memory included in the mother board, therefore, if your motherboard has 1Gb memory and in the settings of the video card of the mother board it is stated that it takes 256mb the operating system will display the available memory volume of approximately 700 Mb.
Prior to buying a motherboard with a built-in video card you should verify whether it has an additional video card port for further upgrades if these are required

Ports and equipment
D-Sub : 0
DisplayPort : 0
DVI : 0
HDMI : 1
Integrated sound card : Realtek ALC4082
PCI Ports 0
PCI ports present the most popular way of supplementing the computer functions with additional cards (sound, network, communications, video surveillance, etc.). Newer boards, thanks to the PCI-Express standard, have a small number of PCI extension ports, therefore, prior to buying the motherboard you should verify if the number of PCI ports allows the connection of all the PCI cards you need.
Wireless connections
Built-in Bluetooth : Ir
Built-in Wi-Fi : Ir
External ports
External USB 2.0 : Nav
External USB Type-C (USB 3.2 Gen2) : 2
External USB Type-C (USB 4.0) : 2
External USB 3.0 (USB 3.2 Gen1) : 0
External USB 3.1 (USB 3.2 Gen2) : 6
Internal ports
Internal A-RGB 5V (3-pin) : 3
Internal RGB 12V (4-pin) : 0
Internal USB 2.0 : 2
Internal USB 3.0 : 2
Internal USB Type-C : 2
M.2 ports : 5
SATA3 ports : 4
Receive a Steam code worth 60Eur as a gift
Gift Doom: The Dark Ages Game Bundle worth 99 eur
Power supply units (PSU)
More detailed specification
Additional information in manufacturers website Asus ROG CROSSHAIR X870E HERO

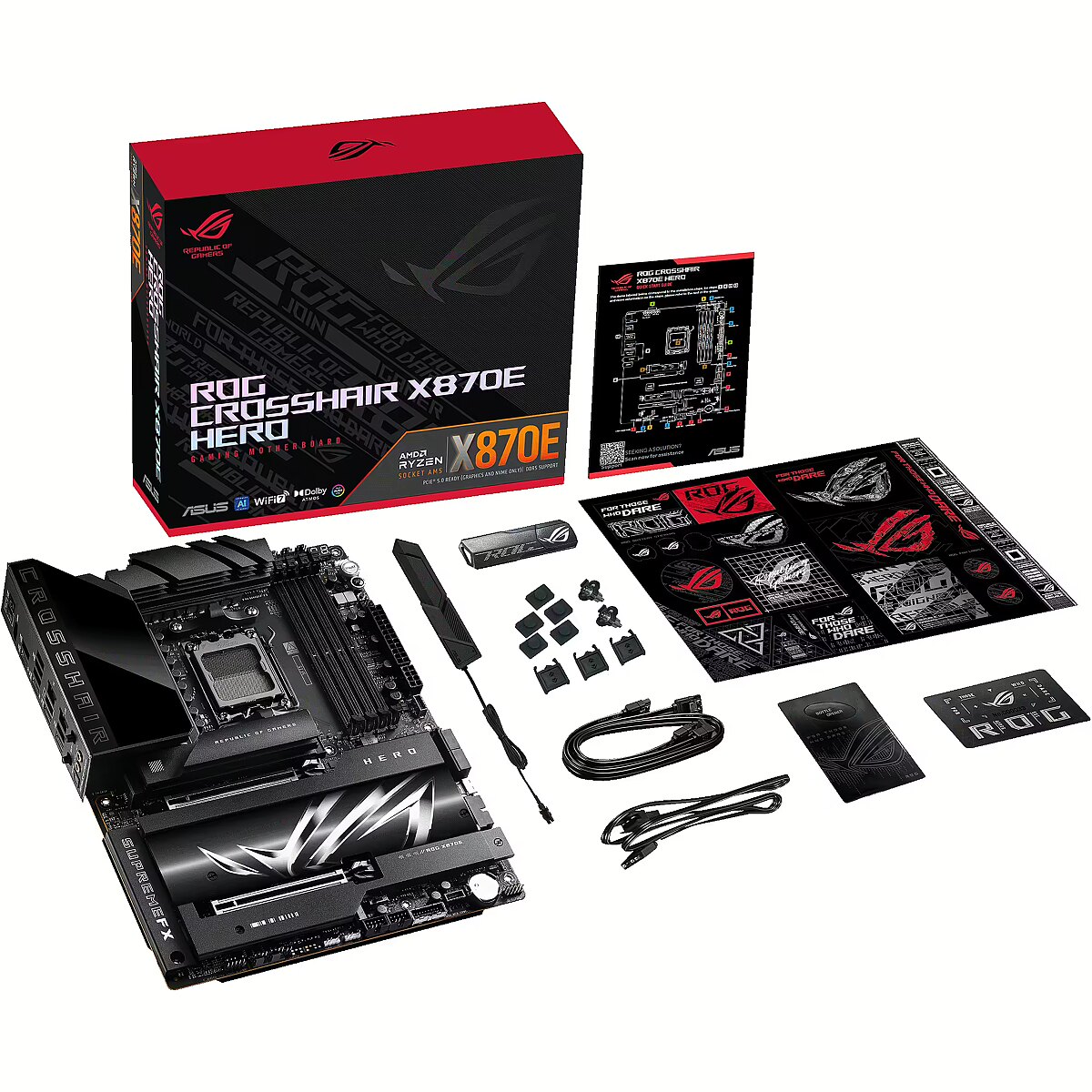

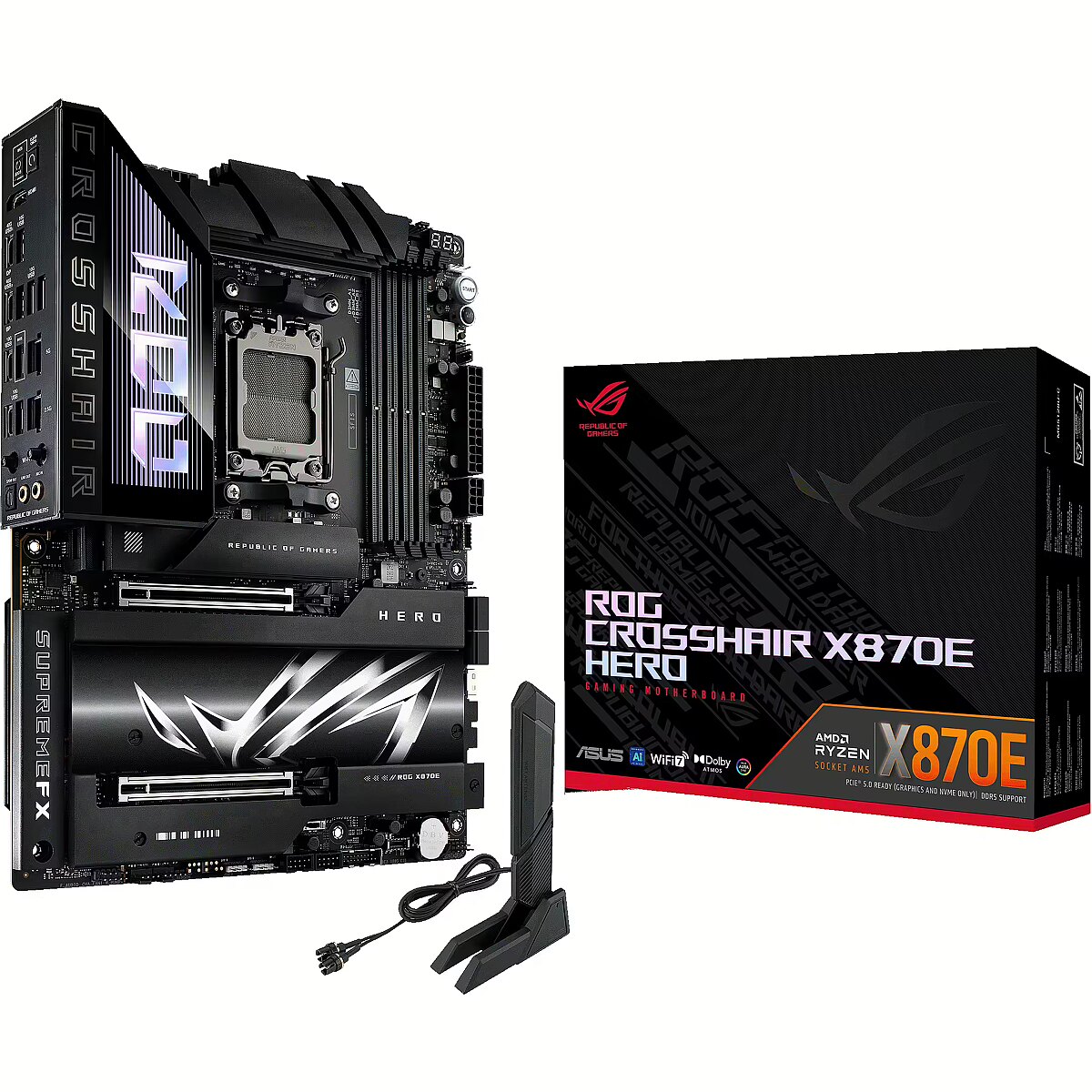

Accessories included - ARGB RGB Extension Cable 4 x SATA 6Gb/s Cables ASUS WiFi Q-Antenna Q-Connector 2 x M.2 Q-Latch Pack 3 x M.2 Q-Slide Pack 5 x M.2 Rubber Pack ROG Stickers ROG Thank You Card ROG Bottle Opener USB Drive with Tools and Drivers Quick Start Guide
Audio-In Input/Output connectors - 1
Audio-Out Input/Output connectors - 1
BIOS - 256Mb Flash ROM, UEFI AMI BIOS
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - UEFI AMI
BIOS - Clear CMOS button - Yes
Brand - ASUS
BrandPartCode - 90MB1IE0-M0EAY0
Category - Datortehnika :: Datoru komponentes :: Pamatplates
Category - Motherboards
category - PC Components|Mainboards|AMD Mainboards|Socket AM5
Category - Root/Electronics/PC parts/Motherboards
Category 1 - Mainboards & Zubehör
Category 2 - Mainboards - AMD
Category Code - MBA
Chipset - AMD X870E
Chipset manufacturer - AMD
Chipset type - AMD X870E
code - 90MB1IE0-M0EAY0
Code - 90MB1IE0-M0EAY0
Code - ROG CROSSHAIR X870E HERO
COM connector / port - No
CPU socket - Socket AM5
Dane techniczne: Chipset płyty głównej - AMD X870E
Dane techniczne: Grupa produktowa - Płyty główne Asus
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Producent - Asus
Dane techniczne: Przeznaczenie - AMD
Dane techniczne: Standard płyty - ATX
Desc - Mikroshēmu tips | chipset: AMD X870E, Plates formfaktors: ATX, Procesora ražotājs: AMD, Ligzda: AM5, DDR tips: DDR5, Atmiņas sloti: 4, Max atmiņas apjoms: 192GB, WiFi: Ir, M.2 Pieslēgumi: 5, Garantija: 2 gadi
Description - ROG Crosshair X870E HERO
The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Description - The AI PC-ready ROG Crosshair X870E Hero offers unyielding power delivery, robust thermal management, hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support to unleash the performance of AMD Ryzen™ 9000 Series processors. Dark hues predominate across this motherboard, drawing your attention to premium metallic textures, nickel-plated surfaces, sleek contours and a stereoscopic visual effect on the large M.2 and chipset heatsink. This board also features the Polymo Lighting II effect. This upgraded lighting module built into the I/O shroud provides more dynamic RGB illumination for the signature ROG logo.
Designation - CE+WEEE
Detailed data on disk/drive interfaces - Supports 5 x M.2 slots and 1 x SlimSAS connector and 4 x SATA 6Gb/s ports* AMD Ryzen 9000 and 7000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 (M-Key) socket, type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 (M-Key) socket, type 2242/2260/2280 (supports PCIe 4.0 mode) x4) M.2_2 (M-Key) Socket, Type 2242/2260/2280 (Not Supported) M.2_3 (M-Key) Socket, Type 2242/2260/2280 (Not Supported) AMD X870E Chipset M.2_4 (M-Key) Socket, Type 2242/2260/2280 (Supports PCIe 4.0 x4 mode) M.2_5 (M-Key) Socket, Type 2280 (Supports PCIe 4.0 x4 mode) SlimSAS Socket Supports PCIe 4.0 x4 mode. 4 x SATA 6Gb/s ports *AMD RAIDXpert2 technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 is only supported by AMD Ryzen 9000 series processors. ** When M.2_2 and M.2_3 are enabled at the same time, PCIEX16_2 will be disabled. *** When M.2_3 is enabled, PCIEX16_1 will run x8 and PCIEX16_2 will run x4, M.2_2 will be disabled.
dimensionalWeight - 2723
dimension depth - 120 mm
dimension height - 310 mm
Dimensions - 30.5 cm x 24.4 cm
dimension weight - 4000 g
dimension width - 370 mm
Dźwięk: Zintegrowana karta dźwiękowa - tak (Realtek ALC4082 7.1)
EAN - 4711387710302
ean - 4711387710302
Eans - 4711387710302
Expansion slots - 2 x PCIe 5.0 x16
Expansion slots - 4 x PCIe 4.0 x 16
Expansion slots - 5 x M.2
Expansion slots - Number of M.2 (M) slots - 5
Expansion slots - PCI Express x16 (Gen 4.x) slots - 4
Expansion slots - PCI Express x16 (Gen 5.x) slots - 2

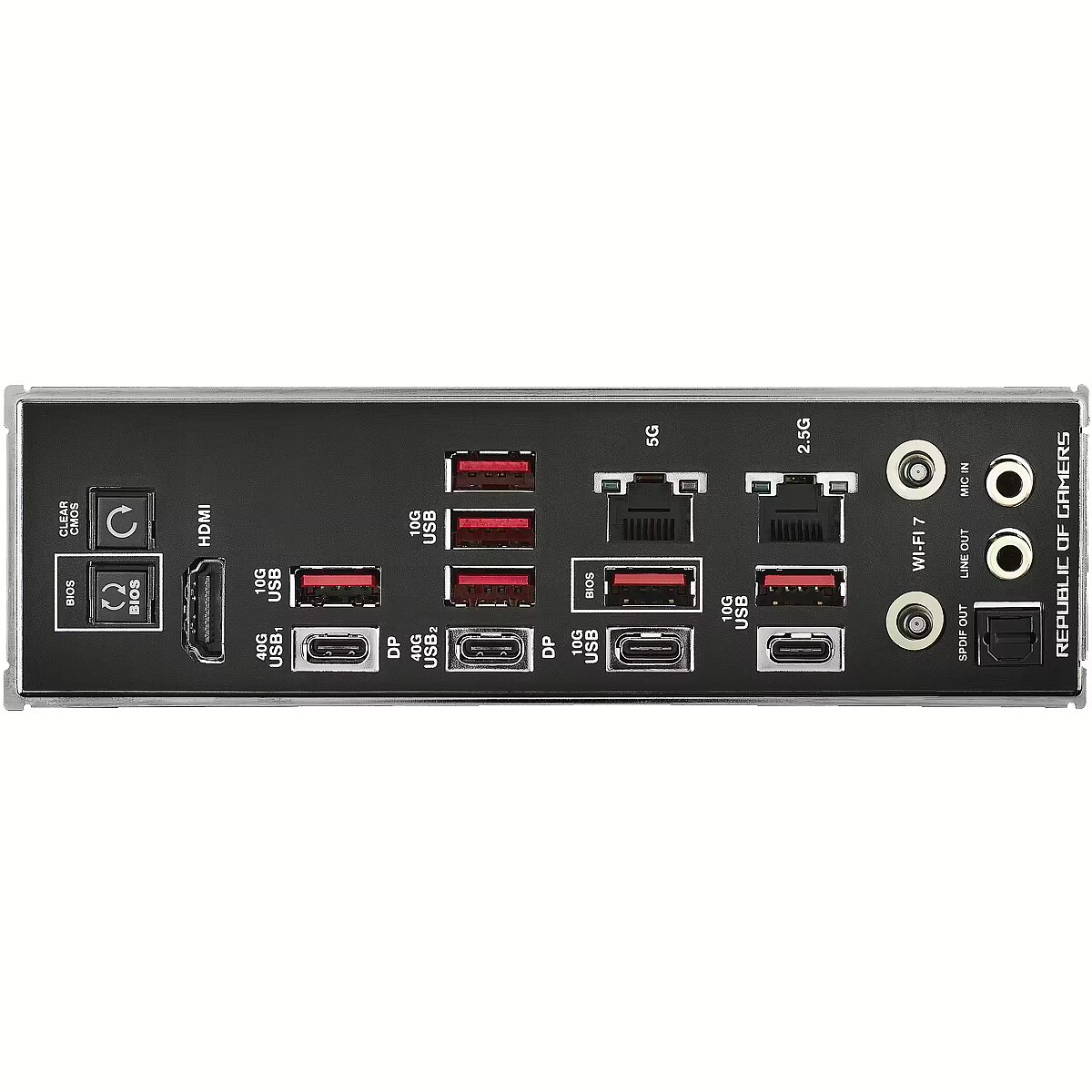

External connectors - 1 x HDMI
External connectors - 1 x Line Out (front)
External connectors - 1 x MIC (front)
External connectors - 1 x Przycisk Clear CMOS
External connectors - 1 x S/PDIF
External connectors - 1 x USB BIOS Flashback button
External connectors - 2 x RJ-45
External connectors - 2 x USB 3.1 Type-C
External connectors - 2 x USB4 Type-C
External connectors - 6 x USB 3.1
Features - Audio chip - Realtek ALC4082
Features - Audio output channels - 7.1 channels
Features - Component for - PC
Features - Motherboard chipset - AMD X870E
Features - Motherboard chipset family - AMD
Features - Motherboard form factor - ATX
Features - Windows operating systems supported - Windows 11
FireWire (IEEE 1394) - No
Form Factor - ATX
Form factor - ATX
Frequency speed - 8000/8200/8600 MHz
Full Description Line - AMD X870E|SAM5|ATX|DDR5|8600/8200/8000 MHz|Memory slots 4|2xPCI-Express 4.0 16x|2xPCI-Express 5.0 16x|4xM.2|1xHDMI|1xAudio-In|1xAudio-Out|6xUSB 3.2|2xUSB-C|2xUSB4|1xOptical S/PDIF|1xRJ45|SATA|SATA 3.0|Video|Audio Realtek ALC4082|LAN 2.5 Gigabit|RAID SATA 0, 1, 5, 10
Graphics - 1 x HDMI port* 2 x USB4 (40Gbps) ports support USB Type-C display output** *Supports 4K@60Hz as per HDMI 2.1 specification. **Supports up to 4K@60Hz as per DisplayPort 1.4a specification
Graphics - Parallel processing technology support - Not supported
GTIN - 4711387710302
guarantee - 36
guarantee_type - normal
HDMI Input/Output connectors - 1
ImageUrl - https://www.balticdata.lv/Gfx/ProductImages/Info/Product_122570_1.jpg
Integrated audio - Realtek ALC4082
Integrated CPU - No
Integrated LAN - 2.5 Gigabit
Integrated video - Yes
Internal I/O - 12V power connector - Yes
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - EPS power connector (8-pin) - Yes
Internal I/O - Front panel audio connector - Yes
Internal I/O - Number of chassis fan connectors - 4
Internal I/O - Number of SATA III connectors - 4
Internal I/O - USB 2.0 connectors - 2
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 2
Internal I/O - USB 3.2 Gen 2x2 connectors - 2
Internal I/O > Number of SATA connectors - 4
Internal I/O > Supported hard disk drive interfaces - SATA, M.2
Komunikacja: Karta bezprzewodowa - Wi-Fi 7 | Bluetooth 5.4
Komunikacja: Transmisja danych - 2 x LAN
Komunikacja: Transmisja danych - Bluetooth
Komunikacja: Transmisja danych - Wi-Fi
Komunikacja: Zintegrowana karta sieciowa - tak (Realtek 5Gb Ethernet | Intel 2.5 Gb Ethernet)
LargeDescHTML -
Link - https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
LongDesc - ASUS AI INTELLIGENCEAI NETWORKING IIAI Networking II combines intelligent technologies to continuously optimize network performance, provide trustworthy and seamless connectivity, and unleash the full speed of WiFi 7*.ai OVERCLOCKINGTuning is now faster and smarter than ever before.AI COOLING IIBalance the thermals and acoustics of any build with a single click.PerformanceOVERCLOCKINGDynamic OC SwitcherDynamic OC Switcher maximizes CPU performance by letting you set current and temperature thresholds to automatically switch between a manual overlock for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard has an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.
LongProductName - Teamed Power Solution, AI Networking II, Overclocking Effortless performance boost, AI Cooling II, DDR5 Max. 192GB, NitroPath DRAM Technology, AEMP, PCIe Gen 5, WIFI 7
LongSummaryDescription - ASUS ROG CROSSHAIR X870E HERO. Processor manufacturer: AMD, Processor socket: Socket AM5, Supported processor sockets: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10, 5. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
LPT connector / port - No
M.2 Expansion slots - 4
Manufacturer - ASUS
Max. number of SATA devices - 4
Max memory size - 192 GB
Memory - ECC сompatibility - ECC & Non-ECC
Memory - Maximum internal memory - 192 GB
Memory - Memory channels - Dual-channel
Memory - Memory slots type - DIMM
Memory - Number of memory slots - 4
Memory - Supported memory types - DDR5-SDRAM
Memory - Unbuffered memory - Yes
Memory > Supported memory types - DDR5
Memory bus frequency - 7000 MHz
Memory bus frequency - 8000 MHz
Memory bus frequency - 8200 MHz
Memory bus frequency - 8600 MHz
Memory bus frequency - 9000 MHz
Memory slots - 4
Memory type - DDR5
Memory type - DDR5
Model - ROG CROSSHAIR X870E HERO
MPN - 90MB1IE0-M0EAY0
Name - AM5 ASUS ROG CROSSHAIR X870E HERO ATX
Name - ASUS ROG CROSSHAIR X870E HERO
name - ASUS ROG Crosshair X870E Hero Mainboard, AMD X870E, Sockel AM5, DDR5
Name - Asus ROG CROSSHAIR X870E HERO | Processor family AMD | Processor socket AM5 | DDR5 | Supported hard disk drive interfaces SATA, M.2 | Number of SATA connectors 4
Name - Pamatplate Asus ROG CROSSHAIR X870E HERO
name - ROG CROSSHAIR X870E HERO AM5 4DDR5 HDMI/USB-C
Network - Bluetooth - Yes
Network - Bluetooth version - 5.4
Network - Ethernet interface type - 2.5 Gigabit Ethernet
Network - Ethernet interface type - 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Network - Ethernet interface type - 5 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Top Wi-Fi standard - Wi-Fi 7 (802.11be)
Network - Wi-Fi - Yes
Network - Wi-Fi standards - Wi-Fi 7 (802.11be)
Network interface - 1 x 10/100/1000/2500 Mbit/s
Network interface - 1 x 10/100/1000/2500/5000 Mbit/s
Network interface - Bluetooth
Network interface - Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6 GHz frequency band** Supports Wi-Fi 7 320 MHz band, up to 6.5 Gbps transfer speed. Bluetooth v5.4*** * Wi-Fi features may vary by OS
For Windows 11, Wi-Fi 7 will require version 24H2 or later for full functionality, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, please note that there is no driver available, please refer to the Wi-Fi chipset vendor's website for details.
** Wi-Fi 6 GHz frequency band and bandwidth regulations may vary by country.
***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Network interface - Wi-Fi 802.11a/b/g/n/ac/ax/be
Number of DDR5 slots - 4
Number of USB 3.0/USB 3.1 gen 1/USB 3.2 gen 1 ports - 6
Number of USB 3.1/USB 3.1 gen 2/USB 3.2 gen 2 ports - 10
Onboard connectors - 1 x 4-pin water-pump-fan
Onboard connectors - 1 x 4pin CPU/Water Pump Fan Connector
Onboard connectors - 1 x 4pin CPU fan
Onboard connectors - 1 x 4pin wentylator OPT CPU
Onboard connectors - 1 x 8pin 12V power
Onboard connectors - 1 x 24pin ATX zasilanie
Onboard connectors - 1 x Flex Key pin
Onboard connectors - 1 x Front panel audio header
Onboard connectors - 1 x OC PCIe switch
Onboard connectors - 1 x ReTry button
Onboard connectors - 1 x Thermal sensor connector
Onboard connectors - 2 x USB 2.0/1.1 header
Onboard connectors - 2 x USB 3.0 header
Onboard connectors - 2 x USB C
Onboard connectors - 3 x Addressable LED
Onboard connectors - 4 x 4pin Chassis fan
Onboard connectors - 4 x SATA III 6Gb/s
Onboard connectors - 5 x M.2
Optical S/PDIF Input/Output connectors - 1
Other features - Weight - 2.55 kg
Other information -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 305.00 mm
Package features > Gross height (mm) - 100.00 mm
Package features > Gross width (mm) - 234.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 121 pc(s)
Package features > Paper/Pasteboard - 80.00 g
Package features > Plastic (No PET) - 20.00 g
Package features > Tare weight (kg) - 0.10 kg
Package features > Volume (m3) - 0.01 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - SATA
Packaging content - Drivers included - Yes
Packaging data - Package depth - 312 mm
Packaging data - Package height - 108 mm
Packaging data - Package weight - 4.26 kg
Packaging data - Package width - 370 mm
Pamięć: Dwukanałowa obsługa pamięci - tak
Pamięć: Ilość gniazd pamięci - 4 szt.
Pamięć: Maks. pojemność pamięci - 256 GB
Pamięć: Obsługiwana pamięć - DDR5
Pamięć: Rodzaj obsługiwanej pamięci - DIMM (do PC)
Pamięć: Typ obsługiwanej pamięci - DDR5-4800 (PC5-38400)
Pamięć: Typ obsługiwanej pamięci - DDR5-5000 (PC5-40000)
Pamięć: Typ obsługiwanej pamięci - DDR5-5200 (PC5-41600)
Pamięć: Typ obsługiwanej pamięci - DDR5-5400 (PC5-43200)
Pamięć: Typ obsługiwanej pamięci - DDR5-5600 (PC5-44800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6000 (PC5-48000)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6200 (PC5-49600)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6400 (PC5-51200)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6600 (PC5-52800)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-6800 (PC5-54400)
Pamięć: Typ obsługiwanej pamięci OC - DDR5-7000 (PC5-56000)
PCI-Express 4.0 16x Expansion slots - 2
PCI-Express 5.0 16x Expansion slots - 2
Procesor: Gniazdo procesora - Socket AM5
Procesor: Maks. ilość obsługiwanych procesorów - 1
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 3 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 5 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 7 - seria 9000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 7000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 8000
Procesor: Obsługiwane typy procesorów - AMD Ryzen 9 - seria 9000
Processor - Processor manufacturer - AMD
Processor - Processor socket - Socket AM5
Processor - Supported processor sockets - Socket AM5
Processor > Processor family - AMD
Processor > Processor socket - AM5
Processor family - AMD Ryzen 3
Processor family - AMD Ryzen 5
Processor family - AMD Ryzen 7
Processor family - AMD Ryzen 9
Producent: Nazwa producenta / importera - AsusASUS COMPUTER GmBHHARKORT STR. 21-2340880 RATINGENNiemcyEmail: https://www.asus.com/support/Product/ContactUs/Services/questionform/?lang=en&utm_source=asus-qr&utm
producer - Asus
Producer - Asus
producerCode - 90MB1IE0-M0EAY0
ProducerCode - ROG CROSSHAIR X870E HERO
productName - ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
ProductName - ROG CROSSHAIR X870E HERO
Product Net Weight - 3.2 kg
productSize - Normal
RAID - SATA 0, 1, 5, 10
RAID - Yes
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 2
Rear panel I/O ports - HDMI ports quantity - 1
Rear panel I/O ports - Headphone outputs - 1
Rear panel I/O ports - Microphone in - Yes
Rear panel I/O ports - S/PDIF out port - Yes
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 6
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Rear panel I/O ports - USB4 Gen 2x2 ports quantity - 2
Rear panel I/O ports - WiFi-AP antenna jack - 1
RJ45 Input/Output connectors - 1
SATA 3.0 Interface - Yes
SATA Interface - Yes
Shipping Box Depth Shipping/Package Box Dimensions - 46 cm
Shipping Box Height Shipping/Package Box Dimensions - 33.5 cm
Shipping Box Weight Shipping/Package Box Dimensions - 17.25 kg
Shipping Box Width Shipping/Package Box Dimensions - 38.5 cm
ShortDescription - Socket AM5 | Chipset AMD X870E | DDR5
ShortSummaryDescription - ASUS ROG CROSSHAIR X870E HERO, AMD, Socket AM5, Socket AM5, DDR5-SDRAM, 192 GB, DIMM
sizeX - 375
sizeY - 313
sizeZ - 116
Socket - SAM5
Software - ROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
- Polymo Lighting II
ASUS Exclusive Software
- Armoury Crate
- AIDA64 Extreme (1-year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
WinRAR (40-day free trial)
Adobe Creative Cloud (free trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Sound card - ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082*
- Impedance detection for front and rear headphone outputs
- Supports: jack detection, streaming, microphone jack repurposing on the front panel
- High-quality stereo playback output SNR 120 dB and recording input SNR 110 dB
- Supports up to 32-bit/384 kHz playback on the front panel
Audio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- Gold-plated audio jacks
- Rear optical S/PDIF output port
- Premium audio capacitors
* A chassis with an HD audio module on the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support surround sound. If you want to use surround sound, connect an audio output device to the audio jack on the front panel of the case or use a USB audio device.
Special functions -
Storage controllers - Number of HDDs supported - 5
Storage controllers - Number of storage drives supported - 10
Storage controllers - RAID levels - 0
Storage controllers - RAID levels - 0, 1, 10, 5
Storage controllers - RAID levels - 1
Storage controllers - RAID levels - 5
Storage controllers - RAID levels - 10
Storage controllers - RAID support - Yes
Storage controllers - Supported storage drive interfaces - M.2, SATA III, SlimSAS
Storage controllers - Supported storage drive types - HDD & SSD
Supported operating systems - Windows 11
Technical details > Gross weight - 0.88 kg
Technical details > Net weight - 0.78 kg
Technical details > Producer - Asus
Technical details > Producer product name - ROG CROSSHAIR X870E HERO
Technical details > Warranty - 36 month(s)
Title - ASUS ROG CROSSHAIR X870E HERO AMD X870E Socket AM5 ATX
Unit Calculated Volume - 0.01483 cubm
Unit Calculated Weight - 4.31 kg
Units per Shipping Box - 4
URL - https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
USB-C Input/Output connectors - 2
USB 3.2 Input/Output connectors - 6
USB4 Input/Output connectors - 2
USB ports at back panel - 10
USB ports on motherboard - 10
Vendor Homepage - rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-hero/
vendpn - ROG CROSSHAIR X870E HERO
Warranty - 36
Warranty - 36 months
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 4.04
weight - 4036
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 50 mm
Weight & dimensions - Width - 305 mm
Wymiary: Szerokość - 244 mm
Wymiary: Wysokość - 305 mm
Złącza: Obsługa Raid - tak (0, 1, 10)
Złącza: Wtyczka zasilania - ATX 24pin
Złącza: Złącza dla dysków i napędów - 4 x Serial ATA III
Złącza: Złącza na płycie głównej - 1 x 8-pin PCIe
Złącza: Złącza na płycie głównej - 1 x Audio
Złącza: Złącza na płycie głównej - 1 x SlimSAS
Złącza: Złącza na płycie głównej - 2 x 8-pin ATX 12V
Złącza: Złącza na płycie głównej - 2 x gniazdo M.2 (PCIe 4.0)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen1)
Złącza: Złącza na płycie głównej - 2 x USB 3.2 (Gen2 x2) typ C
Złącza: Złącza na płycie głównej - 3 x gniazdo M.2 (PCIe 5.0)
Złącza: Złącza na tylnym panelu - 1 x HDMI
Złącza: Złącza na tylnym panelu - 2 x RJ45
Złącza: Złącza na tylnym panelu - 2 x USB 3.2 (Gen2) typ C
Złącza: Złącza na tylnym panelu - 2 x USB4
Złącza: Złącza na tylnym panelu - 6 x USB 3.2 (Gen2)
Złącza: Złącza na tylnym panelu - Audio
Złącza: Złącza na tylnym panelu - gniazdo anteny Wi-Fi
Złącza: Złącza na tylnym panelu - SPDIF out
Złącza: Złącza PCI-E (liczba slotów) - 2 x PCI-Express x16
614.20 €
Asus ROG CROSSHAIR X870E HERO
  • Asus ASUS DOOM: The Dark Ages Premium Edition
Intel technology provider Platinum 2020
All categories
